| Content | BirdDog Eyes P200 Camera: Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI simultaneously.
BirdDog PTZ Keyboard: BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols. | About BirdDog Eyes A200
BDA200 PTZ camera utilises BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.
Designed for serious production the image quality of A200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and NDI simultaneously.
A200 is IP67 rating for outdoor and indoor use. Corrosion Resistant treated housing for salt spray environment. -40 Degree C to +60 Degree C operating temperature. It even has a rain wiper to keep water off the lens. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world's first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
A200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. A200 is also compatible with BirdDog PTZ Keyboard for ultimate control. | Bring UHD 4K quality video to your production with the white AW-UE150K UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility. With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video. A cropping function enables you to create a multicamera look by selecting up to three angles from a single 4K image.
The AW-UE150K camera supports embedded audio and audio input via a stereo mini-jack. Its redesigned web interface is compatible with PCs, Macs, tablets, and both Android and iOS smartphones. Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP. The AW-UE150W is upgradable to NDI/HX compatibility with a separately available license.
PoE++ Compatible
Power the camera using a separately available PoE++ (IEEE802.3bt) hub to minimize installation costs
Firmware Upgrade v2.28
Add V-Log output, a UHD crop function for 720/59.94p and 720/50p, a preset iris on/off function, and more by upgrading to firmware version 2.28
Features
-Large 1" type MOS sensor
-HDMI, SDI, and IP output up to UHD 4K
-20x optical, 32x iZoom in HD, 24x iZoom in UHD 4K
-Wide 75.1° horizontal angle of view (DRS)
-High Dynamic Range (HDR) mode with BT.2020 gamut support
-Optical Image Stabilization (IOS)
-Crop up to three shots from a single 4K image
-Large, adjustable tally light
-Adaptive Matrix function adjusts for strong LED blue light
1/4, 1/16, 1/64 ND filters
-Audio input and embedding
-Improved web UI for use with PC, tablet, or smartphone (iOS, Android)
-Maximum 180°/s pan/tilt in high-speed mode
-Monochrome Night Mode
-Digital Noise Reduction (DNR)
-Live streaming via RTMP
-Upgradable to NDI/HX with license
Video Output
- HDMI 2.0 standard 4:2:2/10bit
- HDCP is not supported.
- Viera Link is not supported.
- 12G-SDI OUT
- SMPTE 2082‑1 standard / 75 Ω (BNC x 1)
- 3G-SDI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Level-A/Level-B supported
- MONI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Optical Fiber SFP+ standard
- Single Fiber
- The signal sent is the same as 12G-SDI OUT.
- his unit does not support input by optical signals.
Zoom
- Optical zoom: 20x
- i.Zoom: UHD 24x, FHD 32x
- Digital zoom: 10x
Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Power Requirements: 12 V DC (10.8 V to 13.2 V)
PoE++: IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity: 20 % to 90 % (no condensation)
Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Mass: Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D): 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket)
Finish
- AW‑UE150WP/AW‑UE150WE: Pearl white
- AW‑UE150KP/AW‑UE150KE: Black
Controller Supported: AW-RP150GJ, AW-RP60GJ (Support planned for the future)*1, AW-RP50*1, AK-HRP1000GJ*1, AK-HRP1005GJ*1
Camera Unit
Imaging Sensors: 1-type 4K MOS×1
Lens
- Motorized Optical 20x zoom, F2.8 to F4.5
- [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
Conversion Lens: Not supported
Angle of View Range
- Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
- Vertical angle of view: 46.7° (wide) to 2.3° (tele)
- Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus: Switching between auto and manual
Focus Distance
- Entire zooming range: 1000 mm (3.3 ft)
- Wide end: 100 mm (0.33 ft)
Color Separation Optical System: 1MOS
Standard Sensitivity: F9, 2000 lx (When normal mode is selected)
Minimum Illumination: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N: 60 dB or more
Horizontal Resolution: 1600 TV lines Typ (Center area)
Gain Selection
- Auto, 0 dB to 36 dB*2
- Super Gain function equipped : 37 dB to 42 dB
Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed
- 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan
- 59.94p/59.94i: 60.00 Hz to 7200 Hz
- 29.97p: 30.00 Hz to 7200 Hz
- 23.98p/24p: 24.00 Hz to 7200 Hz
- 50p/50i: 50.00 Hz to 7200 Hz
- 25p: 25.00 Hz to 7200 Hz
Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
White Balance
- ATW : 3200K, 5600K
- ATW Speed : Normal / Slow / Fast
- AWB : AWB-A / AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability: OFF, –99 % to 99 %
Scene File: Scene1, Scene2, Scene3, Scene4
Output Format
- 4K: 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
- HD: 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF,1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i,720/59.94p, 720/50p
Synchronization System: Internal / External synchronization (BBS / Tri-level sync)
INPUT
Input Connector
- DC 12 V IN, G/L IN (BNC)
- BBS (Black Burst Sync), tri-level sync supported
Input/Output Connector:
- LAN
- LAN connector for IP control (RJ‑45)
- RS-422
- CONTROL IN RS-422A (RJ‑45)
- MIC/LINE input
- ø 3.5 mm stereo mini jack Input impedance: High impedance
- During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
- During LINE input Input level: Approx. –10 dBV ±3 dBV
Pan-tilt Head Unit
Camera/Pan-tilt Head Control:
- IP connecting cable
- LAN cable*6*7: (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft)
- AW protocol connecting cable
- LAN cable*6 (category 5e or above, straight cable)
- max. 1000 m (3280 ft)
Installation Method: Stand-alone (Desktop) or suspended (Hanging)
Pan/tilt Operation Speed
- Minimum speed 0.08°/s
- Maximum speed 60°/s or higher
- Maximum speed is 180°/s in high-speed mode
Panning Range: ±175°
Tilting range: –30° to 210° 0
Quietness: NC35 or less
Supported operating systems and web browsers
- Windows
- Microsoft® Windows® 7, 10
- Windows® Internet Explorer® 11 (64‑bit/32‑bit)
- Microsoft Edge
- Google Chrome
- Mac
- Mac OS 10.13
- Mac OS 10.12
- Mac OS 10.11,
- Safari 11
- Google Chrome
- iPhone / iPad
- iOS 11.4.1
- Google Chrome
IP Streaming
Image Streaming Mode: JPEG (MJPEG), H.264, H.265
Image Transmission setting (JPEG):
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
Image Transmission Setting (H.264)
- Image quality (Motion priority / Image quality priority) UHD 60 fps / 50 fps
- Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Transmission Priority: Constant bit rate, Frame rate, Best effort
- Frame Rate: [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)[50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
- Max Bit Rate
- HD:512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps
- UHD:12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265)
- Image Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Frame Rate: [60Hz] 30fps, [50Hz] 25fps
- Max Bit Rate: 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
- Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol
- IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP,MLD, ICMP, ARP, RTMP, RTMPS
- IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS
Other Function
NDI support: NDI | HX
Tally LED display color: red / green | Bring UHD 4K quality video to your production with the white AW-UE150W UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility. With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video. A cropping function enables you to create a multicamera look by selecting up to three angles from a single 4K image.
The AW-UE150W camera supports embedded audio and audio input via a stereo mini-jack. Its redesigned web interface is compatible with PCs, Macs, tablets, and both Android and iOS smartphones. Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP. The AW-UE150W is upgradable to NDI/HX compatibility with a separately available license.
PoE++ Compatible
Power the camera using a separately available PoE++ (IEEE802.3bt) hub to minimize installation costs
Firmware Upgrade v2.28
Add V-Log output, a UHD crop function for 720/59.94p and 720/50p, a preset iris on/off function, and more by upgrading to firmware version 2.28
Features
-Large 1" type MOS sensor
-HDMI, SDI, and IP output up to UHD 4K
-20x optical, 32x iZoom in HD, 24x iZoom in UHD 4K
-Wide 75.1° horizontal angle of view (DRS)
-High Dynamic Range (HDR) mode with BT.2020 gamut support
-Optical Image Stabilization (IOS)
-Crop up to three shots from a single 4K image
-Large, adjustable tally light
-Adaptive Matrix function adjusts for strong LED blue light
1/4, 1/16, 1/64 ND filters
-Audio input and embedding
-Improved web UI for use with PC, tablet, or smartphone (iOS, Android)
-Maximum 180°/s pan/tilt in high-speed mode
-Monochrome Night Mode
-Digital Noise Reduction (DNR)
-Live streaming via RTMP
-Upgradable to NDI/HX with license
Video Output
- HDMI 2.0 standard 4:2:2/10bit
- HDCP is not supported.
- Viera Link is not supported.
- 12G-SDI OUT
- SMPTE 2082‑1 standard / 75 Ω (BNC x 1)
- 3G-SDI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Level-A/Level-B supported
- MONI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Optical Fiber SFP+ standard
- Single Fiber
- The signal sent is the same as 12G-SDI OUT.
- his unit does not support input by optical signals.
Zoom
- Optical zoom: 20x
- i.Zoom: UHD 24x, FHD 32x
- Digital zoom: 10x
Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Power Requirements: 12 V DC (10.8 V to 13.2 V)
PoE++: IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity: 20 % to 90 % (no condensation)
Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Mass: Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D): 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket)
Finish
- AW‑UE150WP/AW‑UE150WE: Pearl white
- AW‑UE150KP/AW‑UE150KE: Black
Controller Supported: AW-RP150GJ, AW-RP60GJ (Support planned for the future)*1, AW-RP50*1, AK-HRP1000GJ*1, AK-HRP1005GJ*1
Camera Unit
Imaging Sensors: 1-type 4K MOS×1
Lens
- Motorized Optical 20x zoom, F2.8 to F4.5
- [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
Conversion Lens: Not supported
Angle of View Range
- Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
- Vertical angle of view: 46.7° (wide) to 2.3° (tele)
- Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus: Switching between auto and manual
Focus Distance
- Entire zooming range: 1000 mm (3.3 ft)
- Wide end: 100 mm (0.33 ft)
Color Separation Optical System: 1MOS
Standard Sensitivity: F9, 2000 lx (When normal mode is selected)
Minimum Illumination: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N: 60 dB or more
Horizontal Resolution: 1600 TV lines Typ (Center area)
Gain Selection
- Auto, 0 dB to 36 dB*2
- Super Gain function equipped : 37 dB to 42 dB
Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed
- 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan
- 59.94p/59.94i: 60.00 Hz to 7200 Hz
- 29.97p: 30.00 Hz to 7200 Hz
- 23.98p/24p: 24.00 Hz to 7200 Hz
- 50p/50i: 50.00 Hz to 7200 Hz
- 25p: 25.00 Hz to 7200 Hz
Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
White Balance
- ATW : 3200K, 5600K
- ATW Speed : Normal / Slow / Fast
- AWB : AWB-A / AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability: OFF, –99 % to 99 %
Scene File: Scene1, Scene2, Scene3, Scene4
Output Format
- 4K: 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
- HD: 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF,1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i,720/59.94p, 720/50p
Synchronization System: Internal / External synchronization (BBS / Tri-level sync)
INPUT
Input Connector
- DC 12 V IN, G/L IN (BNC)
- BBS (Black Burst Sync), tri-level sync supported
Input/Output Connector:
- LAN
- LAN connector for IP control (RJ‑45)
- RS-422
- CONTROL IN RS-422A (RJ‑45)
- MIC/LINE input
- ø 3.5 mm stereo mini jack Input impedance: High impedance
- During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
- During LINE input Input level: Approx. –10 dBV ±3 dBV
Pan-tilt Head Unit
Camera/Pan-tilt Head Control:
- IP connecting cable
- LAN cable*6*7: (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft)
- AW protocol connecting cable
- LAN cable*6 (category 5e or above, straight cable)
- max. 1000 m (3280 ft)
Installation Method: Stand-alone (Desktop) or suspended (Hanging)
Pan/tilt Operation Speed
- Minimum speed 0.08°/s
- Maximum speed 60°/s or higher
- Maximum speed is 180°/s in high-speed mode
Panning Range: ±175°
Tilting range: –30° to 210° 0
Quietness: NC35 or less
Supported operating systems and web browsers
- Windows
- Microsoft® Windows® 7, 10
- Windows® Internet Explorer® 11 (64‑bit/32‑bit)
- Microsoft Edge
- Google Chrome
- Mac
- Mac OS 10.13
- Mac OS 10.12
- Mac OS 10.11,
- Safari 11
- Google Chrome
- iPhone / iPad
- iOS 11.4.1
- Google Chrome
IP Streaming
Image Streaming Mode: JPEG (MJPEG), H.264, H.265
Image Transmission setting (JPEG):
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
Image Transmission Setting (H.264)
- Image quality (Motion priority / Image quality priority) UHD 60 fps / 50 fps
- Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Transmission Priority: Constant bit rate, Frame rate, Best effort
- Frame Rate: [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)[50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
- Max Bit Rate
- HD:512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps
- UHD:12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265)
- Image Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Frame Rate: [60Hz] 30fps, [50Hz] 25fps
- Max Bit Rate: 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
- Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol
- IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP,MLD, ICMP, ARP, RTMP, RTMPS
- IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS
Other Function
NDI support: NDI | HX
Tally LED display color: red / green | End to End Automatic Production
Reducing production costs to a minimum, our fully automated production systems enable amateur clubs, schools, federations, media platforms and venues to generate live HD content to power their own digital media services, boost fan engagement and improve their coaching processes. What’s more, Pixellot footage is interactive and delivered to any device lets fans watch their favorite team from anywhere, produce their own highlight clips and even share them on social networks.

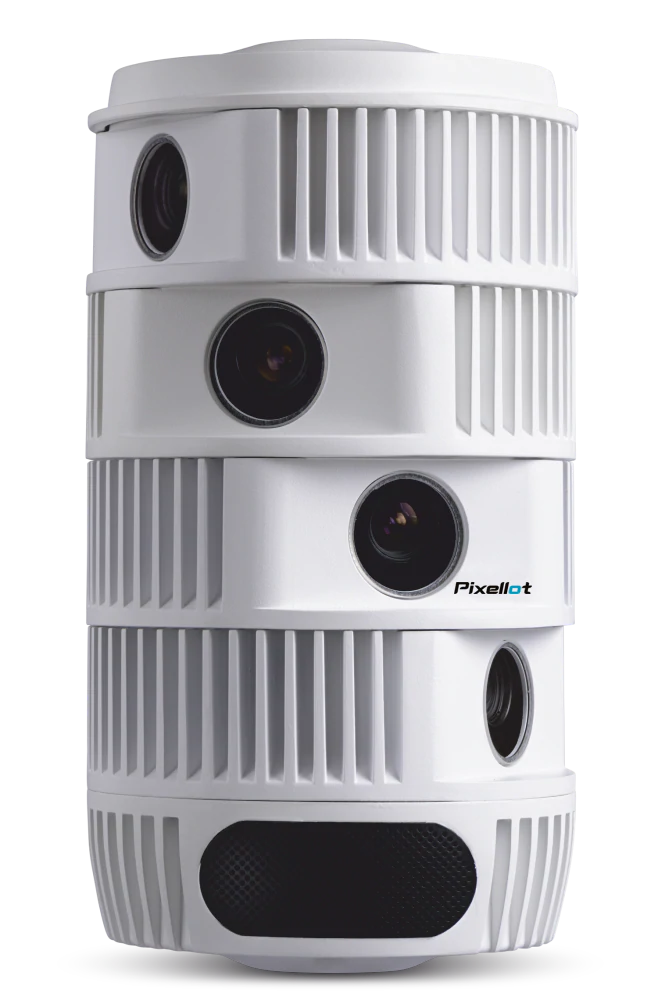

Pixellot S is based on their patented, fully automated production workflow that generates and delivers TV-like footage without a person in the loop.
Fixed Installation: Indoors or outdoors, weatherproof
Unmanned capture: Panoramic field capture in 6K resolution
Automated production: Auto-tracking algorithms follow the flow of play and produce TV-like footage
Distributed to any device: Streamed in 4K quality to mobile devices and web platforms
Personalized viewing experience: Zoom into any scene, replay, clip and share.
Pixellot S comes with a variety of modules to optimize your system for media or coaching use:
Automatic highlights
Taking auto-production to the next level, this module identifies game highlights like baskets or goals and automatically produces highlight clips.
Editing Module
Share the most exciting plays with your fans! Our editing module lets you cut high quality clips from HD footage, live and post-game, and distribute them on your media channels.
Manual Production Module
Produce any type of sports game and events and cover also anything that happens on the field before and after the game.
Coaching Module
Get more insight by reviewing the game by zooming into any play and cut high-quality clips to review with your team and players.
Scoreboard Module
Enrich your broadcasts through an integrated scoreboard display. Choose from a selection of fonts, colors and designs or upload your own personalized scoreboard graphics.
Commentator
Add a remote or local commentator to follow the action and improve the viewing experience
KEY FEATURES:
- Auto Production Multiple Sports
- Panoramic Video
- Full Field Video Coverage
- Personal Video
- Identifying Game States
- Automatic Highlights
| End to End Automatic Production
Reducing production costs to a minimum, our fully automated production systems enable amateur clubs, schools, federations, media platforms and venues to generate live HD content to power their own digital media services, boost fan engagement and improve their coaching processes. What’s more, Pixellot footage is interactive and delivered to any device lets fans watch their favorite team from anywhere, produce their own highlight clips and even share them on social networks.
Pixellot S is based on their patented, fully automated production workflow that generates and delivers TV-like footage without a person in the loop.
Fixed Installation: Indoors or outdoors, weatherproof
Unmanned capture: Panoramic field capture in 6K resolution
Automated production: Auto-tracking algorithms follow the flow of play and produce TV-like footage
Distributed to any device: Streamed in 4K quality to mobile devices and web platforms
Personalized viewing experience: Zoom into any scene, replay, clip and share.
Pixellot S comes with a variety of modules to optimize your system for media or coaching use:
Automatic highlights
Taking auto-production to the next level, this module identifies game highlights like baskets or goals and automatically produces highlight clips.
Editing Module
Share the most exciting plays with your fans! Our editing module lets you cut high quality clips from HD footage, live and post-game, and distribute them on your media channels.
Manual Production Module
Produce any type of sports game and events and cover also anything that happens on the field before and after the game.
Coaching Module
Get more insight by reviewing the game by zooming into any play and cut high-quality clips to review with your team and players.
Scoreboard Module
Enrich your broadcasts through an integrated scoreboard display. Choose from a selection of fonts, colors and designs or upload your own personalized scoreboard graphics.
Commentator
Add a remote or local commentator to follow the action and improve the viewing experience
KEY FEATURES:
- Two camera lenses
- 1080p or 720p at 25 or 29.97 FPS
- Uses Cat6 cables (POE)
|
Reviews
There are no reviews yet.
