| Content | Power supply not included - requires IEC cable.
The UltraStudio 4K Extreme 3 lets you connect Thunderbolt 3 computers to any video equipment. Connect to the Thunderbolt 3 port for video and audio connections compatible with SD, HD, Ultra HD, and 4K DCI formats up to 60 frames per second. Use the UltraStudio 4K Extreme 3 to build high performance edit workstations, archive from old broadcast decks, output broadcast graphics, and live stream.
Connect and work with the equipment of your choice. SDI in and out, HDMI out, and balanced analog input provide high quality connections to just about any equipment you could want to work with. An extra HDMI input and balanced analog audio out connect for in-studio audio monitoring use. Larger design than the Mini UltraStudios lets the UltraStudio 4 Extreme fit 4 channel analog audio via XLR connections, 2 channels of AES/EBU digital audio, and dedicated timecode connections. Video reference for sync playback to broadcast systems and RS-422 remote are included. The UltraStudio 4K Extreme 3 can feed SDI fill and key from RGB graphics from your computer to a live production switcher for high quality live broadcast graphics keying.
12G-SDI technology brings the most powerful video capture and playback solution at high speeds. Speed supports work of Ultra HD and 4K 60p over one BNC cable. Multi rate 12G-SDI connections provide greater compatibility, working with existing SD and HD equipment and newer Ultra HD formats up to 2160p60.
With the UltraStudio 4K Extreme 3, you’re not locked into a single format. Popular compressed video formats and 10-bit uncompressed video are both supported. Images in uncompressed video are a perfect pixel-for-pixel clone of the source without any loss of quality.
Thunderbolt 3™ technology ensures the UltraStudio 4K Extreme 3 is a power-driven solution. Low latency and highly accurate time synchronization provide the highest possible quality capture and playback. UltraStudio 4K Extreme 3 uses a fast one cable connection to a computer with the bandwidth to easily handle high resolution video formats. Powered by the Thunderbolt connection, the UltraStudio 4K Extreme 3 can run from a laptop battery without needing a power connection. An AC power connection is also included.

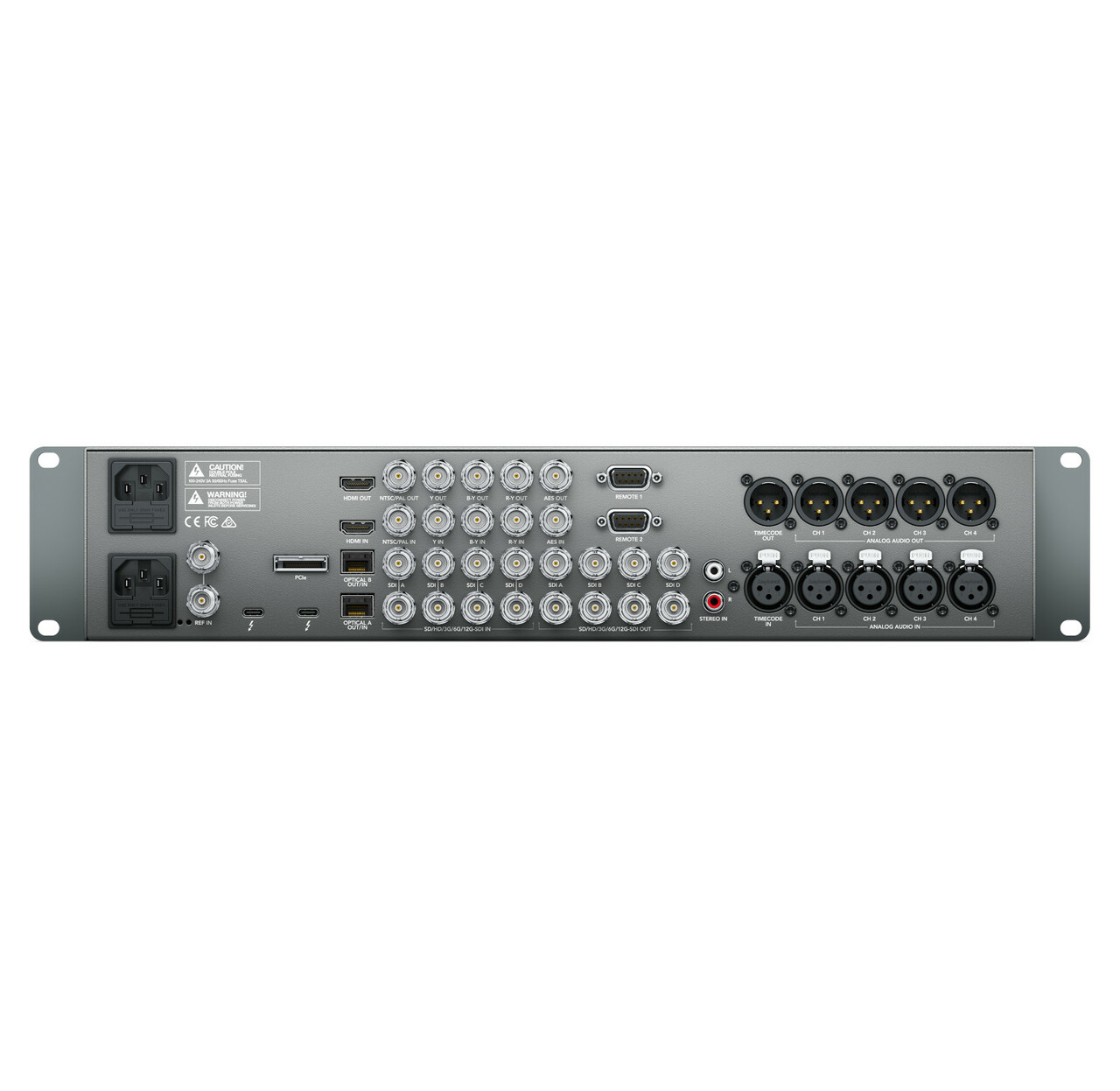

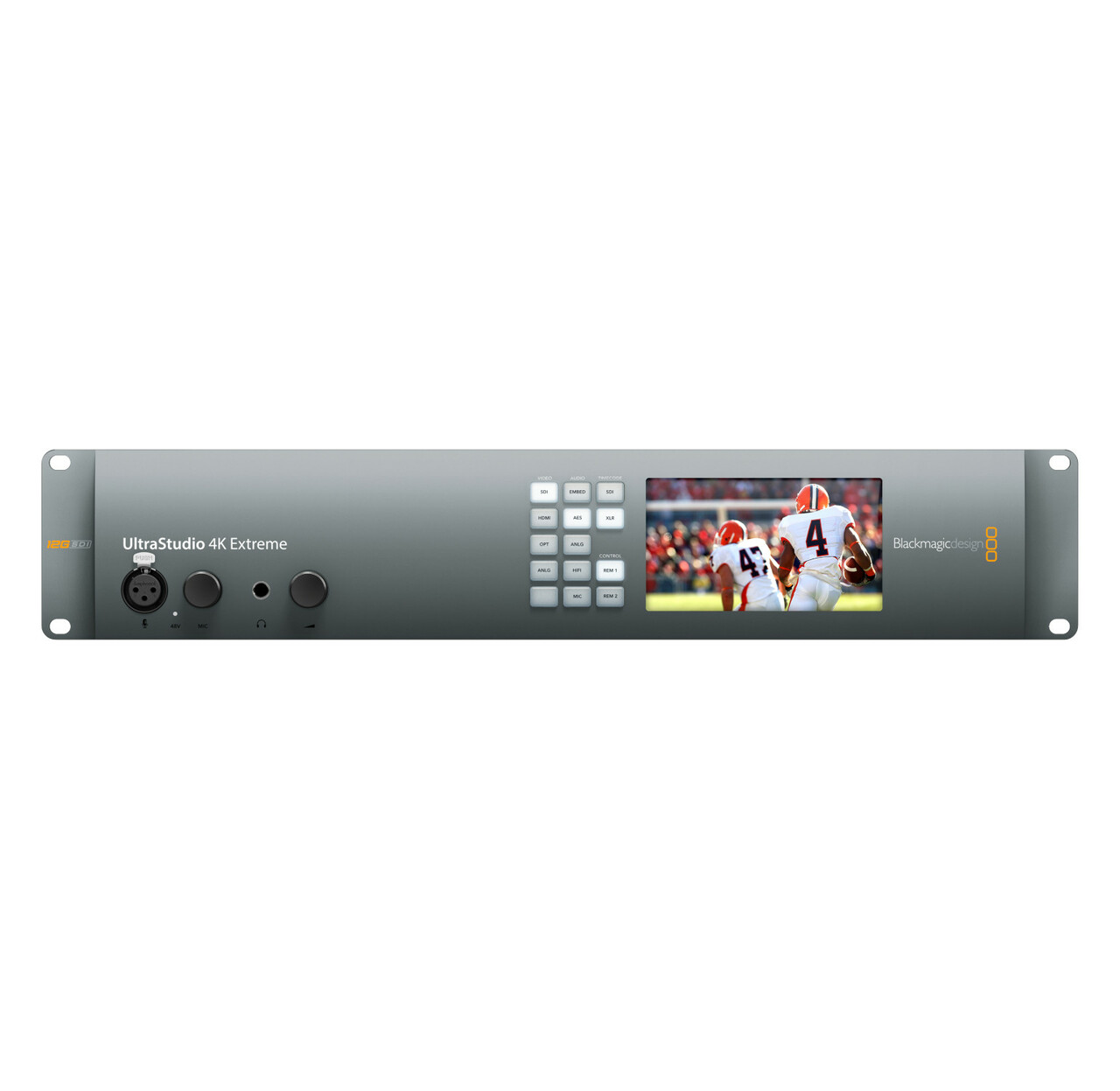

Front panel has fast control buttons and integrated color LCD. Back panel uses industry standard BNC and HDMI connectors. Enjoy broadcast and digital cinema quality capture and playback in any workflow.
Blackmagic Design UltraStudio 4K Extreme 3 Features
- Connect Thunderbolt 3 computers to video equipment
- Compatible with SD, HD, Ultra HD, and 4K DCI formats up to 60 frames per second
- Designed to work with popular video editing software on Mac, Windows, and Linux systems
- Video reference for sync playback to broadcast systems
- RS-422 remote
- Support for compressed and uncompressed formats
- Low latency and accurate time synchronization in Thunderbolt 3 technology
- Easily portable
- Stand alone on desktop or rack mount
- Broadcast and digital cinema quality capture and playback
| Power supply not included - requires IEC cable.
Blackmagic Design’s ATEM switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include 16 advanced chroma keyers four independent Ultra HD multi viewers, two SuperSource processors, and even standards conversion on all inputs. Switchover to 8K to combine these features into a powerful native 8K switcher, including built in talkback and a 156 channel Fairlight audio mixer. ATEM live production switchers can meet live production needs at live concerts, sporting events, theater productions, conferences and more.
The ATEM Constellation 8K has 40 video inputs that support up to Ultra HD, ten of which can be switched to 8K. There are 28 video outputs (7 in 8K) and 24 aux outputs (6 in 8K). Two balanced audio inputs and outputs are also included on the switcher.
Let your creative expression take the lead. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard. Advanced chroma keyers enable massive multi-layer effects. On-screen adjustable controls can select and sample a region of color. Chroma keyers also feature foreground, background and edge adjustment controls, and chroma correction tools.
Add multi box compositions quickly and easily with SuperSource’s separate five layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM Constellation Features
- 16 upstream keyers in Ultra HD, 4 in 8K supporting chroma, linear, and luma keying
- 4 downstream keyers in Ultra HD, 2 in 8K.
- 16 advanced chroma keyers in Ultra HD, 4 in 8K
- Talkback communication is supported
- Mix-minus is supported
- There are 4 transition keyers (Stinger/DVE)
- Supports up to 28 layers in UHD and 7 layers in 8K
- 21 pattern generators are available in Ultra HD, while only 9 are available in 8K
- Support for 2 color generators
- 4 DVE with 3D borders and drop shadow are supported in Ultra HD; one is supported in 8K
| Ki Pro GO is a portable multi-channel H.264 recorder offering up to 4-channels of simultaneous HD and SD recording to off the shelf USB drives with redundant recording capabilities, and now with new v3.0 firmware, recording to network storage.
4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provides connections to the latest video sources, including cameras and DSLRs. Incoming video sources do not have to be genlocked due to Ki Pro GO's input frame syncs. Ki Pro GO also features AJA's high quality de-interlacers on each input so progressive recordings can be made from interlaced inputs. High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel. Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI or SDI display, and Enhanced Super Out offers timecode, media status and audio meter overlays over the SDI and HDMI monitor outputs.
Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro GO is well suited for use in any environment.
AJA Ki Pro GO Features
- Multi-channel H.264 recording
- 5x USB recording media ports, compatible with off-the-shelf USB 3.2 Gen 1 media
- In system exFAT drive formatting
- Redundant recording to user selectable USB ports
- Recording to network (SMB) storage (new in v3.0)
- Redundant recording to user selectable destinations – USB or SMB (new in v3.0)
- Genlock free inputs
- 4x 3G-SDI inputs
- 4x 3G-SDI outputs
- 1x 3G-SDI monitoring output
- 4x HDMI inputs
- 1x HDMI monitoring output
- HDMI and SDI multi-channel matrix monitoring
- HDMI and SDI Enhanced Super Out for monitoring: timecode, media status and audio levels
- Single-channel H.264 playback
- Selectable VBR recording settings with 5 options
- Timecode Input Support: Time of Day, Timecode Value, SDI RP-188, LTC (available using 1-channel of Analog Audio In)
- Balanced XLR analog audio inputs, mic/line/48v switchable
- 2-channel embedded audio per video input
- Easy-to-use web UI, compatible with standard web browsers
- Network web UI based file downloads
- Front panel button controls with integrated HD resolution screen
- Stand-alone operation
- 3 Year Warranty
| The World's Most Complete Sports Production System
Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, NewTek 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration.
NewTek 3Play 3P1 integrates seamlessly with NewTek IP Series, TriCaster TC1, and NVG1 NewTek-Vizrt IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS.
For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.
Product Highlights:
Engineered for the most demanding broadcast and media environments, 3Play 3P1 provides a winning combination of innovative technology and seamless workflow integration to power forward-thinking fan experiences that span from stadiums to screens to smartphones.
- Fully integrated sports production in resolutions up to 1080p 60
- SDI, hybrid, and end-to-end IP connectivity to adapt to your game plan
- Native software-driven processing for maximum production power and flexibility
- Integrated NDI® Telestrator Pro for live telestration from any compatible connected device, with support for remote video transport control
- Comprehensive camera coverage and delivery with support for 4 simultaneous external inputs and 2 outputs
- Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
- Versatile audio connectivity and capture, with support for digital, analog, and network audio, plus 8 channels of audio recording per input
- Multi-purpose video server with full frame-rate, multi-angle preview windows • Real-time social media sharing to Facebook, Twitter, YouTube, and more
- Custom playlist building and highlights packaging for live insert, export, or VOD
- Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
- Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
- Enhanced creative capabilities, including real-time layering, motion graphics, animated transitions, and more
- Industry-standard 2RU system chassis with included hardware control panel
3Play 3P1 Control Panel Included
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.
NDI® Telestrator Pro
Enlighten and entertain audiences, enhancing play-by-play and analysis with live telestration— right from the first replay. With NDI® Telestrator Pro included with 3Play 3P1, you can annotate on screen and roll immediate replays over the network from any compatible networked device— with only a single Ethernet cable required.
NDI® Telestrator Pro supports telestration over either or both 3Play 3P1 output channels, offers a variety of professional paint tools, shapes, and customizable graphics, and includes responsive transport controls for remote playback. (External PC or touchscreen device with Microsoft® Windows 7 operating system (OS) or better required.)
System Specifications
Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input: 4 x resolution-independent IP video inputs via NDI®
SDI Video Input 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25, 24, 23.976
- 576i 50
- 480i 59.94
Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output: 2 x session-format IP video outputs via NDI®
SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
Multiviewer Output
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Recording: 4 x simultaneous recording channels
Recording Format: QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1QuickTime Player not required for playback in common NLE applications
Storage: 3 x 3TB internal drive (capacity varies by format, resolution and file specification)
Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK: 1 x DSK channel per output, with independent source selection and transition
Transitions: Supports custom transitions between output channels and playlist clips
Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio: Native support for network audio input and output via NDI®
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency: ~1.0-1.5 frames
A/V Standards
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI: Support for standard MIDI protocol enabling third-party device control
System Drive: 120GB SSD
NIC: 2 x 1 Gigabit NIC
System Physical 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
- ~26 lbs (~12 kg)
| The power of Ki Pro in a 1RU format, the perfect fit for your file based workflow.
With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system. Ki Pro Rack also features AJA’s industry leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware.
AJA Ki Pro Rack Features
- HD/SD recorder and player
- Record and playback Apple ProRes or Avid DNxHD files
- SDI, HDMI, and Component Video I/O
- AES (BNC) and analog (XLR) audio I/O
- 2x KiStor media bays with Ki Protect
- Balanced XLR analog audio inputs, mic/line/48v switchable
- Multi-channel embedded SDI and HDMI audio
- Up, down, cross-conversion built-in
- REF, LTC, RP-188 and RS-422 support
- REST interface
- Front panel button controls
- Easy to use web UI, configure and control from standard web browsers
- Compact 1RU design
- 3 year warranty
| Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual network streaming or separate networks for control data and video data. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications |
