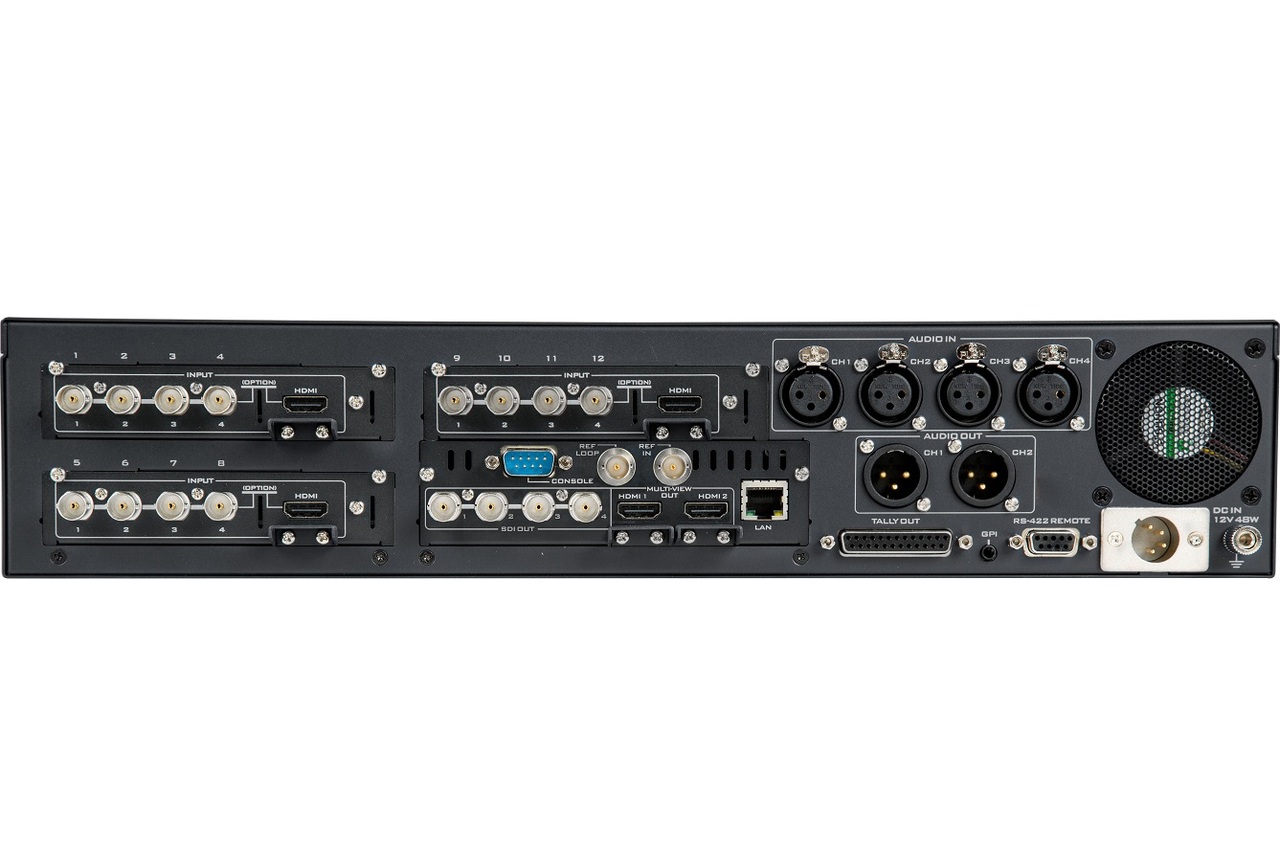

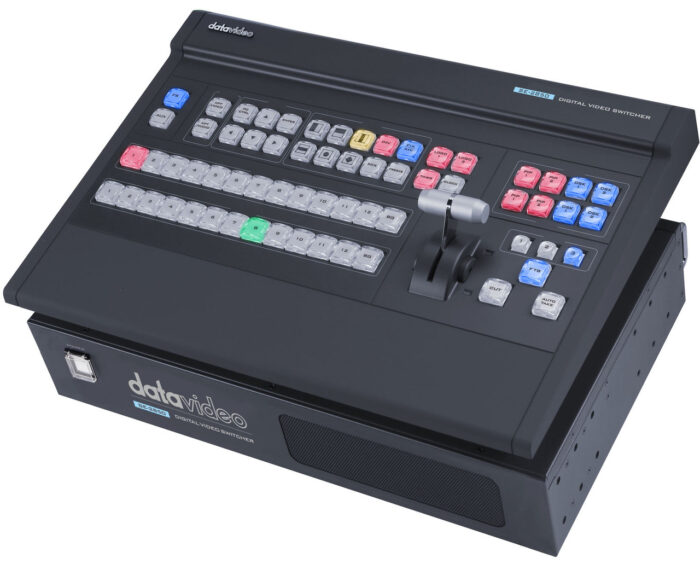

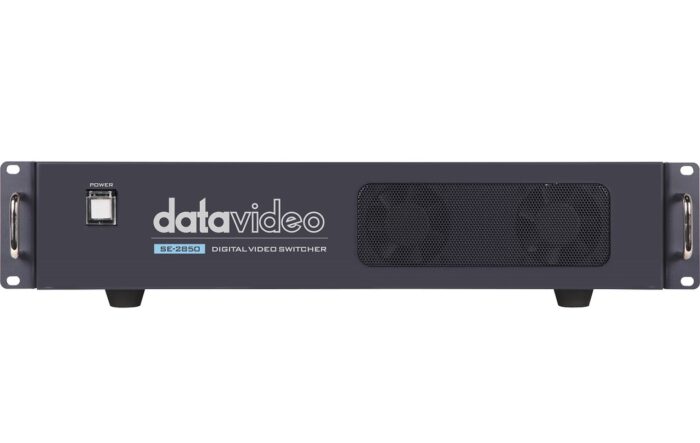

| Content | The SE-2850-12 is a rack-mounted 12-input switcher. Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment. The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production. The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface. The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles.
Note: This listing is for the 12 Channel Switcher. The SE-2850 is also available with 8 Channels.
Datavideo SE-2850 Features
- 12 Input HD Video Switcher
- HD-SDI and HDMI Inputs
- Outputs include 2 HDMI multiview and configurable 3 HD-SDI
- Built-in TC-200 CG Title Creator for titles and graphics
- Perfect lip sync
- Assignable Crosspoints
| A refreshed interface for improved workflow with the versatile multi-format V-800HD video switcher. Newly added AUX bus delegation layer switches enhance both visibility and operability.
- Up to 16 inputs, 8 cross points (4 SDI/Composite + 4 DVI-I/HDMI)
- 6 outputs (2 SDI + 2 DVI + RGB + Composite) Simultaneous output
- Dedicated multi-view monitor output
- High quality 4:4:4/10 bit processing
- 1080p/i, WUXGA processing
- 1 M/E (KEY, PinP) + AUX or DSK
- Frame Sync & Scaler on all inputs and outputs
- 3G, HD, SD 3-mode SDI (3G-SDI Level A/B compatible)
- DVI-D/RGB/HDMI compatible
- Input signal status confirmation LEDs
- HDCP Compatible
- Two active still images from sixteen still memories
- Ten assignable cross points
- AUX bus switch
LIVE EVENT PRODUCTION
Supporting live events requires being ready for an ever-changing variety of input sources. The V-800HD MK II is equipped with scaling for every input and a wide range of common video connectors allowing camera, data and smart device sources of different resolutions and frame rates to be automatically detected, scaled and then adjusted as needed. Fine position adjustment for each input can be set in real-time using the joystick positioner control or from the menu displayed on the multi-viewer.
LECTURES, MEETINGS AND PRESENTATIONS
The V-800HD MK II’s 4:4:4/10 bit processing ensures pixel accurate color making it the ideal switcher for large screens over 300 inches and ensures the crisp detail of hi-resolution data sources are sharply output to today’s low dot pitch LED displays.
The new AUX bus selection layer makes it easier than ever to send a source to a second output destination such as a confidence monitor, presenter notes display, second display or overflow rooms.
HALL, THEATER, CHURCH
The V-800HD MK II is also a powerful solution for installation in facilities that have both professional and in-experienced operators. Complex settings can be recalled with a one-touch memory recall and a straight forward interface makes it easy to step-up and operate without training. Two still images are assignable to the cross points from a choice of 16 internal stored images. This is useful for displaying corporate or institution logos and safety slides. The V-800HD MK II also makes it easy to create up to 3 “angles” from a single camera source with the high-resolution scaling of the multi-zoom function.
LIVE STREAMING PRODUCTION
WEBCAST SWITCHING
Modern webcasts require a variety of camera and computer sources of a variety of formats. The V-800HDMKII simultaneously supports video resolutions of 1080i, 1080p, 720p, 480i/p and computer data resolutions of up to WUXGA allowing for high quality webcast requirements. The built-in PnP and Key Compositing features are ideal for creating informative training instruction and news webcasts.
STELLAR IMAGE QUALITY AT 1080P (3G-SDI)
Supports 1080p video signals at bit rates as high as 3 Gbps — twice the rate of conventional HD.
Asserts all the vividness of high-realism, high-detail camera and computer sources.
TRUE MULTI-FORMAT PERFORMANCE
There's no need to convert the input source to match the video output format. The built-in scalers up-convert and down-convert any video source to the optimal resolution.
FULL RANGE OF CONNECTIVITY
The V-800HD MK II supports a large number of input formats, from analog to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD, and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter. The Mini D-Sub 15 pin type connector accommodates SD/HD component as well as computer input via RGB.
EQUIPPED WITH AUX BUS SWITCH
Easily switch sources connected to the assignable AUX outputs with the dedicated AUX layer switches. This is ideal for selecting which source is sent to a confidence monitor or secondary destination.
A NEW DESIGN IDEAL FOR LIVE PERFORMANCES AND EVENTS
4:4:4/10-BIT INTERNAL PROCESSING
The V-800HD MK II uses 4:4:4/10-bit internal signal processing. This lets you achieve compositing and output with no reduction in high-detail RGB signals driven from a computer. The result is a sharp, unblurred display of video and text, even on large screens and LED displays. The V-800HD MK II delivers high image quality for all uses, from live broadcasts to event displays.
NEWLY DEVELOPED KEY-COMPOSITING ENGINE
Along with the upgraded internal signal processing, a newly developed keyer is included. Chroma Key lets you adjust phase range, amount of chroma, and other parameters based on HSV color space that is closely related to human chromatic sensation. This allows you to achieve high quality and tight chroma key compositing even when using 1080p video sources. What’s more, the V-800HD MK II can accept an External Key. This attractively composites colorful CG titles and gradation/transparency clips, enabling you to achieve visual effects that are even more impressive.
MULTIVIEWER OUTPUT FOR SOURCE MONITORING
The multiviewer output allows you to monitor the status of all input sources plus the Program and Preview outputs. The convenient HDMI connector enables the use of a readily available and affordable monitor.
* Use an HDMI monitor that supports HDCP and 60p signals.
* SDI and composite inputs are displayed at the original source frame rate.
DVI-I/HDMI and RGB/Component inputs are displayed using a reduced frame rate.
* Changing the channel cross-point assignments changes the order of displayed sources.
* Still images imported from USB memory are not displayed on the source monitor.
BUILT-IN HDCP MODE
When playing back a Blu-ray disc that contains commercial content or digital broadcast programming, the digital output is encoded using HDCP (High- bandwidth Digital Content Protection), which is one means of copyright protection. This means that switchers that are not HDCP-compatible will not display or pass-through such video content, even in cases where permission for use in a live event was obtained from the copyright holder. To resolve this problem, the V-800HD MK II features a dedicated mode that officially supports HDCP. A panel indicator lets you check the operating state when the unit is in the HDCP mode.
* In HDCP mode, no video signals are output from the analog or SDI connectors.
* The display or projector connected to a digital output must be HDCP-compatible as well.
Video Processing
Video
| Processing |
4:4:4 (Y/Pb/Pr, RGB) /10 bits |
| PC Formats |
640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation. |
| Still Image Format |
Windows Bitmap File (.bmp)
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed |
| Formats |
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* SDI and Composite input can input the same frame rate as a setup menu setting. |
Input/ Output Level and Impedance
| Composite |
1.0 Vp-p, 75 ohms |
| Analog HD/RGB |
0.7 Vp-p, 75 ohms (H, V : 5 VTTL) |
Input Connectors
| 3G/HD/SD-SDI |
BNC type x 4
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C |
| DVI-I/HDMI |
DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel |
| Analog Video (HD) |
Component (Mini D-sub 15-pin type) x 4
* Combined use with Analog RGB |
| Analog Video (SD) |
Composite (BNC type) x 4
* Select Composite or SDI using menu per channel |
| Analog RGB |
Mini D-sub 15-pin type x 4
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel |
Output Connectors
| 3G/HD/SD-SDI |
BNC type x 2
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C |
| DVI-I/HDMI |
DVI-I type x 2, HDMI x 1 (for multi-view monitor) |
| Analog Video (HD) |
Component (Mini D-sub 15-pin type) x 1
* Combined use with Analog RGB |
| Analog Video (SD) |
Composite (BNC type) x 1
* Combined use with Analog Video (HD)
* Does not synchronize with Reference Input. |
| Analog RGB |
Mini d-sub 15-pin type x 1
* Combined use with Analog Video (HD) |
Other Connectors
| Tally |
Mini D-sub 15-pin type x 2
* Input (max) : 12 V, 200 mA Open collector Type |
| Reference |
BNC type (IN, THRU)
* Black Burst (Sync to frames), Bi-Level, Tri-Level |
| MIDI |
5 pin DIN type (IN, OUT/THRU) |
| RS-232 |
D-sub 9 pin type x 1 |
| USB port (host) |
A type x 1 (for USB memory) |
Effects
| Transition |
Mix, Cut, Wipe (9 patterns) |
| Composition |
PinP, DSK, Chrominance Key, Luminance Key, External Key |
| Others |
Output Fade, Output Freeze |
Other
| Power Supply |
AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) |
| Power Consumption |
75 W/0.7 A (115 V, 117 V)
75 W/0.4 A (220 V, 230 V, 240 V) |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Accessories |
Owner's Manual, Power cord, Rack-mount angle x 2 |
| Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMIworkflow and loaded professional toolset streamline production and reduce stress on the gig
- All HDMI workflow
- Five layer effects and keying engine
- Built-in multiviewer preview monitor
- Aux output for a different video feed
- Technology-assisted automatic video switching
- 18-channel digital audio mixer with effects
- Start & Stop Atomos recorders
- Free iPad remote control app available
- Ultra-mobile, lightweight, and efficient
- Aids in reducing capital expenditure
Maximum Connectivity
The V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. And with the built-in scalers on two of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
More HDMI Inputs and Outputs
With the V-8HD's eight HDMI inputs and three outputs, you're able to offer clients a vast amount of creative freedom, without increasing the budget.
Set Up Layers, Effects, and Keys
With the V-8HD's five composition layers, you'll always keep audiences engaged with visually appealing content.
Ultra-Mobile, Lightweight, and Efficient
Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when you have to deal with minimal setup space. And it only weighs around 4 lb, making it easy to carry in a backpack or luggage. With its smart feature set, eight HDMI inputs, built-in 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is a versatile and efficient HDMI switcher.
Seamless Memory Recall
With the V-8HD, storing and recalling unique looks requires only a few button presses. The eight memory presets and powerful composition effects engine work together to provide a completely seamless load between the different looks.
Separate Feeds for Separate Needs
The V-8HD has assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed. It's also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp.
Built-In Multiviewer Display
The V-8HD's bright, 4.3" multiviewer display means less gear to buy and haul to the gig. From a single screen, you can monitor all eight video inputs, PGM, and PVW plus menu overlay. Input windows show camcorder recording status and embedded audio levels. Connect a larger external TV for an immense multiviewer experience, or to make menu changes without moving the focus from the action.
Audio and Effects
The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing.
Automated Video Switching
Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. Beats per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified tempo.
Record Triggering and Confirmation
Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. And some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multiviewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.
V-8HD iPad Remote Control Utility
The dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for fast, efficient setup changes.
Hands-Free Switching and Control
Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands. Cut to a still image, transition PiP on/off the screen, or drop in a keyed lower-third title. It's also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and more.
Roland V-8HD: HD Video Switcher
-Video
-Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
-Input Connectors
INPUT 1--6: HDMI type A x 6
* HDCP Supported
INPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
-Output Connectors
OUTPUT 1--3: HDMI type A x 3
* HDCP Supported
-Input formats
INPUT 1--6
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
INPUT 7--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* PNG alpha channel not supported.
-Output formats
OUTPUT 1--2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz
OUTPUT 3:
1080/59.94p *1
1080/50p *2
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
- Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
-Audio
-Audio Processing
Sampling rate: 24 bits/48 kHz
-Audio formats
Linear PCM, 24 bits/48 kHz, 2ch
-Input Connectors
INPUT 1--8: HDMI Type A x 8
AUDIO IN: RCA phono type
-Output Connectors
OUTPUT 1--3: HDMI Type A x 3
AUDIO OUT: RCA phono type
PHONES: Stereo miniature type
-Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
-Input Impedance
AUDIO IN: 38 k ohms
-Output Level
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
-Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms
-Audio Effects
Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
-Other Connectors
USB MEMORY: USB A type (for USB flash drive)
REMOTE:USB B Type (for remote control from iPad)
CTL/EXP:1/4-inch TRS phone type
-Other Functions
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
-Display
4.3 inches TFT Color LCD: 480 x 272 dots
-Power Supply
AC Adaptor
-Current Draw
3.3 A
-Power Consumption
39.6 W
-Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
-Dimensions
317 (W) x 193 (D) x 70 (H) mm
12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches
-Weight (excluding AC adaptor)
2.0 kg
4 lbs 7 oz
-Accessories
Owner's Manual
AC adaptor
Power cord
* 0 dBu = 0.775 Vrms | The Perfect Production Powerhouse
An Evolution in Live Production
TriCaster 1 Pro is an incredibly powerful production system for the modern producer, publisher, and content creator. Perfect for productions with intense demands on quality and feature set.
Remote Calling
Offering the revolutionary Live Call Connect for seamless integration of remote callers.
Distributed Production
Countless features allowing users anywhere on the planet to deliver the most complex productions, with ease.
Integrated Flexibility
Opening a world of opportunities with the tightest integration of NDI available in any product.
Where The Magic Happens
TriCaster 1 Pro is the perfect balance of investment and power, fully equipped with the industry's leading software-driven production technology and hundreds of future-ready capabilities.
- Native software driven processing for maximum production power and flexibility
- Multi-channel ISO recording to full-resolution QuickTime® and H.264 files for VOD, post-production, and archive
- Switching, streaming, recording in HD, 3G, and 4K UHD 60p
- Integrated video servers allowing playback, replay, and live editing without any additional hardware
- Premier creative capabilities, including multi-bus mix effects, animated titles and transitions, advanced chromakeying, spectacular live virtual sets, and more
Incredible Future-Ready Capabilities
TriCaster 1 Pro allows today’s professionals to take advantage of established and emerging workflows to produce more of the incredible content their viewers crave and deliver it whenever and wherever they watch.
Advanced Features As Standard
TriCaster 1 Pro offers countless new elements that can truly elevate your production – perfect for mid-sized productions with intense demands on quality and feature set.
- Live Call Connect
- Advanced Macros
- Neural Voice Isolation
- Live Streaming & Publishing
- Quality Monitoring
- Alpha Channel Outputs
- Live Story Creator
- LiveGraphics™
- LivePanel™
Live Call Connect
Seamless integration of multiple remote callers from popular video communication applications like Facebook Messenger, WhatsApp, and FaceTime, Zoom, Skype TX, Microsoft® Teams, Discord, Slack and Tencent as unique video inputs.
Advanced Macros
A dynamic and powerful tool that allows operators to use variables in their macros to deliver complex productions more easily.
Live Streaming & Publishing
Supporting encoding of 3 channels; configure and launch live streaming video to the web with built-in streaming encoders supporting a choice of connection types, resolutions, and streaming providers, including multiple preset options and custom profile settings.
Alpha Channel Outputs
Operators can send Alpha Channel through one of the MIX outs. Bringing post-production closer to live, users can use the keying on TriCaster to feed graphics or real time 3D creation tools.
Convenient Connectivity Options
TriCaster 1 Pro offers and array of convenient connectivity options for anything from SDI and Audio I/O to multiviewers not only through the powerful 10G network interface but also directly with dedicated ports.
Customize Your Space
For the first time, LivePanel can be used to build bespoke functions directly within the TriCaster user interface.
Multi-Source Video Mixing
Comprehensive camera coverage and compelling multi-source video mixing, including 16 external inputs and 4 M/Es.
Live Sound Experience
Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog, and USB audio devices, audio over IP networking with NDI®, Dante™, and AES67, professional DSPs, fader control, VU metering, Talk Back communication, and 4 x 4 x 4 channel routing to four audio mix outputs.
Video Input
16 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input
16 x IP video inputs via NDI®, resolution-independent, with support for key and fill
SDI Video Input
4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- 576i 50
- 480i 59.94
PTZ
Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output
Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output
IP video output via NDI, optionally configurable for:
- 4 x independent video mix outputs
- 1 x 4K UHD video mix output
SDI Video Output
4 x 3G/HD/SD-SDI connections, optionally configurable for:
- 4 x independent 3G/HD/SD video mix outputs
- 1 x 4K UHD video mix output via 3G-SDI quad-link grouping
Stream Output
3 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive
Multiviewer Output
3 x multiviewer outputs supporting standard display resolutions
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Mix/Effect Buses (M/E)
4 x M/E buses supporting video re-entry
- 1 x Mix/Effect channel per bus with support for up to 4 sources
- 4 x KEY layers per bus
- 9 x memory slots per bus
1 x PREVIZ configuration and preview bus
DSK Channels
4 x DSK channels
Media
5 x media players
- 2 x DDR
- 2 x GFX
- 1 x Sound
15 x media buffers
- 10 x animation buffers
- 5 x graphic buffers
30 x clip players (available for use as transitions or media depending on function)
Keyers
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
- 16 x input keyers
- 4 x media player keyers
- 4 x M/E keyers
- 1 x PREVIZ keyer
- 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
- 16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
Record, store, edit and automate commands and user-configured operation sequences
- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
- Supports control via web-based interface
- Variables support allowing operators to use logic in macros to deliver complex productions more easily
Recording
16x configurable video recording channels
- 16x NDI® recordings
- 4 x QuickTime® archival video recorders
- 3x H.264 distribution video recorders (multiple profiles)
- 1 x MP3 audio recorder
Storage
4TB internal media storage
- 2 x 4TB 7200 RPM, 128MB Cache, SATA 6.0Gb/s, 3.5" Internal Hard Drive
- Capacity varies by format, resolution and file specification
- Supports recording to external storage via USB 3.0 and eSATA
- Supports shared storage integration and third-party partner solutions
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer
Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio
- Native support for network audio input and output via NDI
- Embedded audio supported for all NDI input and output video signals
- Integrated support for Dante™ networking protocol from Audinate®
- Support for AES67 protocol via compatible WDM audio drivers
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
Monitoring
Support for up to 3 multiviewer displays with configurable workspaces and viewports
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
A/V Standards
- 4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Tally
Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design® SDI tally standard
Genlock
Genlock input supporting SD (Bi-level), HD (Tri-level) or NDI® reference signals
GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI
Support for standard MIDI protocol enabling third-party device control
System Drive
120GB SSD
NIC
- 1 x 10 Gigabit Ethernet
- 1 x 1 Gigabit Ethernet
USB
- 1 x USB 3.2 Gen 2 Type-C
- 7 x USB 3.2 Gen 1 Type-A
System Physical
TriCaster 1 Pro
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
| RACKMOUNT SWITCHER FOR LIVE PRODUCTION AND FIXED INSTALLATIONS WITH PTZ CAMERA CONTROL
The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events. This powerful, integrated solution supports a wide range of applications including presentation and performance and special event venues, corporate AV conferences, classrooms for e-learning and more. The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).
APPLICATIONS
Live Production Studio
Content creation is a challenge for many companies looking to more efficiently produce product presentations, town hall meetings, and trainings. The XS-62S makes it easy to create content with an all-in-one switching and audio mixing system that streamlines the production process.
The XS-62S is easy to use from either the front panel controls or remote control software from a PC or Mac. Programmable presets allow one-touch recall of preset camera positions and angles, and the audio auto mixer takes care of audio mixing in the background, so the operator can focus on switching video. The XS-62S is the perfect size for installation into small spaces and portable enough to be used in multiple areas of a corporate office or other facility.
Performance Venue / Church
XS-62S is the ideal solution for hotel meeting rooms and banquet halls, houses of worship and live performance venues. The XS-62S Matrix Mode makes it easy to send different content to 2 to 3 screen destinations, from a single switcher all while mixing program audio and controlling PTZ remote cameras.
PGM / PST Mode works as a traditional switcher complete with cross-dissolve switching and Aux bus delegation for sending different video to a secondary destination such as a presenter’s confidence monitor or additional presentation screens.
Performance venues will benefit greatly from the built-in auto mixing function. The auto-mixing function automatically balances incoming audio sources such as microphones from a discussion panel, making it easy for the operator. The XS-62S’s audio processing also includes advanced effects such as EQ, dynamics and delay for mixing of vocal speech along with music and other audio embedded in video sources. These effects will provide improved sound quality for streaming applications, recording and sound reinforcement.
Live Streaming and Video Conference
The XS-62S is also suitable for live streaming and web conferencing systems. In this type of application, you could be using multiple PTZ cameras and PCs. With the XS-62S this can easily be operated by a small team or even a single person. PTZ camera control eliminates the need for individual camera operators, since everything can be controlled from the XS-62S while video is being switched by the same operator. The XS-62S’s audio capabilities make it easy to connect 4 microphones, mixing audio from computers and other video sources.
*In order to do Live streaming with the XS-62S, will need to add an encoder device with an SDI or HDMI input, from a 3rd. party supplier. | The Roland XS Series - the new line of Multi-Format Matrix Switchers designed for fixed installations requiring high-quality integrated video and audio conversion and switching. Version 3.0 introduces powerful new features for live events and enhanced audio matrixing. A single unit solution for total control of video and audio that is flexible enough to meet the diverse needs of classrooms, conference rooms, live presentations and events.
Roland XS-84H Features
- Seamless switching
- Built-in PGM/PST mode for confident switching
- Scaling guide view feature
- Enhanced control of settings of PinP windows in multi-mode
- Stabilized video output when switching modes
- Matrix configuration for the audio mixer
- Expanded lock-out functions
- Support for maximum resolution of WUXGA and 1080p 8 digital inputs and 8 analog inputs 2, 3 or 4 outputs according to the application
- Accommodate HDMI/HD component/RGB/composite/S-video and audio inputs
- Built-in scalers and video processor enable split-picture and compositing function
- Dissolve transition and PGM/PST mode in Version 2.0 is ideal for live events
- 16ch stereo digital audio mixer with 8 HDMI inputs and 8 analog inputs
- Direct control via the iPad application XS-80 Remote
|
