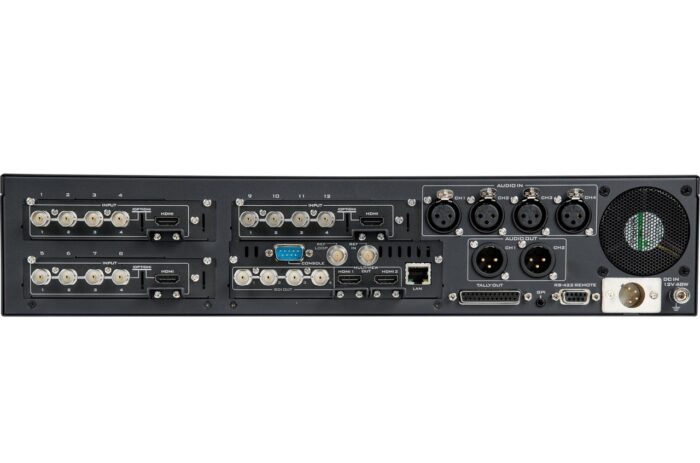

| Content | The SE-2850-8 is a rack-mounted 8-input switcher. Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment. The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production. The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface. The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles.
Note: This listing is for the 8 Channel Switcher. The SE-2850 is also available with 12 Channels.
Datavideo SE-2850 Features
- 8 Input HD Video Switcher
- HD-SDI and HDMI Inputs
- Outputs include 2 HDMI multiview and configurable 3 HD-SDI
- Built-in TC-200 CG Title Creator for titles and graphics
- Perfect lip sync
- Assignable Crosspoints
|
The Bolt 4K 1500 12G-SDI/HDMI Wireless Video Kit from Teradek includes a Bolt 1500 12G-SDI/HDMI wireless transmitter and a Bolt 1500 12G-SDI/HDMI wireless receiver that support video at resolutions up to 4K at 60 fps. They support a line-of-sight range of up to 1500'. The transmitter can send video to up to six receivers and is compatible with any model in the Bolt 4K line. The transmitter features a 12G-SDI input, an HDMI 2.0 input, and a 12G-SDI loop-through output. The receiver features two 12G-SDI inputs and one HDMI 2.0 input. You can remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The transmitter has mounting holes on each side for a Gold Mount or V-mount battery plate (available separately) so it can be mounted on the back of a camera. Included in the kit are a 3/8"-16 light stand adapter, a hot shoe adapter, two 18" HDMI cables, two 18" 2-pin connector to D-Tap cables, a 3' USB Type-A to micro-USB Type-B cable, two 18" 12G-SDI BNC cables, a 6' PSU 2-pin connector to 30W AC adapter cable, nine 2 dBi Wi-Fi 2.4/5.8 GHz antennas, a large case that fits a transmitter and two receivers, a 9.8 x 5.9" vinyl zipper bag, and a 9.8 x 9.1" vinyl zipper bag.
Transmits uncompressed video in 1080p and 2160p at 60 fps with less than 1 ms of delay
Compliant with the HLG, PQ, and HDR-10 standards
Send start/stop flags, timecode, and other ancillary data over the wireless link
Bolt app uses Bolt 4K's integrated Bluetooth
Multiple mounting options with 1/4"-20, 3/8"-16, and M3 holes
| Professional hybrid event switcher with eight SDI and eight HDMI inputs, three SDI and three HDMI outputs, USB-C webcame streaming output, 40 channel audio mixing, advanced automation features, and more. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. The ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB, RS-232, tally/GPIO, support for foot-controlled operation, and more. Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. And everything’s all wrapped up in a portable design with a broadcast-style interface that’s easily handled by a single operator.
The V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.
The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.
Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s effects engine features eight composition layers that can be assigned to the Program and Sub-Program outs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client.
The V-160HD uses the same connection technology as webcams, allowing you to stream events at 30/60 FPS in Full HD and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
Offering studio-grade sound, the V-160HD’s 40-channel digital audio mixer lets you blend signals from all 16 video inputs, USB-C, and microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.
Roland V-160HD Features
- Portable hybrid event switcher with comprehensive features and connectivity
- Eight 3G SDI inputs with frame rate converters
- Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
- Seven total outputs across SDI, HDMI, and USB-C streaming
- Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
- 40-channel digital audio mixer with effects and processing lets you blend signals from all 16 video inputs, USB-C, mic and line level devices
- Eight-layer video effects engine
- 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
- Instant recall
- Powerful live production automation with sequencing, macros, and preset memories
- PTZ control with support for multiple brands and mixed protocols running at once
- Extensive device control with Bluetooth, USB, RS-232, and LAN
- Remote control software available for iPad, macOS, and Windows
- Wireless and wired camera tally support
| A refreshed interface for improved workflow with the versatile multi-format V-800HD video switcher. Newly added AUX bus delegation layer switches enhance both visibility and operability.
- Up to 16 inputs, 8 cross points (4 SDI/Composite + 4 DVI-I/HDMI)
- 6 outputs (2 SDI + 2 DVI + RGB + Composite) Simultaneous output
- Dedicated multi-view monitor output
- High quality 4:4:4/10 bit processing
- 1080p/i, WUXGA processing
- 1 M/E (KEY, PinP) + AUX or DSK
- Frame Sync & Scaler on all inputs and outputs
- 3G, HD, SD 3-mode SDI (3G-SDI Level A/B compatible)
- DVI-D/RGB/HDMI compatible
- Input signal status confirmation LEDs
- HDCP Compatible
- Two active still images from sixteen still memories
- Ten assignable cross points
- AUX bus switch
LIVE EVENT PRODUCTION
Supporting live events requires being ready for an ever-changing variety of input sources. The V-800HD MK II is equipped with scaling for every input and a wide range of common video connectors allowing camera, data and smart device sources of different resolutions and frame rates to be automatically detected, scaled and then adjusted as needed. Fine position adjustment for each input can be set in real-time using the joystick positioner control or from the menu displayed on the multi-viewer.
LECTURES, MEETINGS AND PRESENTATIONS
The V-800HD MK II’s 4:4:4/10 bit processing ensures pixel accurate color making it the ideal switcher for large screens over 300 inches and ensures the crisp detail of hi-resolution data sources are sharply output to today’s low dot pitch LED displays.
The new AUX bus selection layer makes it easier than ever to send a source to a second output destination such as a confidence monitor, presenter notes display, second display or overflow rooms.
HALL, THEATER, CHURCH
The V-800HD MK II is also a powerful solution for installation in facilities that have both professional and in-experienced operators. Complex settings can be recalled with a one-touch memory recall and a straight forward interface makes it easy to step-up and operate without training. Two still images are assignable to the cross points from a choice of 16 internal stored images. This is useful for displaying corporate or institution logos and safety slides. The V-800HD MK II also makes it easy to create up to 3 “angles” from a single camera source with the high-resolution scaling of the multi-zoom function.
LIVE STREAMING PRODUCTION
WEBCAST SWITCHING
Modern webcasts require a variety of camera and computer sources of a variety of formats. The V-800HDMKII simultaneously supports video resolutions of 1080i, 1080p, 720p, 480i/p and computer data resolutions of up to WUXGA allowing for high quality webcast requirements. The built-in PnP and Key Compositing features are ideal for creating informative training instruction and news webcasts.
STELLAR IMAGE QUALITY AT 1080P (3G-SDI)
Supports 1080p video signals at bit rates as high as 3 Gbps — twice the rate of conventional HD.
Asserts all the vividness of high-realism, high-detail camera and computer sources.
TRUE MULTI-FORMAT PERFORMANCE
There's no need to convert the input source to match the video output format. The built-in scalers up-convert and down-convert any video source to the optimal resolution.
FULL RANGE OF CONNECTIVITY
The V-800HD MK II supports a large number of input formats, from analog to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD, and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter. The Mini D-Sub 15 pin type connector accommodates SD/HD component as well as computer input via RGB.
EQUIPPED WITH AUX BUS SWITCH
Easily switch sources connected to the assignable AUX outputs with the dedicated AUX layer switches. This is ideal for selecting which source is sent to a confidence monitor or secondary destination.
A NEW DESIGN IDEAL FOR LIVE PERFORMANCES AND EVENTS
4:4:4/10-BIT INTERNAL PROCESSING
The V-800HD MK II uses 4:4:4/10-bit internal signal processing. This lets you achieve compositing and output with no reduction in high-detail RGB signals driven from a computer. The result is a sharp, unblurred display of video and text, even on large screens and LED displays. The V-800HD MK II delivers high image quality for all uses, from live broadcasts to event displays.
NEWLY DEVELOPED KEY-COMPOSITING ENGINE
Along with the upgraded internal signal processing, a newly developed keyer is included. Chroma Key lets you adjust phase range, amount of chroma, and other parameters based on HSV color space that is closely related to human chromatic sensation. This allows you to achieve high quality and tight chroma key compositing even when using 1080p video sources. What’s more, the V-800HD MK II can accept an External Key. This attractively composites colorful CG titles and gradation/transparency clips, enabling you to achieve visual effects that are even more impressive.
MULTIVIEWER OUTPUT FOR SOURCE MONITORING
The multiviewer output allows you to monitor the status of all input sources plus the Program and Preview outputs. The convenient HDMI connector enables the use of a readily available and affordable monitor.
* Use an HDMI monitor that supports HDCP and 60p signals.
* SDI and composite inputs are displayed at the original source frame rate.
DVI-I/HDMI and RGB/Component inputs are displayed using a reduced frame rate.
* Changing the channel cross-point assignments changes the order of displayed sources.
* Still images imported from USB memory are not displayed on the source monitor.
BUILT-IN HDCP MODE
When playing back a Blu-ray disc that contains commercial content or digital broadcast programming, the digital output is encoded using HDCP (High- bandwidth Digital Content Protection), which is one means of copyright protection. This means that switchers that are not HDCP-compatible will not display or pass-through such video content, even in cases where permission for use in a live event was obtained from the copyright holder. To resolve this problem, the V-800HD MK II features a dedicated mode that officially supports HDCP. A panel indicator lets you check the operating state when the unit is in the HDCP mode.
* In HDCP mode, no video signals are output from the analog or SDI connectors.
* The display or projector connected to a digital output must be HDCP-compatible as well.
Video Processing
Video
| Processing |
4:4:4 (Y/Pb/Pr, RGB) /10 bits |
| PC Formats |
640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation. |
| Still Image Format |
Windows Bitmap File (.bmp)
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed |
| Formats |
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* SDI and Composite input can input the same frame rate as a setup menu setting. |
Input/ Output Level and Impedance
| Composite |
1.0 Vp-p, 75 ohms |
| Analog HD/RGB |
0.7 Vp-p, 75 ohms (H, V : 5 VTTL) |
Input Connectors
| 3G/HD/SD-SDI |
BNC type x 4
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C |
| DVI-I/HDMI |
DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel |
| Analog Video (HD) |
Component (Mini D-sub 15-pin type) x 4
* Combined use with Analog RGB |
| Analog Video (SD) |
Composite (BNC type) x 4
* Select Composite or SDI using menu per channel |
| Analog RGB |
Mini D-sub 15-pin type x 4
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel |
Output Connectors
| 3G/HD/SD-SDI |
BNC type x 2
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C |
| DVI-I/HDMI |
DVI-I type x 2, HDMI x 1 (for multi-view monitor) |
| Analog Video (HD) |
Component (Mini D-sub 15-pin type) x 1
* Combined use with Analog RGB |
| Analog Video (SD) |
Composite (BNC type) x 1
* Combined use with Analog Video (HD)
* Does not synchronize with Reference Input. |
| Analog RGB |
Mini d-sub 15-pin type x 1
* Combined use with Analog Video (HD) |
Other Connectors
| Tally |
Mini D-sub 15-pin type x 2
* Input (max) : 12 V, 200 mA Open collector Type |
| Reference |
BNC type (IN, THRU)
* Black Burst (Sync to frames), Bi-Level, Tri-Level |
| MIDI |
5 pin DIN type (IN, OUT/THRU) |
| RS-232 |
D-sub 9 pin type x 1 |
| USB port (host) |
A type x 1 (for USB memory) |
Effects
| Transition |
Mix, Cut, Wipe (9 patterns) |
| Composition |
PinP, DSK, Chrominance Key, Luminance Key, External Key |
| Others |
Output Fade, Output Freeze |
Other
| Power Supply |
AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) |
| Power Consumption |
75 W/0.7 A (115 V, 117 V)
75 W/0.4 A (220 V, 230 V, 240 V) |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Accessories |
Owner's Manual, Power cord, Rack-mount angle x 2 |
| The New Standard in Hybrid Event Switching
Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There’s also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple. And everything’s all wrapped up in a portable design with a broadcast-style interface that’s easily handled by a single operator.
- Portable hybrid event switcher with comprehensive features and connectivity
- Eight 3G SDI inputs with frame rate converters
- Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
- Seven total outputs across SDI, HDMI, and USB-C streaming
- Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
- 40-channel digital audio mixer with effects and processing
- Eight-layer video effects engine
- 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
- Powerful live production automation with sequencing, macros, and preset memories
- PTZ control with support for multiple brands and mixed protocols running at once
- Extensive device control with Bluetooth, USB, RS-232, and LAN
- Remote control software available for iPad, macOS, and Windows
- Wireless and wired camera tally support
Hybrid to the Max
The V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.
- On-demand signal processing means you never have to worry about issues like computer CPU overhead, latency, and output delay on live audience screens.
- Integrated connectivity standards like SDI, HDMI, XLR, and USB-C eliminate the need to build out costly infrastructure and conversion processes.
- The comprehensive interface provides hands-on controls that can be learned quickly by a single operator.
- Presets, macros, and advanced sequencing features let you set up and automate complex switching tasks with one touch.
HDMI and SDI Connectivity
The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
Send to Multiple Destinations
With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.
Instant Recall
Storing and recalling custom looks can be accomplished with just a few button presses on the V-160HD.
- The 30 preset memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output.
- The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.
- Our free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.
One-Touch Automation
The V-160HD’s newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order using the Next button on the panel. With the power of the V-160HD’s sequencer, you can tackle the most complex events without ever breaking a sweat.
Powerful Video Effects Engine
Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s effects engine features eight composition layers that can be assigned to the Program and Sub-Program outs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client. For example:
- Layers 1-2: Start with a mixable live background video layer.
- Layers 3-6: Place four picture-in-picture layers or chroma/luminance key effects.
- Layers 7-8: Add two downstream keyers with support for fill and key inputs
Stream Live
The V-160HD uses the same connection technology as webcams,* allowing you to stream events at 30/60 FPS in Full HD** and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
*USB video class (UVC) and USB audio class (UAC) compliant.
**YUV2 (uncompressed) and Motion JPEG (compressed) formats supported.
Sonic Perfection
Offering studio-grade sound, the V-160HD’s 40-channel digital audio mixer lets you blend signals from all 16 video inputs, USB-C, and microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.
Extensive PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple camera operators, provide great production coverage with studio-grade broadcast quality, and can be placed in discreet locations thanks to their small size. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like, and operate up to 16 PTZ cameras simultaneously.
Complete Control
The ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB, RS-232, tally/GPIO, support for foot-controlled operation, and more.
- Use the dedicated iPad remote control app to create an efficient touch interface.
- Extend your workflow with free Remote Control Software (RCS) for macOS and Windows.
- Plug in a BOSS single or double footswitch to execute over 100 different switcher commands.
- Trigger start/stop on Atomos recorders over HDMI.
- Set up a tally light with Roland’s Smart Tally or the rear-panel hardware connector.
- Seamlessly integrate in system installations with RS-232 and TALLY/GPIO DB-sub connectors.
V-160HD iPad Remote Control Utility
The dedicated V-160HD remote control app turns an iPad into an efficient touch interface for the V-160HD. Run essential switching functions, mix audio with virtual faders, change settings and parameters quickly and create up to 30 custom scenes for fast, efficient setup changes. Coming soon.
VIDEOVideo Processing4:2:2 (Y/Pb/Pr), 8-bitInput ConnectorsHDMI IN 1--4: HDMI type A x 4
* HDCP Supported
HDMI IN 5--8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1--8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292MOutput ConnectorsHDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (TM)
PREIVEW: HDMI type AInput FormatsHDMI IN 1--4, SDI IN 1--8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
HDMI IN 5--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB memory.
* PNG alpha channel supported.Output FormatsHDMI OUT 1--2, SDI OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *6
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *6
1080/59.94p *3, *4
1080/60p *3, *5
1080/50p *3, *6
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 50 Hz
HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/50p *3
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 50 Hz
SUSB STREAM:
1080/59.94p, 720/59.94p, 640×480/59.94p ※1
1080/29.97p, 720/29.97p, 640×480/29.97p ※2
1080/50p, 720/50p, 640×480/50p ※3
1080/25p, 720/25p､640×480/25p ※4
*Uncompressed format (YUV2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 29.97Hz
*3 FRAME RATE(USB OUT) = 50Hz
*4 FRAME RATE(USB OUT) = 25HzVideo EffectsTransition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern outputAUDIOAudio ProcessingSampling rate: 24 bits/48 kHzAudio formatsUSB STREAM (input/output): Linear PCM, 24 bits/48 kHz, 2ch
Bluetooth (input): Linear PCM, 24 bits/48 kHz, 2ch
HDMI IN: Linear PCM, 24 bits/48 kHz, 2ch
HDMI OUT: Linear PCM, 24 bits/48 kHz, 8ch
SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)Input ConnectorsAnalog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1--8: HDMI type A x 8
SDI IN 1--8: BNC type x 8Output ConnectorsAnalog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3Input LevelAUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)Input ImpedanceAUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧24dBu)
AUDIO IN 3/L, 4/R: 47 k ohmsOutput LevelAUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohmsAudio EffectsAuto Mixing, Delay, Reverb, High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone outputOTHERSOther ConnectorsUSB MEMORY: USB A type (for USB flash drive)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-LevelOther FunctionsPreset Memory (30 types)
Macro Control (100 types)
Sequencer Control
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control
Rec ControlBluetoothVer 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)Display4.3 inches TFT Color LCD: 480 x 272 dotsPower SupplyAC adaptorCurrent Draw2.5 APower Consumption55 WOperation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitDimensions437 (W) x 253 (D) x 103 (H) mm
17-1/4 (W) x 10 (D) x 4-1/16 (H) inches
480 (W) x 253 (D) x 103 (H) mm
18-15/16 (W) x 10 (D) x 4-1/16 (H) inches
* When rack mount angles are fitted.Weight (excluding AC adaptor)3.9 kg
8 lbs 10 ozAccessoriesStartup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6Options (sold separately)Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, BOSS FV-500L, FV-500H
* 0 dBu = 0.775 Vrms
* This product is a Class A digital device under FCC part 15. | The SE-3200 is equipped with 12 inputs and 9 outputs to aid you in producing a sophisticated and professional live event. The SE-3200 has a built-in input scaler, for up and down conversion on each available input. All 3200 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo's CG suites. With up to 4 channels of switchable chromakey, create a complete 4 channel virtual studio and enjoy the automatic chromakey functions. Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!
Datavideo SE-3200 Features
- Completely customizable 12 input full HD production switcher
- Supports full HD 1080P with scaling on each available input
- Create stunning video effects with advanced features
- Built-in stinger transitions and backgrounds
- Included CG Title Creator
- Custom multiview layout & dual multiview output
- Flex Source to go that extra mile
- 4 chromakeyers for a complete virtual studio experience
- Up to 8 picture-in-picture frames with unique 3D borders
- Crosspoint assignment for ultimate flexibility
- Perfect lip-sync audio
|
Reviews
There are no reviews yet.
