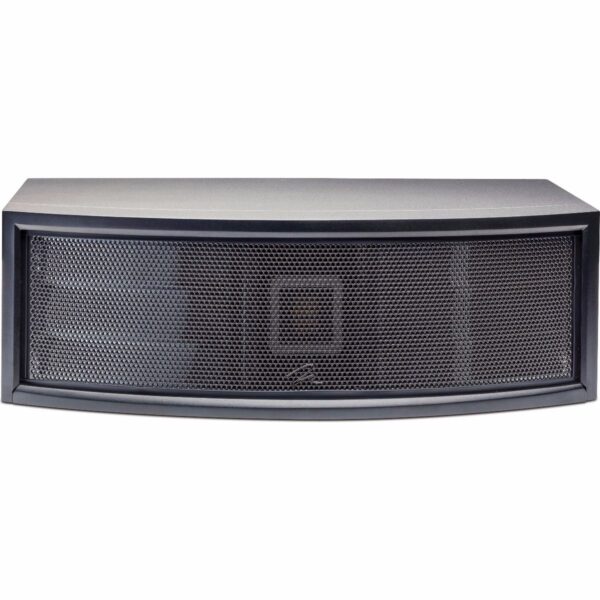

The powerful EM-ESL C is a high-performance electrostatic center channel loudspeaker. With the exceptional mid-range dynamics of an electrostatic panel, the remarkable details delivered by a Folded Motion Tweeter, and the addition of a newly-designed CenterForce dual woofer system, the most surprising thing about the EM-ESL C isn’t its superior performance. It’s that the EM-ESL C is compact enough to fit easily into today’s most popular A/V furniture. With the EM-ESL C electrostatic center channel loudspeaker, you can match the acoustic signature of your ElectroMotion Series speakers and build a truly astounding home theater system.
Expanding the Dynamics of Center Channel Performance
By adding a compact electrostatic panel to a center channel speaker, MartinLogan engineers have succeeded in expanding the performance dynamics of the most important speaker in your home theater system. Your center channel speaker needs to be able to reproduce the finest high-frequency details. The midrange must be expansive; to reproduce every whisper of dialogue. Deep bass adds impact to the front-stage effects that anchor the action to your screen. The EM-ESL C accomplishes all this and more.
The EM-ESL C has a shallow height CLS (Curvilinear Line Source) XStat electrostatic panel wrapped around the front of the speaker enclosure. The gentle horizontal curve of the panel enhances the output of its deceptively compact 114-square-inch radiating area, extending mid-range dispersion patterns and blending the performance seamlessly with your front-stage ElectroMotion loudspeakers.
Just behind the electrostatic panel, in a specially designed housing, sits MartinLogan’s exclusive Folded Motion Tweeter. The low-mass diaphragm of the Folded Motion Tweeter minimizes distortion, and its short excursion length reinforces its lightning-fast high-frequency response. The 1 x 1.4-inch Folded Motion Tweeter in the EM-ESL C has a total diaphragm area of 9.2-inches, with the ability to reproduce precise details; one of the most important jobs of a center channel speaker.
The New CenterForce System
Designing a high-performance electrostatic center channel speaker sized to fit into A/V furniture was no easy task. Adding a dual woofer system seemed impossible! But MartinLogan’s skilled audio engineers found a novel solution, and they call it CenterForce.
Instead of taking up space by positioning the woofers on each side of the electrostatic panel, they’ve designed a central slot inside the cabinet for the woofers. Now, the dual woofers reside in a well-braced enclosure located behind the tweeter and electrostatic panel.
This new CenterForce solution allows the speaker to be more compact and encourages the woofers to produce a generous amount of well-blended deep bass. The CenterForce system in the EM-ESL C features two custom-designed 5.25-inch aluminum cone woofers. Rigid and yet lightweight, this material reduces flexure while minimizing response time. Their efficient construction optimizes suspension and magnetic flux field, further reducing potential sources of distortion. The EM-ESL C grounds its performance in accurate, musical bass response.
This is a center channel speaker that delivers a full-range performance, by combining an electrostatic panel with a Folded Motion Tweeter, bolstered by the CenterForce bass system. The compact EM-ESL C goes where you want it, and does what you need, for your high-performance ElectroMotion home theater system.
|
The Motion FX features dual Folded Motion tweeters in a wide dispersion configuration, powerful bass, and a folded reflex port in a compact, affordable package with stunning performance.
- A single 5.25-inch paper cone woofer doped for stability and damping.
- Precision Vojtko™ crossover with custom air core coil and low DCR steel laminate inductors; polyester film and low DF electrolytic capacitors.
- Designed to easily corner mount, wall mount or angle-wall mount for versatile placement in any room.
- Convenient push-style binding posts easily adapt to accept banana plugs.
|
The compact, 14" Tall Aon 3 Bookshelf Monitor incorporates a 7", High-Definition, Multi-Vaned Phase Plug (MVPP™), cast-basket Mid-Bass Driver, coupled to two 8" Inertially-balanced side-mounted Low-Frequency Radiators and the GoldenEar High-Velocity Folded Ribbon Tweeter (HVFR™).
The BRX, Aon 2 and 3 bookshelf speakers are exceptionally compact, ultra-high-performance speakers that were originally developed for use as nearfield monitors in professional mixing applications. The design goal was to produce modestly-sized shelf or stand-mountable bookshelf speakers that would achieve accurate high-definition sonic reproduction, with superb three-dimensional imaging, comparable to that achieved by GoldenEar’s award-winning Triton Towers. The new BRX was specifically developed incorporating technology developed for the Triton Reference in order to achieve reference level performance. Although they don’t have quite the awe-inspiring bass of the floor-standing Tritons, great care has been taken, and extensive technology has been incorporated, to ensure that the BRX and Aons can deliver a remarkably satisfying full range listening experience without the need for a separate subwoofer.
Both the BRX and Aon models incorporate GoldenEar-designed cast-basket bass/midrange drivers with technology derived from the midrange units developed for the Tritons. The BRX driver is actually almost exactly the same as the 6" driver used in the Triton Reference. In addition, they all use extraordinary and costly High Velocity Folded Ribbon (HVFR™) high frequency radiators. And the BRX uses the same tweeter developed for the Triton Reference. Lastly, each BRX and Aon model utilizes two side-mounted planar low-frequency radiators in an inertially balanced configuration in order to properly load the bass/midrange drivers for an open, box-less midrange, while also contributing to their’ remarkably extended bass for such small enclosures.
| IsoAcoustics Aperta Isolation Stands can reduce your speakers sound vibrations from transferring to the surface below. Isolating your speakers and equipment can increase clarity and tighten bass. Featuring easy tilt adjustment for precision listening positions. IsoAcoustic Aperta 300 is designed to isolate center channel speakers, studio monitors and bookshelf speakers in horizontal positions.
- Helps eliminate vibrations created by speakers
- Best for center channel and horizontally positioned studio speakers
- Tilt feature to position your speaker to your ear
- Supports up to 60 lbs Each
- Size: 10L x 8W x 4H
- Sold as each.
- Designed for a speaker at least 11.8” wide and 7.8” deep with a max weight of 60 pounds
- Aluminum finish
|
S4 speaker stands are the perfect addition to your desktop speaker setup. With 16 of upward tilt, they ensure you experience the full range of frequencies your speakers have to offer. Each stand features foam padding to reduce vibration when you have the sound cranked up, and includes a mounting hole and 1/4"-20 screw to secure your YU4 or other compatible speakers in place.
- Get the most out of your speakers by tilting them toward your ears, ensuring you never miss out on those higher frequencies.
- Improve stabilization by securing YU4 or other compatible speakers in place with the provided 1/4"-20 screw.
- Foam padding on the top and bottom of each stand helps to maintain stability and reduce undesirable resonance.
Features
Desktop Stands: Pair the Kanto S4 desktop stands with your Kanto YU4 powered desktop speakers or another brand of desktop speakers of similar size and weight.
- Overall Dimensions: 5.5625" (w) x 2.0625" (h) x 7.9375" (d)
- Top Plate Dimensions: 3.875" (w) x 6.25" (d)
- Base Dimensions: 5.5625" (w) x 7.9375" (d)
- Weight Capacity: up to 8 lbs
- Your compatible desktop speakers should measure 5" to 7" (w) x 7" to 10" (d), and weigh no more than 8 lbs.
- 1/4"-20 screws are included to secure the Kanto YU4 speakers to the desktop stands; other brands of similar size speakers will not use these screws.
16° Vertical Tilt: With 16° of vertical tilt, the S4 desktop speaker stands angle your speakers towards your ears, ensuring you experience the full range of frequencies they have to offer.
Vibration Resistant: The S4 desktop speaker stands feature multiple areas of foam padding to maintain stability and reduce vibration.
Available In A Variety Of Colors: The S4 desktop stands are available in a variety of colors ( black, white, aluminum, brass, copper, or stainless steel) to compliment your decor
|
The Motion ultra-slim SLM XL features four passive radiators for amazing, controlled bass performance.
- The dual 4-inch, ultra-slim fiber cone woofers and four 4-inch passive bass radiators, paired with a Folded Motion tweeter create stunning acoustical alchemy all from a thin profile.
- The drivers are held securely in place by a solid, black-anodized brushed aluminum baffle under the grille.
|
