Class-beating sound shaped to your lifestyle

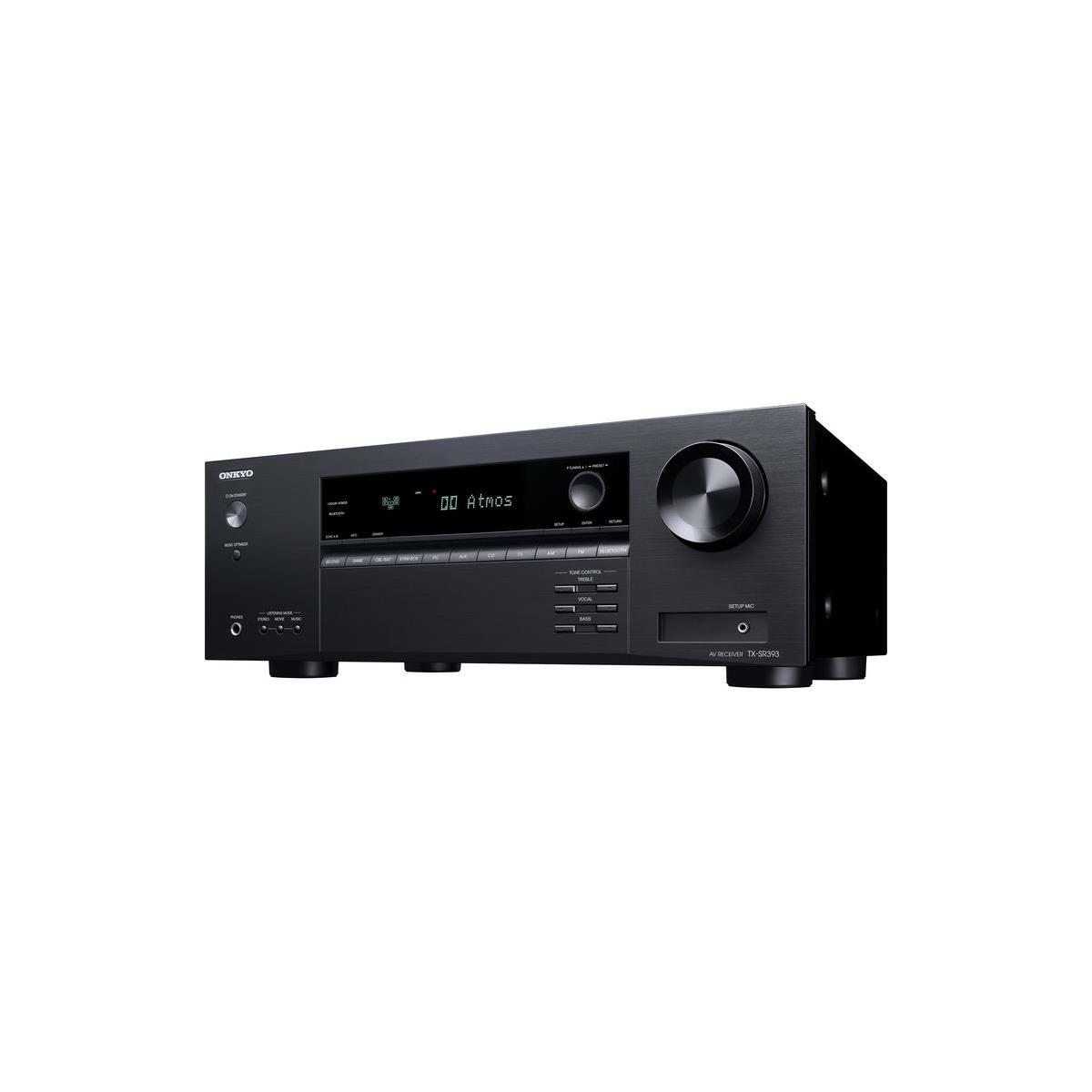

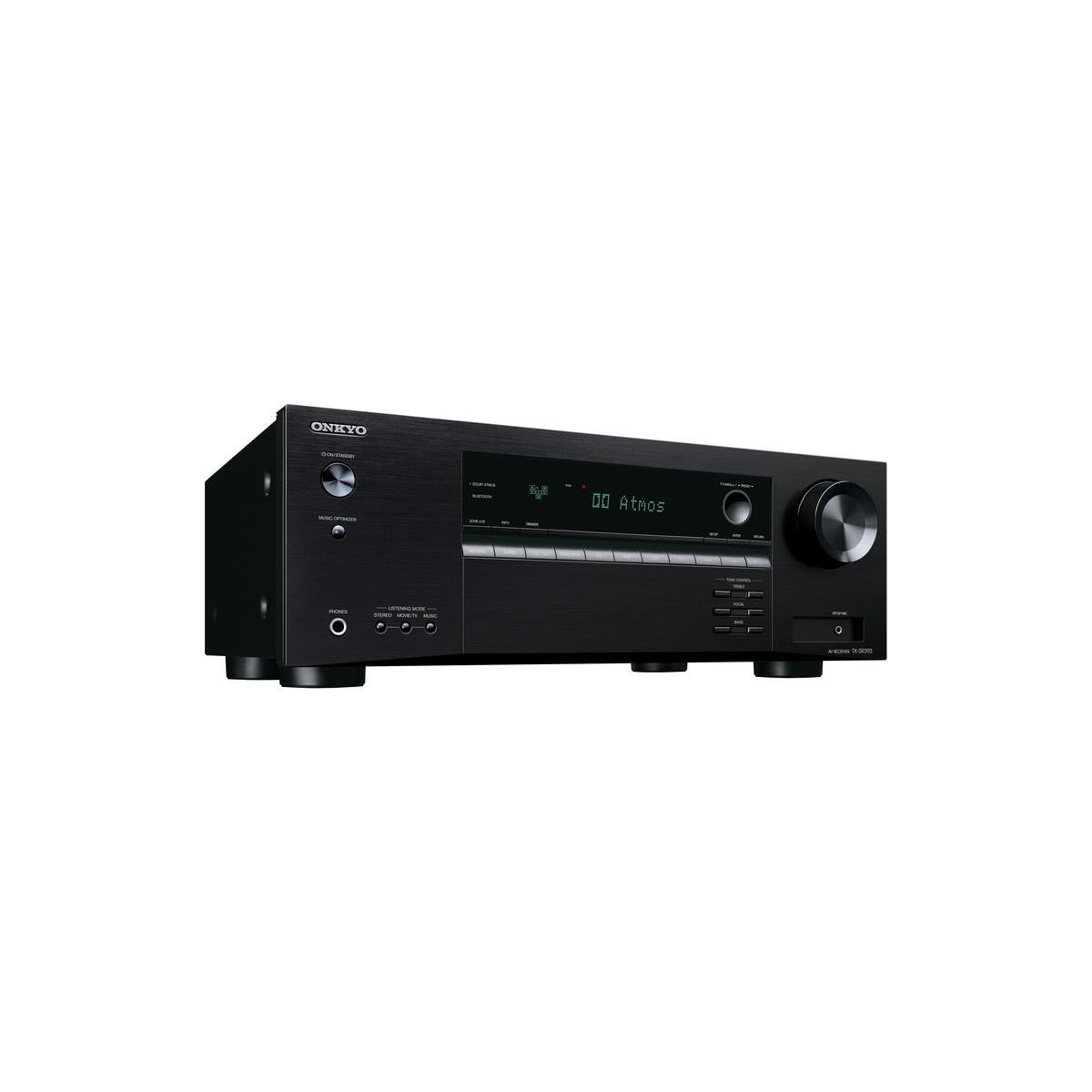

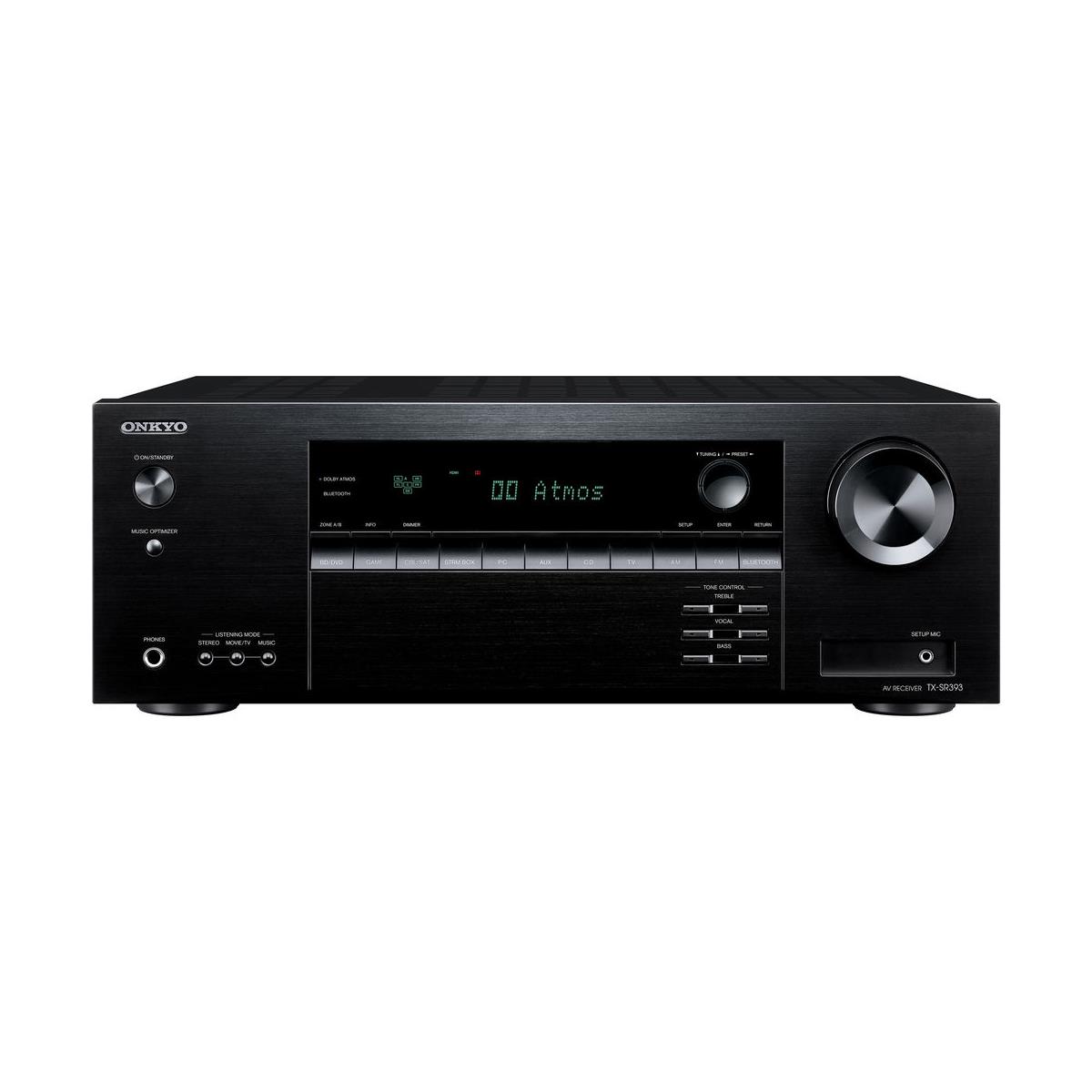

Premiere Dolby Atmos and DTS:X sound at home with the TX-SR393. Choose a speaker layout to suit your room, from a space-saving 2.1-ch setup enhanced with 3D surround-sound courtesy Dolby Atmos Height Virtualizer or DTS Virtual:X to a 3.2.2-ch system for native object-audio playback. Whatever way you play it, dynamic power is ready to thrill thanks to authentic high-current analog amps backed by a thumping custom transformer.
For true-to-life video, the AVR supports 4K/60p and HDR video passthrough. If all this tech sounds scary, relax: every aspect of this product is designed to erase frustration, from the automated AccuEQ system calibration to quick connection guide. The receiver integrates your players and TV and adds practical features such as Vocal Enhancer for clear dialog. There's even a Zone B line-out to distribute all your home cinema sources to a component with an analog RCA line in, such as a wireless headphone dock or hi-fi system. Or just sit back and stream from apps via Bluetooth technology and let Advanced Music Optimizer enrich every note of the golden Onkyo sound.
Amplifier Features
• 155 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 channel driven), 135 W/Ch (6 Ohms, 1 kHz, 1% THD, 1 channel driven, IEC)
• High-Output Low-Noise Power Transformer
• High-current 5-channel analog amplification system
• Discrete high-power output transistors
• Original low-impedance amp-circuit topology
Video & Audio Support
• Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG, BT.2020), 4:4:4 color-space, BT.2020, 3D Video, ARC (Audio Return Channel), DeepColor, x.v.Color and LipSync via HDMI
• Dolby Atmos, DTS:X, Dolby TrueHD and DTS-HD Master Audio decoding
• Supports SACD (Super Audio CD) Playback via HDMI (2.8 MHz/2ch, multi-channel)
• Dolby Atmos Height Virtualizer and DTS Virtual:X 3D sound processing
• Dolby Surround and DTS Neural:X upmixing technologies
• Premium 384 kHz/32-bit AKM multichannel DAC
• Direct Mode for source-authentic stereo sound

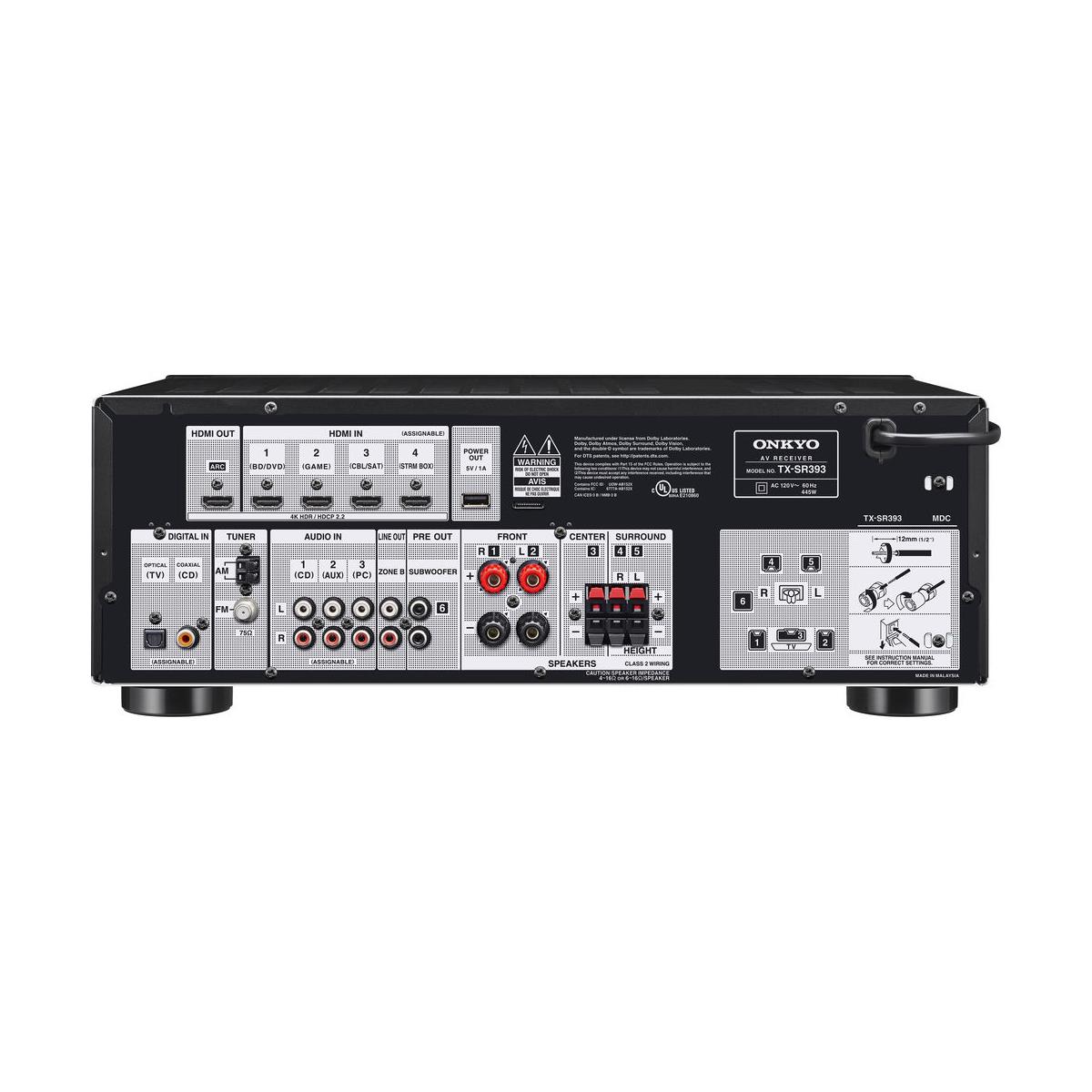

Connection Features
• 4 HDMI inputs and 1 output with ARC (Audio Return Channel)
• 2 digital audio inputs (1 optical and 1 coaxial, assignable)
• 3 analog audio inputs (assignable)
• Zone B line out
• 2 subwoofer pre-outs
• Speaker terminals (screw-type x 2 [Front L/R], lever-type x 3)
• Rear USB power supply terminal (5 V/1 A) for media streaming devices
• 6.35 mm headphone output (front)
• 3.5 mm AccuEQ setup mic input (front)
Dolby Atmos and DTS:X sound is here
The TX-SR393 supercharges your Dolby Atmos and DTS:X experience. Object-based audio is mixed in 3D space and lets any sound play through any speaker, tracking the action, localizing effects and moving around you. Dolby Surround and DTS Neural:X complement native 3D audio playback. These technologies find localization cues in legacy stereo or multichannel soundtracks and upmix these elements to create immersive top-to-bottom dimensionality.
Dolby Atmos Height Virtualizer
When playing any Dolby format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Spatial sound elevated with DTS Virtual:X
DTS Virtual:X is a new surround-sound virtualization technology that creates an immersive 3D soundfield from any speaker layout, such as 2.1, 3.1 and 5.1 configurations without height, surround or rear surround speakers deployed. It uses sophisticated DSP-based algorithms to place the audience at the center of a multidimensional soundfield with height and surround spatiality and is equally effective in large or small spaces. DTS Virtual:X works in the 3D domain with DTS:X soundtracks, DTS formats and non-encoded stereo.
Ready for 4K HDR entertainment
Enjoy comprehensive support for 4K/60p and HDR (High Dynamic Range) video formats including HDR10, HLG, Dolby Vision and BT.2020. The 4:4:4 color-space is also supported. All four HDMI inputs and ARC-ready output pass video from player to your compatible TV, unlocking everything the latest films and games have to offer. You can easily confirm A/V input-output status via a new OSD window.
More power, more realism, more magic
It's tempting to see watts as the most important figure on an amp's spec sheet. However, watts are an indication of loudness, not sound quality. Amperes-electrical current-tell the real story. The more current an amplifier develops, the better it controls the speakers. Better control equals fast transient response, wide dynamic range and clear, accurate sound. The high-output transformer, large capacitors and discrete amps inside the TX-SR393 produce the most current in its class. And that's one big reason why it sounds as good as it does.
AccuEQ Room Acoustic Calibration with AccuReflex
AccuEQ creates a harmonious soundfield in your room. It detects speaker presence, size and distance from a measurement position and sets sound-pressure levels. It then selects the ideal subwoofer crossover and applies equalization to all speakers. AccuReflex optimizes object-based audio reproduction through Dolby Atmos-enabled speakers. It resolves phase-shift arising from path differences between directional and non-directional sounds. Enjoy improved localization and a 3D field with vertical movement and overhead dimensionality.
Hear dialog clearly at the touch of a button
Finally, a fast and effective solution to inaudible dialog in TV programs and movies. The TX-SR393 features DSP-controlled Vocal Enhancer that identifies vocal frequencies and allows you to raise or lower them to taste using keys on the remote or via the tone controls on the receiver's front panel.
Share the atmosphere or relax in privacy
A fantastic addition to the TX-SR393 is a Zone B line-out. It connects a component with an analog RCA line input to audio sources available to the receiver, including HDMI and digital audio. Share sound to a hi-fi in a nearby space or connect a supported charging transmitter dock for wireless headphones and enjoy your entertainment without disturbing anybody.
Simple steps to sweet sound
The TX-SR393 simplifies your room's entertainment setup. Components plug into labelled ports while your TV connects via one easy-to-conceal HDMI cable. Hook up your speakers as shown by a friendly diagram next to the numbered speaker terminals. Setup takes moments, enjoyment is limitless.
Smooth and easy Bluetooth streaming
Whatever audio is playing on your phone, tablet or PC app can be streamed to the TX-SR393 with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
Decompress with Advanced Music Optimizer
When an audio file is squeezed into a small container (such as MP3), high-frequency data is lost. This can affect sound quality. Onkyo's Advanced Music Optimizer DSP listening mode reconstructs the missing bit data. Playback quality is greatly improved, while you enjoy the same convenient file sizes. This mode also optimizes Bluetooth streaming playback quality.
USB power for streaming dongles
A USB port on the rear panel powers any media streaming stick plugged into an adjacent HDMI input-great if you don't have enough power-points.
- 155 watts per channel
- Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision, BT.2020)
- Dolby Atmos and DTS:X playback
- Dolby Atmos Height Virtualizer and DTS Virtual:X
- AccuEQ with subwoofer EQ and AccuReflex
- Discrete high-current analog amp system with 4-ohm drive capability
- Bluetooth technology and Advanced Music Optimizer
- Vocal Enhancer function improves voice audibility
- Zone B line-out shares any audio source to components with an RCA input, such as wireless headphone docks, etc
- OSD window shows media format data for quick confirmation
- AccuEQ Room Acoustic Calibration, Subwoofer EQ and AccuReflex
- Zone B line-out shares any audio source to components with an RCA input, such as mini hi-fi systems, integrated amps, wireless headphone docks, etc
- DSP-controlled Vocal Enhancer function boosts dialog audibility via remote keys or front-panel controls
- Bluetooth wireless technology supports high-quality audio streaming from phones, tablets and PCs
- Advanced Music Optimizer improves playback quality of compressed audio
- GUI with OSD via HDMI features media input/output information window for easy confirmation of playback settings
- 1080p Full HD to 4K Ultra HD upscaling over HDMI
- Quick Connection Guide on rear panel for stress-free setup
- A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)
- Direct Power On function switches on receiver when an input key is pressed on the remote control or front panel
- HDMI passthrough function on standby
- Tone controls for Front L/R channels (bass/treble)
- 3-Mode front-panel display dimmer (Normal/Dim/Dimmer)
- AM/FM tuner with 40 random presets
- Sleep timer

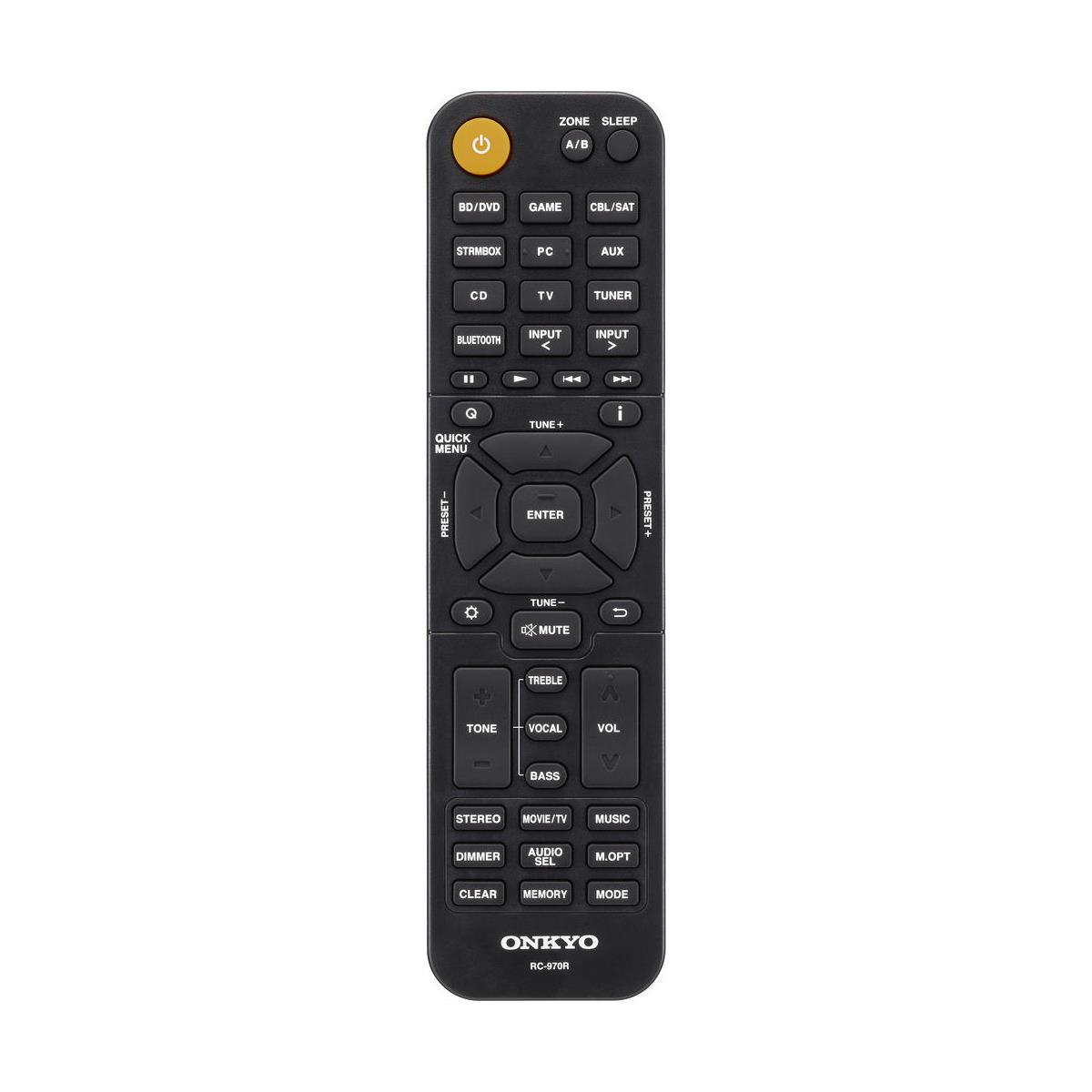

- Simple remote control
- Channels
- 5.2
- Power Output per Channel
- 80 W at 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC
155 W at 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
- THD & Noise
- 0.06% (20 Hz to 20 kHz, 8 Ohms, 1 Channel Driven, 50 W)
- Frequency Response
- 10 Hz to 100 kHz / +1, -3 dB (Direct Mode)
- Tone Control
- Bass: +/-10 dB, 20 Hz
Treble: +/-10 dB, 20 kHz
- Signal-to-Noise Ratio
- 109 dB (Line, IHF-A)
- Speaker Impedance
- 4 to 16 Ohms
- Video
- 1.0 Vp-p +/-5% / 75 Ohms (Composite)
- Dolby
- Dolby Atmos, Dolby TrueHD
- DTS
- DTS:X, DTS Virtual:X, DTS-HD Master Audio, DTS Neural:X Upmixing
- DAC
- 384 kHz / 32-Bit
- Tuner Type
- FM/AM
- Tuning Frequency Range
- FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz
- FM/AM Preset Memory
- 40 Stations
- Bluetooth
- Version: 4.2
Profile: A2DP 1.3, AVRCP 1.5
- Inputs
- 4 x HDMI
1 x RCA Digital Coaxial
1 x Optical TOSLINK
3 x Stereo RCA
- Outputs
- 1 x HDMI
2 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone B
1 x 1/4" / 6.35 mm Headphone (Front)
- Other Interfaces
- 1 x AM Antenna
1 x FM Antenna
1 x 1/8" / 3.5 mm Setup Mic (Front)
1 x USB Power Out (5 V, 1 A)
- Speaker Connectors
- 2 x Binding Post Pairs
3 x Spring-Clip Pairs
- Input Sensitivity and Impedance
- 200 mV / 47 kohms (Line)
- Power Requirements
- 120 VAC, 60 Hz
- Power Consumption
- Operational: 445 W
Standby: 0.1 W
- Dimensions (WxHxD)
- 17.13 x 6.3 x 12.91" (435.10 x 160.02 x 327.91mm)
- Weight
- 18.1 lbs (8.21kg)
|
Equipped with the 6th generation of Direct Energy HD Amplifier, the SC-LX704 is worthy of being your home cinema's centerpiece, and an ideal combination for Pioneer's flagship universal disc player. Two ES9026PRO DACs ensure quality audio reproduction, while MCACC Pro Auto Room Tuning technology with Full Band Phase Control brings out the best from 3D surround sounds of IMAX Enhanced, Dolby Atmos, and DTS:X. Enjoy rich, vibrant sound with PQLS jitterless transmission. The new Audio Exclusive Mode and AV Direct Mode enhance detailed sound reproduction by turning off the unused functions to eliminate unwanted noise.
Direct Energy HD Class D Switching Amplifier
Continuously evolving throughout the years, Pioneer's Direct Energy HD Amp has now reached the 6th generation. New power coils are adopted for the ideal speaker drive, as well as new custom film capacitors co-developed with Shinyei Capacitor for the ultimate sound. The power supply and patterning has been developed through repeated tuning. Also, the entire transmission path from the pre stage to the power stage has been changed to balanced circuitry, to transmit noise-free high-quality signals to the power stage.
MCACC Pro Auto Room Tuning
MCACC Pro, the pinnacle of Pioneer's auto room tuning technology, analyzes the phase and group delay characteristics to precisely control phase differences between speakers. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers. Required microphone included.
IMAX Enhanced MODE
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite's IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
ESS 384 kHz/32-bit DAC
Two 384 kHz/32-bit ESS DACs (ES9026PRO), same as the ones used for Pioneers PD-70AE SACD player, are used for all channels. With extremely precise D/A conversion and high S/N ratio, the DAC provides powerful sound full of rich details.
Dolby Atmos
You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.
DTS:X
Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.
Full Band Phase Control
Pioneer's Phase Control technology effectively eliminates phase lag and significantly improves the multi-channel sound without any extra operation. Furthermore, The Full Band Phase Control technology focuses on the group delay in the speaker network filter, and adjusts the phase of each unit as well as the group delay for each speaker. Multi-range speakers gain the sound coherence of full-range speakers, while retaining the wide frequency range advantage. In an environment where the phase of all units and all channels are precisely controlled, a remarkably clear sound location with a surrounding feel is achieved. In combination with MCACC Pro, the ideal multi-channel reproduction environment can be created, which faithfully replicates object audio and the intention of the original content developer.
PQFA Jitterless Sound Processing for Network/USB
With PQFA (Precision Quartz File-based Audio), clocks are available for each stage of input, digital signal processing, and D/A conversion, and the shorter path prevents jitter from occurring. Additionally, a high-precision clock IC (OSC) is used to realise D/A conversion with significantly less jitter.
PQLS Jitterless Sound Transmission
With the precision quartz controller on the AV receiver, Precision Quartz Lock System (PQLS) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the Pioneer universal disc player connected via HDMI, giving the best possible digital-to-analog conversion.
Audio Exclusive Mode
Interference from video signals is eliminated by turning off the video signal path via HDMI. You can enjoy detailed sound, full of spatial feel.
AV Direct Mode
The feature turns off the network functions to suppress digital noise within the AV receiver, and improves sound quality for analog playback, digital input, HDMI playback etc. Mode 1 turns off the network module operation clock, while Mode 2 shuts down the network power completely for more superior sound.
Works with Alexa
Works with Alexa makes you control SC-LX704 with your voice via Alexa-enabled device such as the Amazon Echo, to play, pause, and skip titles or control the volume. You can enjoy the music via streaming service such like Amazon Music by selecting song title, artist name, release year, and genre.
Ready for 4K HDR entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
High-Performance AC Cable
Included detachable OFC power cable contributes to superior sound.
Anti-Standing Wave Insulators
Features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localisation, tone, and scale clearer, while also contributing to seamless connection between the channels and improved response to quick sound.
- Direct Energy HD Amplifier
- MCACC Pro Auto Room Tuning
- IMAX Enhanced
- ESS 384 kHz/32-bit DAC
- Dolby Atmos/Dolby Surround Upmixing
- DTS:X/DTS Neural:X Upmixing
- Full Band Phase Control
- 2 Subwoofer Pre-Out
- PQLS Jitterless Sound Transmission
- PQFA Jitterless Sound Processing for Network/USB
- Audio Exclusive Mode
- AV Direct Mode
- Works with Alexa
- Next Generation Video Standard Ready
- Anti-Standing Wave Insulators
- AC Inlet Type Thick Cable
- Amplifier Design
- Class D3 (Direct Energy HD)
- Multi-ch Simultaneous Drive
- 760 W (8ohms, 1 kHz, THD 1 %)
- 4 Ohm Speaker
- Yes
- Channels
- 9.2
- 8 ohms, 1kHz, THD 0.08 %, 2ch Driven FTC
- 135W+135W
- Power Consumption
- 310W/0.2W (Estimated Power Consumption/Network Standby off)
- AirPlay
- Apple AirPlay 2
- Internet Radio
- TuneIn Radio
- Works with the Google Assistant
- Yes (Chromecast built-in)
- FlareConnect for Multi-room Audio
- Yes
- Roon Tested
- Yes
- Streaming Audio From PC/Network
- Yes
- iOS/Android Remote Control APP
- Pioneer Control App
- Works with Alexa
- Yes (Firmware update)
- DTS Play-Fi w/Pioneer Music Control App
- Yes
- Music-Streaming Services Ready
- Amazon Music, Pandora, Spotify, TIDAL, and Deezer Hi-Fi: Yes
- Digital Core DSP Engine
- Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus floating- point DSP (TI)
- Audio Processing
- 11.2
- IMAX Enhanced
- Yes
- Dolby Atmos Height Virtualizer
- Yes
- Dolby Digital Plus
- Yes
- DTS-HD Master Audio
- Yes
- HDMI SACD Transfer
- Multi-Channel
- Audio DACs
- 384 kHz/32-bit D/A Conversion with ES9026PRO x 2
- Music File Playback
- 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
- Dolby Atmos
- Yes
- Dolby TrueHD
- Yes
- DTS:X
- Yes
- DTS Neural:X
- Yes
- MCACC
- Yes (Pro)
- Full Band Phase Control
- Yes
- Phase Control
- Yes
- EQ Bands
- 9-Band
- Distance Adjustment
- 0.05'
- Auto Subwoofer Crossover
- Yes
- MCACC Memory
- 3
- Auto Phase Control Plus
- Yes
- Standing Wave Control
- Multi-point (9 points)
- EQ Type
- LR SYMMETRY EQ, FRONT ALIGN EQ, ALL CH ADJUST EQ
- Polarity Check
- Yes
- Auto Surround
- Yes
- Advanced Surround
- 10+1
- Stream Direct
- Yes (Direct, Pure Direct)
- Front Stage Surround Advance
- Yes
- Dialog Enhancement
- Yes
- DSD Music File
- Yes
- Sound Delay (Lip Sync)
- Yes
- Bi-Amp
- Yes
- Advanced Sound Retriever
- Yes (2ch)
- Tone Control
- Multi
- Speaker A/B
- Yes
- 4K Ultra HD Pass-Through
- Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
- 3-D Ready
- Yes
- HDMI Standby Through
- Yes with Input Switch/Last Memory
- Dolby Vision Compatible
- Yes
- HDMI x.v. Color
- Yes
- Super Resolution
- Yes
- 4K Ultra HD Video Scaler
- Yes (1080p to 4K)
- Audio Return Channel
- Yes (eARC)
- HDR
- HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
- HDMI 36-bit Deep Color
- Yes
- Video Converter to HDMI
- Yes
- HDMI Input/Output
- 7 In (6 Rear, 1 Front)/3 Out
- Bluetooth Built-In
- Bluetooth Wireless Technology (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
- Composite A/V Input/Output
- 2 in
- Ethernet Input
- Yes
- Digital Audio Inputs/Output
- 5 in (Optical 3, Coaxial 2)/0 out
- Headphone Output
- Yes
- Phono Input
- Yes
- Wi-Fi Built-In
- Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi Built-in
- Component Video Input/Output
- 2 in
- USB Terminal
- Front and Rear
- Analog Audio Inputs/Output
- 6 in/0 out
- Pre-Amp Output
- 11.2 ch
- Front A/V Inputs
- USB & HDMI
- AM/FM Presets
- AM/FM Tuner 40 Presets
- On-Screen Display
- User-Friendly GUI with System Setup Menu
- Powered Zone output
- ZONE2/ZONE3
- Zone 2 Sources
- All Audio Sources
- 12 Volt Trigger (Assignable)
- A.B
- IR Serial Remote In/Out
- 2 in/1 out
- Function Rename
- Yes
- Personal Preset
- Yes
- Versatile Speaker Configuration
- Yes
- Auto Power Down
- Yes
- Multi-Room and Source Output
- ZONE2/ZONE3 Pre/Line Out
- Zone 3 Sources
- Analog/Net/Bluetooth/Tuner
- RS-232C
- Yes
- FL Dimmer
- Yes
- Remote
- Yes
- Sleep Timer
- Yes
- Alumium Front Panel
- Yes
- Transformer Stabilizer
- Yes
- 3D Space Frame Construction
- Yes
- Speaker Terminals
- 11 Large
- Advanced Direct Construction
- Yes
- Dimensions (W x H x D)
- 17-1/8 x 7-5/16 x 17-5/16 inches (435 x 185 x 440mm)
- Weight
- 40.8 lbs (18.5kg)
| The Yamaha A-S701 Integrated Silver Amplifier is designed for pure sound quality and outstanding drive power. An integrated amplifier with the advantage of analog and digital inputs.
High Quality Circuit Design Based on the ToP-ART (Total Purity Audio Reproduction Technology) Concept
The amplifier design technology from Yamaha is called ToP-ART, which features an input to output with a direct symmetrical design. ToP-ART design and ART Base ensure optimum sound when processing and transmitting the audio signal. The signal is simple and direct, so therefore it is less likely to be affected by noise and distortion. The left and right channels are organized in a straight, symmetrical layout for the highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid center bar provide high rigidity support and dampers vibration. These design innovations contribute to this amplifier's rich audio reproduction with abundant musicality.
High Quality Parts for Outstanding Audio Performance
Notice the custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one point grounding system, extruded aluminum heat sinks and other top-quality parts to effortlessly handle demanding audio conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of this component. Yamaha uses only very high quality parts, carefully selected and tested for their sound properties.
Created by Rich Experience, Tradition and High Technological Expertise
Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for Hi-Fi components. The A-S301 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of "Natural Sound" for reproducing all music as it really sounds, this amplifier is built with scrupulous care from its circuit design to basic sound production
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximizes the CD source's signal to noise ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp, the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality..
Continuously Variable Loudness Control
The A-S301 also features a new analog loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low and high frequencies, providing full tonal range at any volume level by compensating for the natural loss in the human ear at soft levels.
Gold Plated Terminals
Gold plated terminals ensure a high quality connection that prevents signal loss. The A-S501 has gold plated speaker and input terminals.
Digital Audio Input for TV and/or Blu-ray Disc Player
The A-S301 is equipped for digital audio inputs with an optical and digital coaxial input terminal. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain, giving you pure, pristine and dynamic sound for all of your entertainment sources.
Connection for YBA-11 Bluetooth Wireless Adapter (Optional Accessory)
With the YBA-11, you'll be able to stream music wirelessly from a Bluetooth compatible mobile phone or a PC. Thanks to the digital coaxial connection and the aptx audio coding algorithm, you will enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC out connection on the rear panel of this amplifier.
Speaker A, B or A+B Selection and Speaker Terminals for Two Systems
You can connect two separate speaker systems and hear them in different rooms at the same time. There are four terminals, so by just rotating a simple selector dial, you can switch between the two pairs of speakers to play the selected source.
Subwoofer Terminal
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono Moving Magnet Input Terminal
You can connect a turntable with a MM phono cartridge to play vinyl records. Get the best of both worlds whether listening to analog vinyl or the latest digital technology.
Simple Yet Sophisticated Design
With a beautiful, simple and unique design inherited directly from Yamaha Hi-Fi audio components, this amplifier also boasts an easy to operate layout. The aluminum front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on top end models.
Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy to understand operation with a single hand. The design makes it simple to adjust inputs, volume and more. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxurious hairline finish offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources, even in a dark room.
Auto Power Standby Function
When Auto Power Standby is engaged, the amplifier will automatically shift itself into standby mode when a user function has not been executed in eight hours. This is a great function if you forget to turn the amplifier off and it will help minimize power consumption when the unit is not in use.
This product can only be shipped to U.S. addresses.
- Minimum RMS Output Power
- 8 Ohms: 100 W + 100 W (0.019% THD)
6 Ohms: 120 W + 120 W (0.038% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms
- Frequency Response
- 10 Hz - 100 kHz +/- 1.0 dB
- Maximum power per channel
- 1 kHz, 0.7% THD, 4 Ohms: 160 W
- IEC power
- 1 kHz, 0.019% THD, 8 Ohms: 115W
- Power band width
- 0.04% THD, 50 W, 8 Ohms: 10 Hz to 50 kHz
- Maximum Effective Output Power
- 1 kHz, 10% THD, 6 Ohms: 170 W
- Input sensitivity/Input impedance
- PHONO (MM): 3.0 mV/47 kOhmss
CD, etc: 200 mV/47 kOhmss
- Maximum input signal
- PHONO (MM) (1 kHz, 0. 03%THD): 45 mV or more
CD etc. (1 kHz, 0.5% THD): 2.2 V or more
- Output level/Output impedance
- REC OUT: 200 mV/1.0 kOhmss or less
SUBWOOFER OUT: 3.5 V/1.2 kOhmss
- Phones jack rated output/Impedance
- CD, etc. (Input 1 kHz, 200 mV, 8 Ohms: 470 mV/470 Ohms
- RIAA equalization deviation
- PHONO (MM): +/- 0.5 dB
- Channel separation
- CD, etc. (5.1 kOhmss input shorted,1kHz): 65 dB or more
CD, etc. (5.1 kOhmss input shorted,10 kHz): 50 dB or more
- Bass
- Boost/Cut (20 Hz): +/- 10 dB
Turnover frequency: 400 Hz
- Treble
- Boost/Cut (20 Hz): +/- 10 dB
Turnover frequency: 3.5 kHz
- Continuous loudness control
- - 30 dB
- PCM word depth
- 24 bit/16 bit
- Power supply
- AC 120 V, 60 Hz
- Power consumption
- 270 W
- Standby power consumption
- 0.5 W
- Maximum power consumption
- 580 W
- Total Harmonic Distortion (CD to Sp Out)
- 0.019% (50 W / 8 Ohms)
- Signal-to-Noise Ratio (CD)
- 99 dB (input shorted, 200 mV)
- Damping Factor
- 240
- Digital Input
- Yes (optical / coaxial)
- Audio In / Out
- 8 / 2
- Subwoofer Out
- Yes
- Pure Direct
- Yes
- ToP-ART
- Yes
- Switchable CD Direct Amplification
- Yes
- DC out
- Yes
- Standby Power Consumption
- 0.5 W
- Power Management (Auto Power Standby)
- Yes
- Dimensions (W x H x D)
- 17.12 x 6 x 15.25" / 434.84 x 152.4 x 387.35mm
- Weight
- 24.7lbs / 11.20kg
|
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
Nostalgic Hi-Fi design. Today's Hi-Fi technology
A nod to the past with the latest technology for a purely musical sound.
Emotion
Understanding music is to understand the emotion upon which music is created - the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists' emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.
>Toroidal Transformer
Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today's discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.
Openness
An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners' musical experience, bringing them closer to the artist.
Thick Wires for Ground Connection
Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.
Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.
Groove
Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the 'Groove' of the music to the listener.
Chrome-Plated Iron Feet
Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
ColorBlackRated output power 2-channel driven8Ohm: 90 W + 90 W
4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)Dynamic power8Ohm: 105 W + 105 W
6Ohm: 135 W + 135 W
4Ohm: 190 W + 190 W
2Ohm: 220 W + 220 WIEC output power8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)Maximum effective output power8Ohm: 120 W + 120 W
4Ohm: 190 W + 190 WPower bandwidth 2-channel driven8Ohm: 10 Hz to 50 kHz (0.1% THD, 45 W)Damping factor8Ohm: 250 or higher(1 kHz)Input sensitivityPHONO (MC): 150 micro Vrms / 50Ohm
PHONO (MM): 3.5 mVrms / 47 kOhm
CD (or similar): 200 mVrms / 47 kOhm
MAIN IN: 1 Vrms / 47 kOhmMaximum inputPHONO (MC): 2.0 mVrms
PHONO (MM): 50 mVrms
CD (or similar): 2.80 VrmsRated output voltageLINE 2 OUT: 200 mVrms / 1.5 kOhm
PRE OUT: 1 Vrms / 1.5 kOhmHeadphone jack rated output power25 mW + 25 mW (1 kHz, 32 Ohm, 0.2% THD)Frequency response5 Hz to 100 kHz: +0 / -3 dB
20 Hz to 20 kHz: +0 / -0.3 dBDeviations from RIAA equalizerPHONO (MM/MC): +/-0.5 dBTotal harmonic distortion plus noise2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
CD (or similar) - SPEAKERS OUT, 50 W/8Ohm: 0.035%
Signal-to-noise ratioPHONO (MC): 90 dB
PHONO (MM): 96 dB
CD (or similar): 110 dBResidual noise50 micro VrmsChannel separationPHONO (MC): 66/77 dB or higher
PHONO (MM): 90/77 dB or higher
CD (or similar): 74/54 dB or higherTone control characteristicsBASS: Boost/cut: 50 Hz / +/-9 dB
Turnover frequency: 350 Hz
TREBLE: Boost/cut: 20 kHz / +/-9 dB
Turnover frequency: 3.5 kHzPower supplyAC 120 V, 60 HzPower consumption350 WStandby power consumptionOFF mode: 0.1 W
Standby mode: 0.2 WDimensions (W x H x D)17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)Weight48.5 lbs (22kg)
|
RX-V6A 7.2-Channel AV Receiver With 8K HDMI & MusicCast.
This 7.2-channel, 100 Watt AV receiver boldly explores entertainment possibilities for an advanced home theater with the latest in video and audio, including Dolby Atmos Height Virtualization, DTS:X, wireless streaming and more.
Dolby Atmos® and Dolby Atmos Height Virtualization.
Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization technology can simulates the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
DTS:X.
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism in all your favorite movies.
CINEMA DSP 3D.
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.
Compressed Music Enhancer.
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
HDR and HDR10+.
HDR (high dynamic range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.
HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.
4K/60Hz, 8K/60Hz & 4K/120Hz.
Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K/120Hz enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly.
Enhanced Media and Gaming (ALLM, VRR, QMS, QFT).
Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay; Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed; and Quick Frame Transport (QFT), which reduces latency for smoother, no-lag gaming and real-time interactive virtual reality.
Simple and Easy with the MusicCast App.
Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.
Voice Control (Alexa, Google Assistant and Siri).
Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.
YPAO™ automatic room calibration with R.S.C. and Multi-Point.
YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes your room acoustics, measures speaker characteristics and adjusts unwanted reflected sounds to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound at any of eight listening positions.
Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated ensuring your home theater room has the best sound.
MusicCast Surround.
Combine this AV receiver with the MusicCast 50 or two MusicCast 20 wireless streaming speakers and enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your living room into a home theater where you can fully enjoy movies and music.
Multi-Room Audio - MusicCast.
Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay®, Bluetooth® to music streaming services and even sound from your TV, MusicCast has it covered.
Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.
- Channel
- 7.2
- Rated Output Power
- 100 W (8 ohms, 0.06% THD) (20Hz-20kHz, 2-ch driven)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10+
- Yes (via future firmware update)
- Dolby Vision
- Yes
- MusicCast Surround
- Yes
- HDMI Input/Output
- 7/1
- HDMI 8K/60Hz support
- 3/1
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio
- Input/Output: Optical 1/0
Input/Output: Coaxial 1/0
- Analog Audio
- Input/Output 4/0
- Phono Input
- Yes
- Preout
- 2.2-ch
- Headphone Output
- 1
- Standby Power Consumption
- 0.1 W (IR only)
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.1 x 6.75 x 14.9/" (43.4 x 17.14 x 37.8cm)
With antenna up: 17.1 x 9.62 x 14.9/" (43.4 x 24.4 x 37.8cm)
- Weight
- 21.6 lbs (9.8kg)
|
Pure power and precision. The A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift on-screen movements, the A6A ensures you won't miss a thing.
Breathtaking Sound
Surround:AI
Dolby Atmos
Dolby Atmos with Height Virtualization
DTS:X
High Slew Rate Amplifier
Compressed Music Enhancer
MusicCast multi-room audio
Wi-Fi, AirPlay 2 and Spotify Connect
Streaming services include Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM
Zone 2/3 and HDMI Zone 4
Phono input
Movies And Games Like Never Before
4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
HDR 10+, 8K60AB, 4K120AB via future update
Gaming-dedicated functions (ALLM, VRR, QMS, QFT) via future update
Multiple HDMI inputs with the latest technology
AURO-3D via future update
Simple To Set Up, Simple To Use
MusicCast app
AV Setup Guide app
Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Integration with third party control partners
Designed For Your Space
YPAO-R.S.C. with multipoint measurement and precision EQ
Wireless rear surround capability
Sleek, modern design
Anti-Resonance Technology Wedge (Fifth Foot)
Breathtaking Sound
Surround:AI
This artificial intelligence analyzes the DSP parameters and optimizes the surround effect of distinct sound elements such as background music, dialogue, and sound effects. It's like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407
Crafted for Clarity
The newly designed Anti-Resonance Technology (A.R.T.), H-shaped Cross Frame and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal clear sound that moves you, all while your AV receiver stays perfectly still. A double-bottom plate ensures stability for unnecessary vibrations.
High-Quality Digital Components
The Qualcomm QCS407 takes your AV receiver's audio performance to the next level with support for Dolby Atmos and DTS:X. SABRE ES9026 PROs minimize noise to make even the most delicate sounds rich, while SABRE ES9007S Premier Audio DAC provides superior signal-to-noise ratio and up to 120dB of dynamic range for professional quality audio.
AURO-3D
Bring your entertainment experience to the next level with immersive audio that accurately reproduces 3D sound with superior effect across any content. Gain entry into a world where every breath-taking moment is not only heard but also felt.
Movies And Games Like Never Before
8K60AB, 4K120AB and 4K60
This feature offering enables a higher resolution and refresh rate, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybrid-Log Gamma and BT-2020 included.
Enhanced Gaming Features (ALLM, VRR, QMS and QFT)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
These HDMI inputs will equally support the latest HDMI technology to allow several next-gen gaming consoles to be connected at the same time.
Simple To Set Up, Simple To Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Working with Alexa and Google Assistant, your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device.
AV Setup Guide App
This app offers expert guidance through installation, cable connections, and various other settings.
Third Party Control
This receiver includes integration with third party control partners, including Crestron, URC, RTI, Control4 and more
Designed For Your Space
YPAO-R.S.C. with Multipoint Measurement and Precision EQ
YPAO (Yamaha Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X. This feature includes low frequency mode.
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
- 9.2ch / 150 W
- High Slew Rate Amplifier
- HDMI 7 inputs / 3 outputs
- DTS:X
- Streaming Service
- CINEMA DSP HD3
- 11ch Pre Out
- Multi-room Audio
- AirPlay 2
- Dolby Atmos
- Playback in Multiple Zones
- XLR Input Terminal
- Channel
- 9.2 (11.2 processing)
- Rated Output Power
- (20Hz-20kHz, 2-ch driven): 150 W (8 ohms, 0.06% THD)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision, Hybrid-Log Gamma
- BT.2020, HDR10+: Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/3
- HDMI 4K60, 4K120AB, 8K60AB support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output: Optical
- 3/0
- Digital Audio Input/Output: Coaxial
- 2/0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 6/0
- Zone 2 and 3
- Yes
- Phono Input
- Yes
- XLR Terminal
- Yes
- Component Video Input/Output
- 1/0
- Composite Video Input/Output
- 2/0
- Preout
- 11.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- < 0.4 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.12 x 7.5 x 17.37" (43.48 x 19.05 x 44.11cm)
With antenna up: 17.12 x 10.62 x 17.37" (43.48 x 26.97 x 44.11cm)
- Weight
- 44.8 lbs (20.3kg)
|
Reviews
There are no reviews yet.
