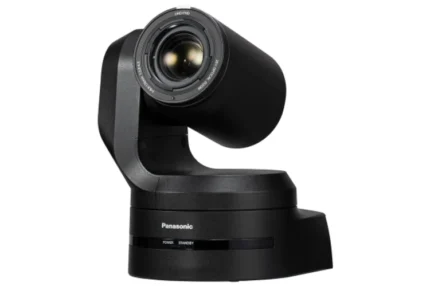

| Content | The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
KEY FEATURES
- High Sensitivity Achieved with the 1” Large-sized Sensor
- Optical 20x Zoom/Horizontal 75.1° Wide-angle Shooting
- Pan/tilt Performance that Achieves Smooth and Accurate Operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.
Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
Dimensions (W x H x D)
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket)
General
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Finish
AW‑HE145W: Pearl white
AW‑HE145K: Metallic Black
Mass
Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
Controller Supported
AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
LENS
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Synchro scan
59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
Zoom
• Optical zoom: 20x
• i.Zoom: FHD 32x
• Digital zoom: 10x
Horizontal Resolution
1000 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
WHITE BALANCE
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Output Format
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
Scene File
Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed
59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Imaging Sensors
1-type Full-HD MOSx1
Chroma Amount Variability
OFF, –99 % to 99 %
Camera Unit
-
Frame mix*3
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
INPUT
-
OUTPUT
-
Input/Output Connector
LAN
LAN connector for IP control (RJ‑45)
RS-422
CONTROL IN RS-422A (RJ‑45)
MIC/LINE input
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV
INPUT/OUTPUT
-
Pan/Tilt Operation Speed
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*8
• Maximum speed is 180°/s in high-speed mode
Quietness
NC35 or less
Tilting Range
–30° to 210°*9
Panning range
±175°
Pan-tilt Head Unit
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control
IP connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
Supported operating systems and web browsers
Windows
Microsoft(R) Windows(R) 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
MacOS v11.0.1 / Safari 14.01
MacOS v11.0.1 / Google Chrome
MacOS V10.15 / Google Chrome
MacOS V10.14 / Google Chrome
iPhone / iPad
iOS
Google Chrome
Supported Operating Systems and Web Browsers*10
-
Image Resolution
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
1920x1080, 1280x720, 640x360, 320x180
-
Image Transmission Setting
JPEG
Frame Rate: Maximum 30 fps, Image quality (Fine / Normal)
H.264
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
H.265
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
NDI|HX
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.264
Transmission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.265
Transimission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
RTMP/RTMPS
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
Supported protocol
IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP
IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Other Function
-
Tally LED display color
red / green
NDI Support*11
NDI | HX
| BirdDog BDP400 PTZ Camera
BDP400B features 20x zoom,10-bit NDI in stunning 4K resolution and allows chroma subsampling in your choice of 4:2:0 or 4:2:2. P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module. P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions.
BirdDog PTZ Keyboard Controller
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.
| Bring UHD 4K quality video to your production with the white AW-UE150K UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility. With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video. A cropping function enables you to create a multicamera look by selecting up to three angles from a single 4K image.
The AW-UE150K camera supports embedded audio and audio input via a stereo mini-jack. Its redesigned web interface is compatible with PCs, Macs, tablets, and both Android and iOS smartphones. Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP. The AW-UE150W is upgradable to NDI/HX compatibility with a separately available license.
PoE++ Compatible
Power the camera using a separately available PoE++ (IEEE802.3bt) hub to minimize installation costs
Firmware Upgrade v2.28
Add V-Log output, a UHD crop function for 720/59.94p and 720/50p, a preset iris on/off function, and more by upgrading to firmware version 2.28
Features
-Large 1" type MOS sensor
-HDMI, SDI, and IP output up to UHD 4K
-20x optical, 32x iZoom in HD, 24x iZoom in UHD 4K
-Wide 75.1° horizontal angle of view (DRS)
-High Dynamic Range (HDR) mode with BT.2020 gamut support
-Optical Image Stabilization (IOS)
-Crop up to three shots from a single 4K image
-Large, adjustable tally light
-Adaptive Matrix function adjusts for strong LED blue light
1/4, 1/16, 1/64 ND filters
-Audio input and embedding
-Improved web UI for use with PC, tablet, or smartphone (iOS, Android)
-Maximum 180°/s pan/tilt in high-speed mode
-Monochrome Night Mode
-Digital Noise Reduction (DNR)
-Live streaming via RTMP
-Upgradable to NDI/HX with license
Video Output
- HDMI 2.0 standard 4:2:2/10bit
- HDCP is not supported.
- Viera Link is not supported.
- 12G-SDI OUT
- SMPTE 2082‑1 standard / 75 Ω (BNC x 1)
- 3G-SDI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Level-A/Level-B supported
- MONI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Optical Fiber SFP+ standard
- Single Fiber
- The signal sent is the same as 12G-SDI OUT.
- his unit does not support input by optical signals.
Zoom
- Optical zoom: 20x
- i.Zoom: UHD 24x, FHD 32x
- Digital zoom: 10x
Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Power Requirements: 12 V DC (10.8 V to 13.2 V)
PoE++: IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity: 20 % to 90 % (no condensation)
Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Mass: Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D): 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket)
Finish
- AW‑UE150WP/AW‑UE150WE: Pearl white
- AW‑UE150KP/AW‑UE150KE: Black
Controller Supported: AW-RP150GJ, AW-RP60GJ (Support planned for the future)*1, AW-RP50*1, AK-HRP1000GJ*1, AK-HRP1005GJ*1
Camera Unit
Imaging Sensors: 1-type 4K MOS×1
Lens
- Motorized Optical 20x zoom, F2.8 to F4.5
- [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
Conversion Lens: Not supported
Angle of View Range
- Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
- Vertical angle of view: 46.7° (wide) to 2.3° (tele)
- Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus: Switching between auto and manual
Focus Distance
- Entire zooming range: 1000 mm (3.3 ft)
- Wide end: 100 mm (0.33 ft)
Color Separation Optical System: 1MOS
Standard Sensitivity: F9, 2000 lx (When normal mode is selected)
Minimum Illumination: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N: 60 dB or more
Horizontal Resolution: 1600 TV lines Typ (Center area)
Gain Selection
- Auto, 0 dB to 36 dB*2
- Super Gain function equipped : 37 dB to 42 dB
Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed
- 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan
- 59.94p/59.94i: 60.00 Hz to 7200 Hz
- 29.97p: 30.00 Hz to 7200 Hz
- 23.98p/24p: 24.00 Hz to 7200 Hz
- 50p/50i: 50.00 Hz to 7200 Hz
- 25p: 25.00 Hz to 7200 Hz
Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
White Balance
- ATW : 3200K, 5600K
- ATW Speed : Normal / Slow / Fast
- AWB : AWB-A / AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability: OFF, –99 % to 99 %
Scene File: Scene1, Scene2, Scene3, Scene4
Output Format
- 4K: 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
- HD: 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF,1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i,720/59.94p, 720/50p
Synchronization System: Internal / External synchronization (BBS / Tri-level sync)
INPUT
Input Connector
- DC 12 V IN, G/L IN (BNC)
- BBS (Black Burst Sync), tri-level sync supported
Input/Output Connector:
- LAN
- LAN connector for IP control (RJ‑45)
- RS-422
- CONTROL IN RS-422A (RJ‑45)
- MIC/LINE input
- ø 3.5 mm stereo mini jack Input impedance: High impedance
- During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
- During LINE input Input level: Approx. –10 dBV ±3 dBV
Pan-tilt Head Unit
Camera/Pan-tilt Head Control:
- IP connecting cable
- LAN cable*6*7: (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft)
- AW protocol connecting cable
- LAN cable*6 (category 5e or above, straight cable)
- max. 1000 m (3280 ft)
Installation Method: Stand-alone (Desktop) or suspended (Hanging)
Pan/tilt Operation Speed
- Minimum speed 0.08°/s
- Maximum speed 60°/s or higher
- Maximum speed is 180°/s in high-speed mode
Panning Range: ±175°
Tilting range: –30° to 210° 0
Quietness: NC35 or less
Supported operating systems and web browsers
- Windows
- Microsoft® Windows® 7, 10
- Windows® Internet Explorer® 11 (64‑bit/32‑bit)
- Microsoft Edge
- Google Chrome
- Mac
- Mac OS 10.13
- Mac OS 10.12
- Mac OS 10.11,
- Safari 11
- Google Chrome
- iPhone / iPad
- iOS 11.4.1
- Google Chrome
IP Streaming
Image Streaming Mode: JPEG (MJPEG), H.264, H.265
Image Transmission setting (JPEG):
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
Image Transmission Setting (H.264)
- Image quality (Motion priority / Image quality priority) UHD 60 fps / 50 fps
- Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Transmission Priority: Constant bit rate, Frame rate, Best effort
- Frame Rate: [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)[50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
- Max Bit Rate
- HD:512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps
- UHD:12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265)
- Image Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Frame Rate: [60Hz] 30fps, [50Hz] 25fps
- Max Bit Rate: 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
- Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol
- IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP,MLD, ICMP, ARP, RTMP, RTMPS
- IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS
Other Function
NDI support: NDI | HX
Tally LED display color: red / green | The highest quality full NDI Camera on the planet.
Hello Sony 1” Sensor. Meet NDI.
BDP4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.
Sony 1” Sensor. Size does matter.
The best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.
Full NDI. No compromises.
In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P4K is a Full NDI® camera.
More than just a production PTZ. Shoot true cinematic styles.
P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.
Advanced Colour Controls.
With user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.
10-bit. NDI4.
P4K is a 10-bit sensor and with NDI4 you can have an end to end 10-bit workflow. Perfect for broadcasters and other productions where bit depth matters. With 10-bit support you can record the NDI feeds using free tools such as NewTek NDI Monitor or IsoCorder Pro.
Full NDI. 6G SDI. HDMI 2.0. Life is all about connections.
Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.
Genlock. Let that sync in.
With Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.
Superfine Robotics. Precise control at your fingers.
P4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.
360 degree Tally lights.
The front, rear, and side Tally lights combine to create a 360 degree Tally light. Now everyone on the production set can see which camera is live to air.
ePTZ in HD Mode.
In HD Mode you can take advantage of the massive sensor to create Region of Interest for your HD production. Pull any HD frame out of the 4K frame.
Free Comms Lite. Upgrade to Comms Pro.
P4K includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite
Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is sold separately.
Distribute NDI® content everywhere. Just add Central.
BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
CAMERA
- 4K Video Output: Main 4K HDMI Type-A (x1) 6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2
- HD Video Output: Main HD HDMI Type-A (x1) 3G-SDI x2
- Digital Zoom: Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
- Lens: Optical, 12X
- Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
- Number of effective pixels: 4.2 Megapixels
- Picture elements: 3840 x 2160, 8.29 Megapixels
- Horizontal Angle of View Focal Length: 64.6 ̊ (Wide) – 6.1 ̊ (Tele), f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)
- Min. object distance: 80mm (Wide), 1000mm (Tele)
- Aperture: F2.8 Constant (W)~(T), 16 Steps
- Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)
- Shutter Speed: 1/10000s to 1/8 (59.94/29.97)
- Focus: Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit
- White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
- Exposure: Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
- Features: High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, Day/Night, Defog
- WDR: YES(130dB)
- ND Filter: YES
- Image Stabilizer: YES
- Color Gain: Yes (15 step)
- Color Hue: Yes (15 step)
- Gamma: Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
- Gamma Level: Yes (15 step)
- Black Level: Yes (97 step)
- Flicker Cancel: Yes
- Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
- S/N Ratio: ≥50db
MECHANICAL
- Body Color: Black, White
- Pan Movement: Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S )
- Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°~50°/S)
- Preset Position: 0~5 Level Adjustable
- Preset Speed: 0~5 Level Adjustable
- Preset Memory: YES, ( Picture Profile Preset-Preset Memory for image parameters)
- Quietness: 45db
- Home Position: Supported
- Environmental: Indoor
INTERFACE
- HDMI Color Space: YCbCr, 4:2:2 RGB, 4:4:4
- NDI Video Encode: Full bandwidth NDI, NDI HX2 long-GOP
- NDI Video Decode: Full bandwidth HD NDI
- NDI Version: NDI v4.0 (Firmware upgradeable)
- IP Video Stream: UP to 4K/30 and 1080p60 h.264/h.265 HEVC
- Camera Control Interface: RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control
- Control Protocol: NDI, VISCA, VISCA Over IP
- LAN: RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt)
- External Sync. Input: BNCX1, 75Ω, HD 3-level sync, SD Black Burst
- Audio I/O: Audio input x1, Audio output x1, 3.5mm audio jack
- Audio Output: Embedded with main HDMI, 24bit Stereo Embedded with SDI, 24bit Stereo Embedded with NDI
- Tally Light: Front and Back
ENVIRONMENTAL
- Mount: Ceiling mount, Wall mount, Tripod
- Operating Temperature: -10 to +40 (°C), 32 to 104 (°F)
- Operating Humidity: ≤80% Suitable for Use
- Power Input: 12VDC, PoE++ (IEEE 802.3bt)
- Power Consumption: 22W
- Dimension: 165x196x247mm
- Weight: 3.4kg
- Video Resolution: 4K
- Sensor Resolution (Mega Pixels): 14.2MP
- Sensor Size: 1 inch
- Sensor Type: CMOS
| The Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller
A well suited for use in a variety of environments including live events, education, live musical performances, and lectures. It supports ten channels of video and can simultaneously accept input from SDI, HDMI, and NDI/IP. Supporting up to 12 audio channels, the switcher can use the audio embedded in digital video, as well as from analog audio, and even the microphone input.
Still image capture is available at the push of a button on the console. The T-bar (transition bar) is pretty much a given on a switcher panel, offering you manual control over transitions. The built-in joystick works in conjunction with the panel's built-in PTZ controls. The NDI input and output options make this board suitable for live streaming as well as IP recording.
Usability
User-friendly operations and compatibility with NDI and NDI/HX standards for smooth live productions.
Transition Slider
A physical transition slider provides tactile control of a transition, for moments when a manual slider is preferable to a preprogramed transition.
Camera Control and Document Sharing for Lectures and Presentations
Connect the AV-HLC100 to Panasonic's HD integrated cameras to switch between footage from up to eight cameras, controlling each camera easily through a single LAN cable. Lecture documents can be input from a computer or captured in advance, then displayed on sub-screens during live streaming.
Simultaneous Live Streaming and Recording
Footage can be output directly to video streaming services without an external converter, and can even be recorded simultaneously. The content is recorded in formats that can be played on off-the-shelf computers, enabling streaming to users who are unable to view the live broadcast. Streaming and recording can all be done on one AV-HLC100 unit.
PTZ
Tele/Wide zooming can be done with the seesaw switch similar to what you would find on a camera. This is found on the left of the control panel.
Iris and Focus adjustment can be performed by individual dials, while position control such as PTZ camera, PiP, or Title can be assigned to the 3D joystick at the top right
Audio
The volume knob is the master audio level control. Audio levels can be checked in the LCD display. Detailed adjustments can be made using a GUI.
LCD Menu Bar
Small and unobtrusive, the built-in LCD menu bar provides a wealth of information. It displays a wide range of statuses and settings including PTZ camera selection, PTZ/PST operation, PiP material selection, title material selection, transition pattern selection, CLIP/STILL operation, and input-source selection.
Effects & Transitions
The switcher supports over 190 transitions, as well as PiP and 3D-DVE.
Titles
Built-in title templates speed title creation and customization.
RTMP

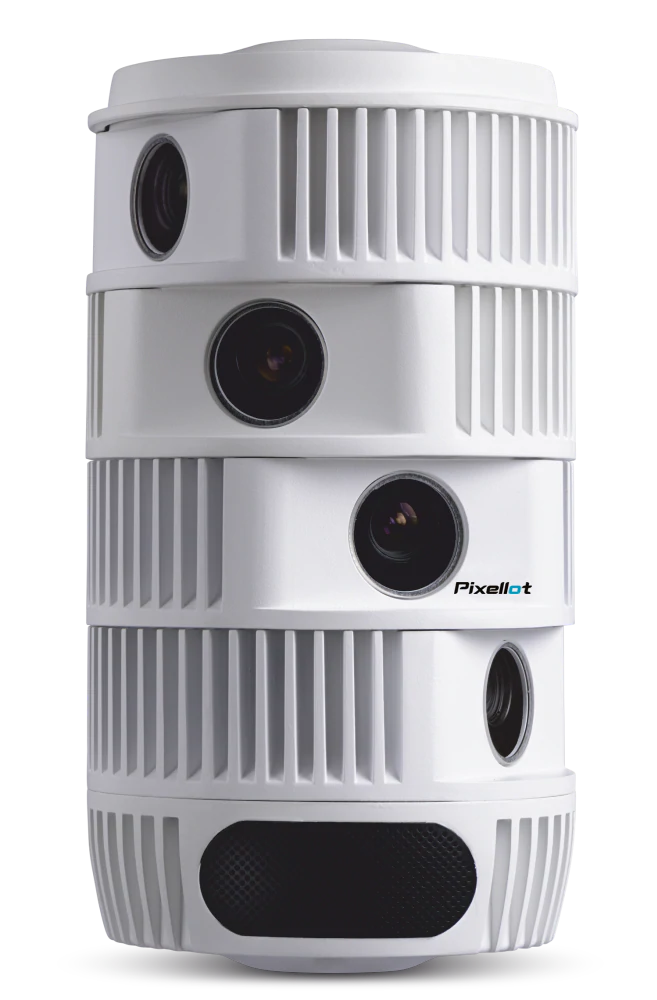

The AV-HLC100 supports RTMP, which allows you to stream your PGM output. | Pixellot Prime introduces affordable multi-feed production, enabling professional and semi-professional leagues, colleges and youth academies to produce and distribute HD quality broadcasts with a limited video crew and without an OB van.
Advanced Production Suite
Streamlining the production workflow, Pixellot Prime deploys an unmanned panoramic camera to capture the entire field at native 50-60 FPS. From the sporting event venue, the SDI footage is automatically fed into any production suite where the final broadcast is mixed, in real-time.
The suite displays a variety of views and streams, including an auto-produced feed featuring the center of action, streams from additional cameras and preset camera stations to create close-ups and replays. An array of transition options and graphic elements lets directors create TV-grade broadcasts for web portals and mobile apps. Clients opt for either a “clean” feed, streaming only the sports action or a program (“dirty”) feed.
- 8K capture and HD-SDI output, 50/60 FPS
- End-to-end production system, enables production of sports event with single-person crew
- Remote Production Suite to create multi-feed broadcast
- Embedded graphics and ad formats
- Additional audio input for commentator
- Panoramic footage to power VR applications
KEY FEATURES:
- Auto Production
- Panoramic Video
- Spatial Replay
- Auto-Director & Ads
- Automatic Highlights
|
Reviews
There are no reviews yet.
