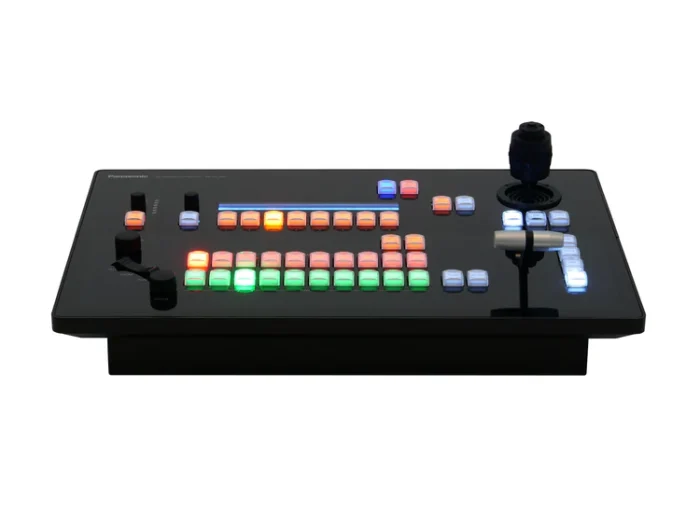

| Content | The Panasonic Live Production Streaming Switcher Controller and PTZ Camera Controller
A well suited for use in a variety of environments including live events, education, live musical performances, and lectures. It supports ten channels of video and can simultaneously accept input from SDI, HDMI, and NDI/IP. Supporting up to 12 audio channels, the switcher can use the audio embedded in digital video, as well as from analog audio, and even the microphone input.
Still image capture is available at the push of a button on the console. The T-bar (transition bar) is pretty much a given on a switcher panel, offering you manual control over transitions. The built-in joystick works in conjunction with the panel's built-in PTZ controls. The NDI input and output options make this board suitable for live streaming as well as IP recording.
Usability
User-friendly operations and compatibility with NDI and NDI/HX standards for smooth live productions.
Transition Slider
A physical transition slider provides tactile control of a transition, for moments when a manual slider is preferable to a preprogramed transition.
Camera Control and Document Sharing for Lectures and Presentations
Connect the AV-HLC100 to Panasonic's HD integrated cameras to switch between footage from up to eight cameras, controlling each camera easily through a single LAN cable. Lecture documents can be input from a computer or captured in advance, then displayed on sub-screens during live streaming.
Simultaneous Live Streaming and Recording
Footage can be output directly to video streaming services without an external converter, and can even be recorded simultaneously. The content is recorded in formats that can be played on off-the-shelf computers, enabling streaming to users who are unable to view the live broadcast. Streaming and recording can all be done on one AV-HLC100 unit.
PTZ
Tele/Wide zooming can be done with the seesaw switch similar to what you would find on a camera. This is found on the left of the control panel.
Iris and Focus adjustment can be performed by individual dials, while position control such as PTZ camera, PiP, or Title can be assigned to the 3D joystick at the top right
Audio
The volume knob is the master audio level control. Audio levels can be checked in the LCD display. Detailed adjustments can be made using a GUI.
LCD Menu Bar
Small and unobtrusive, the built-in LCD menu bar provides a wealth of information. It displays a wide range of statuses and settings including PTZ camera selection, PTZ/PST operation, PiP material selection, title material selection, transition pattern selection, CLIP/STILL operation, and input-source selection.
Effects & Transitions
The switcher supports over 190 transitions, as well as PiP and 3D-DVE.
Titles
Built-in title templates speed title creation and customization.
RTMP
The AV-HLC100 supports RTMP, which allows you to stream your PGM output. | Pixellot Prime introduces affordable multi-feed production, enabling professional and semi-professional leagues, colleges and youth academies to produce and distribute HD quality broadcasts with a limited video crew and without an OB van.
Advanced Production Suite
Streamlining the production workflow, Pixellot Prime deploys an unmanned panoramic camera to capture the entire field at native 50-60 FPS. From the sporting event venue, the SDI footage is automatically fed into any production suite where the final broadcast is mixed, in real-time.
The suite displays a variety of views and streams, including an auto-produced feed featuring the center of action, streams from additional cameras and preset camera stations to create close-ups and replays. An array of transition options and graphic elements lets directors create TV-grade broadcasts for web portals and mobile apps. Clients opt for either a “clean” feed, streaming only the sports action or a program (“dirty”) feed.
- 8K capture and HD-SDI output, 50/60 FPS
- End-to-end production system, enables production of sports event with single-person crew
- Remote Production Suite to create multi-feed broadcast
- Embedded graphics and ad formats
- Additional audio input for commentator
- Panoramic footage to power VR applications
KEY FEATURES:
- Auto Production
- Panoramic Video
- Spatial Replay
- Auto-Director & Ads
- Automatic Highlights
| BirdDog Eyes P200 Camera: Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI simultaneously.
BirdDog PTZ Keyboard: BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols. | The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
KEY FEATURES
- High Sensitivity Achieved with the 1” Large-sized Sensor
- Optical 20x Zoom/Horizontal 75.1° Wide-angle Shooting
- Pan/tilt Performance that Achieves Smooth and Accurate Operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.
Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
Dimensions (W x H x D)
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket)
General
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Finish
AW‑HE145W: Pearl white
AW‑HE145K: Metallic Black
Mass
Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
Controller Supported
AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
LENS
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Synchro scan
59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
Zoom
• Optical zoom: 20x
• i.Zoom: FHD 32x
• Digital zoom: 10x
Horizontal Resolution
1000 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
WHITE BALANCE
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Output Format
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
Scene File
Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed
59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Imaging Sensors
1-type Full-HD MOSx1
Chroma Amount Variability
OFF, –99 % to 99 %
Camera Unit
-
Frame mix*3
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
INPUT
-
OUTPUT
-
Input/Output Connector
LAN
LAN connector for IP control (RJ‑45)
RS-422
CONTROL IN RS-422A (RJ‑45)
MIC/LINE input
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV
INPUT/OUTPUT
-
Pan/Tilt Operation Speed
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*8
• Maximum speed is 180°/s in high-speed mode
Quietness
NC35 or less
Tilting Range
–30° to 210°*9
Panning range
±175°
Pan-tilt Head Unit
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control
IP connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
Supported operating systems and web browsers
Windows
Microsoft(R) Windows(R) 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
MacOS v11.0.1 / Safari 14.01
MacOS v11.0.1 / Google Chrome
MacOS V10.15 / Google Chrome
MacOS V10.14 / Google Chrome
iPhone / iPad
iOS
Google Chrome
Supported Operating Systems and Web Browsers*10
-
Image Resolution
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
1920x1080, 1280x720, 640x360, 320x180
-
Image Transmission Setting
JPEG
Frame Rate: Maximum 30 fps, Image quality (Fine / Normal)
H.264
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
H.265
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
NDI|HX
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.264
Transmission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.265
Transimission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
RTMP/RTMPS
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
Supported protocol
IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP
IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Other Function
-
Tally LED display color
red / green
NDI Support*11
NDI | HX
|
Unbox Your Creativity
High-performance livestream camera is small and light, with expandability and multi-camera control, perfect for livestreamers, broadcasters, and cinema.
Box-Style Cinema & Live Camera
Dual Native ISO, C4K 60p 10-bit recording, 13 stops of dynamic range with V-LogL all in an easy to deploy box-style camera for increased shooting flexibility.
Superior Low Light Performance
High-sensitive 10.2MP Live MOS sensor with Dual Native ISO technology for outstanding low-light video performance.
The Micro Four Thirds name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
A LUMIX First: Simultaneous SDI/HDMI Output
You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering for professional cinematic quality.
A LUMIX First: Ethernet / PoE+ Compatible Camera
Simply by connecting the BGH1 via Ethernet cable, your camera will be powered over Ethernet and allow multiple-camera remote control through the LUMIX Tether software.
IEEE802.3at compliant.
Remote Control Multiple Cameras with LUMIX Tether
Multiple camera recording enabled by Ethernet cable connection on LUMIX Tether software enables more efficient video production.
LUMIX Tether for Multicam software will be released at the product shipment of BGH1.
Front Tally Lamp / Rear Tally Lamp
Thanks to the clean lines of the body design, the tally lamps can be monitored from the front, top, side, or back, a welcome convenience on any shoot.
Stable Connectivity with Simultaneous SDI/HDMI Output
Supports extended cable runs and external monitoring. Supports simultaneous C4K/4K 60p 4:2:0 10-bit internal recording and C4K/4K 60p 4:2:2 10-bit HDMI live output external recording.
Product Specifications:
Image Sensor
Image Sensor Size
19 x 13 mm (4/3")
Sensor Type
MOS
Sensor Resolution
Actual: 10.2 MP
Color Filter
Bayer
Shutter Type
Mechanical Shutter
ISO
160 to 51,200 (Native) / 80 to 204,800 (Expanded)
Advertised Dynamic Range
13 Stops
Signal-to-Noise Ratio
9.7 dB
Camera
Lens Mount
Micro Four Thirds
Lens Communication
Yes
Interchangeable Lens Mount
Yes
Built-In ND Filter
None
Built-In Microphone Type
Stereo
Recording Media
2 x SD Card Slots
Variable Frame Rates
DCI 4K: 1 to 60 fps / 1080p: 1 to 240 fps
Internal Recording
Recording Modes
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 8-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (72 to 100 Mb/s)
AVC-Intra/AVC-LongG/H.264/H.264 Long GOP/H.265/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Gamma Curve
Panasonic V-Gamut, Panasonic V-Log
Audio Recording
MOV: 24-Bit 48 kHz LPCM Audio
MOV: 24-Bit 96 kHz LPCM Audio
MP4: 24-Bit 48 kHz LPCM Audio
MP4: 24-Bit 96 kHz LPCM Audio
Still Image Support
None
External Recording
Video Output
4:2:2 10-Bit via SDI/BNC:
1920 x 1080p at 60 fps
4:2:2 10-Bit via HDMI:
4096 x 2160p at 60 fps
Interfaces
Video Connectors
1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O
1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input
1 x BNC Timecode Data Input/Output
1 x BNC Genlock Data Input/Output
1 x RJ45 LAN Control, Monitor, Video Input/Output
1 x 2.5 mm LANC Control Input
Wireless Interfaces
2.4 GHz Wi-Fi, Bluetooth Video Output, Control
EVF
EVF
Optional, Not Included
Power
Battery Type
Panasonic AG-VBR Series
Power Connectors
1 x Weipu SF610/S2 (12 VDC) Input
PoE Support
PoE+ 802.3at
General
Tripod Mounting Thread
1/4"-20 Female (Bottom)
Material of Construction
Aluminum
Dimensions
3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
Weight
1.2 lb / 545 g
| End to End Automatic Production
Reducing production costs to a minimum, our fully automated production systems enable amateur clubs, schools, federations, media platforms and venues to generate live HD content to power their own digital media services, boost fan engagement and improve their coaching processes. What’s more, Pixellot footage is interactive and delivered to any device lets fans watch their favorite team from anywhere, produce their own highlight clips and even share them on social networks.
Pixellot S is based on their patented, fully automated production workflow that generates and delivers TV-like footage without a person in the loop.
Fixed Installation: Indoors or outdoors, weatherproof
Unmanned capture: Panoramic field capture in 6K resolution
Automated production: Auto-tracking algorithms follow the flow of play and produce TV-like footage
Distributed to any device: Streamed in 4K quality to mobile devices and web platforms
Personalized viewing experience: Zoom into any scene, replay, clip and share.
Pixellot S comes with a variety of modules to optimize your system for media or coaching use:
Automatic highlights
Taking auto-production to the next level, this module identifies game highlights like baskets or goals and automatically produces highlight clips.
Editing Module
Share the most exciting plays with your fans! Our editing module lets you cut high quality clips from HD footage, live and post-game, and distribute them on your media channels.
Manual Production Module
Produce any type of sports game and events and cover also anything that happens on the field before and after the game.
Coaching Module
Get more insight by reviewing the game by zooming into any play and cut high-quality clips to review with your team and players.
Scoreboard Module
Enrich your broadcasts through an integrated scoreboard display. Choose from a selection of fonts, colors and designs or upload your own personalized scoreboard graphics.
Commentator
Add a remote or local commentator to follow the action and improve the viewing experience
KEY FEATURES:
- Two camera lenses
- 1080p or 720p at 25 or 29.97 FPS
- Uses Cat6 cables (POE)
|
Reviews
There are no reviews yet.
