Indulge yourself in 5.2.2ch surround sound created by Dolby Atmos or DTS:X, and even without height or surround speakers, you can still experience similar effects by Dolby Atmos Height Virtualizer1 and DTS Virtual:X1. Enjoy superior images with Ultra HD, HDR10, HLG, and Dolby Vision pass through and support for HDCP 2.3. You can also stream songs from various sources via Wi-Fi, Bluetooth, DTS Play-Fi, SONOS system, and Apple AirPlay 21. Other highlights include Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, and 2 HDMI outputs.
Dolby Atmos/Dolby Surround Upmixing
The VSX-LX104 is compatible with 5.2.2ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization & DTS Virtual:X
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
DTS Virtual:X
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1 or even 7.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.
Personal Preset
Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.
Dialog Enhancement
With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogs in films, with the up/down key on the remote control.
Next Generation Video Standard Ready
The VSX-LX104 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.3, so you have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer's MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.
Works with SONOS
By connecting the VSX-LX104 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-LX104 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.
Powered Zone 2 with Dedicated DAC
With the powered feature, the VSX-LX104 can directly drive speakers in another room, without the need for a separate amplifier. What's more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.
Zone B Output for Wireless Headphones
The VSX-LX104 is equipped with Zone B audio output terminals for expanding the Main Zone sound. You can listen to the sound playing in the living room via wireless headphones.
Built-in Bluetooth Wireless Technology
Stream songs from compatible devices with the built-in Bluetooth Wireless Technology (ver. 4.2 + LE). The VSX-LX104 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. With Wake on Play function, the AV receiver automatically wakes up and switches input when a Bluetooth source starts playing.
Apple AirPlay 2
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri, and it all stays in perfect sync.
Audio Features
• Dolby Atmos, Dolby Surround Upmixer supports DTS Formats
• DTS:X, DTS Neural:X Upmixer supports Dolby Formats
• Reflex Optimizer
• Dolby Atmos Height Virtualizer
• DTS Virtual:X
• Dolby TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic)
• 384 kHz/32-bit D/A Conversion with AK4458 (AKM)
• Audio Return Channel (ARC) on HDMI
• MCACC Auto Room Tuning - Phase Control, Subwoofer EQ
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Video Features
• Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
• Dolby Vision Compatible
• Ultra HD Upscaling (1080p to 4K)
• 3D Ready (Blu-ray Disc, Broadcast, and Games)
• Deep Color (36-bit), "x.v. Color"
Home Network Features
• FlareConnect for Multi-room Audio
• DTS Play-Fi with Pioneer Music Control App
• Apple AirPlay 2
• Works with SONOS
• Amazon Music, Pandora, Spotify Freemium, Spotify Premium, TIDAL, and Deezer Music-Streaming Services Ready
• Internet Radio with TuneIn
• Hi-Res Audio File Playback via USB/Network - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD
Convenience Features
• Personal Preset
• Dialog Enhancement
• Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
• Bluetooth Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
• Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio/Video Status
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control
Front Terminals
• USB 1 In for USB Drive
• MCACC Setup MIC In (Gold-Plated)
• Audio 1 In (Mini Stereo Jack, Gold-Plated)
• Phones 1 Out (Gold-Plated)

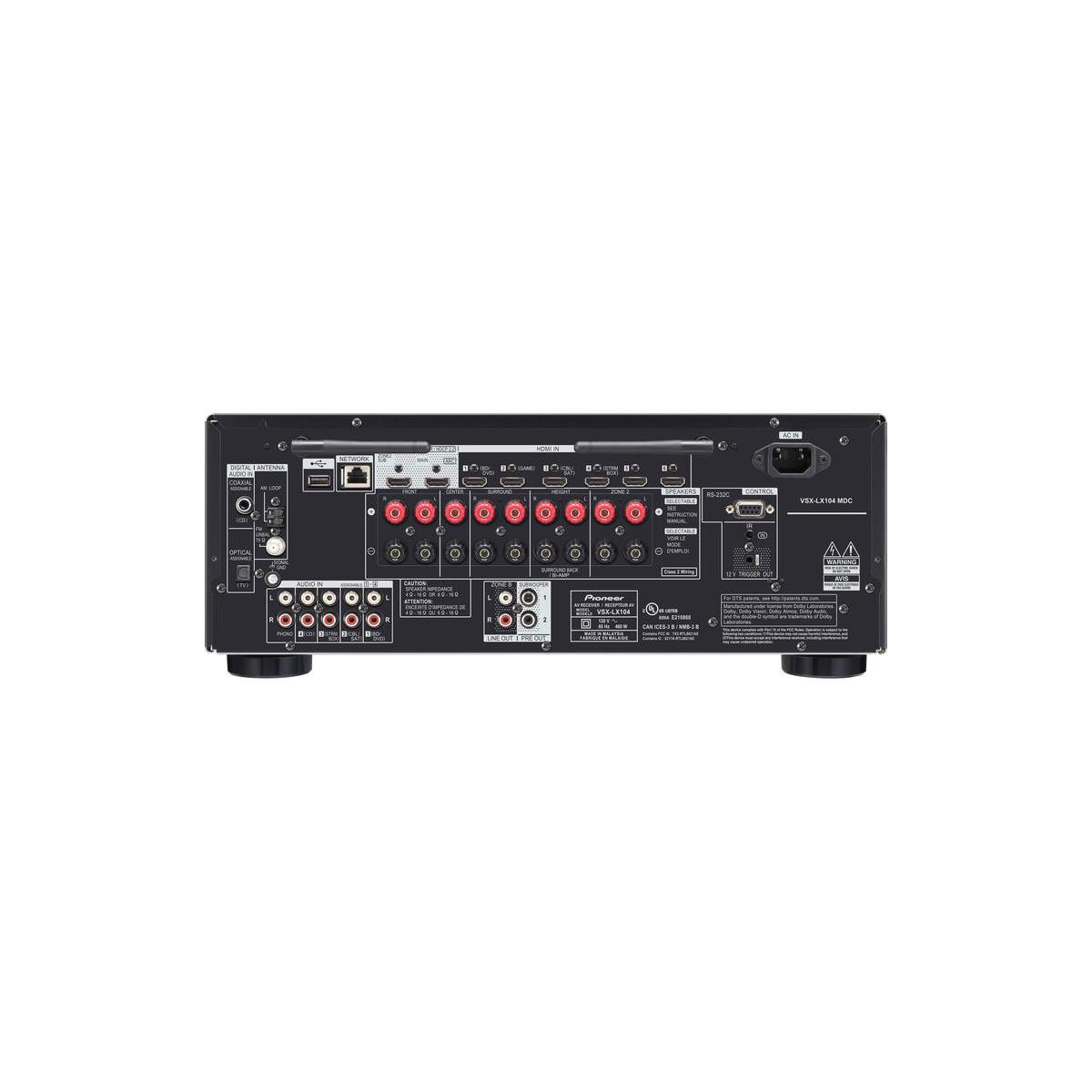

Rear Terminals
• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• USB 1 In for USB Drive
• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• USB 1 In for USB Drive
• Audio 4 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• Subwoofer 2 Pre Out
• ZONE B Line Out for Wireless Headphones
• Speaker 9ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
• IR 1 In
• 12 V Trigger 1 Out
• RS-232C
• FM/AM Antenna
- Dolby Atmos/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer
- DTS:X/DTS Neural:X Upmixing/DTS Virtual:X
- Apple AirPlay 2 / Works with SONOS
- Powered Zone 2 with Dedicated DAC
- 170 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
- Channels
- 7.2
5.2.2 in Dolby Atmos and DTS:X Setups
- Power Output per Channel
- 80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC
170 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
- Speaker Impedance
- 4 to 16 Ohms
- Amplifier Type
- Direct Energy
- DAC
- 384 kHz / 32-Bit AKM (AK4458)
- Dolby
- Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
- DTS
- DTS:X, DTS Neural:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
- Maximum Resolution Supported
- 4K 60 Hz (4:4:4, 24-Bit)
- Tuner
- AM/FM
- FM/AM Preset Memory
- 40 Stations
- Wi-Fi
- Dual-Band 2.4 / 5 GHz
- Bluetooth
- Version: 4.2 + LE
Profiles: A2DP 1.2, AVRCP 1.3
Codecs: SBC, AAC
- Inputs
- 6 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
5 x Stereo RCA (1 Phono with Ground Screw)
1 x Gold-Plated 1/8" / 3.5 mm Aux (Front)
- Outputs
- 2 x HDMI
1 x Stereo RCA Zone B
1 x Gold-Plated 1/4" / 6.35 mm Headphone (Front)
- Other Interfaces
- 1 x RJ45 Ethernet LAN
2 x USB (1 Front)
2 x Subwoofer Pre-Out
1 x Gold-Plated 1/8" / 3.5 mm Setup Microphone (Front)
1 x AM Antenna
1 x FM Antenna
1 x DE-9 RS-232C Control
1 x 1/8" / 3.5 mm IR In
1 x 1/8" / 3.5 mm 12 V Trigger Out
- Speaker Connectors
- 9 x Binding Post Pairs
- USB Playback Formats
- Up to 192 kHz / 24-Bit ALAC, AIFF, FLAC, WAV (RIFF), 5.6 MHz DSD
- Power Requirements
- 120 VAC, 60 Hz
- Power Consumption (Active)
- 460 W
- Power Consumption (Standby)
- 0.15 W
- Dimensions (W x H x D)
- 17.1 x 6.8 x 14.9" (435 x 173 x 370.5mm)
- Weight
- 20.7 lb (9.4kg)
|
The Discovery Series DS-A101 Wireless Integrated Amplifier
80-Watt-per-channel wireless control amp with DSP
The versatile and powerful Discovery Series DS-A101-G Wireless Integrated Amplifier is also the perfect complement to the Discovery Music Server. Together, they open up an unlimited vista of music where wireless convenience meets state-of-the-art sound. ELAC's innovative smartphone application provides the tools for system setup, including sophisticated DSP, optimizing your subwoofer's crossover frequency and room EQ.
This is one versatile integrated amplifier, with outstanding performance and feature-rich control flexibility. Once you experience the Discovery-especially with the new Debut or Uni-Fi loudspeakers-your world of sound just might be altered forever. Discovery does it all, at an affordable price.
An integrated amplifier for todays world.
Roon Ready, Spotify Connect, Dolby Digital Decoding, Wi-Fi, and Room EQ are only the beginning.
Discover power, performance, convenience and value.
The new DS-A101-G integrated amplifier strikes the perfect balance of high quality audio reproduction, features and value. The small form factor allows for easy placement while still providing technologies and convenience not found on competing products.
The BASH amplification solution
At their heart is a brand new BASH Tracking Amplifier delivering 80 Watts per channel into either 4 or 8 ohm speakers. This new amplifier uses a modulated switched mode power supply allied to a conventional class AB amplifier. Switching at more than 400,000 times per second, the supply tracks the incoming audio signal to ensure that the Class AB amplifier gets only the voltage necessary (with a little headroom) to cope with today's dynamic movie and music content, thus maximizing the efficiency and potential of the amplifier.
App-rich control flexibility
ELAC's free iOS and Android app allows users to fully control and set up their system. The app includes innovative features not found on any other products in this class-anywhere
ABC Technology (Auto Blend & Calibrate)
The companion IOS and Android app measures the near-field response of main speakers and subwoofer, then pinpoints the subwoofer's optimal crossover frequency. Auto Blend results in the perfect integration of clean, articulate bass. Room Calibration precisely tailors your system for flattest frequency response across the audio spectrum, optimized for your listening position and environment
The Center of your Living Room
With built-in Dolby Digital Decoding, the Discovery Integrated amplifier has been designed to sit at the heart of your entertainment system. Simply connect the audio output from your TV to the Discovery Integrated Amplifier and experience your favorite movies or TV shows like never before.
- 2x 80 Watt Amplifier
- Wi-Fi and Bluetooth Built-In
- Spotify, Roon and Airplay Support
- Dolby Digital Decoding
- Auto Room EQ
- Amplifier
- BASH Digital Fidelity Tracking Amplifier
- Power Output Continuous
- 2x 80 Watts 2 channels driven into 4 ohms @ 1kHz
2x 40 Watts 2 channels driven into 8 ohms @ 1kHz
2x 70 Watts 2 channels driven into 2 ohms @ 1kHz
- Power Output Burst (CEA 2010*)
- 120 Watts 1 channel driven into 4 ohms @ 1kHz
65 Watts 1 channel driven into 8 ohms @ 1kHz
170 Watts 1 channel driven into 2 ohms @ 1kHz
- Power and THD+N, 1kHz
- 4 ohms 70 Watts @ .07%
8 ohms 40 Watts @ .03%
- Signal-to-Noise Ratio
- (Full Power Digital input): 101dB
- Broadband Frequency Response
- 20Hz to 40kHz +/- 1.8dB
- Analog Inputs
- 2
- Digital Inputs
- 2 total; 1 optical / 1 coaxial (192kHz 24-bit)
- Ethernet
- 1
- Wi-Fi
- Yes
- Subwoofer Output
- 1
- Pre-Amp Outputs
- 1 (L/R)
- Bluetooth Audio
- Yes
- Audio Decoding
- Dolby Digital
- Streaming Services
- Discovery, Roon Ready, Spotify Connect, AirPlay, Bluetooth, DLNA
- Display
- OEL
- App Control
- Yes, iOS and Android control app
- Room Correction
- ABC (Auto Blend & Calibrate)
- Power Consumption
- Power Off 120Vac: .86W / Auto Off 120Vac: 5.45W
- Dimensions (W x H x D)
- 8.37 x 2.12 x 11.62" (21.25 x 5.38 x 29.51cm)
- Weight
- 4.80 lbs (2.17kg)
|
The Elite VSX-LX504 creates the soundscape of IMAX Enhanced and Dolby Atmos/DTS:X ideally calibrated with Advanced MCACC, and even provides similar sound effects with Dolby Atmos Height Virtualizer without height or surround speakers. Enjoy spectacles from next generation video standards with support for HDCP 2.2, or stream songs across the house with Multi Zone Music, SONOS system, FlareConnect, Chromecast built-in, DTS Play-Fi, and Apple AirPlay 2. Other features include Powered Zone 2/Zone 3 Audio, up to 11.2 MHz DSD direct playback, and 2 HDMI outputs.
IMAX Enhanced
The VSX-LX504 is IMAX Enhanced, certified to deliver the powerful sound just as intended by the filmmaker, and provide the immersive experience on your home theater.
Dolby Atmos/Dolby Surround Upmixing
By adding an external amplifier, the 9.2ch AV receiver can be expanded to decode 11ch to drive the 7.2.4ch configuration of Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. By adding an external amplifier, the 9.2ch AV receiver can be expanded to decode 11ch for driving a 7.2.4ch surround system. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Apple AirPlay 2
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri, and it all stays in perfect sync.
Next Generation Video Standard Ready
The VSX-LX504 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Works with SONOS
By connecting the VSX-LX504 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-LX504 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.
Powered Zone 2/Zone 3
With the powered feature, the VSX-LX504 can directly drive speakers in other rooms, without the need for a separate amplifier. What's more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.
Zone B Output for Wireless Headphones
The VSX-LX504 is equipped with Zone B audio output terminals for expanding the Main Zone sound. You can listen to the sound playing in the living room via wireless headphones.
Chromecast built-in
The VSX-LX504 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecastenabled apps running on your personal device-iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook. The VSX-LX504 also works with the Google Assistant, so you can tell it to turn up the volume, skip tracks, or stop the music using your Google Assistant enabled device, like Google Home.
Audio Features
• IMAX Enhanced
• Dolby Atmos, Dolby Surround Upmixer supports DTS Formats
• DTS:X, DTS Neural:X Upmixer supports Dolby Formats
• Reflex Optimizer
• Dolby Atmos Height Virtualizer
• Dolby TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
• DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic)+ Aureus floating-point DSP (TI)
• 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
• Enhanced Audio Return Channel (eARC) on HDMI
• Advanced MCACC Auto Room Tuning - Auto Phase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Video Features
• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
• Dolby Vision Compatible
• Ultra HD Upscaling (1080p to 4K)
• 3D Ready (Blu-ray Disc, Broadcast, and Games)
• Deep Color (36-bit), "x.v. Color"
Home Network Features
• FlareConnect for Multi-room Audio
• Chromecast built-in and Works with the Google Assistant
• DTS Play-Fi with Pioneer Music Control App
• Apple AirPlay 2
• Works with SONOS
• Amazon Music, Pandora, Spotify Freemium, Spotify Premium, TIDAL, and Deezer Music-Streaming Services Ready
• Internet Radio with TuneIn
• Hi-Res Audio File Playback via USB/Network - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
Convenience Features
• Personal Preset
• Dialog Enhancement
• Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
• Bluetooth Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
• Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio/Video Status
• PC Setup
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control
Front Terminals
• HDMI 1 In
• USB 1 In for USB Drive
• MCACC Setup MIC In
• Phones 1 Out (Gold-Plated)
Rear Terminals
• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• USB 1 In for USB Drive
• AV (Component) 1 In (Assignable)
• AV (Composite) 2 In (Assignable)
• Audio 1 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• FRONT, CENTER, SURROUND, HEIGHT 1, SURROUND BACK, SUBWOOFER x 2 Pre Out
• ZONE B Line Out for Wireless Headphones
• ZONE 2 Pre/Line Out, ZONE 3/HEIGHT 2 Pre/Line Out
• Speaker 11ch Out (FRONT, CENTER, SURROUND, HEIGHT 1/Bi-AMP, SURROUND BACK/HEIGHT 2/ZONE 3, ZONE 2
• IR 1 In/1 Out
• 12 V Trigger 2 Out
• RS-232C
• FM/AM Antenna
- IMAX Enhanced
- Dolby Atmos/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer
- DTS:X/DTS Neural:X Upmixing/DTS Virtual:X
- Apple AirPlay 2 / Works with SONOS
- Powered Zone 2/Zone 3
- 230 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- 120 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
- Channels
- 9.2
7.2.2 or 5.2.4 in Dolby Atmos and DTS:X Setups
- Power Output per Channel
- 120 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC
230 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
- Speaker Impedance
- 4 to 16 Ohms
- Amplifier Type
- Direct Energy
- DAC
- 384 kHz / 32-Bit AKM (AK4458) + PCM5101A (TI)
- Dolby
- Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
- DTS
- DTS:X, DTS Neural:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
- Maximum Resolution Supported
- 4K 60 Hz (4:4:4, 24-Bit)
- Tuner
- AM/FM
- FM/AM Preset Memory
- 40 Stations
- Wi-Fi
- Dual-Band 2.4 / 5 GHz
- Bluetooth
- Version: 4.2 + LE
Profiles: A2DP 1.2, AVRCP 1.3
Codecs: SBC, AAC
- Inputs
- 7 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
1 x 3-RCA Component Video
2 x RCA Composite Video
5 x Stereo RCA (1 Phono with Ground Screw)
- Outputs
- 2 x HDMI
1 x 9-Channel RCA Pre-Out
1 x Stereo RCA Zone 2/B
1 x Stereo RCA Zone 3 / Height 2 Pre-/Line-Out
1 x Gold-Plated 1/4" / 6.35 mm Headphone (Front)
- Other Interfaces
- 1 x RJ45 Ethernet LAN
2 x USB (1 Front)
2 x Subwoofer Pre-Out
1 x 1/8" / 3.5 mm Setup Microphone (Front)
1 x AM Antenna
1 x FM Antenna
1 x DE-9 RS-232C Control
1 x 1/8" / 3.5 mm IR In
1 x 1/8" / 3.5 mm IR Out
2 x 1/8" / 3.5 mm 12 V Trigger Out
- Speaker Connectors
- 11 x Binding Post Pairs
- USB Playback Formats
- Up to 192 kHz / 24-Bit ALAC, AIFF, FLAC, WAV (RIFF), 11.2 MHz DSD (Converted to PCM)
- Power Requirements
- 120 VAC, 60 Hz
- Power Consumption (Active)
- 850 W
- Power Consumption (Standby)
- 0.15 W
- Dimensions (W x H x D)
- 17.1 x 7.3 x 15.2" (435 x 185 x 386mm)
- Weight
- 35.3 lb (16kg)
|
AVENTAGE RX-A2A 7.2-channel AV Receiver with MusicCast
Take your entertainment to the next level. With professional quality video and immersive surround sound via Dolby Atmos, the RX-A2A will completely transform home cinema.
Breathtaking Sound
• Dolby AtmosDolby Atmos
• Dolby AtmosDolby Atmos with Height Virtualization
• DTS:XDTS:X
• High Slew Rate AmplifierHigh Amplifier
• Compressed Music Enhancer Compressed Enhancer
• MusicCast multi-room audioMusicCast audio
• Wi-Fi, AirPlay 2, 2 and Spotify Connect
• Streaming services include Spotify, Amazon Music, PandoraPandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM, SiriusXM
• Zone 2
• Phono input
Movies and Games Like Never Before
• 4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
• (7) HDMI inputs with HDCP 2.3 and eARC
• With future updates for HDMI 2.1, including: HDR 10+, 8K60B, 4K120AB and enhanced gaming features (ALLM, VRR, QMS, QFT)
Simple to Set Up, Simple To Use
• AV Setup Guide app
• MusicCast app
• Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Designed For Your Space
• YPAO R.S.C. with multipoint
• Wireless rear surround capability
• Sleek, modern design
Dolby Atmos with Height Virtualization
Feel every dimension in Dolby Atmos. For those without in-ceiling or upward firing speakers in their systems, this height virtualization technology simulates the Atmos experience with forward-facing drivers.
DTS:X
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism in all your favorite movies.
Anti-Resonance Technology Wedge
The Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the center of the chassis unit base. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers - providing dynamic sound and focused, accurate reproduction.
Cinema DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your favorite movies and shows.
Movies and Games Like Never Before
8K60B, 4K120AB and 4K60
This receiver supports end-to-end 8K/4K resolutions and higher refresh rates, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybid-Log Gamma and BT.2020 included.
Enhanced Media and Gaming Features (ALLM, VRR, QFT and QMS)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
Multiple HDMI inputs will equally support the latest HDMI technology to allow next-gen gaming consoles to be connected at the same time.
Simple to Set Up, Simple to Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your phone or tablet.
Voice Control
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control with Siri from an Apple iOS device.
AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings. Includes web setup for CI.
Designed For Your Space
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
YPAO R.S.C. with Multipoint
YPAO (Yamaha Parametric Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X.
Dynamic and Compelling
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
- Breathtaking Sound
- Movies and Games Like Never Before
- Simple to Set Up, Simple To Use
- Designed For Your Space
- Dolby Atmos with Height Virtualization
- DTS:X
- Anti-Resonance Technology Wedge
- Cinema DSP 3D
- 8K60B, 4K120AB and 4K60
- HDR10+ and Dolby Vision
- Enhanced Media and Gaming Features (ALLM, VRR, QFT and QMS)
- Future Support for Multiple HDMI Inputs
- MusicCast App
- Voice Control
- AV Setup Guide App
- Compatible with Wireless Surround Sound
- YPAO R.S.C. with Multipoint
- Dynamic and Compelling
- Channel
- 7.2
- Rated Output Power
- 100 W (8 ohms, 0.06% THD) (20Hz-20kHz, 2-ch driven)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision
- Yes (via future update)
- Hybrid-Log Gamma and BT.2020, HDR10+
- Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/1
- HDMI 4K60/4K120AB/8K60B support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output
- Optical: 1 / 0
Coaxial: 1 / 0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 4/0
- Zone 2
- Yes
- Phono Input
- Yes
- Preout
- 2.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- 0.1 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.125 x 6.75 x 14.6" (43 x 17 x 37cm)
With antenna up: 17.125 x 9.62 x 14.6" (43 x 24.4 x 37cm)
- Weight
- 22.5 lbs (10kg)
|
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
Nostalgic Hi-Fi design. Today's Hi-Fi technology
A nod to the past with the latest technology for a purely musical sound.
Emotion
Understanding music is to understand the emotion upon which music is created - the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists' emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.
>Toroidal Transformer
Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today's discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.
Openness
An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners' musical experience, bringing them closer to the artist.
Thick Wires for Ground Connection
Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.
Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.
Groove
Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the 'Groove' of the music to the listener.
Chrome-Plated Iron Feet
Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
ColorBlackRated output power 2-channel driven8Ohm: 90 W + 90 W
4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)Dynamic power8Ohm: 105 W + 105 W
6Ohm: 135 W + 135 W
4Ohm: 190 W + 190 W
2Ohm: 220 W + 220 WIEC output power8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)Maximum effective output power8Ohm: 120 W + 120 W
4Ohm: 190 W + 190 WPower bandwidth 2-channel driven8Ohm: 10 Hz to 50 kHz (0.1% THD, 45 W)Damping factor8Ohm: 250 or higher(1 kHz)Input sensitivityPHONO (MC): 150 micro Vrms / 50Ohm
PHONO (MM): 3.5 mVrms / 47 kOhm
CD (or similar): 200 mVrms / 47 kOhm
MAIN IN: 1 Vrms / 47 kOhmMaximum inputPHONO (MC): 2.0 mVrms
PHONO (MM): 50 mVrms
CD (or similar): 2.80 VrmsRated output voltageLINE 2 OUT: 200 mVrms / 1.5 kOhm
PRE OUT: 1 Vrms / 1.5 kOhmHeadphone jack rated output power25 mW + 25 mW (1 kHz, 32 Ohm, 0.2% THD)Frequency response5 Hz to 100 kHz: +0 / -3 dB
20 Hz to 20 kHz: +0 / -0.3 dBDeviations from RIAA equalizerPHONO (MM/MC): +/-0.5 dBTotal harmonic distortion plus noise2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
CD (or similar) - SPEAKERS OUT, 50 W/8Ohm: 0.035%
Signal-to-noise ratioPHONO (MC): 90 dB
PHONO (MM): 96 dB
CD (or similar): 110 dBResidual noise50 micro VrmsChannel separationPHONO (MC): 66/77 dB or higher
PHONO (MM): 90/77 dB or higher
CD (or similar): 74/54 dB or higherTone control characteristicsBASS: Boost/cut: 50 Hz / +/-9 dB
Turnover frequency: 350 Hz
TREBLE: Boost/cut: 20 kHz / +/-9 dB
Turnover frequency: 3.5 kHzPower supplyAC 120 V, 60 HzPower consumption350 WStandby power consumptionOFF mode: 0.1 W
Standby mode: 0.2 WDimensions (W x H x D)17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)Weight48.5 lbs (22kg)
|
Designed for optimum IMAX Enhanced and Dolby Atmos/DTS:X movie playback in a seamless 7.2.2ch/5.2.4ch surround sound calibrated by Advanced MCACC, along with support for next-generation video standards, the VSX-LX304 brings multi-dimensional excitement to your home entertainment. Dolby Atmos Height Virtualizer can provide virtual sound effects without using height or surround speakers. Enjoy multi-room audio streaming with SONOS system, FlareConnect, Chromecast built-in, DTS Play-Fi, and Apple AirPlay 2.
IMAX Enhanced
The VSX-LX304 is IMAX Enhanced, certified to deliver the powerful sound just as intended by the filmmaker, and provide the immersive experience on your home theater.
Dolby Atmos/Dolby Surround Upmixing
The VSX-LX304 is compatible with 7.2.2ch/ 5.2.4ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Enjoy a seamless soundscape with 7.2.2ch/5.2.4ch surround system offering maximum excitement. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Apple AirPlay
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri, and it all stays in perfect sync.
Next Generation Video Standard Ready
The VSX-LX304 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Works with SONOS
connecting the VSX-LX304 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-LX304 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.
Powered Zone 2 with Dedicated DAC
With the powered feature, the VSX-LX304 can directly drive speakers in another room, without the need for a separate amplifier. What's more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.
Zone B Output for Wireless Headphones
The VSX-LX304 is equipped with Zone B audio output terminals for expanding the Main Zone sound. You can listen to the sound playing in the living room via wireless headphones.
Chromecast built-in
The VSX-LX304 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecastenabled apps running on your personal device-iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook. The VSX-LX304 also works with the Google Assistant, so you can tell it to turn up the volume, skip tracks, or stop the music using your Google Assistant enabled device, like Google Home.
Audio Features
• IMAX Enhanced
• Dolby Atmos, Dolby Surround Upmixer supports DTS Formats
• DTS:X, DTS Neural:X Upmixer supports Dolby Formats
• Reflex Optimizer
• Dolby Atmos Height Virtualizer
• Dolby TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic)+ Aureus floating-point DSP (TI)
• 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
• Audio Return Channel (ARC) on HDMI
• MCACC Auto Room Tuning - Auto Phase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Video Features
• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
• Dolby Vision Compatible
• Ultra HD Upscaling (1080p to 4K)
• 3D Ready (Blu-ray Disc, Broadcast, and Games)
• Deep Color (36-bit), "x.v. Color"
Home Network Features
• FlareConnect for Multi-room Audio
• Chromecast built-in and Works with the Google Assistant
• DTS Play-Fi with Pioneer Music Control App
• Apple AirPlay 2
• Works with SONOS
• Amazon Music, Pandora, Spotify Freemium, Spotify Premium, TIDAL, and Deezer Music-Streaming Services Ready
• Internet Radio with TuneIn
• Hi-Res Audio File Playback via USB/Network - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
Convenience Features
• Personal Preset
• Dialog Enhancement
• Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
• Bluetooth Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
• Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio/Video Status
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control
Front Terminals
• HDMI 1 In
• USB 1 In for USB Drive
• MCACC Setup MIC In (Gold-Plated)
• Audio 1 In (Mini Stereo Jack, Gold-Plated)
• Phones 1 Out (Gold-Plated)
Rear Terminals
• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• USB 1 In for USB Drive
• Audio 4 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• Subwoofer 2 Pre Out
• ZONE B Line Out for Wireless Headphones
• ZONE 2 Pre/Line Out
• Speaker 9ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
• IR 1 In/1 Out
• 12 V Trigger 1 Out
• RS-232C
• FM/AM Antenna
- IMAX Enhanced
- Dolby Atmos/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer
- DTS:X/DTS Neural:X Upmixing/DTS Virtual:X
- Apple AirPlay 2 / Works with SONOS
- Powered Zone 2 with Dedicated DAC
- 225 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- 100 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
- Channels
- 9.2
7.2.2 or 5.2.4 in Dolby Atmos and DTS:X Setups
- Power Output per Channel
- 100 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC
225 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
- Speaker Impedance
- 4 to 16 Ohms
- Amplifier Type
- Direct Energy
- DAC
- 384 kHz / 32-Bit AKM (AK4458) and TI (PCM5101A)
- Dolby
- Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
- DTS
- DTS:X, DTS Neural:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
- Maximum Resolution Supported
- 4K 60 Hz (4:4:4, 24-Bit)
- Tuner
- AM/FM
- FM/AM Preset Memory
- 40 Stations
- Wi-Fi
- Dual-Band 2.4 / 5 GHz
- Bluetooth
- Version: 4.2 + LE
Profiles: A2DP 1.2, AVRCP 1.3
Codecs: SBC, AAC
- Inputs
- 7 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
5 x Stereo RCA (1 Phono with Ground Screw)
1 x Gold-Plated 1/8" / 3.5 mm Aux (Front)
- Outputs
- 2 x HDMI
1 x Stereo RCA Zone 2/B
1 x Gold-Plated 1/4" / 6.35 mm Headphone (Front)
- Other Interfaces
- 1 x RJ45 Ethernet LAN
2 x USB (1 Front)
2 x Subwoofer Pre-Out
1 x Gold-Plated 1/8" / 3.5 mm Setup Microphone (Front)
1 x AM Antenna
1 x FM Antenna
1 x DE-9 RS-232C Control
1 x 1/8" / 3.5 mm IR In
1 x 1/8" / 3.5 mm IR Out
2 x 1/8" / 3.5 mm 12 V Trigger Out
- Speaker Connectors
- 9 x Binding Post Pairs
- USB Playback Formats
- Up to 192 kHz / 24-Bit ALAC, AIFF, FLAC, WAV (RIFF), 11.2 MHz DSD (Converted to PCM)
- Power Requirements
- 120 VAC, 60 Hz
- Power Consumption (Active)
- 750 W
- Power Consumption (Standby)
- 0.15 W
- Dimensions (W x H x D)
- 17.1 x 6.8 x 14.9" (435 x 173 x 370.5mm)
- Weight
- 23.8 lb (10.8kg)
|
Reviews
There are no reviews yet.
