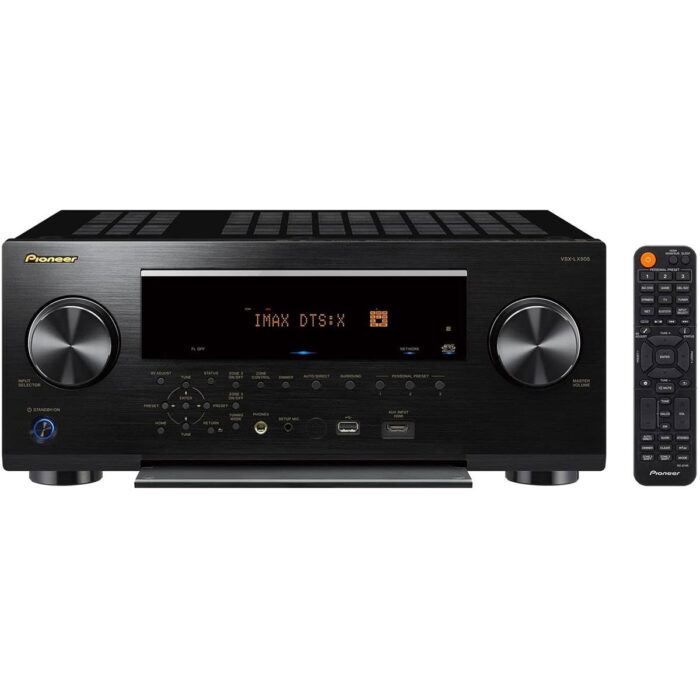

With up to 11.2 channels of processing and 120 watts of power per channel, IMAX Enhanced Audio, and DIRAC Live Room Correction, the Pioneer VSX-LX505 ELITE 9.2 Channel AV Receiver delivers multi-dimensional excitement to your home theater.
Equipped with DIRAC Live Room Correction, the VSX-LX505 adjusts the sound according to the space and speakers while offering improved musical staging, dialog, and deeper bass.
Go beyond an experience confined to one room - the Pioneer Elite VSX-LX505 AV receiver brings cinema-quality sound and images to multiple rooms for real home entertainment.
DIRAC Live Room Correction
State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required.Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers' full potential in any listening space and delivers a uniquely pristine listening experience.
Device must be connected to the internet and the same network as your AVR.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Ultimate 4k Gaming Experience
4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. This receiver supports higher performance from streaming devices like the latest Apple TV.
IMAX Enhanced Mode
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite's IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
Built-In Streaming Music Services and Faster Wifi
Access to Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system.
Bi-directional Bluetooth Wireless Technology
This AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Built-In Multi-Zone Streaming and Voice Control
This AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.
A third-party AI device is required for voice commands - sold separately
8K 60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.
Works with Sonos Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
Sonos Port required and sold separately.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Roon-Tested
Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.
Ready for DTS Play-Fi Multi-Room Audio
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
- Dirac Live Room Correction
- HDMI 2.1
- Ultimate 4K Gaming Experience
- 9.2 Channels of onboard amplification with 11.2-Channel Processing
- 120-watts/per channel
- Imax Enhanced
- Powered Zone 2/Zone 3 Audio
- Bi-directional Bluetooth with aptX HD
- Built-in music streaming including Spotify and Tidal
- Works with Sonos Certified
- Immersive sound from your TV apps
- Advanced MCACC
- Roon Tested
- DTS Play-Fi
- Legacy video inputs for composite and component video sources
- Channels
- 9.2
- Amplification Type
- Direct Energy
- 230 W/ch
- 6 ohms, 1 kHz, THD 10 %, 1ch Driven
- 120 W/ch
- 8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC
- IMAX Enhanced
- Yes
- Formats
- Dolby Atmos, Dolby Surround Upmixer supports DTS Formats: Yes
DTS:X, DTS Neural:X Upmixer supports Dolby Formats: Yes
- Reflex Optimizer
- Yes
- Dolby Atmos Height Virtualizer
- Yes
- Dolby TrueHD, Dolby Digital Plus
- Yes
- Audio
- DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express: Yes
- DSD Disc (SACD) Playback via HDMI
- 2.8 MHz/2 ch, 5.1 ch
- Digital Quad-Core 32-bit
- DSP (Cirrus Logic) + Aureus floating-point DSP (TI): Yes
- Hi-Res Audio
- 192 kHz/24-bit D/A Conversion
- Enhanced Audio Return Channel (eARC)
- Yes, On HDMI Out (Main)
- Advanced MCACC Auto Room Tuning
- AutPhase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
- Dirac Live Room Correction
- Yes
- Advanced Sound Retriever (2ch)
- Yes
- Advanced Surround Modes
- Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
- Support HDMI 2.1 with 8K
- VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
- Supports
- HDR10+, HDR10, and HLG; 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; DeepColor (36-bit), "x.v.Color", LipSync, and HDCP 2.3
- Dolby Vision Compatible
- Yes
- Ultra HD Upscaling
- 4K to 8K, 1080p to 8K/4K
- Works with
- Alexa supporting multi-room music: Yes
Hey Google and Chromecast built-in: Yes
SONOS supporting multiple Sonos Connect control and Volume Pass Through mode: Yes
- DTS Play-Fi w/Pioneer Music Control App
- Yes (Supporting Hi-Res Audio Playback)
- Apple AirPlay 2 with Siri Voice Control
- Yes
- Music-Streaming Services Ready
- Amazon Music HD, Pandora, Spotify, TIDAL, and Deezer Hi-Fi: Yes
- Internet Radio with TuneIn
- Yes
- Hi-Res Audio File Playback
- Yes (via USB/Network)
- Up to 192 kHz/24-bit
- Yes (ALAC6, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD)
- Personal Preset
- Yes
- Dialog Enhancement
- Yes
- Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
- Yes
- Bluetooth Wireless Technology
- Transmitter/Receiver (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC(RX)) Built-in
- Pioneer Remote App
- Ready for Multi-room Entertainment Control and Network Streaming
- User-Friendly GUI with System Setup Menu
- Yes
- On-Screen Information for
- Yes (Audio, Video and Network)
- Web Setup
- Yes
- Auto Power Off in HDMI Standby Through
- Yes
- AM/FM Tuner 40 Presets
- Yes
- Sleep Timer
- Yes
- User-Friendly Simple Remote Control
- Yes
- HDMI 1 In
- Yes
- USB 1 In for USB Drive
- Yes
- MCACC/Dirac Live Setup MIC In
- Yes
- Phones 1 Out (Gold-Plated)
- Yes
- HDMI 6 In
- 4 Assignable
- HDMI 2 Out
- 1 for MAIN, 1 for SUB/ZONE 2
- Ethernet
- 1 In
- USB 1 In for USB Drive
- Yes
- AV (Component) 1 In
- Assignable
- AV (Composite) 2 In
- Assignable
- Audio 1 In
- Assignable
- Phono (MM) 1 In
- Yes
- Digital Coaxial 1 In
- Assignable
- Digital Optical 1 In
- Assignable
- Front, Center, Surround, Surround Back
- Yes (Height 1, Height 2, Subwoofer x 2 Pre Out)
- ZONE 2 Pre/Line Out/ZONE B Line Out
- Yes
- ZONE 3/Height 2 Pre/Line Out
- Yes
- Speaker 11 channel Out
- Front, Center, Surround, Height 1/Bi-AMP, Surround Back/ZONE 3/HEIGHT 2, ZONE 2
- IR 1 In
- 1 Out
- 12 V Trigger
- 2 Out
- RS-232C
- Yes
- FM/AM Antenna
- Yes
- Power Requirements
- AC 120 V, 60 Hz
- Power Consumption/Standby
- 850 W/0.1 W
- Dimensions (W x H x D)
- 17-1/8 x 7-5/16 x 15-3/16" (435 x 185 x 386mm)
- Weight
- 28.7 lbs (13kg
| The Yamaha A-S801 Integrated Silver Amplifier is designed for USB DAC functionality coupled with high fidelity. ToP-ART circuitry, Pure Direct, refined construction and stunningly good looks offer superior musicality with rich, natural sound.
High Sound Quality Circuit Design Based on the ToP-ART (Total Purity Audio Reproduction Technology) Concept
ToP-ART Design and ART Base ensure optimum sound when processing and transmitting the audio signal. The signal is simple and direct, therefore it is less likely to be affected by noise and distortion. The left and right channels are organized in a straight, symmetrical layout for the highest signal purity.
High Strength Chassis Contributes to High Density Sound and Pure Audio Reproduction
In order to effectively dampen the vibrations that have adverse effects on sound quality, the A-S801 chassis has a double bottom design with a 1 mm iron plate. In addition, the power transformer and heat sinks in the power amp section are supported by an extremely strong and stable ART (Anti-Resonance and Tough) base. A solid center bar further enhances high rigidity and dampens vibrations. These Yamaha design innovations contribute to superior signal to noise ratio with rich, natural sound reproduction.
High Quality Parts for Outstanding Audio Performance
Notice the custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one point grounding system, extruded aluminum heat sinks and other top-quality parts to effortlessly handle demanding audio conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of this component. Yamaha uses only very high quality parts, carefully selected and tested for their sound properties.
USB DAC Function Supports Native DSD (2.8 MHz / 5.6 MHz) and PCM (384 kHz / 32-bit) Resolutions
The USB DAC function supports native DSD (2.8 MHz and 5.6 MHz) and PCM (384 kHz / 32-bit ) resolutions. This function allows for a direct connection to PCs which opens the door to play back of the highest resolution audio content offered today. The Yamaha-developed USB device controller has its own master clock that eliminates PC jitter. The driver is a low loss, high throughput ASIO 2.3 Yamaha Steinberg USB driver. During playback, indicators on the front panel clearly show which sampling frequencies are currently being used.
Exceptionally High Performance 32-bit D/A Converter
After careful listening evaluations, Yamaha selected the 32-bit, 2-channel SABRE Premier Audio DAC from ESS Technology, Inc. Most notable is its high precision processing power of 32-bit audio along with the ability to handle large amounts of audio data with full PCM 384 kHz and native DSD 5.6 MHz. Since the built-in D/A converter generates its own master clock, an original jitter elimination function is also included, permitting D/A conversion with an extremely low impact of clock jitter. Moreover, a 2-channel D/A converter is housed inside the chip which applies a double differential operation. The result is exceptional high performance and high quality signal output with a superior signal to noise ratio.
Digital Audio Input for TV and/or Blu-ray Disc Player
The A-S801 is equipped for digital audio inputs with an optical and digital coaxial input terminal. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain giving you pure, pristine and dynamic sound for all your entertainment sources.
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximizes the CD sources signal-to-noise ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp, the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
Continuous Variable Loudness Control
The A-S801 also features a new analog loudness control on the front panel that uses electronic volume for higher sound quality which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low and high frequencies providing full tonal range at any volume level by compensating for the natural loss in the human ear at soft levels.
Gold Plated Terminals
Gold plated terminals ensure a high quality connection that prevents signal loss. The A-S501 has gold plated speaker and input terminals.
Subwoofer Terminal
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono Moving Magnet Input Terminal
You can connect a turntable with a MM phono cartridge to play vinyl records. Get the best of both worlds whether listening to analog vinyl or the latest digital technology.
Simple Yet Sophisticated Design
With a beautiful, simple and unique design inherited directly from Yamaha Hi-Fi audio components, this amplifier also boasts an easy to operate layout. The aluminum front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on top end models.

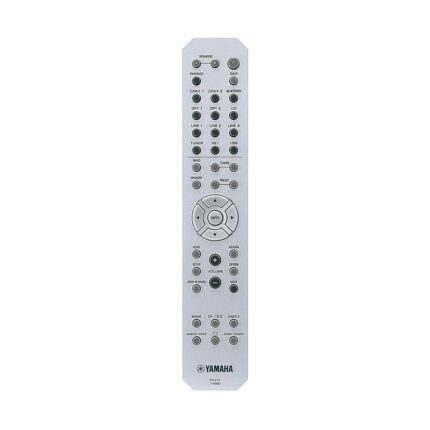

Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy to understand operation with a single hand. The design makes it simple to adjust inputs, volume and more. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxurious hairline finish offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources, even in a dark room.
Connection for YBA-11 Bluetooth Wireless Adapter
With the YBA-11, you'll be able to stream music wireless from a Bluetooth compatible mobile phone or a PC. Thanks to the digital coaxial connection and the aptx audio coding algorithm, you'll enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC out connection on the rear panel of this amplifier.
Auto Power Standby Function
When Auto Power Standby is engaged, the amplifier will automatically shift itself into standby mode when a user function has not been executed in eight hours. This is a great function if you forget to turn the amplifier off and it will help minimize power consumption when the unit is not in use.
This product can only be shipped to U.S. addresses.
- Minimum RMS Output Power
- 8 Ohms:100 W + 100 W (0.019% THD)
6 Ohms: 120 W + 120 W (0.038% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms
- Maximum power per channel
- 160 W
- EC power 1 kHz, 0.019% THD, 8 Ohms
- 115 W
- Power band width 0.04% THD, 50 W, 8 Ohms
- 10 Hz to 50 kHz
- Maximum effective output power
- 145 W
- Input sensitivity/Input impedance
- 3.0 mV/47 kOhmss
- Maximum input signal
- Phono(MM) (1 kHz, 0.03% THD): 45 mV or more
CD, etc. (1 kHz, 0.5% THD):2.2 V or more
- Output level/Output impedance
- REC OUT: 200 mV/1.0 kOhmss or less
SUBWOOFER OUT: 3.5 V/1.2 kOhmss
- PHONES jack rated output/Impedance
- 470 mV/470 Ohms
- Frequency response
- CD, etc. (20 Hz to 20 kHz): 0 +/- 0.5 dB
CD, etc. PURE DIRECT on (10 Hz to 100 kHz): 0 +/- 1.0 dB
- RIAA equalization deviation
- PHONO (MM): +/- 0.5 dB
- Total harmonic Phono (MM) to REC OUT
- (20 Hz to 20 kHz, 2.5 V): 0.03% or less
CD, etc. to SPEAKERS(20 Hz to 20 kHz, 50 W, 8 Ohms): 0.019% or less
- Signal to noise ratio (IHF-A network)
- PHONO (MM) (5 mV input shorted): 82 dB or more
CD, etc. PURE DIRECT on (200 mV input shorted): 99 dB or more
CD DIRECT AMP on: 104 dB or more
- Residual noise (IHF-A network)
- 40 uV
- Channel separation
- CD, etc. (5.1 kOhmss input shorted, 1 kHz): 65 dB or more
CD, etc. (5.1 kOhmss input shorted, 10 KHz): 50 dB or more
- Bass
- Boost/Cut (20 Hz): +/-10 dB
Turnover frequency: 400 Hz
- Treble
- Boost/Cut (20 kHz): +/-10 dB
Turnover frequency: 3.5 kHz
- Continuous loudness control
- Attenuation (1 kHz): -30 dB
- USB (Type B)
- Supported USB2.0
- Supported digital audio format
- PCM (2-ch): 192/176.4/96/88.2/48/44.1/32 kHz
- Supported digital audio format (USB)
- PCM (2-ch): 384/352.8/192/176.4/96/88.2/48/44.1 kHz
DSD: 2.8224/5.6448 MHz
- PCM word depth
- 32/24/16 bit
- Power supply
- AC 120 V, 60 Hz
- Damping Factor
- 240
- Total Harmonic Distortion (CD to Sp Out)
- 0.019% (50 W / 8 Ohms)
- Signal-to-Noise Ratio (CD)
- 99 dB (input shorted, 200 mV)
- Audio In / Out
- 8 / 2
- Digital Input
- Yes (optical / coaxial)
- USB Input
- Yes (type B)
- Subwoofer Out
- Yes
- DC out
- Yes
- Pure Direct
- Yes
- ToP-ART
- Yes
- Switchable CD Direct Amplification
- Yes
- Standby Power Consumption
- 0.5 W
- Power Management (Auto Power Standby)
- Yes
- Dimensions (W x H x D)
- 17.12 x 6 x 15.25" / 434.84 x 152.4 x 387.35mm
- Weight
- 26.7lbs / 12.11kg
|
Immerse in 3D surround sound of Dolby Atmos or DTS:X, or you can still enjoy similar effects by Dolby Atmos Height Virtualizer and DTS Virtual:X even without height or surround speakers. Featuring Ultra HD, HDR10, HLG, and Dolby Vision pass through with support for HDCP 2.2., the VSX-934 offers evermore life-like images. You can stream songs from various sources via Wi-Fi, Bluetooth, DTS Play-Fi, SONOS system, and Apple AirPlay 2. Other highlights include a Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, and 2 HDMI outputs.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Enhanced Gaming
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
Immersive Sound from your TV Apps
E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos, DTS-HD Master Audio, DTS:X, Dolby TrueHD.
Streaming Music Services and Faster Wifi
Use Works with Sonos, Chromecast built-in, AirPlay 2, and DTS Play-Fi; includes Spotify, Amazon Music, Pandora, TIDAL, Deezer, or TuneIn streaming services.
Voice interaction at the touch of a button
Stay wirelessly connected to phone conversations and smart assistants by voice. Simple buttons on the bodies activate a mic so you can make and receive calls. Or ask Siri or the Google Assistant for help without reaching for your phone.
Dolby Atmos Height Virtualization
Creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Roon-Tested
Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.
- Pioneer has packed the VSX-935 with three independent 2.1 inputs (40Gbps 8K/60Hz, 4K/120Hz)
- Immersive sound capabilities via Dolby Atmos, DTS:X, and associated upmixers
- 11 different advanced surround listening modes
- Mid-range AV receiver with 7 channels of audio output
- Audio streaming options include Bluetooth, DTS Play-Fi with Critical Listening Mode, Chromecast built-in, AirPlay 2, Works with Sonos, and Room Tested
- Built-in support for services such as Spotify, TIDAL, Deezer, and Pandora, all of which can be accessed through the free Pioneer Music Control App
- The onboard Direct Energy Class AB amplifier is factory specified to deliver a peppy 80 watts per channel (20Hz-20kHz, 8 ohms, 2ch)
- 6 HDMI inputs and two outputs
- Access to Ethernet, rear USB, digital coax and optical, dual subwoofer pre-outs, four sets of RCA inputs, and a moving magnet phono input
- Power handling capability of 170rms per channel fills even the largest room with resonating theatre sound
- Ultra HD, HDR10, HLG, and Dolby Vision pass through display vivid images while the HDMI 2.1 combined with HDCP 2.3 increases the bandwidth to give high resolution output
- Variable Refresh Rate (VRR) removes the lag by increasing the image refreshing rate, so you can indulge in thrilling games and emotional videos without any stutter
- Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT)allows quick switching to the optimized mode to assure remarkable performance with no lag
- Dolby Atmos Height Virtualize optimizes the sound with more virtual surround and height effect without using additional speakers
- DTS Neural:X discards the need for a new speaker layout and auto tunes the audio to adapt to the existing channel and speaker system
- Compatibility with Alexa and Google Assistant ensure easy control over music services and internet radio
- Amplifier Design
- Direct Energy
- Power Output: Watts per Channel
- 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC), 170 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- Power Output: Watts per Channel
- 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC), 170 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- Channels
- 7.2
- Dolby Atmos, Dolby Surround Upmixer
- Yes
- DTS:X, DTS Neural:X Upmixer
- Yes
- Reflex Optimizer
- Yes
- Dolby Atmos Height Virtualizer
- Yes
- DTS Virtual: X
- Yes
- Dolby TrueHD, Dolby Digital Plus
- Yes
- Audio
- DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express: Yes
- DSD Disc (SACD) Playback
- Yes, via HDMI (2.8 MHz/2ch, 5.1ch)
- Digital Quad-Core 32-bit DSP
- Yes (Cirrus Logic)
- 192 kHz/24-bit D/A Conversion for
- Yes (Hi-Res Audio)
- Enhanced Audio Return Channel (eARC)
- Yes, on HDMI Out (Main)
- Advanced Sound Retriever (2ch)
- Yes
- Advanced Surround Modes
- Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
- Support HDMI 2.1
- (HDMI IN 1-3) with 8K, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
- Supports HDR10+, HDR10, and HLG
- 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; Deep Color (36-bit), "x.v.Color", LipSync, and HDCP 2.3
- Dolby Vision Compatible
- Yes
- Ultra HD Upscaling
- 4K to 8K, 1080p to 8K/4K
- Works with
- Alexa supporting multi-room music: Yes
Hey Google and Chromecast built-in: Yes
SONOS supporting multiple Sonos Connect control and Volume Pass Through mode: Yes
- DTS Play-Fi w/Pioneer Music Control App
- DTS Play-Fi supporting Critical Listening mode with Pioneer Music Control App: Yes
- Apple AirPlay 2 with Siri Voice Control
- Yes
- Music-Streaming Services Ready
- Amazon Music HD, Pandora, Spotify, TIDAL, and Deezer Hi-Fi: Yes
- Internet Radio with TuneIn
- Yes
- Hi-Res Audio File Playback
- Yes (via USB/Network)
- Up to 192 kHz/24-bit ALAC5
- Yes (AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD)
- Personal Preset
- Yes
- Dialog Enhancement
- Yes
- Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
- Yes
- Bluetooth Wireless Technology
- Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC (RX) Built-in
- Pioneer Remote App
- Ready for Multi-room Entertainment Control and Network Streaming
- User-Friendly GUI with System Setup Menu
- Yes
- On-Screen Information for
- Yes (Audio, Video and Network)
- Web Setup
- Yes
- Auto Power Off in HDMI Standby Through
- Yes
- FM/AM Tuner 40 Presets
- Yes
- User-Friendly Simple Remote Control
- Yes
- USB 1 In for USB Drive
- Yes
- MCACC Setup MIC In
- Yes
- Audio 1 In (Mini Stereo Jack)
- Yes
- Phones 1 Out
- Yes
- 4K Ultra HD Pass-Through
- Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)
- 3-D Ready
- Yes
- HDMI Standby Through
- Yes with Input Switch / Last Memory
- HDMI 36-bit Deep Color
- Yes
- 4K Ultra HD Video Scaler
- Ultra HD Upscaling
- Audio Return Channel
- Yes
- Dolby Vision Compatible
- Yes
- HDMI x.v. Color
- Yes
- Video Converter to HDMI
- Yes
- Super Resolution
- Yes
- HDMI Input / Output
- 6 In (Rear) / 2 Out
- Wi-Fi Built-In
- Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
- Digital Audio Inputs / Output
- 2 In (Optical 1, Coaxial 1)
- Headphone Output
- Yes
- AM/FM Presets
- AM/FM Tuner 40 Presets
- Bluetooth Built-In
- Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)
- USB Terminal
- Front and Rear
- Analog Audio Inputs / Output
- 2 in / 0 out
- Pre-Amp Output
- 0.2 ch.
- Front A/V Inputs
- USB / 3.5mm stereo mini jack
- On-Screen Display
- User-Friendly GUI with System Setup Menu
- Multi-Room and Source Output
- Powered Zone 2 with Dedicated DAC
- Sleep Timer
- Yes
- Auto Power Down
- Yes
- Remote
- Yes
- Versatile Speaker Configuration
- Speaker 9ch Out (FRONT, CENTER,SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
- Front Panel
- Brushed
- Speaker Terminals
- 9 large
- Dimensions (W x H x D)
- 17.13 x 6.81 x 14.61" (435.10 x 172.97 x 371.09mm)
- Weight
- 20.7 lbs (9.38kg)
| The versatile amplifier for powering all your entertainment.
- Enjoy high-fidelity performance with 125 Watts per channel
- Power your bookshelf, floor-standing, in-wall, and in-ceiling speakers
- Stream everything you love with the Sonos app and AirPlay Connect your TV to create the ultimate entertainment system
- Amp is built to last and improve over time
Upgrade your wired speakers
Connect everything from your turntable and stereo to your wired speakers to enjoy vinyl, CDs, stored audio files, and streaming. You can even power outdoor speakers and expand your Sonos system to the backyard.
Amplify your TV experience
Enjoy stereo sound for shows, movies, and video games when you connect Amp to your speakers and TV. Wirelessly add a pair of Sonos One surrounds for immersive home theater.
Designed to keep cool
The rack-mountable design features a specially developed heatsink for optimized airflow and heat management.
Key Specs
Continuous Watts x Channel @ Ohms:Â 125 x 2 x 8
Input(s):Â Ethernet, HDMI, RCA
Audio
Continuous Watts x Channel @ Ohms:Â 125 x 2 x 8
Total Power Handling:Â 250 watts
Number of Channels:Â 2.1
Impedance:Â 8 ohms
Amplifier Class:Â D
Features
App-Controlled:Â Yes
Featured Streaming Services:Â Apple Music, Pandora, Spotify, YouTube
Wi-Fi Built-in:Â Yes
Dimensions: 2.52" x 8.54" x 8.54"
Weight:Â 4.6 pounds |
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
Nostalgic Hi-Fi design. Today's Hi-Fi technology
A nod to the past with the latest technology for a purely musical sound.
Emotion
Understanding music is to understand the emotion upon which music is created - the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists' emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.
>Toroidal Transformer
Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today's discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.
Openness
An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners' musical experience, bringing them closer to the artist.
Thick Wires for Ground Connection
Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.
Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.
Groove
Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the 'Groove' of the music to the listener.
Chrome-Plated Iron Feet
Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
ColorSilverRated output power 2-channel driven8Ohm: 90 W + 90 W
4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)Dynamic power8Ohm: 105 W + 105 W
6Ohm: 135 W + 135 W
4Ohm: 190 W + 190 W
2Ohm: 220 W + 220 WIEC output power8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)Maximum effective output power8Ohm: 120 W + 120 W
4Ohm: 190 W + 190 WPower bandwidth 2-channel driven8Ohm: 10 Hz to 50 kHz (0.1% THD, 45 W)Damping factor8Ohm: 250 or higher(1 kHz)Input sensitivityPHONO (MC): 150 micro Vrms / 50Ohm
PHONO (MM): 3.5 mVrms / 47 kOhm
CD (or similar): 200 mVrms / 47 kOhm
MAIN IN: 1 Vrms / 47 kOhmMaximum inputPHONO (MC): 2.0 mVrms
PHONO (MM): 50 mVrms
CD (or similar): 2.80 VrmsRated output voltageLINE 2 OUT: 200 mVrms / 1.5 kOhm
PRE OUT: 1 Vrms / 1.5 kOhmHeadphone jack rated output power25 mW + 25 mW (1 kHz, 32 Ohm, 0.2% THD)Frequency response5 Hz to 100 kHz: +0 / -3 dB
20 Hz to 20 kHz: +0 / -0.3 dBDeviations from RIAA equalizerPHONO (MM/MC): +/-0.5 dBTotal harmonic distortion plus noise2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
CD (or similar) - SPEAKERS OUT, 50 W/8Ohm: 0.035%
Signal-to-noise ratioPHONO (MC): 90 dB
PHONO (MM): 96 dB
CD (or similar): 110 dBResidual noise50 micro VrmsChannel separationPHONO (MC): 66/77 dB or higher
PHONO (MM): 90/77 dB or higher
CD (or similar): 74/54 dB or higherTone control characteristicsBASS: Boost/cut: 50 Hz / +/-9 dB
Turnover frequency: 350 Hz
TREBLE: Boost/cut: 20 kHz / +/-9 dB
Turnover frequency: 3.5 kHzPower supplyAC 120 V, 60 HzPower consumption350 WStandby power consumptionOFF mode: 0.1 W
Standby mode: 0.2 WDimensions (W x H x D)17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)Weight48.5 lbs (22kg)
|
Designed for integration, with rack-mountable design, 100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, whilst ensuring a high-level electronic protection. Specially tailored for the passive subwoofer 100 IWSUB8, this amplifier is able to power up to two subwoofers connected in parallel.
This powerful combination is the ideal add-on to a 100 Series audio/video setup, delivering an unique ambiance and sound coverage in your living spaces.
This product can only be shipped to U.S. addresses.
- Peak power: 200W (continuous power : 150W under 4 Ohm)
- Amplifier able to drive 2x 100 IWSUB8 subwoofers connected in parallel
- High-level electronic protection (dynamic power control, thermal protection, short circuit, fuse, and over-current protection).
- Flush potentiometers
- Power (continuous)
- Max 200W, 150W continuous (4 Ohm)
- Minimum load
- 4 Ohm
- Voltage range
- 100-120V-60Hz / 220-230V-50Hz
- Power consumption
- 150W
- Stand-by power consumption
- 0.5W
- Bandwidth
- 20-250Hz
- Subsonic filter
- 18dB/oct.
- Inputs
- LFE, Line in L/R
- Outputs
- Line out L/R and subwoofer power output on speaker terminal
- Cord
- Detachable IEC power cord
- Protection
- Dynamic power control, thermal protection, short circuit, fuse, and over-current protection
- Dimensions (H x W x D)
- 1.75 x 16.88 x 10.11" (44.5 x 429 x 257mm)
- Weight
- 6.8 lb (3.1kg)
|
Reviews
There are no reviews yet.
