| Content | The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.

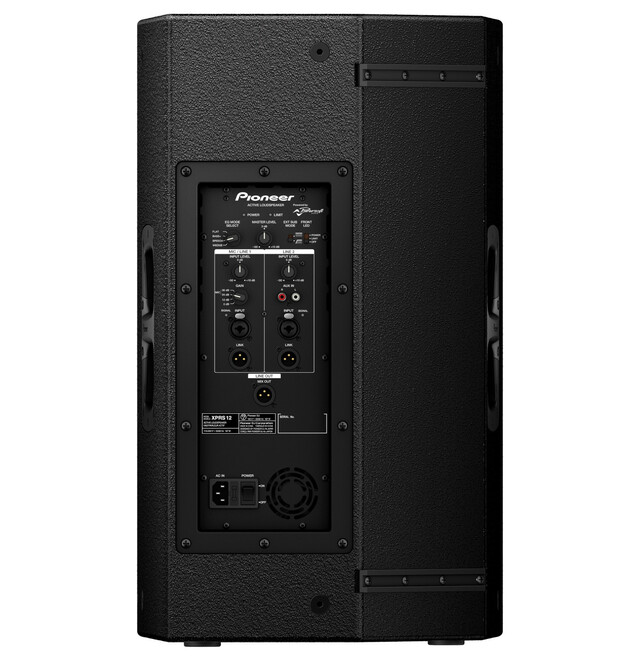

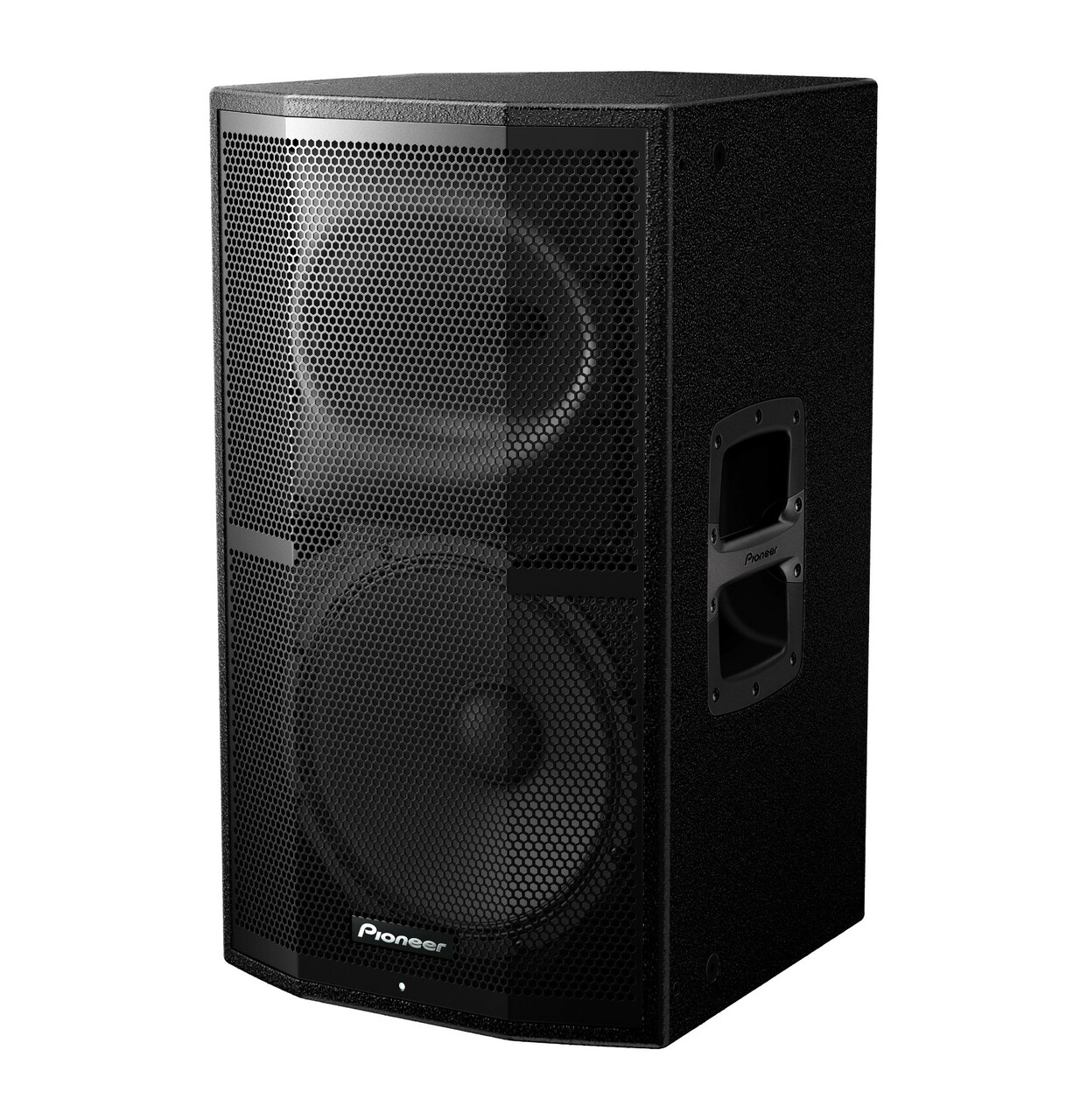

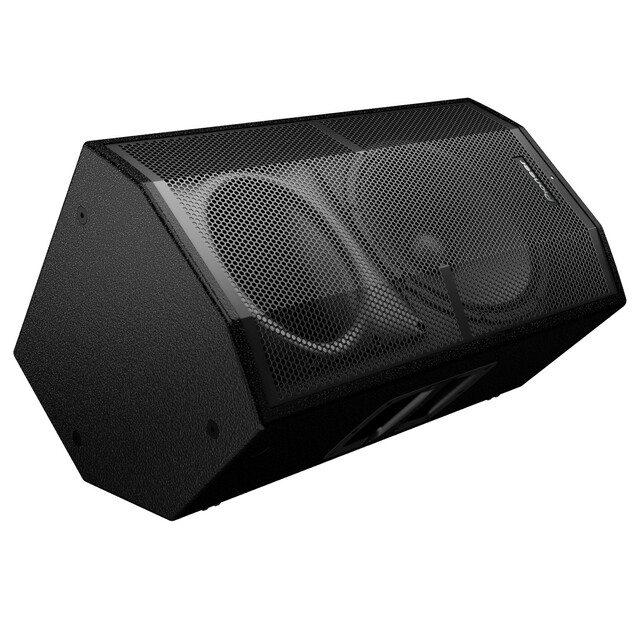

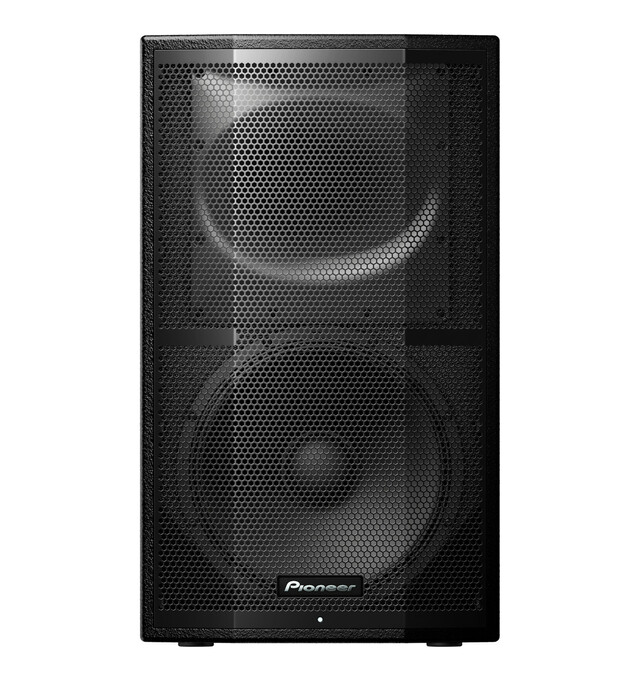

The XPRS12 compact 12-inch speaker fills the room with a dynamic, natural sound thanks to its plywood enclosure and high-performance driver. Sound is produced at low distortion, even at high volumes. The XPRS12 uses Powersoft Class D amp modules with Power Factor Correction (PFC). PFC reduces power consumption while ensuring steady performance in all environments. Pioneer Pro Audio’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs only the standing waves, increasing the low-to-mid frequency response. Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge. 2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line-level mixers or portable audio players. 2 balanced XLR through outputs let you connect easily to other speakers and subs.
Pioneer DJ XPRS-12 Features
- 12" ferrite LF driver, 1.75" titanium diaphragm compression driver
- Natural full-range sound with low distortion even at high volumes
- Powersoft Class D amp
- Power Factor Correction
- AFAST technology
- 4 EQ modes
- Advanced protection
- Flexible connectivity
- Rotatable horn
- Auto-ranging power supply
- Black semi-matte textured impact resistant finish
- Birch hardwood cabinet
|
The Triton Seven Loudspeaker is an award-winning speaker and the first Triton Tower without a built-in powered subwoofer. It still achieves superbly deep, subwoofer-like impactful bass performance by combining advanced drivers with refined bass-loading technologies.
Like the Five, the Seven’s strikingly attractive and acoustically purposeful cabinet provides the same performance benefits, as well as looking great. The Seven’s precise and totally boxless imaging characteristics are further enhanced by the narrow front baffle. A complex Linkwitz/Riley crossover perfectly blends the D'Appolito Arrayed twin 5-1/4" cast basket bass/midrange drivers specifically designed for exceptionally long-throw, for tremendous dynamic range and extraordinarily deep bass response. These surround the same signature High Velocity Folded Ribbon (HVFR™) tweeter for high-resolution reproduction of both music and cinema. And dual side-mounted inertially-balanced, planar sub-bass radiators deliver impactful, superbly detailed, subwoofer-quality bass performance. The Triton Seven’s high-resolution sonic performance makes it perfect for the highest quality two channel systems as well as the best multi-channel music and home theater systems.
- Features a complex Linkwitz/Riley crossover that perfectly blends the D'Appolito Arrayed twin 5-1/4" cast basket bass/midrange drivers specifically designed for exceptionally long-throw,resulting in tremendous dynamic range and extraordinarily deep bass response.
|
The Motion ultra-slim SLM XL features four passive radiators for amazing, controlled bass performance.
- The dual 4-inch, ultra-slim fiber cone woofers and four 4-inch passive bass radiators, paired with a Folded Motion tweeter create stunning acoustical alchemy all from a thin profile.
- The drivers are held securely in place by a solid, black-anodized brushed aluminum baffle under the grille.
| With the ElectroMotion ESL, Martin Logan has created the world's most affordable high-performance hybrid electrostatic loudspeaker, with a legendary CLS™ XStat™ transducer and an 8-inch woofer to deliver ideal home theater front/surround sound.
ElectroMotion ESL
The ElectroMotion ESL represents a bold new direction for electrostatic loudspeaker design. Featuring a full-sized 34-inch tall curvilinear XStat™ electrostatic transducer and a superbly integrated high-performance woofer, the new EM-ESL performs more like a mini-flagship than an entry level audiophile speaker. Designed for both 2-channel music enthusiasts and those seeking the worlds most articulate and dynamic multi-channel home theater systems, the EM-ESL is the most compelling 'affordable' audiophile-grade speaker ever brought to market.
The ElectroMotion ESL (EM-ESL) represents a brave new direction for electrostatic loudspeaker design. Featuring a full-sized 34-inch tall curvilinear XStat™ electrostatic transducer the new ESL performs more like a mini-flagship than an entry level audiophile speaker. Long time MartinLogan enthusiasts are sure to describe ElectroMotion ESL as the second-coming of the legendary Aerius electrostatic speaker which debuted in 1992 and went on to sell in record numbers. The new ESL, however, boasts 40 percent more radiating surface, a superbly integrated and authoritative bass performance, and a sensitivity rated at 91dB. In addition, the ESL is capable of being effortlessly powered by both receivers and high-end amplifiers alike.
ElectroMotion ESL's XStat electrostatic MicroPerf panel is housed within a radical aluminum and composite AirFrame™ similar to those found on MartinLogan's flagship products. AirFrame technology rigidifies the electrostatic panel without obstructing playable surface area or interfering with ambience enriching dipole sound radiation. At the same time, an AirFrame provides electrical and acoustical isolation, minimizing intermodulated distortion caused by vibration and resonance while enhancing imaging, low-level sonic detail, accuracy, and efficiency. MicroPerf design optimizes the individual holes of The EM-ESL's electrostatic panel. MicroPerf design substantially increases diaphragm radiating area, compared to early generations—without compromising structural integrity. The resulting increase in output capability and efficiency allows The EM-ESL's panel to enjoy a substantial leap in bandwidth and dynamics without growing larger. For example, The EM-ESL's XStat electrostatic panel features 129 square inches of sound radiating surface on both the front and back and a sensitivity of 91dB into 6 Ohms. The Aerius, well received its day, only had 93 square inches and a sensitivity of 89dB into 4 Ohms.
A unique XStat™ transducer was developed for the ElectroMotion ESL to reduce the gauge thickness of the electrostatic panel's steel stators. The reduced gauge does not alter the performance characteristics of the panel. However, as a natural byproduct of tighter build tolerances, it does increase the visual transparency of the panel. The EM-ESL's new XStat panel is so visually transparent it nearly vanishes when you're sitting and listening.
Controlled Dispersion Sound Radiation
Another key attribute of the ElectroMotion ESL is its naturally dipolar radiation pattern. A true dipole, The EM-ESL radiates sound with equal intensity from the front and back of its diaphragm, but the outputs are in opposite phase. As a result, sound waves rippling out toward the sides meet at the speaker's edge and cancel. That and the relatively large size of the ElectroMotion ESL's electrostatic panel cause output at the sides to be very low relative to that of a conventional loudspeaker, which in turn minimizes side-wall reflections that tend to muddle sonic detail and stereo imaging. While the reduction in output to the sides contributes to the astonishing clarity for which electrostats are revered, the energy reflected off the wall behind the speaker opens up and deepens the sound.
Superb Bass Integration
To seamlessly blend audio output from the high- and mid-frequency electrostatic panel to the low-frequency woofer the ElectroMotion ESL features a proprietary Vojtko™ topology filter utilizing custom air core coil and low DCR steel laminate inductors, polyester film capacitors in series, and low DF electrolytic capacitors in parallel.
A precise 8-inch high-excursion, perfectly balanced, audiophile grade, doped fiber cone woofer was custom designed exclusively for The EM-ESL by MartinLogan's in-house engineering team. This woofer precisely optimizes cone suspension and magnetic flux field to produce high levels of bass output and simultaneous precise midrange. The custom woofer's rigid light-weight diaphragm eliminates cone flexure and minimizes response time to achieve remarkably low-distortion approaching that of MartinLogan's award-winning electrostatic panel design.
Easy Connections, Solid Adjustable Footing
Convenient push-style speaker terminals and curved inserts help guide speaker wire effortlessly into place. The rubber end caps on the terminal are also removable for the use of banana plugs instead of bare wire. The EM-ESL is supplied with sturdy, 3/8-16 ETC™ spikes, which can be used to fine tune vertical wave launch, enhance stability on thick carpets, and create tighter coupling between speaker and floor to provide a tighter and detailed bass performance. Each spike is conveniently covered by removable rubber end caps if you prefer not to use spikes. |
S4 speaker stands are the perfect addition to your desktop speaker setup. With 16 of upward tilt, they ensure you experience the full range of frequencies your speakers have to offer. Each stand features foam padding to reduce vibration when you have the sound cranked up, and includes a mounting hole and 1/4"-20 screw to secure your YU4 or other compatible speakers in place.
- Get the most out of your speakers by tilting them toward your ears, ensuring you never miss out on those higher frequencies.
- Improve stabilization by securing YU4 or other compatible speakers in place with the provided 1/4"-20 screw.
- Foam padding on the top and bottom of each stand helps to maintain stability and reduce undesirable resonance.
Features
Desktop Stands: Pair the Kanto S4 desktop stands with your Kanto YU4 powered desktop speakers or another brand of desktop speakers of similar size and weight.
- Overall Dimensions: 5.5625" (w) x 2.0625" (h) x 7.9375" (d)
- Top Plate Dimensions: 3.875" (w) x 6.25" (d)
- Base Dimensions: 5.5625" (w) x 7.9375" (d)
- Weight Capacity: up to 8 lbs
- Your compatible desktop speakers should measure 5" to 7" (w) x 7" to 10" (d), and weigh no more than 8 lbs.
- 1/4"-20 screws are included to secure the Kanto YU4 speakers to the desktop stands; other brands of similar size speakers will not use these screws.
16° Vertical Tilt: With 16° of vertical tilt, the S4 desktop speaker stands angle your speakers towards your ears, ensuring you experience the full range of frequencies they have to offer.
Vibration Resistant: The S4 desktop speaker stands feature multiple areas of foam padding to maintain stability and reduce vibration.
Available In A Variety Of Colors: The S4 desktop stands are available in a variety of colors ( black, white, aluminum, brass, copper, or stainless steel) to compliment your decor
|
The ElectroMotion FX2 features dual Folded Motion XT tweeters in a wide-dispersion array to guarantee optimal surround channel sound in even the most demanding home theaters.
- A single 6.5-inch doped fiber-cone woofer provides a powerful low-frequency extension.
- Designed to easily corner mount, wall mount or angle-wall mount for versatile placement in any room.
|
