| Content | FEATURES
-
12" woofer and 1.4" compression driver
-
1,000W Class-D peak amplification
-
Onboard DSP with Intrinsic Correction
-
Robust molded cabinet
-
Weighs only 30.3 lb.
TECHNICAL SPECIFICATION

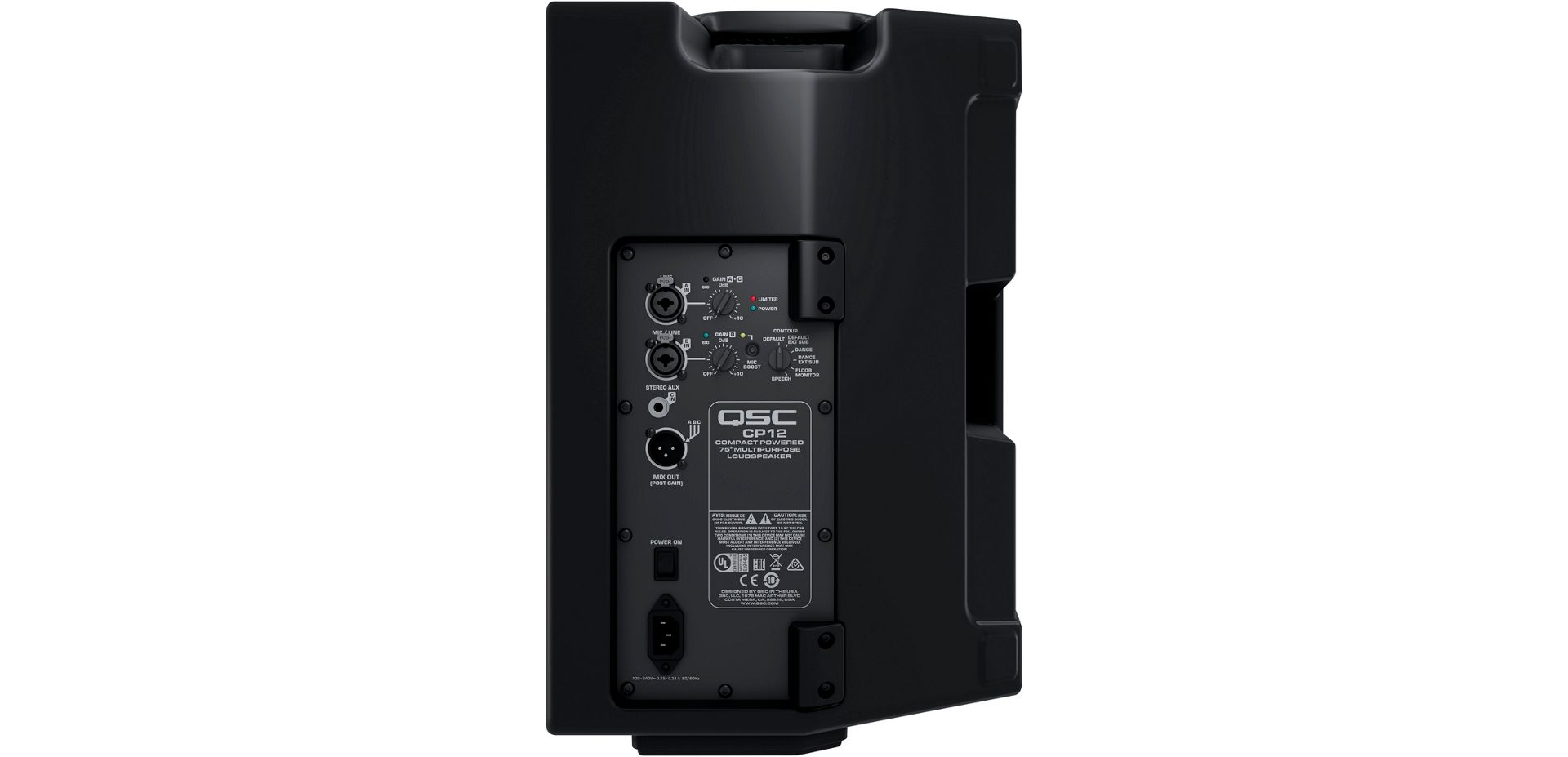

QSC CP12 12" Powered Speaker
SPEAKER CONFIGURATION
-
Active/passive: Active
-
Type: 2-way
-
LF driver: 12"
-
HF driver: 1.4"
POWER
-
Amplifier class: D
-
Wattage: 1,000W peak
AUDIO
-
Frequency response: 49Hz–20kHz
-
Coverage pattern: 75°
-
Max SPL: 126 dB
INPUTS
-
XLR: 2 (combo)
-
TRS: 1 (3.5 mm)
OUTPUTS
ENCLOSURE
-
Cabinet material: Molded
-
Width: 13.8"
-
Height: 20.3"
-
Depth: 12.7"
-
Weight: 30.3 lb.
| The QSC K12.2 model is quite simply the next standard in powered loudspeakers. Each model is equipped with a 2000-watt amplifier module that combines with elegant design and advanced DSP to deliver pristine sound quality and smooth pattern control across the listening area.
The QSC K12.2 Powered Loudspeaker represents the best-in-class loudspeaker for today's demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.
Advanced Power and DSP:
The 2000 Watt power module delivers ample burst and continuous power for the loudspeaker's premium drivers. It has been designed with very low-noise fan cooling, enabling the enclosures to be used in settings where background noise must be kept to a minimum. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion.
Presets:
The user may select may select from an extensive list of factory preset EQ contours including Live, Dance, Monitor, and many more.
Scenes:
Savable and recallable Scenes can store information like user EQ, Delay, and input configuration settings.
Inputs:
A pair of balanced combo XLR/F plus 1/4" TRS connectors with independent gain control are provided. The first is equipped with selectable MIC/LINE (Microphone or Line) level input while the second offers selectable HI-Z/LINE (High Impedance or Line) level input, specifically for musical instruments. Both inputs are connected directly to a pair of XLR/M throughput connectors so that the signals may be "daisy-chained" to another audio device. A 3.5 mm TRS input jack with independent gain control is also provided for connection of sources such as smart phones, computers, and MP3 players.
Outputs:
In addition to the two throughput XLRs, a line-level output with the mixed signal from all inputs is also provided.(An optional security cover (K-LOC) may be installed to prevent unauthorized tampering of settings)
Coverage:
DMT (Directivity Matched Transition) design matches the coverage angle of the woofer at the cross-over frequency with the horn pattern to ensure uniform response across the coverage area. Intrinsic Correction techniques are also employed ensuring smooth power response from the loudspeaker. The result is an extremely accurate loudspeaker that behaves well in a wide range of acoustic spaces with little or no equalization.
Flexible Design:
Each model is housed in a rugged ABS enclosure with a professional yet unobtrusive appearance that is at home in any application. Each model can be utilized in either main PA or floor monitor applications, while ergonomic handles and a heavy-duty steel grille with fabric lining further enhance overall appearance and functionality. The dual pole cups allow a zero or 7.5 degree downward tilt when deployed on a pole. This allows for more even coverage across the listening area and less problems due to rear wall reflections. For suspended applications, integrated M10 fittings with a single pullback are included to accommodate M10 eyebolts. An optional yoke mount accessory is also available for permanent installation to walls and ceilings or for temporary attachment to truss (requires 3rd party hardware).
Features:
- Best in class audio performance
- 2000 Watt Class-D amplifier module
- Factory Presets and savable/recallable Scenes for commonly-used applications such as Stage Monitor, Dance Music, Musical Instrument Amplification, Hand-held Microphone and more
- Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contours
- Intrinsic Correction tuning and loudspeaker management
- DMT (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening area (75-, 90-, 105-degree, K12.2, K10.2, K8.2)
- Refined, professional appearance looks great in any application
- Rugged ABS enclosure for long life and lasting durability
- Deployment in either main PA or floor monitor position
- Dual pole cup mounts (straight-firing and 7.5 degree down-tilt)
- M10 fittings for flown applications
- Optional security panel prevents unauthorized tampering of controls
- 6-Year Warranty with product registration | The QSC K12.2 offers the familiar voicing, elegant style, and rugged reliability that the K Series is known for, plus double the power, increased SPL, and greater bass extension. Improved DSP management exhibits unprecedented clarity. It's also deceptively easy to use — the K12.2's factory presets cover just about any application you can think of. And if you want to tweak things yourself, there are multiple user-adjustable parameters on tap. This lightweight powerhouse is ideal for bands, DJs, and more, and its wide dispersion ensures that your entire audience experiences top-notch sound. Whether you use the QSC K12.2 in a portable or installed situation, you'll achieve superior results.
The K.2 Series is packed with more of everything. Double the power. Higher SPL. Greater low-frequency extension. Experience sublime clarity, thanks to the power boost and improved DSP management, while the higher SPL and greater bass extension injects your performance with chest-thumping vigor. Optimize your system with user-adjustable DSP parameters and presets. Dual pole cups (straight-firing and down-tilt) replace the previous generation's tilt-direct single cup for added stability. On top of that, every speaker in the K.2 Series can pull double duty as a high-performance floor monitor.
- Yes
- Bi-amped
- 12" woofer
- 1.4" titanium compression driver
- 1800W
- 225W
- 2000W
- 2 x XLR-1/4" combo (mic/line), 1 x 1/8" (aux stereo in)
- 2 x XLR (thru), 1 x XLR (mix out)
- 45Hz-20kHz
- 50Hz-20kHz
- 132 dB SPL @ 1m
- 75 Degrees
- EQ, Delay, Dynamics, User Scene Presets, Crossover
- ABS plastic enclosure with 18 AWG steel grille
- Pole Mount with 1.37" socket, Floor Wedge, 2 x M10 Fly Points
- Standard IEC AC cable
- 23.7"
- 14"
- 13.8"
- 39 lbs.
- K12.2
|
