| Content | Look and Sound Your Best in Video Meetings and Presentations
Video streaming for business and pleasure has become a regular part of life. But you’ll never look and sound your best with the webcam and microphone in your average computer. The Roland UVC-02 Web Presentation Dock helps you bridge the gap, providing a simple and affordable way to level up your video presentations with higher quality audio/visual gear and more control.
Present with Confidence

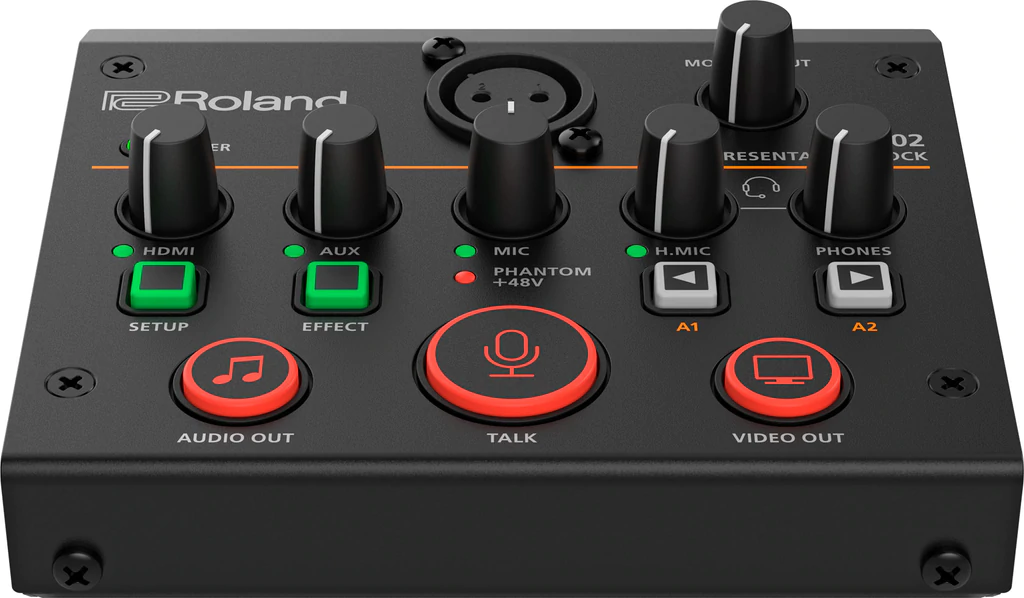

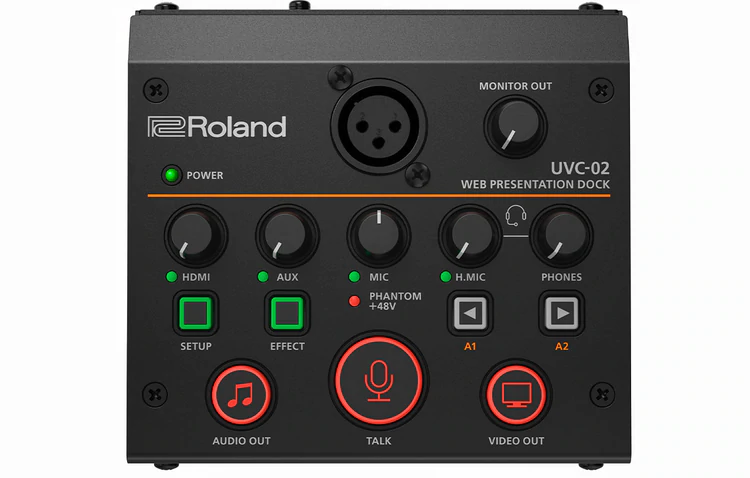

The UVC-02 is a compact broadcast control center that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.
- Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
- Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
- HDMI video input supports embedded sound and features automatic scaling for different video resolutions
- Studio-grade sound with Roland’s acclaimed digital audio technology
- Plug and play operation—automatically appears as a webcam and audio source in your favorite streaming software
- Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect
- Hands-on control of volume levels plus audio and video muting
- Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows
Plug In and Play
Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it’s ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.
The Ultimate Webcam Upgrade
Connect just about any HDMI-compatible camera and instantly elevate the image quality over your built-in or USB webcam. Many standalone cameras offer HDMI output, from action and point-and-shoot cameras to higher-grade mirrorless and DSLR models. They have much better lenses than any webcam and often include zoom capability to frame your perfect shot.
Superior Image Quality
Improve color, sharpness, and focus to get a cinematic look.
Fast, No-Fuss Setup
Shows up like a webcam—no special software required.
Now You See Me, Now You Don’t
Need a break? Turn off your camera feed with the push of a button.
Get Ready to Sound Great
There’s nothing worse than bad audio quality in an online meeting. The UVC-02 ensures your sound starts off strong and stays that way. With a tiny studio-grade mixer and four inputs backed by Roland’s pro audio technology, you have a whole new range of sonic superpowers at your command.
Works with Professional Mics
Pro broadcast and recording studios choose a specific microphone to get the best out of a performer’s voice. Now, you can choose the mic type that’s right for you and connect it via the XLR input on the UVC-02. Phantom power is also available, allowing you to use a studio-grade condenser mic for the very best sound quality.
Sound Monitoring Made Simple
The UVC-02 has a dedicated headphones jack, as well as a stereo monitor output for connecting to external speakers or a recorder. And both have dedicated panel knobs that allow you to reach out and control the listening level with a quick twist. The headphones jack also supports the inline mic on a standard set of earbuds, and there’s a dedicated level knob for this as well.
Bring Your Music to the Meeting
Hate that awkward silence while waiting for everyone to join the meeting? Then connect your phone or other media player to the Aux In and play some background music while everyone gets online.
One-Touch Audio Mute
Don’t scramble for the un-mute switch in your software as everyone chants, “You’re on mute.” Just press the large Talk button to instantly turn your audio on or off. And with the button’s bright backlight, you’ll always know when your sound is live.
Love the Sound of Your Voice
Just like a broadcast studio, the UVC-02 includes a pro-quality equalizer and audio effects to make your voice sound great. Convenient templates are included to get you started, complete with easy controls to tweak the sound until it’s just right.
Sound Proofing as Standard
With advanced echo cancellation and noise suppression on board, the focus is always on you—and not distracting background sounds like domestic bustle and traffic.
Who Said Meetings Are Boring?
Bring the fun by transforming your voice to male/female, a robot, or even a ghost using the onboard Voice Change effect. You can also trigger applause, chimes, buzzers, or your own custom sound samples for fresh reactions to ideas shared in your meetings.
Customizable Control
Streamline your sessions even further with dedicated UVC-02 software for macOS and Windows. Choose two functions that you use most often—such as PowerPoint slide advance* or a sound effect trigger—and assign them to the A1 and A2 buttons for one-touch operation.
*PowerPoint slide control is only available for Windows.
Wireless Multi-Camera Magic
The AeroCaster Switcher app for iPad—available for free with your UVC-02 purchase—allows you to create a wireless multi-camera streaming setup with mobile devices. Connect and switch up to four smartphone or tablet cameras and send the combined signal into the UVC-02’s HDMI input for direct streaming to your favorite platform.
VIDEO
- Input Connector:
HDMI IN : HDMI type A
* HDCP not Supported
* Multi-format Supported
- Input Formats:
480/59.94p, 576/50p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p,
SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz,
WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz,
SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz,
SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz,
FHD (1920 x 1080) 60 Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
- Output Connectors: USB STREAM : USB 3.0 Type-B
- USB Video Output Format: YUY2 (Uncompressed), Motion JPEG (Compressed)
- USB Video Output Resolution:
1920 x 1080, 1280 x 720, 640 x 480
* Maximum frame rate is 60 fps.
AUDIO
- Audio Processing: Sample Rate 48 kHz, 24 bits
- Analog Connectors:
MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max)
HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power)
AUX IN : Stereo miniature phone type
MONITOR OUT : Stereo miniature phone type
- Digital Connectors
HDMI IN: HDMI Type A
USB STREAM : USB 3.0 Type-B
- Nominal Input Level:
MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu)
HEADSET : -20 dBu (Maximum input level : -2 dBu)
AUX IN : -10 dBu (Maximum input level : +8 dBu)
- Nominal Output Level
MONITOR OUT : -10 dBu
HEADSET : 9 mW + 9 mW (32 ohms load)
- Input Impedance
MIC IN : 5.8 k ohms
AUX IN : 10 k ohms
HEADSET : 1 k ohms
- Output Impedance
MONITOR OUT : 1 k ohms
HEADSET : 22 ohms
- Digital Audio Format
HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo
USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo
- Audio Effects: Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
- Audio File PlayerNumber of tracks : 2
Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono)
Maximum Time : 5 seconds / track
OTHERS
- Other Functions:
MIC Mute (TALK button)
Audio Mute (AUDIO OUT button)
Video Off (VIDEO OUT button)
Slideshow Control
- Power Supply: Supplied from the computer via USB
- Current Draw: 900 mA (4.5 W)
- Operation Temperature:
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
- Dimensions124 (W) x 117 (D) x 52 (H) mm
4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches
- Weight (excluding cables)
460 g
1 lb 0.3 oz
|
The ClearCaster Enterprise is purpose-built for data centers and production teams, the fully redundant and scalable solution simplifies the streaming workflow and delivers next-generation video performance to any broadcast environment.
Revolutionizing Cloud Control
The ClearCaster EnterpriseTM is the ultimate enterprise-grade live encoding solution. Purpose-built for data centers and production teams, the fully redundant and
scalable solution simplifies the streaming workflow and delivers next-generation video performance to any broadcast environment.
What is Wowza Cloud Orchestration?
Cloud-based control of your entire encoding fleet — from anywhere in the world. Designed with a cloud-first approach and back-end management, Wowza Cloud Orchestration allows you to take complete control of your entire encoder fleet from anywhere in the world. Prebuilt using proven Wowza technology, Wowza Cloud Orchestration simplifies the most dicult parts of the encoding workflow — saving you time and lowering overhead costs. With Wowza Cloud Orchestration, you can easily manage thousands of streams with a scalable API, or build your own architecture on top of our cloud-optimized back-end infrastructure.
Key Features
- Reliable 4K video delivery
- Enterprise-class components
- Rack-mountable; comes with pre-installed kit
- Controlled by Wowza Cloud Orchestration API
- Supports Custom Wowza Linux environment
- Local and cloud recording and storage capabilities
- 4K Resolution
- Redundant Power Supply
- User Management
- Closed Captions
- Titling and Graphics
- Multi-Target/Output
- HEVC
- SRT
- Cloud Storage
- Real-time Dashboard
Cloud-Based ClearCaster Manager
Remote Manger: Browser-based control allows for remote management from anywhere.
Streamlined Workflows: Reliably take broadcasts live with just one click.
Multi-User Access: Provide your entire team with access to your encoders.
Health Monitoring: Identify issues quickly and ensure your broadcasts are ready to go live.
Custom Workflows: Build you own encoding workflows and use interface controls.
User Roles and Permissions: Restrict access on certain features to less technical team members.
Graphics Engine: Enable slates, count-down timers, lower-thirds and animated logos on your broadcast.
APIs: Use the GraphQL API to build your own applications utilizing ClearCaster.
Record Management: Immediately access clean recordings of your broadcasts in the cloud.
Ideal Use Cases Include:
- Broadcasters
- Large-scale productions
- Telecommunications
- Sports leagues
- High-end video conferencing and more!
| The NewTek TriCaster Mini Advanced HD-4 is a compact, all-in-one multimedia solution that allows you to simultaneously broadcast, stream, and record live productions from virtually anywhere. The 16-channel switcher makes it easy to switch between four HDMI cameras, mix audio, add graphics and titles, and add advanced effects like virtual sets and animated transitions. Using the same intuitive and fully featured control software as the rest of the TriCaster professional line, the TriCaster Mini is suited for both new users and seasoned pros.
In addition to the four HDMI inputs, you can choose from two live sources from supported devices on the network, including computers, USB webcams, or even wireless Apple AirPlay devices. Two HDMI outputs are provided for sending the Program output with audio to external devices, with video-only HDMI and DVI outputs available for monitoring. In order to view the user interface and multi-view output, HDMI and DVI outputs are provided.
The TriCaster Mini features an internal 750GB storage drive that provides up to 15 hours of HD video recording. You can also attach external USB 3.0 drives to record up to four simultaneous video input or output signals at full resolution. The TriCaster Mini supports HD live streaming with presets up to 720p available for RTMP and browser-based streaming applications. Additionally, you can save a web-ready streaming file for later upload to popular social media or video-on-demand sites.
A cable retention bracket comes included, which doubles as a handle for the TriCaster Mini. Also included are a keyboard and mouse, which provide cordless operation via wireless Bluetooth technology. You can also add the optional TriCaster Mini Control Panel for traditional tactile control with T-bar and illuminated buttons.
All-in-One Multimedia Studio
The TriCaster Mini makes it possible for anyone to start creating multimedia content, without the need for additional software or equipment. With just one system, you can switch between four cameras, mix audio, add graphics and titles, and add advanced effects like virtual sets and animated transitions. You can also network with computers and wireless devices for presentations and screen sharing, stream to the web, publish to social media sites, and record content for later viewing.
Compact, Travel-Ready Size
The compact size of the TriCaster Mini allows you to produce and stream content from virtually anywhere. It’s small enough to fit into a backpack for easy travel, and doesn’t require a studio full of gear to use.
16-Channel, 4-Camera Production
Connect and switch between up to 4 HDMI cameras and produce content in resolutions up to 1080p. Two overlay channels allows for mixing sources and creating multi-layer compositions.
Network Sources
Choose two live sources from any number of supported devices on the same network. Supported sources include: networked computers via included NewTek iVGA client application; wireless Apple AirPlay devices; TriCaster 8000, 860, 460, 410 or Mini; 3Play 4800, 440 or 425; USB video sources; video over IP sources; RTMP or RTSP streams; HTTP streaming video sources; and a variety of third-party partner solutions.
Robotic Camera Support
Access up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols, with native preset system and user interface control over camera orientation, zoom, focus and iris.
Multi-Channel Audio Mixer
The multi-channel audio mixer within the TriCaster software lets you manage camera audio, including internal and external audio sources, outputs, recorded audio, stream audio, and headphone output. It supports Master and Aux output mixes.
- Pan control, solo auditioning, seven-band equalizer and stereo compressor/limiter per input and output, with per-input audio delay control
- Multi-bus routing of audio source channels to any combination of outputs, with independent level control over channels 1/2 and 3/4 for quad sources
- Audio Follow Video system enabling audio to follow multiple video sources, with support for unlimited audio grouping combinations
- Digital audio inputs equipped with audio time-base synchronizes
- Supports companion iPad audio mixing app and Avid Artist Mix audio control surface
Recording
Recorded media can be stored to the 750GB internal drive, accommodating approximately up to 15 hours of HD video recording. Media can also be recorded to external storage drives connected via USB 3.0. With using external drives, you can take advantage of the TriCaster Mini’s integrated ISO recording feature capabilities to record up to four simultaneous video input or output signals at full resolution in QuickTime, MPEG-2, AVI, or H.264 file formats.
Built-in Wi-Fi
Built-in Wi-Fi enables wireless connection to local network for streaming, publishing, and networking.
Streaming
TriCaster Mini supports HD live streaming with presets up to 720p, supporting the most common streaming profiles and custom multi-bitrate streaming profiles (including RTMP streaming and browser-based streaming applications), and auto-save of Web-ready stream file for video on demand (VOD) upload.
Publishing
Upload video and images directly to social media sites such as YouTube, Facebook, and Twitter, export content to FTP servers, and copy files to attached or networked storage locations.
Monitoring
An external monitor is required for viewing the user interface and for multi-view display. The TriCaster Mini has HDMI and DVI outputs for hooking up an external display.
Multimedia
Five digital media players are provided for video, graphics, and sounds. You can also access up to 15 additional graphic sources instantly during live production with still and title buffers.
Mix Effects
The TriCaster Mini features four M/E buses, each with independent switcher and key layer, for advanced video mixing, compositing, effects, and virtual sets.
Mix mode: Enables secondary switcher operation for output, submix or recording, with Program/Preview workflow and transitions
Effects mode: Enables multi-layer compositing, effects generation and virtual set application, with per-source 3D DVE, scaling, cropping and keying
Transistions and Effects
The built-in effects engine lets you apply transitions, animation stores, and real-time 3D video warping. An Animation Store Creator is included for creating custom effects.
Virtual Sets
Over thirty HD live virtual sets are provided with multiple camera angles, shot presets, realistic virtual camera movements, and real-time reflections, plus support for custom holographic virtual sets.
Note: In order to modify the included virtual sets, the separately available Virtual Set Editor v2.5 software license is required.
Macros
Use macros to record your favorite go-to-settings, commands, or operation sequences, and then create custom one-step shortcuts to simplify or automate control. Support for standard MIDI protocol enables third party MIDI device control of TriCaster operations via macros.
Grab Stills
Grab full resolution, de-fielded still images from Program output, and freely choose to add grabs to Publish queue, Media Player presets, and Buffer destinations. | Your turnkey broadcast graphics system.
Fusion 2 combines processing power with Titler Live Broadcast for an affordable, end-to-end graphics solution.
Press power and go.
Fusion 2 delivers your on-air graphics combining hardware and software in one dynamic device. Power your broadcast with a sophisticated combination of ultra portable hardware and Titler Live Broadcast software designed for broadcasters and a variety of enterprise markets. Go from unbox to broadcast in the same day.
Get up and running in three easy steps.
Experience end-to-end graphics in a short-depth 1U rackmount chassis running Windows 10.
Design.
Create graphics using the Title Designer. Import your After Effects projects, Photoshop files, or choose from our prebuilt templates.
Connect.
Integrate multiple input and output sources for ultimate control. Fusion 2's flexibility makes each live setup work for you.
Go live.
With minimal prep work and just a few clicks, press power and go live. Let Fusion 2 and Titler Live Broadcast do the rest for you.
Fusion 2 features Titler Live 4 Broadcast.
Now you can deliver unlimited layers of live animated graphics for all your broadcasting needs with Titler Live 4 Broadcast—directly in Fusion 2. Titler Live 4 Broadcast allows you to integrate your data in real-time and create high quality graphics on-the-fly.
Amp up your production value with a proven powerhouse.
Whether you want full customization or turnkey graphics on the fly, Titler Live 4 Broadcast ($2,999 value) brings high production value to your broadcast in minutes. We've loaded it with everything you need to look good, fast.
Customize hundreds of designs with the Title Designer.
With Fusion 2 preloaded with Titler Live 4 Broadcast, you can create custom motion graphics easily using its built-in Title Designer. Titler Live 4 Broadcast comes loaded with a full motion editor, hundreds of built-in templates, and can even import your existing graphics and Adobe assets. You can quickly grow your library of designs with our ever-expanding collection of Title Design Template collections.
Display your spreadsheet data in real-time.
Import your data from Excel spreadsheets and tables, XML files, CSV files, text files, and more. Using Titler Live 4 Broadcast, you can host all your data in a single file, display data rich infographics such as leaderboards and create instant lower thirds.
Access social media controllers and custom social templates.
Engage your audience with live comments, tweets, and Facebook reaction polling and queue them all in a custom social playlist. Remotely bring in comments curated from any machine in your local network. Titler Live 4 Broadcast also includes custom-designed social media graphics for a professional look in minutes.
Incorporate scoreboards and statistics.
Drive scoreboard data with realtime reading of JSON and XML files. Bring in scoreboard data from Daktronics, Stat Crew, or Sportzcast. You can also control your scoreboard directly from Titler Live's interface.
Simplify updates and changes in an instant.
Titler Live 4 Broadcast simplifies the traditionally labor-intensive process of creating motion graphics. Now, you can make last minute design or spelling changes, major or minor, with a few keystrokes. Ditch long rendering times and locked up content. With Titler Live 4 Broadcast, you can edit faster with extreme flexibility.
Fusion 2 Extreme
Get the top-of-the-line extreme version of Fusion with priority support and an additional 20 hours of professional service blocks.
- Everything included in Fusion 2 SDI.
- 20 hours of professional services including technical, creative or workflow consultation and engineering.
- Two year manufacturer's warranty.
- Blackmagic DeckLink 8K Pro for high resolution 8K workflows.
- Faster processor (AMD Ryzen 5 PRO 4650G 3.7 GHz).
- More memory (32 GB RAM).
Big or small—every studio needs Fusion 2.
Works in your existing broadcast architecture.
Seamlessly connect to your current broadcast ecosystem with a short-depth, 1U rackmount chassis perfect for shelf mounting in tight spaces such as broadcast trucks, mobile racks and fly away kits.
Drives your graphics with versatility.
Bring your production up to speed into the digital era with the multiple channels and bandwidth you'll need.
Includes onboarding with tailored training & support.
Experience full technical support, custom product onboarding and training to power up and go live.
Control
- Real-time playout
- Live animated updates per layer
- Automated sequencing & looping
- Spreadsheet and crawl autoplay mode
- Hotkey functionality
- Data search & select tool
- TriCaster macro control
- Remote operation on your network
- Network tally support
Outputs
- 16 channels of 4K-NDI
- Dual-channel HD-SDI key/fill (Blackmagic and AJA)
- Unlimited graphics per channel
- Unlimited graphics per playlist
- PNG sequence support
- HDMI
- OBS
- Watch Folder
- NewTek Airsend
- Normal-map-textured materials
- Depth-of-field control
- Blending modes
- Additive blend mode
- Object locking
Inputs
- Excel spreadsheets
- Spreadsheet table support
- XML files
- Stat Crew statistics - football
- Stat Crew® scoreboards
- Daktronics® scoreboards
- Sportzcast scoreboards
- Facebook Live comments
- Facebook Live comment polling
- Facebook Live reaction polling
- Twitter tweets
- YouTube Live chats
- GameWisp
- Stream Labels
- Streamlabs
- Tiltify
- Twitch
- Text files
- RSS feeds
- CSV spreadsheets
Design
- 3D animated graphics
- Animations, effects & transitions
- Native 4K resolution (NDI & SDI only) (Native 8K resolution for Extreme only)
- Adobe® After Effects® import
- Adobe® Photoshop® import
- Title Designer interface
- Sports & scoreboard packages
- Social media & polling packages
- Tables
- Lower thirds
- Crawls
- Main titles
- Motion bugs
Operating System
- Microsoft Windows 10 Pro 64-bit
Graphics Software
Hardware
- Processor - 6-Core AMD Ryzen™ 5
- Memory - 32GB DDR4 3200 MHz RAM
- Graphics - AMD Radeon™ 1900MHz, 7 graphics cores
- Storage - 500GB M.2NVMe SSD
- Video I/O - 2 4K-SDI Key/Fill Pairs
- Blackmagic DeckLink 8K Pro
Front Ports
Rear Ports
- 5 SDI Connectors - 4 video, 1 genlock (supports 2 key & fill pairs)
- 1 RJ-45 Network
- 4 USB 3.2 Gen 1
- 2 USB 2.0
- 2 HDMI
- 1 Display Port
- 3 Audio Jacks (Line In, Line Out, Mic In)
- 2 SMA WiFi Antenna Connectors
- BIOS flash button
- Power Supply - 300Watt max
Dimensions
- 1.75″ H x 16.77″ W x 10.5″ D
(1U rack height)
| This introductory Premium Bundle includes everything you need to get started live streaming: LiveU Solo Video Encoder with one year LRT™ virtual cloud server. First year warranty and 2-Hour LiveU Internal battery included.
Cellular modems must be purchased separately. For use with virtual server only (no LiveU Central). No Data Bridge functionality.
LIVEU SOLO UNIT
LiveU Solo offers the best-in-class ‘plug and play’ live streaming bonding solution, bringing LiveU’s broadcasting expertise to the online media market
RELIABLE TRANSPORT
This robust and high-quality encoder is based on LiveU’s field-proven bonding technology, 10 industry patents, and integral LRT™ (LiveU Reliable Transport) protocol. Optimized for video performance, Solo delivers the rock-solid video streams LiveU is known for by using LRT’s integral adaptive bit rate and forward error correction technology.
FULLY INTEGRATED SOLUTION
Designed to fit seamlessly with web streaming workflows, LiveU Solo connects automatically to Facebook, Wowza Streaming Cloud, as well as other popular CDNs, OVPs and YouTube Live. Solo can be managed and controlled remotely via a web interface or smartphone.
On the transmission side, and as part of the overall streaming solution, this small, easy-to-use encoder includes full bonding capabilities.
LRT™ CLOUD SERVICE
LiveU’s unique Reliable Transport protocol (LRT™) is at the heart of LiveU products to deliver optimized video performance. LRT enables reliable, low delay live video streaming over non-guaranteed IP networks and ensures reliable transport over the most unreliable of networks, including cellular networks - allowing you to acquire exciting live content in even the most remote locations.
-
- PACKET ORDERING
LRT uses numbered packets so that the packets can be re-ordered when they arrive out of order. Packet Ordering is an absolute requirement with connection bonding, where data usually arrives in a different order than intended.
-
- DYNAMIC FORWARD ERROR CORRECTION
Forward Error Correction (FEC) adds some overhead to the stream to recover lost data faster. LRT automatically varies the FEC parameters based on monitored network conditions.
-
- ACKNOWLEDGE AND RESEND
LRT can acknowledge large groups of packets if they all arrived. If some did not arrive, it can inform the streaming engine to resend needed data. By acknowledging large groups of packets at a time, LRT uses less overhead and latency. Unlike UDP, LRT gives complete feedback loop so the user knows that the data is arriving correctly.
- ADAPTIVE BIT RATE ENCODING
As the bandwidth condition changes, LRT automatically recognizes this and informs the video encoder to allow it to adapt the bit rate of video it is delivering and keep the best possible stream within the available bandwidth at any given moment.
| NEXIS | PRO 40TB Shared Storage System with Dell N2024 Network Switch
Get proven, real-time collaboration—for everyone
Get the performance and reliability of Avid NEXIS in a more affordable system designed for small video or audio production teams. Avid NEXIS | PRO offers real-time collaboration to accelerate your media workflow. Find and share media fast. Adapt workspace capacity, performance, and protection as requirements change. And get the same secure and reliable workflows trusted by an industry.
The new 40TB version of Avid NEXIS | PRO accommodates larger projects. Each Avid NEXIS | PRO 40TB delivers 40TB capacity and the ability to have single or dual disk media protection and up to 600MB/sec of throughput for collaborative editing of video and audio workflows.
-
- Up to 2.4GB/sec performance
-
- Can be added to existing Avid NEXIS | PRO systems
Product Highlights
Enable creative collaboration
With the increasing demand for more content in shorter timeframes, Avid NEXIS | PRO enables you to connect your team, share media and sequences, and work together on the same projects in real time. Without fear of accidentally overwriting someone else’s work. Gain more time to spend focusing on telling a great story—and less time searching for and shuttling media. And put the “flow” back in your workflow with the ability to connect up to 24 contributors simultaneously.
Experience exceptional performance
Production schedules are unpredictable. Can one system really change the possibilities of what you can achieve? Absolutely. With its advanced architecture, intelligent file system, high bandwidth, and automation abilities, Avid NEXIS | PRO delivers unrivaled media performance with up to 2.4 GB/s of bandwidth speed, enabling projects to move in parallel, so you can turn around more projects faster. No matter what editing and media asset management tools you use.
Get the reliability you need
When your reputation and business are on the line, Avid NEXIS | PRO protects and secures your media like no other. The system is built on the same technology trusted by thousands of top broadcasters and post-production studios. From its bulletproof security privileges, to fail-safe disk protection with automatic drive rebuild, you can rest assured that your content is safe. And should you need it, tech experts are available around the clock to help.
Dell N2024 Switch
Non-blocking GbE Layer 3 Standard switches with multi-chassis link aggregation (MLAG) support and 12-unit stacking.
-
- 24 RJ45 10/100/1000Mb auto-sensing ports
-
- Two integrated 10GbE SFP+ ports
-
- Two dedicated rear stacking ports
- One integrated power supply (100W AC)
| Media Drives |
| Width |
Width (mounting): 19 in (483 mm); IEC rack compliant |
| Works with the following switches (not included): |
NETGEAR XS712T |
| System |
64-bit self-balancing, distributed file system |
| Workspace |
Dynamic workspace set-up and monitoring |
| FlexDrive dynamically adjusts storage workspaces without editing interruption |
| User workspace access controls |
| Temperature |
Operating temperature: 5°C to 40°C (35ºC max. above 2,000m) |
| Non-operating temperature: -40°C to 60°C |
| Power Consumption |
Maximum power consumption: 764W |
| Files/Folders |
3 million |
| Subscriptions |
Available through a monthly or annual subscription to Avid Support |
|
Reviews
There are no reviews yet.
