| Content | Step Up Your Livestreams
Ditch the webcam and step up your livestreams with the Roland V-02HD MK II Streaming Video Mixer. Compact, affordable, and simple to use, this desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.
Simply Simple

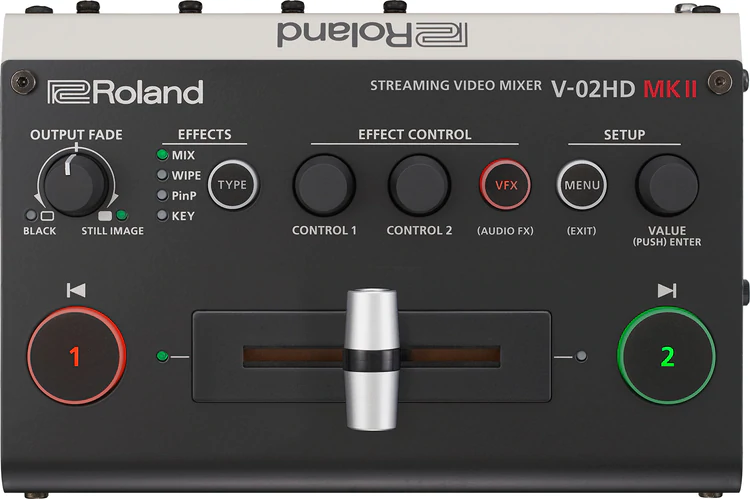

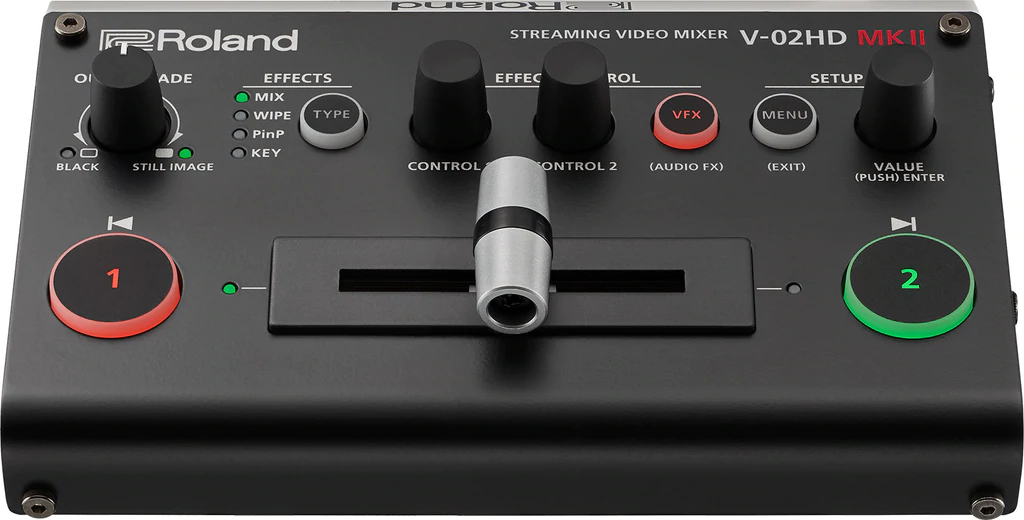

The V-02HD MK II is the world’s easiest two-camera livestreaming solution. With its intuitive layout, large controls, and T-bar fader, it’s incredibly simple to operate, even if you have no broadcasting experience.
Go live in three quick steps:
- Plug in up to two sources via HDMI, including cameras, computers, mobile devices, and gaming consoles.
- Connect the USB-C output to your computer.
- Launch your streaming software and select the V-02HD MK II as the camera source.
Stream with Every Platform
The V-02HD MK II connects to the streaming computer you already own and the audience you already have. It’s instantly recognized as a camera source when you plug in via USB, so it’s ready to go for Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, Streamlabs OBS, StreamYard, and Restream for more advanced workflows. High-quality streaming up to 1080p/60 FPS is supported, and it’s possible to send two additional feeds to external HDMI devices via the Program Out and Preview Out if needed.
A Stress-Free Setup
When you use the V-02HD MK II, everything just works. Plug in your two HDMI sources and let Roland’s advanced tech handle all the details, and say goodbye to computer driver conflicts, crashes, and other reliability issues that come with multiple USB webcams and HDMI-to-USB encoder adaptors.
HDMI Cameras for the Win
From talk shows and live demonstrations to artistic performances and beyond, cameras that support HDMI output will elevate the image quality in your streams and drive more audience engagement. They have much better lenses than any webcam and often have zoom capability to frame your perfect shot. You can connect a variety of different camera types to the V-02HD MK II. Whichever solution you choose, make sure it supports a clean HDMI output that’s free of any overlayed information.
- Good—A smartphone or tablet with an HDMI adaptor offers a good option that’s compact and easy to set up anywhere.
- Better—A point-and-shoot camera, action camera, or video camcorder with features like zoom and deeper exposure and focus control will take things even further.
- Best—A DSLR or mirrorless camera is the ultimate solution, offering the best image quality for a cinematic look, interchangeable lenses, and improved performance in low-light conditions.
Upgrade Your Sound Too
The V-02HD MK II also includes a 10-channel digital audio mixer with Roland’s legendary sound quality. There are two audio inputs with 3.5 mm jacks, and each supports a microphone—including lavalier mics that require plug-in power—or stereo audio from a smartphone, mixer, or other device. Embedded stereo audio from your HDMI sources can be mixed in as well, including microphones connected to your cameras.
Switch with Your Feet
If you give demonstrations or perform in your livestreams, your hands are busy with that task. The V-02HD MK II supports control with up to two optional BOSS footswitches, allowing you to direct your stream without interrupting your presentation. Stomp on a footswitch to switch camera angles, cut to a static image, transition scene layouts, fade picture-in-picture windows, and more.
Go Deeper with Advanced Pro A/V Features
Out of the box, the V-02HD MK II gives you the dedicated controls you need to switch cameras and adjust video and audio sources when you go live. But if you want to dive deeper, there’s a world of advanced features and custom assignments to explore. Connecting an HDMI monitor to the Preview Out provides a display for adjusting a vast range of functions from the V-02HD MK II panel. And with our remote control apps for iPad, macOS, and Windows,* you can operate the V-02HD MK II via an intuitive graphical interface.
*Remote control software for macOS and Windows will be available in late 2021.
More Audio Control
Access full mixing functions for all audio sources, add studio polish with compressor, EQ, and reverb, and have fun with formant shifting and robot sounds with the unique voice changer effect. It’s also possible to independently delay the audio inputs and outputs—including the headphones output—if you have any synchronization issues with your cameras.
Visual Effects and Scenes
Adding video effects and creating scenes has become easier with software, but they put a big burden on your computer. The V-02HD MK II provides a dedicated hardware solution that lightens that load. Via the preview monitor and apps, you can set up picture-in-picture windows, create titles and lower thirds, composite scenes, and much more.
Footswitch Assignment
If you’ve added footswitches to your system, you can set custom functions for them in the preview monitor and remote apps.
Wireless Camera Expansion with the AeroCaster Switcher
The purchase of a V-02HD MK II provides free access to Roland’s AeroCaster Switcher for iPad, a powerful solution to cleanly expand your camera setup without the hassle of extra cables. With this unique app, you can wirelessly connect and switch up to five smartphone or tablet cameras, then output a combined program feed to the V-02HD MK II or another supported Roland switcher with HDMI input.
V-02HD MK II iPad Remote App
The dedicated V-02HD MK II Remote app turns an iPad into an efficient touch interface for the V-02HD MK II. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for seamless setup changes.
V-02HD MK II RCS for macOS and Windows
With the V-02HD MK II RCS application for macOS and Windows,* you can control nearly all V-02HD MK II functions remotely from your computer via USB. V-02HD MK II RCS can run at the same time as your streaming software, allowing you to direct the entire production from your computer screen.
*V-02HD MK II RCS will be available in late 2021.
VIDEO
Video Processing
4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors
INPUT 1--2: HDMI type A x 2
* HDCP Supported
* Multi-format Supported

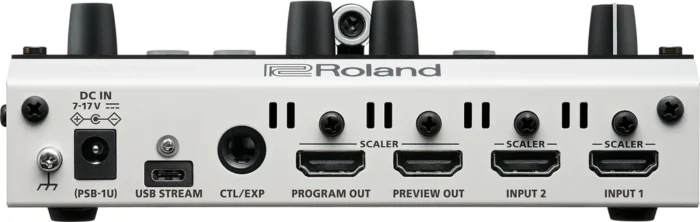

Output Connectors
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
* HDCP Supported
* Multi-format Supported
USB STREAM:USB Type-C (TM)
Input Formats
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Output Formats
PROGRAM OUT, PREVIEW OUT:
480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1
576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/29.97p, 720/29.97p, 640 x 480/29.97p *2
1080/50p, 720/50p, 640 x 480/50p *3
1080/25p, 720/25p､640 x 480/25p *4
*Uncompressed format (YUV2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 29.97 Hz
*3 FRAME RATE(USB OUT) = 50 Hz
*4 FRAME RATE(USB OUT) = 25 Hz
Video Effects
Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio formats
Linear PCM, 24 bits/48 kHz, 2ch

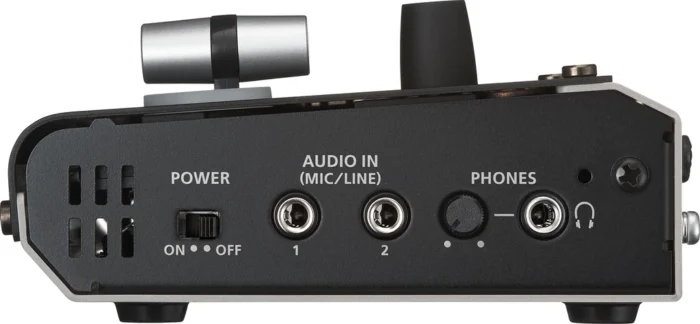

Input Connectors
Analog:
AUDIO IN 1--2: Stereo miniature type x 2
Digital:
USB STREAM: USB Type-C (™)
INPUT 1--2: HDMI Type A x 2
Output Connectors
Analog:
PHONES: Stereo miniature type
Digital:
USB STREAM: USB Type-C (TM)
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
Input Level
AUDIO IN: -10 dBu (Maximum: +10 dBu)
Input Impedance
AUDIO IN: 10 k ohms
Output Level
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
PHONES: 10 ohms
Audio Effects
Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone output
OTHERS
Other Connectors
USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
Other Functions
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Power Supply
AC Adaptor
Current Draw
1.4 A
Power Consumption
12.6 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
160 (W) x 108 (D) x 51 (H) mm
6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches
Weight (excluding AC adaptor)
0.6 kg
1 lbs 6 oz
Accessories
Startup Guide
AC adaptor
Power cord
Cord hook
Options (sold separately)
Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, BOSS FV-500L, FV-500H | The NewTek TriCaster Mini Advanced HD-4 is a compact, all-in-one multimedia solution that allows you to simultaneously broadcast, stream, and record live productions from virtually anywhere. The 16-channel switcher makes it easy to switch between four HDMI cameras, mix audio, add graphics and titles, and add advanced effects like virtual sets and animated transitions. Using the same intuitive and fully featured control software as the rest of the TriCaster professional line, the TriCaster Mini is suited for both new users and seasoned pros.
In addition to the four HDMI inputs, you can choose from two live sources from supported devices on the network, including computers, USB webcams, or even wireless Apple AirPlay devices. Two HDMI outputs are provided for sending the Program output with audio to external devices, with video-only HDMI and DVI outputs available for monitoring. In order to view the user interface and multi-view output, HDMI and DVI outputs are provided.
The TriCaster Mini features an internal 750GB storage drive that provides up to 15 hours of HD video recording. You can also attach external USB 3.0 drives to record up to four simultaneous video input or output signals at full resolution. The TriCaster Mini supports HD live streaming with presets up to 720p available for RTMP and browser-based streaming applications. Additionally, you can save a web-ready streaming file for later upload to popular social media or video-on-demand sites.
A cable retention bracket comes included, which doubles as a handle for the TriCaster Mini. Also included are a keyboard and mouse, which provide cordless operation via wireless Bluetooth technology. You can also add the optional TriCaster Mini Control Panel for traditional tactile control with T-bar and illuminated buttons.
All-in-One Multimedia Studio
The TriCaster Mini makes it possible for anyone to start creating multimedia content, without the need for additional software or equipment. With just one system, you can switch between four cameras, mix audio, add graphics and titles, and add advanced effects like virtual sets and animated transitions. You can also network with computers and wireless devices for presentations and screen sharing, stream to the web, publish to social media sites, and record content for later viewing.
Compact, Travel-Ready Size
The compact size of the TriCaster Mini allows you to produce and stream content from virtually anywhere. It’s small enough to fit into a backpack for easy travel, and doesn’t require a studio full of gear to use.
16-Channel, 4-Camera Production
Connect and switch between up to 4 HDMI cameras and produce content in resolutions up to 1080p. Two overlay channels allows for mixing sources and creating multi-layer compositions.
Network Sources
Choose two live sources from any number of supported devices on the same network. Supported sources include: networked computers via included NewTek iVGA client application; wireless Apple AirPlay devices; TriCaster 8000, 860, 460, 410 or Mini; 3Play 4800, 440 or 425; USB video sources; video over IP sources; RTMP or RTSP streams; HTTP streaming video sources; and a variety of third-party partner solutions.
Robotic Camera Support
Access up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols, with native preset system and user interface control over camera orientation, zoom, focus and iris.
Multi-Channel Audio Mixer
The multi-channel audio mixer within the TriCaster software lets you manage camera audio, including internal and external audio sources, outputs, recorded audio, stream audio, and headphone output. It supports Master and Aux output mixes.
- Pan control, solo auditioning, seven-band equalizer and stereo compressor/limiter per input and output, with per-input audio delay control
- Multi-bus routing of audio source channels to any combination of outputs, with independent level control over channels 1/2 and 3/4 for quad sources
- Audio Follow Video system enabling audio to follow multiple video sources, with support for unlimited audio grouping combinations
- Digital audio inputs equipped with audio time-base synchronizes
- Supports companion iPad audio mixing app and Avid Artist Mix audio control surface
Recording
Recorded media can be stored to the 750GB internal drive, accommodating approximately up to 15 hours of HD video recording. Media can also be recorded to external storage drives connected via USB 3.0. With using external drives, you can take advantage of the TriCaster Mini’s integrated ISO recording feature capabilities to record up to four simultaneous video input or output signals at full resolution in QuickTime, MPEG-2, AVI, or H.264 file formats.
Built-in Wi-Fi
Built-in Wi-Fi enables wireless connection to local network for streaming, publishing, and networking.
Streaming
TriCaster Mini supports HD live streaming with presets up to 720p, supporting the most common streaming profiles and custom multi-bitrate streaming profiles (including RTMP streaming and browser-based streaming applications), and auto-save of Web-ready stream file for video on demand (VOD) upload.
Publishing
Upload video and images directly to social media sites such as YouTube, Facebook, and Twitter, export content to FTP servers, and copy files to attached or networked storage locations.
Monitoring
An external monitor is required for viewing the user interface and for multi-view display. The TriCaster Mini has HDMI and DVI outputs for hooking up an external display.
Multimedia
Five digital media players are provided for video, graphics, and sounds. You can also access up to 15 additional graphic sources instantly during live production with still and title buffers.
Mix Effects
The TriCaster Mini features four M/E buses, each with independent switcher and key layer, for advanced video mixing, compositing, effects, and virtual sets.
Mix mode: Enables secondary switcher operation for output, submix or recording, with Program/Preview workflow and transitions
Effects mode: Enables multi-layer compositing, effects generation and virtual set application, with per-source 3D DVE, scaling, cropping and keying
Transistions and Effects
The built-in effects engine lets you apply transitions, animation stores, and real-time 3D video warping. An Animation Store Creator is included for creating custom effects.
Virtual Sets
Over thirty HD live virtual sets are provided with multiple camera angles, shot presets, realistic virtual camera movements, and real-time reflections, plus support for custom holographic virtual sets.
Note: In order to modify the included virtual sets, the separately available Virtual Set Editor v2.5 software license is required.
Macros
Use macros to record your favorite go-to-settings, commands, or operation sequences, and then create custom one-step shortcuts to simplify or automate control. Support for standard MIDI protocol enables third party MIDI device control of TriCaster operations via macros.
Grab Stills
Grab full resolution, de-fielded still images from Program output, and freely choose to add grabs to Publish queue, Media Player presets, and Buffer destinations. | NewTek IP Series 4-Stripe Control Panel
Definitive control for the most demanding IP production ecosystems.
The pinnacle of control for large-scale interconnected production environments, the NewTek IP Series 4-Stripe Control Panel lets you command multi-source, multi-system, and multi-site productions with absolute confidence.
Surface ~ 42.4 x 21.26 x 6.13 in (107.7 x 54.0 x 15.6 cm)
Features
-
- Intuitive layout mapped to the NewTek IP Series Video Mix Engine user interface
-
- IP-based connectivity, with support for multi-engine control over the network
-
- Responsive, multi-bus operation with independently assignable control stripes
-
- Practical lighting, variable T-Bar illumination, and dynamic LCD label displays
-
- Precision controls for expert handling of real-time video operations
-
- Premium craftsmanship for optimal performance, ergonomics, and style
NewTek IP Series 4-Stripe Control Panel is also compatible with TriCaster TC1. | All-in-one Standard Definition video mixer with HDMI in/out, USB streaming out, and built-in multiviewer with touch control.
Accessible and quality video performance and web streaming - The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.
The Roland V-4EX advances the industry-standard Roland V-4 four channel video mixer by incorporating HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer, and audio embedding. These features are added to the strong primary feature set including built-in effects and unique user interface that has made the V-4 one of the besting selling video mixers of all time.
Features
- 3 Input (HDMI/Composite) + 1 Input (Up to 1080p HDMI/RGB/Component/Composite)
- PGM Output (Up to 1080p HDMI + RGB/Component + Composite) + PVW Output (PVW/Multiviewer)
- 480p/576p Progressive internal processing
- Built-in multiviewer with touch control
- Built-in frame synchronizers on all inputs
- Scalers on CH 4 and Output
- 259 Transitions 148 Effects
- HDCP compliant
- Audio Embedding
- Audio Mixer & Delay -up to 4 frames
- USB Streaming Out for webstreaming
The V-4EX provides a single unit solution for many applications.
Windows ( Checked on Windows 8 Pro )
| Software |
Compatibility |
Remark |
| Ustream Producer 5.0.1 |
Yes |
|
| Wirecast for YouTube 5.0.2 |
Yes |
|
| Wirecast 5.0.1 |
Yes |
|
Windows ( Checked on Windows 7 SP1 64bit )
| Software |
Compatibility |
Remark |
| Ustream Producer 5.0.1 |
Yes |
|
| Ustream Producer Pro 2.0.4 |
Yes |
|
| Ustream Producer 2.0.4 |
Yes |
|
| Wirecast for YouTube 5.0.2 |
Yes |
|
| Wirecast 5.0.1 |
Yes |
|
| Wirecast 4.2.3 |
Yes |
|
| Flash Media Live Encoder 3.2 |
Yes |
|
| Niconico Live Encoder |
Yes |
|
Mac ( Checked on OS X v10.9 / OS X v10.8 / Mac OS X v10.7 )
| Software |
Compatibility |
Remark |
| Ustream Producer 5.0.1 |
Yes |
|
| Ustream Producer Pro 2.0.4 |
Yes |
|
| Ustream Producer 2.0.4 |
Yes |
|
| Wirecast for YouTube 5.0.2 |
Yes |
|
| Wirecast 5.0.1 |
Yes |
|
| Wirecast 4.2.3 |
Yes |
|
| Flash Media Live Encoder 3.2 |
Yes |
|
Processing
- Video Processing
- 4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)
- Audio Processing
- Sampling Rate : 24 bits/48 kHz, 2 ch
Input Formats
- HDMI Video (INPUT 1 -- 3)
- 480/59.94p (when set to NTSC), 576/50p (when set to PAL)
- HDMI and Component Video (INPUT 4)
- 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC), 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)
- HDMI Audio (INPUT 1 -- 4)
- Linear PCM, 24 bits/48 kHz, 2 ch
- RGB (INPUT 4)
- 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blanking
- Composite Video (INPUT 1 -- 4)
- NTSC, PAL
- S-Video (INPUT 4)
- NTSC, PAL
Output Formats
- HDMI and RGB/Component Video (OUTPUT)
- 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
* The output format of HDMI and RGB/Component is always the same.
When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector.
When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
* The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)
V-4EX: 4-Channel Digital Video Mixer with Effects
All-in-one video mixer with HDMI in/out, USB streaming out, and built-in multiviewer with touch control.
The Roland V-4EX versatility and unique features make it suitable for many applications, including clubs, concerts, worship, events, meetings, trainings, weddings, education, and sporting events. The V-4EX?s sleek and compact design lends itself to portable applications as well as permanent installations when size and space are considerations.
In addition to a number of powerful video effects, the user interface incorporates dial controls for effects on each bus and master output dial. The innovative design incorporates a video switcher, audio embedding, preview monitor and streaming-ready USB output all in a single unit. Inputs one to three feature composite (BNC) or HDMI while input four accepts HDMI, RGB/Component or S-video. The output features scaled-up HDMI, RGB/component, or SD composite with an additional HDMI output for external preview monitor. The Roland V-4EX features a stereo RCA audio input allowing you to embed audio into the HDMI outputs and USB stream, which are especially useful for web streaming and recording applications. As a USB Video/Audio class device, web streaming is effortless by simply connecting to a computer running a live streaming service. You can also record the output using Roland?s free Video Capture for Windows software or by using Quicktime on a Mac.
Designed to be a live production switcher and web streaming device, the Roland V-4EX features audio embedding, built-in audio mixer with up to 4 frames delay to ?lipsync? your video source. It supports HDCP video allowing you to mix copyright protected material such as game consoles and Blu-ray content in your live production. HDMI inputs one to three accept video resolutions up to 480p/576p and HDMI input four accepts resolutions up to 1080p and RGB up to WUXGA (1920x1200). Although internal processing is SD-based, the output can be scaled up to 1080p or 1920x1200.
| NewTek IP Series 2-Stripe Control Panel
Consummate control for IP production environments.
The perfect blend of power and versatility, the NewTek IP Series 2-Stripe Control Panel is built to handle interconnected productions—and environments—of any scale.
Surface ~ 35.7 x 11.96 x 5.0 in (90.7 x 30.4 x 12.7 cm)
Features
-
- Intuitive layout mapped to the NewTek IP Series Video Mix Engine user interface
-
- IP-based connectivity, with support for multi-engine control over the network
-
- Responsive, multi-bus operation with independently assignable control stripes
-
- Practical lighting, variable T-Bar illumination, and dynamic LCD label displays
-
- Precision controls for expert handling of real-time video operations
-
- Premium craftsmanship for optimal performance, ergonomics, and style
NewTek IP Series 2-Stripe Control Panel is also compatible with TriCaster TC1.
| Pearl 2 Rackmount
Pearl 2 Rackmount, the all-in-one system for live video switching, streaming and recording in HD and with an option for 4K.
- 2U rackmount chassis
- Live video switching using the touch screen or web UI
- Stream audio + 12G-SDI, HD-SDI, SD-SDI, HDMI™
- Up to 6 1080p HD streams at 30 fps or 2 at 60 fps
- Visual layout editor for simple creation of custom multi-view layouts
Pearl-2 Rackmount is a powerful 2U live production video mixer that fits perfectly into your 19-inch AV rack whether it’s threaded or unthreaded. Create stunning live video programs by by combining, encoding, switching and recording up to six video sources and 2 audio sources. With Pearl-2 Rackmount you can share any kind of video, anytime, anywhere, effortlessly.
Simple to use with a web-based portal for initial configuration, you get a drag and drop interface to create completely customizable layouts for your live stream. You can choose to keep Pearl-2’s default encoding settings or customize them to meet your exact needs. Control the video recorder and video switcher capabilities via the touch screen or the tablet-friendly Epiphan Live interface.
Start streaming live today with Pearl-2 Rackmount!
About Pearl-2 4K Add-ons
Pearl-2 Rackmount is sold as a base model and uses add-ons to activate extra features. With the base model, all six video inputs accept a maximum of input resolution of 1920×1080 and you can create up to six 1080p Full HD video programs at 30 fps.
The 4K feature add-on gives you 4K encoding and streaming capabilities. With this add-on activated you can create a 4K program comprised of up to 2 4K inputs and 2 HD or IP camera inputs.
Add-on details:
|
HD INPUTS |
4K INPUTS |
OUTPUT PORTS |
HARDWARE SCALING |
| Pearl2 Base |
6 × HD |
– |
2 × HDMI |
– |
| Pearl2 with 4K feature |
4 × 4K + 2 × HD |
✓ |
2 × HDMI 4K |
4K to 1080p |
Pearl-2 feature add-ons can be purchased any time: either when you buy Pearl-2, or later. Once you purchase your add-on, Pearl-2 uses a one-time web activation to give you the new add-on functionality. |
Reviews
There are no reviews yet.
