| Content | So compact and portable, you can bring the V-1HD and use it anywhere!

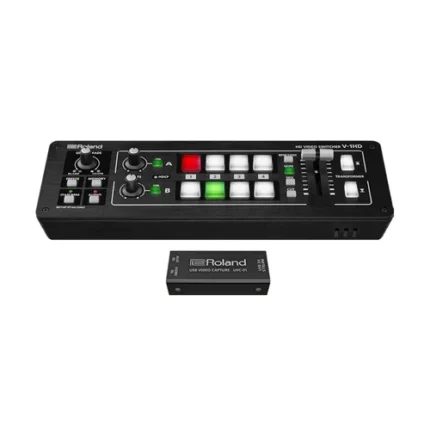

The V-1HD is a compact and portable four channel video switcher with both hardware and connected PC / iPad control that supports four HDMI inputs at resolutions of up to 1080p along with a 12 channel audio mixer with audio embedding and de-embedding from HDMI. The V-1HD supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” and is ideal for news broadcast or corporate training productions. For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances.
Features:
- Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy to Use Interface
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Full 12 Channel Audio Mixer Included
- Easy to Operate with Hardware Controls
- Two HDMI Outputs
- Remote Control via USB or MIDI Connection
Feature packed and easy to use for high-quality HD video results.
For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances. Output of your video mix is as simple as connecting the HDMI output to a projector or screen at an event and you can even connect a recorder for capturing your event or production.
4 HDMI Inputs
The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.
Professional Switching
The V-1HD has large back-lit buttons for intuitive video switching even in low light conditions. Red lit buttons indicate the current source being output and green lit buttons indicate the video that will be output on the next transition. The V-1HD even lets you know which inputs have sources connected by illuminating the buttons of the inputs with connected sources. The V-1HD features broadcast style Preview/Program switching for professional results. The TRANSFORMER buttons can be used for instantly switching the video or applying effects. Three transition selection buttons permit quick change of mixing style to match style changes in a performance or broadcast. Transition effects include CUT, MIX (4 types) and WIPE (30 types). The auto scan function switches the video automatically across the four video inputs. By using the T-Fader and BPM SYNC button, you can deliver visuals synced to a music performance. Use the FREEZE button to temporarily pause the incoming video. The output fade function makes the output video fade to black or white.
Effects
Compositing Effects. Compositing two videos in one screen using Picture in Picture or the split function is ideal for seminars and presentations. The V-1HD also supports chroma key and luminance key which ideal for creating professional looking broadcasts using green screen backgrounds or for overlaying computer generated titles on top of video sources. Many of the visual performance functions made popular by the V-4EX and V-8 are included. Use the knob A and knob B to apply and adjust effects to the A bus and B bus respectively. Nine types of filter effects including silhouette, colorpass, negative and findedge are possible. Effects can also be triggered using the TRANSFORMER buttons for even more interactive visual performance possibilities.
Audio Mixing
Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. *The maximum delay time is 500ms.
Menu and Settings
The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. Making adjustments to parameters and operating the audio mixer can be made by simple operation of the buttons and the T-Fader on the unit.
Preview Output
The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. There are three types of view modes available for the preview output which are Multi-view, Output (as a secondary program output) and Preview. The on-screen display can be turned on or off.
Remote Control via USB or MIDI Connection
Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac or an iPad connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. *For more information on the dedicated application, see the Roland website. * Please use the iPad camera connection kit to connect an iPad to the V-1HD.
Easy to Operate with Hardware Controls
Basic operations can be done by operating the buttons and the T-Fader on the unit. To make detailed settings you just need to connect a monitor to the preview connector.

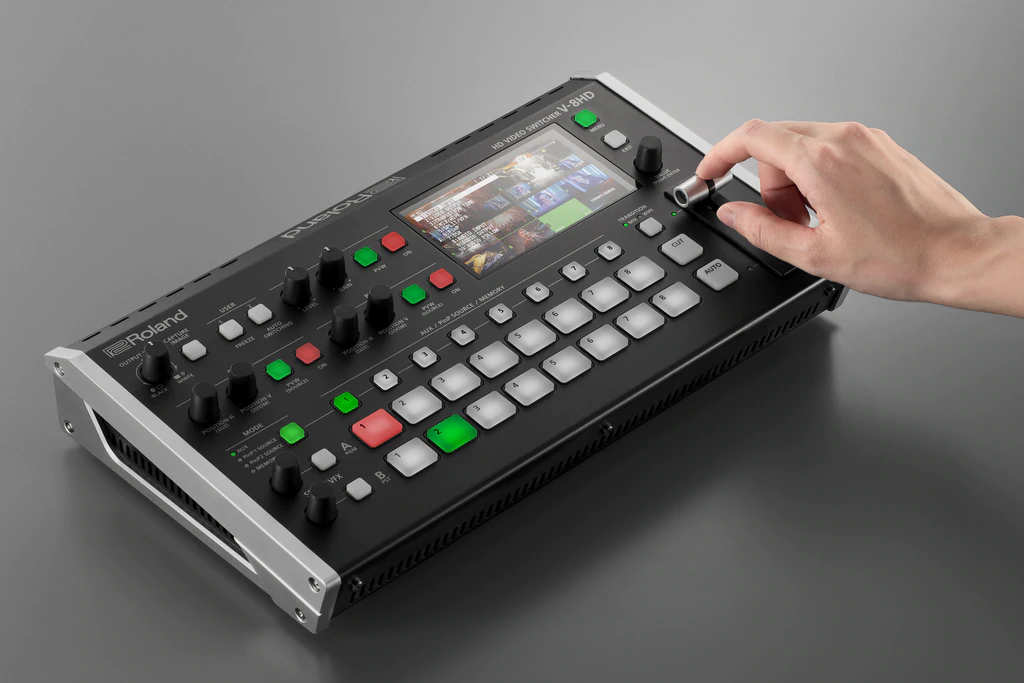

| Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMIworkflow and loaded professional toolset streamline production and reduce stress on the gig
- All HDMI workflow
- Five layer effects and keying engine
- Built-in multiviewer preview monitor
- Aux output for a different video feed
- Technology-assisted automatic video switching
- 18-channel digital audio mixer with effects
- Start & Stop Atomos recorders
- Free iPad remote control app available
- Ultra-mobile, lightweight, and efficient
- Aids in reducing capital expenditure
Maximum Connectivity
The V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. And with the built-in scalers on two of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
More HDMI Inputs and Outputs
With the V-8HD's eight HDMI inputs and three outputs, you're able to offer clients a vast amount of creative freedom, without increasing the budget.
Set Up Layers, Effects, and Keys
With the V-8HD's five composition layers, you'll always keep audiences engaged with visually appealing content.
Ultra-Mobile, Lightweight, and Efficient
Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when you have to deal with minimal setup space. And it only weighs around 4 lb, making it easy to carry in a backpack or luggage. With its smart feature set, eight HDMI inputs, built-in 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is a versatile and efficient HDMI switcher.
Seamless Memory Recall
With the V-8HD, storing and recalling unique looks requires only a few button presses. The eight memory presets and powerful composition effects engine work together to provide a completely seamless load between the different looks.
Separate Feeds for Separate Needs
The V-8HD has assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed. It's also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp.
Built-In Multiviewer Display
The V-8HD's bright, 4.3" multiviewer display means less gear to buy and haul to the gig. From a single screen, you can monitor all eight video inputs, PGM, and PVW plus menu overlay. Input windows show camcorder recording status and embedded audio levels. Connect a larger external TV for an immense multiviewer experience, or to make menu changes without moving the focus from the action.
Audio and Effects
The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing.
Automated Video Switching
Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. Beats per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified tempo.
Record Triggering and Confirmation
Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. And some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multiviewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.
V-8HD iPad Remote Control Utility
The dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for fast, efficient setup changes.
Hands-Free Switching and Control
Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands. Cut to a still image, transition PiP on/off the screen, or drop in a keyed lower-third title. It's also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and more.
Roland V-8HD: HD Video Switcher
-Video
-Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
-Input Connectors
INPUT 1--6: HDMI type A x 6
* HDCP Supported
INPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
-Output Connectors
OUTPUT 1--3: HDMI type A x 3
* HDCP Supported
-Input formats
INPUT 1--6
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
INPUT 7--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* PNG alpha channel not supported.
-Output formats
OUTPUT 1--2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz
OUTPUT 3:
1080/59.94p *1
1080/50p *2
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
- Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
-Audio
-Audio Processing
Sampling rate: 24 bits/48 kHz
-Audio formats
Linear PCM, 24 bits/48 kHz, 2ch
-Input Connectors
INPUT 1--8: HDMI Type A x 8
AUDIO IN: RCA phono type
-Output Connectors
OUTPUT 1--3: HDMI Type A x 3
AUDIO OUT: RCA phono type
PHONES: Stereo miniature type
-Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
-Input Impedance
AUDIO IN: 38 k ohms
-Output Level
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
-Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms
-Audio Effects
Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
-Other Connectors
USB MEMORY: USB A type (for USB flash drive)
REMOTE:USB B Type (for remote control from iPad)
CTL/EXP:1/4-inch TRS phone type
-Other Functions
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
-Display
4.3 inches TFT Color LCD: 480 x 272 dots
-Power Supply
AC Adaptor
-Current Draw
3.3 A
-Power Consumption
39.6 W
-Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
-Dimensions
317 (W) x 193 (D) x 70 (H) mm
12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches
-Weight (excluding AC adaptor)
2.0 kg
4 lbs 7 oz
-Accessories
Owner's Manual
AC adaptor
Power cord

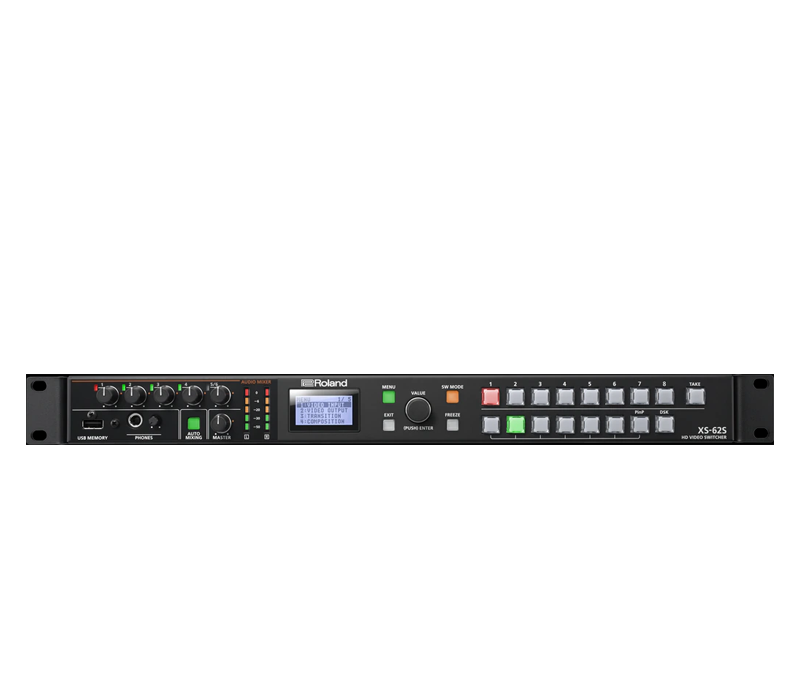

* 0 dBu = 0.775 Vrms | RACKMOUNT SWITCHER FOR LIVE PRODUCTION AND FIXED INSTALLATIONS WITH PTZ CAMERA CONTROL
The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events. This powerful, integrated solution supports a wide range of applications including presentation and performance and special event venues, corporate AV conferences, classrooms for e-learning and more. The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).
APPLICATIONS
Live Production Studio
Content creation is a challenge for many companies looking to more efficiently produce product presentations, town hall meetings, and trainings. The XS-62S makes it easy to create content with an all-in-one switching and audio mixing system that streamlines the production process.
The XS-62S is easy to use from either the front panel controls or remote control software from a PC or Mac. Programmable presets allow one-touch recall of preset camera positions and angles, and the audio auto mixer takes care of audio mixing in the background, so the operator can focus on switching video. The XS-62S is the perfect size for installation into small spaces and portable enough to be used in multiple areas of a corporate office or other facility.
Performance Venue / Church
XS-62S is the ideal solution for hotel meeting rooms and banquet halls, houses of worship and live performance venues. The XS-62S Matrix Mode makes it easy to send different content to 2 to 3 screen destinations, from a single switcher all while mixing program audio and controlling PTZ remote cameras.
PGM / PST Mode works as a traditional switcher complete with cross-dissolve switching and Aux bus delegation for sending different video to a secondary destination such as a presenter’s confidence monitor or additional presentation screens.
Performance venues will benefit greatly from the built-in auto mixing function. The auto-mixing function automatically balances incoming audio sources such as microphones from a discussion panel, making it easy for the operator. The XS-62S’s audio processing also includes advanced effects such as EQ, dynamics and delay for mixing of vocal speech along with music and other audio embedded in video sources. These effects will provide improved sound quality for streaming applications, recording and sound reinforcement.
Live Streaming and Video Conference
The XS-62S is also suitable for live streaming and web conferencing systems. In this type of application, you could be using multiple PTZ cameras and PCs. With the XS-62S this can easily be operated by a small team or even a single person. PTZ camera control eliminates the need for individual camera operators, since everything can be controlled from the XS-62S while video is being switched by the same operator. The XS-62S’s audio capabilities make it easy to connect 4 microphones, mixing audio from computers and other video sources.
*In order to do Live streaming with the XS-62S, will need to add an encoder device with an SDI or HDMI input, from a 3rd. party supplier. | The most complete production system available today, TriCaster TC1 represents the continued innovation of the iconic product that defined an industry. Designed with the way you work in mind and equipped with hundreds of advanced production capabilities, it has everything you need to do video your way today—and tomorrow.
Product Highlights
- Switching, streaming, recording in HD, 3G, and 4K UHD 60p
- Native software driven processing for maximum production power and flexibility
- Comprehensive camera coverage and compelling multi-source video mixing, including 16 external inputs and 4 M/Es
- Studio-grade Skype® video calling with multi-channel Skype TX software integration
- Integrated video servers allowing playback, replay, and live editing without any additional hardware
- Multi-channel ISO recording to full-resolution QuickTime® and H.264 files for VOD, post-production, and archive
- Dual-channel live streaming to Facebook Live, Microsoft® Azure®, Periscope, Twitch, YouTube™ Live, and more
- Real-time social media sharing to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube, and more
- Powerful production automation with custom macro commands, sophisticated full-motion compositing, and flexible control options
- Advanced audio mixing with multi-source configuration and control, professional DSPs, and 4 x 4 x 4 channel routing
- Premier creative capabilities, including multi-bus mix effects, animated titles and transitions, advanced chromakeying, spectacular live virtual sets, and more
Video Input
16 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input
16 x IP video inputs via NDI™, resolution-independent, with support for key and fill
SDI Video Input
4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25, 24, 23.976
- 576i 50
- 480i 59.94
PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration
Apple® AirPlay®
Native support for input of compatible iOS mobile devices via Apple AirPlay
Video Output
Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output
- IP video output via NDI, optionally configurable for:
- 4 x independent video mix outputs
- 1 x 4K UHD video mix output
SDI Video Output
- 4 x 3G/HD/SD-SDI connections, optionally configurable for:
- 4 x independent 3G/HD/SD video mix outputs
- 1 x 4K UHD video mix output via 3G-SDI quad-link grouping
Stream Output
2 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive
Multiviewer Output
- 3 x multiviewer outputs supporting standard display resolutions
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Mix/Effect Buses (M/E)
- 4 x M/E buses supporting video re-entry
- 1 x Mix/Effect channel per bus with support for up to 4 sources
- 4 x KEY layers per bus
- 9 x memory slots per bus
- 1 x PREVIZ configuration and preview bus
DSK Channels
4 x DSK channels
Media
- 5 x media players
- 2 x DDR
- 2 x GFX
- 1 x Sound
- 15 x media buffers
- 10 x animation buffers
- 5 x graphic buffers
- 30 x clip players (available for use as transitions or media depending on function)
Keyers
- Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
- 16 x input keyers
- 4 x media player keyers
- 4 x M/E keyers
- 1 x PREVIZ keyer
- 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
- Record, store, edit and automate commands and user-configured operation sequences
- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
- Supports control via web-based interface
Recording
- 6 x configurable video recording channels via IsoCorder™ technology
- 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)3
- 2 x H.264 distribution video recorders (multiple profiles)
- 1 x MP3 audio recorder
- 3 QuickTime Player not required for playback in common NLE applications
Storage
- 2 x 3TB internal drive
- Capacity varies by format, resolution and file specification
- Supports recording to external storage via USB 3.0 and eSATA
- Supports shared storage integration and third-party partner solutions
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer
Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio
- Native support for network audio input and output via NDI
- Embedded audio supported for all NDI input and output video signals
- Integrated support4 for Dante™ networking protocol from Audinate®
- Support for AES67 protocol via compatible WDM audio drivers5
- 4Requires Dante Virtual Soundcard license from Audinate (sold separately)
- 5Requires third-party virtual sound card license (sold separately)
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
Monitoring
Support for up to 3 multiviewer displays with configurable workspaces and viewports
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
A/V Standards
- 4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Tally
Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design® SDI tally standard
Genlock
Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI
Support for standard MIDI protocol enabling third-party device control
System Drive
120GB SSD
NIC
2 x 1 Gigabit NIC
System Physical
TriCaster TC1
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached

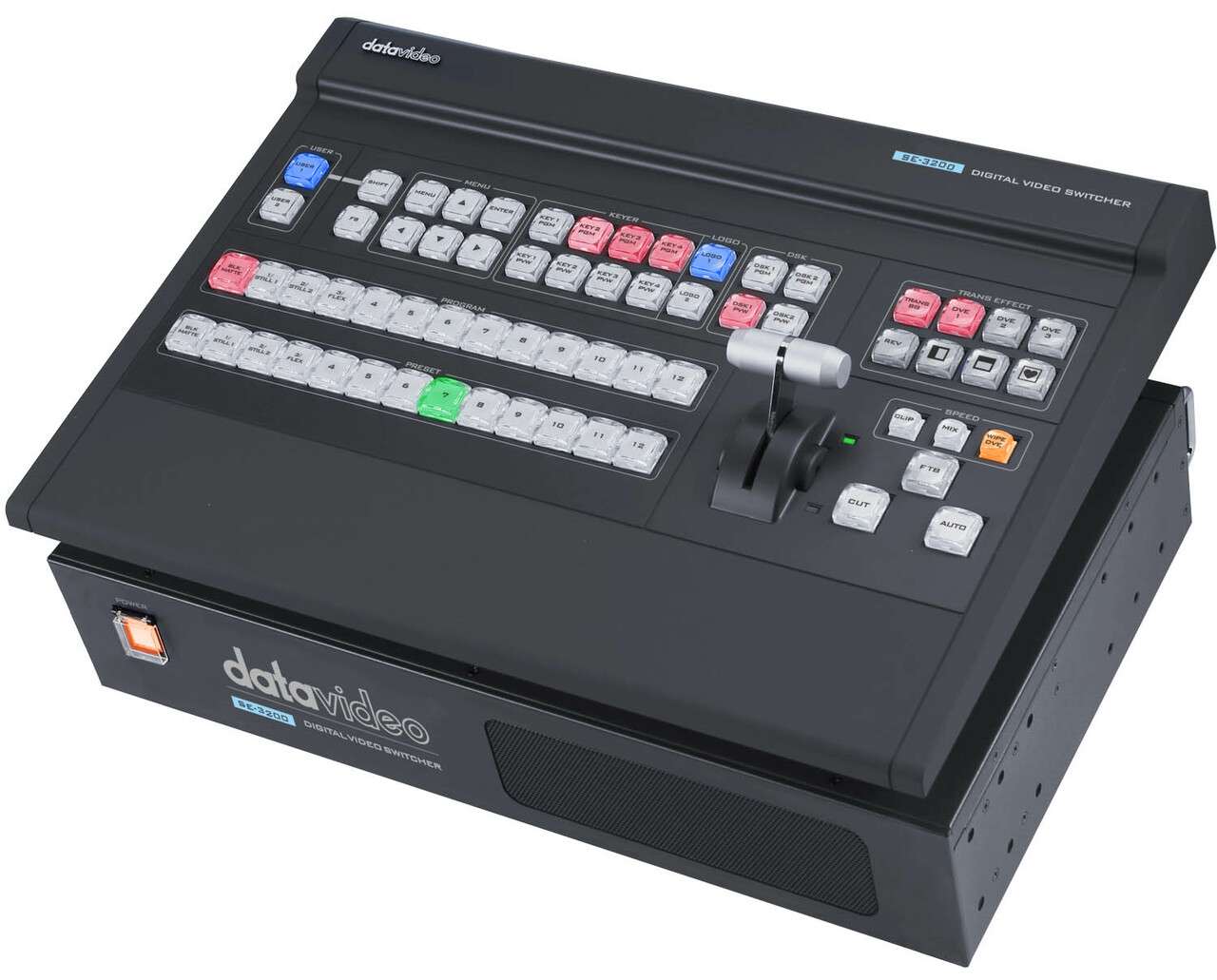

| The SE-3200 is equipped with 12 inputs and 9 outputs to aid you in producing a sophisticated and professional live event. The SE-3200 has a built-in input scaler, for up and down conversion on each available input. All 3200 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo's CG suites. With up to 4 channels of switchable chromakey, create a complete 4 channel virtual studio and enjoy the automatic chromakey functions. Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!
Datavideo SE-3200 Features
- Completely customizable 12 input full HD production switcher
- Supports full HD 1080P with scaling on each available input
- Create stunning video effects with advanced features
- Built-in stinger transitions and backgrounds
- Included CG Title Creator
- Custom multiview layout & dual multiview output
- Flex Source to go that extra mile
- 4 chromakeyers for a complete virtual studio experience
- Up to 8 picture-in-picture frames with unique 3D borders
- Crosspoint assignment for ultimate flexibility
- Perfect lip-sync audio

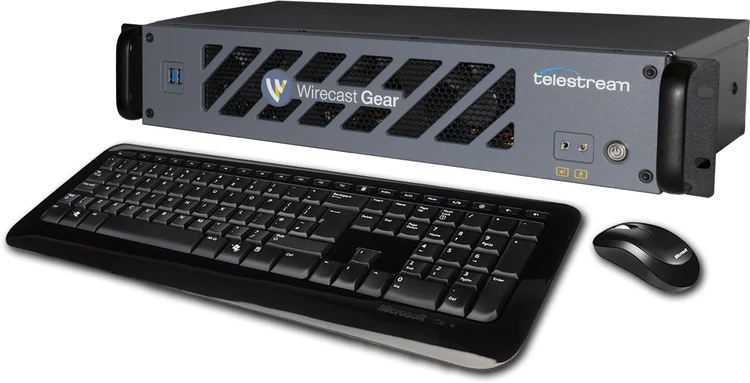

| Wirecast Gear 2-420 Live Video Streaming Production System
Wirecast Gear gives you an easy to use, fully configured live video streaming production system. Because we've already done all the work, there is no need to build your own system! Start streaming in minutes with an end-to-end system configured specifically for your needs. With Wirecast Pro included alongside Gear's custom-designed hardware, it's a live event production switcher, live news production system, Facebook Live switcher and YouTube Live switcher - all in one box.
Each model of Wirecast Gear comes with Xeon Server architecture, up to five HD-SDI or four HDMI professional camera inputs and all the live video streaming production features of Wirecast Pro, the Stock Media Library, NewBlue Titler Live Complete, and Switch Player, all in a compact, powerful hardware system.
Wirecast Gear offers a unique blend of performance, ease of use and affordability. Just plug in your cameras and start producing and streaming your professional events with the industry-leading turnkey video production system.
Features:
- Stream to Facebook, YouTube, Twitter or RTMP
- Facebook Live Social Media Comments
- NDI Input/Output
- Animated 3D Graphics and Titles
- Social media live comment creation (Facebook, YouTube, and Twitter)
- Live sports, data feed, custom clocks, scoreboards, templates
Specifications:
- Integrated Hardware Encoders: 4
- HDMI inputs: n/a
- HD-SDI inputs: 5
- Baseband SDI output: Yes
- Graphics Card: NVIDIA Quadro
- Chassis: (16.7 x 12 x 3.5") 2RU Chassis, with convertible configuration for standard 19" rackmount or set-top box with feet included
- Operating System: Microsoft Windows 10 Enterprise IoT LTSC 64-bit
- I/O Configuration: 5 SDI ports (Gear Capture + Blackmagic)
- Storage: (in addition to system drive)³ 1TB (20 hrs of HD video²)
- Live video streaming production software: Telestream Wirecast Pro
- Titling software for creating rich, animated title designs: NewBlue Titler Live Complete
- Media utility software to play, inspect and make corrections to video: Telestream Switch Player
Item Includes:
- Wirecast Gear 420
- Wireless Keyboard/Mouse combo
- Power cord
- Plastic bag
|
Reviews
There are no reviews yet.
