| Content | A refreshed interface for improved workflow with the versatile multi-format V-800HD video switcher. Newly added AUX bus delegation layer switches enhance both visibility and operability.
- Up to 16 inputs, 8 cross points (4 SDI/Composite + 4 DVI-I/HDMI)
- 6 outputs (2 SDI + 2 DVI + RGB + Composite) Simultaneous output
- Dedicated multi-view monitor output
- High quality 4:4:4/10 bit processing
- 1080p/i, WUXGA processing
- 1 M/E (KEY, PinP) + AUX or DSK
- Frame Sync & Scaler on all inputs and outputs
- 3G, HD, SD 3-mode SDI (3G-SDI Level A/B compatible)
- DVI-D/RGB/HDMI compatible
- Input signal status confirmation LEDs
- HDCP Compatible
- Two active still images from sixteen still memories
- Ten assignable cross points
- AUX bus switch
LIVE EVENT PRODUCTION
Supporting live events requires being ready for an ever-changing variety of input sources. The V-800HD MK II is equipped with scaling for every input and a wide range of common video connectors allowing camera, data and smart device sources of different resolutions and frame rates to be automatically detected, scaled and then adjusted as needed. Fine position adjustment for each input can be set in real-time using the joystick positioner control or from the menu displayed on the multi-viewer.
LECTURES, MEETINGS AND PRESENTATIONS
The V-800HD MK II’s 4:4:4/10 bit processing ensures pixel accurate color making it the ideal switcher for large screens over 300 inches and ensures the crisp detail of hi-resolution data sources are sharply output to today’s low dot pitch LED displays.
The new AUX bus selection layer makes it easier than ever to send a source to a second output destination such as a confidence monitor, presenter notes display, second display or overflow rooms.
HALL, THEATER, CHURCH
The V-800HD MK II is also a powerful solution for installation in facilities that have both professional and in-experienced operators. Complex settings can be recalled with a one-touch memory recall and a straight forward interface makes it easy to step-up and operate without training. Two still images are assignable to the cross points from a choice of 16 internal stored images. This is useful for displaying corporate or institution logos and safety slides. The V-800HD MK II also makes it easy to create up to 3 “angles” from a single camera source with the high-resolution scaling of the multi-zoom function.
LIVE STREAMING PRODUCTION
WEBCAST SWITCHING
Modern webcasts require a variety of camera and computer sources of a variety of formats. The V-800HDMKII simultaneously supports video resolutions of 1080i, 1080p, 720p, 480i/p and computer data resolutions of up to WUXGA allowing for high quality webcast requirements. The built-in PnP and Key Compositing features are ideal for creating informative training instruction and news webcasts.
STELLAR IMAGE QUALITY AT 1080P (3G-SDI)
Supports 1080p video signals at bit rates as high as 3 Gbps — twice the rate of conventional HD.
Asserts all the vividness of high-realism, high-detail camera and computer sources.
TRUE MULTI-FORMAT PERFORMANCE
There's no need to convert the input source to match the video output format. The built-in scalers up-convert and down-convert any video source to the optimal resolution.
FULL RANGE OF CONNECTIVITY
The V-800HD MK II supports a large number of input formats, from analog to digital, with all the necessary connectors. The SDI connectors accommodate 3G, HD, and SD. The DVI-I connectors pull full duty for DVI-D, DVI-A and even HDMI using a simple HDMI/DVI adapter. The Mini D-Sub 15 pin type connector accommodates SD/HD component as well as computer input via RGB.
EQUIPPED WITH AUX BUS SWITCH
Easily switch sources connected to the assignable AUX outputs with the dedicated AUX layer switches. This is ideal for selecting which source is sent to a confidence monitor or secondary destination.
A NEW DESIGN IDEAL FOR LIVE PERFORMANCES AND EVENTS
4:4:4/10-BIT INTERNAL PROCESSING
The V-800HD MK II uses 4:4:4/10-bit internal signal processing. This lets you achieve compositing and output with no reduction in high-detail RGB signals driven from a computer. The result is a sharp, unblurred display of video and text, even on large screens and LED displays. The V-800HD MK II delivers high image quality for all uses, from live broadcasts to event displays.
NEWLY DEVELOPED KEY-COMPOSITING ENGINE
Along with the upgraded internal signal processing, a newly developed keyer is included. Chroma Key lets you adjust phase range, amount of chroma, and other parameters based on HSV color space that is closely related to human chromatic sensation. This allows you to achieve high quality and tight chroma key compositing even when using 1080p video sources. What’s more, the V-800HD MK II can accept an External Key. This attractively composites colorful CG titles and gradation/transparency clips, enabling you to achieve visual effects that are even more impressive.
MULTIVIEWER OUTPUT FOR SOURCE MONITORING
The multiviewer output allows you to monitor the status of all input sources plus the Program and Preview outputs. The convenient HDMI connector enables the use of a readily available and affordable monitor.
* Use an HDMI monitor that supports HDCP and 60p signals.
* SDI and composite inputs are displayed at the original source frame rate.
DVI-I/HDMI and RGB/Component inputs are displayed using a reduced frame rate.
* Changing the channel cross-point assignments changes the order of displayed sources.
* Still images imported from USB memory are not displayed on the source monitor.
BUILT-IN HDCP MODE
When playing back a Blu-ray disc that contains commercial content or digital broadcast programming, the digital output is encoded using HDCP (High- bandwidth Digital Content Protection), which is one means of copyright protection. This means that switchers that are not HDCP-compatible will not display or pass-through such video content, even in cases where permission for use in a live event was obtained from the copyright holder. To resolve this problem, the V-800HD MK II features a dedicated mode that officially supports HDCP. A panel indicator lets you check the operating state when the unit is in the HDCP mode.
* In HDCP mode, no video signals are output from the analog or SDI connectors.
* The display or projector connected to a digital output must be HDCP-compatible as well.
Video Processing
Video
| Processing |
4:4:4 (Y/Pb/Pr, RGB) /10 bits |
| PC Formats |
640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation. |
| Still Image Format |
Windows Bitmap File (.bmp)
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed |
| Formats |
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* SDI and Composite input can input the same frame rate as a setup menu setting. |
Input/ Output Level and Impedance
| Composite |
1.0 Vp-p, 75 ohms |
| Analog HD/RGB |
0.7 Vp-p, 75 ohms (H, V : 5 VTTL) |
Input Connectors
| 3G/HD/SD-SDI |
BNC type x 4
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C |
| DVI-I/HDMI |
DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel |
| Analog Video (HD) |
Component (Mini D-sub 15-pin type) x 4
* Combined use with Analog RGB |
| Analog Video (SD) |
Composite (BNC type) x 4
* Select Composite or SDI using menu per channel |
| Analog RGB |
Mini D-sub 15-pin type x 4
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel |
Output Connectors
| 3G/HD/SD-SDI |
BNC type x 2
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C |
| DVI-I/HDMI |
DVI-I type x 2, HDMI x 1 (for multi-view monitor) |
| Analog Video (HD) |
Component (Mini D-sub 15-pin type) x 1
* Combined use with Analog RGB |
| Analog Video (SD) |
Composite (BNC type) x 1
* Combined use with Analog Video (HD)
* Does not synchronize with Reference Input. |
| Analog RGB |
Mini d-sub 15-pin type x 1
* Combined use with Analog Video (HD) |
Other Connectors
| Tally |
Mini D-sub 15-pin type x 2
* Input (max) : 12 V, 200 mA Open collector Type |
| Reference |
BNC type (IN, THRU)
* Black Burst (Sync to frames), Bi-Level, Tri-Level |
| MIDI |
5 pin DIN type (IN, OUT/THRU) |
| RS-232 |
D-sub 9 pin type x 1 |
| USB port (host) |
A type x 1 (for USB memory) |
Effects
| Transition |
Mix, Cut, Wipe (9 patterns) |
| Composition |
PinP, DSK, Chrominance Key, Luminance Key, External Key |
| Others |
Output Fade, Output Freeze |
Other
| Power Supply |
AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz) |
| Power Consumption |
75 W/0.7 A (115 V, 117 V)
75 W/0.4 A (220 V, 230 V, 240 V) |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Accessories |
Owner's Manual, Power cord, Rack-mount angle x 2 |
| The SE-2850-8 is a rack-mounted 8-input switcher. Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment. The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production. The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface. The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles.
Note: This listing is for the 8 Channel Switcher. The SE-2850 is also available with 12 Channels.
Datavideo SE-2850 Features
- 8 Input HD Video Switcher
- HD-SDI and HDMI Inputs
- Outputs include 2 HDMI multiview and configurable 3 HD-SDI
- Built-in TC-200 CG Title Creator for titles and graphics
- Perfect lip sync
- Assignable Crosspoints

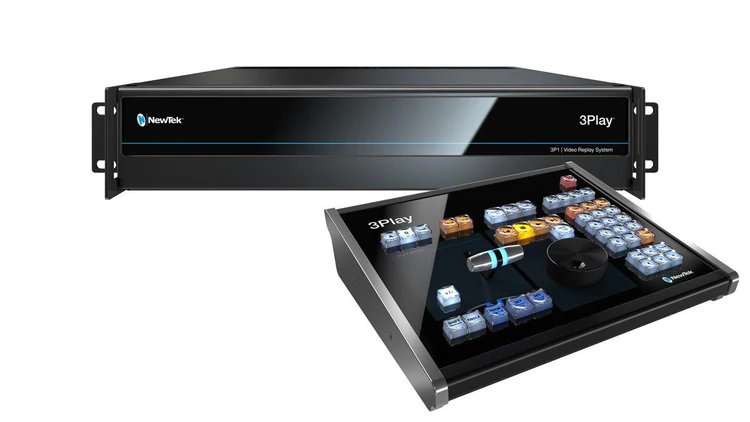

| The World's Most Complete Sports Production System
Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, NewTek 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration.
NewTek 3Play 3P1 integrates seamlessly with NewTek IP Series, TriCaster TC1, and NVG1 NewTek-Vizrt IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS.
For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.
Product Highlights:
Engineered for the most demanding broadcast and media environments, 3Play 3P1 provides a winning combination of innovative technology and seamless workflow integration to power forward-thinking fan experiences that span from stadiums to screens to smartphones.
- Fully integrated sports production in resolutions up to 1080p 60
- SDI, hybrid, and end-to-end IP connectivity to adapt to your game plan
- Native software-driven processing for maximum production power and flexibility
- Integrated NDI® Telestrator Pro for live telestration from any compatible connected device, with support for remote video transport control
- Comprehensive camera coverage and delivery with support for 4 simultaneous external inputs and 2 outputs
- Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
- Versatile audio connectivity and capture, with support for digital, analog, and network audio, plus 8 channels of audio recording per input
- Multi-purpose video server with full frame-rate, multi-angle preview windows • Real-time social media sharing to Facebook, Twitter, YouTube, and more
- Custom playlist building and highlights packaging for live insert, export, or VOD
- Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
- Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
- Enhanced creative capabilities, including real-time layering, motion graphics, animated transitions, and more
- Industry-standard 2RU system chassis with included hardware control panel
3Play 3P1 Control Panel Included
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.
NDI® Telestrator Pro
Enlighten and entertain audiences, enhancing play-by-play and analysis with live telestration— right from the first replay. With NDI® Telestrator Pro included with 3Play 3P1, you can annotate on screen and roll immediate replays over the network from any compatible networked device— with only a single Ethernet cable required.
NDI® Telestrator Pro supports telestration over either or both 3Play 3P1 output channels, offers a variety of professional paint tools, shapes, and customizable graphics, and includes responsive transport controls for remote playback. (External PC or touchscreen device with Microsoft® Windows 7 operating system (OS) or better required.)
System Specifications
Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input: 4 x resolution-independent IP video inputs via NDI®
SDI Video Input 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25, 24, 23.976
- 576i 50
- 480i 59.94
Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output: 2 x session-format IP video outputs via NDI®
SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
Multiviewer Output
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Recording: 4 x simultaneous recording channels
Recording Format: QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1QuickTime Player not required for playback in common NLE applications
Storage: 3 x 3TB internal drive (capacity varies by format, resolution and file specification)
Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK: 1 x DSK channel per output, with independent source selection and transition
Transitions: Supports custom transitions between output channels and playlist clips
Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio: Native support for network audio input and output via NDI®
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency: ~1.0-1.5 frames
A/V Standards
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI: Support for standard MIDI protocol enabling third-party device control
System Drive: 120GB SSD
NIC: 2 x 1 Gigabit NIC
System Physical 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
- ~26 lbs (~12 kg)
|
Unlock New Creative Possibilities
Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.
- All HDMI workflow
- Five-layer effects and keying engine
- Built-in multi-viewer preview monitor
- Aux output for a different video feed
- Technology-assisted automatic video switching
- 18-channel digital audio mixer with effects
- Start & Stop Atomos recorders
- Free iPad remote control app available
- Ultra-mobile, lightweight, and efficient
- Aids in reducing capital expenditure
Maximum Connectivity
Nearly all modern cameras and digital video devices use HDMI, the most common AV connector on the planet. The V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. And with the built-in scalers on two of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
The Power of More
Creative professionals need more video inputs for layered graphics and visual effects, and business professionals often need multiple backup video sources. Having the ability to meet all these needs brings satisfied clients and greater audience engagement. With the V-8HD’s generous number of HDMI inputs and outputs, you’re able to offer clients a vast amount of creative freedom—without increasing the budget.
Set Up Layers, Effects, and Keys
Video effects, layers, and graphics add polish and excitement to any production. With the V-8HD’s five composition layers, you’ll always keep audiences engaged with visually appealing content. Prepare the content according to client specifications and separate it into layers:
Layer 1 and 2: Start with one mixable live background video layer.
Layer 3 and 4: Place in two picture-in-picture layers or chroma/luminance key effects.
Layer 5: Add one downstream keyer layer.
Ultra-Mobile, Lightweight, and Efficient
The AV production table is the last thing on an event organizer’s mind. Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when you have to deal with minimal setup space. And it only weighs around 4 lb./2 kg, making it easy to carry in a backpack or luggage. With its smart feature set, eight HDMI inputs, built-in 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is the most versatile and efficient HDMI switcher available.
Seamless Memory Recall
With the V-8HD, storing and recalling unique looks requires only a few button presses. The 24 preset memories and powerful composition effects engine work together to provide a completely seamless load between the different looks, even synchronizing the transition of all effect's layers on and off the program output.
The Preset Memory page on the companion iPad remote control app displays a graphical preview of scenes, layers and sources for each preset memory helping you chose the correct scene before taking it to program.
Separate Feeds for Separate Needs
Presenter confidence monitors, live streams, and recording feeds often require different visual content from the main program output. The V-8HD has you covered, with assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed. It’s also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp.
Built-In Multi-Viewer Display
The V-8HD’s bright, 4.3-inch multi-viewer display means less gear to buy and haul to the gig. From a single screen, you can monitor all eight video inputs, PGM, and PVW plus menu overlay. Input windows show camcorder recording status and embedded audio levels. Connect a larger external TV for an immense multi-viewer experience, or to make menu changes without moving the focus from the action.
Audio and Effects
A crystal-clear sound mix is essential for professional presentations. That’s easy to achieve with the V-8HD, which allows pros and beginners alike to quickly create engaging mixes that sound great. The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing.
Automated Video Switching
The V-8HD makes your job easier with three technology assisted automatic switching modes. Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. Beats Per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified tempo.
Record Triggering and Confirmation
Many technical elements contribute to a successful recording. But forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. And some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multi-viewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.
V-8HD iPad Remote Control Utility
The dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to 24 custom scenes for fast, efficient setup changes.
Hands-Free Switching & Control
Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands. Cut to a still image, transition PIP on/off the screen, or drop in a keyed lower third title. It’s also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and much more.
VIDEOVideo Processing4:2:2 (Y/Pb/Pr), 8-bitInput ConnectorsINPUT 1--6: HDMI type A x 6
* HDCP SupportedINPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format SupportedOutput ConnectorsOUTPUT 1--3: HDMI type A x 3
* HDCP SupportedSupported Video Input FormatsINPUT 1-6
720/59.94p, 720/60p *1, *3
720/50p *1, *4
1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz or 60 Hz
*4 FRAME RATE = 50 HzINPUT 7-8
480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz or 60 Hz
*2 FRAME RATE = 50 HzStill ImageBitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files to the internal memory.
* It can be exported to the USB memory.
* PNG alpha channel not supported.Supported Video Output FormatsOUTPUT 1-2:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *6
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *6
1080/59.94p *3, *4
1080/60p *3, *5
1080/50p *3, *6
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 50 Hz
OUTPUT 3:
1080/59.94p *1
1080/60p *2
1080/50p *3
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 50 HzVideo EffectsTransition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern outputAUDIOAudio ProcessingSampling rate: 24 bits/48 kHzAudio formatsLinear PCM, 24 bits/48 kHz, 2chAudio EffectsDelay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone outputCONNECTORSInput ConnectorsINPUT 1--8: HDMI Type A x 8
AUDIO IN: RCA phono typeOutput ConnectorsOUTPUT 1--3: HDMI Type A x 3
AUDIO OUT: RCA phono type
PHONES: Stereo miniature typeOther ConnectorsUSB MEMORY: USB A type (for USB flash drive)
REMOTE:USB B Type (for remote control from iPad)
CTL/EXP:1/4-inch TRS phone typeOther FunctionsPreset Memory (24 scenes)
Panel lock function
EDID Emulator
Auto Switching
Auto Input DetectAUDIO INPUT/OUTPUT CHARACTERISTICSInput LevelAUDIO IN: -10 dBu (Maximum: +8 dBu)Input ImpedanceAUDIO IN: 38 k ohmsOutput LevelAUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT: 1 k ohm
PHONES: 10 ohmsOTHERDisplay4.3 inches TFT Color LCD: 480 x 272 dotsPower SupplyAC AdaptorCurrent Draw3.3 APower Consumption39.6 WDimensions317 (W) x 193 (D) x 70 (H) mm
12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inchesWeight2.0 kg
4 lbs 7 oz
* Excluding AC adaptor.Operation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitAccessoriesOwner's Manual
AC adaptor
Power cord
| The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.
Experience the plus advantage—upgrade your productions with the V-1HD+ today!
Professional HD switching solution for live events, livestreaming, or both at once. Standalone video switcher and 14-channel audio mixer for single operators. Compact and portable for fast set up. Familiar interface that’s quick to learn and easy to use. Technology-assisted automatic video switching. Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts. Pro audio I/O with legendary Roland sound quality. Eight memory presets to recall visual layouts on cue
Features:
- Professional HD switching solution for live events, livestreaming, or both at once
- Compact and portable for fast set up
- Technology-assisted automatic video switching
- Pro audio I/O with legendary Roland sound quality
- Standalone video switcher and 14-channel audio mixer for single operators
- Familiar interface that's quick to learn and easy to use
- Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
- Eight memory presets to recall visual layouts on cue
Say Goodbye to Workflow Workarounds
While many video switchers promise easy workflows, they often require workarounds for optimum results. Too often, those workarounds force you into technical compromises and purchasing extra gear. With its feature-rich design, the V-1HD+ provides the key tools you need to get the job done right.
A Legacy of Success
Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. The V-1HD+ extends this legacy with a deeper feature set for advanced applications—while still maintaining the simple operation, pro performance, and rugged reliability that’s made the V-1HD a favorite of users around the world.
No-Compromise Video I/O
Video professionals shouldn't be forced into making technical compromises. With its full-featured video I/O, the V-1HD+ is inspired by your need to do more.
Four Video Inputs and Onboard Scaling
Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won’t display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.
Two Video Outputs
Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an “up-next” input preview display or expanded multiviewer with 10 windows.
Pro Operation Made Easy
Your passion for a simplified interface led our designers to add quick-action buttons for the most commonly used operations. With one-touch access to the system menu, downstream key on/off, transition type, picture-in-picture, effects on/off, and more, V-1HD+ production workflow is smooth and hassle-free.
The V-1HD+ also includes PGM and PST busses and a transition/fade bar, which are the most-recognized video switching controls in the industry—and the quickest for beginners and volunteers to learn. And with tactile audio volume knobs, signal/peak lights, and unity gain markers, it’s simple and intuitive to adjust sound levels on the fly.
14-Channel Audio Mixing with Effects
The V-1HD+ allows a single operator to do more than switch cameras—they can mix professional sound too. The integrated 14-channel digital audio mixer blends HDMI audio with mic and line sources, and also offers a variety of onboard effects to sweeten mixes.
Audio Inputs
With two XLR mic inputs and selectable phantom power, the V-1HD+ lets you bring pro-grade microphones into your productions, including condenser broadcast mics. There’s also an 1/8-inch input for a lavalier mic or stereo audio source like a smartphone, plus another stereo input on RCA jacks. Embedded stereo audio from the four HDMI inputs can be included in your mix as well.
Audio Outputs
With the V-1HD+, there’s no need for a dedicated small audio console. Distribute analog sound to a PA system via two balanced ¼-inch TRS outputs, and use embedded digital audio in the HDMI outputs to feed recorders and livestream broadcasts.
Audio Effects
Leave the outboard gear in the recording studio—each audio input on the V-1HD+ has its own three-band equalizer, high-pass filter, compressor, and noise gate, plus a sync delay to align audio with video if needed. The XLR and 1/8-inch inputs also include de-essers to clean up vocal sounds in real time. And with the limiter, three-band equalizer and compressor on the main outputs, you can deliver broadcast-quality sound every time.
Production-Critical Signal Monitoring
Without proper signal monitoring, you’re running blind. The V-1HD+ incorporates several real-time monitoring tools that make it easy to keep your productions looking and sounding their best.
Multiviewer Display
A 10-window multiviewer display can be applied to one or both HDMI outputs, helping you manage productions in real time. Cue up camera shots, preview presentations, and choose stored still images before taking them live to the program feed. Camcorder recording status can be monitored as well.
Audio Monitoring
Even if your video looks perfect, poor sound will ruin the entire production. With the V-1HD+, you can always keep track of your audio quality. Each analog input has its own signal/peak indicator, and headphones can be plugged in to monitor the overall audio feed. When using the multiviewer display, signal level meters are shown for all inputs and the main outputs.
Effects, Keying, and Stills
The powerful effects engine in the V-1HD+ keeps audiences engaged with visually appealing content while opening new revenue streams for customer graphics creation.
Four-Layer Effects Engine
Savvy visual storytellers understand the power of layered graphics and visual effects. With four composition layers at your command, it’s simple to add lower-third titles, logos, social media comments, and more to inform your audience and keep them involved.
Keying
The DSK (downstream keyer) layer lets you independently composite a picture-in-picture (PinP) window on a video feed, which is especially useful for live and online hybrid events. For example, when displaying onscreen graphics for a live presentation, you can also overlay a camera shot of the stage speaker that’s only viewable by the online audience.
Still Images
When using the V-1HD+, you’ll never have to leave your audience with a blank screen when the presentation stops, the meeting goes on break, or the camera power goes down. Simply call up one of four still images you’ve stored in the V-1HD+, or capture stills from a connected input source. And with the versatile effects engine, these images can be used as DSK lower thirds or full-screen backgrounds.
Deep Control
Gain even more control over your productions with these advanced V-1HD+ features.
Camera Tally
A camera tally light visually directs talent to look toward the active camera, and also lets everyone know when the camera is live and “on-air.” The analog tally output on the V-1HD+ can be wired to most broadcast camera systems—refer to the V-1HD+ Reference Manual for wiring specifications.
Recording Control
Many technical elements contribute to a successful recording—but forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, you can trigger Atomos recorders to start and stop recording, bringing remote-control convenience to your busy workflow. | The New Standard in Hybrid Event Switching
Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. Connect with live audiences in Full HD with comprehensive SDI and HDMI I/O and simultaneously stream to any popular web platform via USB-C. There’s also an eight-layer video effects engine, a 40-channel digital audio mixer, and integrated PTZ camera control, plus next-generation cue management and live show automation features that make tough production tasks simple. And everything’s all wrapped up in a portable design with a broadcast-style interface that’s easily handled by a single operator.
- Portable hybrid event switcher with comprehensive features and connectivity
- Eight 3G SDI inputs with frame rate converters
- Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
- Seven total outputs across SDI, HDMI, and USB-C streaming
- Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
- 40-channel digital audio mixer with effects and processing
- Eight-layer video effects engine
- 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
- Powerful live production automation with sequencing, macros, and preset memories
- PTZ control with support for multiple brands and mixed protocols running at once
- Extensive device control with Bluetooth, USB, RS-232, and LAN
- Remote control software available for iPad, macOS, and Windows
- Wireless and wired camera tally support
Hybrid to the Max
The V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.
- On-demand signal processing means you never have to worry about issues like computer CPU overhead, latency, and output delay on live audience screens.
- Integrated connectivity standards like SDI, HDMI, XLR, and USB-C eliminate the need to build out costly infrastructure and conversion processes.
- The comprehensive interface provides hands-on controls that can be learned quickly by a single operator.
- Presets, macros, and advanced sequencing features let you set up and automate complex switching tasks with one touch.
HDMI and SDI Connectivity
The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
Send to Multiple Destinations
With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.
Instant Recall
Storing and recalling custom looks can be accomplished with just a few button presses on the V-160HD.
- The 30 preset memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output.
- The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.
- Our free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.
One-Touch Automation
The V-160HD’s newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order using the Next button on the panel. With the power of the V-160HD’s sequencer, you can tackle the most complex events without ever breaking a sweat.
Powerful Video Effects Engine
Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s effects engine features eight composition layers that can be assigned to the Program and Sub-Program outs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client. For example:
- Layers 1-2: Start with a mixable live background video layer.
- Layers 3-6: Place four picture-in-picture layers or chroma/luminance key effects.
- Layers 7-8: Add two downstream keyers with support for fill and key inputs
Stream Live
The V-160HD uses the same connection technology as webcams,* allowing you to stream events at 30/60 FPS in Full HD** and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
*USB video class (UVC) and USB audio class (UAC) compliant.
**YUV2 (uncompressed) and Motion JPEG (compressed) formats supported.
Sonic Perfection
Offering studio-grade sound, the V-160HD’s 40-channel digital audio mixer lets you blend signals from all 16 video inputs, USB-C, and microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.
Extensive PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras eliminate the need for multiple camera operators, provide great production coverage with studio-grade broadcast quality, and can be placed in discreet locations thanks to their small size. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like, and operate up to 16 PTZ cameras simultaneously.
Complete Control
The ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB, RS-232, tally/GPIO, support for foot-controlled operation, and more.
- Use the dedicated iPad remote control app to create an efficient touch interface.
- Extend your workflow with free Remote Control Software (RCS) for macOS and Windows.
- Plug in a BOSS single or double footswitch to execute over 100 different switcher commands.
- Trigger start/stop on Atomos recorders over HDMI.
- Set up a tally light with Roland’s Smart Tally or the rear-panel hardware connector.
- Seamlessly integrate in system installations with RS-232 and TALLY/GPIO DB-sub connectors.
V-160HD iPad Remote Control Utility
The dedicated V-160HD remote control app turns an iPad into an efficient touch interface for the V-160HD. Run essential switching functions, mix audio with virtual faders, change settings and parameters quickly and create up to 30 custom scenes for fast, efficient setup changes. Coming soon.
VIDEOVideo Processing4:2:2 (Y/Pb/Pr), 8-bitInput ConnectorsHDMI IN 1--4: HDMI type A x 4
* HDCP Supported
HDMI IN 5--8: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1--8: BNC type x 8
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292MOutput ConnectorsHDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
SDI OUT 1--3: BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (TM)
PREIVEW: HDMI type AInput FormatsHDMI IN 1--4, SDI IN 1--8
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
HDMI IN 5--8
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported in the USB memory.
* PNG alpha channel supported.Output FormatsHDMI OUT 1--2, SDI OUT 1--3:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *6
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *6
1080/59.94p *3, *4
1080/60p *3, *5
1080/50p *3, *6
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 50 Hz
HDMI OUT 3:
1080/59.94p *1
1080/60p *2
1080/50p *3
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 50 Hz
SUSB STREAM:
1080/59.94p, 720/59.94p, 640×480/59.94p ※1
1080/29.97p, 720/29.97p, 640×480/29.97p ※2
1080/50p, 720/50p, 640×480/50p ※3
1080/25p, 720/25p､640×480/25p ※4
*Uncompressed format (YUV2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 59.94 Hz
*2 FRAME RATE(USB OUT) = 29.97Hz
*3 FRAME RATE(USB OUT) = 50Hz
*4 FRAME RATE(USB OUT) = 25HzVideo EffectsTransition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 4 (SQUARE, CIRCLE, DIAMOND), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern outputAUDIOAudio ProcessingSampling rate: 24 bits/48 kHzAudio formatsUSB STREAM (input/output): Linear PCM, 24 bits/48 kHz, 2ch
Bluetooth (input): Linear PCM, 24 bits/48 kHz, 2ch
HDMI IN: Linear PCM, 24 bits/48 kHz, 2ch
HDMI OUT: Linear PCM, 24 bits/48 kHz, 8ch
SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)Input ConnectorsAnalog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (TM)
Bluetooth
HDMI IN 1--8: HDMI type A x 8
SDI IN 1--8: BNC type x 8Output ConnectorsAnalog:
AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (TM)
HDMI OUT 1--3: HDMI type A x 3
SDI OUT 1--3: BNC type x 3Input LevelAUDIO IN 1, 2: -60--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)Input ImpedanceAUDIO IN 1, 2: 9.4 k ohms (ANALOG GAIN 0<24 dBu), 74.4 k ohms (ANALOG GAIN ≧24dBu)
AUDIO IN 3/L, 4/R: 47 k ohmsOutput LevelAUDIO OUT (XLR): +4 dBu (Maximum: +24 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +10 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohmsAudio EffectsAuto Mixing, Delay, Reverb, High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone outputOTHERSOther ConnectorsUSB MEMORY: USB A type (for USB flash drive)
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
Bluetooth: for remote control from iPad
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
LAN CONTROL: RJ45 100BASE-TX (for Remote Control)
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-LevelOther FunctionsPreset Memory (30 types)
Macro Control (100 types)
Sequencer Control
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control
Rec ControlBluetoothVer 4.2
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)Display4.3 inches TFT Color LCD: 480 x 272 dotsPower SupplyAC adaptorCurrent Draw2.5 APower Consumption55 WOperation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitDimensions437 (W) x 253 (D) x 103 (H) mm
17-1/4 (W) x 10 (D) x 4-1/16 (H) inches
480 (W) x 253 (D) x 103 (H) mm
18-15/16 (W) x 10 (D) x 4-1/16 (H) inches
* When rack mount angles are fitted.Weight (excluding AC adaptor)3.9 kg
8 lbs 10 ozAccessoriesStartup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rack-mount angle x 2
Rack-mount angle mounting screw x 6Options (sold separately)Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, BOSS FV-500L, FV-500H
* 0 dBu = 0.775 Vrms
* This product is a Class A digital device under FCC part 15. |
Reviews
There are no reviews yet.
