| Content | Bi-directional Conversion of video and audio signals from HDMI to SDI or SDI to HDMI with Frame Sync and Delay.

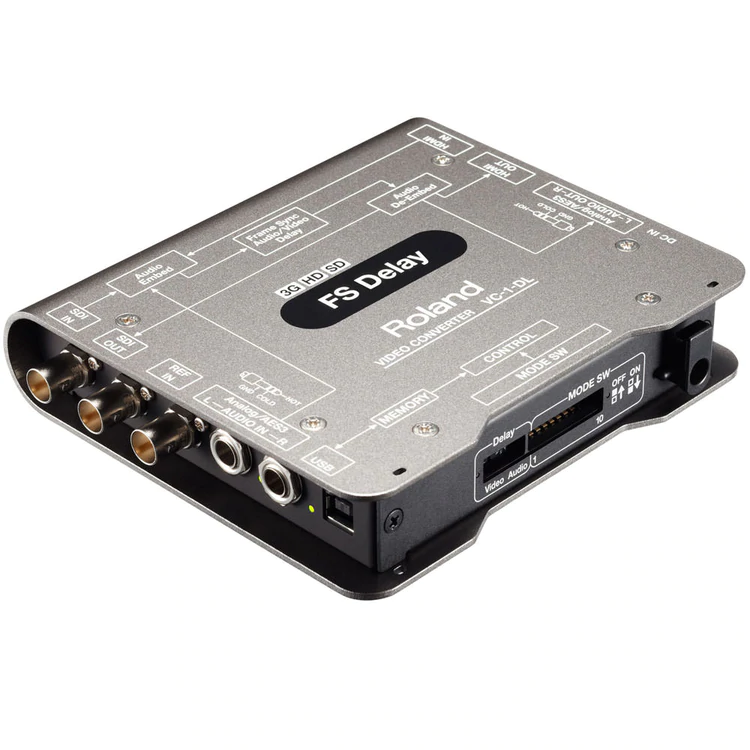

The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently.
Lossless conversion in the palm of your hand. Awarding-winning multi-format conversion technology concentrated in a simplified mini-converter.
- HDMI to SDI Conversion
- SDI to HDMI Conversion
- Lossless image conversion
- 3G ( Level A&B) /HD/ SD SDI
- HDCP support

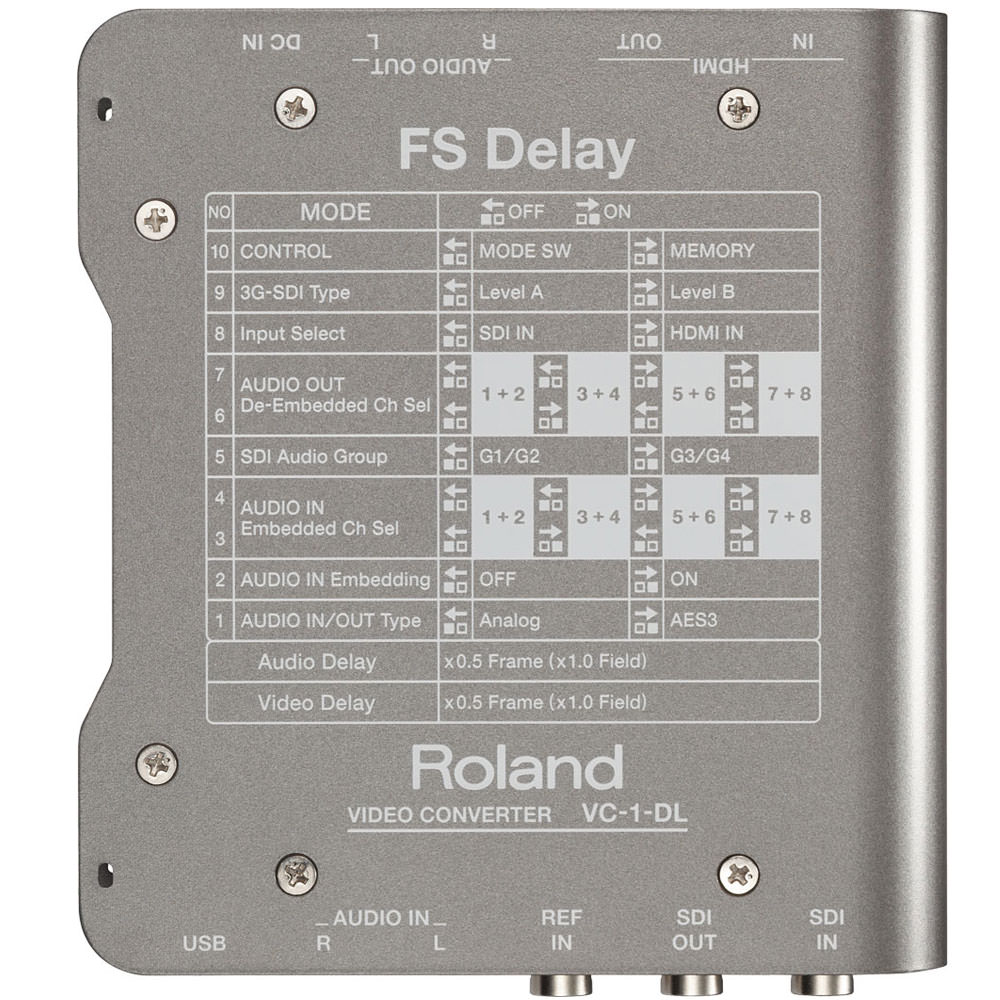

- Selectable Channel for Embedded/De-Embedded Audio
- Audio Delay - up to 9 fields (4.5 frames)
- Video Delay - up to 9 fields (4.5 frames)
Uncompromising commitment to picture quality.
The VC-1 series faithfully converts the original source with no change in color or brightness. It supports super-blacks and super-whites, and converts video from cameras and other source devices with all the originality intact.
Faithful reproduction of video characteristics.
The VC-1 series reproduces the video characteristics of the original source with no interlace artifacts, pixel shifting, or other conversion problems or signal errors. Jitter and return loss are at exceptional levels as well.
On-board reclocker
The VC-1 series features an on-board reclocker to compensate for attenuation of SDI signals carried over long distances. This makes it possible to receive camera-relay video while maintaining a high image quality.
Support for 1080p 3G-SDI.
Video signals beyond 1080i can be input and output. The VC-1 series supports both level A and level B 3G-SDI, letting, you connect a wide variety of 3G-SDI equipment. 1080i, 720p, and SD signals are accommodated automatically on connection.
High quality, smart design.
The exterior plating is aluminum at 2 millimeters thick. The connectors laid out inside the exterior plates are fastened to the chassis with nuts and bolts. This makes for a heavy-duty specification that can keep the connectors from coming loose even with frequent cable changes, as well as withstanding impact and drops. Every connector has an LED input indicator enabling you to confirm the status of signal transmission at a glance. The series is built for uncompromising reliability that includes accurate operation even over long periods of continuous use thanks to a design featuring exceptional heat-radiating efficiency.
A form factor that accommodates use on-the-go.
Cutaway areas in the exterior plate enable you to fasten the unit to tripods or the like using velcro or elastic ties. This makes for convenient placement and setup even during live on-site use.
Support for HDCP HDMI signals.
The VC-1 series is compliant with HDCP. For example, the VC-1-DL can take HDCP-applied HDMI input signals, apply frame synchronization or delay, and produce HDCP-applied HDMI output. This allows the VC-1 series to be used in any HDCP-based system with no worries.
Support for workflow combining audio and video.
Audio embedding and de-embedding features are provided (channel-selectable) in the VC-1 Series. The audio embedding feature lets you place audio signals from a different source into the video output. For example, when converting an SDI signal to HDMI, you can use the audio embedding feature to output high-quality audio from any of the SDI audio channels. Digital (AES/EBU) input and output are also supported, letting you exchange sound between professional audio equipment wi | BirdDog P400 PTZ Camera
P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2.
P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module.
Double Wow.
P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions.
Triple Wow.
BirdDog PTZ Keyboard
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols. | NewTek TriCaster Mini 4K|NDI is an easy to use compact video creation system to let anyone with a story to tell make fun and exciting shows without needing production expertise.
You don’t have to be a video expert to tell your story with television-quality results. With TC Mini, you can be on your way to making a show in resolutions up to 4K UHD for delivery to any type of screen you want within minutes of opening the box. TC Mini takes portable live production to new heights with hundreds of amazing features, including virtual sets, social media publishing, multi-channel audio mixing, streaming, integrated media playback, and even live motion graphics and Live Story Creator MS Word® show automation with Premium Access. TC Mini delivers you all the benefits of IP based production using NDI® for easy connectivity to media components while leveraging simple one-to-one connections to your HDMI cameras and devices without cable length limitations.
No other portable video creation system offers so many easy and enjoyable ways to tell stories in such a small package for the price than TC Mini. The compact unit is easy to transport and set up with all the features you need to deliver high quality shows to screens and displays of any size or shape. With NDI®, TC Mini connects to a wide variety of NewTek and third-party systems over IP like cameras, converters, and custom software applications. Direct one-to-one connectivity with HDMI cameras and devices simplifies configurations and removes cable length limitations.
Key Features:
4K Ultra HD: Produce programs, performances, events and live sports in true 4K UHD (Ultra High Definition) resolution with support for native 2160p video at 60 frames per second.
Multi-Source Video Mixing: Viewers have their choice of devices. You should have options, too. With multiple source channels, including 4 external inputs, you can easily create compelling content using any combination of compatible video sources, including HDMI and NDI PTZ cameras, mobile devices, Skype TX video calls, computers, gaming systems, streaming media, video files, graphics, images, animations and more.
Built-In Video Servers: No recorders needed—just add your files with two built-in video players for on-demand and automated playback, including auto-advancing playlists, on-cue instant replay, live-edited highlight reels, and much more. With responsive player controls, presets, real-time editing tools, selectable transitions, and playlist effects, you have everything needed to make magic from your stored media.
Skype TX Software Integration: Conduct a live Skype video call with any remote guest, anywhere in the world. TriCaster TC Mini features Skype TX software support, including automatic Mix Minus for clean audio return to the caller. The studio-grade version of the popular app, Skype TX enhances the real-time interaction with broadcast-quality video and balanced audio, permitting you to present production-ready conversations, interviews, reports, and more—regardless of the caller’s device.
Recording: Capture up to 4 source channels of high-quality video as QuickTime® or NDI® files and record to storage. From archiving the master cut for your content library, to ingesting camera footage for post-production, to caching production extras and presentation materials for on-demand, TriCaster TC Mini easily handles the work of multiple professional recorders without the added expense. (10 source channels with Premium Access)
Replay: Insert instant replays from up to 4 NDI or converted HDMI input recordings with a single click instantly; or cue to play on demand instead. Replays include custom in/out transitions and speed control. Create basic highlight clips for instant playback and publishing with shortcut commands
Live Streaming: Stream live to your choice of new media platforms, including user-friendly presets for Facebook Live, Microsoft® Azure®, Periscope, Twitch, YouTube™ Live, and more. The integrated streaming encoder lets you easily deliver platform-specific content, while opening up new sponsorship and revenue opportunities.
Social Media Integration: Share real-time updates and on-demand content across your social media accounts, uploading images and video directly to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more—complete with comments and hashtags. Plus, with integrated DataLink™, you can add posts and photos from your social networks in on-screen graphics for a truly interactive experience.
Live Sound Experience: Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog and network audio, professional DSPs, fader control, VU metering, Talk Back communication, and stereo audio on master output.
Phenomenal Creative Elements: With TC Mini, you have the tools to turn every frame of video into an artistic masterpiece. Consider the screen a blank canvas and unleash your inner artist with multi-bus mix effects, data-driven graphics, custom animated transitions, a full-motion composition engine, and more. Let your imagination run wild.
Real Time Monitoring and Multiviewers: See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With up to three customizable multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, and more, you can easily personalize the TC Mini environment to your preference.
Studio Grade Video Tools: Perfect your programs with configurable color correction tools, object positioning, and smooth-edge cropping. Apply picture-in-picture effects with optional borders. Build composite scenes from different foreground and background elements. And so much more.
Spectular Live Chromakeying: Think outside the box with real-time keying so crisp and clean, your viewers will never believe it’s green screen. With NewTek’s powerful LiveMatte™ technology built into every source channel and M/E, you have 10 fully configurable keyers to create composite scenes from live video, graphics and virtual sets for reports, presentations, demonstrations, and more.
World Class Live Virtual Sets: Save on studio and set expenses without sacrificing production value. With integrated LiveSet™ technology and more than 30 included set designs, TC Mini can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality.
Interconnected Workflows: You don’t work in a silo. Neither should your equipment. With native integration of innovative Network Device Interface technology, TC Mini connects to the most prolific IP-based workflow in the industry right out of the box, networking seamlessly with compatible products from hundreds of manufacturers and developers.
Network Video Input
8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
- 2160p 59.94, 50, 29.97, 25
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output
4 x independent IP video mix outputs via NDI®
Stream Output
2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs
4 x mini display port with output adapters
3 x of the outputs support multiviewers using standard display resolutions
Mix/Effect Buses (M/E)
- 4 x M/E buses supporting video re-entry
- 1 x Mix/Effect channel per bus with support for up to 2 sources
- 2 x KEY layers per bus
DSK Channels
2 x DSK channels
Media
4 x media players
- 2 x DDR
- 1 x GFX
- 1 x Sound
15 x media buffers
- 5 x animation buffers
- 10 x graphic buffers
Keyers
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
- 8 x input keyers
- 2 x media player keyers
- 4 x M/E keyers
- 15 x buffer keyers
COMP
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer
configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
Record, store, edit and automate commands and user-configured operation sequences
- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
- Supports control via web-based interface
Recording
4 x recording channels from either NDI® inputs or Mix outputs (10 x with Premium Access)
- Records and retains alpha channel data
- 4 x QuickTime® archival video recorders (Native NDI Codec for recording)2
2QuickTime Player not required for playback in common NLE applications
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Storage
- Capacity varies by format, resolution and file specification
- Supports recording to external storage via USB 3.0
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing
Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Local Audio Input
1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output
2 x 1/4” (6.35 mm) balanced line
1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio
- Native support for network audio input and output via NDI®
- Embedded audio supported for all NDI® input and output video signals
- Integrated support3 for Dante™ networking protocol from Audinate®
3Requires Dante Virtual Soundcard license from Audinate (sold separately)
5Requires third-party virtual sound card license (sold separately)
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
Processing
Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
Tally
Support for network tally via NDI®
MIDI
Support for standard MIDI protocol enabling third-party device control
System Physical
System chassis, including adjustable cable retention bracket
- 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
- 9 lbs (4.1 kg)
|
The CB-BV1 Carrying Bag is the perfect accessory for your Roland V-1HD or V-1SDI Video Switcher. Lightweight and durable, it features a rugged exterior and thick internal padding to shield your switcher when you’re on the go.
- Durable exterior materials
- Fleece interior and foam padding
- Interior/exterior: black 600D polyester and ripstop nylon
| Transportable, hardware RAID, 8-Bay Thunderbolt™3 Storage Solution
A transportable 8-bay hardware RAID solution with Thunderbolt™3 technology offering content creators colossal capacity and high-powered performance. Supports multi-stream 4K, 8K and VR workflows, RAID 0, 1, 5, 6, 10 and 50 configurations, and provides transfer rates up to 2000MB/s. Along with Enterprise-class hard drives for enhanced reliability and a trusted 5-year limited warranty, the G-RAID Shuttle with Thunderbolt 3 is the ultimate storage solution for demanding video workflows on location and in the studio.
- Up To 144TB Of Storage
- Hardware RAID
- Fast, Enterprise-Class 7200RPM Hard Drives
- Transportable Design
- Transfer Rates Up To 2000MB/s
- Daisy-Chaining For 5 Additional Devices
- Dual Thunderbolt 3 Ports
- 5-Year Limited Warranty: G-RAID Shuttle with Thunderbolt 3 is backed by a standard 5-Year limited warranty and unlimited free technical support by representatives experienced with the latest content creation applications.
Full Specifications
Compatibility
macOS 10.12+
Windows 10, 7 (via reformat)
| The StudioDeck Foundation is all about getting to the core or – Foundation of what makes MoFi Electronics’ award-winning turntables so extraordinary. They've stayed true to why are turntables are some of the best in the game while creating a new entry point to the world of MoFi Electronics.
STUDIO TONEARM: Custom-developed and manufactured in the USA, this 10-inch straight aluminum gimbaled bearing tonearm delivers the ideal balance of rigidity and low tracking error, so all you hear is what is in the grooves. Tweak to your heart's delight with provisions for adjustable tracking force, VTA, azimuth, and anti-skate.
ISOLATED AC SYNCHRONOUS MOTOR: MoFi's 300 RPM stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.
CONSTRAINED LAYER DAMPENING: StudioDeck features an aluminum plate carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.
METICULOUS DESIGN AND EVALUATION: Advanced technology, user-friendly features, and unflappable design elements ensure phenomenal playback-ultimately bringing the sound of Mobile Fidelity's famous studio into your home.
3/4-INCH DELRIN PLATTER: Delrin is a next-generation polymer developed by Dupont. In the world of audio, Delrin's highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.
STEEL AND TEFLON INVERTED BEARING: MoFi's steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and teflon-found in much more expensive turntables-will provide you many years of high-performance playback. |
