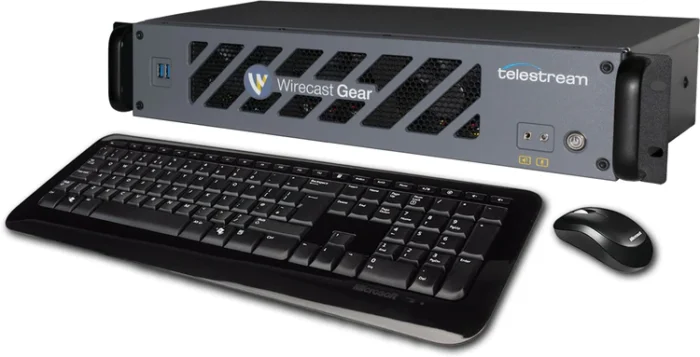

| Content | Wirecast Gear 2-420 Live Video Streaming Production System
Wirecast Gear gives you an easy to use, fully configured live video streaming production system. Because we've already done all the work, there is no need to build your own system! Start streaming in minutes with an end-to-end system configured specifically for your needs. With Wirecast Pro included alongside Gear's custom-designed hardware, it's a live event production switcher, live news production system, Facebook Live switcher and YouTube Live switcher - all in one box.
Each model of Wirecast Gear comes with Xeon Server architecture, up to five HD-SDI or four HDMI professional camera inputs and all the live video streaming production features of Wirecast Pro, the Stock Media Library, NewBlue Titler Live Complete, and Switch Player, all in a compact, powerful hardware system.
Wirecast Gear offers a unique blend of performance, ease of use and affordability. Just plug in your cameras and start producing and streaming your professional events with the industry-leading turnkey video production system.
Features:
- Stream to Facebook, YouTube, Twitter or RTMP
- Facebook Live Social Media Comments
- NDI Input/Output
- Animated 3D Graphics and Titles
- Social media live comment creation (Facebook, YouTube, and Twitter)
- Live sports, data feed, custom clocks, scoreboards, templates
Specifications:
- Integrated Hardware Encoders: 4
- HDMI inputs: n/a
- HD-SDI inputs: 5
- Baseband SDI output: Yes
- Graphics Card: NVIDIA Quadro
- Chassis: (16.7 x 12 x 3.5") 2RU Chassis, with convertible configuration for standard 19" rackmount or set-top box with feet included
- Operating System: Microsoft Windows 10 Enterprise IoT LTSC 64-bit
- I/O Configuration: 5 SDI ports (Gear Capture + Blackmagic)
- Storage: (in addition to system drive)³ 1TB (20 hrs of HD video²)
- Live video streaming production software: Telestream Wirecast Pro
- Titling software for creating rich, animated title designs: NewBlue Titler Live Complete
- Media utility software to play, inspect and make corrections to video: Telestream Switch Player
Item Includes:
- Wirecast Gear 420
- Wireless Keyboard/Mouse combo
- Power cord
- Plastic bag
| HyperDeck Extreme 8K HDR has the reliable features of HyperDeck, with new features of space-saving H.265 files, optional internal cache, 3D LUTs, native 8K and HDR support. Ability to record native 8K in H.265 storage reduces storage costs and image quality stays amazing. Large touch screen ensures you can see your recording and easily control all deck settings. HyperDeck Extreme 8K HDR is an excellent solution for broadcast, live production, and digital signage.
Great for live production as a master recorder, clip player and for recording ISO cameras. Analog inputs allow recording from old video tapes, so legacy programming is compatible with the latest streaming services and can be edited. 10G Ethernet makes digital signage easy with fast media uploads, and a simple remote control protocol. Use as a field recorder with HDMI, SDI and analog inputs with built in scopes and 3D LUTs.
AC and DC power connections help make sure you can use the HyperDeck Extreme 8K HDR in studio or on location. Record to commonly available flash memory cards with dual CFast media support.
The HyperDeck Extreme 8K HDR includes two media slots, Quad 12G-SDI for 8K, analog connections for archiving, USB-C external disk recording, front panel speaker and headphone jack. Install a PCIe flash disk as a record cache to eliminate dropped frames when your media becomes full or is too slow. Record and playback in full resolution 8K is possible with the included Quad Link 12G-SDI. SDI connections are multi-rate, so you can use with other 8K products, or switch to SD, HD or Ultra HD.
Touch LCD screen provides incredible control with dedicated buttons for play, stop, record, a timeline for scrolling through recordings, image swipe to jog, and more. Heads up display on the LCD shows timecode, video standard, media status, and audio meters. Enable scopes, load and save 3D LUTs, and remote control the HyperDeck from the touch screen.
Full internal waveform monitoring ensures compliance with broadcast standards. RGB and YUV parade displays are ideal for color correction and checking for illegal levels. Histogram shows distribution of white to black detail, and highlights or shadows clipping.
Blackmagic Design HyperDeck Extreme 8K Features
- Power supply not included - requires IEC cable
- Modern design with traditional controls
- Rack mountable
- Live production, digital signage and archive
- Dual CFast media for nonstop recording
- Record direct to external USB-C media disks
- Compatible with controllers, switchers, converters, and more
- Advanced HDR support and bright wide gamut LCD
- Built in scopes ensure compliance with broadcast standards
- Professional audio with multi channel SDI and analog audio
- Localized for 11 common languages
|
Blackmagic Design’s ATEM production switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. With a machined aluminum front panel and multi voltage power supplies, ATEM live production switchers can power live production needs at live concerts, sporting events, theater productions, and conferences around the world.
The ATEM 4 M/E has 20 12G-SDI inputs that allow embedded audio mixing and can be used on sources without genlock, such as laptops. Two balanced XLR audio inputs can connect to professional mixers, and a HiFi audio input can connect to an iPod. Thirteen video outputs can be used with any TV or monitor to connect with LED screens, projectors, disk recorders, and broadcast decks. Monitor up to 16 cameras simultaneously with the two independent multi view outputs. An independent aux output can feed big screens on stage, and pairs excellently with SmartScope Duo 4K for tech monitoring.
Let your creative expression take the lead with the ATEM 4 M/E. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard. The ATEM 4 M/E adds an advanced chroma keyer on each mix effects row for massive multi-layer effects. On-screen adjustable controls can select and sample a region of color. Chroma keyer also features foreground, background and edge adjustment controls, and chroma correction tools.
Add multi box compositions quickly and easily with SuperSource’s separate five layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Recall saved sequences with dual media players and HyperDeck SSD recorders. Dual media players support popular image formats for downloading still frames and graphics for keying. Set up and automatically start complex sequences with power macros. These macros are saved as XML files for instant recall and can even be copied to use on another switcher. For other pre-recorded sequences, connect up to four HyperDeck SSD recorders to the ATEM switcher.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM 4 M/E Features
- Switch between SD, HD, or Ultra HD video standards for ultimate flexibility in live production
- 3840 x 2160 frame size
- 12G-SDI performance
- 20 video inputs and 13 video outputs
- Dozens of effects and creative transitions
- Powerful digital effects processor
- Built in keyers
- Advanced chroma keyer to create multi-layer effects
- SuperSource function extends the ATEM’s power by adding a separate 5 layer switcher
- Dual media players with large graphic memory
- Power macros to save and instantly recall sequences
- Compatible with HyperDeck SSD recorders
- Included software control panel for Mac or Windows
- Add a hardware-based ATEM advanced panel for control in demanding live sound applications
In The Box
- ATEM 4 M/E Broadcast Studio 4K1
| Use the Blackmagic Design ATEM production switcher series to create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. ATEM live production switchers support live production needs at live concerts, sporting events, theater productions, conferences, and more. The ATEM advanced panel is added to an ATEM switcher as a control panel.
Although each switcher includes ATEM software control panel for Mac or Windows, an ATEM Advanced Panel is faster to use, making it ideal for demanding live production environments. Setup more complex effects with the enormous amount of control you’ll have in the ATEM 2 M/E. The ATEM 2 M/E Advanced Panel features broadcast buttons, knobs, and a t-bar fader.
The ATEM 2 M/E has two M/E rows with 20 input buttons and two independent system control LCDs for reach row. Each row has an independent select bus, and can control up to four M/Es in larger switchers. Input buttons have customizable colors and button label LCDs.
Modern design with the latest broadcast technology combine to enable faster workflows. Built in LCD control screen identifies work processes. Buttons are curved and have color backlighting to reduce incorrect key presses and quickly identify the keys you need. Professional joystick controls DVE and camera adjustments, smooth weighted t-bar fader, and more.
Durable and compact, the ATEM 2 M/E fits in a standard equipment rack. It can be used seamlessly for shelf mounting in broadcast trucks, mobile racks, and fly away kits.
Blackmagic Design ATEM 2 M/E Features
- Add to an ATEM switcher for accessible control panel functions
- Faster workflow
- Two independent rows of control, each with 20 input buttons
- Backlit buttons make identification easy and lower incorrect key presses
- Joystick for DVE and camera adjustments
- Smooth weighted t-bar fader
| Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual network streaming or separate networks for control data and video data. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications | Blackmagic Design’s Ultimatte 12 goes beyond the power of even the most advanced keyers, also functioning as a high power real time compositing processor. Enjoy superb edge handling, color separation, color fidelity, spill suppression, and more. 12G-SDI technology supports work in HD and Ultra HD for real-time compositing of weather, sports, news, and entertainment in studio environments.
Incredibly life-like composites place your talent into any scene. Computer generated augmented reality objects provide realistic transparency and depth talent can walk behind, even with glass-style objects. The Ultimatte 12 works with fixed cameras and static backgrounds, or automated virtual set systems. On set previsualization is another plus, since actors and directors can see the virtual sets while shooting against a green screen.
Remove the background without affecting foreground colors. Advanced flare, edge and transition processing isolates and treats image sections differently while keeping color transitions smooth. High-level compositing keeps the final product photorealistic.
Green tinting and spill are no longer problematic thanks to the adjustments made to flare algorithms in the Ultimatte 12. Flare automatically samples colors to create seamless mattes for walls, floors, or other parts of your image. Shadows get mapped and composited onto the new background for a realistically three-dimensional view, spill is removed, and transparent objects are cleaned.
Advanced algorithms and large internal color space make it feel like you’re using several Ultimatte keyers on one image. For example, fine edge detail is a great feature for visuals of hair but is not something you would want applied to an entire image. Images are automatically processed based on the colors in each area, so fine edge detail is applied to just the hair portion.
Cameras at different angles see the same green screen slightly differently, which keyers in live production switchers aren’t designed to correct. Ultimatte 12 makes it possible to add keyers to every camera in a shot for the best possible key.
The Ultimatte 12 includes 7 input connections dedicated to compositing different elements together. 12G-SDI connections offer high frame rate Ultra HD from one BNC connection that can plug into your regular HD equipment. Connections let you work with SD, HD, 3G, 6G and 12G-SDI equipment, and in HD or Ultra HD formats up to 2160p60.
Blackmagic Design Ultimatte 12 Features
- Connect to SDI equipment in HD and Ultra HD
- Add augmented reality and virtual elements
- One touch keying
- Advanced image processing
- Expanded internal color space
- New math and sub pixel processing designed for high quality and clarity in HD and Ultra HD
- Incredible color fidelity
- Flare removes green tinting, spill, shadows, and reflections
- Ideal for broadcast news, sports, and traditional TV and film production
- 12 Month Limited Manufacturer's Warranty
|
