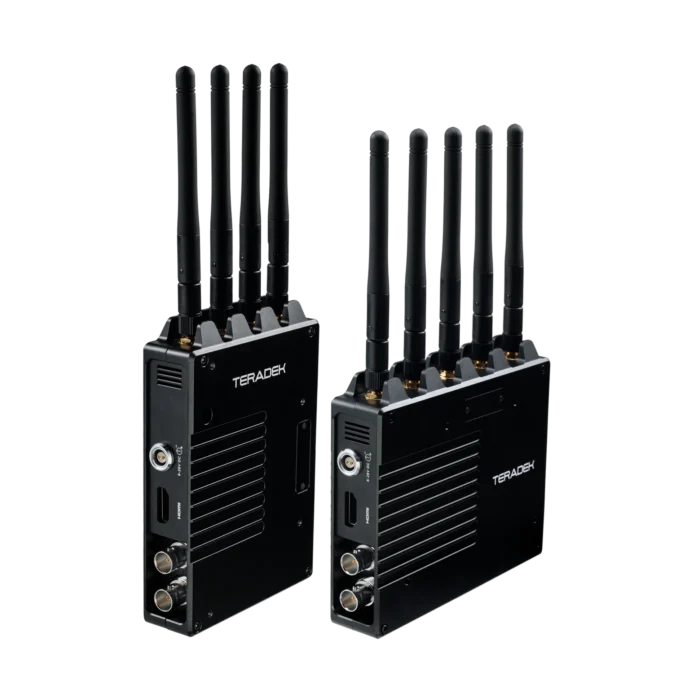

The Bolt 4K 1500 12G-SDI/HDMI Wireless Video Kit from Teradek includes a Bolt 1500 12G-SDI/HDMI wireless transmitter and a Bolt 1500 12G-SDI/HDMI wireless receiver that support video at resolutions up to 4K at 60 fps. They support a line-of-sight range of up to 1500'. The transmitter can send video to up to six receivers and is compatible with any model in the Bolt 4K line. The transmitter features a 12G-SDI input, an HDMI 2.0 input, and a 12G-SDI loop-through output. The receiver features two 12G-SDI inputs and one HDMI 2.0 input. You can remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The transmitter has mounting holes on each side for a Gold Mount or V-mount battery plate (available separately) so it can be mounted on the back of a camera. Included in the kit are a 3/8"-16 light stand adapter, a hot shoe adapter, two 18" HDMI cables, two 18" 2-pin connector to D-Tap cables, a 3' USB Type-A to micro-USB Type-B cable, two 18" 12G-SDI BNC cables, a 6' PSU 2-pin connector to 30W AC adapter cable, nine 2 dBi Wi-Fi 2.4/5.8 GHz antennas, a large case that fits a transmitter and two receivers, a 9.8 x 5.9" vinyl zipper bag, and a 9.8 x 9.1" vinyl zipper bag.
Transmits uncompressed video in 1080p and 2160p at 60 fps with less than 1 ms of delay
Compliant with the HLG, PQ, and HDR-10 standards
Send start/stop flags, timecode, and other ancillary data over the wireless link
Bolt app uses Bolt 4K's integrated Bluetooth
Multiple mounting options with 1/4"-20, 3/8"-16, and M3 holes
| Power supply not included - requires IEC cable.
Use the Blackmagic Design ATEM production switcher series to create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. ATEM live production switchers support live production needs at live concerts, sporting events, theater productions, conferences, and more. The ATEM advanced panel is added to an ATEM switcher as a control panel.
Although each switcher includes ATEM software control panel for Mac or Windows, an ATEM Advanced Panel is faster to use, making it ideal for demanding live production environments. Setup more complex effects with the enormous amount of control you’ll have in the ATEM 1 M/E. The ATEM 1 M/E Advanced Panel features broadcast buttons, knobs, and a t-bar fader.
The ATEM 1 M/E has one row with 10 input buttons, and one system control LCD screen. Input buttons have customizable colors and button label LCDs. Use the shift buttons to double the number of inputs for control of up to 20 inputs. DVE and t-bar fader can be controlled with a joystick. Even though it’s a 1 M/E panel, you can control all M/Es in larger switchers.
Modern design with the latest broadcast technology combine to enable faster workflows. Built in LCD control screen identifies work processes. Buttons are curved and have color backlighting to reduce incorrect key presses and quickly identify the keys you need. Professional joystick controls DVE and camera adjustments, smooth weighted t-bar fader, and more.
Durable and compact, the ATEM 1 M/E fits in a standard equipment rack. It can be used seamlessly for shelf mounting in broadcast trucks, mobile racks, and fly away kits.
Blackmagic Design ATEM 1 M/E Features
- Add to an ATEM switcher for accessible control panel functions
- Faster workflow
- Backlit buttons make identification easy and lower incorrect key presses
- Control up to 20 inputs
- Joystick for DVE and camera adjustments
- Smooth weighted t-bar fader
- Fits in a standard equipment rack
| Power supply not included - requires IEC cable.

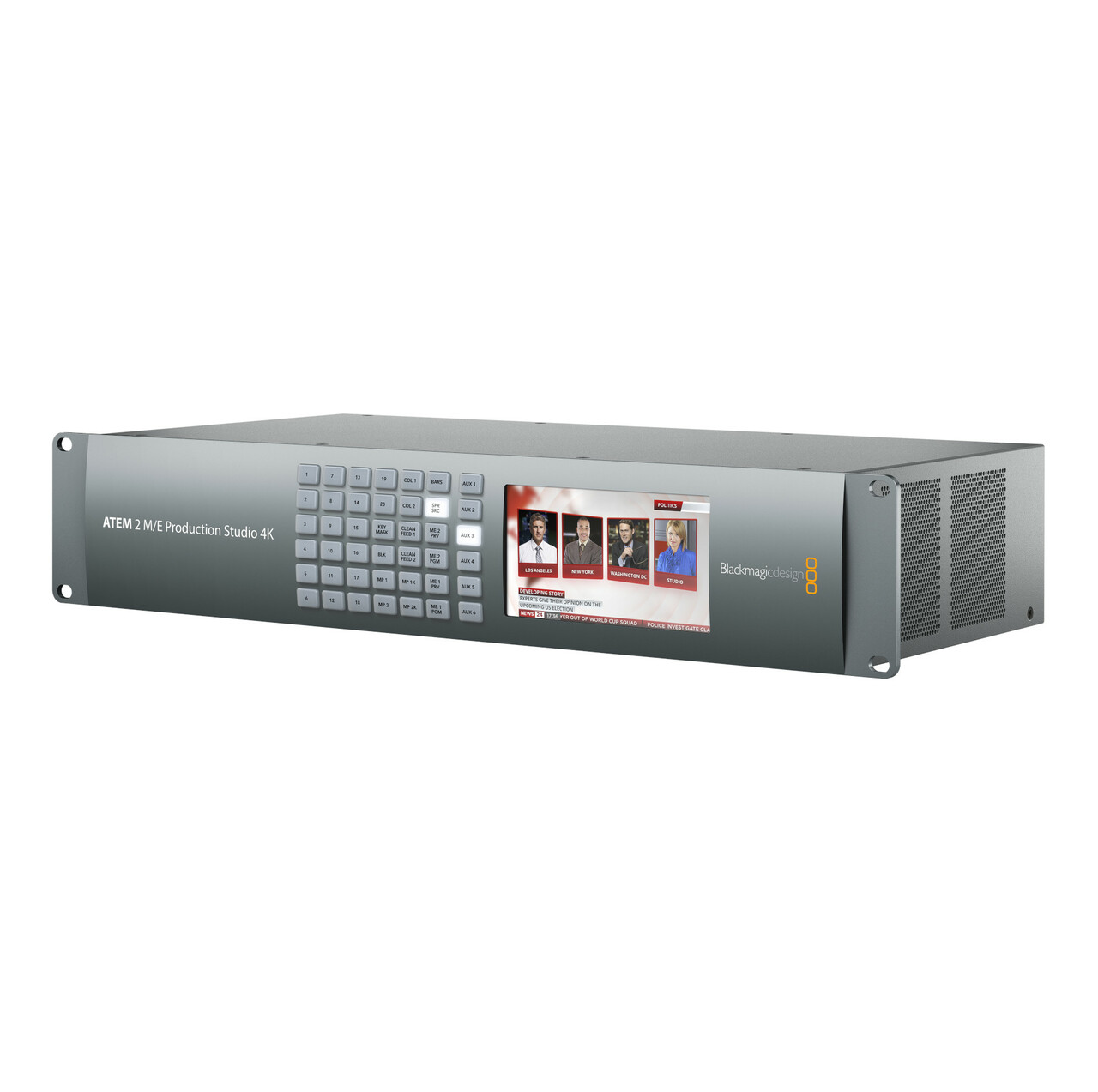

Blackmagic Design’s ATEM production switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. With a machined aluminum front panel and multi voltage power supplies, ATEM live production switchers can power live production needs at live concerts, sporting events, theater productions, and conferences around the world.
The ATEM 2 M/E has 20 6G-SDI inputs that allow embedded audio mixing and can be used on sources without genlock, such as laptops. Two balanced XLR audio inputs can connect to professional mixers, and a HiFi audio input can connect to an iPod. Sixteen video outputs can be used with any TV or monitor to connect with LED screens, projectors, disk recorders, and broadcast decks. Monitor up to 16 cameras simultaneously with the two independent multi view outputs. An independent aux output can feed big screens on stage, and pairs excellently with SmartScope Duo 4K for tech monitoring.
Let your creative expression take the lead with the ATEM 2 M/E. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. The ATEM 2 M/E also has animated stingers and DVE transitions. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard.
Add multi box compositions quickly and easily with SuperSource’s separate 5 layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Recall saved sequences with dual media players and HyperDeck SSD recorders. Dual media players support popular image formats for downloading still frames and graphics for keying. Set up and automatically start complex sequences with power macros. These macros are saved as XML files for instant recall and can even be copied to use on another switcher. For other pre-recorded sequences, connect up to four HyperDeck SSD recorders to the ATEM switcher.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM 2 M/E Features
- Switch between SD, HD, or Ultra HD video standards for ultimate flexibility in live production
- 3840 x 2160 frame size
- 20 video inputs and 16 video outputs
- Dozens of effects and creative transitions
- Powerful digital effects processor
- Built in keyers
- SuperSource function extends the ATEM’s power by adding a separate 5 layer switcher
- Dual media players with large graphic memory
- Power macros to save and instantly recall sequences
- Compatible with HyperDeck SSD recorders
- Included software control panel for Mac or Windows
- Add a hardware-based ATEM advanced panel for control in demanding live sound applications
| The NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD also includes DMX512 and GenLock interfaces, Ethernet ports for communication through standard TC/IP and USB control for cascading with additional NOVAPRO HD's. NOVAPRO HD is compatible with all of ADJ's current video products.
Controller Features
- No Computer or External Scaler Needed (standard rectangular layouts only)
- Up to 1080p @60Hz Input Resolution
- 165Mhz Pixel Clock / 4G-Bit Output Bandwidth
- Multiple Video Signal Format Support
- Cascade Multiple Units Together
- Rack Mountable Aluminum Enclosure (screws not included)
Controller Specs
CONTROL / CONNECTIONS
- (1) Input and (4) Output RJ45 EtherCON Ports
- USB, 5pin DMX, and GenLock In/Out Ports
- Audio Input: 1/8 inch connector
- Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
- Locking IEC Power Input
SIZE / WEIGHT
- Length: 19.0" (483mm)
- Width: 15.3" (389mm)
- Height: 3.5" (88.2mm)
- Weight: 13.2 lbs. (6.0kg)
ELECTRICAL
- AC 85-265V - 50/60Hz - 0.65A
- Max Power Consumption: 30W

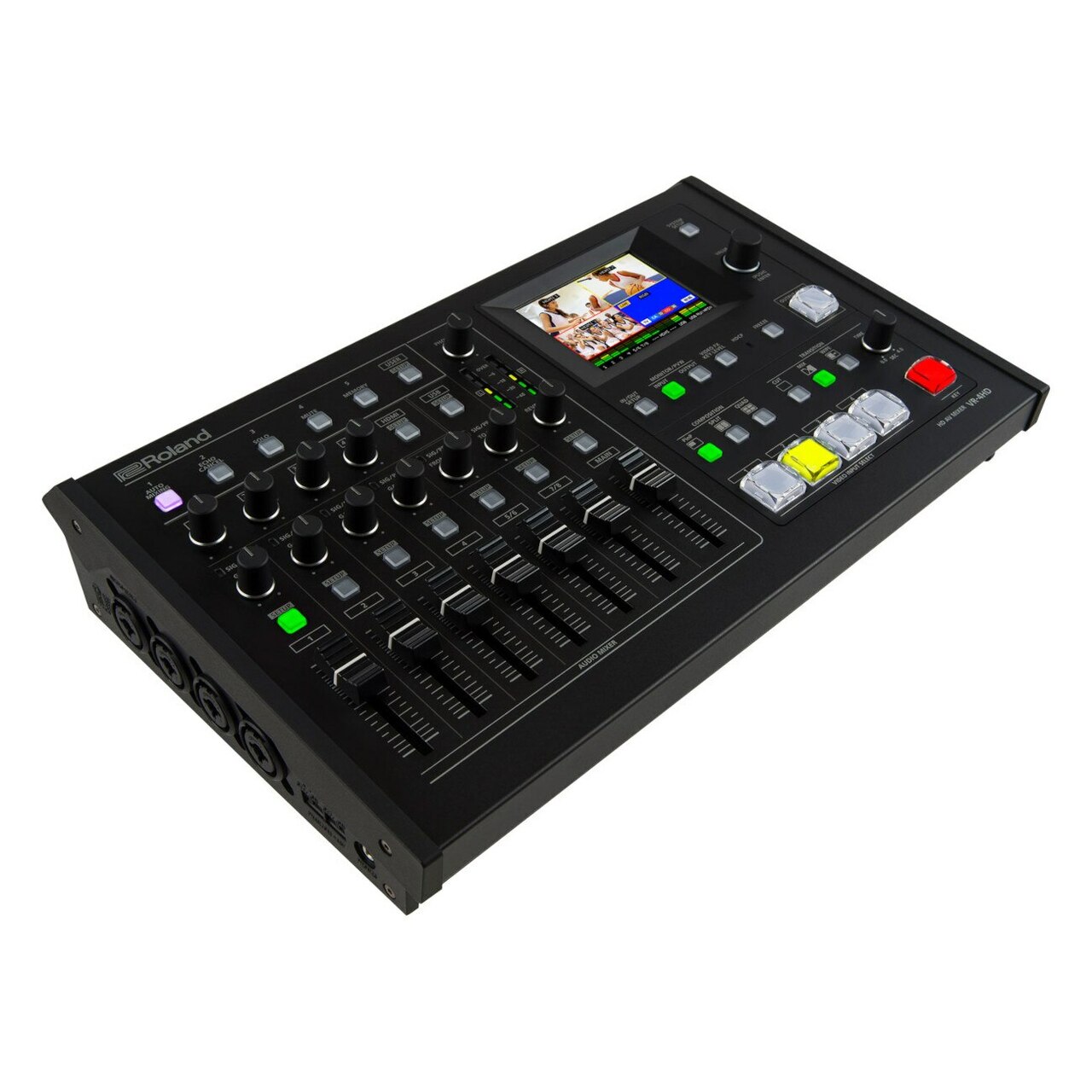

| The VR-4HD is a complete HD studio in a compact and portable package that replaces several different pieces of complex A/V equipment. Designed with individual operation in mind, the VR-4HD allows for easy video switching and mixing of audio and video using advanced Digital Signal Processing (DSP).
Along with dedicated hardware controls faders, buttons, and touch screen interface. It beautifully integrates a digital audio mixer, video switcher, multi-viewer touch screen, and USB video/audio streaming interface into a stand-alone device. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, training sessions, or any other live event.
The VR-4HD features professional quality broadcast controls and switches ensuring more accurate and faster operation than interfaces based on a computer style mouse and keyboard. The ability to simultaneously switch video with the push of a button and adjust audio with the push of a fader is invaluable and puts all essential features at the operator's fingertips. The inherent multi-see screen is likewise a touch screen interface for getting to set-up boundaries, making it incredibly simple to alter various picture settings progressively by hauling the inset window onto the screen.
Roland VR-4HD Features
- All-in-one portable production solution
- Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
- 6 input, 4-Channel Video Switcher
- Supports HDMI*1, RGB/Component, and Composite Video Inputs Up to 1080p
- Input 4's scaler now supports a wider range of video and VESA resolutions.*1 *2
- Built-in Scaler via CH4
- 18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
- Embedding and de-embedding of audio with delay settings
- Auto mixing and Echo Canceling function
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
- Built-in touch quad-input multi-viewer with audio metering
- External Multi-View Output through HDMI
- HDCP Support
- USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loopback Feature
- Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
- Sending a still image to the VR-4HD by VR-4HD RCS*3 [Ver.1.5]
- Tally, GPIO connections
| Use the Blackmagic Design ATEM production switcher series to create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. ATEM live production switchers support live production needs at live concerts, sporting events, theater productions, conferences, and more. The ATEM advanced panel is added to an ATEM switcher as a control panel.
Although each switcher includes ATEM software control panel for Mac or Windows, an ATEM Advanced Panel is faster to use, making it ideal for demanding live production environments. Setup more complex effects with the enormous amount of control you’ll have in the ATEM 2 M/E. The ATEM 2 M/E Advanced Panel features broadcast buttons, knobs, and a t-bar fader.
The ATEM 2 M/E has two M/E rows with 20 input buttons and two independent system control LCDs for reach row. Each row has an independent select bus, and can control up to four M/Es in larger switchers. Input buttons have customizable colors and button label LCDs.
Modern design with the latest broadcast technology combine to enable faster workflows. Built in LCD control screen identifies work processes. Buttons are curved and have color backlighting to reduce incorrect key presses and quickly identify the keys you need. Professional joystick controls DVE and camera adjustments, smooth weighted t-bar fader, and more.
Durable and compact, the ATEM 2 M/E fits in a standard equipment rack. It can be used seamlessly for shelf mounting in broadcast trucks, mobile racks, and fly away kits.
Blackmagic Design ATEM 2 M/E Features
- Add to an ATEM switcher for accessible control panel functions
- Faster workflow
- Two independent rows of control, each with 20 input buttons
- Backlit buttons make identification easy and lower incorrect key presses
- Joystick for DVE and camera adjustments
- Smooth weighted t-bar fader
|
