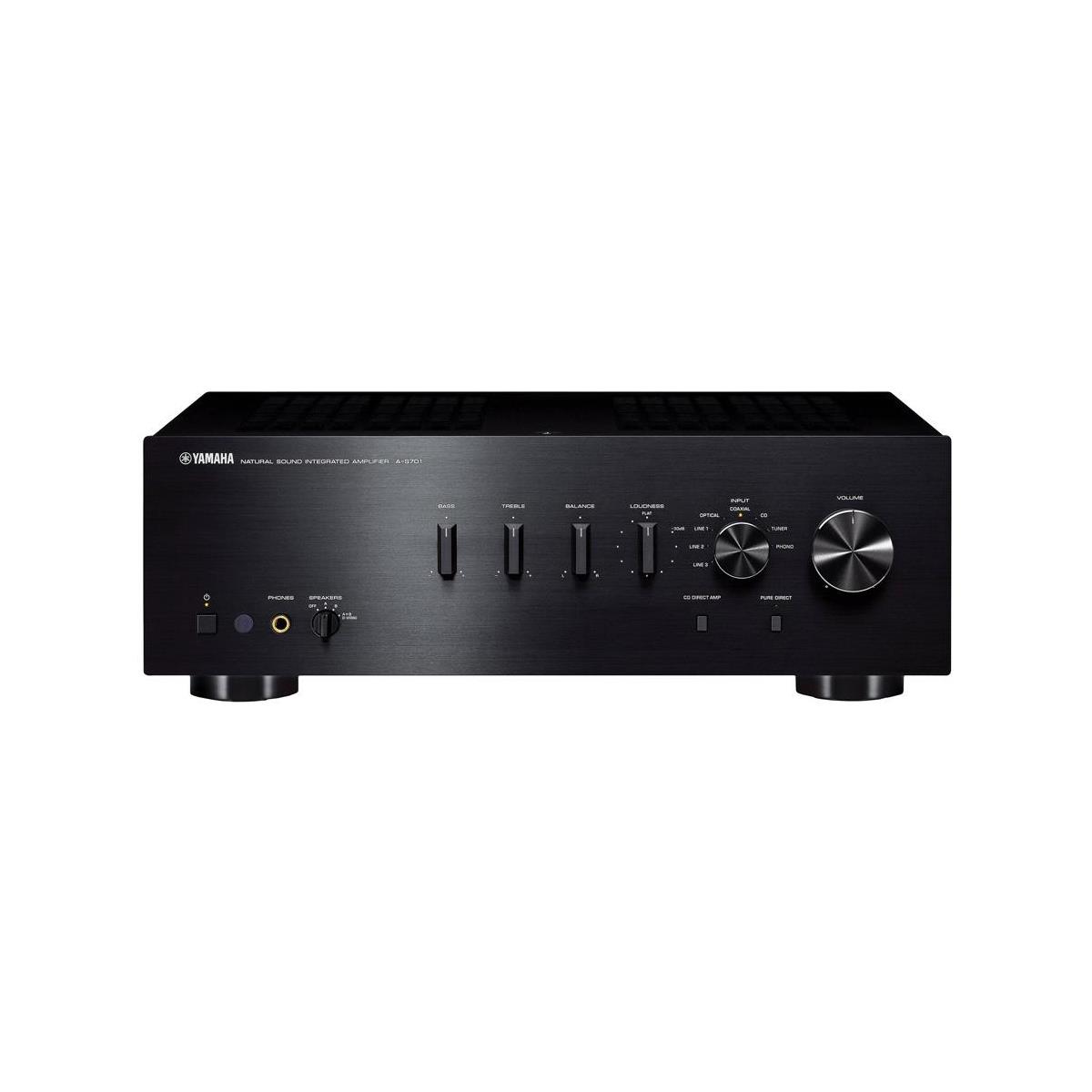

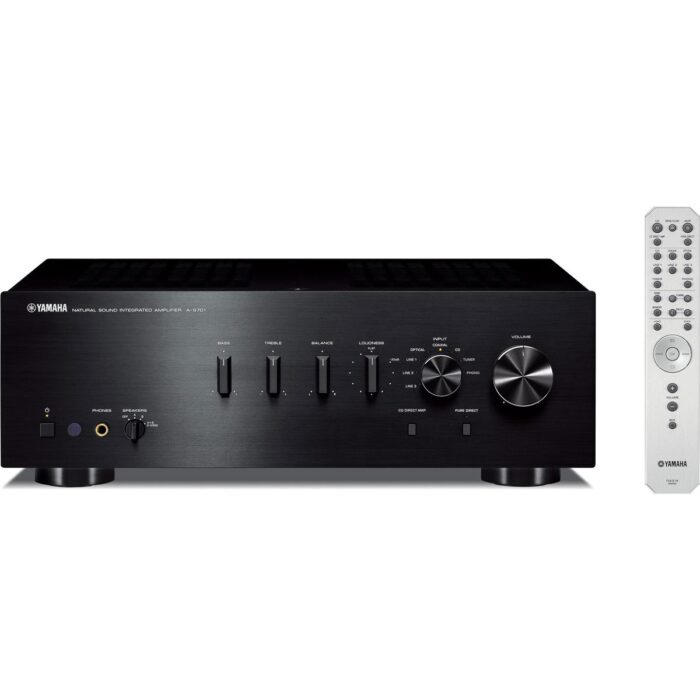

| Content | The Yamaha A-S701 Integrated Black Amplifier is designed for pure sound quality and outstanding drive power. An integrated amplifier with the advantage of analog and digital inputs.
High Quality Circuit Design Based on the ToP-ART (Total Purity Audio Reproduction Technology) Concept
The amplifier design technology from Yamaha is called ToP-ART, which features an input to output with a direct symmetrical design. ToP-ART design and ART Base ensure optimum sound when processing and transmitting the audio signal. The signal is simple and direct, so therefore it is less likely to be affected by noise and distortion. The left and right channels are organized in a straight, symmetrical layout for the highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid center bar provide high rigidity support and dampers vibration. These design innovations contribute to this amplifier's rich audio reproduction with abundant musicality.
High Quality Parts for Outstanding Audio Performance
Notice the custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one point grounding system, extruded aluminum heat sinks and other top-quality parts to effortlessly handle demanding audio conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of this component. Yamaha uses only very high quality parts, carefully selected and tested for their sound properties.
Created by Rich Experience, Tradition and High Technological Expertise
Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for Hi-Fi components. The A-S301 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of "Natural Sound" for reproducing all music as it really sounds, this amplifier is built with scrupulous care from its circuit design to basic sound production
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximizes the CD source's signal to noise ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp, the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality..
Continuously Variable Loudness Control
The A-S301 also features a new analog loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low and high frequencies, providing full tonal range at any volume level by compensating for the natural loss in the human ear at soft levels.
Gold Plated Terminals
Gold plated terminals ensure a high quality connection that prevents signal loss. The A-S501 has gold plated speaker and input terminals.
Digital Audio Input for TV and/or Blu-ray Disc Player
The A-S301 is equipped for digital audio inputs with an optical and digital coaxial input terminal. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain, giving you pure, pristine and dynamic sound for all of your entertainment sources.
Connection for YBA-11 Bluetooth Wireless Adapter (Optional Accessory)
With the YBA-11, you'll be able to stream music wirelessly from a Bluetooth compatible mobile phone or a PC. Thanks to the digital coaxial connection and the aptx audio coding algorithm, you will enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC out connection on the rear panel of this amplifier.

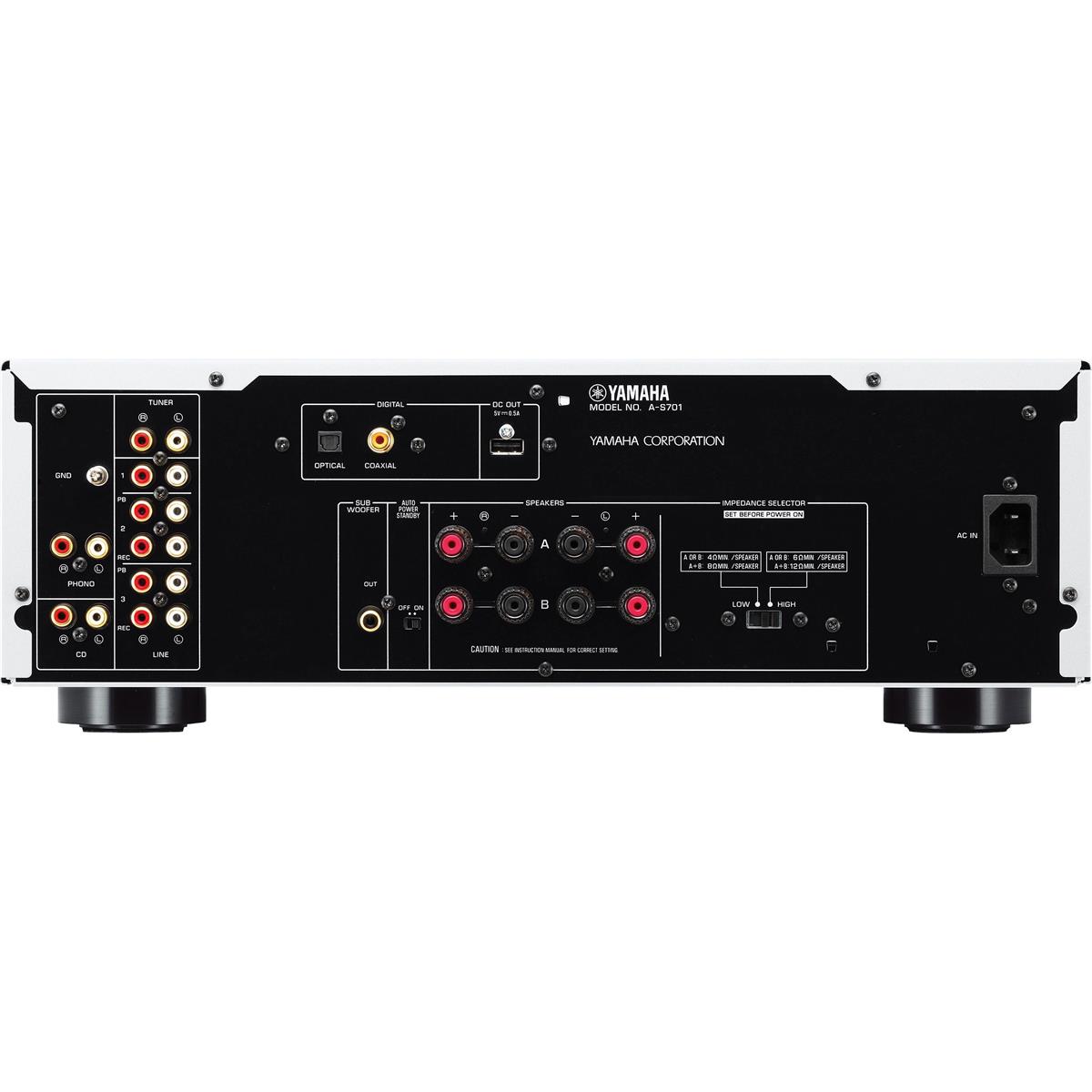

Speaker A, B or A+B Selection and Speaker Terminals for Two Systems
You can connect two separate speaker systems and hear them in different rooms at the same time. There are four terminals, so by just rotating a simple selector dial, you can switch between the two pairs of speakers to play the selected source.
Subwoofer Terminal
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono Moving Magnet Input Terminal
You can connect a turntable with a MM phono cartridge to play vinyl records. Get the best of both worlds whether listening to analog vinyl or the latest digital technology.
Simple Yet Sophisticated Design
With a beautiful, simple and unique design inherited directly from Yamaha Hi-Fi audio components, this amplifier also boasts an easy to operate layout. The aluminum front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on top end models.

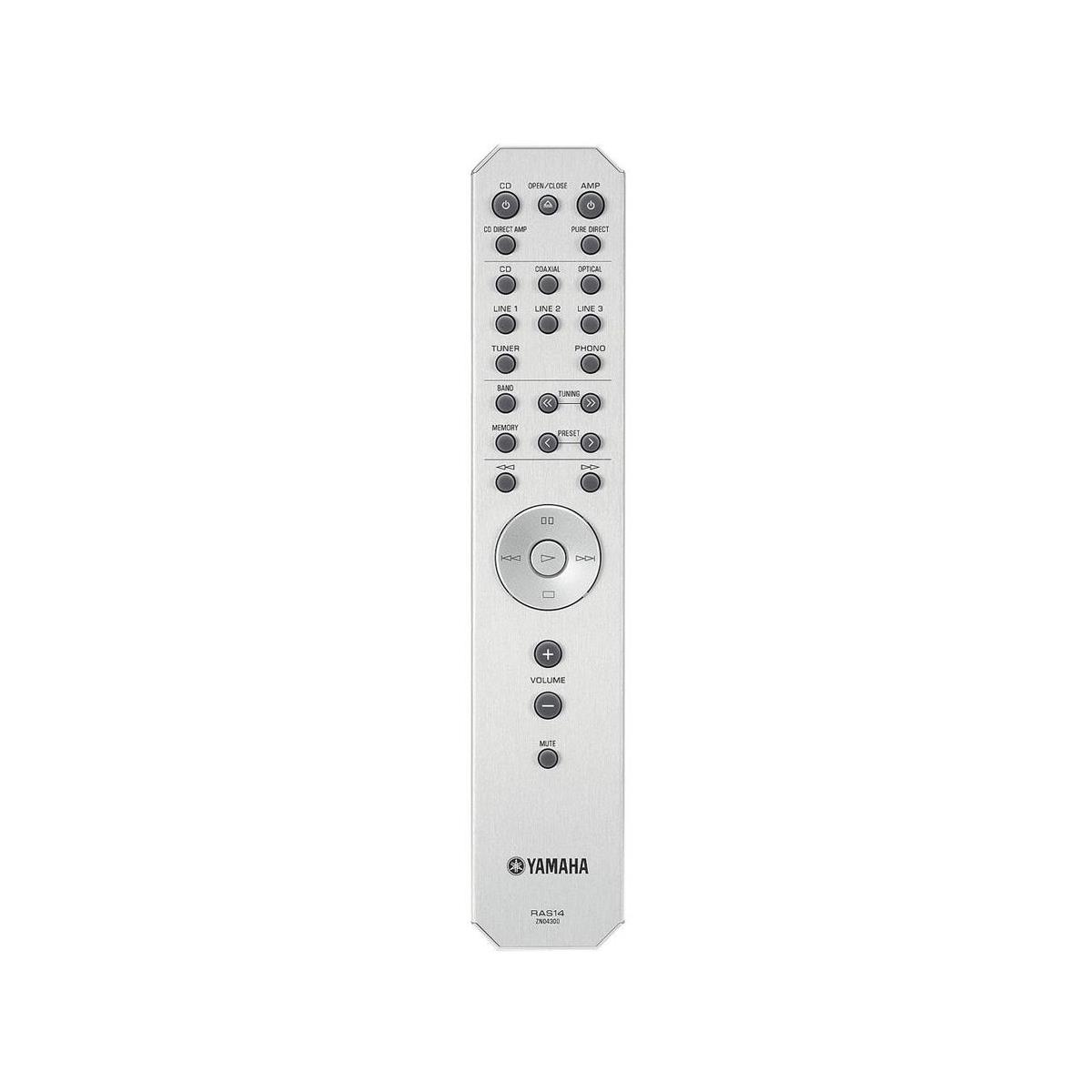

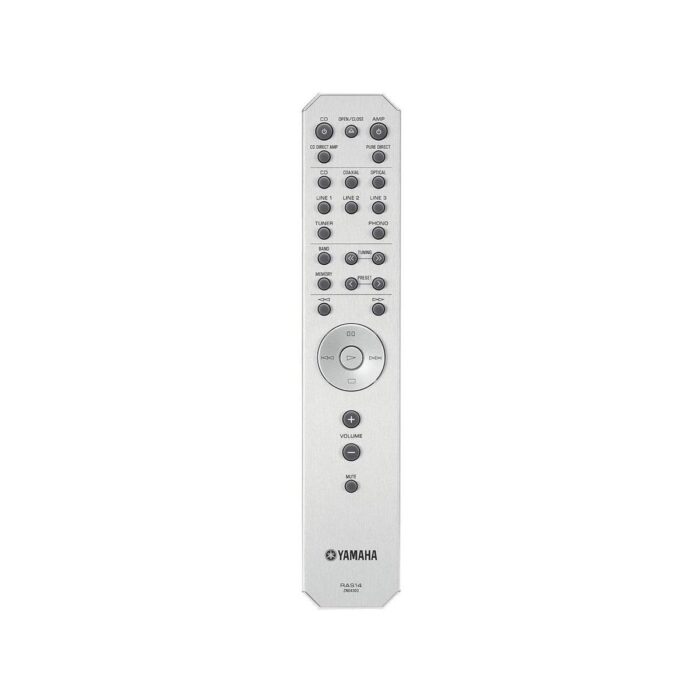

Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy to understand operation with a single hand. The design makes it simple to adjust inputs, volume and more. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxurious hairline finish offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources, even in a dark room.
Auto Power Standby Function
When Auto Power Standby is engaged, the amplifier will automatically shift itself into standby mode when a user function has not been executed in eight hours. This is a great function if you forget to turn the amplifier off and it will help minimize power consumption when the unit is not in use.
This product can only be shipped to U.S. addresses.
- Minimum RMS Output Power
- 8 Ohms: 100 W + 100 W (0.019% THD)
6 Ohms: 120 W + 120 W (0.038% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms
- Frequency Response
- 10 Hz - 100 kHz +/- 1.0 dB
- Maximum power per channel
- 1 kHz, 0.7% THD, 4 Ohms: 160 W
- IEC power
- 1 kHz, 0.019% THD, 8 Ohms: 115W
- Power band width
- 0.04% THD, 50 W, 8 Ohms: 10 Hz to 50 kHz
- Maximum Effective Output Power
- 1 kHz, 10% THD, 6 Ohms: 170 W
- Input sensitivity/Input impedance
- PHONO (MM): 3.0 mV/47 kOhmss
CD, etc: 200 mV/47 kOhmss
- Maximum input signal
- PHONO (MM) (1 kHz, 0. 03%THD): 45 mV or more
CD etc. (1 kHz, 0.5% THD): 2.2 V or more
- Output level/Output impedance
- REC OUT: 200 mV/1.0 kOhmss or less
SUBWOOFER OUT: 3.5 V/1.2 kOhmss
- Phones jack rated output/Impedance
- CD, etc. (Input 1 kHz, 200 mV, 8 Ohms: 470 mV/470 Ohms
- RIAA equalization deviation
- PHONO (MM): +/- 0.5 dB
- Channel separation
- CD, etc. (5.1 kOhmss input shorted,1kHz): 65 dB or more
CD, etc. (5.1 kOhmss input shorted,10 kHz): 50 dB or more
- Bass
- Boost/Cut (20 Hz): +/- 10 dB
Turnover frequency: 400 Hz
- Treble
- Boost/Cut (20 Hz): +/- 10 dB
Turnover frequency: 3.5 kHz
- Continuous loudness control
- - 30 dB
- PCM word depth
- 24 bit/16 bit
- Power supply
- AC 120 V, 60 Hz
- Power consumption
- 270 W
- Standby power consumption
- 0.5 W
- Maximum power consumption
- 580 W
- Total Harmonic Distortion (CD to Sp Out)
- 0.019% (50 W / 8 Ohms)
- Signal-to-Noise Ratio (CD)
- 99 dB (input shorted, 200 mV)
- Damping Factor
- 240
- Digital Input
- Yes (optical / coaxial)
- Audio In / Out
- 8 / 2
- Subwoofer Out
- Yes
- Pure Direct
- Yes
- ToP-ART
- Yes
- Switchable CD Direct Amplification
- Yes
- DC out
- Yes
- Standby Power Consumption
- 0.5 W
- Power Management (Auto Power Standby)
- Yes
- Dimensions (W x H x D)
- 17.12 x 6 x 15.25" / 434.84 x 152.4 x 387.35mm
- Weight
- 24.7lbs / 11.20kg
|

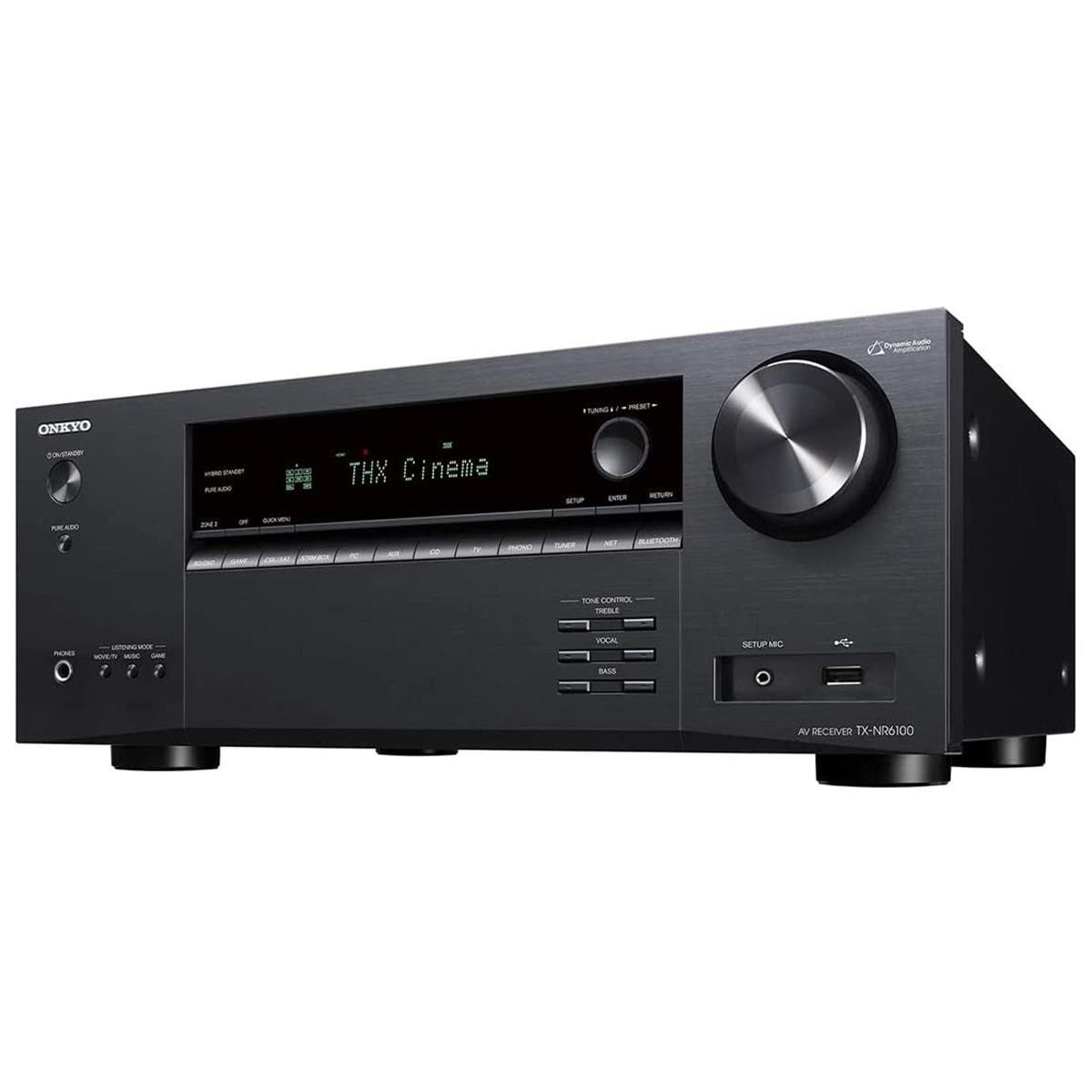

Massive THX sound and Film-Like 8K resolution
Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.
With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI 2.1, you can enjoy Dolby Atmos and DTS: X soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS and Dolby to create a 3D sound-field from any layout.
Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver delivers an unparalleled movie, music, and gaming experience to your living room.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Ultimate 4K Gaming Experience
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material.
Built-In Streaming Services
Access to Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.
Smart Home Compatible with Voice Control
Onkyo receivers easily integrate into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.
Works with SONOS Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port. This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
Bi-Directional Bluetooth Wireless Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Ready for DTS PLAY-FI
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
- 8K with HDMI 2.1 40Gbps (3 ins)
- THX Select Certification
- Discrete Zone 2 Audio and Video
- 210 W/Ch THX Certified Select Dynamic Audio Amplification system
- 5.2.2-channel Dolby Atmos and DTS:X playback
- AccuReflex phase-matching solution for Atmos-enabled speakers
- SMART AV Receiver
- Works with Hey Google or Alexa
- Stream over 5 GHz/2.4 GHz dual-band Wi-Fi supporting the 802.11ac standard
- HDMI Sub/Zone 2 Out for media transmission to a second display
- Send or receive audio via Bluetooth wireless technology
- Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
- 5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback
- Zone 2/Zone B line-out
- Power Output (All Channels)
- 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
100 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2-ch driven, FTC)
- Dynamic Power
- 240 W (3 ohms, Front) 210 W (4 ohms, Front)
120 W (8 ohms, Front)
- THD+N (Total Harmonic Distortion+Noise)
- 0.08% (20 Hz-20 kHz, half Power)
- Input Sensitivity and Impedance
- 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
- Rated RCA Output Level and Impedance
- 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
- Frequency Response
- 10 Hz-100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
- Tone Control
- +/-10 dB, 20 Hz (Bass) +/-10 dB, 20 kHz (Treble)
- Signal-to-Noise Ratio
- 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
- Speaker Impedance
- 4-16 ohms
- FM
- 87.5 MHz-107.9 MHz
- AM
- 530 kHz-1,710 kHz
- FM/AM Preset Memory
- 40 stations
- Power Supply
- AC 120 V-, 60 Hz
- Power Consumption
- Operating: 635 W
Idle: 65 W
Standby: 0.1 W
- Dimensions (W x H x D)
- 17.12 x 6.8 x 14.94" (435 x 173.5 x 379.5mm)
- Weight
- 21.7 lbs (9.8kg)
|

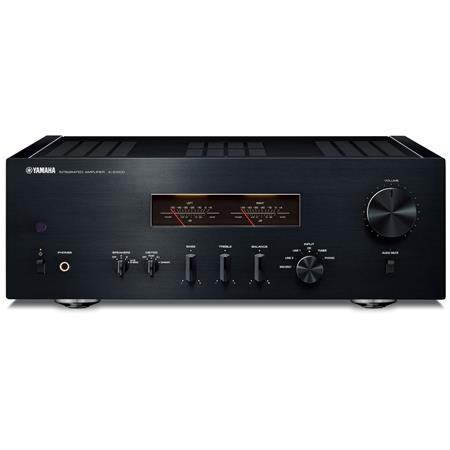

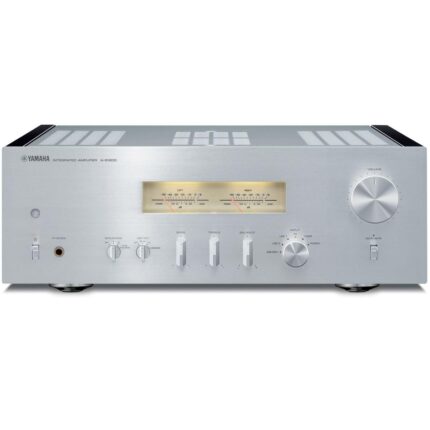

Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
Nostalgic Hi-Fi design. Today's Hi-Fi technology
A nod to the past with the latest technology for a purely musical sound.
Emotion
Understanding music is to understand the emotion upon which music is created - the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists' emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.
>Toroidal Transformer
Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today's discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.
Openness
An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners' musical experience, bringing them closer to the artist.
Thick Wires for Ground Connection
Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.
Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.
Groove
Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the 'Groove' of the music to the listener.
Chrome-Plated Iron Feet
Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
ColorBlackRated output power 2-channel driven8Ohm: 90 W + 90 W
4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)Dynamic power8Ohm: 105 W + 105 W
6Ohm: 135 W + 135 W
4Ohm: 190 W + 190 W
2Ohm: 220 W + 220 WIEC output power8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)Maximum effective output power8Ohm: 120 W + 120 W
4Ohm: 190 W + 190 WPower bandwidth 2-channel driven8Ohm: 10 Hz to 50 kHz (0.1% THD, 45 W)Damping factor8Ohm: 250 or higher(1 kHz)Input sensitivityPHONO (MC): 150 micro Vrms / 50Ohm
PHONO (MM): 3.5 mVrms / 47 kOhm
CD (or similar): 200 mVrms / 47 kOhm
MAIN IN: 1 Vrms / 47 kOhmMaximum inputPHONO (MC): 2.0 mVrms
PHONO (MM): 50 mVrms
CD (or similar): 2.80 VrmsRated output voltageLINE 2 OUT: 200 mVrms / 1.5 kOhm
PRE OUT: 1 Vrms / 1.5 kOhmHeadphone jack rated output power25 mW + 25 mW (1 kHz, 32 Ohm, 0.2% THD)Frequency response5 Hz to 100 kHz: +0 / -3 dB
20 Hz to 20 kHz: +0 / -0.3 dBDeviations from RIAA equalizerPHONO (MM/MC): +/-0.5 dBTotal harmonic distortion plus noise2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
CD (or similar) - SPEAKERS OUT, 50 W/8Ohm: 0.035%
Signal-to-noise ratioPHONO (MC): 90 dB
PHONO (MM): 96 dB
CD (or similar): 110 dBResidual noise50 micro VrmsChannel separationPHONO (MC): 66/77 dB or higher
PHONO (MM): 90/77 dB or higher
CD (or similar): 74/54 dB or higherTone control characteristicsBASS: Boost/cut: 50 Hz / +/-9 dB
Turnover frequency: 350 Hz
TREBLE: Boost/cut: 20 kHz / +/-9 dB
Turnover frequency: 3.5 kHzPower supplyAC 120 V, 60 HzPower consumption350 WStandby power consumptionOFF mode: 0.1 W
Standby mode: 0.2 WDimensions (W x H x D)17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)Weight48.5 lbs (22kg)
|
AVENTAGE RX-A2A 7.2-channel AV Receiver with MusicCast
Take your entertainment to the next level. With professional quality video and immersive surround sound via Dolby Atmos, the RX-A2A will completely transform home cinema.
Breathtaking Sound
• Dolby AtmosDolby Atmos
• Dolby AtmosDolby Atmos with Height Virtualization
• DTS:XDTS:X
• High Slew Rate AmplifierHigh Amplifier
• Compressed Music Enhancer Compressed Enhancer
• MusicCast multi-room audioMusicCast audio
• Wi-Fi, AirPlay 2, 2 and Spotify Connect
• Streaming services include Spotify, Amazon Music, PandoraPandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM, SiriusXM
• Zone 2
• Phono input
Movies and Games Like Never Before
• 4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
• (7) HDMI inputs with HDCP 2.3 and eARC
• With future updates for HDMI 2.1, including: HDR 10+, 8K60B, 4K120AB and enhanced gaming features (ALLM, VRR, QMS, QFT)
Simple to Set Up, Simple To Use
• AV Setup Guide app
• MusicCast app
• Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Designed For Your Space
• YPAO R.S.C. with multipoint
• Wireless rear surround capability
• Sleek, modern design
Dolby Atmos with Height Virtualization
Feel every dimension in Dolby Atmos. For those without in-ceiling or upward firing speakers in their systems, this height virtualization technology simulates the Atmos experience with forward-facing drivers.
DTS:X
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism in all your favorite movies.
Anti-Resonance Technology Wedge
The Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the center of the chassis unit base. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers - providing dynamic sound and focused, accurate reproduction.
Cinema DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your favorite movies and shows.
Movies and Games Like Never Before
8K60B, 4K120AB and 4K60
This receiver supports end-to-end 8K/4K resolutions and higher refresh rates, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybid-Log Gamma and BT.2020 included.
Enhanced Media and Gaming Features (ALLM, VRR, QFT and QMS)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
Multiple HDMI inputs will equally support the latest HDMI technology to allow next-gen gaming consoles to be connected at the same time.
Simple to Set Up, Simple to Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your phone or tablet.
Voice Control
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control with Siri from an Apple iOS device.
AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings. Includes web setup for CI.
Designed For Your Space
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
YPAO R.S.C. with Multipoint
YPAO (Yamaha Parametric Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X.
Dynamic and Compelling
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
- Breathtaking Sound
- Movies and Games Like Never Before
- Simple to Set Up, Simple To Use
- Designed For Your Space
- Dolby Atmos with Height Virtualization
- DTS:X
- Anti-Resonance Technology Wedge
- Cinema DSP 3D
- 8K60B, 4K120AB and 4K60
- HDR10+ and Dolby Vision
- Enhanced Media and Gaming Features (ALLM, VRR, QFT and QMS)
- Future Support for Multiple HDMI Inputs
- MusicCast App
- Voice Control
- AV Setup Guide App
- Compatible with Wireless Surround Sound
- YPAO R.S.C. with Multipoint
- Dynamic and Compelling
- Channel
- 7.2
- Rated Output Power
- 100 W (8 ohms, 0.06% THD) (20Hz-20kHz, 2-ch driven)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision
- Yes (via future update)
- Hybrid-Log Gamma and BT.2020, HDR10+
- Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/1
- HDMI 4K60/4K120AB/8K60B support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output
- Optical: 1 / 0
Coaxial: 1 / 0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 4/0
- Zone 2
- Yes
- Phono Input
- Yes
- Preout
- 2.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- 0.1 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.125 x 6.75 x 14.6" (43 x 17 x 37cm)
With antenna up: 17.125 x 9.62 x 14.6" (43 x 24.4 x 37cm)
- Weight
- 22.5 lbs (10kg)
| The Yamaha A-S801 Integrated Silver Amplifier is designed for USB DAC functionality coupled with high fidelity. ToP-ART circuitry, Pure Direct, refined construction and stunningly good looks offer superior musicality with rich, natural sound.
High Sound Quality Circuit Design Based on the ToP-ART (Total Purity Audio Reproduction Technology) Concept
ToP-ART Design and ART Base ensure optimum sound when processing and transmitting the audio signal. The signal is simple and direct, therefore it is less likely to be affected by noise and distortion. The left and right channels are organized in a straight, symmetrical layout for the highest signal purity.
High Strength Chassis Contributes to High Density Sound and Pure Audio Reproduction
In order to effectively dampen the vibrations that have adverse effects on sound quality, the A-S801 chassis has a double bottom design with a 1 mm iron plate. In addition, the power transformer and heat sinks in the power amp section are supported by an extremely strong and stable ART (Anti-Resonance and Tough) base. A solid center bar further enhances high rigidity and dampens vibrations. These Yamaha design innovations contribute to superior signal to noise ratio with rich, natural sound reproduction.
High Quality Parts for Outstanding Audio Performance
Notice the custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one point grounding system, extruded aluminum heat sinks and other top-quality parts to effortlessly handle demanding audio conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of this component. Yamaha uses only very high quality parts, carefully selected and tested for their sound properties.
USB DAC Function Supports Native DSD (2.8 MHz / 5.6 MHz) and PCM (384 kHz / 32-bit) Resolutions
The USB DAC function supports native DSD (2.8 MHz and 5.6 MHz) and PCM (384 kHz / 32-bit ) resolutions. This function allows for a direct connection to PCs which opens the door to play back of the highest resolution audio content offered today. The Yamaha-developed USB device controller has its own master clock that eliminates PC jitter. The driver is a low loss, high throughput ASIO 2.3 Yamaha Steinberg USB driver. During playback, indicators on the front panel clearly show which sampling frequencies are currently being used.
Exceptionally High Performance 32-bit D/A Converter
After careful listening evaluations, Yamaha selected the 32-bit, 2-channel SABRE Premier Audio DAC from ESS Technology, Inc. Most notable is its high precision processing power of 32-bit audio along with the ability to handle large amounts of audio data with full PCM 384 kHz and native DSD 5.6 MHz. Since the built-in D/A converter generates its own master clock, an original jitter elimination function is also included, permitting D/A conversion with an extremely low impact of clock jitter. Moreover, a 2-channel D/A converter is housed inside the chip which applies a double differential operation. The result is exceptional high performance and high quality signal output with a superior signal to noise ratio.
Digital Audio Input for TV and/or Blu-ray Disc Player
The A-S801 is equipped for digital audio inputs with an optical and digital coaxial input terminal. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain giving you pure, pristine and dynamic sound for all your entertainment sources.
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximizes the CD sources signal-to-noise ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp, the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
Continuous Variable Loudness Control
The A-S801 also features a new analog loudness control on the front panel that uses electronic volume for higher sound quality which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low and high frequencies providing full tonal range at any volume level by compensating for the natural loss in the human ear at soft levels.
Gold Plated Terminals
Gold plated terminals ensure a high quality connection that prevents signal loss. The A-S501 has gold plated speaker and input terminals.
Subwoofer Terminal
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono Moving Magnet Input Terminal
You can connect a turntable with a MM phono cartridge to play vinyl records. Get the best of both worlds whether listening to analog vinyl or the latest digital technology.
Simple Yet Sophisticated Design
With a beautiful, simple and unique design inherited directly from Yamaha Hi-Fi audio components, this amplifier also boasts an easy to operate layout. The aluminum front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on top end models.

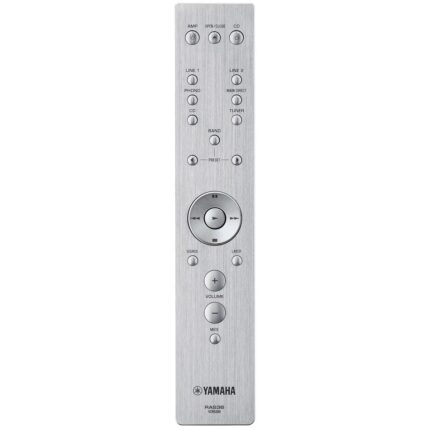

Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy to understand operation with a single hand. The design makes it simple to adjust inputs, volume and more. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxurious hairline finish offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources, even in a dark room.
Connection for YBA-11 Bluetooth Wireless Adapter
With the YBA-11, you'll be able to stream music wireless from a Bluetooth compatible mobile phone or a PC. Thanks to the digital coaxial connection and the aptx audio coding algorithm, you'll enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC out connection on the rear panel of this amplifier.
Auto Power Standby Function
When Auto Power Standby is engaged, the amplifier will automatically shift itself into standby mode when a user function has not been executed in eight hours. This is a great function if you forget to turn the amplifier off and it will help minimize power consumption when the unit is not in use.
This product can only be shipped to U.S. addresses.
- Minimum RMS Output Power
- 8 Ohms:100 W + 100 W (0.019% THD)
6 Ohms: 120 W + 120 W (0.038% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms
- Maximum power per channel
- 160 W
- EC power 1 kHz, 0.019% THD, 8 Ohms
- 115 W
- Power band width 0.04% THD, 50 W, 8 Ohms
- 10 Hz to 50 kHz
- Maximum effective output power
- 145 W
- Input sensitivity/Input impedance
- 3.0 mV/47 kOhmss
- Maximum input signal
- Phono(MM) (1 kHz, 0.03% THD): 45 mV or more
CD, etc. (1 kHz, 0.5% THD):2.2 V or more
- Output level/Output impedance
- REC OUT: 200 mV/1.0 kOhmss or less
SUBWOOFER OUT: 3.5 V/1.2 kOhmss
- PHONES jack rated output/Impedance
- 470 mV/470 Ohms
- Frequency response
- CD, etc. (20 Hz to 20 kHz): 0 +/- 0.5 dB
CD, etc. PURE DIRECT on (10 Hz to 100 kHz): 0 +/- 1.0 dB
- RIAA equalization deviation
- PHONO (MM): +/- 0.5 dB
- Total harmonic Phono (MM) to REC OUT
- (20 Hz to 20 kHz, 2.5 V): 0.03% or less
CD, etc. to SPEAKERS(20 Hz to 20 kHz, 50 W, 8 Ohms): 0.019% or less
- Signal to noise ratio (IHF-A network)
- PHONO (MM) (5 mV input shorted): 82 dB or more
CD, etc. PURE DIRECT on (200 mV input shorted): 99 dB or more
CD DIRECT AMP on: 104 dB or more
- Residual noise (IHF-A network)
- 40 uV
- Channel separation
- CD, etc. (5.1 kOhmss input shorted, 1 kHz): 65 dB or more
CD, etc. (5.1 kOhmss input shorted, 10 KHz): 50 dB or more
- Bass
- Boost/Cut (20 Hz): +/-10 dB
Turnover frequency: 400 Hz
- Treble
- Boost/Cut (20 kHz): +/-10 dB
Turnover frequency: 3.5 kHz
- Continuous loudness control
- Attenuation (1 kHz): -30 dB
- USB (Type B)
- Supported USB2.0
- Supported digital audio format
- PCM (2-ch): 192/176.4/96/88.2/48/44.1/32 kHz
- Supported digital audio format (USB)
- PCM (2-ch): 384/352.8/192/176.4/96/88.2/48/44.1 kHz
DSD: 2.8224/5.6448 MHz
- PCM word depth
- 32/24/16 bit
- Power supply
- AC 120 V, 60 Hz
- Damping Factor
- 240
- Total Harmonic Distortion (CD to Sp Out)
- 0.019% (50 W / 8 Ohms)
- Signal-to-Noise Ratio (CD)
- 99 dB (input shorted, 200 mV)
- Audio In / Out
- 8 / 2
- Digital Input
- Yes (optical / coaxial)
- USB Input
- Yes (type B)
- Subwoofer Out
- Yes
- DC out
- Yes
- Pure Direct
- Yes
- ToP-ART
- Yes
- Switchable CD Direct Amplification
- Yes
- Standby Power Consumption
- 0.5 W
- Power Management (Auto Power Standby)
- Yes
- Dimensions (W x H x D)
- 17.12 x 6 x 15.25" / 434.84 x 152.4 x 387.35mm
- Weight
- 26.7lbs / 12.11kg
|
Eliminate Cables Without Sacrificing 4K HD Quality
With support for full UHD resolutions up to 4K @30Hz, the Ultra-Fast 60GHz Wireless 4K UHD Transmitter & Receiver Kit for 2 TVs can offer flexibility to place your 4K HDTV or HD projector anywhere up to 40 ft. or 12 meters in-room wirelessly from the HD video source without sacrificing picture and sound quality.
With near-zero latency, exceptional video resolutions of 3840 x 2160 and support for the newest 4K UHD High Dynamic Range TVs and content, the Ultra-Fast Wireless Transmitter and Receiver Kit enable both video and audio to be broadcast without any delay in real time. Save the time and expense of hiring installers to run messy HDMI cables through ceilings and walls.
• up 4K @30Hz
• up to 40'
• Near Zero Latency
Perfect for Medical, Office and Educational Settings
The Ultra-Fast 60GHz Wireless 4K UHD Transmitter & Receiver Kit for 2 TVs is an ultra-high-performance wireless AV solution that enables professionals to transmit 4K Ultra High Definition video and audio from an HDMI source over distances up to 40 feet with near-zero latency to up to two (2) displays at the same time from one video source. Use the wirelessly flexibility of up to 40 ft. to share content within medicals bays, research laboratories or university settings.
Display messages and 4K video content to Customers via UHDTV displays in office lobbies or within waiting rooms of medical office. Connect wirelessly to digital HDMI sign devices to relay important information in hallways, manufacturing floors or hospitality environments without the need to install lengthy wire runs or security configurations with existing Wi-Fi networks.
Limited Interference - Dedicated Wireless
Utilizing the 60GHz frequency band for AV guards the extender against interference from common wireless devices that transmit on the 2.4 or 5GHz frequency bands such as most smartphones, laptops and IoT devices as well as Wi-Fi routers and access points. The extender provides a dedicated connection for your content, does not require an existing Wi-Fi network and is quick and easy to set up, simply plug in and press play!
Eliminate Cables Without Sacrificing 4K Quality
Hide your A/V equipment out of sight across thro om, keeping your HDTVs cable free while avoiding the clutter and the eyesore of cabling. With wireless flexibility, move your HDTV setups to different parts of the room, office or lobby without the mess of wires.
Hassle-Free Setup
The Ultra-Fast 60GHz Wireless 4K UHD Transmitter & Receiver Kit for 2 TVs comes with everything you need inside the box to get started. Connect the include HDMI cables between your source HDMI-enabled video source and the Ultra-Fast transmitter and connect the Ultra-Fast receivers to the 4K displays or TVs. Plug in power to both, sync and you are ready to enjoy the video content.
The transmitter and receivers do not require or need a Wi-Fi network or complicated security configurations and will not interfere with any 802.11AD (60GHz band) routers. The included transmitter and receivers come ready with security enabled and are paired to create an independent wireless network connection.
- Wirelessly send 4K UHD video from one HDMI source to 2 HDMI TV/Projectors
- Extends signals up to 40 Ft. line-of-sight
- Uncompressed audio and video at near-zero latency - ideal for gaming and streaming
- Resolutions up to 3840 x 2160 @30Hz
- Minimal interference with existing Wi-Fi devices via 60GHz wireless frequency
- Support Master audio format
- Plug-n-Play - Transmitter and receiver come pre-paired from factory
- Dedicated closed wireless system - Requires no Wi-Fi network
- Advanced wireless technology speeds to 18 Gbps
- LED status lights for source/display connections and wireless link
- Compact mountable design for easy placement
- HDMI 1.4 & HDCP 2.2 compliant
- Supports 4K UHD TVs and content
- Requirement
- Video source with HDMI output
Video display with HDMI input
- Video
- Output: HDCP 2.2 Support
input: HDCP 2.2
- Power
- 5V/1A
- Video Resolution
- 3840 x 2160 @ 30Hz
- Video Streaming
- Uncompressed
- Audio Output
- LPCM Stereo
- Frequency Band
- 60 GHz
- Antenna Type
- Printed Circuit Board
- Operation Temperature
- 32-122 Degree F (0-50 Degree C)
- Storage Temperature
- 14-158 Degree F (-10-70 Degree C)
- Humidity
- 10 - 90%
- Power Adapter
- Input: 100-240 VAC/0.3A, Output: 5VDC/2A
- Case
- Aluminum
- Power Consumption
- 3W
- Dimensions
- 3 x 1.2 x 4" (76 x 30.4 x 101.2mm)
- Weight
- Rx: 8.7 oz (249g)
Tx: 19.9 oz (566g)
|
Reviews
There are no reviews yet.
