High Strength Chassis Contributes to High Density Sound and Pure Audio Reproduction
In order to effectively dampen the vibrations that have adverse effects on sound quality, the A-S801 chassis has a double bottom design with a 1 mm iron plate. In addition, the power transformer and heat sinks in the power amp section are supported by an extremely strong and stable ART (Anti-Resonance and Tough) base. A solid center bar further enhances high rigidity and dampens vibrations. These Yamaha design innovations contribute to superior signal to noise ratio with rich, natural sound reproduction.
High Quality Parts for Outstanding Audio Performance
Notice a custom made power transformer, custom made block capacitors, two direct signal path speaker relays, one point grounding system, extruded aluminum heat sinks and other top quality parts to effortlessly handle demanding audio conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of this component. Yamaha uses only very high quality parts, carefully selected and tested for their sound properties.
Digital Audio Input for TV and/or Blu-ray Disc™ Player
The A-S801 is equipped for digital audio inputs with an optical and digital coaxial input terminal. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain giving you pure, pristine and dynamic sound for all your entertainment sources.
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximizes the CD sources signal-to-noise ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp, the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
Continuous Variable Loudness Control
The A-S801 also features a new analog loudness control on the front panel that uses electronic volume for higher sound quality which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low and high frequencies providing full tonal range at any volume level by compensating for the natural loss in the human ear at soft levels.
Gold Plated Terminals
Gold plated terminals ensure a high quality connection that prevents signal loss. The A-S801 has gold plated speaker and input terminals.
Simple Yet Sophisticated Design
With a beautiful, simple and unique design inherited directly from Yamaha Hi-Fi audio components, this amplifier also boasts an easy to operate layout. The aluminum front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on our top end models.
- Minimum RMS Output Power
- 8 Ohms:100 W + 100 W (0.019% THD)
6 Ohms: 120 W + 120 W (0.038% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms
- Maximum power per channel
- 160 W
- EC power 1 kHz, 0.019% THD, 8 Ohms
- 115 W
- Power band width 0.04% THD, 50 W, 8 Ohms
- 10 Hz to 50 kHz
- Maximum effective output power
- 145 W
- Input sensitivity/Input impedance
- 3.0 mV/47 kOhmss
- Maximum input signal
- Phono(MM) (1 kHz, 0.03% THD): 45 mV or more
CD, etc. (1 kHz, 0.5% THD):2.2 V or more
- Output level/Output impedance
- REC OUT: 200 mV/1.0 kOhmss or less
SUBWOOFER OUT: 3.5 V/1.2 kOhmss
- PHONES jack rated output/Impedance
- 470 mV/470 Ohms
- Frequency response
- CD, etc. (20 Hz to 20 kHz): 0 +/- 0.5 dB
CD, etc. PURE DIRECT on (10 Hz to 100 kHz): 0 +/- 1.0 dB
- RIAA equalization deviation
- PHONO (MM): +/- 0.5 dB
- Total harmonic Phono (MM) to REC OUT
- (20 Hz to 20 kHz, 2.5 V): 0.03% or less
CD, etc. to SPEAKERS(20 Hz to 20 kHz, 50 W, 8 Ohms): 0.019% or less
- Signal to noise ratio (IHF-A network)
- PHONO (MM) (5 mV input shorted): 82 dB or more
CD, etc. PURE DIRECT on (200 mV input shorted): 99 dB or more
CD DIRECT AMP on: 104 dB or more
- Residual noise (IHF-A network)
- 40 uV
- Channel separation
- CD, etc. (5.1 kOhmss input shorted, 1 kHz): 65 dB or more
CD, etc. (5.1 kOhmss input shorted, 10 KHz): 50 dB or more
- Bass
- Boost/Cut (20 Hz): +/-10 dB
Turnover frequency: 400 Hz
- Treble
- Boost/Cut (20 kHz): +/-10 dB
Turnover frequency: 3.5 kHz
- Continuous loudness control
- Attenuation (1 kHz): -30 dB
- USB (Type B)
- Supported USB2.0
- Supported digital audio format
- PCM (2-ch): 192/176.4/96/88.2/48/44.1/32 kHz
- Supported digital audio format (USB)
- PCM (2-ch): 384/352.8/192/176.4/96/88.2/48/44.1 kHz
DSD: 2.8224/5.6448 MHz
- PCM word depth
- 32/24/16 bit
- Power supply
- AC 120 V, 60 Hz
- Damping Factor
- 240
- Total Harmonic Distortion (CD to Sp Out)
- 0.019% (50 W / 8 Ohms)
- Signal-to-Noise Ratio (CD)
- 99 dB (input shorted, 200 mV)
- Audio In / Out
- 8 / 2
- Digital Input
- Yes (optical / coaxial)
- USB Input
- Yes (type B)
- Subwoofer Out
- Yes
- DC out
- Yes
- Pure Direct
- Yes
- ToP-ART
- Yes
- Switchable CD Direct Amplification
- Yes
- Standby Power Consumption
- 0.5 W
- Power Management (Auto Power Standby)
- Yes
- Dimensions (W x H x D)
- 17.12 x 6 x 15.25" / 434.84 x 152.4 x 387.35mm
- Weight
- 26.7lbs / 12.11kg
|
Equipped with the 6th generation of Direct Energy HD Amplifier, the SC-LX704 is worthy of being your home cinema's centerpiece, and an ideal combination for Pioneer's flagship universal disc player. Two ES9026PRO DACs ensure quality audio reproduction, while MCACC Pro Auto Room Tuning technology with Full Band Phase Control brings out the best from 3D surround sounds of IMAX Enhanced, Dolby Atmos, and DTS:X. Enjoy rich, vibrant sound with PQLS jitterless transmission. The new Audio Exclusive Mode and AV Direct Mode enhance detailed sound reproduction by turning off the unused functions to eliminate unwanted noise.
Direct Energy HD Class D Switching Amplifier
Continuously evolving throughout the years, Pioneer's Direct Energy HD Amp has now reached the 6th generation. New power coils are adopted for the ideal speaker drive, as well as new custom film capacitors co-developed with Shinyei Capacitor for the ultimate sound. The power supply and patterning has been developed through repeated tuning. Also, the entire transmission path from the pre stage to the power stage has been changed to balanced circuitry, to transmit noise-free high-quality signals to the power stage.
MCACC Pro Auto Room Tuning
MCACC Pro, the pinnacle of Pioneer's auto room tuning technology, analyzes the phase and group delay characteristics to precisely control phase differences between speakers. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers. Required microphone included.
IMAX Enhanced MODE
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite's IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
ESS 384 kHz/32-bit DAC
Two 384 kHz/32-bit ESS DACs (ES9026PRO), same as the ones used for Pioneers PD-70AE SACD player, are used for all channels. With extremely precise D/A conversion and high S/N ratio, the DAC provides powerful sound full of rich details.
Dolby Atmos
You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.
DTS:X
Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.
Full Band Phase Control
Pioneer's Phase Control technology effectively eliminates phase lag and significantly improves the multi-channel sound without any extra operation. Furthermore, The Full Band Phase Control technology focuses on the group delay in the speaker network filter, and adjusts the phase of each unit as well as the group delay for each speaker. Multi-range speakers gain the sound coherence of full-range speakers, while retaining the wide frequency range advantage. In an environment where the phase of all units and all channels are precisely controlled, a remarkably clear sound location with a surrounding feel is achieved. In combination with MCACC Pro, the ideal multi-channel reproduction environment can be created, which faithfully replicates object audio and the intention of the original content developer.
PQFA Jitterless Sound Processing for Network/USB
With PQFA (Precision Quartz File-based Audio), clocks are available for each stage of input, digital signal processing, and D/A conversion, and the shorter path prevents jitter from occurring. Additionally, a high-precision clock IC (OSC) is used to realise D/A conversion with significantly less jitter.
PQLS Jitterless Sound Transmission
With the precision quartz controller on the AV receiver, Precision Quartz Lock System (PQLS) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the Pioneer universal disc player connected via HDMI, giving the best possible digital-to-analog conversion.
Audio Exclusive Mode
Interference from video signals is eliminated by turning off the video signal path via HDMI. You can enjoy detailed sound, full of spatial feel.
AV Direct Mode
The feature turns off the network functions to suppress digital noise within the AV receiver, and improves sound quality for analog playback, digital input, HDMI playback etc. Mode 1 turns off the network module operation clock, while Mode 2 shuts down the network power completely for more superior sound.
Works with Alexa
Works with Alexa makes you control SC-LX704 with your voice via Alexa-enabled device such as the Amazon Echo, to play, pause, and skip titles or control the volume. You can enjoy the music via streaming service such like Amazon Music by selecting song title, artist name, release year, and genre.
Ready for 4K HDR entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
High-Performance AC Cable
Included detachable OFC power cable contributes to superior sound.
Anti-Standing Wave Insulators
Features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localisation, tone, and scale clearer, while also contributing to seamless connection between the channels and improved response to quick sound.
- Direct Energy HD Amplifier
- MCACC Pro Auto Room Tuning
- IMAX Enhanced
- ESS 384 kHz/32-bit DAC
- Dolby Atmos/Dolby Surround Upmixing
- DTS:X/DTS Neural:X Upmixing
- Full Band Phase Control
- 2 Subwoofer Pre-Out
- PQLS Jitterless Sound Transmission
- PQFA Jitterless Sound Processing for Network/USB
- Audio Exclusive Mode
- AV Direct Mode
- Works with Alexa
- Next Generation Video Standard Ready
- Anti-Standing Wave Insulators
- AC Inlet Type Thick Cable
- Amplifier Design
- Class D3 (Direct Energy HD)
- Multi-ch Simultaneous Drive
- 760 W (8ohms, 1 kHz, THD 1 %)
- 4 Ohm Speaker
- Yes
- Channels
- 9.2
- 8 ohms, 1kHz, THD 0.08 %, 2ch Driven FTC
- 135W+135W
- Power Consumption
- 310W/0.2W (Estimated Power Consumption/Network Standby off)
- AirPlay
- Apple AirPlay 2
- Internet Radio
- TuneIn Radio
- Works with the Google Assistant
- Yes (Chromecast built-in)
- FlareConnect for Multi-room Audio
- Yes
- Roon Tested
- Yes
- Streaming Audio From PC/Network
- Yes
- iOS/Android Remote Control APP
- Pioneer Control App
- Works with Alexa
- Yes (Firmware update)
- DTS Play-Fi w/Pioneer Music Control App
- Yes
- Music-Streaming Services Ready
- Amazon Music, Pandora, Spotify, TIDAL, and Deezer Hi-Fi: Yes
- Digital Core DSP Engine
- Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus floating- point DSP (TI)
- Audio Processing
- 11.2
- IMAX Enhanced
- Yes
- Dolby Atmos Height Virtualizer
- Yes
- Dolby Digital Plus
- Yes
- DTS-HD Master Audio
- Yes
- HDMI SACD Transfer
- Multi-Channel
- Audio DACs
- 384 kHz/32-bit D/A Conversion with ES9026PRO x 2
- Music File Playback
- 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
- Dolby Atmos
- Yes
- Dolby TrueHD
- Yes
- DTS:X
- Yes
- DTS Neural:X
- Yes
- MCACC
- Yes (Pro)
- Full Band Phase Control
- Yes
- Phase Control
- Yes
- EQ Bands
- 9-Band
- Distance Adjustment
- 0.05'
- Auto Subwoofer Crossover
- Yes
- MCACC Memory
- 3
- Auto Phase Control Plus
- Yes
- Standing Wave Control
- Multi-point (9 points)
- EQ Type
- LR SYMMETRY EQ, FRONT ALIGN EQ, ALL CH ADJUST EQ
- Polarity Check
- Yes
- Auto Surround
- Yes
- Advanced Surround
- 10+1
- Stream Direct
- Yes (Direct, Pure Direct)
- Front Stage Surround Advance
- Yes
- Dialog Enhancement
- Yes
- DSD Music File
- Yes
- Sound Delay (Lip Sync)
- Yes
- Bi-Amp
- Yes
- Advanced Sound Retriever
- Yes (2ch)
- Tone Control
- Multi
- Speaker A/B
- Yes
- 4K Ultra HD Pass-Through
- Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
- 3-D Ready
- Yes
- HDMI Standby Through
- Yes with Input Switch/Last Memory
- Dolby Vision Compatible
- Yes
- HDMI x.v. Color
- Yes
- Super Resolution
- Yes
- 4K Ultra HD Video Scaler
- Yes (1080p to 4K)
- Audio Return Channel
- Yes (eARC)
- HDR
- HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
- HDMI 36-bit Deep Color
- Yes
- Video Converter to HDMI
- Yes
- HDMI Input/Output
- 7 In (6 Rear, 1 Front)/3 Out
- Bluetooth Built-In
- Bluetooth Wireless Technology (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
- Composite A/V Input/Output
- 2 in
- Ethernet Input
- Yes
- Digital Audio Inputs/Output
- 5 in (Optical 3, Coaxial 2)/0 out
- Headphone Output
- Yes
- Phono Input
- Yes
- Wi-Fi Built-In
- Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi Built-in
- Component Video Input/Output
- 2 in
- USB Terminal
- Front and Rear
- Analog Audio Inputs/Output
- 6 in/0 out
- Pre-Amp Output
- 11.2 ch
- Front A/V Inputs
- USB & HDMI
- AM/FM Presets
- AM/FM Tuner 40 Presets
- On-Screen Display
- User-Friendly GUI with System Setup Menu
- Powered Zone output
- ZONE2/ZONE3
- Zone 2 Sources
- All Audio Sources
- 12 Volt Trigger (Assignable)
- A.B
- IR Serial Remote In/Out
- 2 in/1 out
- Function Rename
- Yes
- Personal Preset
- Yes
- Versatile Speaker Configuration
- Yes
- Auto Power Down
- Yes
- Multi-Room and Source Output
- ZONE2/ZONE3 Pre/Line Out
- Zone 3 Sources
- Analog/Net/Bluetooth/Tuner
- RS-232C
- Yes
- FL Dimmer
- Yes
- Remote
- Yes
- Sleep Timer
- Yes
- Alumium Front Panel
- Yes
- Transformer Stabilizer
- Yes
- 3D Space Frame Construction
- Yes
- Speaker Terminals
- 11 Large
- Advanced Direct Construction
- Yes
- Dimensions (W x H x D)
- 17-1/8 x 7-5/16 x 17-5/16 inches (435 x 185 x 440mm)
- Weight
- 40.8 lbs (18.5kg)
|
Pure power and precision. The A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift on-screen movements, the A6A ensures you won't miss a thing.
Breathtaking Sound
Surround:AI
Dolby Atmos
Dolby Atmos with Height Virtualization
DTS:X
High Slew Rate Amplifier
Compressed Music Enhancer
MusicCast multi-room audio
Wi-Fi, AirPlay 2 and Spotify Connect
Streaming services include Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM
Zone 2/3 and HDMI Zone 4
Phono input
Movies And Games Like Never Before
4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
HDR 10+, 8K60AB, 4K120AB via future update
Gaming-dedicated functions (ALLM, VRR, QMS, QFT) via future update
Multiple HDMI inputs with the latest technology
AURO-3D via future update
Simple To Set Up, Simple To Use
MusicCast app
AV Setup Guide app
Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Integration with third party control partners
Designed For Your Space
YPAO-R.S.C. with multipoint measurement and precision EQ
Wireless rear surround capability
Sleek, modern design
Anti-Resonance Technology Wedge (Fifth Foot)
Breathtaking Sound
Surround:AI
This artificial intelligence analyzes the DSP parameters and optimizes the surround effect of distinct sound elements such as background music, dialogue, and sound effects. It's like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407
Crafted for Clarity
The newly designed Anti-Resonance Technology (A.R.T.), H-shaped Cross Frame and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal clear sound that moves you, all while your AV receiver stays perfectly still. A double-bottom plate ensures stability for unnecessary vibrations.
High-Quality Digital Components
The Qualcomm QCS407 takes your AV receiver's audio performance to the next level with support for Dolby Atmos and DTS:X. SABRE ES9026 PROs minimize noise to make even the most delicate sounds rich, while SABRE ES9007S Premier Audio DAC provides superior signal-to-noise ratio and up to 120dB of dynamic range for professional quality audio.
AURO-3D
Bring your entertainment experience to the next level with immersive audio that accurately reproduces 3D sound with superior effect across any content. Gain entry into a world where every breath-taking moment is not only heard but also felt.
Movies And Games Like Never Before
8K60AB, 4K120AB and 4K60
This feature offering enables a higher resolution and refresh rate, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybrid-Log Gamma and BT-2020 included.
Enhanced Gaming Features (ALLM, VRR, QMS and QFT)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
These HDMI inputs will equally support the latest HDMI technology to allow several next-gen gaming consoles to be connected at the same time.
Simple To Set Up, Simple To Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Working with Alexa and Google Assistant, your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device.
AV Setup Guide App
This app offers expert guidance through installation, cable connections, and various other settings.
Third Party Control
This receiver includes integration with third party control partners, including Crestron, URC, RTI, Control4 and more
Designed For Your Space
YPAO-R.S.C. with Multipoint Measurement and Precision EQ
YPAO (Yamaha Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X. This feature includes low frequency mode.
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
- 9.2ch / 150 W
- High Slew Rate Amplifier
- HDMI 7 inputs / 3 outputs
- DTS:X
- Streaming Service
- CINEMA DSP HD3
- 11ch Pre Out
- Multi-room Audio
- AirPlay 2
- Dolby Atmos
- Playback in Multiple Zones
- XLR Input Terminal
- Channel
- 9.2 (11.2 processing)
- Rated Output Power
- (20Hz-20kHz, 2-ch driven): 150 W (8 ohms, 0.06% THD)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision, Hybrid-Log Gamma
- BT.2020, HDR10+: Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/3
- HDMI 4K60, 4K120AB, 8K60AB support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output: Optical
- 3/0
- Digital Audio Input/Output: Coaxial
- 2/0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 6/0
- Zone 2 and 3
- Yes
- Phono Input
- Yes
- XLR Terminal
- Yes
- Component Video Input/Output
- 1/0
- Composite Video Input/Output
- 2/0
- Preout
- 11.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- < 0.4 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.12 x 7.5 x 17.37" (43.48 x 19.05 x 44.11cm)
With antenna up: 17.12 x 10.62 x 17.37" (43.48 x 26.97 x 44.11cm)
- Weight
- 44.8 lbs (20.3kg)
| The Yamaha A-S701 Integrated Black Amplifier is designed for pure sound quality and outstanding drive power. An integrated amplifier with the advantage of analog and digital inputs.
High Quality Circuit Design Based on the ToP-ART (Total Purity Audio Reproduction Technology) Concept
The amplifier design technology from Yamaha is called ToP-ART, which features an input to output with a direct symmetrical design. ToP-ART design and ART Base ensure optimum sound when processing and transmitting the audio signal. The signal is simple and direct, so therefore it is less likely to be affected by noise and distortion. The left and right channels are organized in a straight, symmetrical layout for the highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid center bar provide high rigidity support and dampers vibration. These design innovations contribute to this amplifier's rich audio reproduction with abundant musicality.
High Quality Parts for Outstanding Audio Performance
Notice the custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one point grounding system, extruded aluminum heat sinks and other top-quality parts to effortlessly handle demanding audio conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of this component. Yamaha uses only very high quality parts, carefully selected and tested for their sound properties.
Created by Rich Experience, Tradition and High Technological Expertise
Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for Hi-Fi components. The A-S301 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of "Natural Sound" for reproducing all music as it really sounds, this amplifier is built with scrupulous care from its circuit design to basic sound production
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
With a straight connection to the CD input, CD Direct Amplification maximizes the CD source's signal to noise ratio. Additionally, engaging the Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp, the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality..
Continuously Variable Loudness Control
The A-S301 also features a new analog loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low and high frequencies, providing full tonal range at any volume level by compensating for the natural loss in the human ear at soft levels.
Gold Plated Terminals
Gold plated terminals ensure a high quality connection that prevents signal loss. The A-S501 has gold plated speaker and input terminals.
Digital Audio Input for TV and/or Blu-ray Disc Player
The A-S301 is equipped for digital audio inputs with an optical and digital coaxial input terminal. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain, giving you pure, pristine and dynamic sound for all of your entertainment sources.
Connection for YBA-11 Bluetooth Wireless Adapter (Optional Accessory)
With the YBA-11, you'll be able to stream music wirelessly from a Bluetooth compatible mobile phone or a PC. Thanks to the digital coaxial connection and the aptx audio coding algorithm, you will enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC out connection on the rear panel of this amplifier.
Speaker A, B or A+B Selection and Speaker Terminals for Two Systems
You can connect two separate speaker systems and hear them in different rooms at the same time. There are four terminals, so by just rotating a simple selector dial, you can switch between the two pairs of speakers to play the selected source.
Subwoofer Terminal
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono Moving Magnet Input Terminal
You can connect a turntable with a MM phono cartridge to play vinyl records. Get the best of both worlds whether listening to analog vinyl or the latest digital technology.
Simple Yet Sophisticated Design
With a beautiful, simple and unique design inherited directly from Yamaha Hi-Fi audio components, this amplifier also boasts an easy to operate layout. The aluminum front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on top end models.

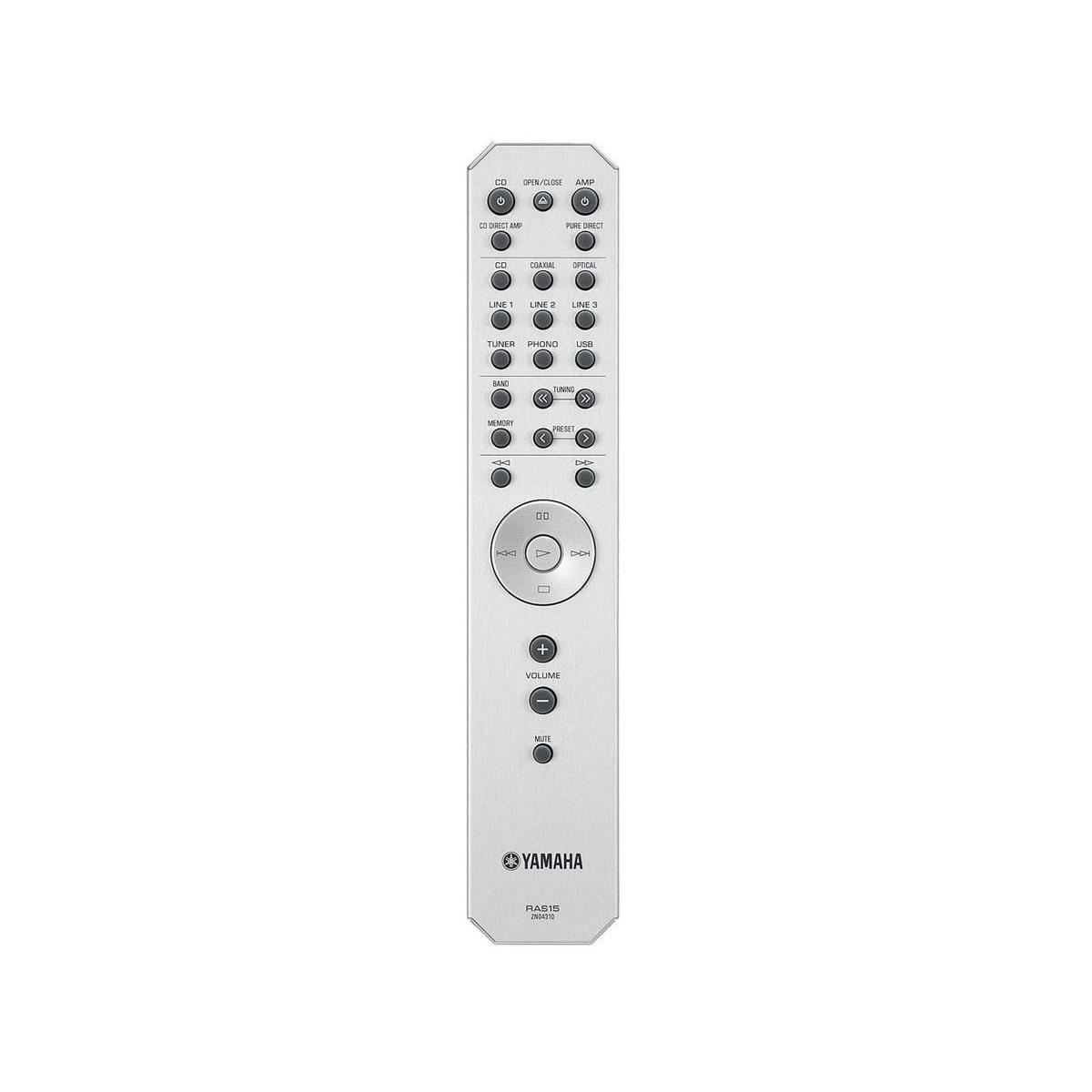

Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy to understand operation with a single hand. The design makes it simple to adjust inputs, volume and more. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxurious hairline finish offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources, even in a dark room.
Auto Power Standby Function
When Auto Power Standby is engaged, the amplifier will automatically shift itself into standby mode when a user function has not been executed in eight hours. This is a great function if you forget to turn the amplifier off and it will help minimize power consumption when the unit is not in use.
This product can only be shipped to U.S. addresses.
- Minimum RMS Output Power
- 8 Ohms: 100 W + 100 W (0.019% THD)
6 Ohms: 120 W + 120 W (0.038% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290 W at 8 / 6 / 4 / 2 Ohms
- Frequency Response
- 10 Hz - 100 kHz +/- 1.0 dB
- Maximum power per channel
- 1 kHz, 0.7% THD, 4 Ohms: 160 W
- IEC power
- 1 kHz, 0.019% THD, 8 Ohms: 115W
- Power band width
- 0.04% THD, 50 W, 8 Ohms: 10 Hz to 50 kHz
- Maximum Effective Output Power
- 1 kHz, 10% THD, 6 Ohms: 170 W
- Input sensitivity/Input impedance
- PHONO (MM): 3.0 mV/47 kOhmss
CD, etc: 200 mV/47 kOhmss
- Maximum input signal
- PHONO (MM) (1 kHz, 0. 03%THD): 45 mV or more
CD etc. (1 kHz, 0.5% THD): 2.2 V or more
- Output level/Output impedance
- REC OUT: 200 mV/1.0 kOhmss or less
SUBWOOFER OUT: 3.5 V/1.2 kOhmss
- Phones jack rated output/Impedance
- CD, etc. (Input 1 kHz, 200 mV, 8 Ohms: 470 mV/470 Ohms
- RIAA equalization deviation
- PHONO (MM): +/- 0.5 dB
- Channel separation
- CD, etc. (5.1 kOhmss input shorted,1kHz): 65 dB or more
CD, etc. (5.1 kOhmss input shorted,10 kHz): 50 dB or more
- Bass
- Boost/Cut (20 Hz): +/- 10 dB
Turnover frequency: 400 Hz
- Treble
- Boost/Cut (20 Hz): +/- 10 dB
Turnover frequency: 3.5 kHz
- Continuous loudness control
- - 30 dB
- PCM word depth
- 24 bit/16 bit
- Power supply
- AC 120 V, 60 Hz
- Power consumption
- 270 W
- Standby power consumption
- 0.5 W
- Maximum power consumption
- 580 W
- Total Harmonic Distortion (CD to Sp Out)
- 0.019% (50 W / 8 Ohms)
- Signal-to-Noise Ratio (CD)
- 99 dB (input shorted, 200 mV)
- Damping Factor
- 240
- Digital Input
- Yes (optical / coaxial)
- Audio In / Out
- 8 / 2
- Subwoofer Out
- Yes
- Pure Direct
- Yes
- ToP-ART
- Yes
- Switchable CD Direct Amplification
- Yes
- DC out
- Yes
- Standby Power Consumption
- 0.5 W
- Power Management (Auto Power Standby)
- Yes
- Dimensions (W x H x D)
- 17.12 x 6 x 15.25" / 434.84 x 152.4 x 387.35mm
- Weight
- 24.7lbs / 11.20kg
|
Elite's brand-new universal disc player brings the spectacle of Ultra HD Blu-ray to your home entertainment, with four times the resolution of 1080p Full HD. Featuring three-block internal layout, Ultra Rigid Construction and Double-Layered Chassis for a robust build, 6-layered main circuit board, SDR/HDR preset mode and support for HDR10/Dolby Vision for quality picture, as well as premium audio DAC and Zero Signal Terminal for high-grade sound, the UDP-LX500 lets you enjoy the highest video resolution as well as your other digital disc collections.
Construction
• Three-Block Internal Layout (Power Supply, Drive/Digital Processing, Analog Audio)
• Ultra-Rigid Construction without Radiation Holes
• Double-Layered Chassis Reinforced with 3 mm Steel Plate for Rigidity and Low Center of Gravity
• 6-Layered Main Circuit Board for High S/N Ratio
• Rigid & Quiet UHD BD Drive
• Honeycomb Mechanism Drive Cover - Acoustic Damper Tray, Float-Mounting Structure
Video Features
• Ultra HD Blu-ray Playback
• SDR/HDR Preset Mode for Optimal Performance for the Display
• Video Adjust
• HDR10
• Dolby Vision (Low Latency Compatible)
• 36-bit Deep Color/"x.v.Color"
Audio Features
• Highly Precise D/A Conversion
• Direct Function for Pure Analog Audio Output
• Dual HDMI Output
• PQLS Jitter-less Sound Transmission via HDMI (with compatible AV Receiver)
Convenience
• Disc Information On-Screen Display
• BD-Live/BONUSVIEW
• Continued Viewing Playback
• 30 sec Skip Forward/10 sec Skip Back
• Auto Power Off
• Firmware Update (USB/Network)
• Self-Illuminating Remote Control
Ultra HD Blu-ray Playback
Certified by the UHD Alliance, the new Elite UDP-LX500 meets or exceeds strict performance specifications for resolution (4K - 4 times sharper than HD), high dynamic range (HDR - brilliant brights, deepest darks) and wide color spectrum (more lifelike colors). It also focuses on other video and audio attributes including immersive audio (multi-dimensional sound) among others. These performance advances guarantee the UDP-LX500 is able to fully replicate the richness of life's sights and sounds, enabling viewers to more accurately experience the content creator's vision.
Three-Block Internal Layout
The blocks for power supply, drive/digital processing and analog audio are separated into three to eliminate electrical and magnetic interference between the blocks.
Ultra-Rigid Construction without Radiation Holes
Even the holes for heat radiation are excluded to realize a flat form with optimal electric circuit design and minimum mechanical noise from the rotating system. The result is significantly low noise and even more rigid and stable chassis structure.
Double-Layered Chassis with Rigid Under Base for Rigidity and Low Center of Gravity
The 1.6 mm-thick chassis base is reinforced with a 3 mm-thick steel plate Rigid Under Base. This Double-Layered Chassis structure provides a low center-of-gravity and overall rigidity that prevents the transfer of external vibration to the inner chassis and offers a superior reading of the disc.
6-Layered Main Circuit Board for High S/N Ratio
A 6-layered IVH is used for the main circuit board to thoroughly eliminate digital noise. This optimizes the digital signal wiring and minimizes GND impedance and dramatically improves S/N ratio in audio/video signal processing. The 18 Gbps transmission through the latest HDMI standard becomes even more precise.
SDR/HDR Preset Mode for Optimal Performance for the Display
In addition to the video parameter "Reference" for reproducing the original master quality, you can select "LCD TV," "OLED TV," or "Projector" for the video quality best suited to your display. Additionally, there are SDR/HDR presets for each video parameter, that automatically switches between SDR preset and HDR preset according to the output signal.
Disc Information On-Screen Display
You can display the disc information on your screen by pressing and holding the remote control's DISPLAY button. In addition to the playing disc's details, you can easily check mastering information such as MaxFALL (Maximum Frame Average Light Level) and MaxCLL (Maximum Content Light Level) available on some HDR content, as well as HDMI output information .
PQLS Jitter-less Sound Transmission
With the precision quartz controller on a compatible AV receiver, Pioneer's PQLS (Precision Quartz Lock System) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the UDP-LX500, giving the best possible digital-to-analog conversion. UDP-LX500 supports PQLS 2ch Audio, Multi-Surround and Bit-stream.
Zero Signal Terminal
The Zero Signal Terminal is a Pioneer-original feature dedicated to tuning audio and video quality without signal transmission. By connecting the Zero Signal Terminal with the audio/video input terminal of an AV receiver etc., the reference level (GND) of the audio/video signals is aligned between the two devices and the potential difference is suppressed, allowing a precise and high-quality signal transmission.
- Ultra HD Blu-ray Playback
- Three-Block Internal Layout (Power Supply, Drive/Digital Processing, Analog Audio)
- 6-Layered Main Circuit Board for High S/N Ratio
- PQLS Jitter-less Sound Transmission
- System
- NTSC
- Region
- Blu-ray: A
DVD: 1
- HDR Compatibility
- HDR10, Dolby Vision
- HD Upconversion
- No
- Video
- Ultra HD Blu-ray, 3D Blu-ray, BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, DVD+R, DVD+R DL, DVD+RW, DVD-Audio, DVD-R, DVD-R DL, DVD-ROM, DVD-RW, DVD-Video
- Audio
- CD-DA, CD-R, CD-ROM, CD-RW, SACD
- Output Ports
- 1x HDMI Type A
1x RCA (Analog Audio)
1x RCA (Digital Audio)
- Input Ports
- No
- USB Ports
- 2x USB Type-A
- Ethernet
- Yes
- Wi-Fi
- No
- Bluetooth
- No
- Control
- RS-232C
- Digital Media Slot
- No
- BD-Live
- Yes
- BONUSVIEW
- Yes
- Playback Media
- BD-ROM (UHDBD/3D BD/BD)/BD-R (DL)/BD-R LTH/BD-RE (DL)
DVD-ROM (DVD-Video/DVD-Audio)/DVD-R (DL)/DVD-RW/DVD+R (DL)/ DVD+RW
Audio CD (CD-DA/SACD)/CD-ROM/CD-R/CD-RW
USB Memory/HDD
- Terminals
- HDMI 2 Out (1 Main for Audio/Video, 1 Sub for Audio)
Digital Coaxial Out
Digital Optical Out
USB 2 In (1 Front, 1 Rear)
Ethernet
RS-232C
Analog Audio Out (Unbalanced)
Zero Signal Terminal (for Audio/Video Quality Tuning)
- AC Input Power
- 120 VAC, 60 Hz
- Power Consumption
- 28 W (Typical)
1.2 W (Idle)
0.4 W (Standby)
- ENERGY STAR Compliant
- No
- Dimensions (WxHxD)
- 17.13 x 4.63 x 13.25" (43.51 x 11.76 x 33.66cm)
- Weight
- 22.7 lbs (10.30kg)
|
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
Nostalgic Hi-Fi design. Today's Hi-Fi technology
A nod to the past with the latest technology for a purely musical sound.
Emotion
Understanding music is to understand the emotion upon which music is created - the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists' emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.
>Toroidal Transformer
Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today's discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.
Openness
An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners' musical experience, bringing them closer to the artist.
Thick Wires for Ground Connection
Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.
Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.
Groove
Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the 'Groove' of the music to the listener.
Chrome-Plated Iron Feet
Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
ColorSilverRated output power 2-channel driven8Ohm: 90 W + 90 W
4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)Dynamic power8Ohm: 105 W + 105 W
6Ohm: 135 W + 135 W
4Ohm: 190 W + 190 W
2Ohm: 220 W + 220 WIEC output power8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)Maximum effective output power8Ohm: 120 W + 120 W
4Ohm: 190 W + 190 WPower bandwidth 2-channel driven8Ohm: 10 Hz to 50 kHz (0.1% THD, 45 W)Damping factor8Ohm: 250 or higher(1 kHz)Input sensitivityPHONO (MC): 150 micro Vrms / 50Ohm
PHONO (MM): 3.5 mVrms / 47 kOhm
CD (or similar): 200 mVrms / 47 kOhm
MAIN IN: 1 Vrms / 47 kOhmMaximum inputPHONO (MC): 2.0 mVrms
PHONO (MM): 50 mVrms
CD (or similar): 2.80 VrmsRated output voltageLINE 2 OUT: 200 mVrms / 1.5 kOhm
PRE OUT: 1 Vrms / 1.5 kOhmHeadphone jack rated output power25 mW + 25 mW (1 kHz, 32 Ohm, 0.2% THD)Frequency response5 Hz to 100 kHz: +0 / -3 dB
20 Hz to 20 kHz: +0 / -0.3 dBDeviations from RIAA equalizerPHONO (MM/MC): +/-0.5 dBTotal harmonic distortion plus noise2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
CD (or similar) - SPEAKERS OUT, 50 W/8Ohm: 0.035%
Signal-to-noise ratioPHONO (MC): 90 dB
PHONO (MM): 96 dB
CD (or similar): 110 dBResidual noise50 micro VrmsChannel separationPHONO (MC): 66/77 dB or higher
PHONO (MM): 90/77 dB or higher
CD (or similar): 74/54 dB or higherTone control characteristicsBASS: Boost/cut: 50 Hz / +/-9 dB
Turnover frequency: 350 Hz
TREBLE: Boost/cut: 20 kHz / +/-9 dB
Turnover frequency: 3.5 kHzPower supplyAC 120 V, 60 HzPower consumption350 WStandby power consumptionOFF mode: 0.1 W
Standby mode: 0.2 WDimensions (W x H x D)17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)Weight48.5 lbs (22kg)
|
Reviews
There are no reviews yet.
