Beautifully Brainy

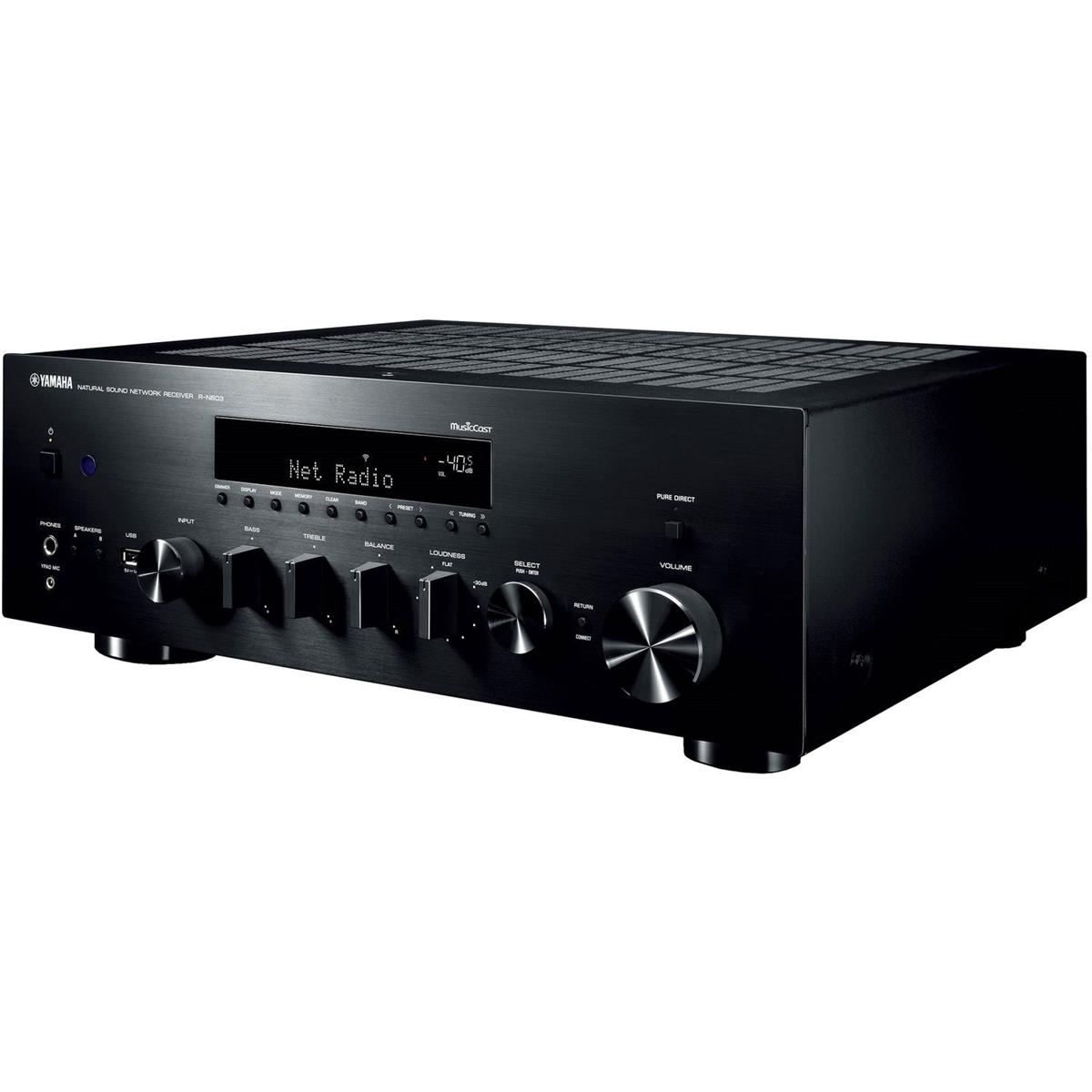

The elegant design of the R-N803 is equally matched with powerful brainy internals - a full suite of modern technological and connectivity features make the receiver even more captivating and result in a receiver worthy to take home to your Wi-Fi and Hi-Fi.
Experience the Legend, Enjoy the Musicality
The legendary Yamaha Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology) combines a meticulously symmetrical left/right circuit layout and signal directness (straightest, shortest signal paths) with a low-vibration chassis of high rigidity. The chassis is equipped with the special resin frame "Art Base" that absorbs and blocks unnecessary vibration. The result is sonic purity and an accurate stereo image of your music.
High Precision, High Performance
The R-N803 uses the renowned SABRE 9006AS 192 kHz/24-bit DAC (from ESS technology) to deliver superior signal-to-noise ratio performance. Combined with the Yamaha original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.
Optimized for the Ultimate
For the first time in a Hi-Fi receiver, the R-N803 is equipped with the Yamaha Parametric room Acoustic Optimizer (YPAO), a famed technology used in Yamaha AV receivers. It measures the shape of the room, the material of the wall and the position of the speaker, then automatically adjusts the sound to create the ideal response and sonic quality. The unit also features other advanced YPAO functions, including YPAO - Reflected Sound Control, which actively corrects the important early reflection sounds that greatly influence sound quality and YPAO Volume, which applies exceptionally high-precision EQ (equalization), with 192 kHz / 64-bit operation. The result? You can create an ideal listening environment right in your home, just like that of a professional audio listening room.
Sound Purity
Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.
Pure Delight to Own
This receiver inherits the simple and sophisticated design style for which Yamaha Hi-Fi audio is famous. Its elegant simplicity beautifully complements your other Hi-Fi audio components. The stylish design with high-quality materials deepens both the joy of ownership and the joy of listening.
Sophisticated Circuit Design
The power amp block adopts a symmetrical and direct circuit layout based on the ToP-ART concept, featuring a parallel push-pull structure using a total of eight bipolar-type power transistors (four each, on left and right) as its output terminals. And by minimizing the lengths of the audio signal paths in the circuit design, we've lowered impedance to achieve superb drive power with a maximum output of 145 watts (per channel).
Wireless
The R-N803 is equipped with Bluetooth to let you enjoy music playback from smartphones and other devices.
MusicCast
Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi network.
Stream it all
Listen to Pandora, Spotify, Napster, SiriusXM Internet Radio, TIDAL, Deezer, thousands of free internet radio stations and the music stored on your smart devices and computers.
Wireless connectivity
All MusicCast products are fully loaded with Wi-Fi, Bluetooth and AirPlay.
Expand to a whole home audio experience
When you're ready, add MusicCast wireless speakers, sound bars or other devices in up to 9 other rooms and listen throughout your home.
No wires, easy installation
By using MusicCast, you don't need to fuss with placing wires through walls into other rooms.
Alexa on MusicCast
Amazon Alexa-enabled devices - including Echo, Dot, Tap and Show - can now control key functions of any MusicCast product using voice commands. Discover a new, exciting way to control music and entertainment experiences in your home.
Optical TV Input
The R-N803 is equipped for digital audio input with both audio and coaxial terminals. With an optical input, TV sound reaches new sonic platforms - pure, pristine and dynamic sound for all entertainment sources, from sports and other programs to movies and concerts.
Love for Vinyl
Throw your vinyl collection love and drop a needle with the phono input terminal that connects the R-N803 to a record player.
Discover New Favorites
Explore. Compatible with a large variety of popular streaming services, including Spotify, TIDAL, Deezer, Napster and others - the R-N803 encourages discovery of new music from all over the world.
- Beautiful and elegant front aluminum face with two channels of 145 W high-power output (0.019% THD)
- Phono input terminals for turntables and optical/coaxial audio inputs for TV
- Wireless Direct, Bluetooth, AirPlay and Wi-Fi to access to your music library, Pandora, Spotify, SiriusXM Internet Radio, TIDAL and Deezer
- YPAO - Yamaha's acoustic optimizer with Precision EQ, Volume and Reflected Sound Control
- Pure Direct and ToP-ART design to faithfully preserve the integrity of your music
- DSD 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple Lossless 96 kHz / 24-bit playback
- Add audio in up to 9 additional rooms with MusicCast
- Voice control using your Alexa device like Echo or Echo Dot
- Network Section
- Wi-Fi with Wireless Direct
DLNA version 1.5 (DMR)
Apple AirPlay
Bluetooth version 2.1 + EDR, A2DP, AVRCP, SBC/AAC (receiving only)
- Supported File Formats
- MP3, WMA, MPEG4 AAC 48 kHz / 320 kbps, WAV, FLAC, AIFF 192 kHz / 24-bit, ALAC 96 kHz / 24-bit, DSD 2.8 / 5.6 MHz
- Minimum RMS Output Power
- 100W + 100W (8Ohms, 20 Hz-20 kHz, 0.019% THD)
- Maximum Power
- 160W + 160W (4Ohms, 1kHz, 0.7% THD, for Europe)
145W + 145W (8Ohms, 1 kHz, 10% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290W (8/6/4/2Ohms)
- Frequency Response
- 0 +/- 0.5 dB / 0 +/- 1.0 dB
- Signal-to-Noise Ratio
- 100dB (Pure Direct on, 200mV) (CD)
- Damping Factor
- A Speakers, at 1 kHz: >=240 (8Ohms)
- Tuner Type
- AM/FM
- Audio In / Out
- 10/2
- Inputs
- 2x Optical TOSLINK
2x Digital coaxial
1x Stereo RCA phono with ground screw
4x Stereo RCA
1x USB (front)
- Outputs
- 2x Stereo RCA
1x 1/4" (6.35 mm) Headphone (front)
- Other Connectors
- 1x Ethernet LAN
1x FM antenna
1x AM antenna
1x Mono RCA subwoofer out
1x Trigger out
- Speaker Connectors
- 2 (L/R)
- FM 50dB Quieting Sensitivity
- 3 MuV (20.8 dBf) (IHF, 1 kHz, 100% Mod., Mono)
- FM Signal-to-Noise Ratio
- 69 dB/67 dB (Mono/Stereo)
- Pure Direct
- Yes
- ToP-ART
- Yes
- Standby Power Consumption
- 0.1W
Wired/Wi-Fi/Bluetooth, Network Standby On: 1.8W
Wireless Direct, Network Standby On: 1.9W
- Dimensions (WxHxD)
- 17.13 x 6 x 15.44" (43.51 x 15.24 x 39.22cm)
With antenna up: 17.13 x 8.5 x 15.44" (43.51 x 21.59 x 39.22cm)
- Weight
- 24.3 lbs (11.02kg)
|
Elite's brand-new universal disc player brings the spectacle of Ultra HD Blu-ray to your home entertainment, with four times the resolution of 1080p Full HD. Featuring three-block internal layout, Ultra Rigid Construction and Double-Layered Chassis for a robust build, 6-layered main circuit board, SDR/HDR preset mode and support for HDR10/Dolby Vision for quality picture, as well as premium audio DAC and Zero Signal Terminal for high-grade sound, the UDP-LX500 lets you enjoy the highest video resolution as well as your other digital disc collections.
Construction
• Three-Block Internal Layout (Power Supply, Drive/Digital Processing, Analog Audio)
• Ultra-Rigid Construction without Radiation Holes
• Double-Layered Chassis Reinforced with 3 mm Steel Plate for Rigidity and Low Center of Gravity
• 6-Layered Main Circuit Board for High S/N Ratio
• Rigid & Quiet UHD BD Drive
• Honeycomb Mechanism Drive Cover - Acoustic Damper Tray, Float-Mounting Structure
Video Features
• Ultra HD Blu-ray Playback
• SDR/HDR Preset Mode for Optimal Performance for the Display
• Video Adjust
• HDR10
• Dolby Vision (Low Latency Compatible)
• 36-bit Deep Color/"x.v.Color"
Audio Features
• Highly Precise D/A Conversion
• Direct Function for Pure Analog Audio Output
• Dual HDMI Output
• PQLS Jitter-less Sound Transmission via HDMI (with compatible AV Receiver)
Convenience
• Disc Information On-Screen Display
• BD-Live/BONUSVIEW
• Continued Viewing Playback
• 30 sec Skip Forward/10 sec Skip Back
• Auto Power Off
• Firmware Update (USB/Network)
• Self-Illuminating Remote Control
Ultra HD Blu-ray Playback
Certified by the UHD Alliance, the new Elite UDP-LX500 meets or exceeds strict performance specifications for resolution (4K - 4 times sharper than HD), high dynamic range (HDR - brilliant brights, deepest darks) and wide color spectrum (more lifelike colors). It also focuses on other video and audio attributes including immersive audio (multi-dimensional sound) among others. These performance advances guarantee the UDP-LX500 is able to fully replicate the richness of life's sights and sounds, enabling viewers to more accurately experience the content creator's vision.
Three-Block Internal Layout
The blocks for power supply, drive/digital processing and analog audio are separated into three to eliminate electrical and magnetic interference between the blocks.
Ultra-Rigid Construction without Radiation Holes
Even the holes for heat radiation are excluded to realize a flat form with optimal electric circuit design and minimum mechanical noise from the rotating system. The result is significantly low noise and even more rigid and stable chassis structure.
Double-Layered Chassis with Rigid Under Base for Rigidity and Low Center of Gravity
The 1.6 mm-thick chassis base is reinforced with a 3 mm-thick steel plate Rigid Under Base. This Double-Layered Chassis structure provides a low center-of-gravity and overall rigidity that prevents the transfer of external vibration to the inner chassis and offers a superior reading of the disc.
6-Layered Main Circuit Board for High S/N Ratio
A 6-layered IVH is used for the main circuit board to thoroughly eliminate digital noise. This optimizes the digital signal wiring and minimizes GND impedance and dramatically improves S/N ratio in audio/video signal processing. The 18 Gbps transmission through the latest HDMI standard becomes even more precise.
SDR/HDR Preset Mode for Optimal Performance for the Display
In addition to the video parameter "Reference" for reproducing the original master quality, you can select "LCD TV," "OLED TV," or "Projector" for the video quality best suited to your display. Additionally, there are SDR/HDR presets for each video parameter, that automatically switches between SDR preset and HDR preset according to the output signal.
Disc Information On-Screen Display
You can display the disc information on your screen by pressing and holding the remote control's DISPLAY button. In addition to the playing disc's details, you can easily check mastering information such as MaxFALL (Maximum Frame Average Light Level) and MaxCLL (Maximum Content Light Level) available on some HDR content, as well as HDMI output information .
PQLS Jitter-less Sound Transmission
With the precision quartz controller on a compatible AV receiver, Pioneer's PQLS (Precision Quartz Lock System) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the UDP-LX500, giving the best possible digital-to-analog conversion. UDP-LX500 supports PQLS 2ch Audio, Multi-Surround and Bit-stream.
Zero Signal Terminal
The Zero Signal Terminal is a Pioneer-original feature dedicated to tuning audio and video quality without signal transmission. By connecting the Zero Signal Terminal with the audio/video input terminal of an AV receiver etc., the reference level (GND) of the audio/video signals is aligned between the two devices and the potential difference is suppressed, allowing a precise and high-quality signal transmission.
- Ultra HD Blu-ray Playback
- Three-Block Internal Layout (Power Supply, Drive/Digital Processing, Analog Audio)
- 6-Layered Main Circuit Board for High S/N Ratio
- PQLS Jitter-less Sound Transmission
- System
- NTSC
- Region
- Blu-ray: A
DVD: 1
- HDR Compatibility
- HDR10, Dolby Vision
- HD Upconversion
- No
- Video
- Ultra HD Blu-ray, 3D Blu-ray, BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, DVD+R, DVD+R DL, DVD+RW, DVD-Audio, DVD-R, DVD-R DL, DVD-ROM, DVD-RW, DVD-Video
- Audio
- CD-DA, CD-R, CD-ROM, CD-RW, SACD
- Output Ports
- 1x HDMI Type A
1x RCA (Analog Audio)
1x RCA (Digital Audio)
- Input Ports
- No
- USB Ports
- 2x USB Type-A
- Ethernet
- Yes
- Wi-Fi
- No
- Bluetooth
- No
- Control
- RS-232C
- Digital Media Slot
- No
- BD-Live
- Yes
- BONUSVIEW
- Yes
- Playback Media
- BD-ROM (UHDBD/3D BD/BD)/BD-R (DL)/BD-R LTH/BD-RE (DL)
DVD-ROM (DVD-Video/DVD-Audio)/DVD-R (DL)/DVD-RW/DVD+R (DL)/ DVD+RW
Audio CD (CD-DA/SACD)/CD-ROM/CD-R/CD-RW
USB Memory/HDD
- Terminals
- HDMI 2 Out (1 Main for Audio/Video, 1 Sub for Audio)
Digital Coaxial Out
Digital Optical Out
USB 2 In (1 Front, 1 Rear)
Ethernet
RS-232C
Analog Audio Out (Unbalanced)
Zero Signal Terminal (for Audio/Video Quality Tuning)
- AC Input Power
- 120 VAC, 60 Hz
- Power Consumption
- 28 W (Typical)
1.2 W (Idle)
0.4 W (Standby)
- ENERGY STAR Compliant
- No
- Dimensions (WxHxD)
- 17.13 x 4.63 x 13.25" (43.51 x 11.76 x 33.66cm)
- Weight
- 22.7 lbs (10.30kg)
|
The A4A delivers realistic sound and video that transports you out of your home and into your favorite movie. Whether you're watching, listening or gaming, you'll feel completely immersed
Breathtaking Sound
Surround:AI
Dolby Atmos
Dolby Atmos with Height Virtualization
DTS:X
High Slew Rate Amplifier
Compressed Music Enhancer
MusicCast multi-room audio
Wi-Fi, AirPlay 2 and Spotify Connect
Streaming services include Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM
Zone 2
Phono input
Movies And Games Like Never Before
4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
HDR 10+, 8K60AB, 4K120AB via future update
Gaming-dedicated functions (ALLM, VRR, QMS, QFT) via future update
Multiple HDMI inputs with the latest technology
Simple To Set Up, Simple To Use
MusicCast app
AV Setup Guide app
Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Integration with third party control partners
Designed For Your Space
YPAO-R.S.C. with multipoint measurement and precision EQ
Wireless rear surround capability
Sleek, modern design
Anti-Resonance Technology Wedge (Fifth Foot
Breathtaking Sound
Surround:AI
This artificial intelligence analyzes the DSP parameters and optimizes the surround effect of distinct sound elements such as background music, dialogue and sound effects. It's like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407.
Crafted for Clarity
The newly designed Anti-Resonance Technology (A.R.T.), H-shaped Cross Frame and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal clear sound that moves you, all while your AV receiver stays perfectly still.
High-Quality Digital Components
Qualcomm QCS407 takes your AV receiver's surround sound to the next level with support for Dolby Atmos and DTS:X. With SABRE ES9007S Premier Audio DAC, you get extraordinary signal-to-noise ratio and up to 120 dB of dynamic range for professional quality audio.
CINEMA DSP HD3
This unique Yamaha proprietary sound field playback technology was created by combining actual measured sound field data with cutting-edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes sound effects, accurately reproducing a new dimension of realism
Movies And Games Like Never Before
8K60AB, 4K120AB and 4K60
This receiver supports end-to-end 8K/4K resolutions and higher refresh rates, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybrid-Log Gamma and BT-2020 included.
Enhanced Gaming Features (ALLM, VRR, QMS and QFT)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
These HDMI inputs will equally support the latest HDMI technology to allow several next-gen gaming consoles to be connected at the same time.
Simple To Set Up, Simple To Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Working with Alexa and Google Assistant, your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device.
AV Setup Guide App
This app offers expert guidance through installation, cable connections, and various other settings.
Third Party Control
This receiver includes integration with third party control partners, including Crestron, URC, RTI, Control4 and more
Designed For Your Space
YPAO-R.S.C. with Multipoint Measurement and Precision EQ
YPAO (Yamaha Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X. This feature includes low frequency mode.
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home
- 7.2ch / 110 W
- Multi-room Audio
- CINEMA DSP HD3
- Dolby Atmos
- eARC
- High Slew Rate Amplifier
- HDMI 7 inputs / 3 outputs
- AirPlay 2
- Streaming Service
- Phono
- DTS:X
- Zone 2 including HDMI
- Channel
- 7.2
- Rated Output Power
- (20Hz-20kHz, 2-ch driven): 110 W (8 ohms, 0.06% THD)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision, Hybrid-Log Gamma
- BT.2020, HDR10+: Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/3
- HDMI 4K60, 4K120AB, 8K60AB support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output: Optical
- 3/0
- Digital Audio Input/Output: Coaxial
- 2/0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 6/0
- Zone 2
- Yes
- Phono Input
- Yes
- Preout
- 7.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- < 0.4 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.12 x 7.5 x 17.37" (43.48 x 19.05 x 44.11cm)
With antenna up: 17.12 x 10.62 x 17.37" (43.48 x 26.97 x 44.11cm)
- Weight
- 35.7 lbs (16.2kg)
|
AVENTAGE RX-A2A 7.2-channel AV Receiver with MusicCast
Take your entertainment to the next level. With professional quality video and immersive surround sound via Dolby Atmos, the RX-A2A will completely transform home cinema.
Breathtaking Sound
• Dolby AtmosDolby Atmos
• Dolby AtmosDolby Atmos with Height Virtualization
• DTS:XDTS:X
• High Slew Rate AmplifierHigh Amplifier
• Compressed Music Enhancer Compressed Enhancer
• MusicCast multi-room audioMusicCast audio
• Wi-Fi, AirPlay 2, 2 and Spotify Connect
• Streaming services include Spotify, Amazon Music, PandoraPandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM, SiriusXM
• Zone 2
• Phono input
Movies and Games Like Never Before
• 4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
• (7) HDMI inputs with HDCP 2.3 and eARC
• With future updates for HDMI 2.1, including: HDR 10+, 8K60B, 4K120AB and enhanced gaming features (ALLM, VRR, QMS, QFT)
Simple to Set Up, Simple To Use
• AV Setup Guide app
• MusicCast app
• Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Designed For Your Space
• YPAO R.S.C. with multipoint
• Wireless rear surround capability
• Sleek, modern design
Dolby Atmos with Height Virtualization
Feel every dimension in Dolby Atmos. For those without in-ceiling or upward firing speakers in their systems, this height virtualization technology simulates the Atmos experience with forward-facing drivers.
DTS:X
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism in all your favorite movies.
Anti-Resonance Technology Wedge
The Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the center of the chassis unit base. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers - providing dynamic sound and focused, accurate reproduction.
Cinema DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your favorite movies and shows.
Movies and Games Like Never Before
8K60B, 4K120AB and 4K60
This receiver supports end-to-end 8K/4K resolutions and higher refresh rates, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybid-Log Gamma and BT.2020 included.
Enhanced Media and Gaming Features (ALLM, VRR, QFT and QMS)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
Multiple HDMI inputs will equally support the latest HDMI technology to allow next-gen gaming consoles to be connected at the same time.
Simple to Set Up, Simple to Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your phone or tablet.
Voice Control
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control with Siri from an Apple iOS device.
AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings. Includes web setup for CI.
Designed For Your Space
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
YPAO R.S.C. with Multipoint
YPAO (Yamaha Parametric Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X.
Dynamic and Compelling
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
- Breathtaking Sound
- Movies and Games Like Never Before
- Simple to Set Up, Simple To Use
- Designed For Your Space
- Dolby Atmos with Height Virtualization
- DTS:X
- Anti-Resonance Technology Wedge
- Cinema DSP 3D
- 8K60B, 4K120AB and 4K60
- HDR10+ and Dolby Vision
- Enhanced Media and Gaming Features (ALLM, VRR, QFT and QMS)
- Future Support for Multiple HDMI Inputs
- MusicCast App
- Voice Control
- AV Setup Guide App
- Compatible with Wireless Surround Sound
- YPAO R.S.C. with Multipoint
- Dynamic and Compelling
- Channel
- 7.2
- Rated Output Power
- 100 W (8 ohms, 0.06% THD) (20Hz-20kHz, 2-ch driven)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision
- Yes (via future update)
- Hybrid-Log Gamma and BT.2020, HDR10+
- Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/1
- HDMI 4K60/4K120AB/8K60B support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output
- Optical: 1 / 0
Coaxial: 1 / 0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 4/0
- Zone 2
- Yes
- Phono Input
- Yes
- Preout
- 2.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- 0.1 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.125 x 6.75 x 14.6" (43 x 17 x 37cm)
With antenna up: 17.125 x 9.62 x 14.6" (43 x 24.4 x 37cm)
- Weight
- 22.5 lbs (10kg)
|
The Discovery Series DS-A101 Wireless Integrated Amplifier
80-Watt-per-channel wireless control amp with DSP
The versatile and powerful Discovery Series DS-A101-G Wireless Integrated Amplifier is also the perfect complement to the Discovery Music Server. Together, they open up an unlimited vista of music where wireless convenience meets state-of-the-art sound. ELAC's innovative smartphone application provides the tools for system setup, including sophisticated DSP, optimizing your subwoofer's crossover frequency and room EQ.
This is one versatile integrated amplifier, with outstanding performance and feature-rich control flexibility. Once you experience the Discovery-especially with the new Debut or Uni-Fi loudspeakers-your world of sound just might be altered forever. Discovery does it all, at an affordable price.
An integrated amplifier for todays world.
Roon Ready, Spotify Connect, Dolby Digital Decoding, Wi-Fi, and Room EQ are only the beginning.
Discover power, performance, convenience and value.
The new DS-A101-G integrated amplifier strikes the perfect balance of high quality audio reproduction, features and value. The small form factor allows for easy placement while still providing technologies and convenience not found on competing products.
The BASH amplification solution
At their heart is a brand new BASH Tracking Amplifier delivering 80 Watts per channel into either 4 or 8 ohm speakers. This new amplifier uses a modulated switched mode power supply allied to a conventional class AB amplifier. Switching at more than 400,000 times per second, the supply tracks the incoming audio signal to ensure that the Class AB amplifier gets only the voltage necessary (with a little headroom) to cope with today's dynamic movie and music content, thus maximizing the efficiency and potential of the amplifier.
App-rich control flexibility
ELAC's free iOS and Android app allows users to fully control and set up their system. The app includes innovative features not found on any other products in this class-anywhere
ABC Technology (Auto Blend & Calibrate)
The companion IOS and Android app measures the near-field response of main speakers and subwoofer, then pinpoints the subwoofer's optimal crossover frequency. Auto Blend results in the perfect integration of clean, articulate bass. Room Calibration precisely tailors your system for flattest frequency response across the audio spectrum, optimized for your listening position and environment
The Center of your Living Room
With built-in Dolby Digital Decoding, the Discovery Integrated amplifier has been designed to sit at the heart of your entertainment system. Simply connect the audio output from your TV to the Discovery Integrated Amplifier and experience your favorite movies or TV shows like never before.
- 2x 80 Watt Amplifier
- Wi-Fi and Bluetooth Built-In
- Spotify, Roon and Airplay Support
- Dolby Digital Decoding
- Auto Room EQ
- Amplifier
- BASH Digital Fidelity Tracking Amplifier
- Power Output Continuous
- 2x 80 Watts 2 channels driven into 4 ohms @ 1kHz
2x 40 Watts 2 channels driven into 8 ohms @ 1kHz
2x 70 Watts 2 channels driven into 2 ohms @ 1kHz
- Power Output Burst (CEA 2010*)
- 120 Watts 1 channel driven into 4 ohms @ 1kHz
65 Watts 1 channel driven into 8 ohms @ 1kHz
170 Watts 1 channel driven into 2 ohms @ 1kHz
- Power and THD+N, 1kHz
- 4 ohms 70 Watts @ .07%
8 ohms 40 Watts @ .03%
- Signal-to-Noise Ratio
- (Full Power Digital input): 101dB
- Broadband Frequency Response
- 20Hz to 40kHz +/- 1.8dB
- Analog Inputs
- 2
- Digital Inputs
- 2 total; 1 optical / 1 coaxial (192kHz 24-bit)
- Ethernet
- 1
- Wi-Fi
- Yes
- Subwoofer Output
- 1
- Pre-Amp Outputs
- 1 (L/R)
- Bluetooth Audio
- Yes
- Audio Decoding
- Dolby Digital
- Streaming Services
- Discovery, Roon Ready, Spotify Connect, AirPlay, Bluetooth, DLNA
- Display
- OEL
- App Control
- Yes, iOS and Android control app
- Room Correction
- ABC (Auto Blend & Calibrate)
- Power Consumption
- Power Off 120Vac: .86W / Auto Off 120Vac: 5.45W
- Dimensions (W x H x D)
- 8.37 x 2.12 x 11.62" (21.25 x 5.38 x 29.51cm)
- Weight
- 4.80 lbs (2.17kg)
|
Massive THX sound and Film-Like 8K resolution
Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.
With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI 2.1, you can enjoy Dolby Atmos and DTS: X soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS and Dolby to create a 3D sound-field from any layout.
Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver delivers an unparalleled movie, music, and gaming experience to your living room.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Ultimate 4K Gaming Experience
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material.
Built-In Streaming Services
Access to Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.
Smart Home Compatible with Voice Control
Onkyo receivers easily integrate into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.
Works with SONOS Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port. This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
Bi-Directional Bluetooth Wireless Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Ready for DTS PLAY-FI
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
- 8K with HDMI 2.1 40Gbps (3 ins)
- THX Select Certification
- Discrete Zone 2 Audio and Video
- 210 W/Ch THX Certified Select Dynamic Audio Amplification system
- 5.2.2-channel Dolby Atmos and DTS:X playback
- AccuReflex phase-matching solution for Atmos-enabled speakers
- SMART AV Receiver
- Works with Hey Google or Alexa
- Stream over 5 GHz/2.4 GHz dual-band Wi-Fi supporting the 802.11ac standard
- HDMI Sub/Zone 2 Out for media transmission to a second display
- Send or receive audio via Bluetooth wireless technology
- Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
- 5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback
- Zone 2/Zone B line-out
- Power Output (All Channels)
- 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
100 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2-ch driven, FTC)
- Dynamic Power
- 240 W (3 ohms, Front) 210 W (4 ohms, Front)
120 W (8 ohms, Front)
- THD+N (Total Harmonic Distortion+Noise)
- 0.08% (20 Hz-20 kHz, half Power)
- Input Sensitivity and Impedance
- 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
- Rated RCA Output Level and Impedance
- 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
- Frequency Response
- 10 Hz-100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
- Tone Control
- +/-10 dB, 20 Hz (Bass) +/-10 dB, 20 kHz (Treble)
- Signal-to-Noise Ratio
- 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
- Speaker Impedance
- 4-16 ohms
- FM
- 87.5 MHz-107.9 MHz
- AM
- 530 kHz-1,710 kHz
- FM/AM Preset Memory
- 40 stations
- Power Supply
- AC 120 V-, 60 Hz
- Power Consumption
- Operating: 635 W
Idle: 65 W
Standby: 0.1 W
- Dimensions (W x H x D)
- 17.12 x 6.8 x 14.94" (435 x 173.5 x 379.5mm)
- Weight
- 21.7 lbs (9.8kg)
|
Reviews
There are no reviews yet.
