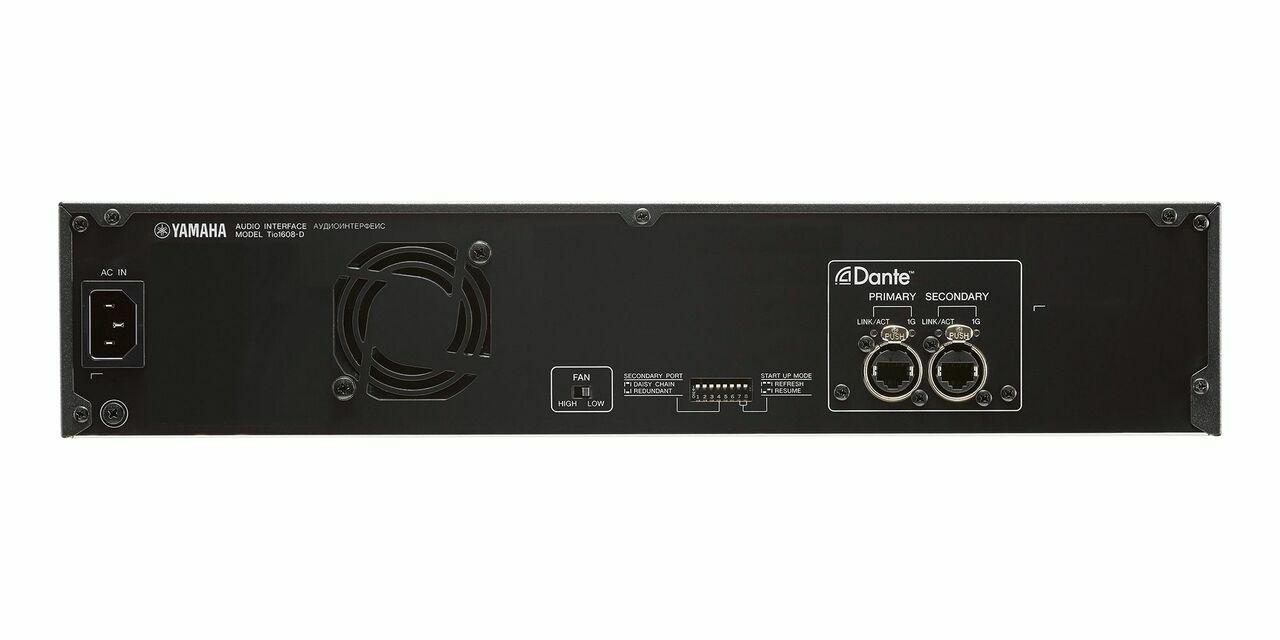

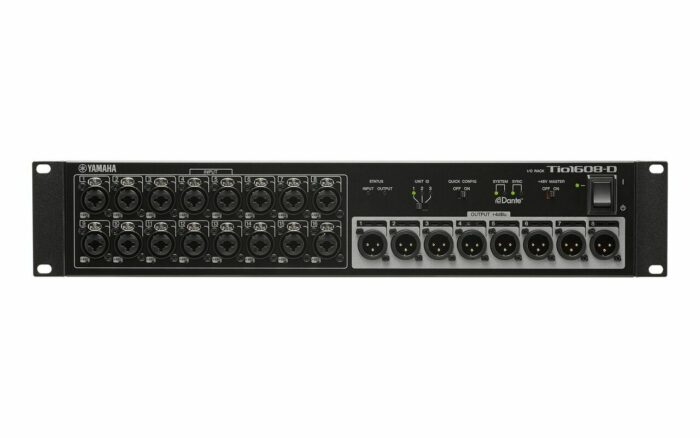

| Content | The Tio1608-D is a Dante equipped I/O rack with 16 microphone/line inputs and 8 line outputs. The Tio1608-D preamplifiers can be remotely controlled from a TF series console. Connection from an on-stage Tio1608-D to a TF console at the mixing position only requires a CAT5e LAN cable for high-quality low-latency audio transfer.
No bulky, heavy multi-cables and connector boxes are required. What's more, basic patches are pre-programmed for fast, easy setup. Up to three Tio1608-D units can be connected simultaneously, providing a high-performance, high capacity stage box system with as many as 48 inputs and 24 outputs. The network connections can be daisy-chained when Tio1608-D units are used with a TF series console, eliminating the need for network switches.
Yamaha Tio1608-D Features
- Digital stagebox system with a maximum of 3 units
- Dante high reliability network audio protocol
- Fast and easy QUICK CONFIG Mode
- Simple and flexible input selection
- Recallable D-PRE preamplifiers
| SPL MixDream Analogue Summing Unit
- Analogue outboard summing mixer
- Active Class A/60-volt stages
- 16 inserts for mixing external effects
- Individual and overall bypass relays
- Reduced of A/D conversions
- Efficient resampling individual tracks
- Latency-free monitoring
- Stereo expansion control for additional transparency
- Analogue peak limiter for gain optimisation
- Lundahl output transformers and inserts
- Adjustable insert levels, output levels and peak limiters
- Multiple units linkable for larger mixes
| If you're seeking to take your projects to a level on par with world-class analog consoles, the AMS Neve 8816 will lead you to new sonic frontiers and beyond. The 8816's handbuilt, handwired 16-channel mixer employs the same transformer-balanced mix bus circuitry as a '70s-era Neve 80-series console, infusing every signal that flows through it with increased headroom, punch, and dimensionality. The 8816 does more than mere analog summing, however. This feature-laden box also includes cue mixing, metering, per-channel solo/mute, and talkback functionality. Its capable monitoring section includes a volume knob, an auxiliary input, dual headphone outputs, and alternate speaker outputs. Beyond that, the 8816 includes a main stereo insert send/return for strapping a compressor, EQ, or other processing across your entire mix, while its unique Width knob gives you a level of control over your mix’s stereo field that’s generally reserved for top-level mastering facilities. Craving tactile, hands-on control over your mix? Add an 8804 Fader Pack (sold separately). The 8816 also includes a USB port for saving and recalling settings to and from your computer, plus a digital I/O option, which provides you with A/D conversion (option card sold separately).
Inject your projects with the unmistakable Neve sound
Vintage Neve 80-series consoles are simply legendary. Watch Dave Grohl’s Sound City documentary for definitive proof, or listen to any of the countless chart-topping recordings that were made with one. Elton John, Steely Dan, Nirvana, Pink Floyd, Dire Straits, George Clinton, Chick Corea, Grateful Dead, REO Speedwagon, Cheap Trick, Foreigner, Tom Petty and the Heartbreakers, Pat Benatar, Santana, Ratt, Rage Against the Machine, Tool, Slayer, Kings of Leon, Slipknot, Elvis Costello, Everclear, Mastodon, and many other artists were recorded or mixed on a Neve 80-series console. The AMS Neve 8816 contains genuine 80-series topology, boasting two custom Neve Marinair specification transformers on its stereo mix bus. Whether you use it for tracking and overdubbing, submixing and summing, or mastering, the 8816 will infuse your projects with the authoritative sound of a classic Neve console. All the sonic hallmarks are present: the heft, the muscle, the three-dimensional non-linearities — enabling you to add color and vibrancy to every project.
16 feature-packed channels of classic Neve character
The AMS Neve 8816 is centered around a feature-rich 16-channel analog mixer. Each channel boasts a line-level input with a rotary Level control, a rotary Pan control, a Cue button, and a Cut/Solo button. The Level knob, which accommodates both +4dBu and -10dBV sources, ranges from ∞dB to +15dB with 0dB set at approximately 12 o’clock. The Pan knob offers smooth, progressive operation with -3dB center attenuation. The Cue button sends the channel’s input, pre-fader, and pre-pan to the 8816’s cue mix. Channels 1–14 are individually switchable to the cue mix, while Channels 15–16 are stereo linked. At Sweetwater, we’ve found channels 15–16 incredibly useful for playback of a rough 2-track artist mix while overdubbing. The Cut/Solo button enables you to mute or solo a track. Since the 8816’s solo system is latching, you can also build solo groups, then use the master Cut/Solo button to audition or mute a group — a must-have feature when comping or sorting out EQ or balance problems.
A full-blown Neve console in a 2U rackmount format
The sheer number of the 8816's mix send/return options is enough to make your head spin, in a good way. Place a stereo compressor, EQ, or other processing across your entire mix, or create a parallel return for New York-style compression. Access high-end, mastering-studio-level stereo image enhancement with the Width control. Route the 8816’s 2-track return to its cue mix, or replace your headphone cue mix with the main monitor mix. The insert return and 2-track return feature independent level controls, providing you with near-endless customization. You can also put the 8816’s sends/return in Mid-Side mode. There’s even a hidden talkback mic that you can engage with a push of the 8816’s headphone level knob. With all of this complexity, you may be concerned that you’ll lose your settings. Don't worry: the 8816’s USB port allows for easy recall of your settings via control software on your Mac or PC. And if you need more inputs, you can cascade up to 32 units for up to 512 channels.
Comprehensive monitoring section
The AMS Neve 8816’s comprehensive monitoring section puts it at the very heart of your studio. You get four monitoring sources: the 8816’s 2-track return, channels 1/2 (pre-fader), its auxiliary input, and your main monitor mix. A Mon Level knob allows you to calibrate your mixing levels (we recommend aiming for 85dB), while a Mix Level knob controls the output level to your DAW. Main/alternate speaker outputs enable you to reference your mixes on a second set of studio monitors. The 8816’s dual headphone outputs are wired in parallel, one on the front panel and the other on the rear, where there are also balanced line outputs for feeding a separate headphone amp. You also get two quasi-PPM VU meters fed from the 8816’s main outputs, along with analog and digital clip indicator LEDs.
The legend continues
At Sweetwater, the name Neve commands reverence. Rupert Neve started designing audio equipment in the tube console era but made his mark with solid-state designs. Setting up shop in Little Shelford in the ’60s, Mr. Neve faced many obstacles establishing his brand amid a new technological landscape. Transistors were new, expensive, and difficult to obtain in quantity in the UK. Reliable faders didn’t exist yet — a far cry from today’s world, where parts are affordable and readily available from multiple suppliers, all competing to win bids. Nevertheless, Rupert persisted. And by the early 1970s, the Neve company was humming along, taking orders and building custom transformer-balanced consoles for recording and broadcast studios the world over.
Neve 80-series consoles had a huge, punchy, and authoritative sound that defined the sound of ’70s rock. From London to New York to Los Angeles and beyond, top studios were installing Neve desks as fast as they could. By 1978, with the introduction of the majestic 8078 — the pinnacle of handwired analog “production” consoles — and NECAM automation system, Neve boards were the main component of the success formula for any recording studio with world-class aspirations. In the decades since, AMS Neve has innovated with groundbreaking products such as the VR, VX, and 88R series consoles. And today, the company continues to advance the state of the art with cutting-edge pro audio gear that sounds incredible and intelligently addresses the challenges of the digital age.
AMS Neve 8816 Summing Mixer Features:
- Packs the sound and functionality of a Neve console into a 2U rackmount unit
- Contains genuine Neve 80-series topology, including 2 custom Marinair transformers
- Ideal for tracking, overdubbing, submixing, summing, and mastering alike
- 16 channels of analog summing add color and vibrancy to every project
- Each channel boasts rotary Level and Pan controls, plus Cue and Cut/Solo buttons
- Mix insert points for adding effects to individual channels
- Comprehensive cue mixing for creating custom-tailored headphone mixes
- Main stereo insert send/return for adding processing to your mix bus
- Width knob supplies high-end-mastering-studio-level stereo image enhancement
- Main/alternate speaker outputs enable referencing on a second set of studio monitors
- 2-track return, auxiliary input, and dual headphone outputs
- Sends/returns boast a Mid-Side mode for added flexibility
- Hidden talkback mic is engaged with a push of the headphone level knob
- 2 quasi-PPM VU meters for the main outputs, plus analog and digital clip indicator LEDs
- USB port allows for recall of your settings via control software on your Mac or PC
- Cascade up to 32 units for up to 512 channels
- 8804 Fader Pack gives you tactile, hands-on control over your mix (sold separately)
- Digital I/O option provides A/D conversion (option card sold separately)
| The Dangerous Music Liaison puts the fun back into trying out creative combinations of gear. The Liaison also lets your setup remain absolutely flexible — just what you need if you want to survive in a market that often demands recording, mixing, and mastering services from a single studio. The Liaison's claim to fame is that it combines your favorite pieces of music gear together in various configurations, allowing you to try out new gear combinations and recall them later. But there's a lot more to the Dangerous Music Liaison than mere signal routing.
Mix, match, store, and recall all your favorite gear combinations
Dangerous Music has always been dedicated to providing serious engineers with the most useful gear possible. They've upped the ante again, with the Liaison. The Liaison lets you experiment with different combinations of gear, giving you a total of six discrete 2-channel inputs and two 2-channel buses. Want to hear how that compressor sounds pre- and post-EQ? With a Liaison, you can audition various hardware combinations as easily as swapping around plug-ins in a DAW. What's more, you can store and recall your favorite setups, so you can keep that killer vocal compression chain or that thumping kick drum processing path close at hand.
Flexible stereo buses give you advanced configuration options
When we ran the Dangerous Music Liaison through its paces here at Sweetwater, we found that its stereo buses do more than just compare two discrete signal paths. Depending on how you configure them, these stereo buses can provide you with two completely independent, flexible signal chains, each serving as its own small routing matrix. You can also combine both buses to create a long and flexible continuous signal-processing chain, in which you can reorder entire sections of your gear setup. Even cooler, you can use the Liaison's buses to establish complex parallel signal processing — opening up limitless sonic possibilities.
Mastering-grade components for unrivaled sound quality
As is the case with all Dangerous Music products, the Liaison is made entirely from mastering-grade components, so you never have to worry about audio coloration or latency. In fact, when set to simply pass audio, professional grade testers used to measure the Liaison read as though they were plugged into themselves. Talk about quality control! Here are some of the other specifics. Both the inserts and the buses feature straight-wire, unamplified, balanced signal paths. All audio is relay-switched via top-quality, gas-filled, bifurcated contact relays — ensuring that all switching is absolutely noiseless. The rest of the Liaison's signal paths feature mastering-grade components made by THAT Corp. and Burr-Brown.
What the pros are saying about the LIAISON:
- "The Dangerous LIAISON feels like engaging light-speed for my workflow...and make no mistake: workflow IS sound. The sheer speed at which you can do critical comparisons of entire signal chains does have a direct and positive impact how your music will sound." — Alberto Rizzo Schettino (Engineer)
- "One of the best features of the LIAISON is the monitor outs...you can monitor the signal at four points in the chain: before and after Bus A and B. The usefulness of this feature is huge, and Dangerous deserves major props for including it! The switching of inserts is managed by beefy relays that are as transparent as any I've ever heard." — Adam Gonsalves (Mastering Engineer)
- "LIAISON gives you the impetus to rethink how you record, mix, and master your music...[and] using the LIAISON is dead simple. I think of LIAISON not as an insert switcher, but as a creativity enabler." — Andy Hong (Writer/Reviewer)
- "The Dangerous LIAISON is incredibly exciting. To have a device that lets you so easily switch between processors, swap the order of processors, do quick A-B comparisons of signal chains. It makes my work better!" — Jonathan Wyner (Mastering Engineer)
- "Being able to switch devices from one bus to the other is extremely useful. The fast switching is amazing!" — Jeff Lipton (Mastering Engineer)
- "The LIAISON is really important — I can do a lot of combinations of chaining gear and I am able to work a lot faster. Before the LIAISON [I had to] switch the patchbay and compare the sounds. Now I am 20-times faster than before, I like the way the LIAISON allows me to still be in the energy of the music. — Antoine "Chab" Chabert (Mastering Engineer)
- "So happy with the LIAISON. Being able to switch gear in and out from the listening position without leaning over a patch bay is fantastic. After sitting in this chair for so many years, it actually improves my mixing ergonomics considerably." — Bob Power (Mastering Engineer)
Dangerous Music Liaison Features:
- Flexible signal routing matrix that allows you to combine the gear in your studio in fun, exciting, and creative ways
- Leverage all your gear, all the time
- Improve your tracks, mixes, and masters by auditioning and marrying the perfect ensemble of equipment
- 2 independent stereo buses mean you can set up 1 as a tracking path and the other as a mix path, without repatching, or chain them together
- Separate parallel processing loop to let drums breathe and crush simultaneously
- Create complex combinations of gear and A/B instantly
- Store your favorite settings to recall any tracking, mixing, or mastering configuration
- 6 stereo insert loops, assignable to 2 stereo buses
- Mastering-grade components ensure silent, relay-based switching and color-free audio
| The Shadow Hills Industries Equinox microphone preamp, summing mixer, and monitor controller is like adding a mastering-grade console to your studio's rack. You get two Golden Age microphone preamplifiers, 30 channels of analog summing, a comprehensive mastering-quality monitor section, and switchable output transformers - everything you'll need to make your mixes sound like they were created in a world-class facility. You'll love the rich, open character of the microphone preamps. The summing mixer gives you ample headroom to craft exciting, dynamic mixes. And you'll hear every detail and nuance of your music, thanks to the precision-designed monitoring signal path. In short, the Shadow Hills Industries Equinox gives you the functionality and timeless sound of an analog console in a convenient, 2U rackmountable unit.
In today's modern recording studio, the ability to work smarter is the key to success. The Equinox combines the most useful features of a traditional analog console, like premium summing capability, talkback functionality, and a flexible monitoring section. While you could buy a high-quality, dual-channel mic preamp, 30 channels of analog summing, and an impeccable monitoring controller separately, you would spend thousands more and still may not reach the same level of sonic excellence as you get with the Equinox.
Shadow Hills Industries Equinox Microphone Preamp/Summing Mixer/Monitor Controller at a Glance:
- Exceptional Golden Age microphone preamplifiers
- 30 channels of analog summing
- Comprehensive monitoring control
- Switchable output transformers for sonic variations
Exceptional Golden Age microphone preamplifiers
The Shadow Hills Industries Equinox gives you a pair of Golden Age mic preamps with extreme functionality. You have 60dB of gain on tap, with a -20dB pad to allow you to record loud sources like drums and guitar amps without unwanted distortion. A 1/4" instrument input is present for direct recording of guitar, bass, and acoustic-electric instruments, making the Equinox an all-around workhorse microphone preamplifier.
30 channels of analog summing
The Equinox is ready to provide rich and punchy mixes with incredible depth, thanks to 30 channels of on-board analog summing. You'll have the incredibly high headroom of an analog console that will allow your tracks to reach their full dynamic potential. You'll also appreciate the incredible stereo imaging with a lifelike sense of depth.
Comprehensive monitoring control
With mastering-quality components, the Equinox gives you the monitoring quality you need to make crucial mix decisions with confidence. You can connect up to three sets of monitors, and a stereo cue output is ready to feed a separate headphone system from any of the Equinox's inputs. You'll have the flexibility you need to approach recording, mixing, and mastering projects with speed and precision when you add the Equinox to your studio setup.
Switchable output transformers for sonic variations
You have remarkable control over the tone and vibe of your music with the Equinox, thanks to three switchable output transformers. Switching transformers provides a subtle but significant tonal shift, both to signals recorded through the Equinox's mic pres as well as the output of the summing mixer section. Choose from steel, nickel, or iron output transformers to get the iconic sound of different styles of analog consoles. The nickel transformer gives you a natural low-end with smoothly enhanced high frequencies, outstanding on vocals and acoustic instruments. The iron transformer has a natural high end with a slight boost around 110Hz, and has a Class-A output stage that only passes even-ordered harmonic distortion - very musical. The steel transformer sounds very open with a detailed and fast response, with a very subtle boost around 40Hz that helps provide rock-solid low frequencies. With the Equinox, you can shape your recordings and mixes to suit whatever musical vibe you want.
Shadow Hills Industries Equinox Microphone Preamp/Summing Mixer/Monitor Controller Features:
- Combines fantastic mic preamps, 30 channels of high-quality analog summing, and mastering-quality monitor control to give you the best functions of an analog console
- 24-position, gold-plated stepped attenuator knobs for precise recall of your session settings
- Switchable nickel, iron, and steel output transformers give you the sound of a variety of vintage consoles
- 30 channels of passive analog summing provide ample headroom to produce dynamic, hard-hitting mixes
- Supports up to three sets of studio monitors
- Cue output for connecting to your headphone distribution system
- Requires Shadow Hills Power Supply, not included
| While the convenience and power of DAWs is indisputable, some engineers prefer the sound of analog, particularly when it comes to mixing. That's where the Burl Audio B32 Vancouver analog mix bus comes in. Designed specifically for the digital audio environment, this summing amp lets you realize the full potential of your DAW by delivering the kind of sound quality you'd expect from a classic, large-format analog console - from a compact 1U device. Built in the USA using only the finest mastering-grade components, Burl Audio's B32 Vancouver sums 32 channels (24 stereo, eight mono inputs) to dual stereo outputs, and gives you the flexibility of a 6dB gain boost and tone-enhancing switchable output transformer.
Burl Audio B32 Vancouver 32-channel Mix Bus at a Glance:
- Large-format analog console hugeness
- Impressive Sonic versatility and ease of use
- Burl Audio: pro gear driven by an audiophile sensibility
Large-format analog console hugeness
If you've ever worked on a classic large-format analog console, you've likely got that inimitable sound stuck in your head, and the results you're getting out of your DAW may not be cutting it. Enter the the Burl Audio B32 Vancouver. With no capacitors in its discrete analog Class A signal path, this 32-channel "mix bus" embues your mixes with the hugeness, impact, spatial detail, and clarity. It gives your mixes the "glue" they've been missing.
Impressive sonic versatility and ease of use
Burl Audio's B32 Vancouver gives you impressive sonic versatility, and it's so easy to use. Aside from your left- and right-channel mix level pots, there are just two other controls for each channel - a button that engages a 6dB summing amp Gain Boost, and a button to insert Burl's BX5 output transformer into the circuit. The Gain Boost endows your mix with hugeness and slam factor, while the BX5 output transformer provides an alternate tonality (which sounds amazing, trust us). The bottom line? If you want massive-sounding mixes, the Burl Audio B32 Vancouver is a no-brainer.
Burl Audio: pro gear driven by an audiophile sensibility
At Sweetwater, we've been nothing but impressed with Burl Audio gear. Based in a professional Santa Cruz, CA recording studio, Paradise Recording, Burl is driven by an audiophile sensibility; their gear is designed by pro recording engineers, for recording engineers of all levels. The company's directive is simple: to provide you with high-quality recording equipment that will improve your recording, mixing, and mastering. Their innovative solutions not only sound amazing; they intelligently address the challenges of the digital age.
Burl Audio B32 Vancouver 32-channel Mix Bus Features:
- Discrete analog Class A signal path
- Eight mono inputs, 24 stereo inputs
- Audiophile-grade 0.1% stepped attenuators
- Switchable BX5 output transformer
- Summing amp Gain Boost
- Dual stereo outputs
- Made in the USA
|
