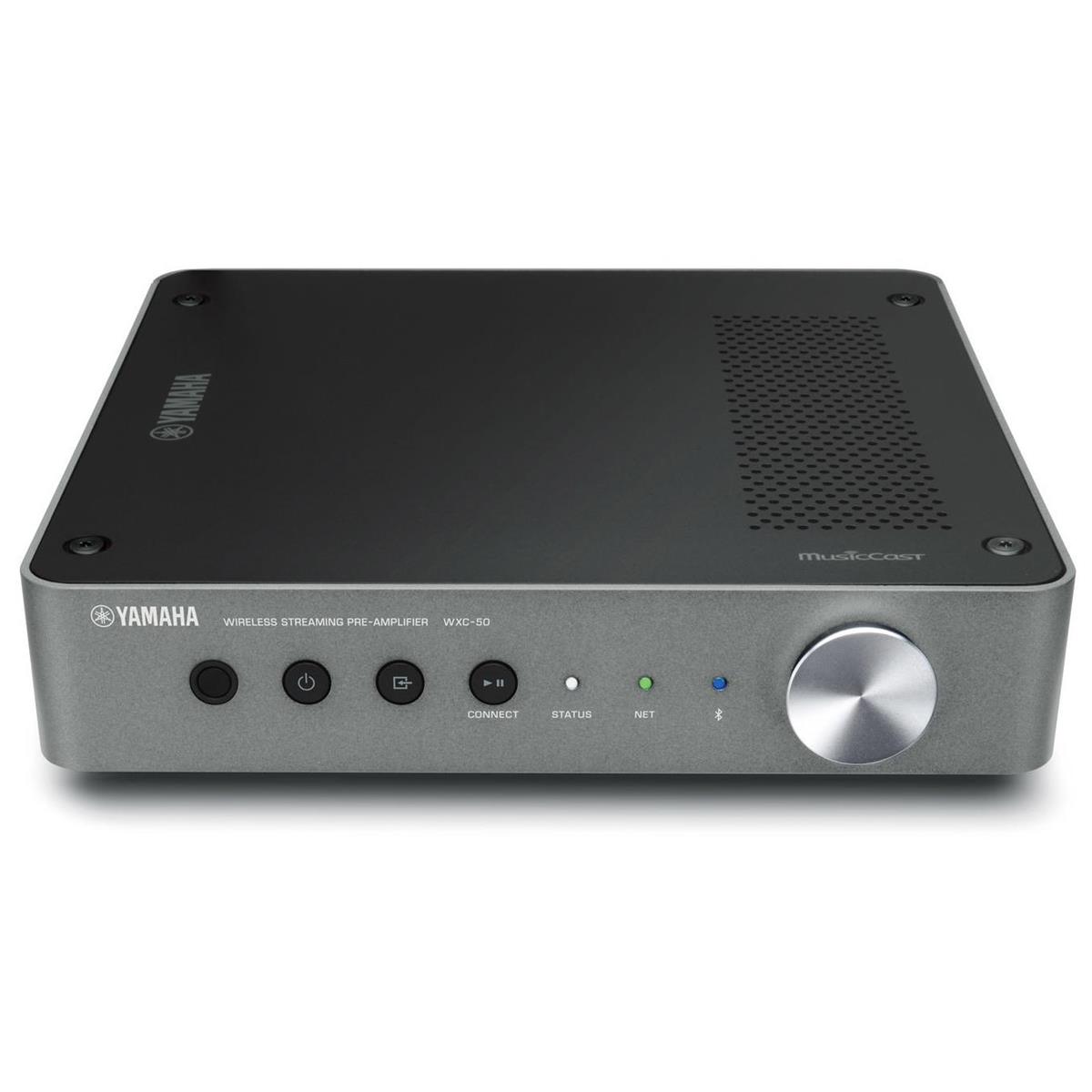

Audiophile Sound, Exquisite Design
The WXC-50 features a solid metal body with an aluminum cover and a slim, compact design that fits just about anywhere. Under the hood, you'll find high-performance components and advanced circuitry that deliver powerful, sonically-pure preamplification.
Control at Your Fingertips
Connect the WXC-50 to your existing AV receiver or Hi-Fi system, then download the free MusicCast app to connect it to your existing home Wi-Fi to create a powerful streaming audio system.Quickly select sources, browse your music library and control playback right from your smartphone or tablet. You can also control sound EQ settings from the app.

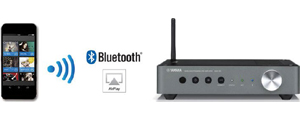

Bluetooth® and AirPlay®
Stream virtually any audio source via Bluetooth as an input to the WXC-50. Bluetooth sources can be redistributed through Wi-Fi to other MusicCast devices. Or stream using AirPlay from an Apple® device to a single unit.

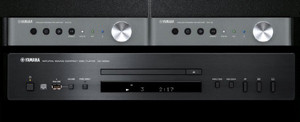

Rack Shelf Friendly
With the feet removed, the WXC-50 is only 1-5/8" high, allowing it to be placed on a rack shelf within a 1U high rack space. Two units can be placed side-by-side on a 19" wide shelf.

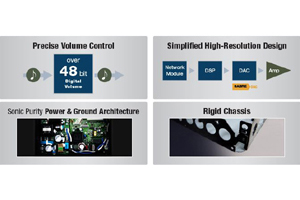

Superior Audio Technology
Yamaha's relentless pursuit of sonic purity is clearly evident in the engineering of the WXC-50. The preamp circuitry uses the same high-performance ESS digital-to-analog converter (DAC) found in high-end Yamaha AV receivers and a proprietary power supply ground configuration prevents sound degradation. A 48-bit digital volume control provides much greater precision and quality than conventional controls. A highly-rigid metal chassis supplies the stability necessary for clear, powerful music reproduction.
Player Mode
If you want to adjust volume from a connected Hi-Fi amp or AV receiver, the WXC-50 allows you to turn off "preamp" mode and use the device as a network audio player. Switching to "player" mode bypasses the volume control and any processing, allowing direct playback of high-resolution audio.
One-Touch Controls
Pressing any button on the front panel turns the unit on and initiates playback of the previously selected source providing quick and easy access to your favorite music.The WXC-50 also comes with an ultra-slim remote offering six presets, so you can quickly access your favorite Internet radio stations even when your smartphone or tablet's not handy.
Pro-Grade Connectivity and Control
The WXC-50 supports professional-grade features including:
- Wired Ethernet port
- Wireless off switch
- Optical and analog inputs
- Digital optical and coax outputs
- Subwoofer out
- Trigger in/out
- Remote in
- Network section
- DLNA: Version 1.5
File Format: MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, ALAC, DSD
Wi-Fi: Yes
AirPlay: Yes
Bluetooth: Yes (SBC / AAC)
- Rated Output Power
- 70 W + 70 W (6 Ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
55 W + 55 W (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
- Maximum Output Power
- 90 W + 90 W (6 Ohms, 1 kHz, 0.9% THD, 1-ch driven)
- Pure Direct
- Yes
- Total Harmonic Distortion (20 Hz-20 kHz)
- 0.02% (SP out)
- Signal-to-Noise Ratio
- 110 dB (Opt / Net / USB / Bluetooth in) / 98 dB (aux in)
- Audio In / Out
- 1 / 1
- Digital In / Out
- 1 (optical) / 0
- USB Input
- 1
- Ethernet
- 1
- Subwoofer Out
- 1
- Remote In / Out
- 1 / 0
- Control (Trigger) In / Out
- 1 / 1
- Standby Power Consumption
- 1.8 W
- Dimensions (W x H x D)
- 8.37 x 2 x 9.62" / 212.60 x 50.80 x 244.35mm (with Antenna: 8.37 x 4.87 x 9.62" / 212.60 x 123.70 x 244.35mm), 8.37 x 1.62 x 9.62" / 212.60 x 41.15 x 244.35mm (without antenna and feet)
- Weight
- 4.28lbs / 1.94kg
|
Pure power and precision. The A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift on-screen movements, the A6A ensures you won't miss a thing.
Breathtaking Sound
Surround:AI
Dolby Atmos
Dolby Atmos with Height Virtualization
DTS:X
High Slew Rate Amplifier
Compressed Music Enhancer
MusicCast multi-room audio
Wi-Fi, AirPlay 2 and Spotify Connect
Streaming services include Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM
Zone 2/3 and HDMI Zone 4
Phono input
Movies And Games Like Never Before
4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
HDR 10+, 8K60AB, 4K120AB via future update
Gaming-dedicated functions (ALLM, VRR, QMS, QFT) via future update
Multiple HDMI inputs with the latest technology
AURO-3D via future update
Simple To Set Up, Simple To Use
MusicCast app
AV Setup Guide app
Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Integration with third party control partners
Designed For Your Space
YPAO-R.S.C. with multipoint measurement and precision EQ
Wireless rear surround capability
Sleek, modern design
Anti-Resonance Technology Wedge (Fifth Foot)
Breathtaking Sound
Surround:AI
This artificial intelligence analyzes the DSP parameters and optimizes the surround effect of distinct sound elements such as background music, dialogue, and sound effects. It's like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407
Crafted for Clarity
The newly designed Anti-Resonance Technology (A.R.T.), H-shaped Cross Frame and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal clear sound that moves you, all while your AV receiver stays perfectly still. A double-bottom plate ensures stability for unnecessary vibrations.
High-Quality Digital Components
The Qualcomm QCS407 takes your AV receiver's audio performance to the next level with support for Dolby Atmos and DTS:X. SABRE ES9026 PROs minimize noise to make even the most delicate sounds rich, while SABRE ES9007S Premier Audio DAC provides superior signal-to-noise ratio and up to 120dB of dynamic range for professional quality audio.
AURO-3D
Bring your entertainment experience to the next level with immersive audio that accurately reproduces 3D sound with superior effect across any content. Gain entry into a world where every breath-taking moment is not only heard but also felt.
Movies And Games Like Never Before
8K60AB, 4K120AB and 4K60
This feature offering enables a higher resolution and refresh rate, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybrid-Log Gamma and BT-2020 included.
Enhanced Gaming Features (ALLM, VRR, QMS and QFT)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
These HDMI inputs will equally support the latest HDMI technology to allow several next-gen gaming consoles to be connected at the same time.
Simple To Set Up, Simple To Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Working with Alexa and Google Assistant, your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device.
AV Setup Guide App
This app offers expert guidance through installation, cable connections, and various other settings.
Third Party Control
This receiver includes integration with third party control partners, including Crestron, URC, RTI, Control4 and more
Designed For Your Space
YPAO-R.S.C. with Multipoint Measurement and Precision EQ
YPAO (Yamaha Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X. This feature includes low frequency mode.
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.
- 9.2ch / 150 W
- High Slew Rate Amplifier
- HDMI 7 inputs / 3 outputs
- DTS:X
- Streaming Service
- CINEMA DSP HD3
- 11ch Pre Out
- Multi-room Audio
- AirPlay 2
- Dolby Atmos
- Playback in Multiple Zones
- XLR Input Terminal
- Channel
- 9.2 (11.2 processing)
- Rated Output Power
- (20Hz-20kHz, 2-ch driven): 150 W (8 ohms, 0.06% THD)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision, Hybrid-Log Gamma
- BT.2020, HDR10+: Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/3
- HDMI 4K60, 4K120AB, 8K60AB support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output: Optical
- 3/0
- Digital Audio Input/Output: Coaxial
- 2/0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 6/0
- Zone 2 and 3
- Yes
- Phono Input
- Yes
- XLR Terminal
- Yes
- Component Video Input/Output
- 1/0
- Composite Video Input/Output
- 2/0
- Preout
- 11.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- < 0.4 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.12 x 7.5 x 17.37" (43.48 x 19.05 x 44.11cm)
With antenna up: 17.12 x 10.62 x 17.37" (43.48 x 26.97 x 44.11cm)
- Weight
- 44.8 lbs (20.3kg)
|
Equipped with the 6th generation of Direct Energy HD Amplifier, the SC-LX704 is worthy of being your home cinema's centerpiece, and an ideal combination for Pioneer's flagship universal disc player. Two ES9026PRO DACs ensure quality audio reproduction, while MCACC Pro Auto Room Tuning technology with Full Band Phase Control brings out the best from 3D surround sounds of IMAX Enhanced, Dolby Atmos, and DTS:X. Enjoy rich, vibrant sound with PQLS jitterless transmission. The new Audio Exclusive Mode and AV Direct Mode enhance detailed sound reproduction by turning off the unused functions to eliminate unwanted noise.
Direct Energy HD Class D Switching Amplifier
Continuously evolving throughout the years, Pioneer's Direct Energy HD Amp has now reached the 6th generation. New power coils are adopted for the ideal speaker drive, as well as new custom film capacitors co-developed with Shinyei Capacitor for the ultimate sound. The power supply and patterning has been developed through repeated tuning. Also, the entire transmission path from the pre stage to the power stage has been changed to balanced circuitry, to transmit noise-free high-quality signals to the power stage.
MCACC Pro Auto Room Tuning
MCACC Pro, the pinnacle of Pioneer's auto room tuning technology, analyzes the phase and group delay characteristics to precisely control phase differences between speakers. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers. Required microphone included.
IMAX Enhanced MODE
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite's IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
ESS 384 kHz/32-bit DAC
Two 384 kHz/32-bit ESS DACs (ES9026PRO), same as the ones used for Pioneers PD-70AE SACD player, are used for all channels. With extremely precise D/A conversion and high S/N ratio, the DAC provides powerful sound full of rich details.
Dolby Atmos
You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.
DTS:X
Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.
Full Band Phase Control
Pioneer's Phase Control technology effectively eliminates phase lag and significantly improves the multi-channel sound without any extra operation. Furthermore, The Full Band Phase Control technology focuses on the group delay in the speaker network filter, and adjusts the phase of each unit as well as the group delay for each speaker. Multi-range speakers gain the sound coherence of full-range speakers, while retaining the wide frequency range advantage. In an environment where the phase of all units and all channels are precisely controlled, a remarkably clear sound location with a surrounding feel is achieved. In combination with MCACC Pro, the ideal multi-channel reproduction environment can be created, which faithfully replicates object audio and the intention of the original content developer.
PQFA Jitterless Sound Processing for Network/USB
With PQFA (Precision Quartz File-based Audio), clocks are available for each stage of input, digital signal processing, and D/A conversion, and the shorter path prevents jitter from occurring. Additionally, a high-precision clock IC (OSC) is used to realise D/A conversion with significantly less jitter.
PQLS Jitterless Sound Transmission
With the precision quartz controller on the AV receiver, Precision Quartz Lock System (PQLS) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the Pioneer universal disc player connected via HDMI, giving the best possible digital-to-analog conversion.
Audio Exclusive Mode
Interference from video signals is eliminated by turning off the video signal path via HDMI. You can enjoy detailed sound, full of spatial feel.
AV Direct Mode
The feature turns off the network functions to suppress digital noise within the AV receiver, and improves sound quality for analog playback, digital input, HDMI playback etc. Mode 1 turns off the network module operation clock, while Mode 2 shuts down the network power completely for more superior sound.
Works with Alexa
Works with Alexa makes you control SC-LX704 with your voice via Alexa-enabled device such as the Amazon Echo, to play, pause, and skip titles or control the volume. You can enjoy the music via streaming service such like Amazon Music by selecting song title, artist name, release year, and genre.
Ready for 4K HDR entertainment
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
High-Performance AC Cable
Included detachable OFC power cable contributes to superior sound.
Anti-Standing Wave Insulators
Features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localisation, tone, and scale clearer, while also contributing to seamless connection between the channels and improved response to quick sound.
- Direct Energy HD Amplifier
- MCACC Pro Auto Room Tuning
- IMAX Enhanced
- ESS 384 kHz/32-bit DAC
- Dolby Atmos/Dolby Surround Upmixing
- DTS:X/DTS Neural:X Upmixing
- Full Band Phase Control
- 2 Subwoofer Pre-Out
- PQLS Jitterless Sound Transmission
- PQFA Jitterless Sound Processing for Network/USB
- Audio Exclusive Mode
- AV Direct Mode
- Works with Alexa
- Next Generation Video Standard Ready
- Anti-Standing Wave Insulators
- AC Inlet Type Thick Cable
- Amplifier Design
- Class D3 (Direct Energy HD)
- Multi-ch Simultaneous Drive
- 760 W (8ohms, 1 kHz, THD 1 %)
- 4 Ohm Speaker
- Yes
- Channels
- 9.2
- 8 ohms, 1kHz, THD 0.08 %, 2ch Driven FTC
- 135W+135W
- Power Consumption
- 310W/0.2W (Estimated Power Consumption/Network Standby off)
- AirPlay
- Apple AirPlay 2
- Internet Radio
- TuneIn Radio
- Works with the Google Assistant
- Yes (Chromecast built-in)
- FlareConnect for Multi-room Audio
- Yes
- Roon Tested
- Yes
- Streaming Audio From PC/Network
- Yes
- iOS/Android Remote Control APP
- Pioneer Control App
- Works with Alexa
- Yes (Firmware update)
- DTS Play-Fi w/Pioneer Music Control App
- Yes
- Music-Streaming Services Ready
- Amazon Music, Pandora, Spotify, TIDAL, and Deezer Hi-Fi: Yes
- Digital Core DSP Engine
- Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus floating- point DSP (TI)
- Audio Processing
- 11.2
- IMAX Enhanced
- Yes
- Dolby Atmos Height Virtualizer
- Yes
- Dolby Digital Plus
- Yes
- DTS-HD Master Audio
- Yes
- HDMI SACD Transfer
- Multi-Channel
- Audio DACs
- 384 kHz/32-bit D/A Conversion with ES9026PRO x 2
- Music File Playback
- 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
- Dolby Atmos
- Yes
- Dolby TrueHD
- Yes
- DTS:X
- Yes
- DTS Neural:X
- Yes
- MCACC
- Yes (Pro)
- Full Band Phase Control
- Yes
- Phase Control
- Yes
- EQ Bands
- 9-Band
- Distance Adjustment
- 0.05'
- Auto Subwoofer Crossover
- Yes
- MCACC Memory
- 3
- Auto Phase Control Plus
- Yes
- Standing Wave Control
- Multi-point (9 points)
- EQ Type
- LR SYMMETRY EQ, FRONT ALIGN EQ, ALL CH ADJUST EQ
- Polarity Check
- Yes
- Auto Surround
- Yes
- Advanced Surround
- 10+1
- Stream Direct
- Yes (Direct, Pure Direct)
- Front Stage Surround Advance
- Yes
- Dialog Enhancement
- Yes
- DSD Music File
- Yes
- Sound Delay (Lip Sync)
- Yes
- Bi-Amp
- Yes
- Advanced Sound Retriever
- Yes (2ch)
- Tone Control
- Multi
- Speaker A/B
- Yes
- 4K Ultra HD Pass-Through
- Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
- 3-D Ready
- Yes
- HDMI Standby Through
- Yes with Input Switch/Last Memory
- Dolby Vision Compatible
- Yes
- HDMI x.v. Color
- Yes
- Super Resolution
- Yes
- 4K Ultra HD Video Scaler
- Yes (1080p to 4K)
- Audio Return Channel
- Yes (eARC)
- HDR
- HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
- HDMI 36-bit Deep Color
- Yes
- Video Converter to HDMI
- Yes
- HDMI Input/Output
- 7 In (6 Rear, 1 Front)/3 Out
- Bluetooth Built-In
- Bluetooth Wireless Technology (Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
- Composite A/V Input/Output
- 2 in
- Ethernet Input
- Yes
- Digital Audio Inputs/Output
- 5 in (Optical 3, Coaxial 2)/0 out
- Headphone Output
- Yes
- Phono Input
- Yes
- Wi-Fi Built-In
- Dual Band (5 GHz/2.4 GHz) 802.11ac Compliant Wi-Fi Built-in
- Component Video Input/Output
- 2 in
- USB Terminal
- Front and Rear
- Analog Audio Inputs/Output
- 6 in/0 out
- Pre-Amp Output
- 11.2 ch
- Front A/V Inputs
- USB & HDMI
- AM/FM Presets
- AM/FM Tuner 40 Presets
- On-Screen Display
- User-Friendly GUI with System Setup Menu
- Powered Zone output
- ZONE2/ZONE3
- Zone 2 Sources
- All Audio Sources
- 12 Volt Trigger (Assignable)
- A.B
- IR Serial Remote In/Out
- 2 in/1 out
- Function Rename
- Yes
- Personal Preset
- Yes
- Versatile Speaker Configuration
- Yes
- Auto Power Down
- Yes
- Multi-Room and Source Output
- ZONE2/ZONE3 Pre/Line Out
- Zone 3 Sources
- Analog/Net/Bluetooth/Tuner
- RS-232C
- Yes
- FL Dimmer
- Yes
- Remote
- Yes
- Sleep Timer
- Yes
- Alumium Front Panel
- Yes
- Transformer Stabilizer
- Yes
- 3D Space Frame Construction
- Yes
- Speaker Terminals
- 11 Large
- Advanced Direct Construction
- Yes
- Dimensions (W x H x D)
- 17-1/8 x 7-5/16 x 17-5/16 inches (435 x 185 x 440mm)
- Weight
- 40.8 lbs (18.5kg)
|
Designed for optimum IMAX Enhanced and Dolby Atmos/DTS:X movie playback in a seamless 7.2.2ch/5.2.4ch surround sound calibrated by Advanced MCACC, along with support for next-generation video standards, the VSX-LX304 brings multi-dimensional excitement to your home entertainment. Dolby Atmos Height Virtualizer can provide virtual sound effects without using height or surround speakers. Enjoy multi-room audio streaming with SONOS system, FlareConnect, Chromecast built-in, DTS Play-Fi, and Apple AirPlay 2.
IMAX Enhanced
The VSX-LX304 is IMAX Enhanced, certified to deliver the powerful sound just as intended by the filmmaker, and provide the immersive experience on your home theater.
Dolby Atmos/Dolby Surround Upmixing
The VSX-LX304 is compatible with 7.2.2ch/ 5.2.4ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Enjoy a seamless soundscape with 7.2.2ch/5.2.4ch surround system offering maximum excitement. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Apple AirPlay
Apple AirPlay 2 lets you effortlessly stream music or podcasts to speakers throughout your house using any Apple device or by asking Siri, and it all stays in perfect sync.
Next Generation Video Standard Ready
The VSX-LX304 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What's more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Works with SONOS
connecting the VSX-LX304 to Sonos Connect, you can play any music or audio source on your Sonos app. You can group the VSX-LX304 with other Sonos devices on the network, or use it independently. The AV receiver will automatically turn on and switch input as soon as you play music on your Sonos app.
Powered Zone 2 with Dedicated DAC
With the powered feature, the VSX-LX304 can directly drive speakers in another room, without the need for a separate amplifier. What's more, the dedicated DAC for Zone 2 lets you listen to all digital audio sources.
Zone B Output for Wireless Headphones
The VSX-LX304 is equipped with Zone B audio output terminals for expanding the Main Zone sound. You can listen to the sound playing in the living room via wireless headphones.
Chromecast built-in
The VSX-LX304 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecastenabled apps running on your personal device-iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook. The VSX-LX304 also works with the Google Assistant, so you can tell it to turn up the volume, skip tracks, or stop the music using your Google Assistant enabled device, like Google Home.
Audio Features
• IMAX Enhanced
• Dolby Atmos, Dolby Surround Upmixer supports DTS Formats
• DTS:X, DTS Neural:X Upmixer supports Dolby Formats
• Reflex Optimizer
• Dolby Atmos Height Virtualizer
• Dolby TrueHD, Dolby Digital Plus
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)
• Digital Quad-Core 32-bit DSP (Cirrus Logic)+ Aureus floating-point DSP (TI)
• 384 kHz/32-bit D/A Conversion with AK4458 (AKM) & PCM5101A (TI)
• Audio Return Channel (ARC) on HDMI
• MCACC Auto Room Tuning - Auto Phase Control Plus, Subwoofer EQ, Multi-point Standing Wave Control
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Video Features
• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through
• Dolby Vision Compatible
• Ultra HD Upscaling (1080p to 4K)
• 3D Ready (Blu-ray Disc, Broadcast, and Games)
• Deep Color (36-bit), "x.v. Color"
Home Network Features
• FlareConnect for Multi-room Audio
• Chromecast built-in and Works with the Google Assistant
• DTS Play-Fi with Pioneer Music Control App
• Apple AirPlay 2
• Works with SONOS
• Amazon Music, Pandora, Spotify Freemium, Spotify Premium, TIDAL, and Deezer Music-Streaming Services Ready
• Internet Radio with TuneIn
• Hi-Res Audio File Playback via USB/Network - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
Convenience Features
• Personal Preset
• Dialog Enhancement
• Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
• Bluetooth Wireless Technology (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in
• Pioneer Remote App Ready for Multi-room Entertainment Control and Network Streaming
• User-Friendly GUI with System Setup Menu
• On-Screen Information for Audio/Video Status
• Auto Power Off in HDMI Standby Through
• AM/FM Tuner 40 Presets
• Sleep Timer
• User-Friendly Simple Remote Control
Front Terminals
• HDMI 1 In
• USB 1 In for USB Drive
• MCACC Setup MIC In (Gold-Plated)
• Audio 1 In (Mini Stereo Jack, Gold-Plated)
• Phones 1 Out (Gold-Plated)
Rear Terminals
• HDMI 6 In (4 Assignable)
• HDMI 2 Out (1 for MAIN, 1 for SUB)
• Ethernet 1 In
• USB 1 In for USB Drive
• Audio 4 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• Subwoofer 2 Pre Out
• ZONE B Line Out for Wireless Headphones
• ZONE 2 Pre/Line Out
• Speaker 9ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
• IR 1 In/1 Out
• 12 V Trigger 1 Out
• RS-232C
• FM/AM Antenna
- IMAX Enhanced
- Dolby Atmos/Dolby Surround Upmixing/Dolby Atmos Height Virtualizer
- DTS:X/DTS Neural:X Upmixing/DTS Virtual:X
- Apple AirPlay 2 / Works with SONOS
- Powered Zone 2 with Dedicated DAC
- 225 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- 100 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
- Channels
- 9.2
7.2.2 or 5.2.4 in Dolby Atmos and DTS:X Setups
- Power Output per Channel
- 100 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC
225 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven
- Speaker Impedance
- 4 to 16 Ohms
- Amplifier Type
- Direct Energy
- DAC
- 384 kHz / 32-Bit AKM (AK4458) and TI (PCM5101A)
- Dolby
- Dolby Atmos, Dolby TrueHD, Dolby Digital Plus
- DTS
- DTS:X, DTS Neural:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
- Maximum Resolution Supported
- 4K 60 Hz (4:4:4, 24-Bit)
- Tuner
- AM/FM
- FM/AM Preset Memory
- 40 Stations
- Wi-Fi
- Dual-Band 2.4 / 5 GHz
- Bluetooth
- Version: 4.2 + LE
Profiles: A2DP 1.2, AVRCP 1.3
Codecs: SBC, AAC
- Inputs
- 7 x HDMI
1 x Optical TOSLINK
1 x Digital Coaxial
5 x Stereo RCA (1 Phono with Ground Screw)
1 x Gold-Plated 1/8" / 3.5 mm Aux (Front)
- Outputs
- 2 x HDMI
1 x Stereo RCA Zone 2/B
1 x Gold-Plated 1/4" / 6.35 mm Headphone (Front)
- Other Interfaces
- 1 x RJ45 Ethernet LAN
2 x USB (1 Front)
2 x Subwoofer Pre-Out
1 x Gold-Plated 1/8" / 3.5 mm Setup Microphone (Front)
1 x AM Antenna
1 x FM Antenna
1 x DE-9 RS-232C Control
1 x 1/8" / 3.5 mm IR In
1 x 1/8" / 3.5 mm IR Out
2 x 1/8" / 3.5 mm 12 V Trigger Out
- Speaker Connectors
- 9 x Binding Post Pairs
- USB Playback Formats
- Up to 192 kHz / 24-Bit ALAC, AIFF, FLAC, WAV (RIFF), 11.2 MHz DSD (Converted to PCM)
- Power Requirements
- 120 VAC, 60 Hz
- Power Consumption (Active)
- 750 W
- Power Consumption (Standby)
- 0.15 W
- Dimensions (W x H x D)
- 17.1 x 6.8 x 14.9" (435 x 173 x 370.5mm)
- Weight
- 23.8 lb (10.8kg)
|
Acknowledging the golden era of Hi-Fi with its beautiful design, the A-S1200 boasts an impressive array of the latest technology to accurately deliver an emotional, purely musical sound.
Nostalgic Hi-Fi design. Today's Hi-Fi technology
A nod to the past with the latest technology for a purely musical sound.
Emotion
Understanding music is to understand the emotion upon which music is created - the passion and story behind the music that drives artists to create. With unmatched experience in every facet of music creation, embedded deep in the Yamaha DNA is an intimate understanding of the emotional essence of music and music creation. Conveying the artists' emotion through our Hi-Fi equipment is a fundamental component of the Yamaha design philosophy.
>Toroidal Transformer
Usually reserved for flagship Hi-Fi components, the A-S1200 benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi, while simultaneously demonstrating the return of pure Hi-Fi for today's discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LEDs.
Openness
An open sound stage presents the listener with a musical experience that is similar to being at the live performance. True Hi-Fi delivers this openness in the sound, transforming the listeners' musical experience, bringing them closer to the artist.
Thick Wires for Ground Connection
Our low Impedance concept, aided by the thick wires for ground connection, is critical for componentry adopting the badge of premium Hi-Fi. This Yamaha design concept begins in our premium Hi-Fi components with the A-S1200, helping to present an open, natural sound stage, bringing the artist and listener closer together.
Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals comfortably fit the human hand for effortless tightening, achieving a highly secure connection.
Groove
Connection with the music is achieved with the underlying groove and rhythm. A true representation of the music lets the listener feel the groove, and therefore not just hear the music but feel the story behind the music.
Mechanical Ground Concept
The A-S1200 adopts a Mechanical Ground Concept, inherited from both the A-S2200 and A-S3200. The concept begins with the bolts of the feet welded directly to the main chassis, followed with the large heat sink, power transformer and block capacitors also directly bolted to the chassis. Through this design, unwanted vibration is avoided, achieving expressive and rhythmic bass, presenting the 'Groove' of the music to the listener.
Chrome-Plated Iron Feet
Completing the rigidity of the amplifier are the heavy-duty chrome-plated iron feet.
- High quality components delivering exceptional musical expression
- Toroidal power transformer with enormous energy for a pure musical sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Floating balanced power amplifier
- Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
ColorBlackRated output power 2-channel driven8Ohm: 90 W + 90 W
4Ohm: 150 W + 150 W (20 Hz to 20 kHz, 0.07% THD)Dynamic power8Ohm: 105 W + 105 W
6Ohm: 135 W + 135 W
4Ohm: 190 W + 190 W
2Ohm: 220 W + 220 WIEC output power8Ohm: 95 W + 95 W (1 kHz, 0.07% THD)Maximum effective output power8Ohm: 120 W + 120 W
4Ohm: 190 W + 190 WPower bandwidth 2-channel driven8Ohm: 10 Hz to 50 kHz (0.1% THD, 45 W)Damping factor8Ohm: 250 or higher(1 kHz)Input sensitivityPHONO (MC): 150 micro Vrms / 50Ohm
PHONO (MM): 3.5 mVrms / 47 kOhm
CD (or similar): 200 mVrms / 47 kOhm
MAIN IN: 1 Vrms / 47 kOhmMaximum inputPHONO (MC): 2.0 mVrms
PHONO (MM): 50 mVrms
CD (or similar): 2.80 VrmsRated output voltageLINE 2 OUT: 200 mVrms / 1.5 kOhm
PRE OUT: 1 Vrms / 1.5 kOhmHeadphone jack rated output power25 mW + 25 mW (1 kHz, 32 Ohm, 0.2% THD)Frequency response5 Hz to 100 kHz: +0 / -3 dB
20 Hz to 20 kHz: +0 / -0.3 dBDeviations from RIAA equalizerPHONO (MM/MC): +/-0.5 dBTotal harmonic distortion plus noise2-channel driven: PHONO (MC) - LINE 2 OUT, 1.2 Vrms: 0.02%
PHONO (MM) - LINE 2 OUT, 1.2 Vrms: 0.005%
CD (or similar) - SPEAKERS OUT, 50 W/8Ohm: 0.035%
Signal-to-noise ratioPHONO (MC): 90 dB
PHONO (MM): 96 dB
CD (or similar): 110 dBResidual noise50 micro VrmsChannel separationPHONO (MC): 66/77 dB or higher
PHONO (MM): 90/77 dB or higher
CD (or similar): 74/54 dB or higherTone control characteristicsBASS: Boost/cut: 50 Hz / +/-9 dB
Turnover frequency: 350 Hz
TREBLE: Boost/cut: 20 kHz / +/-9 dB
Turnover frequency: 3.5 kHzPower supplyAC 120 V, 60 HzPower consumption350 WStandby power consumptionOFF mode: 0.1 W
Standby mode: 0.2 WDimensions (W x H x D)17.13 x 6.13 x 18.25" (43.49 x 15.57 x 46.35cm)Weight48.5 lbs (22kg)
|
The A4A delivers realistic sound and video that transports you out of your home and into your favorite movie. Whether you're watching, listening or gaming, you'll feel completely immersed
Breathtaking Sound
Surround:AI
Dolby Atmos
Dolby Atmos with Height Virtualization
DTS:X
High Slew Rate Amplifier
Compressed Music Enhancer
MusicCast multi-room audio
Wi-Fi, AirPlay 2 and Spotify Connect
Streaming services include Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster and SiriusXM
Zone 2
Phono input
Movies And Games Like Never Before
4K60 Ultra HD with HDR, Dolby Vision, Hybrid-Log Gamma and BT.2020
HDR 10+, 8K60AB, 4K120AB via future update
Gaming-dedicated functions (ALLM, VRR, QMS, QFT) via future update
Multiple HDMI inputs with the latest technology
Simple To Set Up, Simple To Use
MusicCast app
AV Setup Guide app
Voice control with Alexa and Google Assistant devices; works with Siri via AirPlay 2
Integration with third party control partners
Designed For Your Space
YPAO-R.S.C. with multipoint measurement and precision EQ
Wireless rear surround capability
Sleek, modern design
Anti-Resonance Technology Wedge (Fifth Foot
Breathtaking Sound
Surround:AI
This artificial intelligence analyzes the DSP parameters and optimizes the surround effect of distinct sound elements such as background music, dialogue and sound effects. It's like having a professional sound engineer tune the sound according to the scene. 64-bit processing with Qualcomm QCS407.
Crafted for Clarity
The newly designed Anti-Resonance Technology (A.R.T.), H-shaped Cross Frame and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal clear sound that moves you, all while your AV receiver stays perfectly still.
High-Quality Digital Components
Qualcomm QCS407 takes your AV receiver's surround sound to the next level with support for Dolby Atmos and DTS:X. With SABRE ES9007S Premier Audio DAC, you get extraordinary signal-to-noise ratio and up to 120 dB of dynamic range for professional quality audio.
CINEMA DSP HD3
This unique Yamaha proprietary sound field playback technology was created by combining actual measured sound field data with cutting-edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes sound effects, accurately reproducing a new dimension of realism
Movies And Games Like Never Before
8K60AB, 4K120AB and 4K60
This receiver supports end-to-end 8K/4K resolutions and higher refresh rates, giving you a smoother and more realistic viewing experience.
HDR10+ and Dolby Vision
The latest enhancement for HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybrid-Log Gamma and BT-2020 included.
Enhanced Gaming Features (ALLM, VRR, QMS and QFT)
New enhanced gaming/media features offer seamless motion and transitions to enhance your performance.
Future Support for Multiple HDMI Inputs
These HDMI inputs will equally support the latest HDMI technology to allow several next-gen gaming consoles to be connected at the same time.
Simple To Set Up, Simple To Use
MusicCast App
Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.
Voice Control
Working with Alexa and Google Assistant, your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device.
AV Setup Guide App
This app offers expert guidance through installation, cable connections, and various other settings.
Third Party Control
This receiver includes integration with third party control partners, including Crestron, URC, RTI, Control4 and more
Designed For Your Space
YPAO-R.S.C. with Multipoint Measurement and Precision EQ
YPAO (Yamaha Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos and DTS:X. This feature includes low frequency mode.
Compatible with Wireless Surround Sound
Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to this AV receiver.
Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home
- 7.2ch / 110 W
- Multi-room Audio
- CINEMA DSP HD3
- Dolby Atmos
- eARC
- High Slew Rate Amplifier
- HDMI 7 inputs / 3 outputs
- AirPlay 2
- Streaming Service
- Phono
- DTS:X
- Zone 2 including HDMI
- Channel
- 7.2
- Rated Output Power
- (20Hz-20kHz, 2-ch driven): 110 W (8 ohms, 0.06% THD)
- High Slew Rate Amplifier
- Yes
- HDMI with eARC
- Yes
- HDR10, Dolby Vision, Hybrid-Log Gamma
- BT.2020, HDR10+: Yes (via future update)
- MusicCast Surround
- Yes
- HDMI Input/Output (total)
- 7/3
- HDMI 4K60, 4K120AB, 8K60AB support
- 3 / 1 (via future update)
- HDMI CEC
- Yes
- USB Input
- Yes
- Network Port
- Yes
- Wi-Fi
- Yes (2.4 / 5 GHz)
- AirPlay 2
- Yes
- Bluetooth
- Yes (SBC / AAC)
- Front Input
- USB
- Digital Audio Input/Output: Optical
- 3/0
- Digital Audio Input/Output: Coaxial
- 2/0
- IR In/Out
- 1/1
- Analog Audio Input/Output
- 6/0
- Zone 2
- Yes
- Phono Input
- Yes
- Preout
- 7.2-ch
- Headphone Output
- 1
- Standby Power Consumption (IR only)
- < 0.4 W
- Auto Power Standby
- Yes
- ECO mode
- Yes
- Dimensions (W x H x D)
- 17.12 x 7.5 x 17.37" (43.48 x 19.05 x 44.11cm)
With antenna up: 17.12 x 10.62 x 17.37" (43.48 x 26.97 x 44.11cm)
- Weight
- 35.7 lbs (16.2kg)
|
Reviews
There are no reviews yet.
