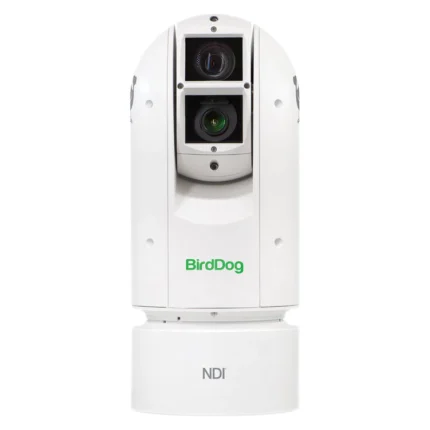

Designed for serious production the image quality of A300 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, A300 has super fast focus, incredibly sharp images, and amazingly fast zoom. A300 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, and NDI simultaneously
Full NDI. No compromises.
In the world of NDI there are two flavours, NDI and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. A300 only Encodes and Decodes Full YUV422 NDI
Sony Sensor. You deserve the best.
The best pictures come from the best silicon. A300 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.
Sony Image Module. Optics done right.
Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. A300 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.
All weather. Keep your NDI dry.
With an IP67 rating A300 is perfect for fixed installations in outdoor and indoor environments. The nitrogen filled housing ensures no fog, and the external housing has been treated for corrosion resistance against salt spray. With -40°C to +60°C operating temperature rating A300 has been designed to withstand the most extreme elements on earth
Nitrogen Filled Housing. Fog don’t live here.
Never worry about missing the shot. With A300’s nitrogen filled housing there is no chance of the lens fogging up
Category 4 Hurricane? Bring it.
Designed for all weather conditions, A300 boasts an incredible Wind Load Durability rating equal to 60m/s. As long as you have it secured properly A300 will just keep on keeping on
Frickin laser beam.Pew Pew.
Built in infra red laser with a range of up to 500 metres helps with focusing in
low light conditions.
Dual Output. NDI and SDI.
With NDI and SDI simultaneous outputs you can use the A300 is ready to go live with your full NDI® workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232 to future proof your investment by using baseband video now and move to NDI® when you are ready
30x Optical zoom. Over there is now over here.
The two punch 30x optical zoom and all weather abilities of makes A300 perfect for outdoor and indoor fixed installations for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.
You spin me right round baby. Right round.
360 degree continuous rotation, 255 preset positions, Zero Deviation Positioning technology, and a preset movement speed of 150 degrees per second mean you will never miss a shot again.
PTZ Keyboard. Take control.
Combine A300 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control A300 over NDI® or by RS422 / RS232 when using in SDI mode.
PoE and Mounts. All options available.
A300 can be powered by PoE with an optional PoE Injector. Designed to hang upside down the choice of mounting options gives coverage for virtually any situation. Wall mount, Ceiling Mount, Corner Mount and Pole Mounting options all available
CAMERA
VIDEO OUTPUT
NDI/SDI
OPTICAL ZOOM
30x
IMAGE SENSOR
1 / 2.8 inch CMOS 2.13MP
LENS
4.3-129mm
DIGITAL ZOOM
12x
HORIZONTAL ANGLE OF VIEW
63.7° (W) – 2.3° (T)
APERTURE
F1.6 (W) – F4.7 (T)
MIN. ILLUMINATION
Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
SHUTTER SPEED
1/1 – 1/10000s
FOCUS
Auto, Push, Manual
WHITE BALANCE
Auto, Indoor, Outdoor, Manual, OPW, ATW
EXPOSURE
Auto, Manual, Shutter/Iris Priority
BACKLIGHT COMPENSATION
YES
MECHANICAL
PAN MOVEMENT
Horizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.01°〜80°/S )
TILT MOVEMENT
Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.1°〜90°/S)
PRESET POSITIONS
255 (Speed adjustable: Up to 150°/s)
ENVIRONMENTAL
Outdoor/Indoor, IP67, corrosion resistant treated housing, Wind load durability 60m/s, Nitrogen filled housing
OPERATING TEMPERATURE
-40 – +60 (°C)
OPERATING HUMIDITY
≤80%
ILLUMINATION
IR Laser, illumination up to 500m
VIDEO INTERFACE
VIDEO OUTPUT
NDI/SDI
VIDEO FORMATS
1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
AUDIO I/O
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
CONTROL INTERFACE
IP PTZ CONTROL
NDI Control (auto configuring)
SERIAL PTZ CONTROL
RS422/RS485 Connector
SERIAL CONTROL PROTOCOL
VISCA / Pelco D
POWER & DIMENSIONS
POWER INPUT
AC 24v, PoE 80W Ready (BirdDog PoE 80W Injector needed, optional)
POWER CONSUMPTION
Min. 24W, Max. 80w (-40°C, IR Laser ON)
DIMENSIONS
180x180x423mm
WEIGHT
10.2kg
NETWORK
VIDEO COMPRESSION
Full NDI – i-frame high quality low latency NDI for production
NETWORK PROTOCOL
NDI – Discovery, configuration and control
WEB CONTROL INTERFACE
Full control via Web/Mobile UI including Scene presets | About BirdDog Eyes A200
BDA200 PTZ camera utilises BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.
Designed for serious production the image quality of A200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and NDI simultaneously.
A200 is IP67 rating for outdoor and indoor use. Corrosion Resistant treated housing for salt spray environment. -40 Degree C to +60 Degree C operating temperature. It even has a rain wiper to keep water off the lens. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world's first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
A200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. A200 is also compatible with BirdDog PTZ Keyboard for ultimate control. | The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
KEY FEATURES
- High Sensitivity Achieved with the 1” Large-sized Sensor
- Optical 20x Zoom/Horizontal 75.1° Wide-angle Shooting
- Pan/tilt Performance that Achieves Smooth and Accurate Operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.
Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
Dimensions (W x H x D)
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket)
General
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Finish
AW‑HE145W: Pearl white
AW‑HE145K: Metallic Black
Mass
Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
Controller Supported
AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
LENS
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Synchro scan
59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
Zoom
• Optical zoom: 20x
• i.Zoom: FHD 32x
• Digital zoom: 10x
Horizontal Resolution
1000 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
WHITE BALANCE
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Output Format
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
Scene File
Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed
59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Imaging Sensors
1-type Full-HD MOSx1
Chroma Amount Variability
OFF, –99 % to 99 %
Camera Unit
-
Frame mix*3
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
INPUT
-
OUTPUT
-
Input/Output Connector
LAN
LAN connector for IP control (RJ‑45)
RS-422
CONTROL IN RS-422A (RJ‑45)
MIC/LINE input
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV
INPUT/OUTPUT
-
Pan/Tilt Operation Speed
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*8
• Maximum speed is 180°/s in high-speed mode
Quietness
NC35 or less
Tilting Range
–30° to 210°*9
Panning range
±175°
Pan-tilt Head Unit
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control
IP connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
Supported operating systems and web browsers
Windows
Microsoft(R) Windows(R) 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
MacOS v11.0.1 / Safari 14.01
MacOS v11.0.1 / Google Chrome
MacOS V10.15 / Google Chrome
MacOS V10.14 / Google Chrome
iPhone / iPad
iOS
Google Chrome
Supported Operating Systems and Web Browsers*10
-
Image Resolution
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
1920x1080, 1280x720, 640x360, 320x180
-
Image Transmission Setting
JPEG
Frame Rate: Maximum 30 fps, Image quality (Fine / Normal)
H.264
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
H.265
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
NDI|HX
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.264
Transmission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.265
Transimission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
RTMP/RTMPS
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
Supported protocol
IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP
IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Other Function
-
Tally LED display color
red / green
NDI Support*11
NDI | HX
| BirdDog 3x P200 Cameras (White) and 1x FREE PTZ Keyboard
BirdDog Eyes P200 Camera: Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI simultaneously.
BirdDog PTZ Keyboard: BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols.
| The highest quality full NDI Camera on the planet.
Hello Sony 1” Sensor. Meet NDI.
BDP4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.
Sony 1” Sensor. Size does matter.
The best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.
Full NDI. No compromises.
In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P4K is a Full NDI® camera.
BirdDog Cloud Integration.Directly in the camera.
P4K can communicate directly to BirdDog Cloud without the need for a computer running Cloud Core. Simply plug the P4K into your network and configure it through BirdDog Cloud Command to control all functions of P4K from literally anywhere in the world. Roads? Where we’re going you don’t need roads.
More than just a production PTZ. Shoot true cinematic styles.
P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.
Advanced Colour Controls.
With user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.
NDI HX2. Welcome to the party pal.
Whilst P4K is designed to be a Full bandwidth NDI camera, it can also do the lower bandwidth version of NDI so you have the flexibility to choose between Full NDI and NDI HX2. P4K also supports H.264 and HEVC/H.265 in both 4K and HD resolutions.
10-bit. NDI4.
P4K is a 10-bit sensor and with NDI4 you can have an end to end 10-bit workflow. Perfect for broadcasters and other productions where bit depth matters. With 10-bit support you can record the NDI feeds using free tools such as NewTek NDI Monitor or IsoCorder Pro.
Full NDI. 6G SDI. HDMI 2.0. Life is all about connections.
Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.
Genlock. Let that sync in.
With Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.
Superfine Robotics. Precise control at your fingers.
P4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.
360 degree Tally lights.
The front, rear, and side Tally lights combine to create a 360 degree Tally light. Now everyone on the production set can see which camera is live to air.
Optional Modules. HDBaseT and Fiber.
Added to the Full NDI, Baseband 6G SDI, Baseband HDMI 2.0, NDI HX2, H.264, HEVC/H.265 format support you can also add HDBaseT with an optional module. Add the Fiber module to run SDI over Fiber directly out of the camera.
ePTZ in HD Mode.
In HD Mode you can take advantage of the massive sensor to create Region of Interest for your HD production. Pull any HD frame out of the 4K frame.
Free Comms Lite. Upgrade to Comms Pro.
P4K includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite
Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is sold separately.
Distribute NDI® content everywhere. Just add Central.
BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
CAMERA
- 4K Video Output: Main 4K HDMI Type-A (x1)
- HD Video Output: Main HD HDMI Type-A (x1)
- Lens: Optical, 12X
- Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
- Number of effective pixels: 14.2 Megapixels
- Picture elements: 3840 x 2160, 8.29 Megapixels
- Digital Zoom: Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
- Horizontal Angle of View Focal Length: 64.6 ̊ (Wide) – 6.1 ̊ (Tele), f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)
- Min. object distance: 0mm (Wide), 1000mm (Tele)
- Aperture: F2.8 Constant (W)~(T), 16 Steps
- Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)
- Shutter Speed: 1/10000s to 1/8 (59.94/29.97)
- Focus: Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit
- White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
- Exposure: Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
- Features: High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, Day/Night, Defog
- WDR: YES(130dB)
- ND Filter: YES
- Image Stabilizer: YES
- Color Gain: Yes (15 step)
- Color Hue: Yes (15 step)
- Gamma: Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
- Gamma Level: Yes (15 step)
- Black Level: Yes (97 step)
- Flicker Cancel: Yes
- Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
- S/N Ratio: ≥50db
MECHANICAL
- Body Color: Black, White
- Pan Movement: Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S )
- Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°~50°/S)
- Preset Position: 0~5 Level Adjustable
- Preset Speed: 0~5 Level Adjustable
- Preset Memory: YES, ( Picture Profile Preset-Preset Memory for image parameters)
- Quietness: 45db
- Home Position: Supported
- Environmental: Indoor
INTERFACE
- HDMI Color Space: YCbCr, 4:2:2 RGB, 4:4:4
- NDI Video Encode: Full bandwidth NDI, NDI HX2 long-GOP
- NDI Video Decode: Full bandwidth HD NDI
- NDI Version: NDI v4.0 (Firmware upgradeable)
- IP Video Stream: UP to 4K/30 and 1080p60 h.264/h.265 HEVC
- Camera Control Interface: RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control
- Control Protocol: NDI, VISCA, VISCA Over IP
- LAN: RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt)
- External Sync. Input: BNCX1, 75Ω, HD 3-level sync, SD Black Burst
- Audio I/O: Audio input x1, Audio output x1, 3.5mm audio jack
- Audio Output: Embedded with main HDMI, 24bit Stereo, Embedded with SDI, 24bit Stereo, Embedded with NDI
- Tally Light: Front and Back
ENVIRONMENTAL
- Mount: Ceiling mount, Wall mount, Tripod
- Operating Temperature: -10 to +40 (°C), 32 to 104 (°F)
- Operating Humidity: ≤80% Suitable for Use
- Power Input: 12VDC, PoE++ (IEEE 802.3bt)
- Power Consumption: 22W
- Dimension: 165x196x247mm
- Weight: 3.4kg
|
Reviews
There are no reviews yet.
