| Content | Use the Blackmagic Design ATEM production switcher series to create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. ATEM live production switchers support live production needs at live concerts, sporting events, theater productions, conferences, and more. The ATEM advanced panel is added to an ATEM switcher as a control panel.
Although each switcher includes ATEM software control panel for Mac or Windows, an ATEM Advanced Panel is faster to use, making it ideal for demanding live production environments. Setup more complex effects with the enormous amount of control you’ll have in the ATEM 4 M/E. The ATEM 4 M/E Advanced Panel features broadcast buttons, knobs, and a t-bar fader.

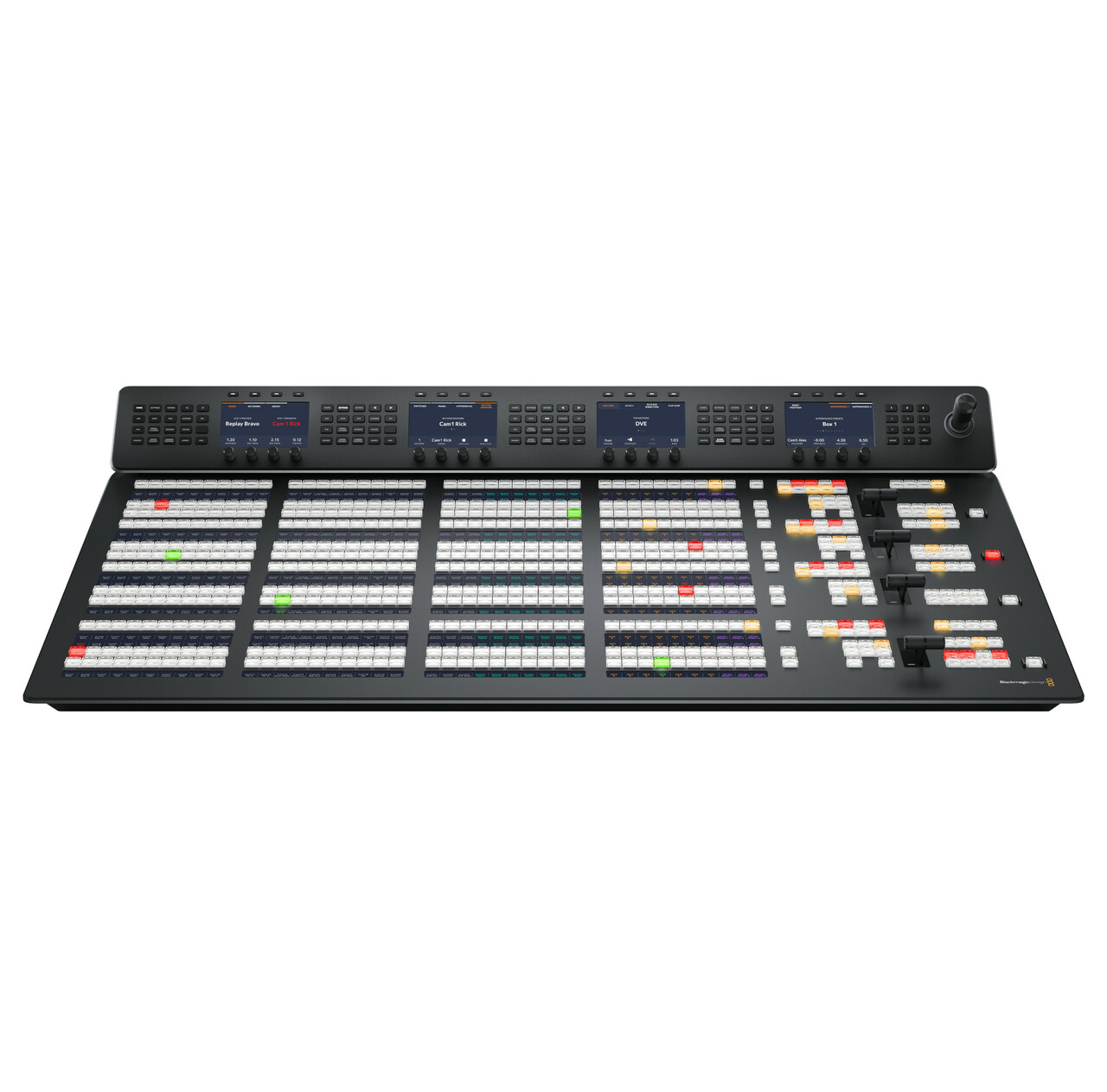

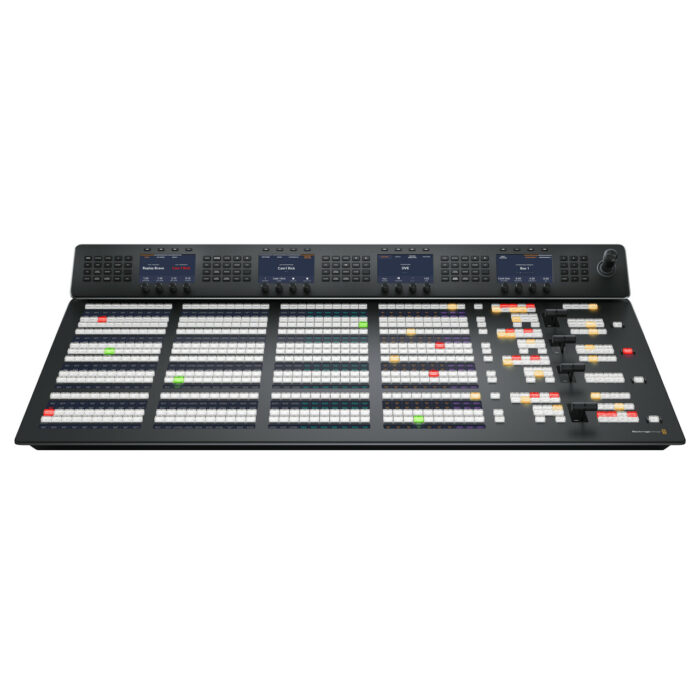

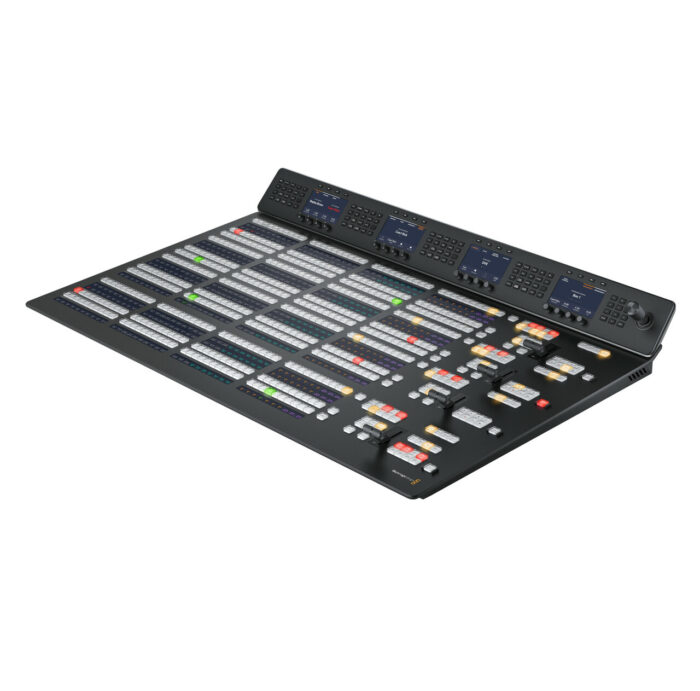

The ATEM 4 M/E has four M/E rows with 40 input buttons and four independent system control LCDs for reach row. All input buttons have customizable colors and button label LCDs.
Modern design with the latest broadcast technology combine to enable faster workflows. Built in LCD control screen identifies work processes. Buttons are curved and have color backlighting to reduce incorrect key presses and quickly identify the keys you need. Professional joystick controls DVE and camera adjustments, smooth weighted t-bar fader, and more.
Durable and compact, the ATEM 4 M/E fits in a standard equipment rack. It can be used seamlessly for shelf mounting in broadcast trucks, mobile racks, and fly away kits.
Blackmagic Design ATEM 4 M/E Features
- Add to an ATEM switcher for accessible control panel functions
- Faster workflow
- Four independent rows of control, each with 40 input buttons
- Backlit buttons make identification easy and lower incorrect key presses
- Joystick for DVE and camera adjustments
- Smooth weighted t-bar fader
| Designed for broadcasters and AV professionals, the ATEM Television Studio series can turn any live event into a professional HD or Ultra HD program. Switching between multiple cameras, game consoles, and computers happens in real time with broadcast quality support so changing sources won’t cause glitching. The ATEM Television Studio Pro 4K is a great switching solution for sporting events, concerts, seminars, video gaming competitions, episodic television, and more.
Streamline your workflow to handle more complex and faster paced productions with the ATEM Television Studio Pro 4K. The ideal combination of a professional control panel and switcher, it is faster to switch sources, add effects, efficiently manage and color grade remote cameras, mix audio, and key graphics.The ATEM Television Studio Pro 4K has all the features of the other models, adding Ultra HD capability and more SDI inputs. Eight independent 12G-SDI inputs support popular HD and Ultra HD formats up to 2160p60 automatically re-sync to the switcher.
Connect up to 8 cameras, game consoles, computers, or other sources from the 8 independent video inputs. Output sources include professional SDI program and aux outputs, with SDI and HDMI outputs supporting multiview monitoring. The ATEM Television Studio Pro 4K supports multiview in Ultra HD.
Broadcast quality transitions give you creative freedom throughout your live production. Choose and instantly apply transitions among mixes, wipes, dips, DVE, and more. Customize duration of transitions and add visual effects to the transitions with borders. The built in DVE powers adjustments to position, size, and scale of live video in real time.
ATEM advanced chroma keyer provides greater color control with clean green screen keying in real time for seamless multi-layer creations.
Talkback can be enabled to send audio to and from the camera. A professional audio mixer also gives the switcher the essential functions for mixing audio.
Blackmagic Design ATEM Television Studio Pro Features
- 8 12G-SDI inputs for popular HD and Ultra HD sources up to 2160p60
- Connected video sources re-sync to the switcher
- Multiview monitoring
- Power supply not included - requires IEC cable
- Broadcast quality transitions
- Built in 2D DVE
- ATEM advanced chroma key
- Talkback
- Audio mixer capabilities
- Software control panel for Mac or Windows included
| The World's Most Complete Sports Production System
Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, NewTek 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration.
NewTek 3Play 3P1 integrates seamlessly with NewTek IP Series, TriCaster TC1, and NVG1 NewTek-Vizrt IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS.
For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.
Product Highlights:
Engineered for the most demanding broadcast and media environments, 3Play 3P1 provides a winning combination of innovative technology and seamless workflow integration to power forward-thinking fan experiences that span from stadiums to screens to smartphones.
- Fully integrated sports production in resolutions up to 1080p 60
- SDI, hybrid, and end-to-end IP connectivity to adapt to your game plan
- Native software-driven processing for maximum production power and flexibility
- Integrated NDI® Telestrator Pro for live telestration from any compatible connected device, with support for remote video transport control
- Comprehensive camera coverage and delivery with support for 4 simultaneous external inputs and 2 outputs
- Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
- Versatile audio connectivity and capture, with support for digital, analog, and network audio, plus 8 channels of audio recording per input
- Multi-purpose video server with full frame-rate, multi-angle preview windows • Real-time social media sharing to Facebook, Twitter, YouTube, and more
- Custom playlist building and highlights packaging for live insert, export, or VOD
- Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
- Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
- Enhanced creative capabilities, including real-time layering, motion graphics, animated transitions, and more
- Industry-standard 2RU system chassis with included hardware control panel
3Play 3P1 Control Panel Included
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.
NDI® Telestrator Pro
Enlighten and entertain audiences, enhancing play-by-play and analysis with live telestration— right from the first replay. With NDI® Telestrator Pro included with 3Play 3P1, you can annotate on screen and roll immediate replays over the network from any compatible networked device— with only a single Ethernet cable required.
NDI® Telestrator Pro supports telestration over either or both 3Play 3P1 output channels, offers a variety of professional paint tools, shapes, and customizable graphics, and includes responsive transport controls for remote playback. (External PC or touchscreen device with Microsoft® Windows 7 operating system (OS) or better required.)
System Specifications
Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input: 4 x resolution-independent IP video inputs via NDI®
SDI Video Input 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25, 24, 23.976
- 576i 50
- 480i 59.94
Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output: 2 x session-format IP video outputs via NDI®
SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
Multiviewer Output
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Recording: 4 x simultaneous recording channels
Recording Format: QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1QuickTime Player not required for playback in common NLE applications
Storage: 3 x 3TB internal drive (capacity varies by format, resolution and file specification)
Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK: 1 x DSK channel per output, with independent source selection and transition
Transitions: Supports custom transitions between output channels and playlist clips
Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio: Native support for network audio input and output via NDI®
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency: ~1.0-1.5 frames
A/V Standards
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI: Support for standard MIDI protocol enabling third-party device control
System Drive: 120GB SSD
NIC: 2 x 1 Gigabit NIC
System Physical 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
- ~26 lbs (~12 kg)

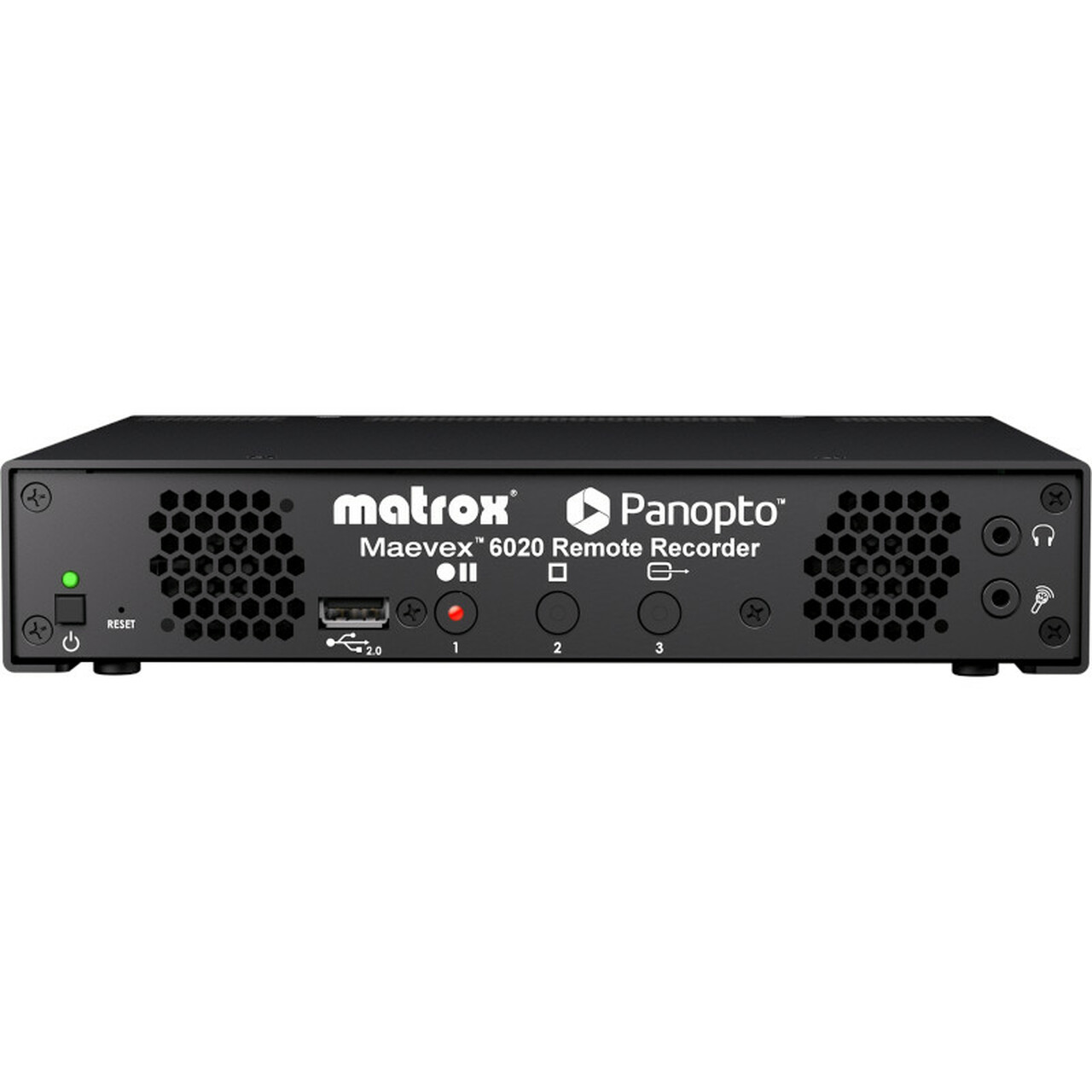

| The Matrox® Maevex 6020 Remote Recorder appliance is a Panopto-certified live streaming multi-recorder specifically designed (for and fully integrated with) Panopto™ industry-leading video management system (VMS). Everything you love about the Panopto cloud or on-premises management of recording, streaming, scheduling, and everything else is available for the Maevex 6020 on the Panopto VMS platform making it simple and easy for administrator and in-room/class operator alike. Leveraging the award-winning Maevex 6100 Series multi-recording and streaming technology, the Maevex 6020 Remote Recorder enhances the Panopto VMS solution by providing best-of-breed live streaming and recording functionality for businesses and universities.
The Maevex 6020 Remote Recorder provides unique features to the Panopto VMS. Key feature set includes two 1080p inputs with multiple on-device quality recordings per input and two channels of 1080p live streaming while recording. Unique to the Maevex 6020 are the multiple recordings of different qualities recorded simultaneously to the devices solid-state memory and uploading while the session is in progress. These on-device multiple recording qualities can later be used to address the best-possible quality match for any viewing device. The recordings are encoded and ready for use as is without any quality loss or time loss (no transcoding, decoding, or re-encoding required). This workflow enables the video on demand from the event to be made available to viewers much faster, at the best quality possible.
When there are no active streams being broadcast, the two sets of recorded streams are delivered to the Panopto VMS simultaneously during the live event with only the slightest of lag from the start of the event as cloud transcoding is eliminated. If there are live streams being broadcast, the recorded streams are delivered immediately after the live streaming event ends, again with no cloud transcoding required. Additionally, in a single session, up to four sets of recordings (each set with multiple quality levels) and two Full HD streams can be enabled by combining two Maevex 6020 devices.
Implementation and operation of the Maevex 6020 Remote Recorder is simple as 1-2-3. Its superior hardware recording and streaming technology is completely integrated into the Panopto cloud video platform. Simply connect power, network, and video; power up; log in to the Panopto cloud account and its done. From there, the all-in-one Panopto VMS platform provides complete control and makes video management, recording, live streaming, inside-video searching, quizzing, analytics, mobile, and other features readily accessible. The front of the appliance also includes one-touch, easy-access button controls to record, pause, resume, and stop. For Panopto first-time users and seasoned professionals alike, the Maevex 6020 Remote Recorder delivers a simple, best-in-class video capture and streaming experience for any academic or enterprise environment. | The VR-4HD is a complete HD studio in a compact and portable package that replaces several different pieces of complex A/V equipment. Designed with individual operation in mind, the VR-4HD allows for easy video switching and mixing of audio and video using advanced Digital Signal Processing (DSP).
Along with dedicated hardware controls faders, buttons, and touch screen interface. It beautifully integrates a digital audio mixer, video switcher, multi-viewer touch screen, and USB video/audio streaming interface into a stand-alone device. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, training sessions, or any other live event.
The VR-4HD features professional quality broadcast controls and switches ensuring more accurate and faster operation than interfaces based on a computer style mouse and keyboard. The ability to simultaneously switch video with the push of a button and adjust audio with the push of a fader is invaluable and puts all essential features at the operator's fingertips. The inherent multi-see screen is likewise a touch screen interface for getting to set-up boundaries, making it incredibly simple to alter various picture settings progressively by hauling the inset window onto the screen.
Roland VR-4HD Features
- All-in-one portable production solution
- Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
- 6 input, 4-Channel Video Switcher
- Supports HDMI*1, RGB/Component, and Composite Video Inputs Up to 1080p
- Input 4's scaler now supports a wider range of video and VESA resolutions.*1 *2
- Built-in Scaler via CH4
- 18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
- Embedding and de-embedding of audio with delay settings
- Auto mixing and Echo Canceling function
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
- Built-in touch quad-input multi-viewer with audio metering
- External Multi-View Output through HDMI
- HDCP Support
- USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loopback Feature
- Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
- Sending a still image to the VR-4HD by VR-4HD RCS*3 [Ver.1.5]
- Tally, GPIO connections
| Power supply not included - requires IEC cable.
Blackmagic Design’s ATEM production switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. With a machined aluminum front panel and multi voltage power supplies, ATEM live production switchers can power live production needs at live concerts, sporting events, theater productions, and conferences around the world.
The ATEM 2 M/E has 20 6G-SDI inputs that allow embedded audio mixing and can be used on sources without genlock, such as laptops. Two balanced XLR audio inputs can connect to professional mixers, and a HiFi audio input can connect to an iPod. Sixteen video outputs can be used with any TV or monitor to connect with LED screens, projectors, disk recorders, and broadcast decks. Monitor up to 16 cameras simultaneously with the two independent multi view outputs. An independent aux output can feed big screens on stage, and pairs excellently with SmartScope Duo 4K for tech monitoring.
Let your creative expression take the lead with the ATEM 2 M/E. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. The ATEM 2 M/E also has animated stingers and DVE transitions. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard.
Add multi box compositions quickly and easily with SuperSource’s separate 5 layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Recall saved sequences with dual media players and HyperDeck SSD recorders. Dual media players support popular image formats for downloading still frames and graphics for keying. Set up and automatically start complex sequences with power macros. These macros are saved as XML files for instant recall and can even be copied to use on another switcher. For other pre-recorded sequences, connect up to four HyperDeck SSD recorders to the ATEM switcher.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM 2 M/E Features
- Switch between SD, HD, or Ultra HD video standards for ultimate flexibility in live production
- 3840 x 2160 frame size
- 20 video inputs and 16 video outputs
- Dozens of effects and creative transitions
- Powerful digital effects processor
- Built in keyers
- SuperSource function extends the ATEM’s power by adding a separate 5 layer switcher
- Dual media players with large graphic memory
- Power macros to save and instantly recall sequences
- Compatible with HyperDeck SSD recorders
- Included software control panel for Mac or Windows
- Add a hardware-based ATEM advanced panel for control in demanding live sound applications
|
