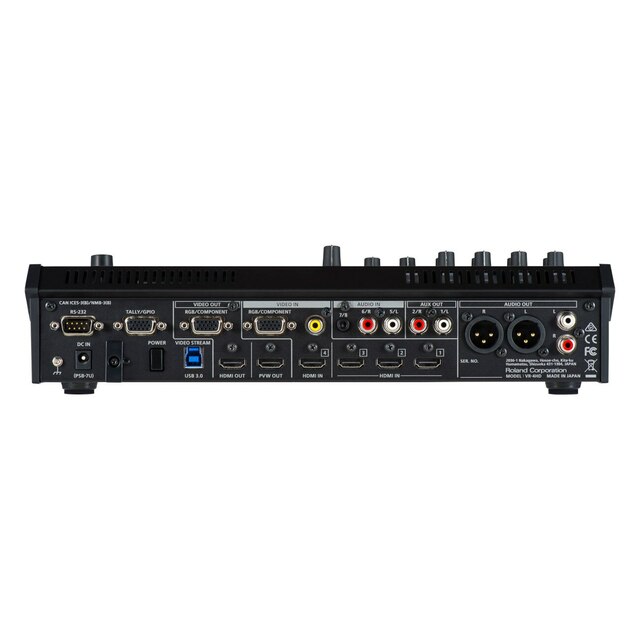

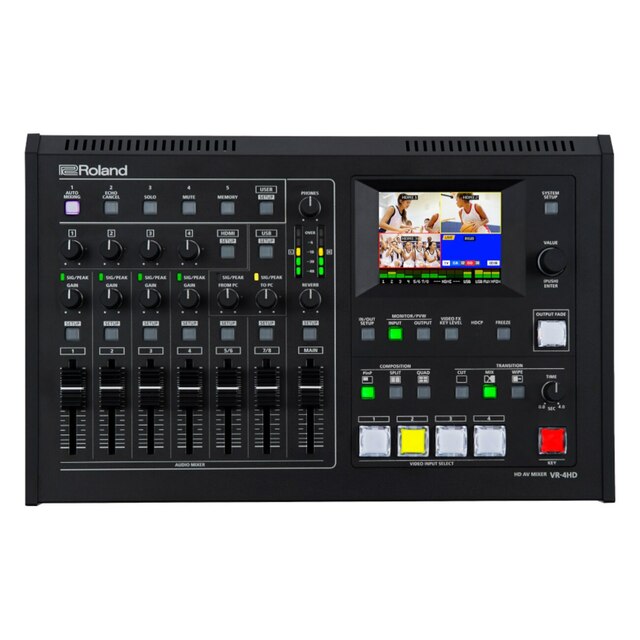

| Content | The VR-4HD is a complete HD studio in a compact and portable package that replaces several different pieces of complex A/V equipment. Designed with individual operation in mind, the VR-4HD allows for easy video switching and mixing of audio and video using advanced Digital Signal Processing (DSP).
Along with dedicated hardware controls faders, buttons, and touch screen interface. It beautifully integrates a digital audio mixer, video switcher, multi-viewer touch screen, and USB video/audio streaming interface into a stand-alone device. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, training sessions, or any other live event.
The VR-4HD features professional quality broadcast controls and switches ensuring more accurate and faster operation than interfaces based on a computer style mouse and keyboard. The ability to simultaneously switch video with the push of a button and adjust audio with the push of a fader is invaluable and puts all essential features at the operator's fingertips. The inherent multi-see screen is likewise a touch screen interface for getting to set-up boundaries, making it incredibly simple to alter various picture settings progressively by hauling the inset window onto the screen.
Roland VR-4HD Features
- All-in-one portable production solution
- Easy to use with dedicated hardware controls and audio faders and integrated touch screen preview monitor
- 6 input, 4-Channel Video Switcher
- Supports HDMI*1, RGB/Component, and Composite Video Inputs Up to 1080p
- Input 4's scaler now supports a wider range of video and VESA resolutions.*1 *2
- Built-in Scaler via CH4
- 18-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from HDMI inputs
- Embedding and de-embedding of audio with delay settings
- Auto mixing and Echo Canceling function
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
- Built-in touch quad-input multi-viewer with audio metering
- External Multi-View Output through HDMI
- HDCP Support
- USB3.0 Video/Audio Output up to 1080/30p (uncompressed) and Audio Loopback Feature
- Software control using VR-4HD RCS application for Mac and PC and remote control via USB connection
- Sending a still image to the VR-4HD by VR-4HD RCS*3 [Ver.1.5]
- Tally, GPIO connections
| Power supply not included - requires IEC cable.
Blackmagic Design’s ATEM switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include 16 advanced chroma keyers four independent Ultra HD multi viewers, two SuperSource processors, and even standards conversion on all inputs. Switchover to 8K to combine these features into a powerful native 8K switcher, including built in talkback and a 156 channel Fairlight audio mixer. ATEM live production switchers can meet live production needs at live concerts, sporting events, theater productions, conferences and more.
The ATEM Constellation 8K has 40 video inputs that support up to Ultra HD, ten of which can be switched to 8K. There are 28 video outputs (7 in 8K) and 24 aux outputs (6 in 8K). Two balanced audio inputs and outputs are also included on the switcher.
Let your creative expression take the lead. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard. Advanced chroma keyers enable massive multi-layer effects. On-screen adjustable controls can select and sample a region of color. Chroma keyers also feature foreground, background and edge adjustment controls, and chroma correction tools.
Add multi box compositions quickly and easily with SuperSource’s separate five layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM Constellation Features
- 16 upstream keyers in Ultra HD, 4 in 8K supporting chroma, linear, and luma keying
- 4 downstream keyers in Ultra HD, 2 in 8K.
- 16 advanced chroma keyers in Ultra HD, 4 in 8K
- Talkback communication is supported
- Mix-minus is supported
- There are 4 transition keyers (Stinger/DVE)
- Supports up to 28 layers in UHD and 7 layers in 8K
- 21 pattern generators are available in Ultra HD, while only 9 are available in 8K
- Support for 2 color generators
- 4 DVE with 3D borders and drop shadow are supported in Ultra HD; one is supported in 8K
| Power supply not included - requires IEC cable.
The UltraStudio 4K Extreme 3 lets you connect Thunderbolt 3 computers to any video equipment. Connect to the Thunderbolt 3 port for video and audio connections compatible with SD, HD, Ultra HD, and 4K DCI formats up to 60 frames per second. Use the UltraStudio 4K Extreme 3 to build high performance edit workstations, archive from old broadcast decks, output broadcast graphics, and live stream.
Connect and work with the equipment of your choice. SDI in and out, HDMI out, and balanced analog input provide high quality connections to just about any equipment you could want to work with. An extra HDMI input and balanced analog audio out connect for in-studio audio monitoring use. Larger design than the Mini UltraStudios lets the UltraStudio 4 Extreme fit 4 channel analog audio via XLR connections, 2 channels of AES/EBU digital audio, and dedicated timecode connections. Video reference for sync playback to broadcast systems and RS-422 remote are included. The UltraStudio 4K Extreme 3 can feed SDI fill and key from RGB graphics from your computer to a live production switcher for high quality live broadcast graphics keying.
12G-SDI technology brings the most powerful video capture and playback solution at high speeds. Speed supports work of Ultra HD and 4K 60p over one BNC cable. Multi rate 12G-SDI connections provide greater compatibility, working with existing SD and HD equipment and newer Ultra HD formats up to 2160p60.
With the UltraStudio 4K Extreme 3, you’re not locked into a single format. Popular compressed video formats and 10-bit uncompressed video are both supported. Images in uncompressed video are a perfect pixel-for-pixel clone of the source without any loss of quality.
Thunderbolt 3™ technology ensures the UltraStudio 4K Extreme 3 is a power-driven solution. Low latency and highly accurate time synchronization provide the highest possible quality capture and playback. UltraStudio 4K Extreme 3 uses a fast one cable connection to a computer with the bandwidth to easily handle high resolution video formats. Powered by the Thunderbolt connection, the UltraStudio 4K Extreme 3 can run from a laptop battery without needing a power connection. An AC power connection is also included.
Front panel has fast control buttons and integrated color LCD. Back panel uses industry standard BNC and HDMI connectors. Enjoy broadcast and digital cinema quality capture and playback in any workflow.
Blackmagic Design UltraStudio 4K Extreme 3 Features
- Connect Thunderbolt 3 computers to video equipment
- Compatible with SD, HD, Ultra HD, and 4K DCI formats up to 60 frames per second
- Designed to work with popular video editing software on Mac, Windows, and Linux systems
- Video reference for sync playback to broadcast systems
- RS-422 remote
- Support for compressed and uncompressed formats
- Low latency and accurate time synchronization in Thunderbolt 3 technology
- Easily portable
- Stand alone on desktop or rack mount
- Broadcast and digital cinema quality capture and playback
| Power supply not included - requires IEC cable.
Blackmagic Design’s ATEM production switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. With a machined aluminum front panel and multi voltage power supplies, ATEM live production switchers can power live production needs at live concerts, sporting events, theater productions, and conferences around the world.
The ATEM 2 M/E has 20 6G-SDI inputs that allow embedded audio mixing and can be used on sources without genlock, such as laptops. Two balanced XLR audio inputs can connect to professional mixers, and a HiFi audio input can connect to an iPod. Sixteen video outputs can be used with any TV or monitor to connect with LED screens, projectors, disk recorders, and broadcast decks. Monitor up to 16 cameras simultaneously with the two independent multi view outputs. An independent aux output can feed big screens on stage, and pairs excellently with SmartScope Duo 4K for tech monitoring.
Let your creative expression take the lead with the ATEM 2 M/E. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. The ATEM 2 M/E also has animated stingers and DVE transitions. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard.
Add multi box compositions quickly and easily with SuperSource’s separate 5 layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Recall saved sequences with dual media players and HyperDeck SSD recorders. Dual media players support popular image formats for downloading still frames and graphics for keying. Set up and automatically start complex sequences with power macros. These macros are saved as XML files for instant recall and can even be copied to use on another switcher. For other pre-recorded sequences, connect up to four HyperDeck SSD recorders to the ATEM switcher.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM 2 M/E Features
- Switch between SD, HD, or Ultra HD video standards for ultimate flexibility in live production
- 3840 x 2160 frame size
- 20 video inputs and 16 video outputs
- Dozens of effects and creative transitions
- Powerful digital effects processor
- Built in keyers
- SuperSource function extends the ATEM’s power by adding a separate 5 layer switcher
- Dual media players with large graphic memory
- Power macros to save and instantly recall sequences
- Compatible with HyperDeck SSD recorders
- Included software control panel for Mac or Windows
- Add a hardware-based ATEM advanced panel for control in demanding live sound applications
| Designed for broadcasters and AV professionals, the ATEM Television Studio series can turn any live event into a professional HD or Ultra HD program. Switching between multiple cameras, game consoles, and computers happens in real time with broadcast quality support so changing sources won’t cause glitching. The ATEM Television Studio Pro 4K is a great switching solution for sporting events, concerts, seminars, video gaming competitions, episodic television, and more.
Streamline your workflow to handle more complex and faster paced productions with the ATEM Television Studio Pro 4K. The ideal combination of a professional control panel and switcher, it is faster to switch sources, add effects, efficiently manage and color grade remote cameras, mix audio, and key graphics.The ATEM Television Studio Pro 4K has all the features of the other models, adding Ultra HD capability and more SDI inputs. Eight independent 12G-SDI inputs support popular HD and Ultra HD formats up to 2160p60 automatically re-sync to the switcher.
Connect up to 8 cameras, game consoles, computers, or other sources from the 8 independent video inputs. Output sources include professional SDI program and aux outputs, with SDI and HDMI outputs supporting multiview monitoring. The ATEM Television Studio Pro 4K supports multiview in Ultra HD.
Broadcast quality transitions give you creative freedom throughout your live production. Choose and instantly apply transitions among mixes, wipes, dips, DVE, and more. Customize duration of transitions and add visual effects to the transitions with borders. The built in DVE powers adjustments to position, size, and scale of live video in real time.
ATEM advanced chroma keyer provides greater color control with clean green screen keying in real time for seamless multi-layer creations.
Talkback can be enabled to send audio to and from the camera. A professional audio mixer also gives the switcher the essential functions for mixing audio.
Blackmagic Design ATEM Television Studio Pro Features
- 8 12G-SDI inputs for popular HD and Ultra HD sources up to 2160p60
- Connected video sources re-sync to the switcher
- Multiview monitoring
- Power supply not included - requires IEC cable
- Broadcast quality transitions
- Built in 2D DVE
- ATEM advanced chroma key
- Talkback
- Audio mixer capabilities
- Software control panel for Mac or Windows included
|
Blackmagic Design’s ATEM production switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. With a machined aluminum front panel and multi voltage power supplies, ATEM live production switchers can power live production needs at live concerts, sporting events, theater productions, and conferences around the world.
The ATEM 4 M/E has 20 12G-SDI inputs that allow embedded audio mixing and can be used on sources without genlock, such as laptops. Two balanced XLR audio inputs can connect to professional mixers, and a HiFi audio input can connect to an iPod. Thirteen video outputs can be used with any TV or monitor to connect with LED screens, projectors, disk recorders, and broadcast decks. Monitor up to 16 cameras simultaneously with the two independent multi view outputs. An independent aux output can feed big screens on stage, and pairs excellently with SmartScope Duo 4K for tech monitoring.
Let your creative expression take the lead with the ATEM 4 M/E. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard. The ATEM 4 M/E adds an advanced chroma keyer on each mix effects row for massive multi-layer effects. On-screen adjustable controls can select and sample a region of color. Chroma keyer also features foreground, background and edge adjustment controls, and chroma correction tools.
Add multi box compositions quickly and easily with SuperSource’s separate five layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Recall saved sequences with dual media players and HyperDeck SSD recorders. Dual media players support popular image formats for downloading still frames and graphics for keying. Set up and automatically start complex sequences with power macros. These macros are saved as XML files for instant recall and can even be copied to use on another switcher. For other pre-recorded sequences, connect up to four HyperDeck SSD recorders to the ATEM switcher.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM 4 M/E Features
- Switch between SD, HD, or Ultra HD video standards for ultimate flexibility in live production
- 3840 x 2160 frame size
- 12G-SDI performance
- 20 video inputs and 13 video outputs
- Dozens of effects and creative transitions
- Powerful digital effects processor
- Built in keyers
- Advanced chroma keyer to create multi-layer effects
- SuperSource function extends the ATEM’s power by adding a separate 5 layer switcher
- Dual media players with large graphic memory
- Power macros to save and instantly recall sequences
- Compatible with HyperDeck SSD recorders
- Included software control panel for Mac or Windows
- Add a hardware-based ATEM advanced panel for control in demanding live sound applications
In The Box
- ATEM 4 M/E Broadcast Studio 4K1
|
