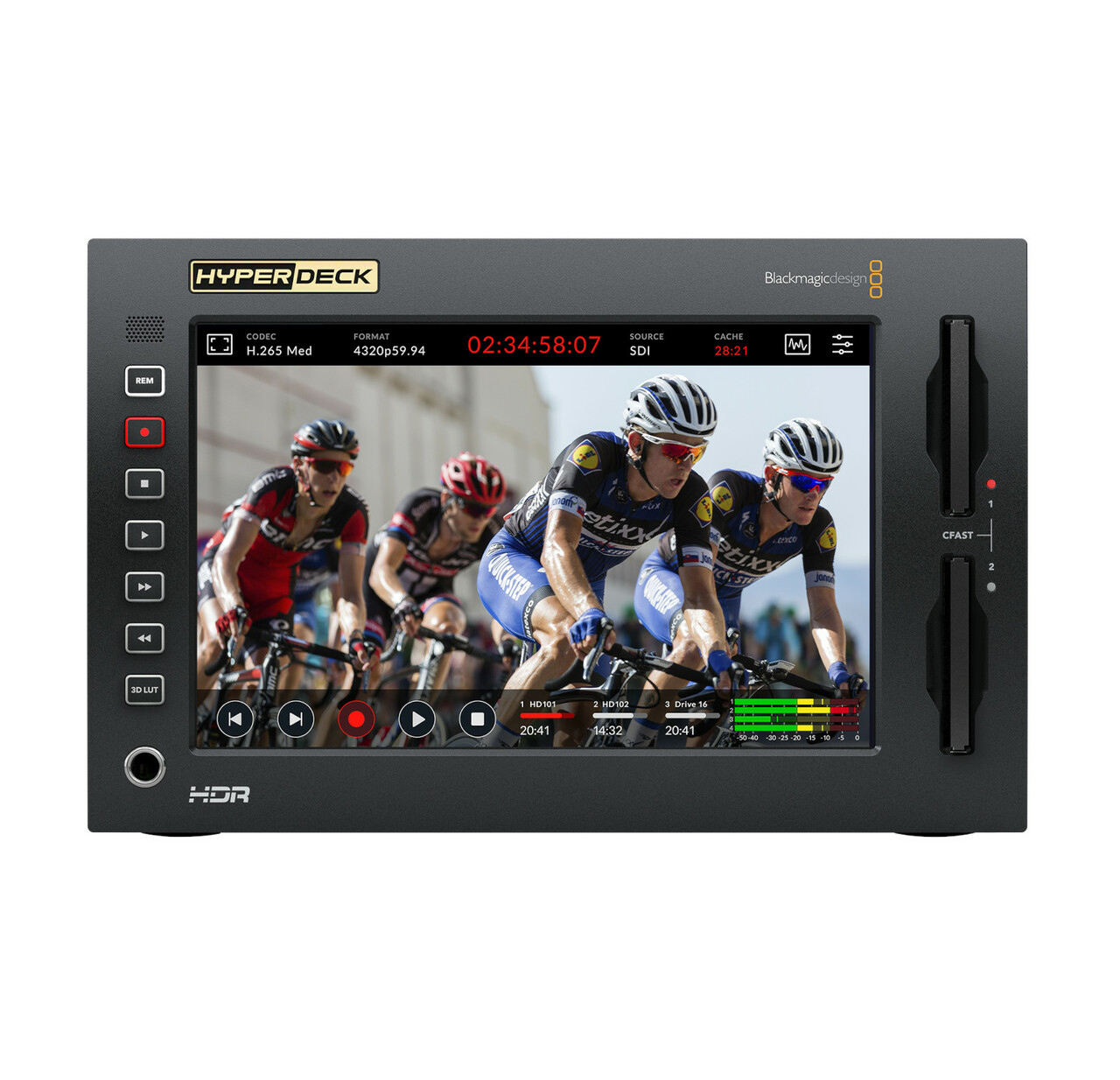

| Content | HyperDeck Extreme 8K HDR has the reliable features of HyperDeck, with new features of space-saving H.265 files, optional internal cache, 3D LUTs, native 8K and HDR support. Ability to record native 8K in H.265 storage reduces storage costs and image quality stays amazing. Large touch screen ensures you can see your recording and easily control all deck settings. HyperDeck Extreme 8K HDR is an excellent solution for broadcast, live production, and digital signage.
Great for live production as a master recorder, clip player and for recording ISO cameras. Analog inputs allow recording from old video tapes, so legacy programming is compatible with the latest streaming services and can be edited. 10G Ethernet makes digital signage easy with fast media uploads, and a simple remote control protocol. Use as a field recorder with HDMI, SDI and analog inputs with built in scopes and 3D LUTs.
AC and DC power connections help make sure you can use the HyperDeck Extreme 8K HDR in studio or on location. Record to commonly available flash memory cards with dual CFast media support.
The HyperDeck Extreme 8K HDR includes two media slots, Quad 12G-SDI for 8K, analog connections for archiving, USB-C external disk recording, front panel speaker and headphone jack. Install a PCIe flash disk as a record cache to eliminate dropped frames when your media becomes full or is too slow. Record and playback in full resolution 8K is possible with the included Quad Link 12G-SDI. SDI connections are multi-rate, so you can use with other 8K products, or switch to SD, HD or Ultra HD.
Touch LCD screen provides incredible control with dedicated buttons for play, stop, record, a timeline for scrolling through recordings, image swipe to jog, and more. Heads up display on the LCD shows timecode, video standard, media status, and audio meters. Enable scopes, load and save 3D LUTs, and remote control the HyperDeck from the touch screen.
Full internal waveform monitoring ensures compliance with broadcast standards. RGB and YUV parade displays are ideal for color correction and checking for illegal levels. Histogram shows distribution of white to black detail, and highlights or shadows clipping.
Blackmagic Design HyperDeck Extreme 8K Features
- Power supply not included - requires IEC cable
- Modern design with traditional controls
- Rack mountable
- Live production, digital signage and archive
- Dual CFast media for nonstop recording
- Record direct to external USB-C media disks
- Compatible with controllers, switchers, converters, and more
- Advanced HDR support and bright wide gamut LCD
- Built in scopes ensure compliance with broadcast standards
- Professional audio with multi channel SDI and analog audio
- Localized for 11 common languages
| Until now, creating slow-motion instant replays in live sports productions has required an arsenal of complicated and expensive gear—and the knowledge to run it all. Roland’s P-20HD changes all that, providing an affordable and easy-to-use solution that lets you bring pro replay capabilities to any production setup. Offering seamless integration with most Roland A/V switchers and HDMI camcorders and cameras, the P-20HD transforms everyday sports video productions into edge-of-seat fan experiences.
With the P-20HD, adding the magic of instant replay to your workflow has never been more simple and affordable. Using intuitive controls and the integrated color LCD, you can easily cue up replays of important action to let fans relive the moment, either on your streaming feed or live event screens—or both at once.
The P-20HD records directly to high-capacity SD cards, which are widely available and easy to swap out. And as you cue up and replay clips, the game keeps recording in the background, with no gaps in the action. The P-20HD can be seamlessly inserted into a variety of workflows. Use it on its own, or upstream or downstream of any Roland video switcher. Connect two cameras and switch/composite between sources to capture them for replay. Both HDMI inputs feature built-in scalers, providing worry-free connectivity with nearly any video source.
Roland P-20HD Features
- Slow-motion instant replay and variable speed playback
- Intuitive controls for single-operator sports production
- Simultaneous recording and playback
- Clip playlist builder for creating highlight reels
- Integrated color LCD for preview monitoring
- Capture long events to low cost and widely available SD cards
- Compact, portable, and reliable hardware design
- Ideal for school sports, esports, and sports training
| Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual network streaming or separate networks for control data and video data. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications | The World's Most Complete Sports Production System
Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, NewTek 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration.
NewTek 3Play 3P1 integrates seamlessly with NewTek IP Series, TriCaster TC1, and NVG1 NewTek-Vizrt IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS.
For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.
Product Highlights:
Engineered for the most demanding broadcast and media environments, 3Play 3P1 provides a winning combination of innovative technology and seamless workflow integration to power forward-thinking fan experiences that span from stadiums to screens to smartphones.
- Fully integrated sports production in resolutions up to 1080p 60
- SDI, hybrid, and end-to-end IP connectivity to adapt to your game plan
- Native software-driven processing for maximum production power and flexibility
- Integrated NDI® Telestrator Pro for live telestration from any compatible connected device, with support for remote video transport control
- Comprehensive camera coverage and delivery with support for 4 simultaneous external inputs and 2 outputs
- Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
- Versatile audio connectivity and capture, with support for digital, analog, and network audio, plus 8 channels of audio recording per input
- Multi-purpose video server with full frame-rate, multi-angle preview windows • Real-time social media sharing to Facebook, Twitter, YouTube, and more
- Custom playlist building and highlights packaging for live insert, export, or VOD
- Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
- Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
- Enhanced creative capabilities, including real-time layering, motion graphics, animated transitions, and more
- Industry-standard 2RU system chassis with included hardware control panel
3Play 3P1 Control Panel Included
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.
NDI® Telestrator Pro
Enlighten and entertain audiences, enhancing play-by-play and analysis with live telestration— right from the first replay. With NDI® Telestrator Pro included with 3Play 3P1, you can annotate on screen and roll immediate replays over the network from any compatible networked device— with only a single Ethernet cable required.
NDI® Telestrator Pro supports telestration over either or both 3Play 3P1 output channels, offers a variety of professional paint tools, shapes, and customizable graphics, and includes responsive transport controls for remote playback. (External PC or touchscreen device with Microsoft® Windows 7 operating system (OS) or better required.)
System Specifications
Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input: 4 x resolution-independent IP video inputs via NDI®
SDI Video Input 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25, 24, 23.976
- 576i 50
- 480i 59.94
Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output: 2 x session-format IP video outputs via NDI®
SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
Multiviewer Output
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Recording: 4 x simultaneous recording channels
Recording Format: QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1QuickTime Player not required for playback in common NLE applications
Storage: 3 x 3TB internal drive (capacity varies by format, resolution and file specification)
Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK: 1 x DSK channel per output, with independent source selection and transition
Transitions: Supports custom transitions between output channels and playlist clips
Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio: Native support for network audio input and output via NDI®
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency: ~1.0-1.5 frames
A/V Standards
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI: Support for standard MIDI protocol enabling third-party device control
System Drive: 120GB SSD
NIC: 2 x 1 Gigabit NIC
System Physical 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
- ~26 lbs (~12 kg)
| Power supply not included - requires IEC cable.
The Smart Videohub 12G 40x40 is the most advanced router of the Videohub series. It works in all SD, HD, and Ultra HD formats up to 2160p60. Offering a revolutionary routing process, the mixed format router has built-in video monitoring and spin knob router control.
You get an extremely convenient routing process with visual routing. Router connections are shown as video on the LCD screen while you spin the knob to select your routing. Built-in monitor also displays crosspoint connection labels and TV formats. Visual routing makes the routing process faster than ever.
Monitor all the live video connected to the Smart Videohub 12G 40x40 from the LCD screen. LCD supports video in nearly all TV formats, eliminating the need for a separate external monitor. Monitoring from the Videohub is helpful to confirm the correct video inputs are being sent to the correct video outputs.
12G-SDI connections run at twice the speed of 6G-SDI, supporting equipment that works with high frame rate Ultra HD 2160p60. At that high frame rate you can use the same 60 fps workflow from HD while getting the higher quality of Ultra HD. 12G-SDI also handles SD, HD, and Ultra HD formats easily. 6G-SDI is still supported, so you get the benefits of both technologies.
Multi format technology supports connecting compatible equipment to the router simultaneously. Seamlessly work in NTSC and PAL SD, 720, 1080HD, even 2160 Ultra HD at any frame rate and the router switches standards so inputs match.
Free software developer kit gives you the power to create your own custom router control. The included external software control lets you control the router via network on Mac and Windows. Hardware control panels are available with the Videohub Smart Control Pro and Videohub Master Control Pro (both sold separately). RS-422 protocol can also be used to control Videohub for router crosspoint switching.
Videohub 12G 40x40 Features
- 12G-SDI technology
- 40 inputs
- 40 outputs
- Spin knob control
- Work with SD, HD and Ultra HD formats simultaneously
- Visual routing
- Built-in LCD
- Includes external software control
| Use the Blackmagic Design ATEM production switcher series to create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. ATEM live production switchers support live production needs at live concerts, sporting events, theater productions, conferences, and more. The ATEM Camera Control panel can be added to any ATEM switcher model and is connected via Ethernet.
The ATEM Camera Control panel uses traditional broadcast style controls and adjustments in a compact design so one person can monitor and adjust technical parameters such as black levels, gain, color balance, shutter speed, and more. With this control panel, there are four separate LCD displays and control sections for control of up to four different URSA Broadcast, URSA Mini, Blackmagic Studio or Blackmagic Micro Studio cameras. Control layout is familiar and logical for fast and easy operation by operators of all levels. This control panel is meant to be portable, so does not need to be bolted down.
Quickly adapt to changes in the scene with the top section of controls. Top section controls include white balance, master gain, bars, and shutter speed. You can save and recall presets with the load scenes function. RGB controls in the center section allow you to adjust the individual red, green and blue levels in blacks and whites when you need to compensate for unwanted color. The bottom section is dedicated to lens and iris controls, a joystick to adjust iris and master black. There are buttons for talkback with the operator, panel lock, and a number indicator for preview and on air status.
Blackmagic Design ATEM Camera Control Panel Features
- Traditional broadcast style controls and adjustments
- Portable control panel
- Iris control
- Shutter speed
- White balance
- Master gain
- Pedestal
- RGB controls for white and black
|
