| Content | Power supply not included - requires IEC cable.

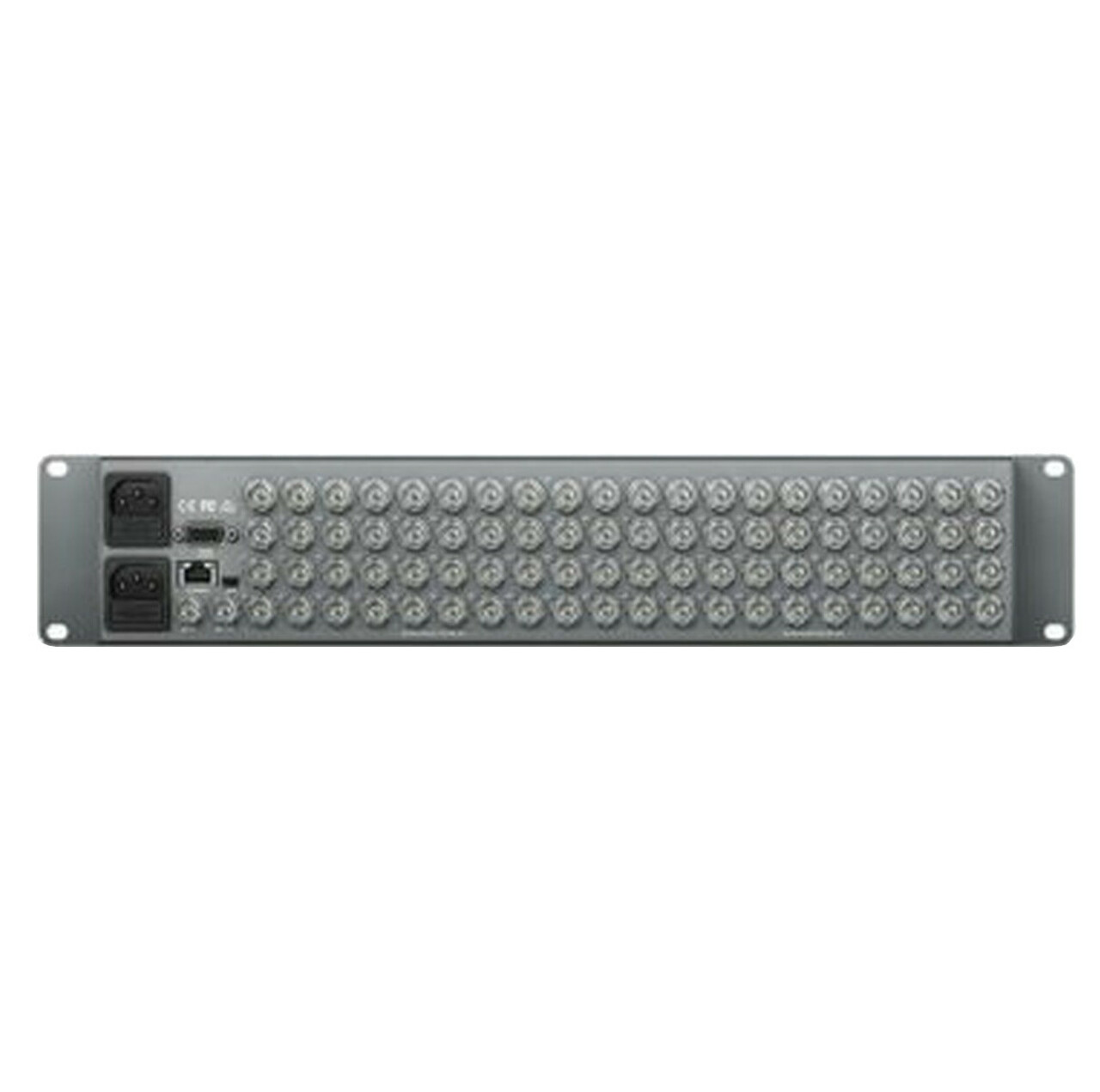

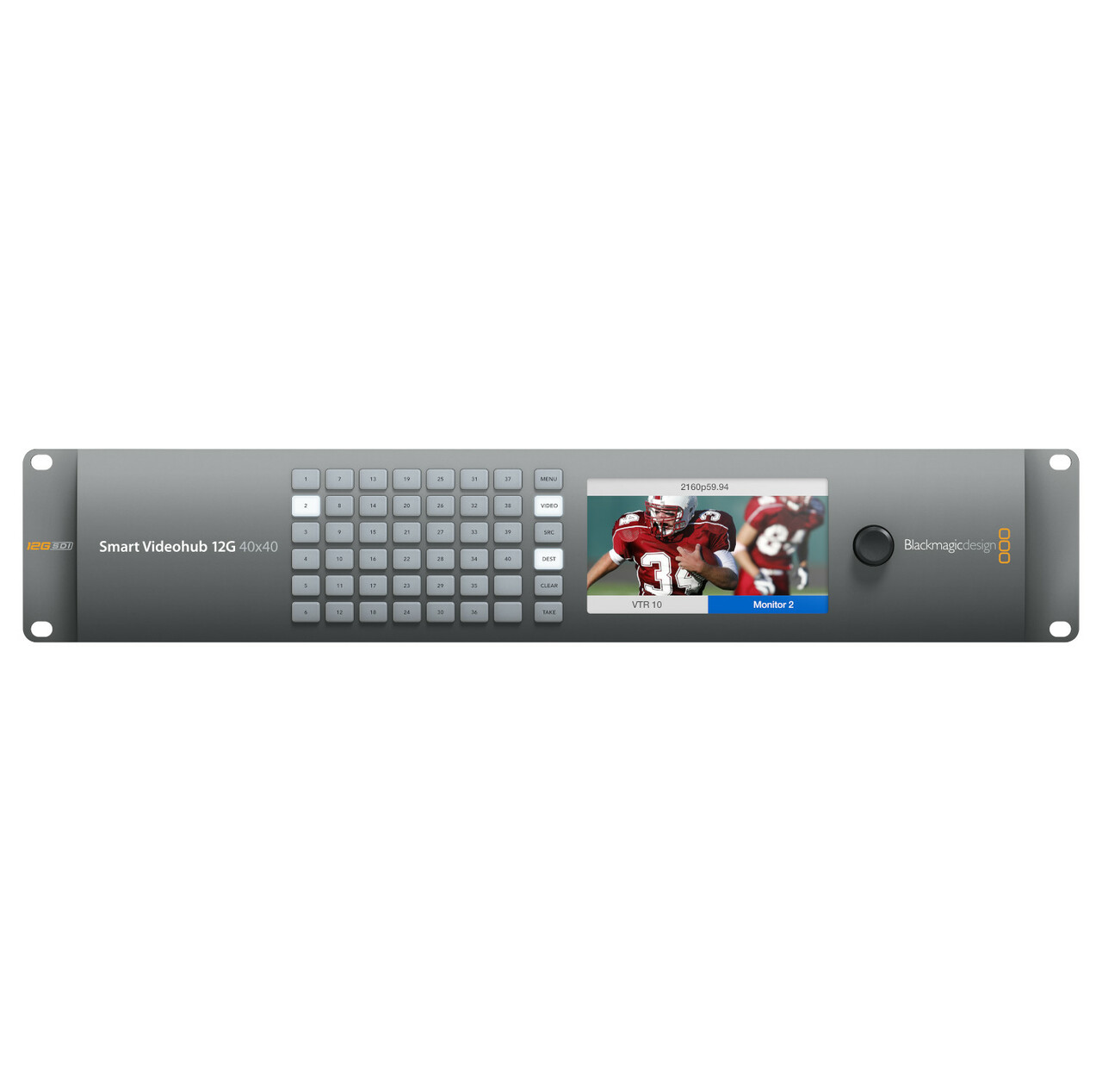

The Smart Videohub 12G 40x40 is the most advanced router of the Videohub series. It works in all SD, HD, and Ultra HD formats up to 2160p60. Offering a revolutionary routing process, the mixed format router has built-in video monitoring and spin knob router control.
You get an extremely convenient routing process with visual routing. Router connections are shown as video on the LCD screen while you spin the knob to select your routing. Built-in monitor also displays crosspoint connection labels and TV formats. Visual routing makes the routing process faster than ever.
Monitor all the live video connected to the Smart Videohub 12G 40x40 from the LCD screen. LCD supports video in nearly all TV formats, eliminating the need for a separate external monitor. Monitoring from the Videohub is helpful to confirm the correct video inputs are being sent to the correct video outputs.
12G-SDI connections run at twice the speed of 6G-SDI, supporting equipment that works with high frame rate Ultra HD 2160p60. At that high frame rate you can use the same 60 fps workflow from HD while getting the higher quality of Ultra HD. 12G-SDI also handles SD, HD, and Ultra HD formats easily. 6G-SDI is still supported, so you get the benefits of both technologies.
Multi format technology supports connecting compatible equipment to the router simultaneously. Seamlessly work in NTSC and PAL SD, 720, 1080HD, even 2160 Ultra HD at any frame rate and the router switches standards so inputs match.
Free software developer kit gives you the power to create your own custom router control. The included external software control lets you control the router via network on Mac and Windows. Hardware control panels are available with the Videohub Smart Control Pro and Videohub Master Control Pro (both sold separately). RS-422 protocol can also be used to control Videohub for router crosspoint switching.
Videohub 12G 40x40 Features
- 12G-SDI technology
- 40 inputs
- 40 outputs
- Spin knob control
- Work with SD, HD and Ultra HD formats simultaneously
- Visual routing
- Built-in LCD
- Includes external software control
| Until now, creating slow-motion instant replays in live sports productions has required an arsenal of complicated and expensive gear—and the knowledge to run it all. Roland’s P-20HD changes all that, providing an affordable and easy-to-use solution that lets you bring pro replay capabilities to any production setup. Offering seamless integration with most Roland A/V switchers and HDMI camcorders and cameras, the P-20HD transforms everyday sports video productions into edge-of-seat fan experiences.
With the P-20HD, adding the magic of instant replay to your workflow has never been more simple and affordable. Using intuitive controls and the integrated color LCD, you can easily cue up replays of important action to let fans relive the moment, either on your streaming feed or live event screens—or both at once.
The P-20HD records directly to high-capacity SD cards, which are widely available and easy to swap out. And as you cue up and replay clips, the game keeps recording in the background, with no gaps in the action. The P-20HD can be seamlessly inserted into a variety of workflows. Use it on its own, or upstream or downstream of any Roland video switcher. Connect two cameras and switch/composite between sources to capture them for replay. Both HDMI inputs feature built-in scalers, providing worry-free connectivity with nearly any video source.
Roland P-20HD Features
- Slow-motion instant replay and variable speed playback
- Intuitive controls for single-operator sports production
- Simultaneous recording and playback
- Clip playlist builder for creating highlight reels
- Integrated color LCD for preview monitoring
- Capture long events to low cost and widely available SD cards
- Compact, portable, and reliable hardware design
- Ideal for school sports, esports, and sports training
| Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual network streaming or separate networks for control data and video data. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications | The Perfect Production Powerhouse
An Evolution in Live Production
TriCaster 1 Pro is an incredibly powerful production system for the modern producer, publisher, and content creator. Perfect for productions with intense demands on quality and feature set.
Remote Calling
Offering the revolutionary Live Call Connect for seamless integration of remote callers.
Distributed Production
Countless features allowing users anywhere on the planet to deliver the most complex productions, with ease.
Integrated Flexibility
Opening a world of opportunities with the tightest integration of NDI available in any product.
Where The Magic Happens
TriCaster 1 Pro is the perfect balance of investment and power, fully equipped with the industry's leading software-driven production technology and hundreds of future-ready capabilities.
- Native software driven processing for maximum production power and flexibility
- Multi-channel ISO recording to full-resolution QuickTime® and H.264 files for VOD, post-production, and archive
- Switching, streaming, recording in HD, 3G, and 4K UHD 60p
- Integrated video servers allowing playback, replay, and live editing without any additional hardware
- Premier creative capabilities, including multi-bus mix effects, animated titles and transitions, advanced chromakeying, spectacular live virtual sets, and more
Incredible Future-Ready Capabilities
TriCaster 1 Pro allows today’s professionals to take advantage of established and emerging workflows to produce more of the incredible content their viewers crave and deliver it whenever and wherever they watch.
Advanced Features As Standard
TriCaster 1 Pro offers countless new elements that can truly elevate your production – perfect for mid-sized productions with intense demands on quality and feature set.
- Live Call Connect
- Advanced Macros
- Neural Voice Isolation
- Live Streaming & Publishing
- Quality Monitoring
- Alpha Channel Outputs
- Live Story Creator
- LiveGraphics™
- LivePanel™
Live Call Connect
Seamless integration of multiple remote callers from popular video communication applications like Facebook Messenger, WhatsApp, and FaceTime, Zoom, Skype TX, Microsoft® Teams, Discord, Slack and Tencent as unique video inputs.
Advanced Macros
A dynamic and powerful tool that allows operators to use variables in their macros to deliver complex productions more easily.
Live Streaming & Publishing
Supporting encoding of 3 channels; configure and launch live streaming video to the web with built-in streaming encoders supporting a choice of connection types, resolutions, and streaming providers, including multiple preset options and custom profile settings.
Alpha Channel Outputs
Operators can send Alpha Channel through one of the MIX outs. Bringing post-production closer to live, users can use the keying on TriCaster to feed graphics or real time 3D creation tools.
Convenient Connectivity Options
TriCaster 1 Pro offers and array of convenient connectivity options for anything from SDI and Audio I/O to multiviewers not only through the powerful 10G network interface but also directly with dedicated ports.
Customize Your Space
For the first time, LivePanel can be used to build bespoke functions directly within the TriCaster user interface.
Multi-Source Video Mixing
Comprehensive camera coverage and compelling multi-source video mixing, including 16 external inputs and 4 M/Es.
Live Sound Experience
Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog, and USB audio devices, audio over IP networking with NDI®, Dante™, and AES67, professional DSPs, fader control, VU metering, Talk Back communication, and 4 x 4 x 4 channel routing to four audio mix outputs.
Video Input
16 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input
16 x IP video inputs via NDI®, resolution-independent, with support for key and fill
SDI Video Input
4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- 576i 50
- 480i 59.94
PTZ
Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output
Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output
IP video output via NDI, optionally configurable for:
- 4 x independent video mix outputs
- 1 x 4K UHD video mix output
SDI Video Output
4 x 3G/HD/SD-SDI connections, optionally configurable for:
- 4 x independent 3G/HD/SD video mix outputs
- 1 x 4K UHD video mix output via 3G-SDI quad-link grouping
Stream Output
3 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive
Multiviewer Output
3 x multiviewer outputs supporting standard display resolutions
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Mix/Effect Buses (M/E)
4 x M/E buses supporting video re-entry
- 1 x Mix/Effect channel per bus with support for up to 4 sources
- 4 x KEY layers per bus
- 9 x memory slots per bus
1 x PREVIZ configuration and preview bus
DSK Channels
4 x DSK channels
Media
5 x media players
- 2 x DDR
- 2 x GFX
- 1 x Sound
15 x media buffers
- 10 x animation buffers
- 5 x graphic buffers
30 x clip players (available for use as transitions or media depending on function)
Keyers
Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
- 16 x input keyers
- 4 x media player keyers
- 4 x M/E keyers
- 1 x PREVIZ keyer
- 15 x buffer keyers
COMPs
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
- 16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros
Record, store, edit and automate commands and user-configured operation sequences
- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
- Supports control via web-based interface
- Variables support allowing operators to use logic in macros to deliver complex productions more easily
Recording
16x configurable video recording channels
- 16x NDI® recordings
- 4 x QuickTime® archival video recorders
- 3x H.264 distribution video recorders (multiple profiles)
- 1 x MP3 audio recorder
Storage
4TB internal media storage
- 2 x 4TB 7200 RPM, 128MB Cache, SATA 6.0Gb/s, 3.5" Internal Hard Drive
- Capacity varies by format, resolution and file specification
- Supports recording to external storage via USB 3.0 and eSATA
- Supports shared storage integration and third-party partner solutions
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer
Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio
- Native support for network audio input and output via NDI
- Embedded audio supported for all NDI input and output video signals
- Integrated support for Dante™ networking protocol from Audinate®
- Support for AES67 protocol via compatible WDM audio drivers
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio: AIFF, MP3, WAV, and more
Monitoring
Support for up to 3 multiviewer displays with configurable workspaces and viewports
Signal Monitoring
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
A/V Standards
- 4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Tally
Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design® SDI tally standard
Genlock
Genlock input supporting SD (Bi-level), HD (Tri-level) or NDI® reference signals
GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI
Support for standard MIDI protocol enabling third-party device control
System Drive
120GB SSD
NIC
- 1 x 10 Gigabit Ethernet
- 1 x 1 Gigabit Ethernet
USB
- 1 x USB 3.2 Gen 2 Type-C
- 7 x USB 3.2 Gen 1 Type-A
System Physical
TriCaster 1 Pro
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
| The NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD also includes DMX512 and GenLock interfaces, Ethernet ports for communication through standard TC/IP and USB control for cascading with additional NOVAPRO HD's. NOVAPRO HD is compatible with all of ADJ's current video products.
Controller Features
- No Computer or External Scaler Needed (standard rectangular layouts only)
- Up to 1080p @60Hz Input Resolution
- 165Mhz Pixel Clock / 4G-Bit Output Bandwidth
- Multiple Video Signal Format Support
- Cascade Multiple Units Together
- Rack Mountable Aluminum Enclosure (screws not included)
Controller Specs
CONTROL / CONNECTIONS
- (1) Input and (4) Output RJ45 EtherCON Ports
- USB, 5pin DMX, and GenLock In/Out Ports
- Audio Input: 1/8 inch connector
- Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
- Locking IEC Power Input
SIZE / WEIGHT
- Length: 19.0" (483mm)
- Width: 15.3" (389mm)
- Height: 3.5" (88.2mm)
- Weight: 13.2 lbs. (6.0kg)
ELECTRICAL
- AC 85-265V - 50/60Hz - 0.65A
- Max Power Consumption: 30W
| HyperDeck Extreme 8K HDR has the reliable features of HyperDeck, with new features of space-saving H.265 files, optional internal cache, 3D LUTs, native 8K and HDR support. Ability to record native 8K in H.265 storage reduces storage costs and image quality stays amazing. Large touch screen ensures you can see your recording and easily control all deck settings. HyperDeck Extreme 8K HDR is an excellent solution for broadcast, live production, and digital signage.
Great for live production as a master recorder, clip player and for recording ISO cameras. Analog inputs allow recording from old video tapes, so legacy programming is compatible with the latest streaming services and can be edited. 10G Ethernet makes digital signage easy with fast media uploads, and a simple remote control protocol. Use as a field recorder with HDMI, SDI and analog inputs with built in scopes and 3D LUTs.
AC and DC power connections help make sure you can use the HyperDeck Extreme 8K HDR in studio or on location. Record to commonly available flash memory cards with dual CFast media support.
The HyperDeck Extreme 8K HDR includes two media slots, Quad 12G-SDI for 8K, analog connections for archiving, USB-C external disk recording, front panel speaker and headphone jack. Install a PCIe flash disk as a record cache to eliminate dropped frames when your media becomes full or is too slow. Record and playback in full resolution 8K is possible with the included Quad Link 12G-SDI. SDI connections are multi-rate, so you can use with other 8K products, or switch to SD, HD or Ultra HD.
Touch LCD screen provides incredible control with dedicated buttons for play, stop, record, a timeline for scrolling through recordings, image swipe to jog, and more. Heads up display on the LCD shows timecode, video standard, media status, and audio meters. Enable scopes, load and save 3D LUTs, and remote control the HyperDeck from the touch screen.
Full internal waveform monitoring ensures compliance with broadcast standards. RGB and YUV parade displays are ideal for color correction and checking for illegal levels. Histogram shows distribution of white to black detail, and highlights or shadows clipping.
Blackmagic Design HyperDeck Extreme 8K Features
- Power supply not included - requires IEC cable
- Modern design with traditional controls
- Rack mountable
- Live production, digital signage and archive
- Dual CFast media for nonstop recording
- Record direct to external USB-C media disks
- Compatible with controllers, switchers, converters, and more
- Advanced HDR support and bright wide gamut LCD
- Built in scopes ensure compliance with broadcast standards
- Professional audio with multi channel SDI and analog audio
- Localized for 11 common languages
|
