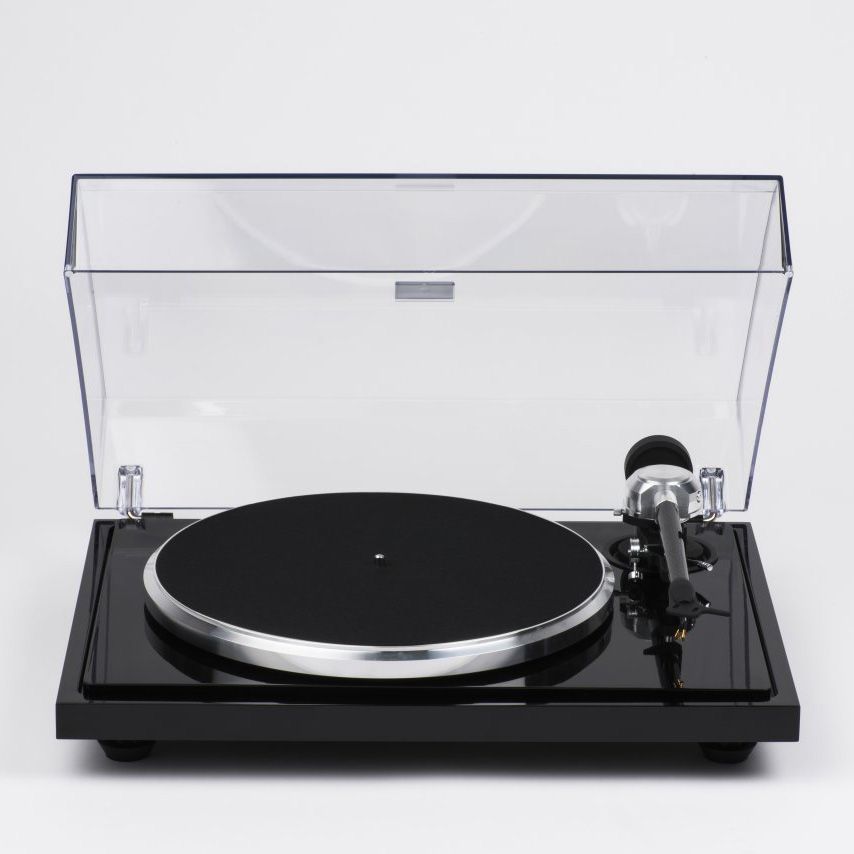

The B-Sharp sheds all of the non-essential cosmetic adornments of the C-Major without compromising performance or mechanical integrity, providing vinyl enthusiasts with a superb playback option at a more affordable price.
- Features the new B-Note tonearm, made from a carbon fiber alloy that is light yet rigid with a black anodized aluminum headshell. The B-Note tonearm provides all of the key features for cartridge alignment and adjustability: VTA (Vertical Tracking Angle), SRA (Stylus Rake Angle), VTF (Vertical Tracking Force), azimuth and a slotted headshell for overhang / offset angle.
- The anti-skate mechanism has been engineered for more intuitive calibration, making setup of the B-Sharp notably easier than competitive products.
- A proprietary low noise motor, floating chassis, aluminum platter and a high-density MDF low profile base are included as standard features of the B-Sharp. Like the C-Major, the B-Sharp uses a high-tech TPE (thermoplastic elastomers) suspension system that works in concert with adjustable feet that provide levelling ability for the table.
- Comes equipped with a factory installed Ortofon 2M Blue Cartridge, hinged dustcover, low mass aluminum record clamp, and a felt platter mat-all included.
| The Planar 10 features the new RB3000 tonearm fitted with an improved, low mass, precision bias housing. Rega has pioneered a completely new low mass, central hub bearing assembly with improved mechanical integrity. For the first time on a Rega production turntable, a ceramic top brace delivers ultimate rigidity and accuracy whilst creating the perfect platform between tonearm and central bearing. Finally, this entirely new player is controlled by their most advanced electronic power supply housed in a brand-new, full metal custom case designed to match the latest range of Rega electronics.
.jpg)
Ultra-lightweight plinth
The Planar 10 is the third Rega turntable constructed using their latest technology the ultra-lightweight Tancast 8 polyurethane foam core (a material developed for the aerospace industry). This material is sandwiched between two layers of HPL (high-pressure laminate). HPL is exceptionally thin and extremely rigid. This new construction makes the new Planar 10 skeletal plinth 30% lighter than the original RP10 while offering increased rigidity over the previous model.
DB Technology (Double Brace Technology)
A super lightweight plinth combined with a ceramic top brace and phenolic resin bottom brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound, “stressed beam,” assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The tonearm and cartridge must be able to read accurately, directly from the platter. This unique Rega double brace solution enables this. The use of braces instead of the complete skin allows increased thickness in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.
RB3000 tonearm
Rega is renowned for the quality of its tonearm bearing assemblies. In particular the accurate manufacturing of their bearing housing and bearing spindles. Technical characteristics such as "roundness" and "parallelity" are critical. Over the past three years, Rega has found a new manufacturing process that improves on all these characteristics resulting in a micron perfect bearing fit. The RB3000 is the first Rega arm to benefit from these improvements.
The entire tonearm structure is designed to have the minimum of mechanical joints while using the stiffest materials in all critical areas. The tolerance of the RB3000 tonearm is so tight that no adhesive is used at any point throughout the construction. Their latest low mass, precision-engineered, the vertical bearing assembly has been manufactured to further complement the inherent design philosophy of the Planar 10 turntable. The RB3000 tonearm uses Rega's advanced, preloaded zero tolerance bearing assembly adjusted to less than 1000th of a mm. This gives friction-free movement and zero levels of unwanted play. Simply put, friction-free bearings with no play enable ridges in the record groove of less than a micron to be read. The RB3000 also uses their latest award-winning, aluminum, Rega arm tube (each one of which is meticulously hand polished, keeping mass to an absolute minimum) which was redesigned to redistribute mass and further reduce stresses and resonances. This advanced design tube increases the stiffness and rigidity of the overall assembly whilst reducing stress on the bearings even further.
Hub Bearing assembly
The Planar 10 uses a new low mass central bearing assembly. A single piece of machined aluminum sub-platter and hardened tool steel spindle run inside a custom brass housing designed with improved mechanical integrity. The complete assembly is cleverly mounted within the chassis to eradicate unwanted potential energy being transferred or stored in the plinth.
Cutaway cross-section of Planar 10 bearing assembly.
Ceramic Platter
The P10 uses a custom ceramic, flywheel effect platter. The platter is produced from ceramic oxide powder which is compressed, fired and diamond cut to ensure perfect accuracy and flatness across the surface. The latest platter features a modified construction with improved coupling to the sub-platter.
24v Low noise motor assembly
The Planar 10 uses Rega's latest generation, 24v, synchronous, low vibration motor technology. Uniquely mounted using the highest level of coupling while retaining higher vibration isolation than any previous model, this new motor mounting technique (mounted from the bottom) has been taken directly from the ultimate Rega turntable, the Naiad. This unique mounting method removes all stress from the motor body whilst holding the drive pulley perfectly still. This enables better speed stability and accuracy from the turntable. The reduced vibration and more rigid mounting delivers superior drive from the new EBLT drive belts. Each motor is hand-tuned to match its own custom-matched PL10 PSU power supply before fitting to the turntable to optimize the anti-vibration circuit.
EBLT Drive Belts
For three years Rega has been researching and developing with chemists the use of a bespoke new rubber compound for drive belts. Using a specialized curing system, the new drive belt offers superior consistency of modulus (a constant representing the degree to which a substance has a particular property, especially elasticity). These new belts are manufactured on Rega designed, state of the art, super-accurate tools (inspired by working with the manufacturer of high-tech Formula 1 engine parts) which produce 'perfectly round' and 'dimensionally accurate' belts, critical for perfect speed stability.
PL10 PSU custom-matched advanced power supply.
The PL10 PSU offers the ultimate in motor control stability, convenient electronic speed change, advanced anti-vibration control, and user-adjustable electronic fine speed adjustment to ensure total accuracy and control over the life of the motor. Housed in Rega's latest custom-designed case, the PL10 PSU is dedicated to running our 24v, low noise motor as quietly and as accurately as possible. The speed and control of the motor is achieved by using a new DSP (Digital Signal Processing) generator built upon a high stability crystal. This device will divide the accurate square wave from the crystal to the exact frequency required to turn the platter at the selected speed. The DSP core will also generate a near perfect sinusoidal waveform to power the motor. Factory set vibration removal and fine speed adjustments are then made to the power supply to tune each motor for optimal performance.
Dust Cover
The outer frame of the previous model has now been removed and a new stylish, removable, single piece dustcover has been introduced further reducing the overall mass of the turntable.
- Mains voltage:
- 230 V 50/60 Hz
- 220 V 50/60Hz
- 115 V 50/60Hz
- 100 V 50/60Hz
- Power consumption: 17 W
- Fuse rating: T250 mA L (230 V / 220 V)T500 mA L (115 V / 100 V)
- Output to motor: 24 V AC bi-phase ~ 350 mA
- Speed control step size: 0.01 rpm
|
The new Classic Evo is based on the successful EISA Award winner The Classic and the experience Pro-ject won designing and building their icon turntable, the 175 VPO. The main improvement is the sub-platter, where they used the experience they gained from designing the Vienna Philharmonic Recordplayer to add key changes to the Classic Evo, adding performance features that are rarely seen in this price category. For improved comfort, an electronic speed change was built in, which lets you switch from 33 to 45 rpm (and vice versa) with the push of a button.
Compared to the old Classic, we improved the subchassis; we tried to make it heavier and stiffer to reduce resonances. Isolating the platter and tonearm from the resonances of the motor and main plinth is the target.
Platter & sub-platter
The heavy aluminium main platter construction utilises advanced thermoplastic elastomers (TPE*) for optimising resonance behaviour. A drawback for most of the old designs was the platter. Casted platters all have been heavy (which is good for speed constancy and low wow and flutter) but suffered very much from ringing effects which again caused colouration of the sound. The platter of The Classic Evo is precisely machined out of a special aluminium alloy again damped with TPE*, which offers special damping abilities. The main bearing construction we use is a similar system as the one on the Vienna Philharmonic Record player.
The diamond-cut precision alu sub-platter, like in the limited edition Vienna Philharmonic Recordplayer, enables much improved tolerances. This extraordinarily sophisticated part is accurately machined and guarantees very good isolation between bearing noise and the platter itself.
New carbon/aluminium tonearm
The radical new designed Classic tonearm is the result of 25 years of experience in mechanical construction. The tonearm tube is made out of a sandwich of carbon and aluminium: carbon for stiffness and speed, alu for better damping. The bearing has been upgraded to the same type that is used on our Pro-Ject CC EVO tonearms. It facilitates frictionless vertical and horizontal movement, guaranteeing precise tracking across the entire duration of the record. The counterweight incorporates a TPE* damper which allows us to reduce the amplitude of the tonearm cartridge resonance frequency by 50%. As typical for Pro-Ject and absolutely not standard at that price range we offer also azimuth and VTA adjustment to use a variety of cartridges.
MC Cartridge
We supply as standard the Ortofon Quintet Red moving coil cartridge. However, as the tonearm offers excellent damping and flexibility as well, its effective mass can be called middle heavy, so it is also a very good partner for MC cartridges. As the Classic is a wonderful state of the art deck, we decided to use an MC cartridge to use the potential of the player. MC cartridges are expensive, but the better choice. They are rarely used at such a price point. Pro-ject is therefore convinced to offer you an unbeatable price-performance package.
Features:
- Diamond cut precision alu sub-platter
- Improved sandwich subchassis
- Ortofon Quintet Red cartridge pre-installed
- Electronic speed control (33/45 rpm)
- Belt drive with electronic speed control 33/45 rpm
- Height adjustable decoupling feet
- Precision balanced TPE-damped aluminium-platter
- Metal/MDF sandwich chassis floating on TPE suspension
- 9” carbon/aluminium tonearm with MM & MC capability
- Inverted EVO bearing design with four ABEC7 spec ballraces
- Arm bearing housing of solid ring type. The massive outside ring is open to avoid resonances
- Azimuth and VTA fully adjustable
- TPE damped counterweight
- Classic wooden chassis in 2 satin finishes (walnut, eucalyptus)
- Dustcover included
|
The MMF-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by Music Hall.
- Counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper.
- DC synchronous motor for superior speed stability separately isolated on the lower platform.
- Includes properly aligned and pre-mounted Ortofon 2M Blue cartridge with a replaceable nude elliptical diamond stylus.
- Dynamically balanced alloy platter with soft felt mat.
- Dust cover and 45 rpm adaptor included.
| Model-One is a turntable music system that combines the finest amplifier, turntable, and speaker components, in a beautifully constructed body adorned with high-quality fabric and a furniture grade wood. Featuring impressive performance despite its turntable-sized footprint, Model-One makes it simple to enjoy records and digital sources with premium, room-filling sound.
Model-One
Model-One is a turntable music system that combines the finest amplifier, turntable, and speaker components, in a beautifully constructed body adorned with high-quality fabric and a furniture grade wood.
Featuring impressive performance despite its turntable-sized footprint, Model-One makes it simple to enjoy records and digital sources with premium, room-filling sound. Users can add a dual 10" driver subwoofer and LP storage to the player, making it a complete stand-alone entertainment system.
Model-One features a timeless, Mid-Century aesthetic, inspired by the furniture and audio equipment of the era.
Clean lines are constructed with natural walnut hardwood and brushed aluminum metal plates. It stays true to a form-follows-function formula, with a compact form factor and look that fits comfortably in any environment.
Model-One Technology
Isogroove™ is an exclusive Andover Audio technology that eliminates the occurrence of feedback between turntable and speaker.
This allows the turntable to be mounted in the same, low-profile enclosure as the speakers, without fidelity-disruptive hum. The result is great sound in a compact package.
A custom turntable based on the Pro-Ject Debut Carbon Espirit SB turntable is used as a high-grade phono source. It features an Ortofon OM2 Silver cartridge, carbon fiber tonearm, and acrylic platter. The turntable provides pristine, low-noise playback, without the record wear common in lower-grade alternatives. It plays 33, 45, and 78 RPM records (with an optional stylus), giving entry-level users the ease-of-use they desire, with a flexibility that meets the needs of advanced listeners.
The integrated loudspeaker system is composed of four 3.5” aluminum diaphragm woofers and two Air Motion Transformer tweeters, bi-amplified by a powerful Class-D 150W amplifier. Listeners will be delighted with the clarity, balance, and frequency-range they find in larger speaker setups, without fatigue that results from improperly tuned systems.
Many analog and digital ins/outs are included in the system, as well as a host of customizable options accessible by a front-mounted graphic interface, with the intuitive single-knob operation. Selectable sources include phono, Bluetooth 4.2 (with APT-X), and a dedicated input for a Wi-Fi streaming device. Stereo and Mono listening modes are readily accessible, as well as a Panoramic mode that enhances the stereo image, making the unit sound like a pair of widely-spaced speakers. The settings menu provides custom adjustment of EQ, satisfying listeners seeking a sound balance that better matches their content or room.
Specifications
Audiophile-Grade All-In-One Turntable Music System
Phono (33 / 45 / 78 RPM)
Wireless Bluetooth (APT-X Codec)
DAC (Sampling Rate: Up to 24b / 192k)
Integrated Six-Driver Amplified Audio System
Isogroove Feedback Cancelation Technology
Analog and Digital Connectivity, Including Streaming Device Support
Expandable with Matching Stand and Subwoofer |
Building on the ground breaking Juke Box E, Juke Box S2 is taking the first audiophile all-in-one system to the next level. By changing to a more sophisticated acrylic platter and an upgraded, Pro-Ject proprietary cartridge gave the Juke Box the extra bit of audiophilia it deserves. Juke Box S2 effectively saves space by implementing a pre-amplifier and power amplifier in its chassis. With the rated 50 Watts per channel it you will be able to use your stereo speakers and enjoy realistic sound stages and great depth.
- Instant playback with super-easy setup
- Bluetooth and 1 line input
- Acrylic platter
- High contrast display on top
- Line record output
- Gold plated sockets
- Pre-adjusted tracking force & anti-skating force
- Pick it 25A cartridge, pre-mounted
- 8.6" aluminium tonearm with sapphire bearings
- Belt drive with silicone belt
- Low vibration synchronous motor & DC power supply
- Special feet for effective decoupling
- IR remote control included
|
