| Content |

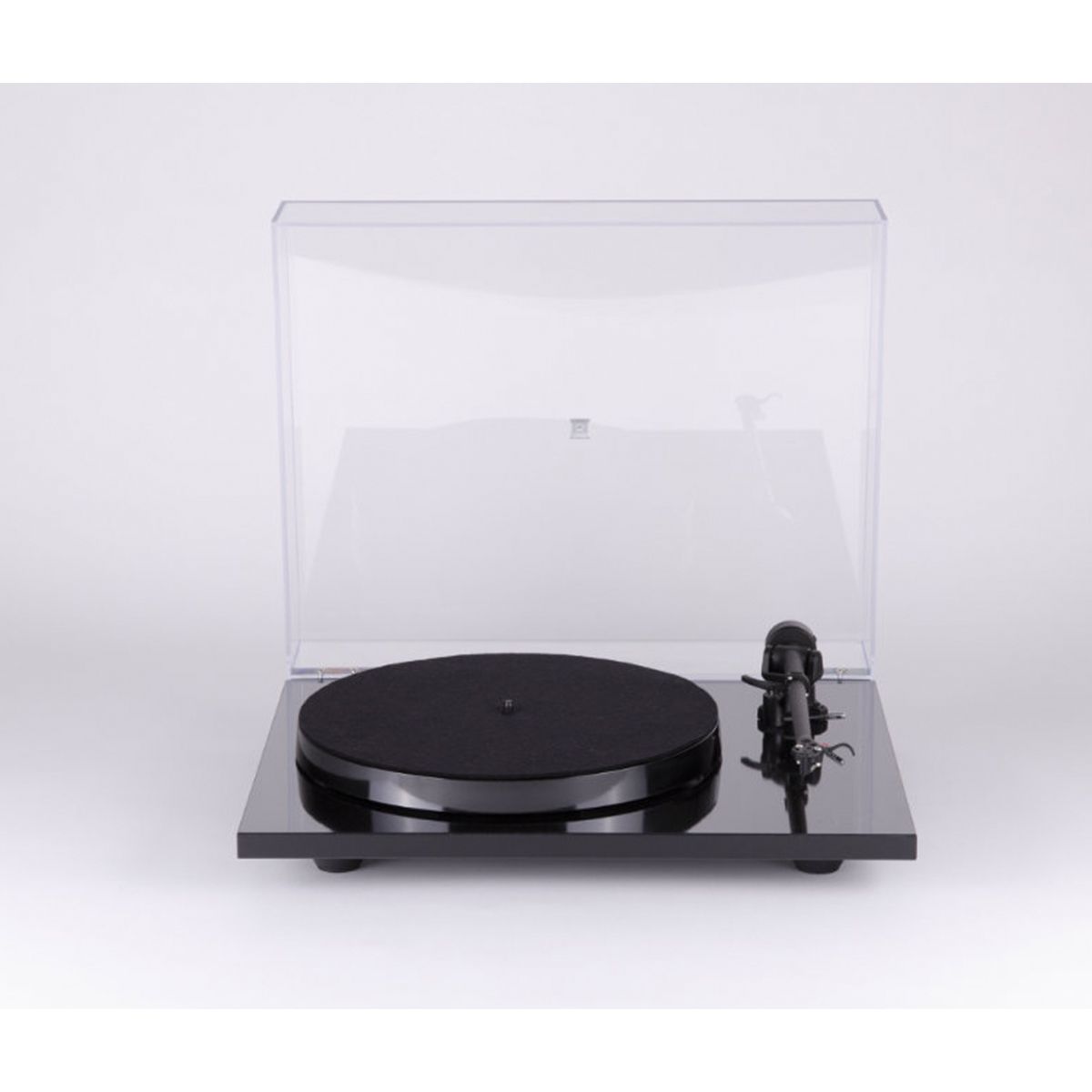

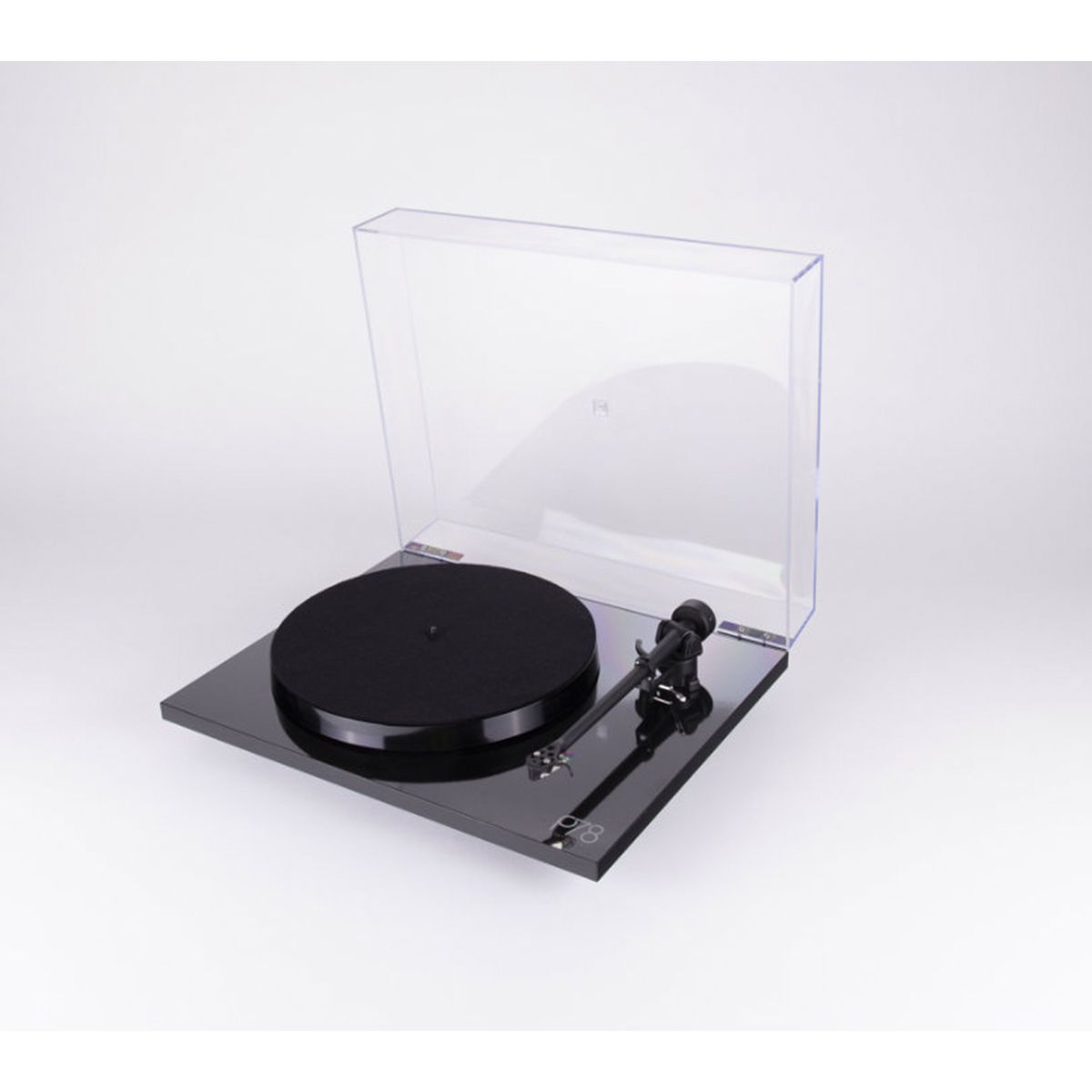

The single speed RP78 has been designed and engineered to achieve outstanding performance way beyond the expectations of a product at this price point. Using our latest 24v motor technology the new Planar 78 is also fitted with the latest RB220 precision tonearm.
Designed solely for the reproduction of 78 rpm records, we have omitted any unnecessary gimmicks allowing us to concentrate the manufacturing costs on the high-quality parts necessary to reproduce records accurately. The minimalist design of the Rega Planar 78 and the use of extremely high-quality components ensure that your turntable should last for many years.

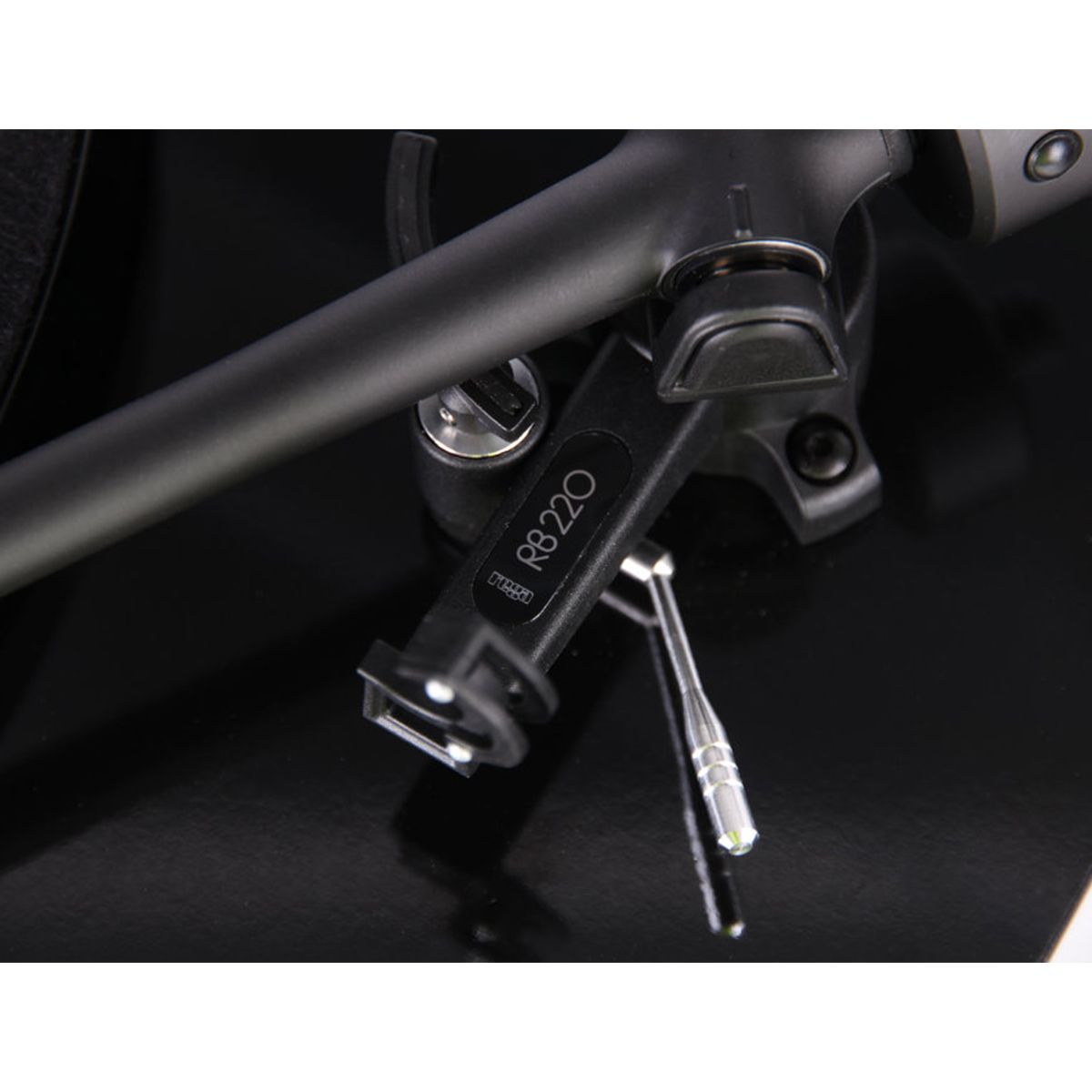

The RB220 offers astonishing performance and is one of Rega's best selling tonearms. An evolution of the famous RB250, which was supplied as standard on early Planar 2 and P2 turntable, the RB220 uses our patent-pending ultra-lightweight high-quality polymer bearing selected, high quality vertical and horizontal bearings.
The tonearm uses our die-cast tube and the three-point fixing technique based on the mounting design system. This system reduces stress on the plinth and tonearm and offers greater stability though the arm. All of which translates into more music for you the listener.
Details & Specs:
- Hand-assembled RB220 Rega tonearm.
- Precision main bearing.

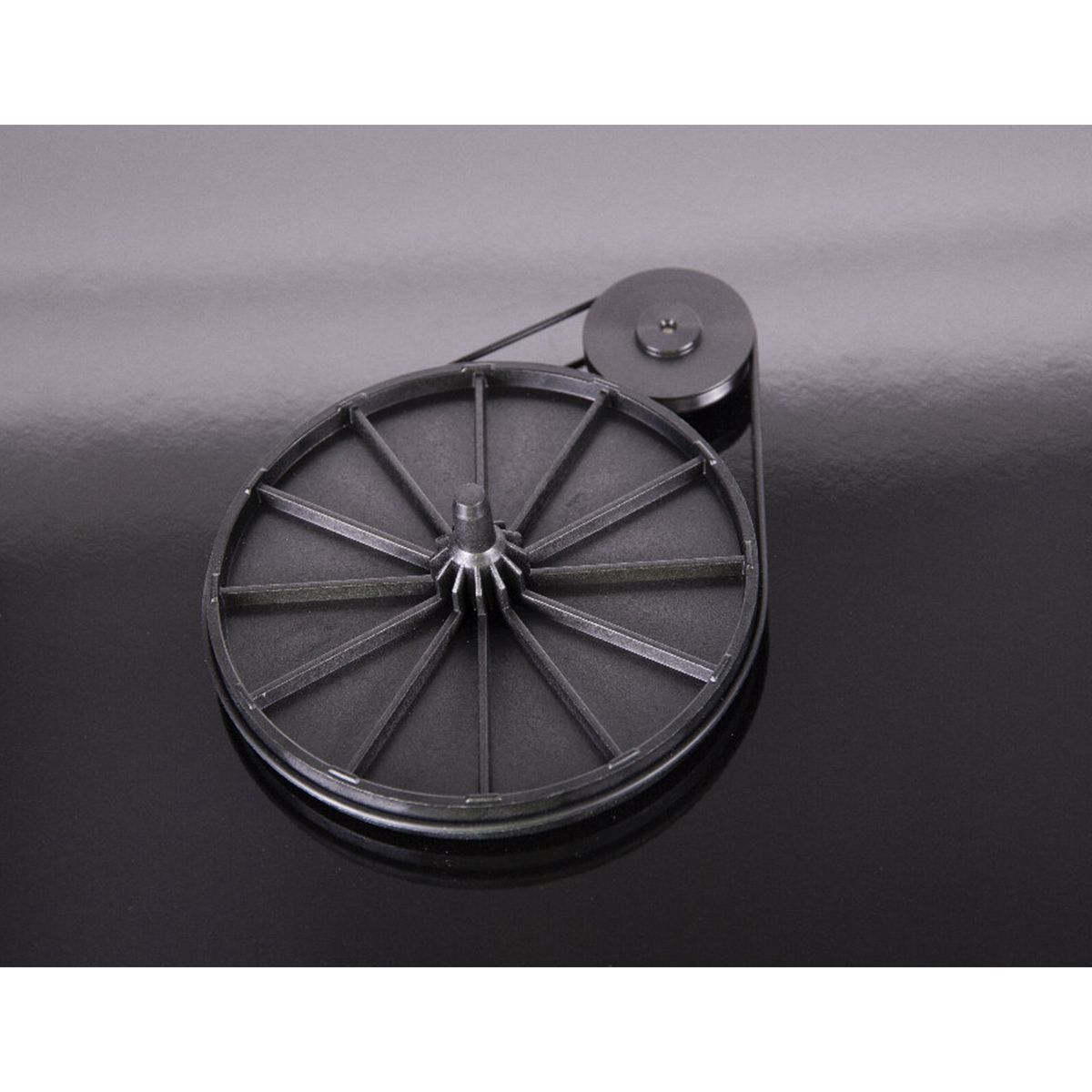

- Flywheel effect platter manufactured from phenolic resin which assists startup speed and stability.
- Lightweight plinth.
- Low vibration 24v motor.
|
The VT-E turntable proves that turntable setup doesn’t have to be rocket science. This great sounding belt-driven deck even comes in two separate versions for both left- and right-handed users. The VT-E can be positioned either free-standing on a table or wall-mounted using the included low-profile metal bracket. Installation is a breeze since everything is pre-adjusted out of the box – tracking and anti-skating force are carefully set so no further set-up needed! Sse both Bluetooth and RCA output at the same time.
Speed:
33 & 45 rpm (manual speed change)
Drive principle:
Silicone belt drive
Speed variance:
0.8% @ 33 rpm, 0.7% @ 45 rpm
Wow & flutter:
0.29% @ 33 rpm, 0.27% @ 45 rpm
Signal to noise ratio:
-65 dB
Platter:
300 mm composite wood (1.8 lb.) w/felt mat
Main bearing:
Stainless steel
Tonearm:
8.6” aluminum
Effective tonearm length:
218.5 mm
Overhang:
22.0 mm
Effective tonearm mass:
8.0 g
Compatible cartridge weight:
3.0 - 5.5 g (Otrofon OM5E included) 0 - 2.5 g (pre-adjusted at 1.8 g)
Tracking force range:
0 - 2.5 g (pre-adjusted at 1.8 g)
Included accessories:
power supply, record clamp
Power consumption:
4.5 W
Dimensions (free-standing):
16.9” x 13.6” x 9.6” (W x H x D)
Dimensions (wall mounted):
16.9” x 12.2” x 5.1” (W x H x D)
Weight:
6.2 lbs. (net)
| The word "Ultra" is synonymous with Mobile Fidelity Sound Lab's philosophy. It represents their extreme pursuit of the highest level of reproduction of recorded sound-beyond the status quo-to provide music lovers with the experience of hearing the Original Master Recording in their home. Whether you're enjoying a standard LP or one of our UltraDisc One-Step limited-edition records, UltraDeck will deliver faithful playback of what's in the grooves.
Ultra Tonearm
Custom-developed and manufactured in the USA, the 10-inch Ultra tonearm uses smooth, high-quality ball bearings for low friction in the vertical and horizontal plane so all you hear is what is in the grooves. Cardas Audio wiring maintains signal purity from the headshell leads all the way through to the high-quality, gold-plated RCA connectors.
Isolated AC Synchronous Motor
Their stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.
Constrained Layer Dampening
UltraDeck features three aluminum plates carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.
Anti-Vibration Feet by HRS
Any vibration of the stylus that is not created by the grooves in the record is a distortion that will mask musical detail. Developed in conjunction with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation for audio equipment, the included MoFi anti-vibration feet isolate your turntable from bad vibrations.
1.3-Inch Derlin Platter
UltraDeck features a massive 1.3-inch Delrin platter. The increased mass creates blacker sonic backgrounds and a lower noise floor. Delrin is a next-generation polymer developed by Dupont. In the world of audio, Delrin's highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.
Hardened Steel Inverted Bearing
Our hardened-steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and sapphire-found in much more expensive turntables-will provide you many years of high-performance playback.
|
The MMF-5.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by Music Hall.
- Counterweight's center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper.
- DC synchronous motor for superior speed stability separately isolated on the lower platform.
- Includes properly aligned and pre-mounted Ortofon 2M Blue cartridge with a replaceable nude elliptical diamond stylus.
- Dynamically balanced alloy platter with soft felt mat.
- Dust cover and 45 rpm adaptor included.
| The Prime is designed to offer hi-end sound while taking advantage in improvements in Turntable technology. The shape is designed to have a more aesthetic look, while having the footprint to accommodate the space needed for a 10 inch 3D arm.
- 10-inch 3D Tonearm
- VTA Tower included
- Classic 20-pound platter and bearing
- Four solid Delrin corner assemblies designed for isolation and mechanical grounding
| The new Planar 2 was developed over the past two years alongside the recently released Planar 3. Featuring the brand new RB220 tonearm which is packed with groundbreaking new features such as a new 24v low noise motor, acrylic laminated plinth, newly designed central bearing and so much more. Every feature of this innovative new turntable is designed to extract the maximum amount of information and detail from your vinyl collection.
- Re-designed feet - New improved foot assembly to increase stability and reduce vibration transfer.
- Carbon cartridge - supplied as standard on all Planar 2's for simple plug and play convenience.
- Motor cover tray - with integrated cooling.
- Optional lid / plinth protectors - supplied to prevent marks on the plinth and keep it looking its best.
- Instructions - Easy to use multi-lingual quick start guide for easy set up.
- Packaging - New improved packaging.
- Tonearm: Hand-assembled RB220 tonearm
- Cartridge: Factory fitted Carbon moving magnet cartridge
- Motor: 24 V low noise motor
- Dimensions (lid closed) (W x H x D): 447 x 117 x 360 mm
- Weight: 5.5 kg
|
