| Content | Instantly connect with multiple contacts around the world.
NewTek TalkShow VS 4000 is the only professional, multi-channel calling production system for both SDI and IP workflows, designed exclusively for conducting multiple live, production-ready Skype video calls with any combination or sequence of contacts anywhere in the world— simultaneously—in distraction-free, broadcast-quality HD.
Reach 300 million monthly Skype users with:
- 4 concurrent Skype video channels
- 4-in, 4-out HD-SDI connections
- Integrated NDI™ technology supporting input and output over IP
- Included NDI™ Webserver
- Tally notification on all call channels
- The most complete audio and video capabilities
More live guests. More compelling conversations.
Facilitate captivating real-time group conversations, panel discussions, and live interview after live interview with remote guests that enhance the quality and credibility of your program.
Independent Control Interfaces
Easily set up a multi-operator production workflow, with separate interfaces for call and production management. Skype TX Control software can be operated from the TalkShow VS 4000 system or installed on another machine as a standalone call control center, allowing the producer to manage calls and talent, while a production operator handles video and audio.
Group or Queue Callers
Connect with any combination of guests from around the world simultaneously or in sequence, for compelling live conversation, expert analysis, real-time commentary, and in-depth discussion.
IP Networking
Receive video calls over IP anywhere on your network. Built-in NewTek NDI technology allows routing of Skype video calls to any compatible NDI receiving device (including TriCaster® and 3Play™) while enabling selection of any NDI video source for return to caller over the network.
Advanced Audio
Deliver conversations that sound more professional. Independently adjust incoming and outgoing audio signals for the highest-quality sound, with the only video calling system that offers built-in gain control, graphic equalizer, compressor/limiter, and noise gate settings.
Pristine Live Video
Ensure your guests look as good as they sound, with enhanced real-time image processing and fully configurable correction tools, including proc amp controls, auto color setting, and white balance—and clean, deinterlaced return video to caller.
Real-Time Call Monitoring
Conduct every call with complete confidence, by utilizing high-quality, full-motion video previews, accurate on-screen audio VU metering, and selectable multi-view display layouts with configurable monitor overlays.
| Hardware Video Input |
4 x HD-SDI with embedded audio |
| Hardware Video Output |
4 x HD-SDI with embedded audio |
| Hardware Audio Input |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| Hardware Audio Output |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| IP Networking |
Integrated NewTek Network Device Interface (NDI) technology enabling transmission of A/V input and output signals over IP between TalkShow and other supported systems, including TriCaster, 3Play and a range of third-party solutions |
| Dante Audio Networking |
Integrated Dante audio support, enabling TalkShow to interface with other audio devices utilizing the Dante networking protocol from Audinate |
| Call Recording |
Supports full-bandwidth recording of call video and audio (optionally including return audio on separate channels) to external USB 3.0 or SAN storage |
| Video Configuration |
- Fully configurable color correction settings for each incoming Skype video signal, including white balance, proc amp controls and auto color
- Freely selectable video source for return to each Skype caller
|
| Audio Configuration |
- Fully configurable settings for each incoming Skype audio signal, including gain control, seven-band equalizer, compressor/limiter, and noise gate
- Freely selectable audio source and mix-minus channel control for return to each Skype caller
|
| Talk Back |
Supports direct, off-air communication between operator and remote callers individually or as a group via headset (optionally configurable for control via external GPI trigger) |
| Call Management |
- Supports multi-channel Skype TX call management locally or over IP via Skype TX controller application
- Local production control supporting per-channel configuration of call video and audio, and Talk Back communication via TalkShow user interface
- Direct mouse and keyboard USB interface required
|
| Local Monitoring |
- DVI and HDMI ports for connecting external monitors
- Stereo 1/4” phone jack for local audio monitoring
- Full-motion input and output video previews within user interface, including optional picture-in-picture overlay of return video for each call monitor
- Configurable multi-view workspace, including selectable layouts and optional overlays including title safe, 4:3 safe, center cross and VU meters
- Audio VU metering
|
| Output Video Formats |
Configurable call video output resolution and frame rate, with support for NTSC and PAL formats
- 1080i – 25, 29.97, 30
- 1080p – 23.98, 24
- 720p – 50, 59.94, 60
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) – 29.97
|
| Return Video Formats |
Configurable return video input resolution and frame rate, with support for NTSC and PAL formats (available selections vary depending on output video format selected)
- 1080i – 29.97, 25
- 1080p – 30, 30 PsF, 24, 24 (Telecine), 25, 25 PsF
- 720p – 30, 25, 24
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) - 29.97
|
| Watermark |
Optionally supports Skype logo watermark on output |
| Tally |
Supports hardware tally via HD15 GPI connector or network tally via NewTek NDI |
| GPI |
HD15 GPI connector |
| Reference |
- Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
- +4dBU audio reference level
|
| Signal Monitoring |
Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709 |
| Software |
Microsoft Windows 10 OS, Skype TX 4 software, Skype TX controller application, and TalkShow control software |
| CPU |
4th Generation i7 Quad-Core |
| Graphics |
Intel HD4600 GPU |
| Memory |
8Gb |
| Storage |
120Gb internal SSD |
| Processing |
Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96 kHz, 32-bit Floating Point |
| Standards |
HD-SDI video conforms to SMPTE 292M
SD-SDI video conforms to SMPTE 259M |
| Network |
Dual gigabit Ethernet NIC supporting Skype TX call transmission, NDI transmission to and from supported systems, Dante audio networking, and local network traffic |
| Fail-Safe |
- Multi-tiered fail-safe system
- Automatic failover to audio transmission with caller snapshot when bandwidth falls below operator-defined preset value
- Comprehensive system restore operation
|
| System Physical |
1RU Rack Mount with 180W power supply (110-220V external; 12V internal)
- 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
- 15 lbs (6.8 kg)
|
|
The Bolt 4K 1500 12G-SDI/HDMI Wireless Video Kit from Teradek includes a Bolt 1500 12G-SDI/HDMI wireless transmitter and a Bolt 1500 12G-SDI/HDMI wireless receiver that support video at resolutions up to 4K at 60 fps. They support a line-of-sight range of up to 1500'. The transmitter can send video to up to six receivers and is compatible with any model in the Bolt 4K line. The transmitter features a 12G-SDI input, an HDMI 2.0 input, and a 12G-SDI loop-through output. The receiver features two 12G-SDI inputs and one HDMI 2.0 input. You can remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The transmitter has mounting holes on each side for a Gold Mount or V-mount battery plate (available separately) so it can be mounted on the back of a camera. Included in the kit are a 3/8"-16 light stand adapter, a hot shoe adapter, two 18" HDMI cables, two 18" 2-pin connector to D-Tap cables, a 3' USB Type-A to micro-USB Type-B cable, two 18" 12G-SDI BNC cables, a 6' PSU 2-pin connector to 30W AC adapter cable, nine 2 dBi Wi-Fi 2.4/5.8 GHz antennas, a large case that fits a transmitter and two receivers, a 9.8 x 5.9" vinyl zipper bag, and a 9.8 x 9.1" vinyl zipper bag.
Transmits uncompressed video in 1080p and 2160p at 60 fps with less than 1 ms of delay
Compliant with the HLG, PQ, and HDR-10 standards
Send start/stop flags, timecode, and other ancillary data over the wireless link
Bolt app uses Bolt 4K's integrated Bluetooth
Multiple mounting options with 1/4"-20, 3/8"-16, and M3 holes
|
The Node Cellular 4G LTE USB Modem from Teradek enables you to broadcast over 3G, 4G, and 4G LTE network interfaces. A rugged, weather-resistant aluminum chassis and a 4-pin LEMO-type connector provide reliable operation, even under challenging conditions. The Node 3G/4G/LTE offers universal SIM compatibility and uses high-gain external antennas to obtain outstanding cellular connectivity in almost any location. The 4-pin LEMO-type output can be adapted to USB, using the included 13" cable.
Node allows you to go live from almost location, even those with the poor cellular connectivity
Node can operate on every 3G/4G/LTE data band in the region
4-pin connector with a USB adapter provide a secure connection to your Teradek device
Node features a rugged aluminum chassis and both 1/4"-20 and 4-40 mounting options
- VidiU Go/VidiU Pro
- Cube series
- Link/Link Pro wireless access point
- Bond II/Pro/Expansion Module
| The SE-2850-12 is a rack-mounted 12-input switcher. Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment. The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production. The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface. The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles.
Note: This listing is for the 12 Channel Switcher. The SE-2850 is also available with 8 Channels.
Datavideo SE-2850 Features
- 12 Input HD Video Switcher
- HD-SDI and HDMI Inputs
- Outputs include 2 HDMI multiview and configurable 3 HD-SDI
- Built-in TC-200 CG Title Creator for titles and graphics
- Perfect lip sync
- Assignable Crosspoints
| Professional hybrid event switcher with eight SDI and eight HDMI inputs, three SDI and three HDMI outputs, USB-C webcame streaming output, 40 channel audio mixing, advanced automation features, and more. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. The ultimate hybrid event switcher gives you complete control with a LAN port, Bluetooth, USB, RS-232, tally/GPIO, support for foot-controlled operation, and more. Filled with pro features to take on any modern production, the V-160HD sets a new standard in hybrid event switching. And everything’s all wrapped up in a portable design with a broadcast-style interface that’s easily handled by a single operator.
The V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.
The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.
Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s effects engine features eight composition layers that can be assigned to the Program and Sub-Program outs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client.
The V-160HD uses the same connection technology as webcams, allowing you to stream events at 30/60 FPS in Full HD and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.
Offering studio-grade sound, the V-160HD’s 40-channel digital audio mixer lets you blend signals from all 16 video inputs, USB-C, and microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.
Roland V-160HD Features
- Portable hybrid event switcher with comprehensive features and connectivity
- Eight 3G SDI inputs with frame rate converters
- Eight 1080p HDMI inputs with frame rate converters, including four with real-time scalers
- Seven total outputs across SDI, HDMI, and USB-C streaming
- Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
- 40-channel digital audio mixer with effects and processing lets you blend signals from all 16 video inputs, USB-C, mic and line level devices
- Eight-layer video effects engine
- 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
- Instant recall
- Powerful live production automation with sequencing, macros, and preset memories
- PTZ control with support for multiple brands and mixed protocols running at once
- Extensive device control with Bluetooth, USB, RS-232, and LAN
- Remote control software available for iPad, macOS, and Windows
- Wireless and wired camera tally support
| Academic version available to qualified school purchasers and teachers only. Proof of qualification required for order approval.
Live video production simplified!

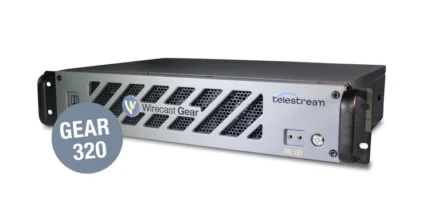

Wirecast Gear gives you an easy to use, fully configured live video streaming production system. Because we’ve already done all the work, there is no need to build your own system! Start streaming in minutes with an end-to-end system configured specifically for your needs. With Wirecast Pro included alongside Gear's custom-designed hardware, it's a live event production switcher, live news production system, Facebook Live switcher and YouTube Live switcher - all in one box.
Each model of Wirecast Gear comes with Xeon Server architecture, up to five HD-SDI or four HDMI professional camera inputs and all the live video streaming production features of Wirecast Pro, the Stock Media Library*, NewBlue Titler Live Complete, and Switch Player, all in a compact, powerful hardware system.
Wirecast Gear offers a unique blend of performance, ease of use and affordability. Just plug in your cameras and start producing and streaming your professional events with the industry-leading turnkey video production system.
*with an active Wirecast support subscription
CAPTURE
With a durable and portable rack mounted design, Wirecast Gear is the perfect hardware for your permanent studio or for use on location. HDMI or SDI inputs, server-grade components and industry-leading XLR/TRS combo audio inputs make ingesting media into your Wirecast Gear unit both reliable and easy.
PRODUCTION
With Wirecast Pro, the integrated Stock Media Library*, Switch Player and NewBlue Titler Live Complete preloaded into all Gear units, producing your live streams has never been more professional, polished or powerful. Create beautiful titles, draw from over 500,000+ unique media assets, and pull it all together with Wirecast Pro to create the perfect broadcast for your viewers, no matter the destination.
*with an active Wirecast support subscription
STREAMING
Encoding live streams can take a toll on a computer’s CPU, but not on Wirecast Gear. With hardware accelerated encoding, Xeon server architecture, a dedicated NVIDIA QUADRO graphics card*, multiple simultaneous encodes and 3rd party thermal testing, Wirecast Gear is ready for even the most demanding broadcasting schedules and workflows . |
