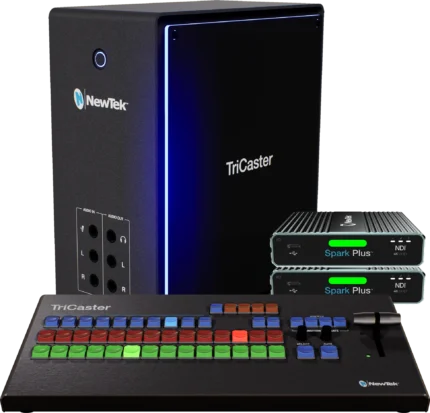

| Content | TriCaster Mini SDI TCMASDIR2
This is the newest version of the NewTek TriCaster Mini Advanced sdi with substantially upgraded components and features now closer in hardware to the TriCaster Mini 4K | NDI.
- The new TriCaster Mini SDI no longer comes with a side screen. Overall, NewTek was able to focus on better heat control, and optimized hardware for a performance and reliability gains.
- Now comes with Quad output nVidia Quadro based card for more powerful real time advanced processing including full use of CUDA for increased quality, hardware assisted encoding, decoding and streaming.
- 4 Mini DisplayPorts - One for user interface and three for multi-viewers that run in full screen production quality. Comes with 4 mini DisplayPort adapters.
- New Dual 1Gb Ethernet for increased IP connectivity, and load balancing of across multiple connections. Sharing and load balancing of bandwidth across multiple connections using NDI version 4 doubles the amount of NDI traffic providing more powerful media connectivity and expansion.
- Internal 1 TB SSD storage for faster boot and load times, increased recording capabilities and higher reliability in portable environments.
- New portable storage USB 3.1 and USB-C ports for more concurrent recording capability.
- New 180watts power supply that makes the hardware quieter during operation.
- Comes with Windows 10 for increased performance and fewer security concerns.
Real Video Production. No Experience Required.
You don’t have to be a video expert, own a studio, or know your way around a broadcast control room to deliver your message through video with network-quality results. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to captivating audiences from anywhere within minutes of opening the box.
- HD switching, streaming, and recording
- 8 external video inputs and 4 mix outputs
- Connect to compatible IP devices via NDI® - Connect to the most prolific IP-based workflow in the industry right out of the box. With native integration of NDI®, NewTek’s innovative Network Device Interface technology, TriCaster Mini Advanced is instantly compatible with products from hundreds of manufacturers and developers over the network.
- Streaming to Facebook Live, Twitch, and more
- Real-time social media publishing
- Multi-channel recording and internal storage
- Video playback without any additional hardware
- Built-in live titling and motion graphics
- Multi-channel audio mixing
- Maximize your investment now and for the future. With TriCaster Advanced Edition software now included, TriCaster Mini Advanced offers more than 100 additional video production capabilities compared to the original system platform—at no additional cost.
| PLUG-AND-PLAY FOR FLAWLESS RECORDINGS AND LIVESTREAMS
For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it’s never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder.
Just connect to the UVC-01 via HDMI, plug into your computer’s USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.
Features
- High-quality HDMI to USB 3.0 video encoder
- Plug-and-play USB webcam operation for Mac and Windows computers
- Seamlessly works with all Roland V-series switchers with an HDMI output
- Also works with most HDMI-equipped cameras and camcorders
- Uncompressed 1080p HD at 60 FPS for engaging livestreams
- Dedicated analog audio line input for live music versatility
- Powered via USB
Quality You Can Count On
Backed by more than two decades of professional A/V product development, Roland’s UVC-01 drives your livestream with uncompressed 1080p HD image quality, ultra-smooth 60 FPS motion, and low-latency encoding. And thanks to its hardware-based design, it just works every time you need it—efficiently, consistently, and reliably.
Plug In and Stream
Once connected, the UVC-01 automatically shows up as a source in your streaming software, with no drivers or fussy setup required. Like a dedicated webcam, it encodes HDMI to USB video class and USB audio class formats, letting you instantly stream at superspeed USB 3.0 with any service, platform, or application that accepts a webcam as its A/V source.
A Sound Solution
With the UVC-01, stereo audio is embedded in the HDMI feed along with video. And thanks to the dedicated audio input, it’s possible to blend a secondary sound source as well. For example, you can play bumper music from your smartphone, or use Roland’s GO-MIXER Pro to combine a mic and instruments for impactful musical performances.
Reach More People
By delivering your message to in-person and online audiences at the same time, you can achieve a wider reach with minimal extra effort. Using a Roland professional video switcher in tandem with a UVC-01, it’s simple to create these hybrid productions. Just connect the UVC-01 to the second output of your switcher and simultaneously broadcast live action to your preferred streaming platform.
Capture and Distribute
In some situations, you may want to record a presentation ahead of time and distribute it online after the fact. With the free Roland Live Recorder (Windows) and Video Capture for VR (Mac) applications, you can capture high-quality video and audio through the UVC-01 in real time, ready for upload to video sharing sites.
VIDEO
- Input Connectors: HDMI IN connector: HDMI type A
* Multi-format Supported
* HDCP Not Supported
- Output Connectors: USB STREAM port: USB 3.0 B type
- Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
- USB Video Output Format: YUY2 (Uncompressed)
- USB Video Output Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
* The maximum frame rate is 60 fps.
AUDIO
- Audio formats: HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
- USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
- Input Connectors: HDMI IN connector: HDMI type A
- AUX IN jack: Stereo miniature phone type
- Output Connectors: USB STREAM port: USB 3.0 B type
- Nominal Input Level: AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
- Input Impedance: AUX IN jack: 10 k ohms
OTHERS
- Power Supply: Supplied from the computer via USB
- Current Draw: 500 mA
- Operation Temperature: +0 to +40 degrees Celsius
- +32 to +104 degrees Fahrenheit
- Dimensions: 90 (W) x 37 (D) x 23 (H) mm
- 3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
- Weight (excluding AC adaptor):96 g
4oz
VIDEO
- Input Connectors: HDMI IN connector: HDMI type A
* Multi-format Supported
* HDCP Not Supported
- Output Connectors: USB STREAM port: USB 3.0 B type
- Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
- USB Video Output Format: YUY2 (Uncompressed)
- USB Video Output Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
* The maximum frame rate is 60 fps.
AUDIO
- Audio formats: HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
- USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
- Input Connectors: HDMI IN connector: HDMI type A
- AUX IN jack: Stereo miniature phone type
- Output Connectors: USB STREAM port: USB 3.0 B type
- Nominal Input Level: AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
- Input Impedance: AUX IN jack: 10 k ohms
OTHERS
- Power Supply: Supplied from the computer via USB
- Current Draw: 500 mA
- Operation Temperature: +0 to +40 degrees Celsius
- +32 to +104 degrees Fahrenheit
- Dimensions: 90 (W) x 37 (D) x 23 (H) mm
- 3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
- Weight (excluding AC adaptor):96 g
4oz
|
EIGHT PREMIUM MIC PREAMPS, COMPACT I/O, PRISTINE SOUND QUALITY
Combining ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality, the Roland OCTA-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. High-level audio production comes easy with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology. OCTA-CAPTURE is not only the perfect interface for multi-channel computer-based production, but also a great solution for expanding the I/O capability of the V-STUDIO 700 and V-STUDIO 100. Brimming with quality and performance seldom seen in its price range, OCTA-CAPTURE is the next-generation audio interface.Features
- Eight premium mic preamps built in (VS PREAMP)
- AUTO-SENS function intelligently sets optimal input levels for all preamps
- Extremely stable low-latency VS STREAMING driver
- Four independent software-controlled Direct Mixers for creating custom monitor mixes
- Supports all major DAW platforms on Mac or PC, through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers
- Rackmount ears included
Eight Premium Mic Preamps
OCTA-CAPTURE boasts eight premium-grade digitally controlled mic preamps (VS PREAMPS), built with the same high-grade components as the preamps in the V-STUDIO 700 and M-400 V-Mixer. Eight XLR inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel.
Auto Input Level Adjustment
Never before has it been this fast and easy to set perfect input levels — simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and OCTA-CAPTURE automatically sets the ideal recording level for each input. It’s great for quick, fail-safe audio capture when recording either a fully mic’d drum kit or an entire band.
Extreme Low-Latency Driver
OCTA-CAPTURE offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS STREAMING technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers. Thanks to VS STREAMING, you can use multiple devices (two OCTA-CAPTURE units or one OCTA-CAPTURE plus a V-STUDIO 100 or V-STUDIO 700) on the same USB bus without compromising stability, performance, or audio quality.
Four Flexible Monitor Mixes
Beyond traditional audio interfacing, OCTA-CAPTURE offers four independent Direct Mixers for creating software-controlled monitor mixes. Each mix can be routed to any of the analog outputs and can take advantage of the internal 40-bit DSP processing — perfect for sending custom monitor mixes to headphones, speakers, or recording devices.
|
The ClearCaster Enterprise is purpose-built for data centers and production teams, the fully redundant and scalable solution simplifies the streaming workflow and delivers next-generation video performance to any broadcast environment.
Revolutionizing Cloud Control
The ClearCaster EnterpriseTM is the ultimate enterprise-grade live encoding solution. Purpose-built for data centers and production teams, the fully redundant and
scalable solution simplifies the streaming workflow and delivers next-generation video performance to any broadcast environment.
What is Wowza Cloud Orchestration?
Cloud-based control of your entire encoding fleet — from anywhere in the world. Designed with a cloud-first approach and back-end management, Wowza Cloud Orchestration allows you to take complete control of your entire encoder fleet from anywhere in the world. Prebuilt using proven Wowza technology, Wowza Cloud Orchestration simplifies the most dicult parts of the encoding workflow — saving you time and lowering overhead costs. With Wowza Cloud Orchestration, you can easily manage thousands of streams with a scalable API, or build your own architecture on top of our cloud-optimized back-end infrastructure.
Key Features
- Reliable 4K video delivery
- Enterprise-class components
- Rack-mountable; comes with pre-installed kit
- Controlled by Wowza Cloud Orchestration API
- Supports Custom Wowza Linux environment
- Local and cloud recording and storage capabilities
- 4K Resolution
- Redundant Power Supply
- User Management
- Closed Captions
- Titling and Graphics
- Multi-Target/Output
- HEVC
- SRT
- Cloud Storage
- Real-time Dashboard
Cloud-Based ClearCaster Manager
Remote Manger: Browser-based control allows for remote management from anywhere.
Streamlined Workflows: Reliably take broadcasts live with just one click.
Multi-User Access: Provide your entire team with access to your encoders.
Health Monitoring: Identify issues quickly and ensure your broadcasts are ready to go live.
Custom Workflows: Build you own encoding workflows and use interface controls.
User Roles and Permissions: Restrict access on certain features to less technical team members.
Graphics Engine: Enable slates, count-down timers, lower-thirds and animated logos on your broadcast.
APIs: Use the GraphQL API to build your own applications utilizing ClearCaster.
Record Management: Immediately access clean recordings of your broadcasts in the cloud.
Ideal Use Cases Include:
- Broadcasters
- Large-scale productions
- Telecommunications
- Sports leagues
- High-end video conferencing and more!
| NEXIS | PRO 40TB Shared Storage System with Dell N2024 Network Switch
Get proven, real-time collaboration—for everyone
Get the performance and reliability of Avid NEXIS in a more affordable system designed for small video or audio production teams. Avid NEXIS | PRO offers real-time collaboration to accelerate your media workflow. Find and share media fast. Adapt workspace capacity, performance, and protection as requirements change. And get the same secure and reliable workflows trusted by an industry.
The new 40TB version of Avid NEXIS | PRO accommodates larger projects. Each Avid NEXIS | PRO 40TB delivers 40TB capacity and the ability to have single or dual disk media protection and up to 600MB/sec of throughput for collaborative editing of video and audio workflows.
-
- Up to 2.4GB/sec performance
-
- Can be added to existing Avid NEXIS | PRO systems
Product Highlights
Enable creative collaboration
With the increasing demand for more content in shorter timeframes, Avid NEXIS | PRO enables you to connect your team, share media and sequences, and work together on the same projects in real time. Without fear of accidentally overwriting someone else’s work. Gain more time to spend focusing on telling a great story—and less time searching for and shuttling media. And put the “flow” back in your workflow with the ability to connect up to 24 contributors simultaneously.
Experience exceptional performance
Production schedules are unpredictable. Can one system really change the possibilities of what you can achieve? Absolutely. With its advanced architecture, intelligent file system, high bandwidth, and automation abilities, Avid NEXIS | PRO delivers unrivaled media performance with up to 2.4 GB/s of bandwidth speed, enabling projects to move in parallel, so you can turn around more projects faster. No matter what editing and media asset management tools you use.
Get the reliability you need
When your reputation and business are on the line, Avid NEXIS | PRO protects and secures your media like no other. The system is built on the same technology trusted by thousands of top broadcasters and post-production studios. From its bulletproof security privileges, to fail-safe disk protection with automatic drive rebuild, you can rest assured that your content is safe. And should you need it, tech experts are available around the clock to help.
Dell N2024 Switch
Non-blocking GbE Layer 3 Standard switches with multi-chassis link aggregation (MLAG) support and 12-unit stacking.
-
- 24 RJ45 10/100/1000Mb auto-sensing ports
-
- Two integrated 10GbE SFP+ ports
-
- Two dedicated rear stacking ports
- One integrated power supply (100W AC)
| Media Drives |
| Width |
Width (mounting): 19 in (483 mm); IEC rack compliant |
| Works with the following switches (not included): |
NETGEAR XS712T |
| System |
64-bit self-balancing, distributed file system |
| Workspace |
Dynamic workspace set-up and monitoring |
| FlexDrive dynamically adjusts storage workspaces without editing interruption |
| User workspace access controls |
| Temperature |
Operating temperature: 5°C to 40°C (35ºC max. above 2,000m) |
| Non-operating temperature: -40°C to 60°C |
| Power Consumption |
Maximum power consumption: 764W |
| Files/Folders |
3 million |
| Subscriptions |
Available through a monthly or annual subscription to Avid Support |
| BirdDog P400 PTZ Camera
P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2.
P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module.
Double Wow.
P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions.
Triple Wow.
BirdDog PTZ Keyboard
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols. |
