| Content | The immense flexibility of software mixers notwithstanding, there's nothing like the in-your-face punch, articulation, and dimensionality that a quality analog summing mixer can impart to your productions. The Phoenix Audio’s Nicerizer Series summing mixers rock proprietary Class A circuitry and smart features that make them legendary analog tone machines for a digital world. A 16-channel DAW summing mixer in a 2RU 19″ rackmount chassis, the Nicerizer 16 Mk2 puts critical elements such as circuit gain staging and panning back into the analog realm where they handily outperform their digital emulations.
Hi-fidelity transformerless input stage
With their Nicerizer summing mixer, Phoenix takes a decidedly modern approach to Class A circuit design. The company's proprietary transformerless input stage delivers the full frequency spectrum with crystal-clear clarity and punch. Transformers tend to slow things down a bit — which can sound amazing in certain cases; but then slew rates take a hit, delivering sluggish transients and limiting your tonal palette.
Driven conservatively, Phoenix Audio's electronically balanced input stage serves up ultra-clear high-fidelity sound. If you're after fatter, more saturated tones, engage the +8dB switch individually on any channel to drive the circuit hotter for a punchy in-your-face sound that only discrete Class A buffer amps can deliver. The Nicerizer 16 Mk2 captures articulate, full-bodied input signals, allowing you to drive the output stage for an immense range of pure Class A tone, from modern audiophile clarity to vintage-flavored warmth.
Masterful transformer-balanced output stage
Phoenix Audio couples their custom-wound DB694 output transformer to a fully discrete, proprietary DSOP-2 output amplifier, itself a direct descendant of the renowned TF1 amp that Phoenix chief designer David Rees developed as an upgrade for vintage Neve 80 Series console modules. Outperforming the TF1, the DSOP-2 represents a pinnacle of Class A output circuit design, offering a seamless tonal range from ultra-clean to gorgeously saturated. With its big iron and massive headroom, you can drive the DSOP-2 to taste. Crank the Nicerizer's output stage to elicit beautifully saturated tones; back off for a cleaner high-fidelity sound, or dial up any flavor in-between.
The Width control
Once you've used the Nicerizer, you'll realize how valuable its unique control set is. The Width control incorporates elements of mid-side processing to narrow or widen your stereo image with the twist of a knob. If you haven’t used a width control before, trust Sweetwater: you're in for a treat! The Nicerizer's Width control offers a degree of spacial manipulation that can instantly tighten up a sprawling arrangement or unlock hidden dimensions in a mix.
Balanced/unbalanced
If your inputs come from a variety of sources, you're bound to be dealing with both balanced and unbalanced signals. No worries! The Nicerizer’s 16 inputs can accept either — without any of the gain loss all too common with many mixer inputs. This amazingly useful feature lets you easily execute many functions that are fast becoming standard practices, such as looping through guitar pedals or recording MIDI-driven synthesizers in real time while mixing.
Stereo bus insert
Today, it's quite common while mixing to strap a compressor or other processor across the mix bus, and the Nicerizer 16 Mk2's stereo bus insert makes it easy. Monitor punchy, loudness-optimized mixes and get a head start on mastering while you're still mixing.
Independently controlled AUX output
Just before it hits the output transformers, the Nicerizer mults an output signal and routes it to a dedicated front-panel level control. This independently controlled AUX output lets you drive external monitor amps or simply bypass the output stage to send a transformerless sound to your recording device.
2-track Return
Another feature borrowed from large-format consoles is the 2-track Return input that lets you monitor an external output source through the Nicerizer's onboard headphone amplifier. Incredibly convenient, and great for A/B comparisons!
The Monitor Select switch
The Nicerizer 16 Mk2 features a unique Monitor Select switch, which lets you easily monitor single pairs of channels (1–2, 3–4, etc.), in addition to any of the Nicerizer's other stereo ports. Infinitely handy for a variety of workflows, this switch is the mixer's secret weapon, ready for all sorts of creative uses, from individual stem work to comparing mixes to direct comparison of multiple analog sources.
The Monitor Select switch Toggle
Once you’ve chosen which input pair you want to monitor via the Monitor Select switch, the Toggle allows you to monitor either the Left or Right channels in mono on both channels via the headphone amp, or to monitor in stereo. Critical analysis of your audio signals has never been easier.
Flexible LED metering
Following the Monitor Select switch, the Nicerizer's LED meter display gives you constant visual confirmation of your operating levels. Another big-console feature, the flexibility afforded by the metering being selectable for each channel as well as the main outputs makes the Nicerizer 16 Mk2's metering setup indispensable for gain management as you finalize your productions.
Phoenix Audio Nicerizer 16 Mk2 Features:
- 16-channel DAW Summing Mixer in a 2RU 19-inch rackmount chassis
- 16 channels of discrete Class A balanced transformerless input stage
- Discrete Class A transformer-balanced DSOP-2 output stage
- Phoenix custom-wired transformers on both outputs
- Individual detented pan controls on each channel
- 16 balanced XLR inputs accept balanced or unbalanced inputs with no -6dB loss
- Unbalanced 1/4-inch TRS insert sends on all Busses, including master Stereo Mix Bus insert
- +8dB Boost button on each channel
- Master mix bus output level control
- Stereo LED level monitoring, switchable for each channel and Stereo Mix Bus
- Stereo/Mono External/Headphone monitoring output is switchable to each channel, external input (via 2T Return), AUX and main output (L, R, and Stereo)
- Main Outputs on balanced XLRs
- Unbalanced 1/4-inch TRS jacks for AUX outputs with front-panel level control
- 2-track stereo mono inputs on 1/4-inch TRS balanced jacks
- Bypassable Class A stereo Width control with lossless bass (pannable from mono to 25% Wider)
- Maximum Output Level of +26dB
- Generous headroom available on all channels
- Wired with PTFE silver-plated mil-spec cable

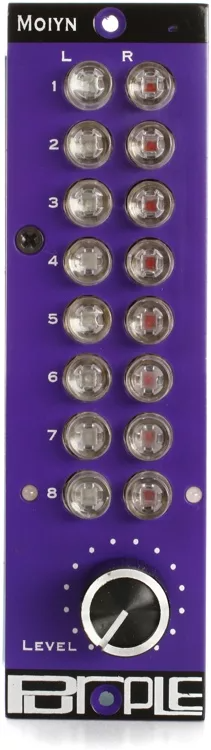

| The Purple Audio Moiyn is an innovative 500 Series 8-channel summing amp module that transforms your Sweet Ten rack into an 8 x 2 mixer. When using this feature, you can still use the first eight modules' outputs as you normally would into your DAW or tape machine. Place the Moiyn in slot nine of the rack, and you then are able to assign each module (in slots 1-8) to either of the two outputs via the Moiyn's front-panel buttons. Finally, use the rotary knob to adjust your output volume. The Purple Audio Moiyn is an ideal way to get the most from your Sweet Ten rack.
Purple Audio - the quality is designed in
Sweetwater is proud to carry Purple Audio. Founded in 1997 by Andrew Roberts, Purple Audio has kept the analog flame burning brightly with acclaimed professional signal processors and studio problem solvers based on inspired new designs and fresh takes on coveted classic gear. Handcrafted in Pennsylvania, Purple Audio equipment is built for the long haul, using only the finest components. Let Purple Audio's innovative engineering elevate your studio's sonic quality and juice your workflow.
Purple Audio Moiyn 500 Series Summing Amplifier Features:
- Designed specifically for mounting in Slot 9 of Purple Audio's Sweet Ten 500 Series rack
- Transforms your Sweet Ten rack into an 8 x 2 mixer
- Discrete signal path with 2 KDJ3 Summing Amplifiers and 2 KDJ4 Output Amplifiers
- Differential summing amplifier with 15 Kilohm inputs
- Stereo balanced inject
- 8 Input left/right assignable
- Current consumption: 90mA
- Discrete signal path
- Auto-resetting fuse shuts down individual module without affecting entire rack or console
- Includes high-quality 2-bus rotary master fader
- Cascade multiple Sweet Tens with Moiyns for more channels
- Requires Purple Audio's Sweet Ten rack
- ROHS certified lead-free
| While the convenience and power of DAWs is indisputable, some engineers prefer the sound of analog, particularly when it comes to mixing. That's where the Burl Audio B32 Vancouver analog mix bus comes in. Designed specifically for the digital audio environment, this summing amp lets you realize the full potential of your DAW by delivering the kind of sound quality you'd expect from a classic, large-format analog console - from a compact 1U device. Built in the USA using only the finest mastering-grade components, Burl Audio's B32 Vancouver sums 32 channels (24 stereo, eight mono inputs) to dual stereo outputs, and gives you the flexibility of a 6dB gain boost and tone-enhancing switchable output transformer.
Burl Audio B32 Vancouver 32-channel Mix Bus at a Glance:
- Large-format analog console hugeness
- Impressive Sonic versatility and ease of use
- Burl Audio: pro gear driven by an audiophile sensibility
Large-format analog console hugeness
If you've ever worked on a classic large-format analog console, you've likely got that inimitable sound stuck in your head, and the results you're getting out of your DAW may not be cutting it. Enter the the Burl Audio B32 Vancouver. With no capacitors in its discrete analog Class A signal path, this 32-channel "mix bus" embues your mixes with the hugeness, impact, spatial detail, and clarity. It gives your mixes the "glue" they've been missing.
Impressive sonic versatility and ease of use
Burl Audio's B32 Vancouver gives you impressive sonic versatility, and it's so easy to use. Aside from your left- and right-channel mix level pots, there are just two other controls for each channel - a button that engages a 6dB summing amp Gain Boost, and a button to insert Burl's BX5 output transformer into the circuit. The Gain Boost endows your mix with hugeness and slam factor, while the BX5 output transformer provides an alternate tonality (which sounds amazing, trust us). The bottom line? If you want massive-sounding mixes, the Burl Audio B32 Vancouver is a no-brainer.
Burl Audio: pro gear driven by an audiophile sensibility
At Sweetwater, we've been nothing but impressed with Burl Audio gear. Based in a professional Santa Cruz, CA recording studio, Paradise Recording, Burl is driven by an audiophile sensibility; their gear is designed by pro recording engineers, for recording engineers of all levels. The company's directive is simple: to provide you with high-quality recording equipment that will improve your recording, mixing, and mastering. Their innovative solutions not only sound amazing; they intelligently address the challenges of the digital age.
Burl Audio B32 Vancouver 32-channel Mix Bus Features:
- Discrete analog Class A signal path
- Eight mono inputs, 24 stereo inputs
- Audiophile-grade 0.1% stepped attenuators
- Switchable BX5 output transformer
- Summing amp Gain Boost
- Dual stereo outputs
- Made in the USA
| The Ultimate Desktop Mixer Legendary SSL studio tools redefined and streamlined
To the casual observer SiX looks like any other compact desktop mixer. Look a little closer and like all SSL consoles, SiX reveals a carefully considered feature set that is driven by an obsessive desire for total flexibility, to encompass every creative eventuality. It may be small but SiX is a classic SSL design. It carries the DNA of 40 years of true expertise in creative studio workflow. Listen to SiX and you will experience the impeccable sonic performance that is the hallmark of every SSL console. It is powerful and intuitive. Inspired and rewarding.
SiX is a condensed professional console for use in the studio, in post-production, on stage, and for podcasting. SiX offers big console sound and an impressive set of utility features in a format that is small enough to stick in a bag a go wherever you need it. SiX is stunning value; it offers two recording channels with SuperAnalogueTM mic pres, two band EQ, an essential one knob version of the classic SSL Channel Compressor, a new two-band Channel EQ, inserts and 100mm faders. There is a two-knob version of the legendary G-Series Bus Compressor on the main mix bus and the unique Listen Mic Compressor on the Talkback. In mixdown mode it is a very capable twelve channel summing system that offers analogue detail, depth and width to your mixes.
The SuperAnalogue™ Sound of SSL
SiX is an SSL SuperAnalogue™ design – it gives you the sonic signature of a large format SSL console on your desktop or in your backpack. Its signal path is fully balanced from front to back on everything except the headphone output. It delivers pristine, detailed audio with wide dynamic range, ultra-low noise, ultra-low distortion and superb imaging. If you want to know more about the technical reasons why SSL mixers sound so good read our document.
Two Recording Channels
SiX has two mono channels with SSL SuperAnalogue™ Mic’ Pre’s; these are transparent, fast and have a much wider available gain range than you would typically get on a compact desktop mixer – 66dB of gain compared to the more typical mid-40s or 50dB found in desktop mixers. They have phantom power, 75Hz high pass filter and an independent line-level input which can be switched to instrument level input with high impedance.
Moving down the channel strip we have a brand-new one knob compressor circuit. This design is based on and has the same sound as the classic SSL feed-forward Channel Compressor circuit. It has a program-dependent attack time, a fixed release time and fixed ratio. Simply adjust the threshold, watch the traffic lights flash to see how much compression is happening and rely on the circuit to automatically adjust gain to match input levels. This is a cool-sounding circuit that makes it simple to dial in a consistent level and get signals sitting right in the sweet spot.
Both mono channels have a new two-band SSL EQ that may be independently switched between shelf and bell curves, with different centre frequencies for each type. This approach draws upon the SSL design legacy of specifying response curves and centre frequencies for channel EQ that are immediately intuitively pleasing in their response; these curves and frequencies were selected by our team as the most “musically useful” for a wide range of sources.
SiX has 100mm faders. We spent some time working on alternate fader tapers and settled on a law that gave us the most control over the most useable gain range, making on-stage level control far easier than it would be with a rotary or a 60mm fader as found on other compact mixers.
Each channel has a fully balanced insert point for integrating other signal processors which is after the EQ and Compressor circuits, and like all SSLs the insert send is always active – meaning you can use this as a “dry” record send to your DAW if required.
At the bottom of the mono channels we have an ALTernate input switch which can source 2 extra mono channels from a connector on the rear of the console which can be used at mixdown.
Line Level Heaven
SiX has two stereo input channels with -10/+20 dB trim for line sources such as synthesisers, drum machines, output from soundcards etc. These have their own balance controls and 100mm faders. If only the Left input of a stereo channel is connected (and the right left free) the channel will automatically switch to mono, panned centre.
While SiX might be small it can handle a lot of inputs at mix-down! Using the two mono input and the two stereo input channels gives SiX its name, but we also have two stereo EXTernal inputs (with volume controls in the master section) which can be sent to the mix bus. Include the ALT inputs and we have up to 12 channels that can be summed into the main mix bus.
Master Bus Magic
SiX has a G Series Bus Compressor on the main mix bus. This uses the same circuit design as the legendary SSL Bus Compressor from our larger consoles but with a fixed ratio, attack, and release settings and a more modern quad-VCA chip. The simplified controls make it very easy to get that SSL glue and snap on whatever you push through your master bus. SiX also has a set of inserts on the main mix bus that can be used to bring external processing tools (like SSL Fusion) to your mixdown.
Routing Pro
SiX has a collection of professional routing & monitoring features taken directly from our large format console heritage. It has two Stereo Cue buses (with level and pan controls) for individual artist foldback mixes. The Master Section has main and alternate monitor outputs with a proper monitor source matrix, as well as mono check, dim and cut. The fader channels all have proper PFL and a Mute button that routes the muted signal to a ‘Bus B’. Bus B can be used as a convenient DAW record send but it can also be routed to the monitor matrix. This means that the muted signal can be monitored without it feeding the main mix bus and then switched in to the main mix with the Mute button – perfect for live webcasting because a remote feed can be monitored ‘offline’ and punched in to the broadcast feed. There is a talkback mic’ input with phantom power and SSL’s unique, crunchy Listen Mic Compressor, which of course also serves as a unique processing tool that delivers that classic 1980’s slammed drums sound.
Key Features:
A fully professional condensed console for use in the studio, in post-production, on stage, and for podcasting.
Benchmark SuperAnalogue™ audio performance
Ultra low noise : ultra-low distortion : pristine sound
Stunning Record Path
Two SSL console grade SuperAnalogue mic pre’s
Classic SSL Channel Processing
Essential versions of SSL Channel EQ and Dynamics
The unique Listen Mic Compressor
Nothing slams drums quite like it!
Professional Routing & Monitoring
The hidden versatility of truly professional features
12 Input Summing at Mixdown
12 line level inputs with channel and Master Bus inserts
Legendary Master Bus Compressor
An essential version of the incredible SSL legacy
Completely balanced signal path

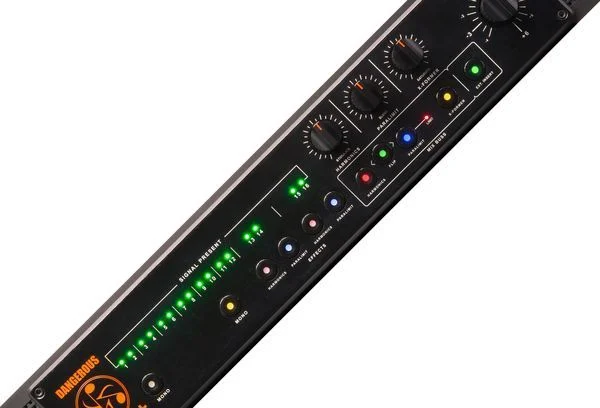

Everything except the headphone jack is fully balanced | The Dangerous Music 2-BUS+ is a 2U, 16-channel analog summing mixer with both XLR and D-sub inputs. It raises the bar on its legendary 2-BUS predecessor with even lower crosstalk, distortion, and noise-floor performance, along with stunningly precise soundstaging and center focus. Dangerous spent over two years developing three onboard audio processors that, with a simple push of a button and twist of a knob, add tone and color to your stems or across your entire mix directly from the 2-BUS+. The 2-BUS+ is smartly designed, extremely useful, and sounds incredible.
A trio of custom audio processors
In sync with Dangerous Music's doctrine of tonal coloration as a per-project artistic choice, the 2-BUS+ features three separate custom audio processors that selectively add tone and color to your mixes. In parallel processing mode, you can deploy Harmonics, a tuned harmonic distortion generator, and Paralimit, a FET limiter on steroids. At Sweetwater, we've applied both of these across stereo mixes and on pairs of stems. X-Former kicks in a pair of custom transformers with core-saturation control on your stereo mix outs. You can have all three tone processors active concurrently, and you can flip the order of signal flow through distortion and limiting.
Outstanding flexibility
Dangerous Music knows that each engineer — and session — is unique, so they designed the 2-BUS+ for outstanding professional flexibility. They spec'd it with an XLR stereo insert before the outputs for adding a separate compressor or processing chain that you can bypass at the touch of a button for a quick reference comparison. Channels 1/2 and 9/10 can be set to mono to rout; for instance, vocals/bass and kick/snare each to its own mono input. They also gave the 2-BUS+ an output control stepped in 0.5dB increments from -4dB to +6dB, and included XLR connections for both the main and monitor outputs.
Gang 'em for high channel count
Need a full-on analog "console" summing experience? Gang together multiple 2-BUS+ units via the stereo expansion inputs XLR to create a customized channel count. For the ultimate in tonal flexibility and control, the custom audio processors on each unit apply across the ganged group output. With three units, for instance, you'll have 48 channels of analog summing, with the first two units employing Harmonics (distortion), and Paralimit (limiter) across two separate stereo stems, and the third unit applying X-Former transformer saturation on the master stereo outputs.
What the pros are saying about the 2-BUS+:
- "The Paralimit and X-Former appear to be magic knobs. Special mention goes to the Paralimit because it does that lovely thing of bringing up the general ambience without slamming the track, something I particularly love on drums. Plugged it into my system along with my old 2-BUS and Dangerous MONITOR ST, and wow ... it's fantastic! Bags of air and space around the mix." — Chris Blackwell (drummer/composer)
- "Since the 2-BUS has so much headroom, it's really easy for me to decide that I want the entire vocal submix to be brighter or warmer, or more or less compressed." — Michael James (producer/mix engineer)
- "The Dangerous Music 2-BUS is one of the reasons my studio delivers a killer sound that grants the edge on the competition." — Alberto Rizzo Schettino (engineer)
- "Between SSL, in-the-box, and 2-BUS ... in blind tests ... it was a unanimous decision that the Dangerous mixes beat out everything. The 2-BUS mixes ... were simply cleaner and warmer than the SSL or in-the-box mixing ... I just don't miss my console." — Gina Fant-Saez (mix engineer)
- "With the 2-BUS LT, elements have their own place. You end up with a quicker, bigger mix and retain a more natural, less processed sound." — Phil Greiss (producer/engineer)
- "The Dangerous Music equipment is the centerpiece of my mixing rig. Everything I do goes through a Dangerous MONITOR, 2-BUS, MASTER, and BAX EQ. Everything." — Fab Dupont (mix engineer)
- "I don't understand how the 2-BUS has been in the studio for so long, but hasn't gotten to live shows — the sound is unbelievable." — Horace Ward (FOH engineer)
- "The harmonic and transformer flavors are great options to have and the parallel limiter is a genius idea." — Chris Tabron (producer/mix engineer)
Dangerous Music 2-BUS+ Analog Summing Mixer Features:
- Stunning 16-channel analog summing mixer injects your mixes with exceptional headroom and dimensionality
- 3 analog options (Harmonics, Paralimit, and X-Former) for adding tonal coloration to your mix
- XLR and D-sub input connectivity and flexible routing allow for a customized workflow
- Integrate your outboard gear easily with the switchable stereo analog insert
- Output control is stepped in 0.5dB increments for perfect recallability
- High-quality components ensure audiophile-grade sound
| Working inside the box? Sweetwater would like to recommend a summing mixer that will seriously up your game: the Rupert Neve Designs 5059 Satellite Shelford Edition. If you record and mix entirely within your DAW, you’re hampered by the inability to leverage the sonic advantages of high-quality analog outboard gear. Enter the 5059 Satellite. The 5059 gives you 16 channels — each with individual level and pan, plus insert and bus-2 send buttons. You get two stereo buses with RND’s proprietary Silk Texture controls, giving you effortless integration with outboard equipment, total control for two separate stem mixes, and the facility to dial in harmonic enhancement in two distinct flavors.
It’s a Neve
In serious audio circles, Rupert Neve needs no introduction. Large-format Neve consoles from the 1970s are considered by many to be the pinnacle of analog mixer design. Boasting the same design heritage and sonic perfectionism that went into the boards used to record countless hit records, the 5059 Satellite Summing Mixer graces your tracks with legendary Rupert Neve warmth, punch, and presence. With 16 channels of Rupert Neve designed Class A alchemy and flexible tonal and routing options, the Rupert Neve Designs 5059 Satellite Summing Mixer will take your DAW-based studio’s sound to a whole new level.
Dial in the Silk
The Rupert Neve Designs’ 5059 Satellite Summing Mixer’s continuously variable Texture controls with Silk and Silk+ modes let you fine-tune the harmonic ratio and tonality of each of 5059’s stereo buses. The Silk mode adds sparkle to your tracks by introducing alluringly airy transformer saturation in the high frequencies. Silk+ mode accentuates saturation in the low frequencies, adding density and thickness to the source — particularly desirable when you’ve got a dry, lackluster mix. Distinctly different sounding from equalization, Texture saturates the output transformers, adding sweet, musical even-order harmonics to your source material for authoritative, radio-ready mixes that blast right out of the speakers.
Flexibility: it’s a beautiful thing
The dual stereo outputs of the Rupert Neve Designs 5059 Satellite Summing Mixer are perfect for creating stem mixes, which you can enhance using the 5059’s Silk/Texture controls, then process through bus compressors or other devices via the inserts, finally feeding into the inputs of another mixer or your interface. You can send any input to stereo bus 1 or 2, and create two very different-sounding mixes from the same 16 channels. These are just some examples of the amazing flexibility you’ll enjoy when integrating the 5059 into your recording rig. Smartly attired in classic Shelford livery, the Rupert Neve Designs 5059 Satellite Summing Mixer is housed in a rugged, fan-cooled 2U steel chassis for dependable, no-compromise professional performance year after year, in the studio or on the road.
The legend continues
Rupert Neve’s 80-series consoles had a huge, punchy, and authoritative sound that defined the sound of ’70s rock. From London to New York to Los Angeles and beyond, top studios were installing Neve boards as fast as they could. By 1977, with the introduction of the NECAM automation system, 80-series boards were the main component of the success formula for any recording studio with world-class aspirations. Mr. Neve’s current company, Rupert Neve Designs, continues to advance the state of the art with cutting-edge products that sound incredible and intelligently address the challenges of the digital age. With your Rupert Neve Designs 5059 Satellite Shelford Edition from Sweetwater, the legend continues.
Rupert Neve Designs 5059 Satellite Summing Mixer Shelford Edition Features:
- Classic Neve: Class A, all transformer-balanced, and awesome-sounding
- Zero crossover distortion and unmatched purity
- Custom transformers provide galvanic isolation and serve up "larger than life" sound
- Sets a standard for rackmountable summing mixers
- 16 inputs/channels (with level controls, pans, and inserts); 2 stereo buses
- Send any input to stereo bus 1 or 2, each with variable Silk/Silk+ Texture
- Dual Stereo Outputs let you split the input channels into 2 stems for further processing and mixing
- Stereo buss 1 and 2 each has its own XLR outs
- DB-25 line input, insert send/return connectors
- Rugged 2U fan-cooled chassis, clad in classic Shelford livery
|
