| Content | Features
- Dual mono construction
- High-end ESS Sabre ESS9038 dual DAC
- Proprietary clock circuity design
- Organic polymer capacitors and thin film miniMELF resistors
- MQA hardware decoding
- DSD64, DSD128, DSD256 & DSD512 (DoP, DSD512 native)
- Up to 24bit/192kHz for optical & coax inputs
- 8 selectable digital filter characteristics
- 1 proprietary optimum transient digital filter
- Headphone output on the front (6.3mm)
- Synchronization of all internal oscillators
- Jitter as low as 100 Femtoseconds!
- Gold plated four-layer PCB
- Full alu/metal sandwich casing in silver or black
Technical

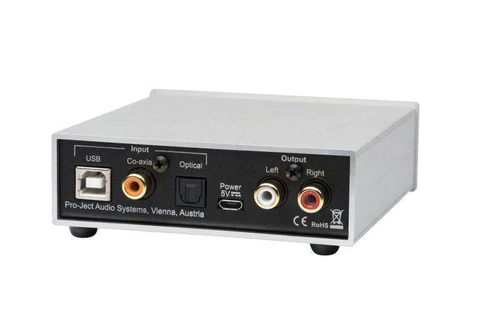

| Digital inputs |
1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink) |
| D/A-converter |
2x ESS9038Q2M 32-bit |
| USB |
up to DSD512 (DSD1024), PCM up to 32b/768kHz |
| Optical |
PCM up to 24b/192kHz |
| Coaxial |
PCM up to 24b/192kHz |
| Filter settings |
7 different selectable on front |
| Frequency response |
20 Hz - 20 kHz |
| Analogue outputs |
6.3mm Headphone (front), 1x Variable Out (RCA |
| Output voltage |
2.05 Veff |
| Minimal recommended headphone impedance |
8 Ohm |
| Headphone output power |
6.6 mW / 600 Ohm; 68 mW / 32 Ohm |
| THD |
0.0003% @ 0 dB, 2V RMS, 1 kHz |
| Dynamic range |
124 dBA |
| Outboard Power supply |
5V/1A DC (included) |
| Dimensions W x H x D |
103 x 37 x 122 mm (including knob and connectors) |
| Weight |
366 g (without power supply) |
|
Easily integrate Hi-Res Audio, network streaming, and music control BluOS App in your C 390DD
Direct Digital DAC Amplifier or Masters M12 Digital Preamp DAC. Featuring BluOS, the music management software developed by NAD’s sister brand, Bluesound, the DD-BluOS module is a complete digital music solution at an amazingly affordable price. Thanks to the forward-looking innovation of Modular Design Construction, you can now add BluOS network and internet music streaming with advanced music management to your NAD C 390DD or M12.
As an internal module there are no external wires or power supplies required and integration with the C 390DD or M12 operating firmware is hand-in-glove. Both Ethernet and Wi-Fi operate in asynchronous mode for lowest jitter performance and allow connection to music stored anywhere on the local network or streamed directly from the Internet using a popular music services like Spotify Connect, Rdio, and Slacker. You can also play music from a USB drive or hard drive via the USB A port.
In addition to a standard Local Area Network, BluOS requires an iOS or Android smartphone or tablet (NAD offers free iOS and Android Apps) to control and manage your music. While the expected functions of Play/Pause/Skip are present, BluOS also brings all of your music together integrating locally stored music (like iTunes) and music streaming services. BluOS does not rely on middleware like UPnP/DLNA/AirPlay with their inherent limitations, but instead creates direct shares with music in all formats including FLAC, ALAC and WAV with data rates up to 24/192. Playlists can be created and managed right inside the BluOS App. Gapless playback is supported and the DD-BluOS is fully compatible with Bluesound High-Res Wireless Multi-room Players to form integrated whole-house systems. Includes an external USB WiFi module to optimize signal strength.
| The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet.
The SA10 is a 50 W class A/B amp with an onboard MM phonostage and DAC. Note, there is no streamer, the Ethernet port is for monitoring and amp control only.
Features
- Extremely efficient class A/B amplification
- 50W of power per channel
- 5 analog inputs including phono
- 3 digital inputs
- 32-bit DAC,Sabre ESS9016K2M
- Full I/P control
Specifications
Continuous power output (8 ohm, 4 ohm): 50 W, 85 W
Phono (MM) input
Input sensitivity (1 kHz): 5 mV
Input impedance: 47 kΩ + 100 pF
Line inputs
Input impedance: 10 kΩ
Digital inputs
DAC chip: ESS9016K2M
Supported sample rates (optical, coaxial): 32-96 kHz, 32-192 kHz (16-24 bit)
Bit depth 16-bit – 24-bit
Preamp output
Output impedance: 230 ohm
Headphone output
Max output (into 600 ohm): 5 Vrms
Output impedance: 1 ohm
Load range: 16 - 2,000 ohm
Dimensions (WHD): 17" x 3.4" x 12.2" (433 mm x 87 mm x 310 mm)
Weight: 18.5 lb
Supplied accessories: Power cord, remote control, 2 x AAA batteries |
Uniti Atom is a beautiful, compact multi-source music player that will seduce you with its amazing sound quality and outstanding feature-set. Its 40-watt integrated amplifier and high-resolution music streaming capabilities will fill your home with stunning high-fidelity sound. Uniti Atom is perfect as a high-end main system or even for use in the kitchen or study, where space is at a premium. Just add speakers. The Naim App for iOS and Android combines all of your music sources in one place, making Uniti Atom even more appealing.
Upgradeable Performance
In true Naim style, the new Uniti Atom can be upgraded with an external power amplifier, such as the compact NAP 100. You can also add a subwoofer for deeper bass extension. And for those with extensive CD collections, you can add a Uniti Core music server to your system to store and stream thousands of albums to your Uniti player and back up all of your music in one place.
Specifications
Connectivity
Audio Inputs
2 x Optical TOSLink (up to 24bit/96kHz)
1 x Coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x HDMI ARC
1 x RCA
2 x USB Type A socket (front and rear)
Audio Outputs
1 x Stereo power amplifier
1 x RCA sub/pre output
1 x 3.5 mm headphone jack
Amplifier Output: 40 W per channel into 8 ohm
Dimensions (WHD): 9.65" x 3.74" x x 10.43" (245 mm x 95 mm x 265 mm)
Weight: 15.43 lb |
The M5si is a sensational integrated amplifier with exceptional power and clarity.
The M5si is a real high end amplifier. At 150wpc, with high current delivery, it will drive virtually any loudspeaker easily.
Internally the M5si is configured as two independent monoblocs with a separate preamp, but all mounted on one pcb. Its technical performance is about equal to the M6si.
The M5si In Brief
- 150wpc
- Excellent technical performance
- Preamp output
- Unconditional stability, will drive any loudspeaker
- Wide range of useful inputs including asynchronous USB and MM phono
- Excellent hunky build quality
Specifications
Power output: 150 W per channel into 8 ohm
Signal to Noise Ratio: >100 dB ‘A’ - weighted
Frequency Response: +0, –0.1 dB, 10 Hz to 20 kHz
Inputs: 4x Line Level RCA, 1x USB type ‘B’ connector - asynchronous data stream at up to 24-bit/96kHz, 1 x MM phono input, Trigger in
Phono
Sensitivity: 3 mV nominal (MM)
Signal / noise ratio: >70 dB ‘A’-weighted
Input impedance: 50 k ohm (MM)
Frequency response: RIAA/IEC ±0.5 dB 20 Hz-20 kHz
Outputs: Trigger out, Fixed, line level output, Variable, preamp output
Dimensions - WxHxD (mm): 440 x 100 x 405
Weight (unpacked / packed): 14.6 kg/ 18.8 kg
|
NAD has a distinct reputation for creating some of the best performing budget amplifiers of all time. The lineage is impressive, all the way from the 3020 of 1978 to the current C 328, with many “Best Amp” awards and five-star reviews along the way. The C 316BEE lived up to expectations, garnering multiple accolades including an EISA award for ‘Best Product 2008-2009’ and top recommendations from the world’s leading audio publications.
With the resurgence of vinyl, NAD decided to update the design by including its highly acclaimed RIAA phono stage. This sophisticated circuit combines low noise with high overload margins to eliminate noise and distortion. RIAA equalization is extremely accurate (a rarity at this price) and there is even an infrasonic filter to reject airborne vibrations that can cause parasitic feedback.
Features
- PowerDrive
- 5 line-level inputs
- MM phono input for vinyl
- Front-panel input for portable media players
- Bass and treble controls
- Tone defeat
- Headphone output
- IR remote control
- Multi-way speaker binding posts
- Gold-plated RCA jacks
- Toroidal power transformer
- <0.5W standby consumption
Specifications
Continuous output power: 40 W
Damping factor: >200
Dimensions: 17-1/8" x 3-9/16" x 11-1/4"
Weight: 12.1 lb
|
