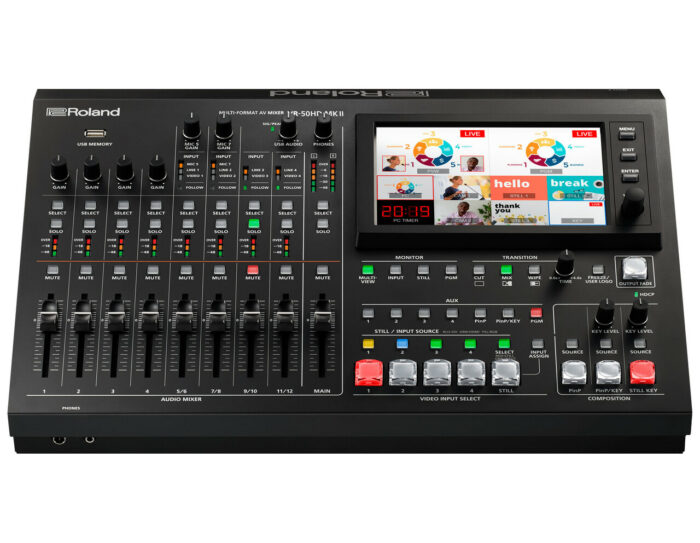

| Content | The VR-50HD MK II Multi-Format AV Mixer is the next evolution of Roland’s industry-leading, all-in-one AV switcher with USB 3.0 streaming. Easily operated by a single person, the VR-50HD MK II continues to deliver best-in-class connectivity and flexibility, allowing you to work a wide range of events with different I/O requirements.
The powerful VR-50HD MK II is a completely self-contained AV solution, consolidating video switching, digital audio mixing, multi-viewer touchscreen control, and USB AV streaming into a single unit that’s simple to run. And with the comprehensive rear patch panel, it’s quick and easy to make on-the-fly input assignments to cross-points on the switcher.
With the VR-50HD MK II, you can send any of the connected input devices to a dedicated Aux output without affecting the main PGM destination. Use the Aux assignment panel buttons to switch the source, or synchronize the Aux output with the PGM (mixer) output to act as a built-in distribution amp. Drilling down into menus while switching is a thing of the past, thanks to dedicated broadcast-style buttons for Aux, PinP, and Still sources. Select, Solo, and Mute buttons are included for all audio channels, speeding up the monitoring process. And with the large touchscreen multi-view monitor, you can view and assign inputs, display up to four still images, execute preview/program functions, and much more.
Offering a number of automation functions the VR-50HD MK II allows a single operator to switch video and mix pro-level audio at the same time. Use Auto Mixing to balance audio levels, Video Follows Audio to switch cameras based on sound input, and Anti-Feedback to automatically tame howling mic feedback. Adaptive noise reduction helps with noise canceling and hum suppression. The VR-50HD MK II is also equipped with a variety of standard audio production inputs, including four XLR/TRS combo jacks with 48 V phantom power, four stereo pairs (two ¼-inch and two RCA), and embedded audio from 3G/HD/SD-SDI and HDMI.
Built-in support can directly control select JVC, Panasonic, Sony, PTZOptics, Avonic and VISCA compatible PTZ LAN cameras. Up to six PTZ cameras can be operated at once via the LAN port. Use the same technology as webcams to reach worldwide audiences by plugging into a computer via USB 3.0 and using a streaming service that's able to use a webcam as its source.
Roland VR-50HD MK II Features
- Aux output for dedicated record, streaming, or confidence monitor feeds
- Updated user interface for fast, trouble-free operation
- High-quality audio preamps and converters for crystal-clear sound
- Direct control of select PTZ cameras from JVC, Panasonic, Sony, PTZOptics, Avonic and VISCA compatible over LAN
- Automatic audio mixing, adaptive noise reduction and automatic video switching functions to support single operators
- All-in-one convenience and ultra-flexible connectivity
- Four-layer composition and still store
| The power of Ki Pro in a 1RU format, the perfect fit for your file based workflow.
With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system. Ki Pro Rack also features AJA’s industry leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware.
AJA Ki Pro Rack Features
- HD/SD recorder and player
- Record and playback Apple ProRes or Avid DNxHD files
- SDI, HDMI, and Component Video I/O
- AES (BNC) and analog (XLR) audio I/O
- 2x KiStor media bays with Ki Protect
- Balanced XLR analog audio inputs, mic/line/48v switchable
- Multi-channel embedded SDI and HDMI audio
- Up, down, cross-conversion built-in
- REF, LTC, RP-188 and RS-422 support
- REST interface
- Front panel button controls
- Easy to use web UI, configure and control from standard web browsers
- Compact 1RU design
- 3 year warranty
| Power supply not included - requires IEC cable.
Use the Blackmagic Design ATEM production switcher series to create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view, and more. ATEM live production switchers support live production needs at live concerts, sporting events, theater productions, conferences, and more. The ATEM advanced panel is added to an ATEM switcher as a control panel.
Although each switcher includes ATEM software control panel for Mac or Windows, an ATEM Advanced Panel is faster to use, making it ideal for demanding live production environments. Setup more complex effects with the enormous amount of control you’ll have in the ATEM 1 M/E. The ATEM 1 M/E Advanced Panel features broadcast buttons, knobs, and a t-bar fader.
The ATEM 1 M/E has one row with 10 input buttons, and one system control LCD screen. Input buttons have customizable colors and button label LCDs. Use the shift buttons to double the number of inputs for control of up to 20 inputs. DVE and t-bar fader can be controlled with a joystick. Even though it’s a 1 M/E panel, you can control all M/Es in larger switchers.
Modern design with the latest broadcast technology combine to enable faster workflows. Built in LCD control screen identifies work processes. Buttons are curved and have color backlighting to reduce incorrect key presses and quickly identify the keys you need. Professional joystick controls DVE and camera adjustments, smooth weighted t-bar fader, and more.
Durable and compact, the ATEM 1 M/E fits in a standard equipment rack. It can be used seamlessly for shelf mounting in broadcast trucks, mobile racks, and fly away kits.
Blackmagic Design ATEM 1 M/E Features
- Add to an ATEM switcher for accessible control panel functions
- Faster workflow
- Backlit buttons make identification easy and lower incorrect key presses
- Control up to 20 inputs
- Joystick for DVE and camera adjustments
- Smooth weighted t-bar fader
- Fits in a standard equipment rack
| Power supply not included - requires IEC cable.
Blackmagic Design’s ATEM switcher series create stunning multi camera live production. ATEM switches between SD, HD, or Ultra HD video standards so your live production can use cameras, disk records, slide shows from computers, and more video sources. Features include 16 advanced chroma keyers four independent Ultra HD multi viewers, two SuperSource processors, and even standards conversion on all inputs. Switchover to 8K to combine these features into a powerful native 8K switcher, including built in talkback and a 156 channel Fairlight audio mixer. ATEM live production switchers can meet live production needs at live concerts, sporting events, theater productions, conferences and more.
The ATEM Constellation 8K has 40 video inputs that support up to Ultra HD, ten of which can be switched to 8K. There are 28 video outputs (7 in 8K) and 24 aux outputs (6 in 8K). Two balanced audio inputs and outputs are also included on the switcher.
Let your creative expression take the lead. Creative transitions can be used in all resolutions, and the transition type, pattern, and length are customizable. Powerful digital video effects processor gives you the ability to position, resize, rotate, and scale live video in real time. Built in chroma, luminance, linear and pattern keyers, and two independent downstream keyers all come standard. Advanced chroma keyers enable massive multi-layer effects. On-screen adjustable controls can select and sample a region of color. Chroma keyers also feature foreground, background and edge adjustment controls, and chroma correction tools.
Add multi box compositions quickly and easily with SuperSource’s separate five layer switcher. SuperSource can be assigned to any ATEM video input, so you can produce multi camera interviews or picture in picture while the M/Es, keyers, and DVE are available for other uses. Compositions from SuperSource can be saved and automatically recalled.
Software control panel can be used on Mac or Windows computers. This included software panel offers a full visual switcher control panel and parameter palettes. For greater control access, add an ATEM advanced panel.
Blackmagic Design ATEM Constellation Features
- 16 upstream keyers in Ultra HD, 4 in 8K supporting chroma, linear, and luma keying
- 4 downstream keyers in Ultra HD, 2 in 8K.
- 16 advanced chroma keyers in Ultra HD, 4 in 8K
- Talkback communication is supported
- Mix-minus is supported
- There are 4 transition keyers (Stinger/DVE)
- Supports up to 28 layers in UHD and 7 layers in 8K
- 21 pattern generators are available in Ultra HD, while only 9 are available in 8K
- Support for 2 color generators
- 4 DVE with 3D borders and drop shadow are supported in Ultra HD; one is supported in 8K

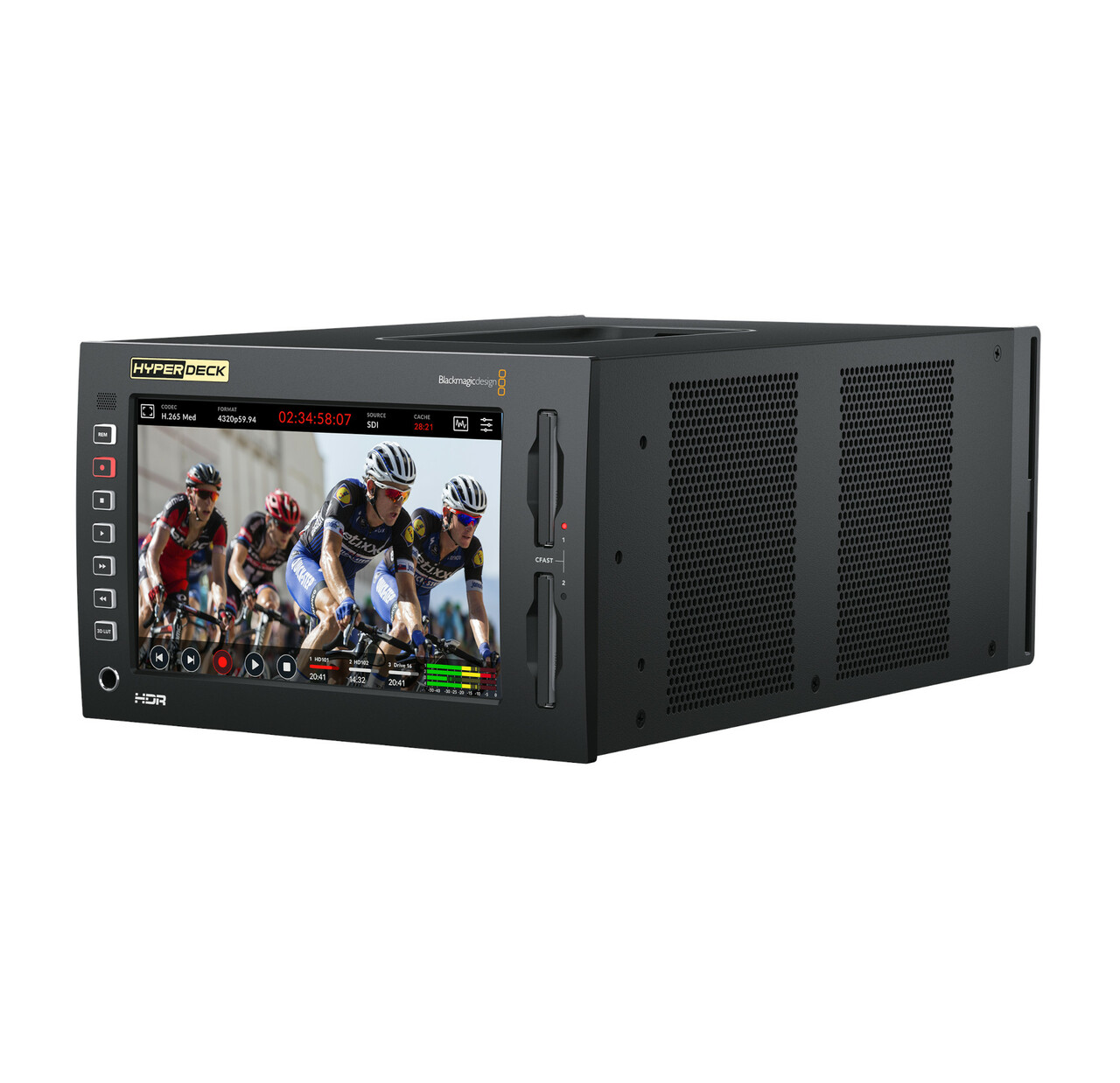

| HyperDeck Extreme 8K HDR has the reliable features of HyperDeck, with new features of space-saving H.265 files, optional internal cache, 3D LUTs, native 8K and HDR support. Ability to record native 8K in H.265 storage reduces storage costs and image quality stays amazing. Large touch screen ensures you can see your recording and easily control all deck settings. HyperDeck Extreme 8K HDR is an excellent solution for broadcast, live production, and digital signage.
Great for live production as a master recorder, clip player and for recording ISO cameras. Analog inputs allow recording from old video tapes, so legacy programming is compatible with the latest streaming services and can be edited. 10G Ethernet makes digital signage easy with fast media uploads, and a simple remote control protocol. Use as a field recorder with HDMI, SDI and analog inputs with built in scopes and 3D LUTs.
AC and DC power connections help make sure you can use the HyperDeck Extreme 8K HDR in studio or on location. Record to commonly available flash memory cards with dual CFast media support.
The HyperDeck Extreme 8K HDR includes two media slots, Quad 12G-SDI for 8K, analog connections for archiving, USB-C external disk recording, front panel speaker and headphone jack. Install a PCIe flash disk as a record cache to eliminate dropped frames when your media becomes full or is too slow. Record and playback in full resolution 8K is possible with the included Quad Link 12G-SDI. SDI connections are multi-rate, so you can use with other 8K products, or switch to SD, HD or Ultra HD.
Touch LCD screen provides incredible control with dedicated buttons for play, stop, record, a timeline for scrolling through recordings, image swipe to jog, and more. Heads up display on the LCD shows timecode, video standard, media status, and audio meters. Enable scopes, load and save 3D LUTs, and remote control the HyperDeck from the touch screen.
Full internal waveform monitoring ensures compliance with broadcast standards. RGB and YUV parade displays are ideal for color correction and checking for illegal levels. Histogram shows distribution of white to black detail, and highlights or shadows clipping.
Blackmagic Design HyperDeck Extreme 8K Features
- Power supply not included - requires IEC cable
- Modern design with traditional controls
- Rack mountable
- Live production, digital signage and archive
- Dual CFast media for nonstop recording
- Record direct to external USB-C media disks
- Compatible with controllers, switchers, converters, and more
- Advanced HDR support and bright wide gamut LCD
- Built in scopes ensure compliance with broadcast standards
- Professional audio with multi channel SDI and analog audio
- Localized for 11 common languages
| The NOVAPRO HD is an advanced high performance LED display controller, video processor, and configuration device that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / 3G-SDI, up to 1080p @60Hz input resolution, 165MHz pixel clock and 4G-Bit output bandwidths. NOVAPRO HD also includes DMX512 and GenLock interfaces, Ethernet ports for communication through standard TC/IP and USB control for cascading with additional NOVAPRO HD's. NOVAPRO HD is compatible with all of ADJ's current video products.
Controller Features
- No Computer or External Scaler Needed (standard rectangular layouts only)
- Up to 1080p @60Hz Input Resolution
- 165Mhz Pixel Clock / 4G-Bit Output Bandwidth
- Multiple Video Signal Format Support
- Cascade Multiple Units Together
- Rack Mountable Aluminum Enclosure (screws not included)
Controller Specs
CONTROL / CONNECTIONS
- (1) Input and (4) Output RJ45 EtherCON Ports
- USB, 5pin DMX, and GenLock In/Out Ports
- Audio Input: 1/8 inch connector
- Video Input: DP / HDMI / VGA / DVI / CVBS / 3G-SDI
- Locking IEC Power Input
SIZE / WEIGHT
- Length: 19.0" (483mm)
- Width: 15.3" (389mm)
- Height: 3.5" (88.2mm)
- Weight: 13.2 lbs. (6.0kg)
ELECTRICAL
- AC 85-265V - 50/60Hz - 0.65A
- Max Power Consumption: 30W
|
