| Content | Turntable section
Type: Direct Drive Manual Turntable
Turntable Speeds: 33 1/3, 45, 78 rpm
Adjust Range: ±8%, ±16%
Starting Torque: 3.3 kg･cm (2.8 lb-in)
Build-up Characteristics: 0.7 s. from standstill to 33 1/3 r/min
Wow And Flutter: 0.025% W.R.M.S. (JIS C5521)
Rumble: 78dB (IEC 98A Weighted)
Turntable Platter:
- Brass and Aluminum diecast combined
- Diameter：332mm (13-5/64")
- Weight：About 3.6kg (7 15/16 lb) (Including rubber sheet)
Tonearm Section
Type: Universal Static Balance
Effective Length: 230mm (9-1/16")
Overhang: 15mm (19/32")
Tracking Error Angle:
- Within 2° 32' (at the outer groove of 30cm(12") record)
- Within 0° 32' (at the inner groove of 30cm(12") record)
Offset Angle: 22°
Arm-height Adjustment Range: 0 - 6 mm
Stylus Pressure Adjustment Range: 0 - 4 g (direct reading)
Terminals
Audio Output PHONO (Pin Jack) x 1
EARTH TERMINAL x 1 |

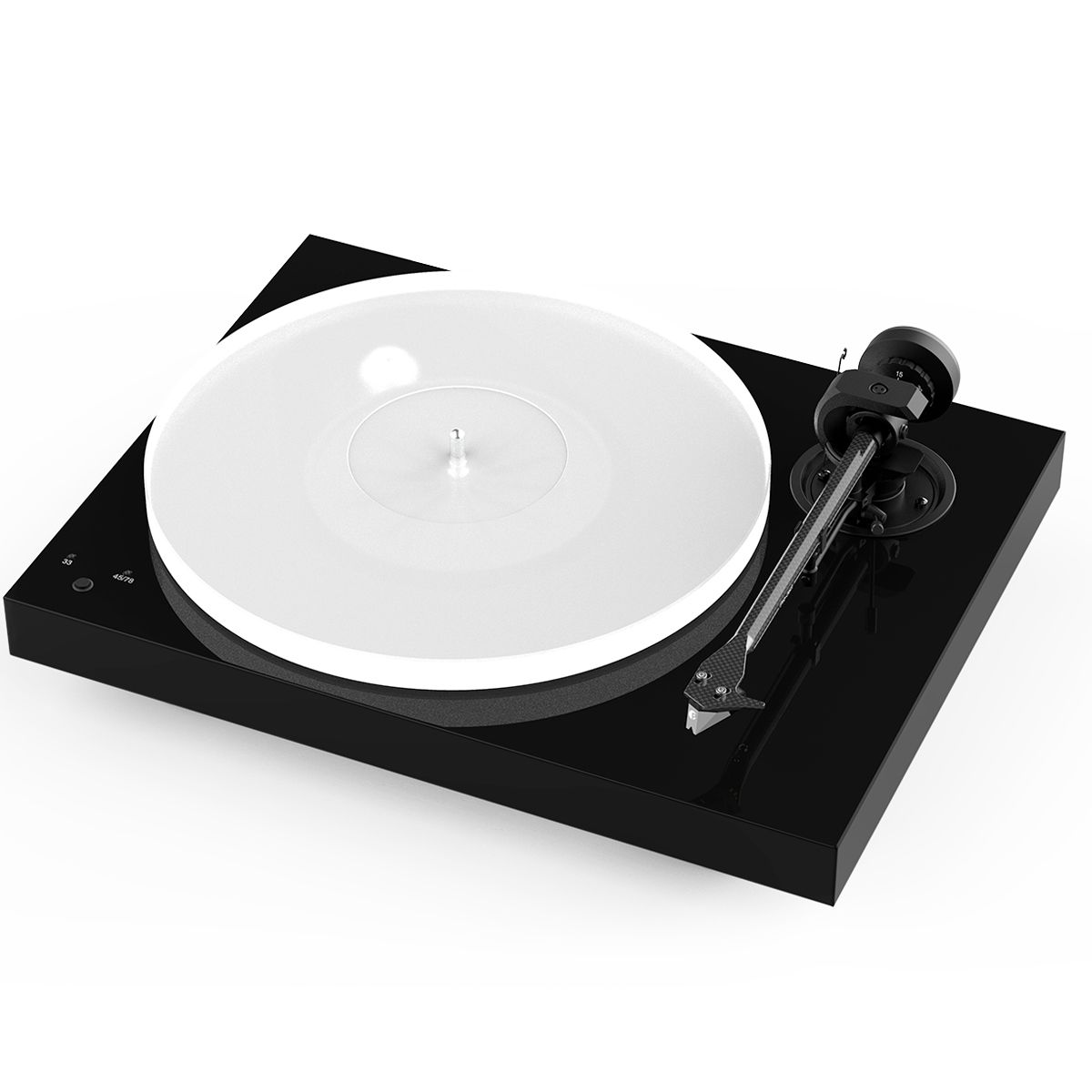

In 1991 Pro-Ject started a revolution in HiFi with the introduction of the Pro-Ject 1 turntable. A new high-end, low budget turntable at a time when CD was king. Against all odds, we were creating interest in analog audio at a time when others were turning their backs, and the success was only down to three critical philosophies: Simple yet technically correct design, High-quality valuable materials, and Fully handcrafted, expert engineers, made in the EU.
The design is carefully tuned to offer the most critical features for the best price and everything is put together with Pro-Ject‘s decade long experience in making the best performing turntables without blowing the budget: MDF is 2-3 times more expensive than standard particle boards, not to mention a plastic chassis, but sounds and feels way better.
The X1‘s luxury 8 layers of painting and the hand-polished finish are 3-4 times more expensive than simple foils.
Inside, it houses a sophisticated DC/AC generator board which, combined with the convenient speed control board, delivers clean and stable power to the quiet-running motor. This adds additional cost but performs many times better than a simple, direct powered AC motor. For even further improved performance, the motor is decoupled from the main plinth using a new motor suspension system.
In the X1, the motor drives a new, heavy, non-resonant Acryl platter via a sub-platter drive system and a premium grade main bearing for liquid smooth rotation. This is the perfect platform on which to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character. The X1 is also better than its predecessors thanks to the super-stiff, perfectly tempered Carbon/Alu sandwich construction tonearm. This new 8.6” tonearm design is incredibly light and stiff, with improved resistance to external interference. Finished as a one-piece, with no resonance-inducing headshell, the X1 can also be set for azimuth and VTA adjustment, offering the flexibility that so many people are asking for, especially in this and even lower price ranges.
The tonearm is then supplied with a TPE-damped counterweight, further reducing cartridge-tonearm resonances.
Lastly, height-adjustable feet in their Alu/ TPE sandwich construction are a very exclusive but necessary feature to level up the turntable and effectively isolate it from the surface it is place on.
The X1 has all the high-end features of modern turntable designs to maximize the music and listening experience. All these features can in fact be done at a reasonable cost. Due to our extensive experience and meticulous manufacturing processes, we put resources, time and effort into giving music lovers the best sound for their money, rather than cutting corners to save on costs. It is a statement and a counterpoint against other upcoming turntable designs, which go the way of offering more features but less performance.
- Speed control with electronic speed switch for ultimate speed stability
- Carefully isolated motor for less vibration and noise
- Sub-platter with extremely low 0.001mm bearing tolerances
- Stainless steel platter-bearing with soft brass bushing and teflon mirrors for lowest rumble and noise, and a stable, accurate speed transmission
- Resonance free, 1.5 kg heavy acryl platter
- 8,6” carbon/alu sandwich tonearm with best internal damping and TPE damped counterweight
- Kardan ultra-low friction 4 pin point precision tonearm bearing
- Sumiko Rainier cartridge newly developed with Sumiko for highly dynamic and full sound
- Massive and heavy, precision CNC‘d MDF chassis
- Luxury 8 layers of painting and hand-polished finish or real-wood, satin-waxed veneer
- Super shielded, semi-symmetrical, low-capacitance phono cables - purpose designed by Pro-Ject
- Height adjustable, aluminum feet for massively reduced risk
of acoustical feedback
- Handmade in Europe
|

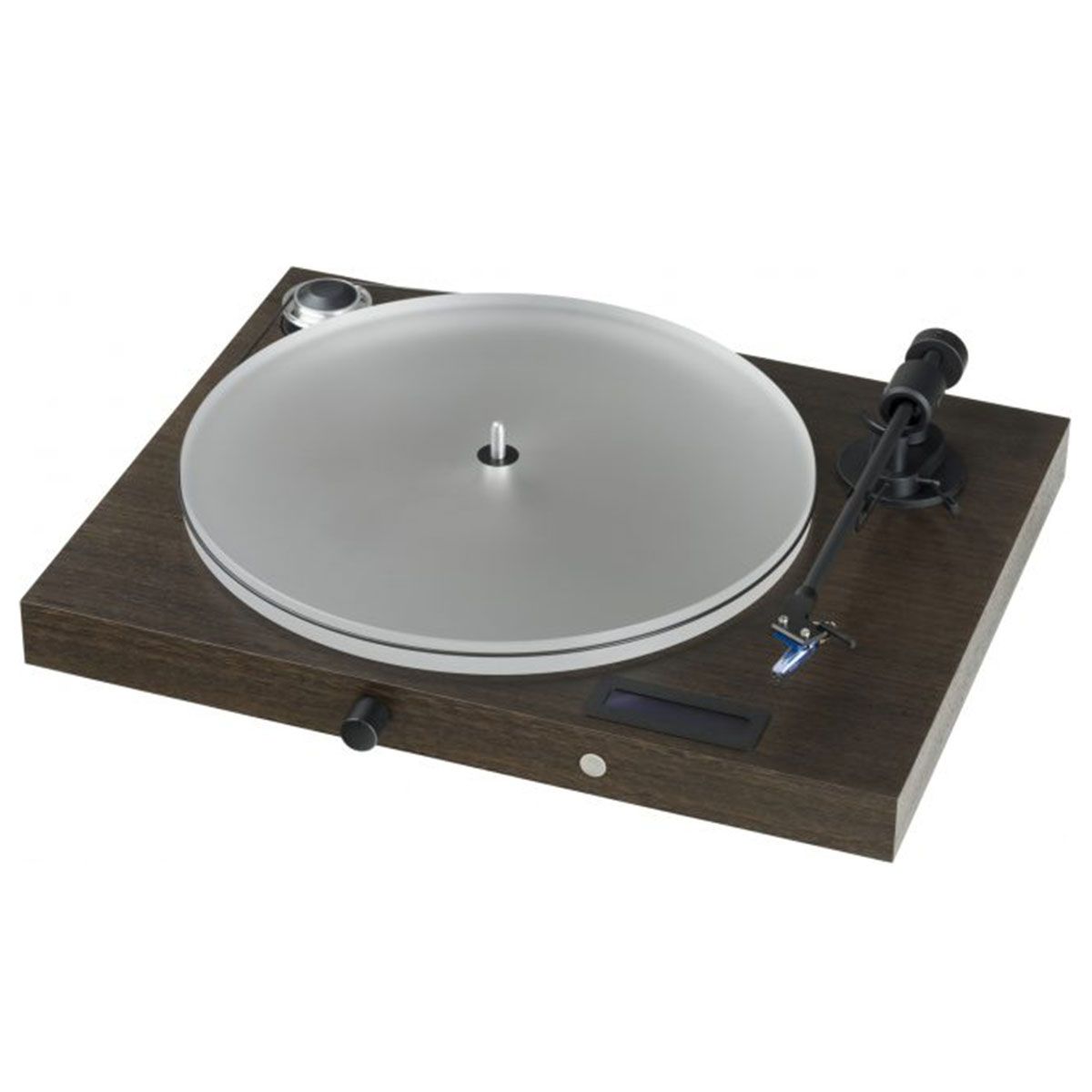

Building on the ground breaking Juke Box E, Juke Box S2 is taking the first audiophile all-in-one system to the next level. By changing to a more sophisticated acrylic platter and an upgraded, Pro-Ject proprietary cartridge gave the Juke Box the extra bit of audiophilia it deserves. Juke Box S2 effectively saves space by implementing a pre-amplifier and power amplifier in its chassis. With the rated 50 Watts per channel it you will be able to use your stereo speakers and enjoy realistic sound stages and great depth.
- Instant playback with super-easy setup
- Bluetooth and 1 line input
- Acrylic platter
- High contrast display on top
- Line record output
- Gold plated sockets
- Pre-adjusted tracking force & anti-skating force
- Pick it 25A cartridge, pre-mounted
- 8.6" aluminium tonearm with sapphire bearings
- Belt drive with silicone belt
- Low vibration synchronous motor & DC power supply
- Special feet for effective decoupling
- IR remote control included
|
Building on the ground breaking Juke Box E, Juke Box S2 is taking the first audiophile all-in-one system to the next level. By changing to a more sophisticated acrylic platter and an upgraded, Pro-Ject proprietary cartridge gave the Juke Box the extra bit of audiophilia it deserves. Juke Box S2 effectively saves space by implementing a pre-amplifier and power amplifier in its chassis. With the rated 50 Watts per channel it you will be able to use your stereo speakers and enjoy realistic sound stages and great depth.
- Instant playback with super-easy setup
- Bluetooth and 1 line input
- Acrylic platter
- High contrast display on top
- Line record output
- Gold plated sockets
- Pre-adjusted tracking force & anti-skating force
- Pick it 25A cartridge, pre-mounted
- 8.6" aluminium tonearm with sapphire bearings
- Belt drive with silicone belt
- Low vibration synchronous motor & DC power supply
- Special feet for effective decoupling
- IR remote control included
|
The VT-E turntable proves that turntable setup doesn’t have to be rocket science. This great sounding belt-driven deck even comes in two separate versions for both left- and right-handed users. The VT-E can be positioned either free-standing on a table or wall-mounted using the included low-profile metal bracket. Installation is a breeze since everything is pre-adjusted out of the box – tracking and anti-skating force are carefully set so no further set-up needed! Sse both Bluetooth and RCA output at the same time.
Speed:
33 & 45 rpm (manual speed change)
Drive principle:
Silicone belt drive
Speed variance:
0.8% @ 33 rpm, 0.7% @ 45 rpm
Wow & flutter:
0.29% @ 33 rpm, 0.27% @ 45 rpm
Signal to noise ratio:
-65 dB
Platter:
300 mm composite wood (1.8 lb.) w/felt mat
Main bearing:
Stainless steel
Tonearm:
8.6” aluminum
Effective tonearm length:
218.5 mm
Overhang:
22.0 mm
Effective tonearm mass:
8.0 g
Compatible cartridge weight:
3.0 - 5.5 g (Otrofon OM5E included) 0 - 2.5 g (pre-adjusted at 1.8 g)
Tracking force range:
0 - 2.5 g (pre-adjusted at 1.8 g)
Included accessories:
power supply, record clamp
Power consumption:
4.5 W
Dimensions (free-standing):
16.9” x 13.6” x 9.6” (W x H x D)
Dimensions (wall mounted):
16.9” x 12.2” x 5.1” (W x H x D)
Weight:
6.2 lbs. (net)
| The Prime is designed to offer hi-end sound while taking advantage in improvements in Turntable technology. The shape is designed to have a more aesthetic look, while having the footprint to accommodate the space needed for a 10 inch 3D arm.
- 10-inch 3D Tonearm
- VTA Tower included
- Classic 20-pound platter and bearing
- Four solid Delrin corner assemblies designed for isolation and mechanical grounding
|
