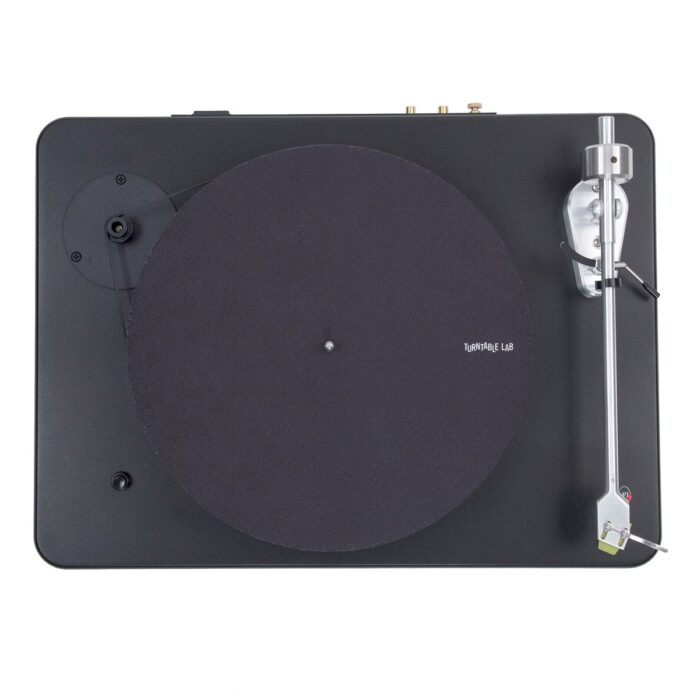

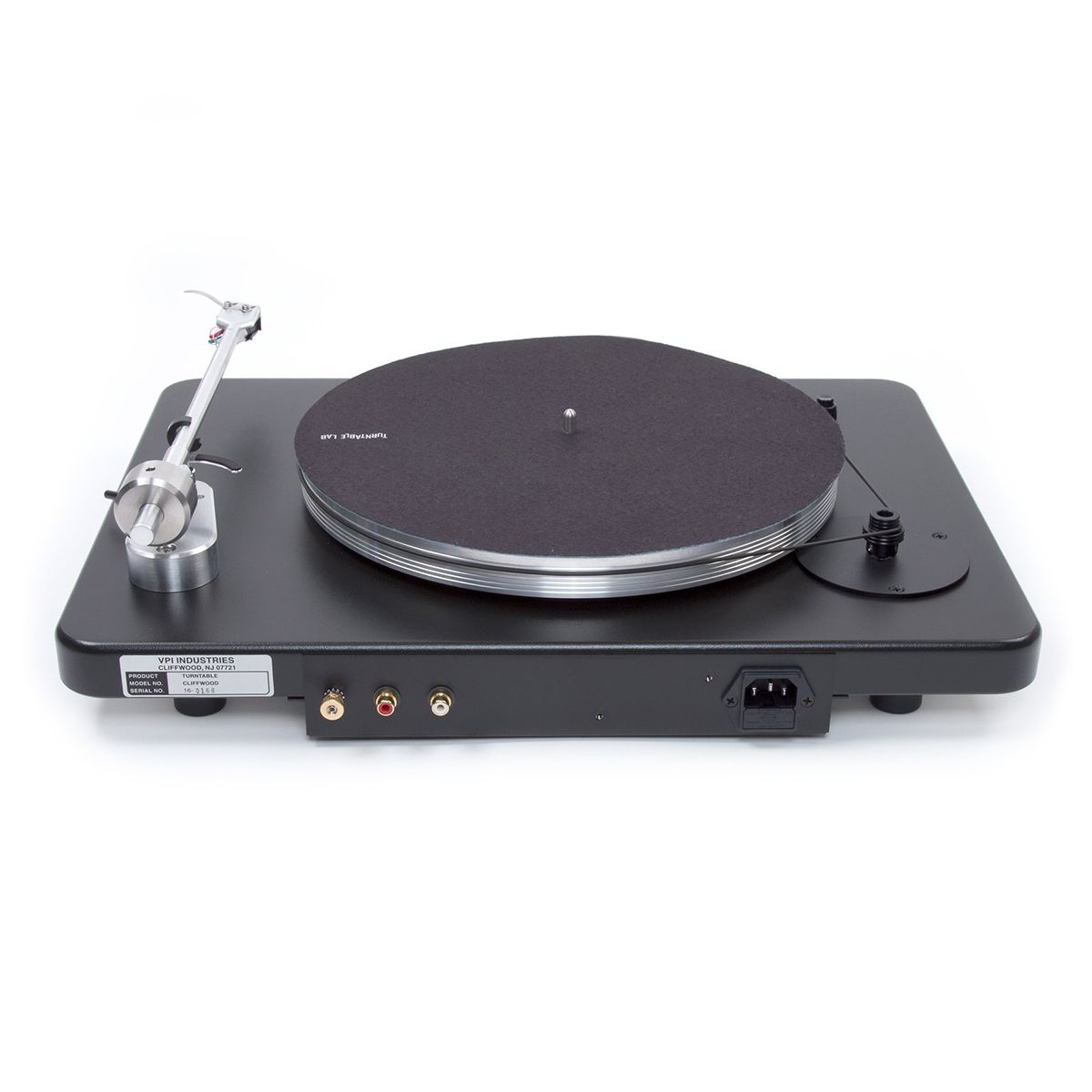

The Cliffwood was made to celebrate the heritage of VPI and to honor the city where their turntables are built. VPI teamed up with Grado Labs to engineer a cartridge shell specifically for the Grado to make it easier to mount and contribute to the sound signature.
- New 9" machined aluminum gimbal tonearm with lateral type bearing.
- 1.25" thick textured vinyl-covered non-resonant MDF chassis. Platter rotates on an oil bath bearing.
|
- Ultra lightweight plinth: The Planar 8 is the second Rega turntable constructed using the latest ultra lightweight Tancast 8 polyurethane foam core (a material developed for the aerospace industry). This material is sandwiched between two layers of HPL (high-pressure laminate). HPL is exceptionally thin and extremely rigid. This new construction makes the new Planar 8 skeletal plinth 30% lighter than the original RP8 while offering increased rigidity over the previous model.
- Double Brace Technology: A super lightweight plinth combined with a phenolic resin double brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound a oestressed beam" assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth, which directly addresses the issue of mass absorption and unwanted energy transmission.
- RB880 Tonearm: For the new RB880, Rega has introduced an improved vertical bearing assembly constructed using an aluminum and stainless-steel, low mass assembly with vastly improved stability and rigidity. This tonearm is using their advanced preloaded zero tolerance bearing assembly adjusted to less than 1000th of a mm, this gives friction-free movement and zero levels of unwanted play. This subtle but effective new structure is only visible via small windows at the rear of the new bias housing assembly. A thinner stainless steel balance weight is used, allowing greater adjustability and compatibility. Finally, the RB880 is terminated with a re-designed, low capacitance phono cable terminated with high quality, locking phono plugs to ensure the best possible connection.
- Hub bearing assembly: The Planar 8 uses a new low mass central bearing assembly. A single piece machined aluminum sub-platter and hardened tool steel spindle run inside a custom brass housing which is cleverly mounted within the chassis. This new mounting is designed to eradicate unwanted potential energy being transferred or stored in the plinth.
- Super flywheel effect triple layer glass platter: The Planar 8 uses a three-piece laminated glass platter which is the result of collaboration with a British glass engineering company. This brand new platter is constructed from two different high quality Pilkington glasses. As a general rule, the only part of a turntable that requires extra mass is the turntable platter in order to achieve constant rotational speed. However, a heavier platter creates more problems for the main bearing design so again an ideal compromise creates the best solution. Practically this means keeping as much of the mass to the outside rim of the glass platter to create more flywheel effect but keeping the inside of the platter as light as possible without sacrificing stiffness.
- 24v Low noise motor assembly: The Planar 8 uses Rega's latest generation, 24v, synchronous, low vibration motor technology. Uniquely mounted using the highest level of coupling while retaining higher vibration isolation than any previous model. This new motor mounting technique (mounted from the bottom) has been taken directly from the ultimate Rega turntable, the Naiad. This unique mounting method removes all stress on the motor body. The reduced vibration and more rigid mounting delivers superior drive from the new EBLT drive belts. Each motor is hand tuned to match its own custom Neo power supply before fitting to the turntable to optimize the anti-vibration circuit.
- EBLT Drive Belts: For three years Rega has been researching and developing with chemists the use of a bespoke new rubber compound for drive belts. Using a specialized curing system, the new drive belt offers superior consistency of modulus (a constant representing the degree to which a substance has a particular property, especially elasticity). These new belts are manufactured on Rega designed, state of the art, super-accurate tools which produce 'perfectly round' and 'dimensionally accurate' belts, critical for perfect speed stability.
|
Juke Box E is turntable, phono stage, Bluetooth receiver, line pre-amplifier, and power amplifier in one. Just add speakers to create a complete system with the fastest possible installation process.
Juke Box E is record player, phono stage, Bluetooth receiver, line pre-amplifier and power amplifier in one, requiring only a pair of speakers to make a complete system. If you thought that a starter turntable system is complicated to set up, Juke Box E proves the contrary. This good sounding belt-drive deck offers the fastest possible installation process because it comes pre-adjusted out of the box and offers superb sound quality.
Tracking force and anti-skating of the turntable section are carefully pre-set. An acrylic dust cover is included. The “All-in-one turntable system” is available in high-gloss black, red or white color.
The Juke Box Highpower Supply is optionally available. It features up to 50% more peak power output, increasing dynamic and bass response. The true ground connection over a 3 pin power plug can dramatically reduce hum and noise under critical power conditions.
- Instant playback with super-easy setup
- High contrast display on top
- Bluetooth and 1 line input
- Line record output
- Gold plated sockets
- Pre-adjusted tracking force & anti-skating force
- Ortofon OM5e cartridge, pre-mounted
- 8.6” aluminum tonearm with sapphire bearings
- Belt drive with silicone belt
- Low vibration synchronous motor & DC power supply
- Special feet for effective decoupling
- IR remote control included
- Colour options: HG Black, HG White, HG Red
| The Prime is designed to offer hi-end sound while taking advantage in improvements in Turntable technology. The shape is designed to have a more aesthetic look, while having the footprint to accommodate the space needed for a 10 inch 3D arm.
- 10-inch 3D Tonearm
- VTA Tower included
- Classic 20-pound platter and bearing
- Four solid Delrin corner assemblies designed for isolation and mechanical grounding
|
Designing a new turntable to celebrate VPI's 40th anniversary provided VPI an opportunity to update the direct drive motor technology to incorporate advances in motion control and materials technologies.
Harry Weisfeld's 2012 CLASSIC DIRECT direct drive turntable was an outstanding technical achievement, earning Stereophile Magazine's Class A+ rating. This award-winning table was loosely based on the VPI Classic Series table technology and included a thick aluminum plinth and armboard and an inverted platter bearing riding on a PEEK thrust disc. Combined with a cutting-edge BLDC direct drive motor, the CLASSIC DIRECT was created. The Classic Direct provided a stable, solid foundation for the music, allowing the listener to hear deeply into the recorded grooves to the treasures buried with-in!
| The new Planar 2 was developed over the past two years alongside the recently released Planar 3. Featuring the brand new RB220 tonearm which is packed with groundbreaking new features such as a new 24v low noise motor, acrylic laminated plinth, newly designed central bearing and so much more. Every feature of this innovative new turntable is designed to extract the maximum amount of information and detail from your vinyl collection.
- Re-designed feet - New improved foot assembly to increase stability and reduce vibration transfer.
- Carbon cartridge - supplied as standard on all Planar 2's for simple plug and play convenience.
- Motor cover tray - with integrated cooling.
- Optional lid / plinth protectors - supplied to prevent marks on the plinth and keep it looking its best.
- Instructions - Easy to use multi-lingual quick start guide for easy set up.
- Packaging - New improved packaging.
- Tonearm: Hand-assembled RB220 tonearm
- Cartridge: Factory fitted Carbon moving magnet cartridge
- Motor: 24 V low noise motor
- Dimensions (lid closed) (W x H x D): 447 x 117 x 360 mm
- Weight: 5.5 kg
|
