| Content | When it comes to portable live sound solutions, it doesn't get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth® wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.

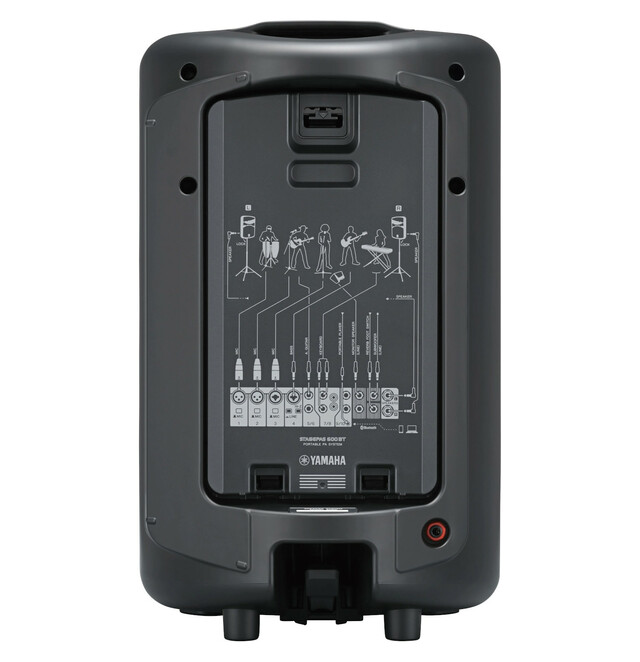

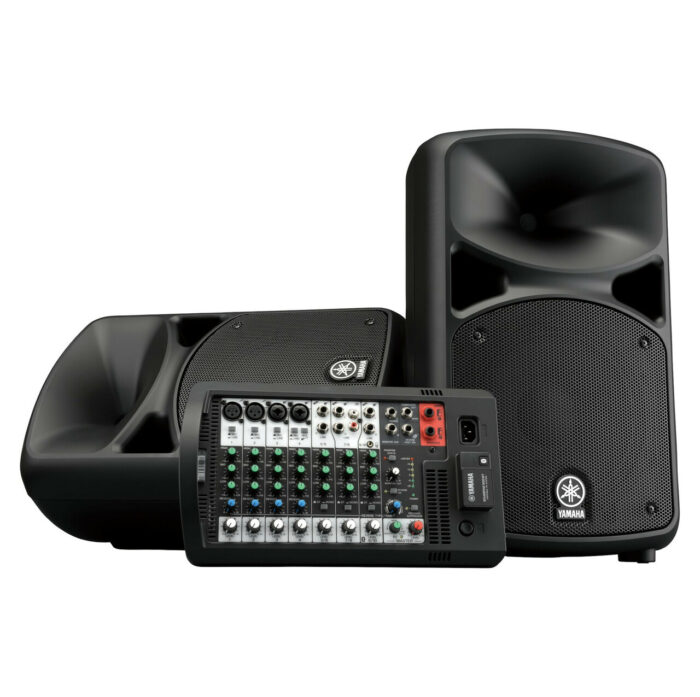

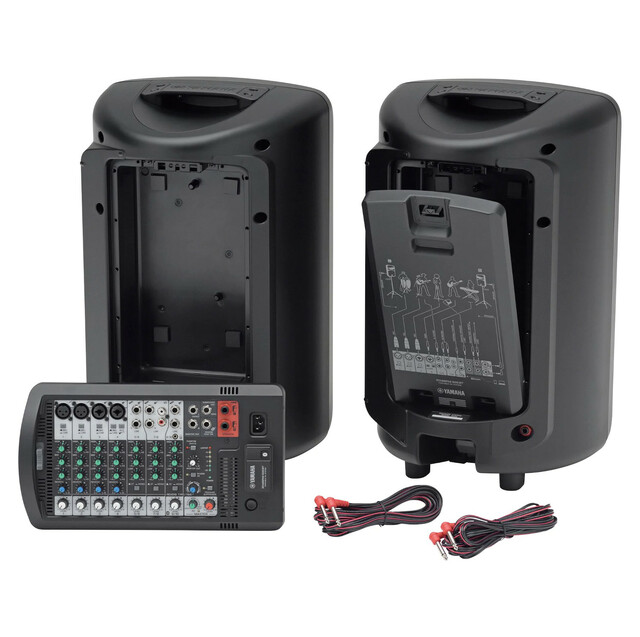

The STAGEPAS 600BT is a 680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute. Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.
Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS 600BT lets you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.
Yamaha STAGEPAS 600BT Features
- 680W (340W + 340W) power output
- High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)

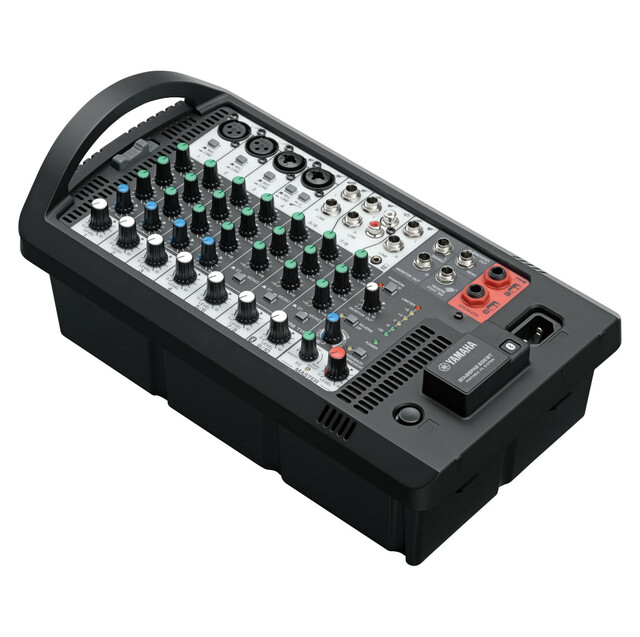

- Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
- Bluetooth® audio streaming
- 1-Knob Master EQ with virtual bass boost
- High resolution SPX digital reverbs (4 types, parameter control)
- Onboard feedback suppressor
- Great-sounding 3-band channel EQ
- Switchable stereo/mono inputs
- Hi-Z (high impedance) inputs
- Phantom power
- Monitor and Subwoofer outputs
- Optional reverb footswitch
| The EFX is a slim, on-wall hybrid electrostatic loudspeaker, featuring XStat™ technology, dramatically reducing cabinet size, yet establishing new standards for efficiency, dynamics and precision.
- Housed within a radical, ultra-ridged extruded aluminum AirFrame™, the EFX's new CLS XStat transducer builds upon the legacy of MartinLogan's electrostatic heritage with the incorporation of advanced vacuum bonding and MicroPerf stat panels, providing even greater efficiency and precision.
- Proprietary Vojtko filtering technology is utilized for EFX's electrostatic transducer. This audiophile quality network, derived from the CLX, is carefully hand-built using precision point-to-point wiring, polypropylene capacitors, massive air-core coils, and a custom wound E-I core transformer.
| The Triton Three+ Loudspeaker is a smaller version of the award-winning Triton One and Triton Two+. It includes a built-in powered subwoofer and is engineered for superb performance in both high quality two channel stereo systems as well as in multi-channel home theater and music systems.
Like the Triton Two+, the newly updated Triton Three+ incorporates technologies developed for the Triton One. Its built-in powered subwoofer (a technology first pioneered by GoldenEar principals Sandy Gross and Don Givogue) includes an integral 800 watt GoldenEar ForceField digital/DSP controlled power amp driving an active front-mounted long-throw 5" x 9" quadratic subwoofer driver. This is coupled to two opposing, inertially balanced 6-3/4" x 8" quadratic planar infrasonic passive radiators which are located on the sides, near the floor, in order to take full advantage of boundary coupling. There is one of the same 4.5" high-definition spider-leg, cast-basket MVPP™ drivers as used in the Triton Two+, along with the same GoldenEar signature High-Velocity Folded Ribbon (HVFR™) tweeter. Performance-wise, the Triton Three+ delivers the same boxless three-dimensional imaging as the bigger Tritons. Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame.
- Features a built-in powered subwoofer, and an integral 800 watt GoldenEar ForceField digital/DSP controlled power amp driving an active front-mounted long-throw 5" x 9" quadratic subwoofer driver.
- Also features 4.5" high-definition spider-leg, cast-basket MVPP™ drivers used in the Triton Two+, along with the same GoldenEar signature High-Velocity Folded Ribbon (HVFR™) tweeter.
Driver Complement:
One - 5˝ x 9˝ Long-Throw Quadratic Subwoofer Bass Driver, coupled to:
Two - 6-3/4˝ x 8˝ Quadratic Planar Infrasonic Radiators
One - 4-1/2˝ High-Definition Cast-Basket MVPP™ Upper-Bass/Mid Driver
One - HVFR™ High-Velocity Folded Ribbon Tweeter
|
The Motion ultra-slim SLM XL features four passive radiators for amazing, controlled bass performance.
- The dual 4-inch, ultra-slim fiber cone woofers and four 4-inch passive bass radiators, paired with a Folded Motion tweeter create stunning acoustical alchemy all from a thin profile.
- The drivers are held securely in place by a solid, black-anodized brushed aluminum baffle under the grille.
|
The powerful EM-ESL C is a high-performance electrostatic center channel loudspeaker. With the exceptional mid-range dynamics of an electrostatic panel, the remarkable details delivered by a Folded Motion Tweeter, and the addition of a newly-designed CenterForce dual woofer system, the most surprising thing about the EM-ESL C isn’t its superior performance. It’s that the EM-ESL C is compact enough to fit easily into today’s most popular A/V furniture. With the EM-ESL C electrostatic center channel loudspeaker, you can match the acoustic signature of your ElectroMotion Series speakers and build a truly astounding home theater system.
Expanding the Dynamics of Center Channel Performance
By adding a compact electrostatic panel to a center channel speaker, MartinLogan engineers have succeeded in expanding the performance dynamics of the most important speaker in your home theater system. Your center channel speaker needs to be able to reproduce the finest high-frequency details. The midrange must be expansive; to reproduce every whisper of dialogue. Deep bass adds impact to the front-stage effects that anchor the action to your screen. The EM-ESL C accomplishes all this and more.
The EM-ESL C has a shallow height CLS (Curvilinear Line Source) XStat electrostatic panel wrapped around the front of the speaker enclosure. The gentle horizontal curve of the panel enhances the output of its deceptively compact 114-square-inch radiating area, extending mid-range dispersion patterns and blending the performance seamlessly with your front-stage ElectroMotion loudspeakers.
Just behind the electrostatic panel, in a specially designed housing, sits MartinLogan’s exclusive Folded Motion Tweeter. The low-mass diaphragm of the Folded Motion Tweeter minimizes distortion, and its short excursion length reinforces its lightning-fast high-frequency response. The 1 x 1.4-inch Folded Motion Tweeter in the EM-ESL C has a total diaphragm area of 9.2-inches, with the ability to reproduce precise details; one of the most important jobs of a center channel speaker.
The New CenterForce System
Designing a high-performance electrostatic center channel speaker sized to fit into A/V furniture was no easy task. Adding a dual woofer system seemed impossible! But MartinLogan’s skilled audio engineers found a novel solution, and they call it CenterForce.
Instead of taking up space by positioning the woofers on each side of the electrostatic panel, they’ve designed a central slot inside the cabinet for the woofers. Now, the dual woofers reside in a well-braced enclosure located behind the tweeter and electrostatic panel.
This new CenterForce solution allows the speaker to be more compact and encourages the woofers to produce a generous amount of well-blended deep bass. The CenterForce system in the EM-ESL C features two custom-designed 5.25-inch aluminum cone woofers. Rigid and yet lightweight, this material reduces flexure while minimizing response time. Their efficient construction optimizes suspension and magnetic flux field, further reducing potential sources of distortion. The EM-ESL C grounds its performance in accurate, musical bass response.
This is a center channel speaker that delivers a full-range performance, by combining an electrostatic panel with a Folded Motion Tweeter, bolstered by the CenterForce bass system. The compact EM-ESL C goes where you want it, and does what you need, for your high-performance ElectroMotion home theater system.
|
MartinLogan's 12-inch ground stake can be used with the Outdoor Living Series Sat 40 and Sat 60 speakers to enhance the ambiance of your outdoor living space. With a sleek, attractive dark bronze finish, the stakes look and feel high-quality.
- Mount your speakers on the ground, in a tree, on a deck rail, or under an eave with the 12" Ground Stake.
- The half-inch threaded "Quick Twist Cap" gives you the flexibility to mount or "plant" the satellites anywhere to get the sound coverage you want.
- "Quick Twist Cap" works universally with all three speaker mounts: 12" Ground Stake, wire-protecting Burial conduit Junction, or Surface Mount Bracket for walls and decks.
|
