| Content | LiveU LU300 with BirdDog BDP200 Live Production Bundle with IP Pipe PTZ Control
LiveU LU300 - Compact HEVC Field Unit for On-the-Go Live Streaming. The LU300 is a small-sized, cost-effective and reliable HEVC encoder, enabling broadcasters and other content creators to transmit high-quality video on-the-go.
BirdDog P200 - Combining BirdDog's custom NDI silicon chip, 30x optical zoom, and Sony backlit sensor and image module, the BirdDog Eyes P200, in black, is a full NDI 1080p60 PTZ camera designed for large indoor spaces. Thanks to the fast autofocus and zoom ensured by the true Sony image module, the P200 is highly suitable for catching all the fast action in places such as sporting events.
LiveU LU2000 - The LU2000 bonded video decoder is used to receive, decode and playout any HEVC/H.264 bonded video streams sent by LiveU’s range of field units. The LU2000 can also be used as a transmission node when sharing video over the LiveU Matrix video management and distribution platform.
LiveU IP Pipe - Enhance your remote production set-up and reduce costs by remotely controlling your IP-based gear. LiveU’s IP Pipe gives you remote control over a wide variety of network-based equipment.

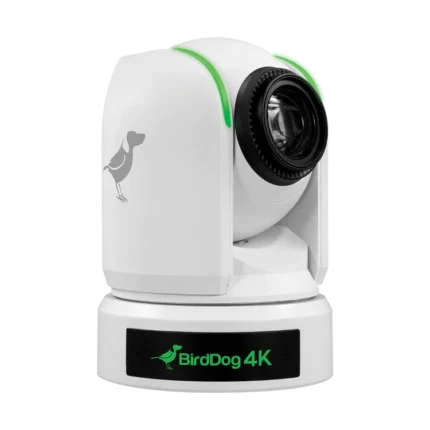

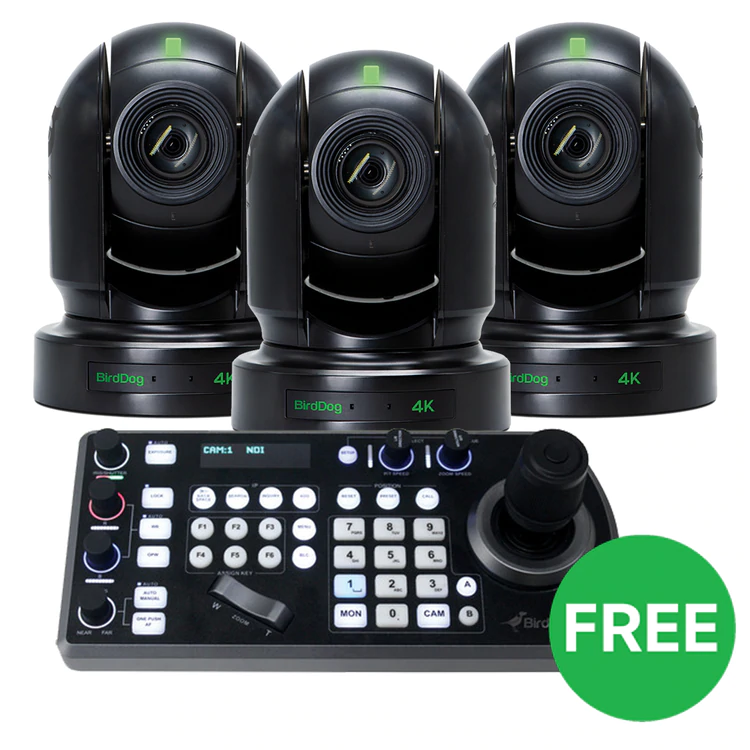

| BirdDog BDP400 PTZ Camera
BDP400B features 20x zoom,10-bit NDI in stunning 4K resolution and allows chroma subsampling in your choice of 4:2:0 or 4:2:2. P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module. P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions.
BirdDog PTZ Keyboard Controller
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.
| Pixellot Prime introduces affordable multi-feed production, enabling professional and semi-professional leagues, colleges and youth academies to produce and distribute HD quality broadcasts with a limited video crew and without an OB van.
Advanced Production Suite
Streamlining the production workflow, Pixellot Prime deploys an unmanned panoramic camera to capture the entire field at native 50-60 FPS. From the sporting event venue, the SDI footage is automatically fed into any production suite where the final broadcast is mixed, in real-time.
The suite displays a variety of views and streams, including an auto-produced feed featuring the center of action, streams from additional cameras and preset camera stations to create close-ups and replays. An array of transition options and graphic elements lets directors create TV-grade broadcasts for web portals and mobile apps. Clients opt for either a “clean” feed, streaming only the sports action or a program (“dirty”) feed.
- 8K capture and HD-SDI output, 50/60 FPS
- End-to-end production system, enables production of sports event with single-person crew
- Remote Production Suite to create multi-feed broadcast
- Embedded graphics and ad formats
- Additional audio input for commentator
- Panoramic footage to power VR applications
KEY FEATURES:
- Auto Production
- Panoramic Video
- Spatial Replay
- Auto-Director & Ads
- Automatic Highlights
| Academic version available to qualified school purchasers and teachers only. Proof of qualification required for order approval.
Live video production simplified!
Wirecast Gear gives you an easy to use, fully configured live video streaming production system. Because we’ve already done all the work, there is no need to build your own system! Start streaming in minutes with an end-to-end system configured specifically for your needs. With Wirecast Pro included alongside Gear's custom-designed hardware, it's a live event production switcher, live news production system, Facebook Live switcher and YouTube Live switcher - all in one box.
Each model of Wirecast Gear comes with Xeon Server architecture, up to five HD-SDI or four HDMI professional camera inputs and all the live video streaming production features of Wirecast Pro, the Stock Media Library*, NewBlue Titler Live Complete, and Switch Player, all in a compact, powerful hardware system.
Wirecast Gear offers a unique blend of performance, ease of use and affordability. Just plug in your cameras and start producing and streaming your professional events with the industry-leading turnkey video production system.
*with an active Wirecast support subscription
CAPTURE
With a durable and portable rack mounted design, Wirecast Gear is the perfect hardware for your permanent studio or for use on location. HDMI or SDI inputs, server-grade components and industry-leading XLR/TRS combo audio inputs make ingesting media into your Wirecast Gear unit both reliable and easy.
PRODUCTION
With Wirecast Pro, the integrated Stock Media Library*, Switch Player and NewBlue Titler Live Complete preloaded into all Gear units, producing your live streams has never been more professional, polished or powerful. Create beautiful titles, draw from over 500,000+ unique media assets, and pull it all together with Wirecast Pro to create the perfect broadcast for your viewers, no matter the destination.
*with an active Wirecast support subscription
STREAMING
Encoding live streams can take a toll on a computer’s CPU, but not on Wirecast Gear. With hardware accelerated encoding, Xeon server architecture, a dedicated NVIDIA QUADRO graphics card*, multiple simultaneous encodes and 3rd party thermal testing, Wirecast Gear is ready for even the most demanding broadcasting schedules and workflows . | BirdDog 3x P200 Cameras (White) and 1x FREE PTZ Keyboard
BirdDog Eyes P200 Camera: Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI simultaneously.
BirdDog PTZ Keyboard: BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols.
| The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
KEY FEATURES
- High Sensitivity Achieved with the 1” Large-sized Sensor
- Optical 20x Zoom/Horizontal 75.1° Wide-angle Shooting
- Pan/tilt Performance that Achieves Smooth and Accurate Operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.
Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
Dimensions (W x H x D)
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket)
General
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Finish
AW‑HE145W: Pearl white
AW‑HE145K: Metallic Black
Mass
Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
Controller Supported
AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
LENS
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Synchro scan
59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
Zoom
• Optical zoom: 20x
• i.Zoom: FHD 32x
• Digital zoom: 10x
Horizontal Resolution
1000 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
WHITE BALANCE
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Output Format
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
Scene File
Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed
59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Imaging Sensors
1-type Full-HD MOSx1
Chroma Amount Variability
OFF, –99 % to 99 %
Camera Unit
-
Frame mix*3
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
INPUT
-
OUTPUT
-
Input/Output Connector
LAN
LAN connector for IP control (RJ‑45)
RS-422
CONTROL IN RS-422A (RJ‑45)
MIC/LINE input
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV
INPUT/OUTPUT
-
Pan/Tilt Operation Speed
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*8
• Maximum speed is 180°/s in high-speed mode
Quietness
NC35 or less
Tilting Range
–30° to 210°*9
Panning range
±175°
Pan-tilt Head Unit
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control
IP connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
Supported operating systems and web browsers
Windows
Microsoft(R) Windows(R) 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
MacOS v11.0.1 / Safari 14.01
MacOS v11.0.1 / Google Chrome
MacOS V10.15 / Google Chrome
MacOS V10.14 / Google Chrome
iPhone / iPad
iOS
Google Chrome
Supported Operating Systems and Web Browsers*10
-
Image Resolution
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
1920x1080, 1280x720, 640x360, 320x180
-
Image Transmission Setting
JPEG
Frame Rate: Maximum 30 fps, Image quality (Fine / Normal)
H.264
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
H.265
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
NDI|HX
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.264
Transmission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.265
Transimission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
RTMP/RTMPS
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
Supported protocol
IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP
IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Other Function
-
Tally LED display color
red / green
NDI Support*11
NDI | HX
Note
*1: Available in September 2021.
*2: 1 dB step increments can be set.
*3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.
*4: Native output.
*5: It denotes “1080/23.98p over 59.94i”.
*6: Use of an STP (shielded twisted pair) cable is recommended.
*7: To ensure safety, the unit must be secured using the mount bracket supplied.
*8: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode.
*9: Depending on the pan or tilt position, the camera may be reflected in the image.
*10: Supported OS indicated are for browsers current as of October 2018. See Service and Support (https://eww.pass.panasonic.co.jp/p2ui/guest/TopLogin.do?lang=en&category=pav) for the latest information on browser support.
*11: Contact your local Panasonic vendor for further information. |
