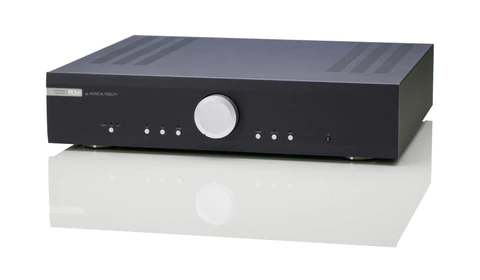

| Content | The M3si integrated amplifier produces high quality sound, has an extensive range of useful inputs and offers high reliability, compact size and a fair price. With its strong 85 watts per channel, the M3si will drive a huge variety of appropriate loudspeakers. It has inputs for phono (MM), 4 line inputs and USB ‘B’ up to 24bit 96 kHz.
The M3si’s sound is effortless, clear and sweet. It projects wide and deep images and has plenty of power to deliver excellent dynamic range.
The M3si is unconditionally stable and will drive any appropriate loudspeaker with ease.
Although it is Musical Fidelity’s lowest price amplifier, it embodies our hallmark values of uncoloured, stress-free sound, outstanding technical performance and great value for money.
M3si In Brief
- 85WPC
- Excellent technical performance
- Preamp output
- Unconditional stability, will drive any loudspeaker
- Wide range of useful inputs
- including asynchronous USB and MM phono
- Excellent build quality and convenient size
Specifications
Power output: 85 W per channel into 8 ohm
THD(+ noise): <0.014 % typical, 20 Hz to 20 kHz
Signal to Noise Ratio: >98 dB ‘A’-weighted
Frequency Response: +0, –0.1 dB, 10 Hz to 20 kHz

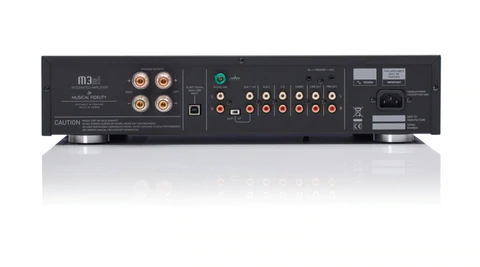

Inputs: 4x Line Level RCA / Phono, 1x USB type ‘B’ connector - Asynchronous data stream at up to 24-bit/96kHz, 1x MM Phono input
Phono
Sensitivity (nominal): 3 mV (suitable for cartridges giving 1.5mV or more including high output MC types)
Signal / noise ratio: >70 dB ‘A’-weighted
Input impedance: 50 k ohm
Frequency response: RIAA/IEC ±1 dB, 20 Hz to 20 kHz
Dimensions - WxHxD (mm): 440 x 100 x 400

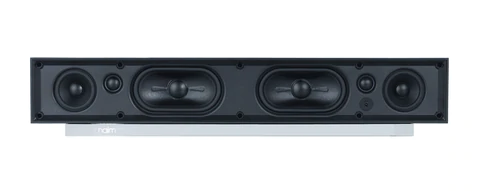

Weight (unpacked / packed): 9.2 kg/ 13 kg | Mu-so 2nd Generation is the successor to the multiple award-winning Mu-so wireless music system, re-engineered for class-leading performance, functionality, and usability by Naim's experts in Salisbury, England.
Combining Naim's 45 years of hi-fi mastery with the very latest music-streaming technology and premium design quality, this is the ultimate single-box system you and your music deserve. From up to 32bit high-resolution streaming to multiroom music to HDMI TV sound; you’ve never heard it so good from an all-in-one wireless system.
The all-new multicore Digital Signal Processor (DSP) drives higher performance, providing 2000 MIPS (Million Instructions Per Second) compared to the original Mu-so’s single-core, 150MIPS DSP.
Naim has also created a new limiter algorithm that keeps each of Mu-so 2nd Generation’s speaker drivers’ movement under control when at high volume levels. The new limiter, by design; is only active at extreme volume levels, and helps to retain the music’s clarity and increase long-term reliability.
Premium aluminum casing, in a new burnished grey finish.
It may look similar outside, but inside Mu-so 2nd Generation, the majority of components have been upgraded to improve performance.
The cabinet design has been re-engineered to create 13% more internal volume, enabling bigger, better bass. Both the cabinet bracing and baffle molding have been redesigned for improved rigidity, which suppresses and controls vibrations.
The distinctive heat-sink fins are now more compact, while still being ultra-effective, and continuing to feature Naim patented technology that discreetly incorporates the Wi-Fi antenna.
Specifications
Audio Inputs
HDMI: ARC in with CEC
Streaming: Apple AirPlay 2, Chromecast Built-in, UPnP, Spotify® Connect, TIDAL, Roon Ready, Bluetooth, Internet Radio
Analog input: 3.5mm Jack
USB: USB2 (Type A connector)
Digital (S/PDIF): Optical S/PDIF up to 96 kHz
Connectivity
Multiroom: Sync up to five Naim streaming products and control via the Naim App
Network: Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac), BLE v4.2
Formats
Internet radio formats: Windows Media-formatted content, MP3, ACC, Ogg Vorbis streams and MMS
Internet radio provider: vTuner Premium 5*
Audio formats
WAV, FLAC and AIFF – up to 24bit/384kHz
ALAC (Apple Lossless) – up to 24bit/384kHz
MP3 – up to 48kHz, 320kbit (16 bit)
AAC – up to 48kHz, 320kbit (16bit)
OGG and WMA – up to 48kHz (16bit)
DSD- 64 and 128Fs
Bluetooth - SBC, AAC
Note: Gapless playback supported on all formats
Warranty: Two years
Physical
Finishes: Burnished and anodized aluminum casework, CNC milled, bead blasted and anodized aluminum heatsinks, dual-tone grey and black fabric grill or light wood veneer and beige fabric grill.
Weight: 24.69 lb
Dimensions (HWD): 4.8" x 24.7" x 10.4"
Amplifier output: 450 W – (6 x 75 W)
Power Consumption
Typical use: 17 W
Standby mode: < 2 W
Deep sleep (No-network standby mode): < 0.5 W
Speaker system: Stereo 3-way; DSP-optimised vented box acoustic system

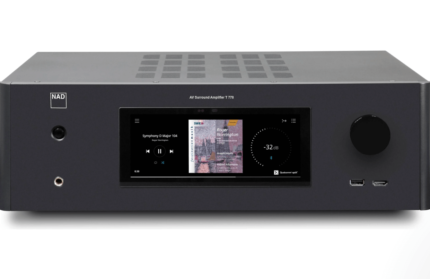

Supplied with: Dual-tone grey and black grill, remote control, power cord, reset pin-hole tool and information booklets | NAD Electronics T 778 Reference 9.2 Channel A/V Receiver
NAD s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.
Introducing the T 778 A/V Surround Amplifier
BluOS Enabled 4K Ultra HD Receiver with Immersive Sound
NAD s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.
Efficient Distortion-free Amplification
The T 778 features the latest developments in NAD s Hybrid Digital technology to create 9 high current/high power channels of amplification with improved efficiency. Designed with NAD s full disclosure approach to power ratings, the NAD AVR conservatively delivers 85W FDP and 9 x 140W FTC, all channels driven at rated distortion. For flexibility, the amp channels are configurable to be used for surround or second zone audio. The silent black background and explosive dynamics afforded by this amplifier technology adds lifelike realism, drama and excitement to all your music and movies.
Fully Featured Surround
The T 778 is second-to-none in terms of flexibility and up-to-the-minute digital technology. Only NAD offers Modular Design Construction (MDC), the company s proven method for preventing premature obsolescence. 7.1.4 Dolby Atmos , DTS Master Audio combine with Dirac Live room correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect 4K UHD video pass-through and the T 778 delivers the most accurate sound and image experience you ve ever had. Musical performance is outstanding with High Res Multi-room streaming via BluOS.
Complete and Compact
As with all NAD components, the company s latest offering continues their simple is better design philosophy. This sensible approach contributes to ease of use and maximizes performance where it counts. A perfect example is the striking new touch screen and ergonomic refinements that simplify operation and ease of access. The T 778 features NAD s legendary sound quality along with complete compatibility with all the latest features and formats to ensure lifelike music and movie enjoyment.
Key Features of the NAD T 778:
- 9 channels of NAD s latest Hybrid Digital Amplifier Technology
- New touch screen and improved ergonomics for user-friendly operation
- 4K UHD video pass-through
- HDMI CEC/eARC
- High-Res BluOS enabled Network Streaming
- Dirac Live Room Correction
- Full decoding of MQA content via BluOS.
- Apple AirPlay 2
- MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
- CI friendly- RS232 Serial Control Port. Trigger In/Out.
- IR In with learning function
| This is the product to get if digital setup is confusing or overwhelming. Just add a power amp and speakers for a fully functional streaming platform with one of the neatest most intuitive manufacturer apps out there: BluOS.
A Sabre DAC ensures detailed and musical output, and the NAD C 658 also features Dirac room correction. And yes, it'll do the "full unfold" of all MQA content.
Features
- BluOS Network Streaming with MQA Decoding
- ESS Sabre DAC
- Dirac Live Room Correction*
- Gigabit Ethernet
- Dual Band Wi-Fi ac/n
- 2-way Qualcomm aptX HD Bluetooth
- 2 x MDC Slots for Future Expansion
- MM Phono Input
- 2 x Line Inputs
- 2 x Optical Inputs
- 2 x Coax Inputs
- Balanced Preamp Output
- Preamp Output
- Stereo Subwoofer Output
- High Current Headphone Out
- USB socket for adding optional wireless output module
- IR In with Learning Function
- Trigger Out/In
Specifications
Supported audio file formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS, MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
Native sampling rates: Up to 32 bit/192 kHz
BluOS
Supported operating systems: Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
User interface mobile operating system: luOS – Free Android and iOS App available online at Google Play and Apple App store
Supported cloud services: Spotify, Amazon Music, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, BugsFree internet radioTuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
Bluetooth: Bluetooth aptX HD wireless built-in, two-Way
Network connectivity: Gigabit Ethernet RJ45, WiFi 5 (802.11 ac/n)
Dimensions (WHD): 17-1/8" x 3-15/16" x 16"
Shipping weight: 22.3 lb

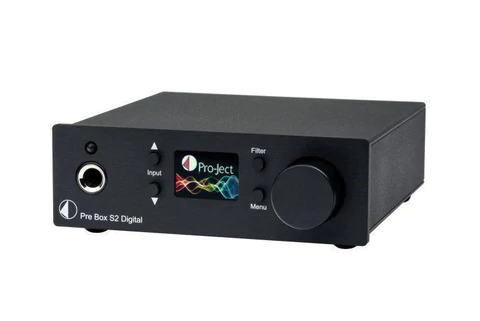

| Features
- Dual mono construction
- High-end ESS Sabre ESS9038 dual DAC
- Proprietary clock circuity design
- Organic polymer capacitors and thin film miniMELF resistors
- MQA hardware decoding
- DSD64, DSD128, DSD256 & DSD512 (DoP, DSD512 native)
- Up to 24bit/192kHz for optical & coax inputs
- 8 selectable digital filter characteristics
- 1 proprietary optimum transient digital filter
- Headphone output on the front (6.3mm)
- Synchronization of all internal oscillators
- Jitter as low as 100 Femtoseconds!
- Gold plated four-layer PCB
- Full alu/metal sandwich casing in silver or black
Technical

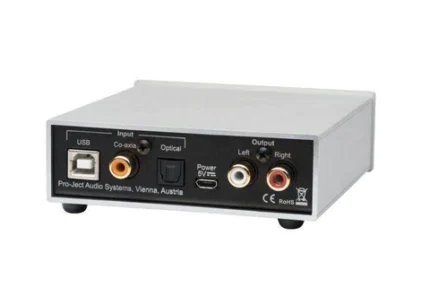

| Digital inputs |
1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink) |
| D/A-converter |
2x ESS9038Q2M 32-bit |
| USB |
up to DSD512 (DSD1024), PCM up to 32b/768kHz |
| Optical |
PCM up to 24b/192kHz |
| Coaxial |
PCM up to 24b/192kHz |
| Filter settings |
7 different selectable on front |
| Frequency response |
20 Hz - 20 kHz |
| Analogue outputs |
6.3mm Headphone (front), 1x Variable Out (RCA |
| Output voltage |
2.05 Veff |
| Minimal recommended headphone impedance |
8 Ohm |
| Headphone output power |
6.6 mW / 600 Ohm; 68 mW / 32 Ohm |
| THD |
0.0003% @ 0 dB, 2V RMS, 1 kHz |
| Dynamic range |
124 dBA |
| Outboard Power supply |
5V/1A DC (included) |
| Dimensions W x H x D |
103 x 37 x 122 mm (including knob and connectors) |
| Weight |
366 g (without power supply) |
|
Uniti Atom is a beautiful, compact multi-source music player that will seduce you with its amazing sound quality and outstanding feature-set. Its 40-watt integrated amplifier and high-resolution music streaming capabilities will fill your home with stunning high-fidelity sound. Uniti Atom is perfect as a high-end main system or even for use in the kitchen or study, where space is at a premium. Just add speakers. The Naim App for iOS and Android combines all of your music sources in one place, making Uniti Atom even more appealing.
Upgradeable Performance
In true Naim style, the new Uniti Atom can be upgraded with an external power amplifier, such as the compact NAP 100. You can also add a subwoofer for deeper bass extension. And for those with extensive CD collections, you can add a Uniti Core music server to your system to store and stream thousands of albums to your Uniti player and back up all of your music in one place.
Specifications
Connectivity
Audio Inputs
2 x Optical TOSLink (up to 24bit/96kHz)
1 x Coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x HDMI ARC
1 x RCA
2 x USB Type A socket (front and rear)
Audio Outputs
1 x Stereo power amplifier
1 x RCA sub/pre output
1 x 3.5 mm headphone jack
Amplifier Output: 40 W per channel into 8 ohm
Dimensions (WHD): 9.65" x 3.74" x x 10.43" (245 mm x 95 mm x 265 mm)
Weight: 15.43 lb |
