| Content | TriCaster Mini SDI TCMASDIR2
This is the newest version of the NewTek TriCaster Mini Advanced sdi with substantially upgraded components and features now closer in hardware to the TriCaster Mini 4K | NDI.
- The new TriCaster Mini SDI no longer comes with a side screen. Overall, NewTek was able to focus on better heat control, and optimized hardware for a performance and reliability gains.
- Now comes with Quad output nVidia Quadro based card for more powerful real time advanced processing including full use of CUDA for increased quality, hardware assisted encoding, decoding and streaming.
- 4 Mini DisplayPorts - One for user interface and three for multi-viewers that run in full screen production quality. Comes with 4 mini DisplayPort adapters.
- New Dual 1Gb Ethernet for increased IP connectivity, and load balancing of across multiple connections. Sharing and load balancing of bandwidth across multiple connections using NDI version 4 doubles the amount of NDI traffic providing more powerful media connectivity and expansion.
- Internal 1 TB SSD storage for faster boot and load times, increased recording capabilities and higher reliability in portable environments.
- New portable storage USB 3.1 and USB-C ports for more concurrent recording capability.
- New 180watts power supply that makes the hardware quieter during operation.
- Comes with Windows 10 for increased performance and fewer security concerns.
Real Video Production. No Experience Required.
You don’t have to be a video expert, own a studio, or know your way around a broadcast control room to deliver your message through video with network-quality results. With an all-in-one design, do-it-yourself setup, and hundreds of entry-level and advanced production capabilities, you can be on your way to captivating audiences from anywhere within minutes of opening the box.
- HD switching, streaming, and recording
- 8 external video inputs and 4 mix outputs
- Connect to compatible IP devices via NDI® - Connect to the most prolific IP-based workflow in the industry right out of the box. With native integration of NDI®, NewTek’s innovative Network Device Interface technology, TriCaster Mini Advanced is instantly compatible with products from hundreds of manufacturers and developers over the network.
- Streaming to Facebook Live, Twitch, and more
- Real-time social media publishing
- Multi-channel recording and internal storage
- Video playback without any additional hardware
- Built-in live titling and motion graphics
- Multi-channel audio mixing
- Maximize your investment now and for the future. With TriCaster Advanced Edition software now included, TriCaster Mini Advanced offers more than 100 additional video production capabilities compared to the original system platform—at no additional cost.

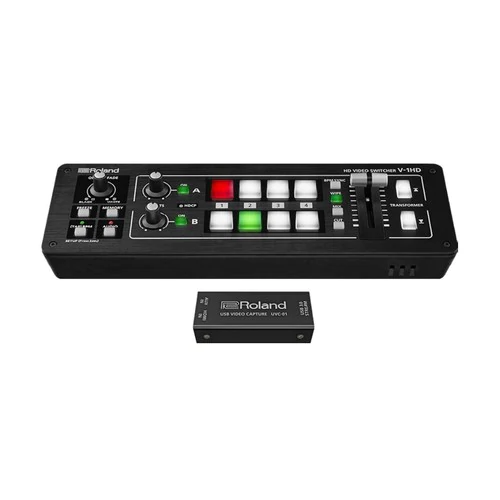

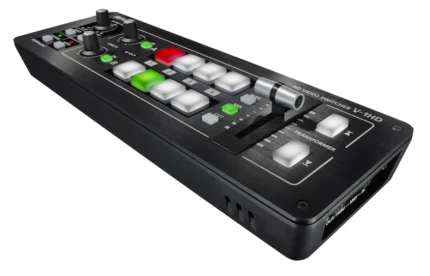

| So compact and portable, you can bring the V-1HD and use it anywhere!
The V-1HD is a compact and portable four channel video switcher with both hardware and connected PC / iPad control that supports four HDMI inputs at resolutions of up to 1080p along with a 12 channel audio mixer with audio embedding and de-embedding from HDMI. The V-1HD supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” and is ideal for news broadcast or corporate training productions. For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances.
Features:
- Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy to Use Interface
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Full 12 Channel Audio Mixer Included
- Easy to Operate with Hardware Controls
- Two HDMI Outputs
- Remote Control via USB or MIDI Connection
Feature packed and easy to use for high-quality HD video results.
For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances. Output of your video mix is as simple as connecting the HDMI output to a projector or screen at an event and you can even connect a recorder for capturing your event or production.
4 HDMI Inputs
The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.
Professional Switching
The V-1HD has large back-lit buttons for intuitive video switching even in low light conditions. Red lit buttons indicate the current source being output and green lit buttons indicate the video that will be output on the next transition. The V-1HD even lets you know which inputs have sources connected by illuminating the buttons of the inputs with connected sources. The V-1HD features broadcast style Preview/Program switching for professional results. The TRANSFORMER buttons can be used for instantly switching the video or applying effects. Three transition selection buttons permit quick change of mixing style to match style changes in a performance or broadcast. Transition effects include CUT, MIX (4 types) and WIPE (30 types). The auto scan function switches the video automatically across the four video inputs. By using the T-Fader and BPM SYNC button, you can deliver visuals synced to a music performance. Use the FREEZE button to temporarily pause the incoming video. The output fade function makes the output video fade to black or white.
Effects
Compositing Effects. Compositing two videos in one screen using Picture in Picture or the split function is ideal for seminars and presentations. The V-1HD also supports chroma key and luminance key which ideal for creating professional looking broadcasts using green screen backgrounds or for overlaying computer generated titles on top of video sources. Many of the visual performance functions made popular by the V-4EX and V-8 are included. Use the knob A and knob B to apply and adjust effects to the A bus and B bus respectively. Nine types of filter effects including silhouette, colorpass, negative and findedge are possible. Effects can also be triggered using the TRANSFORMER buttons for even more interactive visual performance possibilities.
Audio Mixing
Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. *The maximum delay time is 500ms.
Menu and Settings
The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. Making adjustments to parameters and operating the audio mixer can be made by simple operation of the buttons and the T-Fader on the unit.
Preview Output
The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. There are three types of view modes available for the preview output which are Multi-view, Output (as a secondary program output) and Preview. The on-screen display can be turned on or off.
Remote Control via USB or MIDI Connection
Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac or an iPad connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. *For more information on the dedicated application, see the Roland website. * Please use the iPad camera connection kit to connect an iPad to the V-1HD.
Easy to Operate with Hardware Controls
Basic operations can be done by operating the buttons and the T-Fader on the unit. To make detailed settings you just need to connect a monitor to the preview connector.

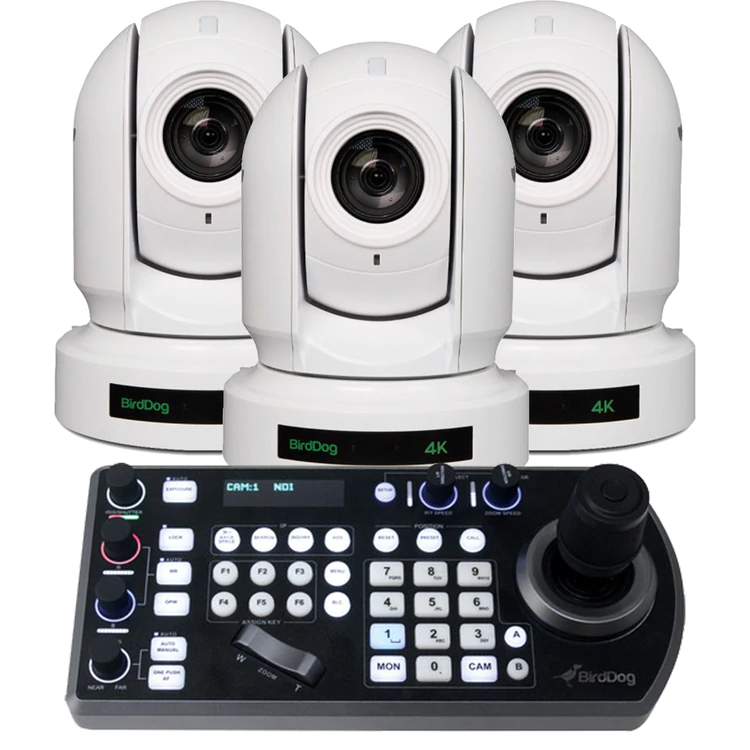

| BirdDog P400 PTZ Camera
P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2.
P400 teams up BirdDog’s custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module.
Double Wow.
P400 includes professional-level colour tools including Colour Matrix control, Black level, Gamma including 512 pre-set gamma positions.
Triple Wow.
BirdDog PTZ Keyboard
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI®, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI® and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Universal control. Mix and Match protocols. | PORTABLE COMPACT HD SWITCHER

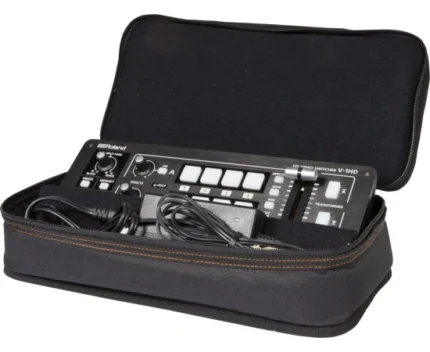

So compact and portable, you can bring the V-1HD and use it anywhere!
The V-1HD is a compact and portable four channel video switcher with both hardware and connected PC / iPad control that supports four HDMI inputs at resolutions of up to 1080p along with a 12 channel audio mixer with audio embedding and de-embedding from HDMI. The V-1HD supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” and is ideal for news broadcast or corporate training productions. For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances.
Features:
- Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy to Use Interface
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Full 12 Channel Audio Mixer Included
- Easy to Operate with Hardware Controls
- Two HDMI Outputs
- Remote Control via USB or MIDI Connection
Feature packed and easy to use for high-quality HD video results.
For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances. Output of your video mix is as simple as connecting the HDMI output to a projector or screen at an event and you can even connect a recorder for capturing your event or production.
4 HDMI Inputs
The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.
Professional Switching
The V-1HD has large back-lit buttons for intuitive video switching even in low light conditions. Red lit buttons indicate the current source being output and green lit buttons indicate the video that will be output on the next transition. The V-1HD even lets you know which inputs have sources connected by illuminating the buttons of the inputs with connected sources. The V-1HD features broadcast style Preview/Program switching for professional results. The TRANSFORMER buttons can be used for instantly switching the video or applying effects. Three transition selection buttons permit quick change of mixing style to match style changes in a performance or broadcast. Transition effects include CUT, MIX (4 types) and WIPE (30 types). The auto scan function switches the video automatically across the four video inputs. By using the T-Fader and BPM SYNC button, you can deliver visuals synced to a music performance. Use the FREEZE button to temporarily pause the incoming video. The output fade function makes the output video fade to black or white.
Effects
Compositing Effects. Compositing two videos in one screen using Picture in Picture or the split function is ideal for seminars and presentations. The V-1HD also supports chroma key and luminance key which ideal for creating professional looking broadcasts using green screen backgrounds or for overlaying computer generated titles on top of video sources. Many of the visual performance functions made popular by the V-4EX and V-8 are included. Use the knob A and knob B to apply and adjust effects to the A bus and B bus respectively. Nine types of filter effects including silhouette, colorpass, negative and findedge are possible. Effects can also be triggered using the TRANSFORMER buttons for even more interactive visual performance possibilities.
Audio Mixing
Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. *The maximum delay time is 500ms.
Menu and Settings
The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. Making adjustments to parameters and operating the audio mixer can be made by simple operation of the buttons and the T-Fader on the unit.
Preview Output
The four-way multi-view preview screen shows all four input sources on a single display for confident moniotoring. A red border shows the video currently being output and a green one indicates the video to be output next. There are three types of view modes available for the preview output which are Multi-view, Output (as a secondary program output) and Preview. The on-screen display can be turned on or off.
Remote Control via USB or MIDI Connection
Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac or an iPad connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. *For more information on the dedicated application, see the Roland website. * Please use the iPad camera connection kit to connect an iPad to the V-1HD.
Easy to Operate with Hardware Controls
Basic operations can be done by operating the buttons and the T-Fader on the unit. To make detailed settings you just need to connect a monitor to the preview connector.
| VIDEO |
|
| Video Processing |
4:2:2(Y/Pb/Pr), 8-bit |
| Output Connectors |
HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported |
| Input Formats |
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p) HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p(FORMAT switch = 1080i or 1080p) *The input interlaced video signal is converted to progressive video signal by internal processing. *The video signal frame rate is selected by SETUP parameters (59.94 or 50). |
| Output Formats |
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p) HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i) HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p) *The video signal frame rate is selected by SETUP parameters (59.94 or 50). |
| Video Effects |
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), TRANSFORMER(11 types) EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@, GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/2)@, SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@, SPLIT(V-CENTER)@ *@ marked Effects are effected common to A-BUS and B-BUS. |
| AUDIO |
|
| Audio Processing |
Sampling rate: 24bit/48kHz |
| Input Connectors |
Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins) Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type) |
| Input Level |
AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu) |
| Input Impedance |
AUDIO IN: 15 k ohms, MIC:10 k ohms |
| Output Level |
| Output Impedance |
AUDIO OUT: 1k ohms, PHONES: 10 ohms |
| Audio Effects |
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect |
| OTHERS |
|
| Other Connectors |
USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU |
| Other Functions |
MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK) |
| Power Supply |
AC adaptor |
| Current Draw |
1.5A |
| Power Consumption |
18W |
| Dimensions |
313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches |
| Weight |
1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz |
| Accessories |
Owner’s Manual, AC Adaptor, Power Cord, Cord Hook |
| NEXIS | PRO 40TB Shared Storage System with Dell N2024 Network Switch
Get proven, real-time collaboration—for everyone
Get the performance and reliability of Avid NEXIS in a more affordable system designed for small video or audio production teams. Avid NEXIS | PRO offers real-time collaboration to accelerate your media workflow. Find and share media fast. Adapt workspace capacity, performance, and protection as requirements change. And get the same secure and reliable workflows trusted by an industry.
The new 40TB version of Avid NEXIS | PRO accommodates larger projects. Each Avid NEXIS | PRO 40TB delivers 40TB capacity and the ability to have single or dual disk media protection and up to 600MB/sec of throughput for collaborative editing of video and audio workflows.
-
- Up to 2.4GB/sec performance
-
- Can be added to existing Avid NEXIS | PRO systems
Product Highlights
Enable creative collaboration
With the increasing demand for more content in shorter timeframes, Avid NEXIS | PRO enables you to connect your team, share media and sequences, and work together on the same projects in real time. Without fear of accidentally overwriting someone else’s work. Gain more time to spend focusing on telling a great story—and less time searching for and shuttling media. And put the “flow” back in your workflow with the ability to connect up to 24 contributors simultaneously.
Experience exceptional performance
Production schedules are unpredictable. Can one system really change the possibilities of what you can achieve? Absolutely. With its advanced architecture, intelligent file system, high bandwidth, and automation abilities, Avid NEXIS | PRO delivers unrivaled media performance with up to 2.4 GB/s of bandwidth speed, enabling projects to move in parallel, so you can turn around more projects faster. No matter what editing and media asset management tools you use.
Get the reliability you need
When your reputation and business are on the line, Avid NEXIS | PRO protects and secures your media like no other. The system is built on the same technology trusted by thousands of top broadcasters and post-production studios. From its bulletproof security privileges, to fail-safe disk protection with automatic drive rebuild, you can rest assured that your content is safe. And should you need it, tech experts are available around the clock to help.
Dell N2024 Switch
Non-blocking GbE Layer 3 Standard switches with multi-chassis link aggregation (MLAG) support and 12-unit stacking.
-
- 24 RJ45 10/100/1000Mb auto-sensing ports
-
- Two integrated 10GbE SFP+ ports
-
- Two dedicated rear stacking ports
- One integrated power supply (100W AC)
| Media Drives |
| Width |
Width (mounting): 19 in (483 mm); IEC rack compliant |
| Works with the following switches (not included): |
NETGEAR XS712T |
| System |
64-bit self-balancing, distributed file system |
| Workspace |
Dynamic workspace set-up and monitoring |
| FlexDrive dynamically adjusts storage workspaces without editing interruption |
| User workspace access controls |
| Temperature |
Operating temperature: 5°C to 40°C (35ºC max. above 2,000m) |
| Non-operating temperature: -40°C to 60°C |
| Power Consumption |
Maximum power consumption: 764W |
| Files/Folders |
3 million |
| Subscriptions |
Available through a monthly or annual subscription to Avid Support |
| Pearl 2 Rackmount
Pearl 2 Rackmount, the all-in-one system for live video switching, streaming and recording in HD and with an option for 4K.
- 2U rackmount chassis
- Live video switching using the touch screen or web UI
- Stream audio + 12G-SDI, HD-SDI, SD-SDI, HDMI™
- Up to 6 1080p HD streams at 30 fps or 2 at 60 fps
- Visual layout editor for simple creation of custom multi-view layouts
Pearl-2 Rackmount is a powerful 2U live production video mixer that fits perfectly into your 19-inch AV rack whether it’s threaded or unthreaded. Create stunning live video programs by by combining, encoding, switching and recording up to six video sources and 2 audio sources. With Pearl-2 Rackmount you can share any kind of video, anytime, anywhere, effortlessly.
Simple to use with a web-based portal for initial configuration, you get a drag and drop interface to create completely customizable layouts for your live stream. You can choose to keep Pearl-2’s default encoding settings or customize them to meet your exact needs. Control the video recorder and video switcher capabilities via the touch screen or the tablet-friendly Epiphan Live interface.
Start streaming live today with Pearl-2 Rackmount!
About Pearl-2 4K Add-ons
Pearl-2 Rackmount is sold as a base model and uses add-ons to activate extra features. With the base model, all six video inputs accept a maximum of input resolution of 1920×1080 and you can create up to six 1080p Full HD video programs at 30 fps.
The 4K feature add-on gives you 4K encoding and streaming capabilities. With this add-on activated you can create a 4K program comprised of up to 2 4K inputs and 2 HD or IP camera inputs.
Add-on details:
|
HD INPUTS |
4K INPUTS |
OUTPUT PORTS |
HARDWARE SCALING |
| Pearl2 Base |
6 × HD |
– |
2 × HDMI |
– |
| Pearl2 with 4K feature |
4 × 4K + 2 × HD |
✓ |
2 × HDMI 4K |
4K to 1080p |
Pearl-2 feature add-ons can be purchased any time: either when you buy Pearl-2, or later. Once you purchase your add-on, Pearl-2 uses a one-time web activation to give you the new add-on functionality. |
