Integrated Stereo Amplifier
Versatile pre-main amp refreshes your music life
Onkyo builds on the success of its A-9010 pre-main amp with the new A-9110 Integrated Stereo Amplifier, a component that refines an original amp design that's won an excellent critical and commercial reputation for dynamic, musical sound. Lively dynamics, deep bass, and layered detail emerge from warm and expressive tuning sure to please European ears.
WRAT delivers high-current power stability via large custom capacitors, while low-NFB amps capture the depth and spatiality of analog and hi-res recordings. Five RCA inputs including MM phono stage connect your sources while high-quality speaker-posts reveal Onkyo's hi-fi heritage and careful attention to detail. The A-9110 invites you into each album, the hours passing comfortably in pure analog sound.
Stable high-current power with wide-range amplifiers
Dynamic changes in music cause impedance to fluctuate. If power can't be delivered when impedance drops, sound quality suffers. Onkyo's solution is WRAT, specifically its high-output EI transformer, huge custom-made main audio capacitors, and carefully selected high-quality parts. High-current stability controls the speaker-drivers for accurate and assured reproduction of dynamic musical passages.
Further, the A-9110 features Onkyo's time-proven low-negative-feedback amplifier topology that distinguishes the timbral warmth, fullness, and vibrancy of the recording. This circuitry captures a wide frequency spectrum with uncommonly low distortion.
Sounds clearer at low volumes
When playing music at low volume, the signal normally drops close to the component's noise floor. The signal picks up noise, which is amplified, and the result is muffled sound.
To avoid this, the A-9110 features Optimum Gain Volume Circuitry, a volume circuit that requires less than half the usual amount of attenuation. The signal never approaches the noise floor, so you can enjoy clearest sound at low volume.
Phase Matching Bass Boost enriches sound at low volume
Most pre-main amps have a loudness button designed to boost low-mid frequency sound. However, conventional designs are prone to phase-shift, which degrades the clarity of the vocal frequency band.
Onkyo's Phase Matching Bass Boost function eliminates phase-shift between low- and mid-range frequency bands above 300 Hz.
Bass response is enhanced without compromising vocal clarity, and that's something especially useful when playing music at low volume where bass and high-frequency sounds are more difficult to hear.
Thick and rigid chassis tames resonance
Every hi-fi component generates electromechanical resonance. This translates into signal noise, and that impacts on the sound coming out of your speakers. To combat the negative effects of vibration, the A-9110 features a rigid metal chassis that's 1.3 times thicker than the A-9010 at 1.6 mm. Working together with large, wide-spaced insulators, unwanted resonance is virtually eliminated.
Direct Mode brings you closer to the source
Direct Mode bypasses tone and PM Bass circuitries. In combination with a refined amp circuit design, signal-path-lengths have been significantly reduced in comparison to the A-9010 for even more accurate and faithful sound.
Enjoy end-to-end analog music reproduction from turntable to speakers, and recapture the atmosphere of the original recording with any connected source.
New fine display shares info clearly
A new display panel boasts fine text resolution, making it easier to read at a distance than single bulbs. It shows active selected input at a glance.
Quality speaker-posts make perfect contact
Speaker cables with your choice of terminal are firmly secured by high-quality speaker binding posts. Each wide-spaced non-magnetic post prevents interference and features a large, easy-to-grip transparent knob.
- A-9110 Features:
- 50 W + 50 W high-current amplification
- WRAT (Wide Range Amplification Technology)
- Direct Mode for source-authentic audio reproduction
- Phase Matching Bass Boost
- High-current EI transformer, large custom audio capacitors, and discrete output stage
- New fine display for easy source selection
- Amplification Features:
- 50 W + 50 W (4 Ohm, 20 Hz-20 kHz, 0.9% THD, 2-ch driven, IEC)
- Optimum Gain Volume Circuitry for clear low-volume playback
- 4 Ohm speaker-driving capability
- Rigid anti-resonant 1.6 mm metal chassis
- Direct Mode for source-authentic audio reproduction

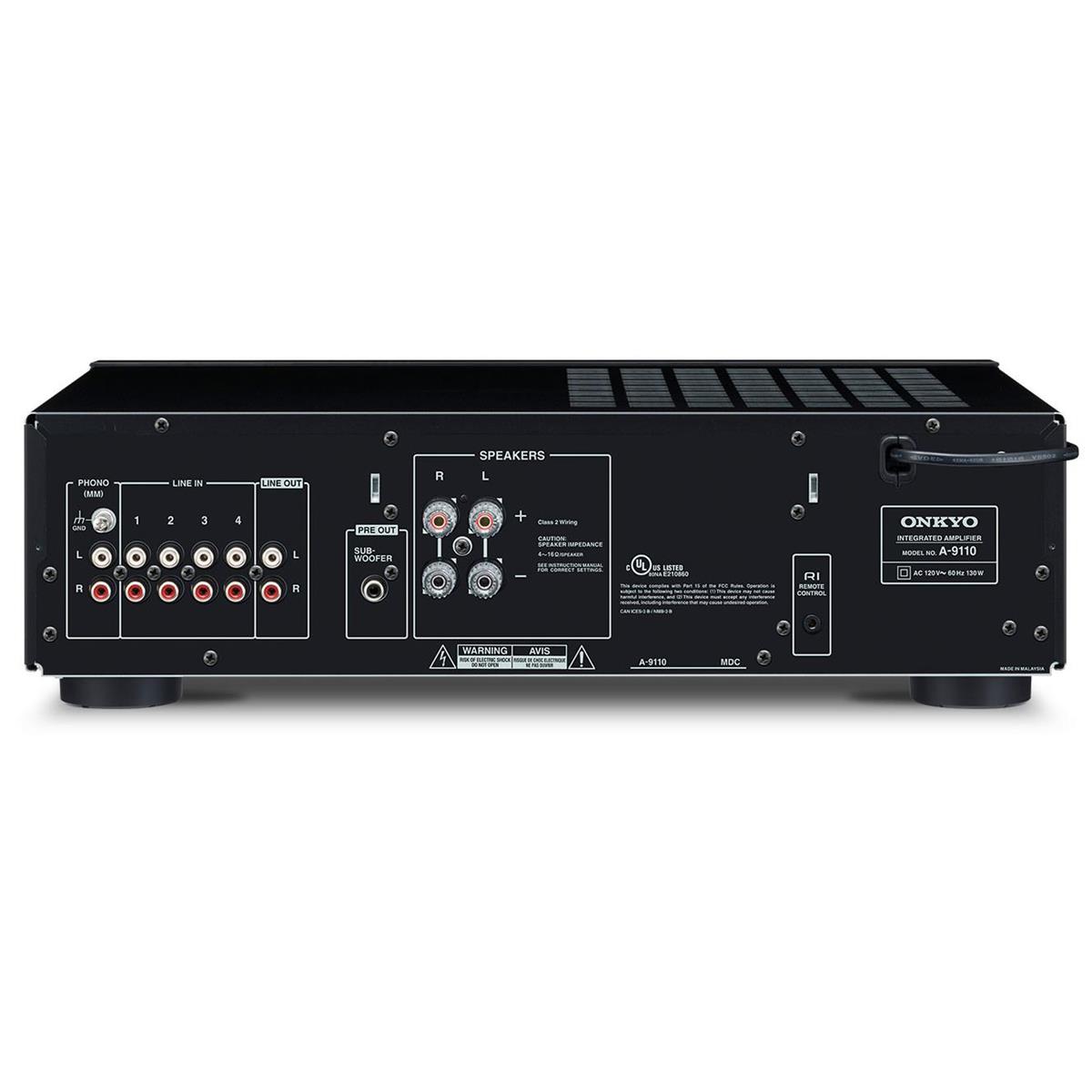

- Connection Features:
- 4x Analog RCA inputs
- 1x Phono input with discrete MM phono equalizer
- 1x Analog RCA line-level output
- Subwoofer pre-out
- Non-magnetic speaker posts with clear knobs
- 6.35 mm headphone jack
- RI (Remote Interactive) input
- Additional Features:
- Fine display shows active input
- Independent tone controls for bass and treble with balance control
- Easy-to-use controls for smooth operation without a remote
- RI (Remote Interactive) input enables connection of a supported component for integrated control with one remote controller
- Auto Power Standby
- Number of Channels
- 2
- Power Rating
- 50 W per channel @ 4 Ohms, 20 Hz to 20 kHz, 0.9% THD, 2-channels driven, FTC
- Speaker Impedance
- 4 to 16 Ohms
- Frequency Response
- 10 Hz to 100 kHz, +1, -3 dB (Direct Mode)
- Signal to Noise Ratio
- IHF-A, Line In, Speaker Out: 103 dB
IHF-A, Phono In, Speaker Out: 78 dB
- THD & Noise
- 0.05% @ 8 Ohms, 1 kHz, half power
- Damping Factor
- 95 (1 kHz, 8 Ohms)
- Tone Control
- Bass: +/-10 dB, 100 Hz
Treble: +/-10 dB, 10 kHz
- Input
- 5x stereo RCA pairs (1 phono with ground screw)
- Output
- 1x stereo RCA pair
1x RCA subwoofer pre-out
1x 1/4" (6.35mm) headphone (front)
- Speaker Connectors
- 2x gold-plated binding post pairs
- Other Connectors
- 1x 1/8" (3.5mm) Remote Interactive port
- Input Sensitivity/Impedance
- Line: 200 mV / 47 kOhms
Phono MM: 4 mV / 47 kOhms
- Output Level and Impedance
- Line Out: 0.2 V / 2.3 kOhms
Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
- Power Requirements
- 120 VAC, 60 Hz
- Power Consumption
- Active: 140 W
Standby: Standby: 0.1 W
- Dimensions (W x H x D)
- 17.13 x 5.06 x 13" (435 x 129 x 330mm)
- Weight
- 15.4 lb (7kg)
|
With up to 11.2 channels of processing, DIRAC Live Room Correction, and the coveted THX Certification, the Onkyo TX-RZ50 AV Receiver is a best-in-class home theater powerhouse.f The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.
Groundbreaking DIRAC Live Room Correction technology offers improved musical staging, clarity, dialog, and deeper bass right out of the box, ensuring that your immersive surround experience is delivered with the highest fidelity.
Featuring three HDMI-out options, the TX-RZ50 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors and taking full advantage of the capabilities of Next-Gen gaming consoles.f Put through thousands of tests to obtain the coveted THX Certification, this SMART AV Receiver delivers a mind-blowing movie, music, and gaming experience to your home.
DIRAC Live Room Correction
State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required.f Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers' full potential in any listening space and delivers a uniquely pristine listening experience.
Enhanced Gaming
Own your opponents with HDMI 2.1 enhancements for gamers
4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
9 Channels of onboard amplification with 11.2-Channel Processing
The TX-RZ50 features up to 11.2 channel processing and pre-outs for 7.2.4 system layouts, making it an ideal choice for your premium home theater setup.
Stream your favorite music
f Use Works with Sonos, Chromecast built-in, AirPlay 2, and DTS Play-Fi; includes Spotify, Amazon Music, Pandora, TIDAL, Deezer, or TuneIn streaming services/
THX Certified Select Theater-Reference Sound
f Guarantees the same reference volume of a commercial theater in rooms where the screen-to-seat distance is about 12 ft. (3.5 m).
IMAX Enhanced
Bring larger-than-life home. Using DTS
X technology, IMAX Mode delivers lMAX Enhanced content as the filmmakers intended. IMAX Enhanced films are available to stream or own on Ultra HD Blu-ray
Roon
Roonf plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon Tested device, you can have the confidence that you will enjoy the best possible experience with it.
Discrete Zone 2 HDMI Switching
f Set up different high-definition entertainment options with up tof 8K60 resolution f in two different rooms with the TX-RZ50. Watch a movie in the home theater, while the kids watch cartoons in their playroom.
Immersive Sound from your TV Apps
eARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos, DTS-HD Master Audio, DTS
X, Dolby TrueHD.
Voice Control
f Work with your digital assistant in any room with easy Google and Amazon Alexa SMART home ecosystem integrations.
Stereo Height Channel Flexibility
f Set the mood for your next gathering by using height or surround speakers to ensure sound is distributed evenly throughout the room. By being able to move the stereo sound to height speakers, it blankets the space more evenly, giving everyone a better experience.
DIRAC Live Room Correction
State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required.f Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers' full potential in any listening space and delivers a uniquely pristine listening experience.
Ultimate 4K Gaming Experience
4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.
11.2-Channel Processing
The TX-RZ50 features up to 11.2 channel processing and pre-outs for 7.2.4 system layouts, making it an ideal choice for your premium home theater setup.
THX Certified
In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-RZ50 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.
IMAX Enhanced Mode
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Onkyo's IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Built-in Multi-Zone Streaming and Voice Control
The Onkyo TX-RZ50 9.2-Channel THX Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.
Works with Sonos Certified
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port. This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app. The TX-RZ50 can work with up to three Sonos Ports---one for each of three independent zones---each playing a completely different streaming service from Sonos Radio.Sonos Port required and sold separately.
Sleek Appearance
The TX-RZ50 AV receiver features a sleek aluminum drop-down panel to conceal the buttons and controls for an upgraded, more luxuriant appearance.
Bi-Directional Bluetooth Wireless Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Built-In Streaming Service
Access to Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Ready for DTS PLAY-FI
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
- 20 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2-ch driven, FTC)
- 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
- 5.2.4-ch/7.2.2-ch Dolby Atmos and DTS: X playback
- Dolby Atmos Height Virtualizer and DTS Virtual: X 3D sound virtualization technologies
- Stream over 5 GHz/2.4 GHz dual-band Wi-Fi
- Send or receive audio via bi-directionalf Bluetooth wireless technology
- Apple AirPlay 2
- Works with Hey Google or Alexa
- 11.2-ch processing and pre-outs for 7.2.4 layouts
- Supports Dirac Live Room Correction
- AccuReflex phase-matching solution for Atmos-enabled speakers
- SMART AV Receiver
- HDMI Sub/Zone 2 Out for media transmission to a second display
- Send or receive audio via Bluetooth wireless technology
- Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
- Power Output (All channels)
- 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven)
120 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2 channels driven, FTC)
- Dynamic Power
- 250 W (3 ohms, Front)
220 W (4 ohms, Front)
130 W (8 ohms, Front)
- THD+N (Total Harmonic Distortion+Noise)
- 0.08% (20 Hz-20 kHz, half power)
- Input Sensitivity and Impedance
- 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
- Rated RCA Output Level and Impedance
- 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
- Frequency Response
- 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
- Tone Control
- +/-10 dB, 20 Hz (Bass) +/-10 dB, 20 kHz (Treble)
- Signal-to-Noise Ratio
- 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
- Speaker Impedance
- 4-16 ohms
- FM
- 87.5 MHz-107.9 MHz
- AM
- 530 kHz-1,710 kHz
- FM/AM Preset Memory
- 40 Stations
- Power Supply
- AC 120 V, 60 Hz
- Power Consumption
- Operating: 850 W
Idle:75 W
Standby: 0.1 W
- Dimensions (W x H x D)
- 17.12 x 7.93 x 15.66" (435 x 201.5 x 398mm)
- Weight
- 30.9 lbs (14kg)
|
The Discovery Series DS-A101 Wireless Integrated Amplifier
80-Watt-per-channel wireless control amp with DSP
The versatile and powerful Discovery Series DS-A101-G Wireless Integrated Amplifier is also the perfect complement to the Discovery Music Server. Together, they open up an unlimited vista of music where wireless convenience meets state-of-the-art sound. ELAC's innovative smartphone application provides the tools for system setup, including sophisticated DSP, optimizing your subwoofer's crossover frequency and room EQ.
This is one versatile integrated amplifier, with outstanding performance and feature-rich control flexibility. Once you experience the Discovery-especially with the new Debut or Uni-Fi loudspeakers-your world of sound just might be altered forever. Discovery does it all, at an affordable price.
An integrated amplifier for todays world.
Roon Ready, Spotify Connect, Dolby Digital Decoding, Wi-Fi, and Room EQ are only the beginning.
Discover power, performance, convenience and value.
The new DS-A101-G integrated amplifier strikes the perfect balance of high quality audio reproduction, features and value. The small form factor allows for easy placement while still providing technologies and convenience not found on competing products.
The BASH amplification solution
At their heart is a brand new BASH Tracking Amplifier delivering 80 Watts per channel into either 4 or 8 ohm speakers. This new amplifier uses a modulated switched mode power supply allied to a conventional class AB amplifier. Switching at more than 400,000 times per second, the supply tracks the incoming audio signal to ensure that the Class AB amplifier gets only the voltage necessary (with a little headroom) to cope with today's dynamic movie and music content, thus maximizing the efficiency and potential of the amplifier.
App-rich control flexibility
ELAC's free iOS and Android app allows users to fully control and set up their system. The app includes innovative features not found on any other products in this class-anywhere
ABC Technology (Auto Blend & Calibrate)
The companion IOS and Android app measures the near-field response of main speakers and subwoofer, then pinpoints the subwoofer's optimal crossover frequency. Auto Blend results in the perfect integration of clean, articulate bass. Room Calibration precisely tailors your system for flattest frequency response across the audio spectrum, optimized for your listening position and environment
The Center of your Living Room
With built-in Dolby Digital Decoding, the Discovery Integrated amplifier has been designed to sit at the heart of your entertainment system. Simply connect the audio output from your TV to the Discovery Integrated Amplifier and experience your favorite movies or TV shows like never before.
- 2x 80 Watt Amplifier
- Wi-Fi and Bluetooth Built-In
- Spotify, Roon and Airplay Support
- Dolby Digital Decoding
- Auto Room EQ
- Amplifier
- BASH Digital Fidelity Tracking Amplifier
- Power Output Continuous
- 2x 80 Watts 2 channels driven into 4 ohms @ 1kHz
2x 40 Watts 2 channels driven into 8 ohms @ 1kHz
2x 70 Watts 2 channels driven into 2 ohms @ 1kHz
- Power Output Burst (CEA 2010*)
- 120 Watts 1 channel driven into 4 ohms @ 1kHz
65 Watts 1 channel driven into 8 ohms @ 1kHz
170 Watts 1 channel driven into 2 ohms @ 1kHz
- Power and THD+N, 1kHz
- 4 ohms 70 Watts @ .07%
8 ohms 40 Watts @ .03%
- Signal-to-Noise Ratio
- (Full Power Digital input): 101dB
- Broadband Frequency Response
- 20Hz to 40kHz +/- 1.8dB
- Analog Inputs
- 2
- Digital Inputs
- 2 total; 1 optical / 1 coaxial (192kHz 24-bit)
- Ethernet
- 1
- Wi-Fi
- Yes
- Subwoofer Output
- 1
- Pre-Amp Outputs
- 1 (L/R)
- Bluetooth Audio
- Yes
- Audio Decoding
- Dolby Digital
- Streaming Services
- Discovery, Roon Ready, Spotify Connect, AirPlay, Bluetooth, DLNA
- Display
- OEL
- App Control
- Yes, iOS and Android control app
- Room Correction
- ABC (Auto Blend & Calibrate)
- Power Consumption
- Power Off 120Vac: .86W / Auto Off 120Vac: 5.45W
- Dimensions (W x H x D)
- 8.37 x 2.12 x 11.62" (21.25 x 5.38 x 29.51cm)
- Weight
- 4.80 lbs (2.17kg)
|
Immerse in 3D surround sound of Dolby Atmos or DTS:X, or you can still enjoy similar effects by Dolby Atmos Height Virtualizer and DTS Virtual:X even without height or surround speakers. Featuring Ultra HD, HDR10, HLG, and Dolby Vision pass through with support for HDCP 2.2., the VSX-934 offers evermore life-like images. You can stream songs from various sources via Wi-Fi, Bluetooth, DTS Play-Fi, SONOS system, and Apple AirPlay 2. Other highlights include a Powered Zone 2 feature with a dedicated DAC, Personal Preset buttons, and 2 HDMI outputs.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Enhanced Gaming
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
Immersive Sound from your TV Apps
E-ARC (Enhanced Audio Return Channel) simplifies connectivity and supports the latest high-bitrate audio formats including Dolby Atmos, DTS-HD Master Audio, DTS:X, Dolby TrueHD.
Streaming Music Services and Faster Wifi
Use Works with Sonos, Chromecast built-in, AirPlay 2, and DTS Play-Fi; includes Spotify, Amazon Music, Pandora, TIDAL, Deezer, or TuneIn streaming services.
Voice interaction at the touch of a button
Stay wirelessly connected to phone conversations and smart assistants by voice. Simple buttons on the bodies activate a mic so you can make and receive calls. Or ask Siri or the Google Assistant for help without reaching for your phone.
Dolby Atmos Height Virtualization
Creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Roon-Tested
Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.
- Pioneer has packed the VSX-935 with three independent 2.1 inputs (40Gbps 8K/60Hz, 4K/120Hz)
- Immersive sound capabilities via Dolby Atmos, DTS:X, and associated upmixers
- 11 different advanced surround listening modes
- Mid-range AV receiver with 7 channels of audio output
- Audio streaming options include Bluetooth, DTS Play-Fi with Critical Listening Mode, Chromecast built-in, AirPlay 2, Works with Sonos, and Room Tested
- Built-in support for services such as Spotify, TIDAL, Deezer, and Pandora, all of which can be accessed through the free Pioneer Music Control App
- The onboard Direct Energy Class AB amplifier is factory specified to deliver a peppy 80 watts per channel (20Hz-20kHz, 8 ohms, 2ch)
- 6 HDMI inputs and two outputs
- Access to Ethernet, rear USB, digital coax and optical, dual subwoofer pre-outs, four sets of RCA inputs, and a moving magnet phono input
- Power handling capability of 170rms per channel fills even the largest room with resonating theatre sound
- Ultra HD, HDR10, HLG, and Dolby Vision pass through display vivid images while the HDMI 2.1 combined with HDCP 2.3 increases the bandwidth to give high resolution output
- Variable Refresh Rate (VRR) removes the lag by increasing the image refreshing rate, so you can indulge in thrilling games and emotional videos without any stutter
- Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT)allows quick switching to the optimized mode to assure remarkable performance with no lag
- Dolby Atmos Height Virtualize optimizes the sound with more virtual surround and height effect without using additional speakers
- DTS Neural:X discards the need for a new speaker layout and auto tunes the audio to adapt to the existing channel and speaker system
- Compatibility with Alexa and Google Assistant ensure easy control over music services and internet radio
- Amplifier Design
- Direct Energy
- Power Output: Watts per Channel
- 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC), 170 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- Power Output: Watts per Channel
- 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC), 170 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
- Channels
- 7.2
- Dolby Atmos, Dolby Surround Upmixer
- Yes
- DTS:X, DTS Neural:X Upmixer
- Yes
- Reflex Optimizer
- Yes
- Dolby Atmos Height Virtualizer
- Yes
- DTS Virtual: X
- Yes
- Dolby TrueHD, Dolby Digital Plus
- Yes
- Audio
- DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express: Yes
- DSD Disc (SACD) Playback
- Yes, via HDMI (2.8 MHz/2ch, 5.1ch)
- Digital Quad-Core 32-bit DSP
- Yes (Cirrus Logic)
- 192 kHz/24-bit D/A Conversion for
- Yes (Hi-Res Audio)
- Enhanced Audio Return Channel (eARC)
- Yes, on HDMI Out (Main)
- Advanced Sound Retriever (2ch)
- Yes
- Advanced Surround Modes
- Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Mono Music, Front Stage Surround Advance
- Support HDMI 2.1
- (HDMI IN 1-3) with 8K, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame transport), DSC (Display Stream Compression), and QMS (Quick Media Switching) pass-through
- Supports HDR10+, HDR10, and HLG
- 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/10-bit, 4:2:2/12-bit), 4K60p (4:4:4/12-bit) and BT.2020 color; Deep Color (36-bit), "x.v.Color", LipSync, and HDCP 2.3
- Dolby Vision Compatible
- Yes
- Ultra HD Upscaling
- 4K to 8K, 1080p to 8K/4K
- Works with
- Alexa supporting multi-room music: Yes
Hey Google and Chromecast built-in: Yes
SONOS supporting multiple Sonos Connect control and Volume Pass Through mode: Yes
- DTS Play-Fi w/Pioneer Music Control App
- DTS Play-Fi supporting Critical Listening mode with Pioneer Music Control App: Yes
- Apple AirPlay 2 with Siri Voice Control
- Yes
- Music-Streaming Services Ready
- Amazon Music HD, Pandora, Spotify, TIDAL, and Deezer Hi-Fi: Yes
- Internet Radio with TuneIn
- Yes
- Hi-Res Audio File Playback
- Yes (via USB/Network)
- Up to 192 kHz/24-bit ALAC5
- Yes (AIFF, FLAC, WAV (RIFF) and 5.6 MHz DSD)
- Personal Preset
- Yes
- Dialog Enhancement
- Yes
- Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
- Yes
- Bluetooth Wireless Technology
- Version: 4.2, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/aptX/aptX HD (TX), SBC/AAC (RX) Built-in
- Pioneer Remote App
- Ready for Multi-room Entertainment Control and Network Streaming
- User-Friendly GUI with System Setup Menu
- Yes
- On-Screen Information for
- Yes (Audio, Video and Network)
- Web Setup
- Yes
- Auto Power Off in HDMI Standby Through
- Yes
- FM/AM Tuner 40 Presets
- Yes
- User-Friendly Simple Remote Control
- Yes
- USB 1 In for USB Drive
- Yes
- MCACC Setup MIC In
- Yes
- Audio 1 In (Mini Stereo Jack)
- Yes
- Phones 1 Out
- Yes
- 4K Ultra HD Pass-Through
- Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)
- 3-D Ready
- Yes
- HDMI Standby Through
- Yes with Input Switch / Last Memory
- HDMI 36-bit Deep Color
- Yes
- 4K Ultra HD Video Scaler
- Ultra HD Upscaling
- Audio Return Channel
- Yes
- Dolby Vision Compatible
- Yes
- HDMI x.v. Color
- Yes
- Video Converter to HDMI
- Yes
- Super Resolution
- Yes
- HDMI Input / Output
- 6 In (Rear) / 2 Out
- Wi-Fi Built-In
- Dual Band (5 GHz/2.4 GHz) Wi-Fi Built-in
- Digital Audio Inputs / Output
- 2 In (Optical 1, Coaxial 1)
- Headphone Output
- Yes
- AM/FM Presets
- AM/FM Tuner 40 Presets
- Bluetooth Built-In
- Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)
- USB Terminal
- Front and Rear
- Analog Audio Inputs / Output
- 2 in / 0 out
- Pre-Amp Output
- 0.2 ch.
- Front A/V Inputs
- USB / 3.5mm stereo mini jack
- On-Screen Display
- User-Friendly GUI with System Setup Menu
- Multi-Room and Source Output
- Powered Zone 2 with Dedicated DAC
- Sleep Timer
- Yes
- Auto Power Down
- Yes
- Remote
- Yes
- Versatile Speaker Configuration
- Speaker 9ch Out (FRONT, CENTER,SURROUND, SURROUND BACK/HEIGHT/Bi-AMP, ZONE 2)
- Front Panel
- Brushed
- Speaker Terminals
- 9 large
- Dimensions (W x H x D)
- 17.13 x 6.81 x 14.61" (435.10 x 172.97 x 371.09mm)
- Weight
- 20.7 lbs (9.38kg)
|
Massive THX sound and Film-Like 8K resolution
Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.
With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI 2.1, you can enjoy Dolby Atmos and DTS: X soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS and Dolby to create a 3D sound-field from any layout.
Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver delivers an unparalleled movie, music, and gaming experience to your living room.
HDMI 2.1 with 8K
HDMI 2.1 is the most recent update of the HDMI spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Ultimate 4K Gaming Experience
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.
THX Certified
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material.
Built-In Streaming Services
Access to Spotify, TIDAL, Deezer, TuneIn, and Pandora are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.
Smart Home Compatible with Voice Control
Onkyo receivers easily integrate into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.
Works with SONOS Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port. This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
Bi-Directional Bluetooth Wireless Technology
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Ready for DTS PLAY-FI
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
- 8K with HDMI 2.1 40Gbps (3 ins)
- THX Select Certification
- Discrete Zone 2 Audio and Video
- 210 W/Ch THX Certified Select Dynamic Audio Amplification system
- 5.2.2-channel Dolby Atmos and DTS:X playback
- AccuReflex phase-matching solution for Atmos-enabled speakers
- SMART AV Receiver
- Works with Hey Google or Alexa
- Stream over 5 GHz/2.4 GHz dual-band Wi-Fi supporting the 802.11ac standard
- HDMI Sub/Zone 2 Out for media transmission to a second display
- Send or receive audio via Bluetooth wireless technology
- Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
- 5.2-ch Main + Powered Zone 2 speakers support synced/independent D/A audio playback
- Zone 2/Zone B line-out
- Power Output (All Channels)
- 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
100 W/Ch (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2-ch driven, FTC)
- Dynamic Power
- 240 W (3 ohms, Front) 210 W (4 ohms, Front)
120 W (8 ohms, Front)
- THD+N (Total Harmonic Distortion+Noise)
- 0.08% (20 Hz-20 kHz, half Power)
- Input Sensitivity and Impedance
- 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
- Rated RCA Output Level and Impedance
- 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
- Frequency Response
- 10 Hz-100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
- Tone Control
- +/-10 dB, 20 Hz (Bass) +/-10 dB, 20 kHz (Treble)
- Signal-to-Noise Ratio
- 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
- Speaker Impedance
- 4-16 ohms
- FM
- 87.5 MHz-107.9 MHz
- AM
- 530 kHz-1,710 kHz
- FM/AM Preset Memory
- 40 stations
- Power Supply
- AC 120 V-, 60 Hz
- Power Consumption
- Operating: 635 W
Idle: 65 W
Standby: 0.1 W
- Dimensions (W x H x D)
- 17.12 x 6.8 x 14.94" (435 x 173.5 x 379.5mm)
- Weight
- 21.7 lbs (9.8kg)
|
Beautifully Brainy
The elegant design of the R-N803 is equally matched with powerful brainy internals - a full suite of modern technological and connectivity features make the receiver even more captivating and result in a receiver worthy to take home to your Wi-Fi and Hi-Fi.
Experience the Legend, Enjoy the Musicality
The legendary Yamaha Hi-Fi design concept ToP-ART (Total Purity Audio Reproduction Technology) combines a meticulously symmetrical left/right circuit layout and signal directness (straightest, shortest signal paths) with a low-vibration chassis of high rigidity. The chassis is equipped with the special resin frame "Art Base" that absorbs and blocks unnecessary vibration. The result is sonic purity and an accurate stereo image of your music.
High Precision, High Performance
The R-N803 uses the renowned SABRE 9006AS 192 kHz/24-bit DAC (from ESS technology) to deliver superior signal-to-noise ratio performance. Combined with the Yamaha original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.
Optimized for the Ultimate
For the first time in a Hi-Fi receiver, the R-N803 is equipped with the Yamaha Parametric room Acoustic Optimizer (YPAO), a famed technology used in Yamaha AV receivers. It measures the shape of the room, the material of the wall and the position of the speaker, then automatically adjusts the sound to create the ideal response and sonic quality. The unit also features other advanced YPAO functions, including YPAO - Reflected Sound Control, which actively corrects the important early reflection sounds that greatly influence sound quality and YPAO Volume, which applies exceptionally high-precision EQ (equalization), with 192 kHz / 64-bit operation. The result? You can create an ideal listening environment right in your home, just like that of a professional audio listening room.
Sound Purity
Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.
Pure Delight to Own
This receiver inherits the simple and sophisticated design style for which Yamaha Hi-Fi audio is famous. Its elegant simplicity beautifully complements your other Hi-Fi audio components. The stylish design with high-quality materials deepens both the joy of ownership and the joy of listening.
Sophisticated Circuit Design
The power amp block adopts a symmetrical and direct circuit layout based on the ToP-ART concept, featuring a parallel push-pull structure using a total of eight bipolar-type power transistors (four each, on left and right) as its output terminals. And by minimizing the lengths of the audio signal paths in the circuit design, we've lowered impedance to achieve superb drive power with a maximum output of 145 watts (per channel).
Wireless
The R-N803 is equipped with Bluetooth to let you enjoy music playback from smartphones and other devices.
MusicCast
Access all of your music with a simple app and wirelessly stream it throughout your home using your existing Wi-Fi network.
Stream it all
Listen to Pandora, Spotify, Napster, SiriusXM Internet Radio, TIDAL, Deezer, thousands of free internet radio stations and the music stored on your smart devices and computers.
Wireless connectivity
All MusicCast products are fully loaded with Wi-Fi, Bluetooth and AirPlay.
Expand to a whole home audio experience
When you're ready, add MusicCast wireless speakers, sound bars or other devices in up to 9 other rooms and listen throughout your home.
No wires, easy installation
By using MusicCast, you don't need to fuss with placing wires through walls into other rooms.
Alexa on MusicCast
Amazon Alexa-enabled devices - including Echo, Dot, Tap and Show - can now control key functions of any MusicCast product using voice commands. Discover a new, exciting way to control music and entertainment experiences in your home.
Optical TV Input
The R-N803 is equipped for digital audio input with both audio and coaxial terminals. With an optical input, TV sound reaches new sonic platforms - pure, pristine and dynamic sound for all entertainment sources, from sports and other programs to movies and concerts.
Love for Vinyl
Throw your vinyl collection love and drop a needle with the phono input terminal that connects the R-N803 to a record player.
Discover New Favorites
Explore. Compatible with a large variety of popular streaming services, including Spotify, TIDAL, Deezer, Napster and others - the R-N803 encourages discovery of new music from all over the world.
- Beautiful and elegant front aluminum face with two channels of 145 W high-power output (0.019% THD)
- Phono input terminals for turntables and optical/coaxial audio inputs for TV
- Wireless Direct, Bluetooth, AirPlay and Wi-Fi to access to your music library, Pandora, Spotify, SiriusXM Internet Radio, TIDAL and Deezer
- YPAO - Yamaha's acoustic optimizer with Precision EQ, Volume and Reflected Sound Control
- Pure Direct and ToP-ART design to faithfully preserve the integrity of your music
- DSD 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple Lossless 96 kHz / 24-bit playback
- Add audio in up to 9 additional rooms with MusicCast
- Voice control using your Alexa device like Echo or Echo Dot
- Network Section
- Wi-Fi with Wireless Direct
DLNA version 1.5 (DMR)
Apple AirPlay
Bluetooth version 2.1 + EDR, A2DP, AVRCP, SBC/AAC (receiving only)
- Supported File Formats
- MP3, WMA, MPEG4 AAC 48 kHz / 320 kbps, WAV, FLAC, AIFF 192 kHz / 24-bit, ALAC 96 kHz / 24-bit, DSD 2.8 / 5.6 MHz
- Minimum RMS Output Power
- 100W + 100W (8Ohms, 20 Hz-20 kHz, 0.019% THD)
- Maximum Power
- 160W + 160W (4Ohms, 1kHz, 0.7% THD, for Europe)
145W + 145W (8Ohms, 1 kHz, 10% THD)
- High Dynamic Power/Channel
- 140 / 170 / 220 / 290W (8/6/4/2Ohms)
- Frequency Response
- 0 +/- 0.5 dB / 0 +/- 1.0 dB
- Signal-to-Noise Ratio
- 100dB (Pure Direct on, 200mV) (CD)
- Damping Factor
- A Speakers, at 1 kHz: >=240 (8Ohms)
- Tuner Type
- AM/FM
- Audio In / Out
- 10/2
- Inputs
- 2x Optical TOSLINK
2x Digital coaxial
1x Stereo RCA phono with ground screw
4x Stereo RCA
1x USB (front)
- Outputs
- 2x Stereo RCA
1x 1/4" (6.35 mm) Headphone (front)
- Other Connectors
- 1x Ethernet LAN
1x FM antenna
1x AM antenna
1x Mono RCA subwoofer out
1x Trigger out
- Speaker Connectors
- 2 (L/R)
- FM 50dB Quieting Sensitivity
- 3 MuV (20.8 dBf) (IHF, 1 kHz, 100% Mod., Mono)
- FM Signal-to-Noise Ratio
- 69 dB/67 dB (Mono/Stereo)
- Pure Direct
- Yes
- ToP-ART
- Yes
- Standby Power Consumption
- 0.1W
Wired/Wi-Fi/Bluetooth, Network Standby On: 1.8W
Wireless Direct, Network Standby On: 1.9W
- Dimensions (WxHxD)
- 17.13 x 6 x 15.44" (43.51 x 15.24 x 39.22cm)
With antenna up: 17.13 x 8.5 x 15.44" (43.51 x 21.59 x 39.22cm)
- Weight
- 24.3 lbs (11.02kg)
|
Reviews
There are no reviews yet.
