| Content | So compact and portable, you can bring the V-1HD and use it anywhere!
The V-1HD is a compact and portable four channel video switcher with both hardware and connected PC / iPad control that supports four HDMI inputs at resolutions of up to 1080p along with a 12 channel audio mixer with audio embedding and de-embedding from HDMI. The V-1HD supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” and is ideal for news broadcast or corporate training productions. For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances.
Features:
- Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy to Use Interface
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Full 12 Channel Audio Mixer Included
- Easy to Operate with Hardware Controls
- Two HDMI Outputs
- Remote Control via USB or MIDI Connection
Feature packed and easy to use for high-quality HD video results.
For creative live event video switching, the V-1HD includes a advanced video effects for transforming video into creative visuals to support all kinds of performances. Output of your video mix is as simple as connecting the HDMI output to a projector or screen at an event and you can even connect a recorder for capturing your event or production.
4 HDMI Inputs
The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.
Professional Switching
The V-1HD has large back-lit buttons for intuitive video switching even in low light conditions. Red lit buttons indicate the current source being output and green lit buttons indicate the video that will be output on the next transition. The V-1HD even lets you know which inputs have sources connected by illuminating the buttons of the inputs with connected sources. The V-1HD features broadcast style Preview/Program switching for professional results. The TRANSFORMER buttons can be used for instantly switching the video or applying effects. Three transition selection buttons permit quick change of mixing style to match style changes in a performance or broadcast. Transition effects include CUT, MIX (4 types) and WIPE (30 types). The auto scan function switches the video automatically across the four video inputs. By using the T-Fader and BPM SYNC button, you can deliver visuals synced to a music performance. Use the FREEZE button to temporarily pause the incoming video. The output fade function makes the output video fade to black or white.
Effects
Compositing Effects. Compositing two videos in one screen using Picture in Picture or the split function is ideal for seminars and presentations. The V-1HD also supports chroma key and luminance key which ideal for creating professional looking broadcasts using green screen backgrounds or for overlaying computer generated titles on top of video sources. Many of the visual performance functions made popular by the V-4EX and V-8 are included. Use the knob A and knob B to apply and adjust effects to the A bus and B bus respectively. Nine types of filter effects including silhouette, colorpass, negative and findedge are possible. Effects can also be triggered using the TRANSFORMER buttons for even more interactive visual performance possibilities.
Audio Mixing
Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device. *The maximum delay time is 500ms.
Menu and Settings
The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. Making adjustments to parameters and operating the audio mixer can be made by simple operation of the buttons and the T-Fader on the unit.
Preview Output
The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. There are three types of view modes available for the preview output which are Multi-view, Output (as a secondary program output) and Preview. The on-screen display can be turned on or off.
Remote Control via USB or MIDI Connection
Remote control is possible with the dedicated V-1HD RCS application on a PC, Mac or an iPad connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. *For more information on the dedicated application, see the Roland website. * Please use the iPad camera connection kit to connect an iPad to the V-1HD.
Easy to Operate with Hardware Controls
Basic operations can be done by operating the buttons and the T-Fader on the unit. To make detailed settings you just need to connect a monitor to the preview connector.
| Instantly connect with multiple contacts around the world.
NewTek TalkShow VS 4000 is the only professional, multi-channel calling production system for both SDI and IP workflows, designed exclusively for conducting multiple live, production-ready Skype video calls with any combination or sequence of contacts anywhere in the world— simultaneously—in distraction-free, broadcast-quality HD.
Reach 300 million monthly Skype users with:
- 4 concurrent Skype video channels
- 4-in, 4-out HD-SDI connections
- Integrated NDI™ technology supporting input and output over IP
- Included NDI™ Webserver
- Tally notification on all call channels
- The most complete audio and video capabilities
More live guests. More compelling conversations.
Facilitate captivating real-time group conversations, panel discussions, and live interview after live interview with remote guests that enhance the quality and credibility of your program.
Independent Control Interfaces
Easily set up a multi-operator production workflow, with separate interfaces for call and production management. Skype TX Control software can be operated from the TalkShow VS 4000 system or installed on another machine as a standalone call control center, allowing the producer to manage calls and talent, while a production operator handles video and audio.
Group or Queue Callers
Connect with any combination of guests from around the world simultaneously or in sequence, for compelling live conversation, expert analysis, real-time commentary, and in-depth discussion.
IP Networking
Receive video calls over IP anywhere on your network. Built-in NewTek NDI technology allows routing of Skype video calls to any compatible NDI receiving device (including TriCaster® and 3Play™) while enabling selection of any NDI video source for return to caller over the network.
Advanced Audio
Deliver conversations that sound more professional. Independently adjust incoming and outgoing audio signals for the highest-quality sound, with the only video calling system that offers built-in gain control, graphic equalizer, compressor/limiter, and noise gate settings.
Pristine Live Video
Ensure your guests look as good as they sound, with enhanced real-time image processing and fully configurable correction tools, including proc amp controls, auto color setting, and white balance—and clean, deinterlaced return video to caller.
Real-Time Call Monitoring
Conduct every call with complete confidence, by utilizing high-quality, full-motion video previews, accurate on-screen audio VU metering, and selectable multi-view display layouts with configurable monitor overlays.
| Hardware Video Input |
4 x HD-SDI with embedded audio |
| Hardware Video Output |
4 x HD-SDI with embedded audio |
| Hardware Audio Input |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| Hardware Audio Output |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| IP Networking |
Integrated NewTek Network Device Interface (NDI) technology enabling transmission of A/V input and output signals over IP between TalkShow and other supported systems, including TriCaster, 3Play and a range of third-party solutions |
| Dante Audio Networking |
Integrated Dante audio support, enabling TalkShow to interface with other audio devices utilizing the Dante networking protocol from Audinate |
| Call Recording |
Supports full-bandwidth recording of call video and audio (optionally including return audio on separate channels) to external USB 3.0 or SAN storage |
| Video Configuration |
- Fully configurable color correction settings for each incoming Skype video signal, including white balance, proc amp controls and auto color
- Freely selectable video source for return to each Skype caller
|
| Audio Configuration |
- Fully configurable settings for each incoming Skype audio signal, including gain control, seven-band equalizer, compressor/limiter, and noise gate
- Freely selectable audio source and mix-minus channel control for return to each Skype caller
|
| Talk Back |
Supports direct, off-air communication between operator and remote callers individually or as a group via headset (optionally configurable for control via external GPI trigger) |
| Call Management |
- Supports multi-channel Skype TX call management locally or over IP via Skype TX controller application
- Local production control supporting per-channel configuration of call video and audio, and Talk Back communication via TalkShow user interface
- Direct mouse and keyboard USB interface required
|
| Local Monitoring |
- DVI and HDMI ports for connecting external monitors
- Stereo 1/4” phone jack for local audio monitoring
- Full-motion input and output video previews within user interface, including optional picture-in-picture overlay of return video for each call monitor
- Configurable multi-view workspace, including selectable layouts and optional overlays including title safe, 4:3 safe, center cross and VU meters
- Audio VU metering
|
| Output Video Formats |
Configurable call video output resolution and frame rate, with support for NTSC and PAL formats
- 1080i – 25, 29.97, 30
- 1080p – 23.98, 24
- 720p – 50, 59.94, 60
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) – 29.97
|
| Return Video Formats |
Configurable return video input resolution and frame rate, with support for NTSC and PAL formats (available selections vary depending on output video format selected)
- 1080i – 29.97, 25
- 1080p – 30, 30 PsF, 24, 24 (Telecine), 25, 25 PsF
- 720p – 30, 25, 24
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) - 29.97
|
| Watermark |
Optionally supports Skype logo watermark on output |
| Tally |
Supports hardware tally via HD15 GPI connector or network tally via NewTek NDI |
| GPI |
HD15 GPI connector |
| Reference |
- Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
- +4dBU audio reference level
|
| Signal Monitoring |
Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709 |
| Software |
Microsoft Windows 10 OS, Skype TX 4 software, Skype TX controller application, and TalkShow control software |
| CPU |
4th Generation i7 Quad-Core |
| Graphics |
Intel HD4600 GPU |
| Memory |
8Gb |
| Storage |
120Gb internal SSD |
| Processing |
Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96 kHz, 32-bit Floating Point |
| Standards |
HD-SDI video conforms to SMPTE 292M
SD-SDI video conforms to SMPTE 259M |
| Network |
Dual gigabit Ethernet NIC supporting Skype TX call transmission, NDI transmission to and from supported systems, Dante audio networking, and local network traffic |
| Fail-Safe |
- Multi-tiered fail-safe system
- Automatic failover to audio transmission with caller snapshot when bandwidth falls below operator-defined preset value
- Comprehensive system restore operation
|
| System Physical |
1RU Rack Mount with 180W power supply (110-220V external; 12V internal)
- 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
- 15 lbs (6.8 kg)
|
| The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.
Experience the plus advantage—upgrade your productions with the V-1HD+ today!
Professional HD switching solution for live events, livestreaming, or both at once. Standalone video switcher and 14-channel audio mixer for single operators. Compact and portable for fast set up. Familiar interface that’s quick to learn and easy to use. Technology-assisted automatic video switching. Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts. Pro audio I/O with legendary Roland sound quality. Eight memory presets to recall visual layouts on cue
Features:
- Professional HD switching solution for live events, livestreaming, or both at once
- Compact and portable for fast set up
- Technology-assisted automatic video switching
- Pro audio I/O with legendary Roland sound quality
- Standalone video switcher and 14-channel audio mixer for single operators
- Familiar interface that's quick to learn and easy to use
- Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
- Eight memory presets to recall visual layouts on cue
Say Goodbye to Workflow Workarounds
While many video switchers promise easy workflows, they often require workarounds for optimum results. Too often, those workarounds force you into technical compromises and purchasing extra gear. With its feature-rich design, the V-1HD+ provides the key tools you need to get the job done right.
A Legacy of Success
Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. The V-1HD+ extends this legacy with a deeper feature set for advanced applications—while still maintaining the simple operation, pro performance, and rugged reliability that’s made the V-1HD a favorite of users around the world.
No-Compromise Video I/O
Video professionals shouldn't be forced into making technical compromises. With its full-featured video I/O, the V-1HD+ is inspired by your need to do more.
Four Video Inputs and Onboard Scaling
Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won’t display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.
Two Video Outputs
Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an “up-next” input preview display or expanded multiviewer with 10 windows.
Pro Operation Made Easy
Your passion for a simplified interface led our designers to add quick-action buttons for the most commonly used operations. With one-touch access to the system menu, downstream key on/off, transition type, picture-in-picture, effects on/off, and more, V-1HD+ production workflow is smooth and hassle-free.
The V-1HD+ also includes PGM and PST busses and a transition/fade bar, which are the most-recognized video switching controls in the industry—and the quickest for beginners and volunteers to learn. And with tactile audio volume knobs, signal/peak lights, and unity gain markers, it’s simple and intuitive to adjust sound levels on the fly.
14-Channel Audio Mixing with Effects
The V-1HD+ allows a single operator to do more than switch cameras—they can mix professional sound too. The integrated 14-channel digital audio mixer blends HDMI audio with mic and line sources, and also offers a variety of onboard effects to sweeten mixes.
Audio Inputs
With two XLR mic inputs and selectable phantom power, the V-1HD+ lets you bring pro-grade microphones into your productions, including condenser broadcast mics. There’s also an 1/8-inch input for a lavalier mic or stereo audio source like a smartphone, plus another stereo input on RCA jacks. Embedded stereo audio from the four HDMI inputs can be included in your mix as well.
Audio Outputs
With the V-1HD+, there’s no need for a dedicated small audio console. Distribute analog sound to a PA system via two balanced ¼-inch TRS outputs, and use embedded digital audio in the HDMI outputs to feed recorders and livestream broadcasts.
Audio Effects
Leave the outboard gear in the recording studio—each audio input on the V-1HD+ has its own three-band equalizer, high-pass filter, compressor, and noise gate, plus a sync delay to align audio with video if needed. The XLR and 1/8-inch inputs also include de-essers to clean up vocal sounds in real time. And with the limiter, three-band equalizer and compressor on the main outputs, you can deliver broadcast-quality sound every time.
Production-Critical Signal Monitoring
Without proper signal monitoring, you’re running blind. The V-1HD+ incorporates several real-time monitoring tools that make it easy to keep your productions looking and sounding their best.
Multiviewer Display
A 10-window multiviewer display can be applied to one or both HDMI outputs, helping you manage productions in real time. Cue up camera shots, preview presentations, and choose stored still images before taking them live to the program feed. Camcorder recording status can be monitored as well.
Audio Monitoring
Even if your video looks perfect, poor sound will ruin the entire production. With the V-1HD+, you can always keep track of your audio quality. Each analog input has its own signal/peak indicator, and headphones can be plugged in to monitor the overall audio feed. When using the multiviewer display, signal level meters are shown for all inputs and the main outputs.
Effects, Keying, and Stills
The powerful effects engine in the V-1HD+ keeps audiences engaged with visually appealing content while opening new revenue streams for customer graphics creation.
Four-Layer Effects Engine
Savvy visual storytellers understand the power of layered graphics and visual effects. With four composition layers at your command, it’s simple to add lower-third titles, logos, social media comments, and more to inform your audience and keep them involved.
Keying
The DSK (downstream keyer) layer lets you independently composite a picture-in-picture (PinP) window on a video feed, which is especially useful for live and online hybrid events. For example, when displaying onscreen graphics for a live presentation, you can also overlay a camera shot of the stage speaker that’s only viewable by the online audience.
Still Images
When using the V-1HD+, you’ll never have to leave your audience with a blank screen when the presentation stops, the meeting goes on break, or the camera power goes down. Simply call up one of four still images you’ve stored in the V-1HD+, or capture stills from a connected input source. And with the versatile effects engine, these images can be used as DSK lower thirds or full-screen backgrounds.
Deep Control
Gain even more control over your productions with these advanced V-1HD+ features.
Camera Tally
A camera tally light visually directs talent to look toward the active camera, and also lets everyone know when the camera is live and “on-air.” The analog tally output on the V-1HD+ can be wired to most broadcast camera systems—refer to the V-1HD+ Reference Manual for wiring specifications.
Recording Control
Many technical elements contribute to a successful recording—but forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, you can trigger Atomos recorders to start and stop recording, bringing remote-control convenience to your busy workflow. |

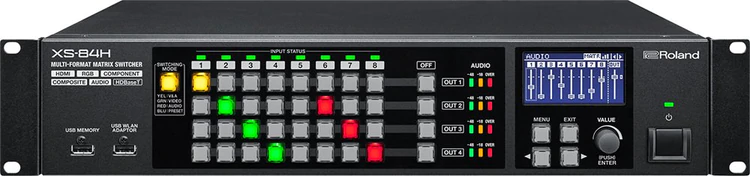

XS-84H: 8-in x 4-out Multi-Format AV Matrix Switcher
The Roland XS Series - the new line of Multi-Format Matrix Switchers designed for fixed installations requiring high-quality integrated video and audio conversion and switching.
The series is very adaptable supporting eight HDMI, RGB/Component/S-video/Composite inputs and up to HDMI or HDBaseT outputs with scalers to support picture-in-picture, resizing, rotating, and flipping. Audio can be embedded into outputs via 8 stereo audio inputs (2 mic) and/or HDMI audio as well as de-embedded on output. Additional features include iPad control, EDID emulation and HDCP management.
Main Features
- Inputs: 8 HDMI and 8 RGB/Component/S-video/Composite analog video
- Outputs: 2, 3 or 4 HDMI and 2, 3 or 4 HDBaseT (*Switchable HDMI or HDBaseT per output)
- Support for maximum resolution of WUXGA and 1080p, with built-in scalers
- 8 stereo line inputs (2 mic compatible with 48V phantom) with built-in AD/DA conversion andembedded/de-embedded HDMI audio
- 16 channel (8 stereo) digital audio mixer with audio digital effects (HPF, 4 Band EQ, noise gate/expander,and compressor) and outputs delay.
- Support for RS-232C, network, and iPad control
Integrated Video and Audio Environment
- The XS series offers an integrated environment for routing and switching HDMI and analog sources and digital displays. The series enables high-speed switching for HDMI, RGB, component, S-video, and composite video, as well as routing for up to four outputs.
- The series features EDID emulation for HDMI and RGB signals, managing EDID information between the display and HDMI source to ensure a stable system environment for HDMI.
The HDCP key master feature maintains authentication information for each HDMI source enabling high speed switching under 5 frames.
- The powerful DSP enables the switching and mixing of audio input as well. Up to four audio mixes can be created from both analog audio inputs as well as embedded HDMI audio inputs. The resultant mix can be embedded back into the HDMI/HDBaseT output as well as analog audio outputs.
High-quality Video Processing
- The XS series has up to four internal scalers provided with compositing functions (*). It can scale individual inputs of HDMI, RGB, component, S-video, or composite video and output the results in a format suited to the system. Scaling can be adjusted in single-pixel increments enabling display of video that fits any screen exactly.
*When compositing functions, all outputs are fixed to the same format.
- Resolutions up to WUXGA/1080p are supported for both input and output. Deinterlacing interlaced video for output as a progressive signal is also possible.
- Video signals can be flipped vertically and horizontally, or rotated 90 degrees. Using this in combination with scaling makes split-picture output possible.
- The Preview Out function enables the user to check a video source before sending it to an output. The Presentation mode enables the operator to view guides lines indicating the main screen output size.
Integrated Video and Audio Environment
- The XS series achieves sophisticated sound processing thanks to the built-in audio DSP technology from Roland. Along with eight HDMI audio inputs, the series can accept eight stereo analog audio inputs as well. For audio-level adjustment, in addition to using the unit's knob, detailed settings can be configured by remote control from an iPad or external controller. Monitoring volume levels is convenient with the level meter display on each output.
- The XS series accommodates mic-level audio input on two channels. A built-in ducking function enables lowering the volume of other audio during microphone input.
- The audio inputs are each provided with an internal high-pass filter, 4-band equalizer, noise gate/expander, and compressor.
- The audio outputs are each provided with a 4-band equalizer, noise gate/compressor, and delay.
Integrated Video and Audio Environment
- Using the Roland WNA1100-RL wireless USB adapter enables direct control from an Apple iPad installed with Roland XS Remote. Along with operating the unit, Roland XS Remote can be used to change settings instantly with its memory-recall function.
Application Examples
A variety of applications for any event and installation.
Conference Rooms
The XS series can perform switching for up to eight computers and video devices. Systems comprising mixed digital and analog video sources in HDMI, RGB, Component, S-video, and composite can be configured. For audio as well, up to eight stereo channels of input can be switched and mixed. The ducking function also makes it possible to lower audio-line volume when someone speaks into a microphone. Performing output using HDBaseT enables transmission of 1080p high-definition video over Cat5e cable to HDBaseT-compatible equipment up to 100 meters away.
Classrooms
The XS series can switch between HDCP-protected HDMI video from computers and smart phones and still-image data saved in internal memory. It can also display a school emblem while in standby with no equipment connected. Built-in compressors, EQs, and HPFs on the input lines enable adjustment of mic and line audio. output on up to four HDBaseT lines makes it possible to transmit video to sub-displays.
Event Halls and Churches
The XS series supports component, S-video, and composite feeds in addition to HDMI and RGB, making it ideal for event halls equipped with sources in various media formats. Mulit-screen productions become possible with the different video modes. The horizontal mirroring and cropping functions enable the creation of laterally symmetrical video output while still sending a wideshot to the lobby.
4K Mode
The XS-84 is capable of switching four video lines as a group, enabling configuration of a 4K system. Switching a mixture of video feeds that includes 4K, HD, and SD sizes as well as up to WUXGA and other computer video formats is also possible.
Teleconferencing Solutions
The XS series features four internal buses each for video and audio. It can be used to create minus-one audio, enabling incorporation into teleconferencing systems.
Events and Conventions
The XS series is equipped with eight ports each for HDMI and RGB/Component/S-video/Composite input, giving it enough capacity to accommodate even large conventions. Previewing output is possible as well, enabling adjustment of the positioning, scaling, and aspect of the input signal before output. The compositing functions make it possible to composite different types of informational screens separately from the main screen, for output to monitor displays visible to presenters and performers.
| Wirecast Gear 2-420 Live Video Streaming Production System
Wirecast Gear gives you an easy to use, fully configured live video streaming production system. Because we've already done all the work, there is no need to build your own system! Start streaming in minutes with an end-to-end system configured specifically for your needs. With Wirecast Pro included alongside Gear's custom-designed hardware, it's a live event production switcher, live news production system, Facebook Live switcher and YouTube Live switcher - all in one box.
Each model of Wirecast Gear comes with Xeon Server architecture, up to five HD-SDI or four HDMI professional camera inputs and all the live video streaming production features of Wirecast Pro, the Stock Media Library, NewBlue Titler Live Complete, and Switch Player, all in a compact, powerful hardware system.
Wirecast Gear offers a unique blend of performance, ease of use and affordability. Just plug in your cameras and start producing and streaming your professional events with the industry-leading turnkey video production system.
Features:
- Stream to Facebook, YouTube, Twitter or RTMP
- Facebook Live Social Media Comments
- NDI Input/Output
- Animated 3D Graphics and Titles
- Social media live comment creation (Facebook, YouTube, and Twitter)
- Live sports, data feed, custom clocks, scoreboards, templates
Specifications:
- Integrated Hardware Encoders: 4
- HDMI inputs: n/a
- HD-SDI inputs: 5
- Baseband SDI output: Yes
- Graphics Card: NVIDIA Quadro
- Chassis: (16.7 x 12 x 3.5") 2RU Chassis, with convertible configuration for standard 19" rackmount or set-top box with feet included
- Operating System: Microsoft Windows 10 Enterprise IoT LTSC 64-bit
- I/O Configuration: 5 SDI ports (Gear Capture + Blackmagic)
- Storage: (in addition to system drive)³ 1TB (20 hrs of HD video²)
- Live video streaming production software: Telestream Wirecast Pro
- Titling software for creating rich, animated title designs: NewBlue Titler Live Complete
- Media utility software to play, inspect and make corrections to video: Telestream Switch Player
Item Includes:
- Wirecast Gear 420
- Wireless Keyboard/Mouse combo
- Power cord
- Plastic bag
|
The Bolt 4K 1500 12G-SDI/HDMI Wireless Video Kit from Teradek includes a Bolt 1500 12G-SDI/HDMI wireless transmitter and a Bolt 1500 12G-SDI/HDMI wireless receiver that support video at resolutions up to 4K at 60 fps. They support a line-of-sight range of up to 1500'. The transmitter can send video to up to six receivers and is compatible with any model in the Bolt 4K line. The transmitter features a 12G-SDI input, an HDMI 2.0 input, and a 12G-SDI loop-through output. The receiver features two 12G-SDI inputs and one HDMI 2.0 input. You can remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The transmitter has mounting holes on each side for a Gold Mount or V-mount battery plate (available separately) so it can be mounted on the back of a camera. Included in the kit are a 3/8"-16 light stand adapter, a hot shoe adapter, two 18" HDMI cables, two 18" 2-pin connector to D-Tap cables, a 3' USB Type-A to micro-USB Type-B cable, two 18" 12G-SDI BNC cables, a 6' PSU 2-pin connector to 30W AC adapter cable, nine 2 dBi Wi-Fi 2.4/5.8 GHz antennas, a large case that fits a transmitter and two receivers, a 9.8 x 5.9" vinyl zipper bag, and a 9.8 x 9.1" vinyl zipper bag.
Transmits uncompressed video in 1080p and 2160p at 60 fps with less than 1 ms of delay
Compliant with the HLG, PQ, and HDR-10 standards
Send start/stop flags, timecode, and other ancillary data over the wireless link
Bolt app uses Bolt 4K's integrated Bluetooth
Multiple mounting options with 1/4"-20, 3/8"-16, and M3 holes
|
Reviews
There are no reviews yet.
