| Content | Turntable section
Type: Direct Drive Manual Turntable
Turntable Speeds: 33 1/3, 45, 78 rpm
Adjust Range: ±8%, ±16%
Starting Torque: 3.3 kg･cm (2.8 lb-in)
Build-up Characteristics: 0.7 s. from standstill to 33 1/3 r/min
Wow And Flutter: 0.025% W.R.M.S. (JIS C5521)
Rumble: 78dB (IEC 98A Weighted)
Turntable Platter:
- Brass and Aluminum diecast combined
- Diameter：332mm (13-5/64")
- Weight：About 3.6kg (7 15/16 lb) (Including rubber sheet)
Tonearm Section
Type: Universal Static Balance
Effective Length: 230mm (9-1/16")
Overhang: 15mm (19/32")
Tracking Error Angle:
- Within 2° 32' (at the outer groove of 30cm(12") record)
- Within 0° 32' (at the inner groove of 30cm(12") record)
Offset Angle: 22°
Arm-height Adjustment Range: 0 - 6 mm
Stylus Pressure Adjustment Range: 0 - 4 g (direct reading)
Terminals
Audio Output PHONO (Pin Jack) x 1
EARTH TERMINAL x 1 |
Building on the ground breaking Juke Box E, Juke Box S2 is taking the first audiophile all-in-one system to the next level. By changing to a more sophisticated acrylic platter and an upgraded, Pro-Ject proprietary cartridge gave the Juke Box the extra bit of audiophilia it deserves. Juke Box S2 effectively saves space by implementing a pre-amplifier and power amplifier in its chassis. With the rated 50 Watts per channel it you will be able to use your stereo speakers and enjoy realistic sound stages and great depth.
- Instant playback with super-easy setup
- Bluetooth and 1 line input
- Acrylic platter
- High contrast display on top
- Line record output
- Gold plated sockets
- Pre-adjusted tracking force & anti-skating force
- Pick it 25A cartridge, pre-mounted
- 8.6" aluminium tonearm with sapphire bearings
- Belt drive with silicone belt
- Low vibration synchronous motor & DC power supply
- Special feet for effective decoupling
- IR remote control included
|
Building on the ground breaking Juke Box E, Juke Box S2 is taking the first audiophile all-in-one system to the next level. By changing to a more sophisticated acrylic platter and an upgraded, Pro-Ject proprietary cartridge gave the Juke Box the extra bit of audiophilia it deserves. Juke Box S2 effectively saves space by implementing a pre-amplifier and power amplifier in its chassis. With the rated 50 Watts per channel it you will be able to use your stereo speakers and enjoy realistic sound stages and great depth.
- Instant playback with super-easy setup
- Bluetooth and 1 line input
- Acrylic platter
- High contrast display on top
- Line record output
- Gold plated sockets
- Pre-adjusted tracking force & anti-skating force
- Pick it 25A cartridge, pre-mounted
- 8.6" aluminium tonearm with sapphire bearings
- Belt drive with silicone belt
- Low vibration synchronous motor & DC power supply
- Special feet for effective decoupling
- IR remote control included
| Thanks to extensive research and development, we have now elevated our classic RPM design to an even higher level. The RPM 10 Carbon uses a new extra-heavy chassis which features a special CNC-machined MDF base with resin-coated steel pellets to form an extra-heavy and precise sandwich construction. A special, complex heat treatment and carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminum platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolutely stable turntable speed with extra-low rumble due to the magnetic suspension of the platter. The heavy outboard motor unit is equipped with precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least, the no-compromise 10" EVO tonearm with conical carbon-fiber arm tube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible, top-grade copper internal wiring is used. The RPM 10 Carbon is delivered with Ground it Carbon equipment base and top-grade 5P phono cable "Connect It CC" with RCA plugs (XLR as an option). An acrylic dust cover, "Cover it 1", is also available.
Specifications
Speed: 33, 45 rpm (electronic speed change)
Drive: Belt drive
Platter: 10.4 kg aluminum (300mm diameter)
Main Bearing: inverted stainless steel with ceramic ball/plate
Wow & Flutter: 33 +/- 0.11% 45: +/- 0.10%
Speed Drift: 33: +/- 0.01% 45: +/- 0.01%
Signal to Noise: -75dB
Tonearm: 10" Carbon EVO
Effective Arm Length: 254 mm
Effective Arm Mass: 8.5 g
Overhang: 16mm
Tracking Force: 10 - 35mN
Supplied Counterweights: 5 - 7.5g / 7 - 10g / 9 - 11g / 10 - 14g
External Power Supply: 15 volts DC / 1.6A
Power Connection: 110/120 or 230/240 Volt - 50 or 60 Hz
Power Consumption: 15 watts max |
Designing a new turntable to celebrate VPI's 40th anniversary provided VPI an opportunity to update the direct drive motor technology to incorporate advances in motion control and materials technologies.
Harry Weisfeld's 2012 CLASSIC DIRECT direct drive turntable was an outstanding technical achievement, earning Stereophile Magazine's Class A+ rating. This award-winning table was loosely based on the VPI Classic Series table technology and included a thick aluminum plinth and armboard and an inverted platter bearing riding on a PEEK thrust disc. Combined with a cutting-edge BLDC direct drive motor, the CLASSIC DIRECT was created. The Classic Direct provided a stable, solid foundation for the music, allowing the listener to hear deeply into the recorded grooves to the treasures buried with-in!

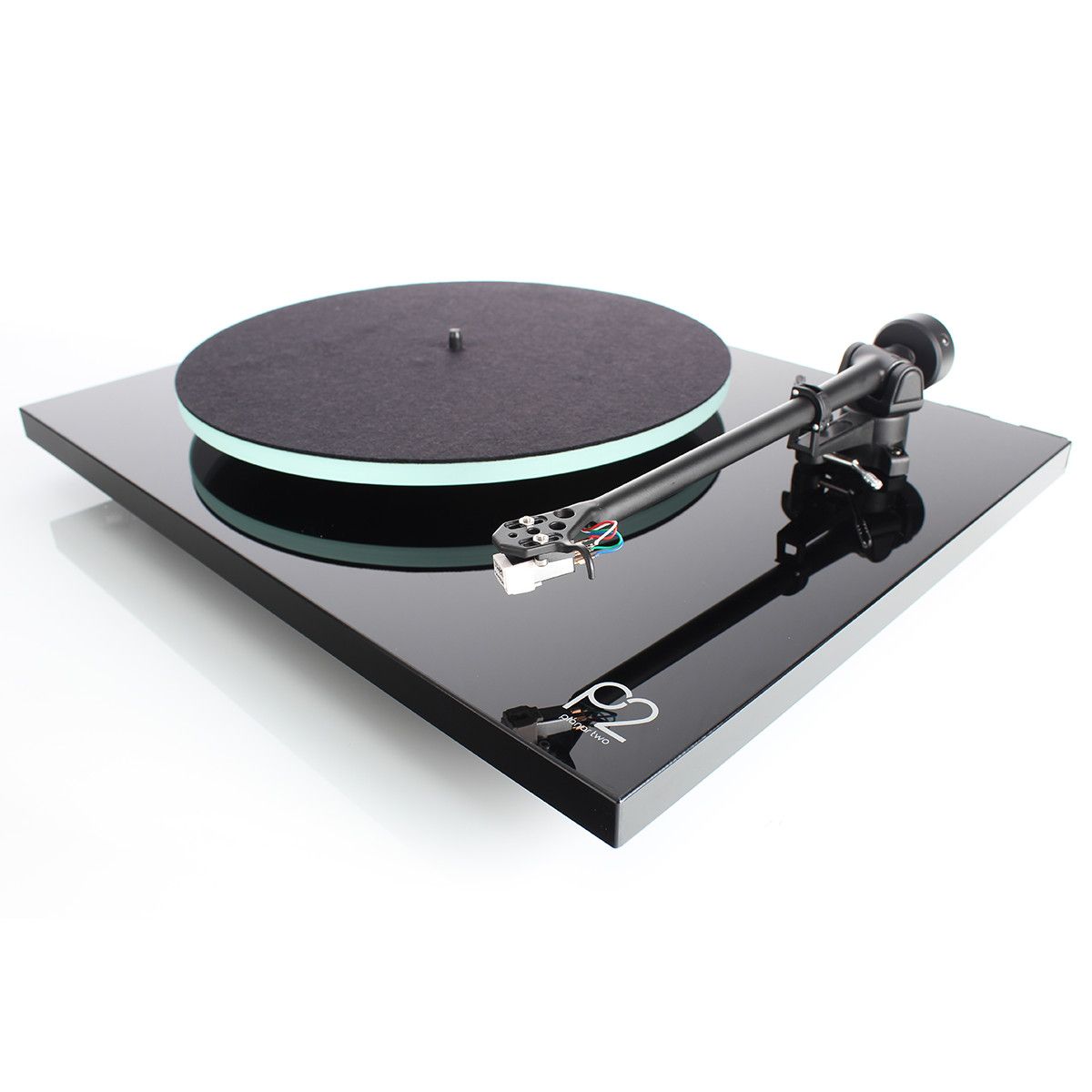

| The new Planar 2 was developed over the past two years alongside the recently released Planar 3. Featuring the brand new RB220 tonearm which is packed with groundbreaking new features such as a new 24v low noise motor, acrylic laminated plinth, newly designed central bearing and so much more. Every feature of this innovative new turntable is designed to extract the maximum amount of information and detail from your vinyl collection.
- Re-designed feet - New improved foot assembly to increase stability and reduce vibration transfer.
- Carbon cartridge - supplied as standard on all Planar 2's for simple plug and play convenience.
- Motor cover tray - with integrated cooling.
- Optional lid / plinth protectors - supplied to prevent marks on the plinth and keep it looking its best.
- Instructions - Easy to use multi-lingual quick start guide for easy set up.
- Packaging - New improved packaging.
- Tonearm: Hand-assembled RB220 tonearm
- Cartridge: Factory fitted Carbon moving magnet cartridge
- Motor: 24 V low noise motor
- Dimensions (lid closed) (W x H x D): 447 x 117 x 360 mm
- Weight: 5.5 kg
|
