The Bolt 4K 1500 12G-SDI/HDMI Wireless Video Kit from Teradek includes a Bolt 1500 12G-SDI/HDMI wireless transmitter and a Bolt 1500 12G-SDI/HDMI wireless receiver that support video at resolutions up to 4K at 60 fps. They support a line-of-sight range of up to 1500'. The transmitter can send video to up to six receivers and is compatible with any model in the Bolt 4K line. The transmitter features a 12G-SDI input, an HDMI 2.0 input, and a 12G-SDI loop-through output. The receiver features two 12G-SDI inputs and one HDMI 2.0 input. You can remotely pair units, configure settings, and utilize all of Bolt 4K's features from any iOS smartphone or tablet. The transmitter has mounting holes on each side for a Gold Mount or V-mount battery plate (available separately) so it can be mounted on the back of a camera. Included in the kit are a 3/8"-16 light stand adapter, a hot shoe adapter, two 18" HDMI cables, two 18" 2-pin connector to D-Tap cables, a 3' USB Type-A to micro-USB Type-B cable, two 18" 12G-SDI BNC cables, a 6' PSU 2-pin connector to 30W AC adapter cable, nine 2 dBi Wi-Fi 2.4/5.8 GHz antennas, a large case that fits a transmitter and two receivers, a 9.8 x 5.9" vinyl zipper bag, and a 9.8 x 9.1" vinyl zipper bag.
Transmits uncompressed video in 1080p and 2160p at 60 fps with less than 1 ms of delay
Compliant with the HLG, PQ, and HDR-10 standards
Send start/stop flags, timecode, and other ancillary data over the wireless link
Bolt app uses Bolt 4K's integrated Bluetooth
Multiple mounting options with 1/4"-20, 3/8"-16, and M3 holes
| Power supply not included - requires IEC cable.
The Smart Videohub 12G 40x40 is the most advanced router of the Videohub series. It works in all SD, HD, and Ultra HD formats up to 2160p60. Offering a revolutionary routing process, the mixed format router has built-in video monitoring and spin knob router control.
You get an extremely convenient routing process with visual routing. Router connections are shown as video on the LCD screen while you spin the knob to select your routing. Built-in monitor also displays crosspoint connection labels and TV formats. Visual routing makes the routing process faster than ever.
Monitor all the live video connected to the Smart Videohub 12G 40x40 from the LCD screen. LCD supports video in nearly all TV formats, eliminating the need for a separate external monitor. Monitoring from the Videohub is helpful to confirm the correct video inputs are being sent to the correct video outputs.
12G-SDI connections run at twice the speed of 6G-SDI, supporting equipment that works with high frame rate Ultra HD 2160p60. At that high frame rate you can use the same 60 fps workflow from HD while getting the higher quality of Ultra HD. 12G-SDI also handles SD, HD, and Ultra HD formats easily. 6G-SDI is still supported, so you get the benefits of both technologies.
Multi format technology supports connecting compatible equipment to the router simultaneously. Seamlessly work in NTSC and PAL SD, 720, 1080HD, even 2160 Ultra HD at any frame rate and the router switches standards so inputs match.
Free software developer kit gives you the power to create your own custom router control. The included external software control lets you control the router via network on Mac and Windows. Hardware control panels are available with the Videohub Smart Control Pro and Videohub Master Control Pro (both sold separately). RS-422 protocol can also be used to control Videohub for router crosspoint switching.
Videohub 12G 40x40 Features
- 12G-SDI technology
- 40 inputs
- 40 outputs
- Spin knob control
- Work with SD, HD and Ultra HD formats simultaneously
- Visual routing
- Built-in LCD
- Includes external software control
| The World's Most Complete Sports Production System
Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, NewTek 3Play 3P1 is the premier video solution for live game coverage, replay, training, and analysis, with the most complete set of real-time capabilities for modern sports production ever integrated into a single turnkey system, including native IP workflow integration and telestration.
NewTek 3Play 3P1 integrates seamlessly with NewTek IP Series, TriCaster TC1, and NVG1 NewTek-Vizrt IP Graphics Server. This gives sports producers or anyone needing replay capability the power to utilize any NDI source on the network for recording and replay, and conversely SDI sources connected to 3Play 3P1 are available as NDI sources anywhere. An equally significant option is LivePanel for 3Play 3P1, which give users control of 3Play 3P1 from any web browser, on any device, using any OS.
For both live sports and esports, delivering world-class replay, network-style presentation, and a phenomenal fan experience has never been easier or more affordable. 3Play 3P1 is truly replay redefined.
Product Highlights:
Engineered for the most demanding broadcast and media environments, 3Play 3P1 provides a winning combination of innovative technology and seamless workflow integration to power forward-thinking fan experiences that span from stadiums to screens to smartphones.
- Fully integrated sports production in resolutions up to 1080p 60
- SDI, hybrid, and end-to-end IP connectivity to adapt to your game plan
- Native software-driven processing for maximum production power and flexibility
- Integrated NDI® Telestrator Pro for live telestration from any compatible connected device, with support for remote video transport control
- Comprehensive camera coverage and delivery with support for 4 simultaneous external inputs and 2 outputs
- Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
- Versatile audio connectivity and capture, with support for digital, analog, and network audio, plus 8 channels of audio recording per input
- Multi-purpose video server with full frame-rate, multi-angle preview windows • Real-time social media sharing to Facebook, Twitter, YouTube, and more
- Custom playlist building and highlights packaging for live insert, export, or VOD
- Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
- Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
- Enhanced creative capabilities, including real-time layering, motion graphics, animated transitions, and more
- Industry-standard 2RU system chassis with included hardware control panel
3Play 3P1 Control Panel Included
Run every sports production with the confidence of a team captain. With a professional hardware panel included, 3Play 3P1 brings blazing speed and airtight control to the operator’s chair so you can read, react, and replay in record time.
NDI® Telestrator Pro
Enlighten and entertain audiences, enhancing play-by-play and analysis with live telestration— right from the first replay. With NDI® Telestrator Pro included with 3Play 3P1, you can annotate on screen and roll immediate replays over the network from any compatible networked device— with only a single Ethernet cable required.
NDI® Telestrator Pro supports telestration over either or both 3Play 3P1 output channels, offers a variety of professional paint tools, shapes, and customizable graphics, and includes responsive transport controls for remote playback. (External PC or touchscreen device with Microsoft® Windows 7 operating system (OS) or better required.)
System Specifications
Video Input: 4 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input: 4 x resolution-independent IP video inputs via NDI®
SDI Video Input 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
- 1080p: 59.94, 50, 29.97, 25, 24, 23.976
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25, 24, 23.976
- 576i 50
- 480i 59.94
Video Output: 2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output: 2 x session-format IP video outputs via NDI®
SDI Video Output: 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session-format video outputs
Multiviewer Output
- 1 x DVI user interface with multiviewer
- 1 x HDMI multiviewer
- 1 x DisplayPort multiviewer
Recording: 4 x simultaneous recording channels
Recording Format: QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1QuickTime Player not required for playback in common NLE applications
Storage: 3 x 3TB internal drive (capacity varies by format, resolution and file specification)
Grab: Grab full-resolution, deinterlaced still images from inputs and outputs
Export: Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK: 1 x DSK channel per output, with independent source selection and transition
Transitions: Supports custom transitions between output channels and playlist clips
Telestration: Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management: Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair (Line)
- 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
- 4 x SDI embedded
- 1 x Balanced XLR stereo pair
- 1 x Balanced 1/4” stereo pair
- 1 x Stereo 1/4" (phones)
Network Audio: Native support for network audio input and output via NDI®
Processing
- Video: Floating Point YCbCr +A 4:4:4:4
- Audio: Floating Point, 96 kHz
Throughput Latency: ~1.0-1.5 frames
A/V Standards
- 3G-SDI video conforms to SMPTE 424M (Level A)
- HD-SDI video conforms to SMPTE 292M
- SD video conforms to SMPTE 259M and ITU-R BT.656
- Analog audio levels conform to SMPTE RP-155
Genlock: Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros: Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
AMP: Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI: Support for standard MIDI protocol enabling third-party device control
System Drive: 120GB SSD
NIC: 2 x 1 Gigabit NIC
System Physical 2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
- 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
- ~26 lbs (~12 kg)
| Blackmagic Design’s Ultimatte 12 goes beyond the power of even the most advanced keyers, also functioning as a high power real time compositing processor. Enjoy superb edge handling, color separation, color fidelity, spill suppression, and more. 12G-SDI technology supports work in HD and Ultra HD for real-time compositing of weather, sports, news, and entertainment in studio environments.
Incredibly life-like composites place your talent into any scene. Computer generated augmented reality objects provide realistic transparency and depth talent can walk behind, even with glass-style objects. The Ultimatte 12 works with fixed cameras and static backgrounds, or automated virtual set systems. On set previsualization is another plus, since actors and directors can see the virtual sets while shooting against a green screen.
Remove the background without affecting foreground colors. Advanced flare, edge and transition processing isolates and treats image sections differently while keeping color transitions smooth. High-level compositing keeps the final product photorealistic.
Green tinting and spill are no longer problematic thanks to the adjustments made to flare algorithms in the Ultimatte 12. Flare automatically samples colors to create seamless mattes for walls, floors, or other parts of your image. Shadows get mapped and composited onto the new background for a realistically three-dimensional view, spill is removed, and transparent objects are cleaned.
Advanced algorithms and large internal color space make it feel like you’re using several Ultimatte keyers on one image. For example, fine edge detail is a great feature for visuals of hair but is not something you would want applied to an entire image. Images are automatically processed based on the colors in each area, so fine edge detail is applied to just the hair portion.
Cameras at different angles see the same green screen slightly differently, which keyers in live production switchers aren’t designed to correct. Ultimatte 12 makes it possible to add keyers to every camera in a shot for the best possible key.
The Ultimatte 12 includes 7 input connections dedicated to compositing different elements together. 12G-SDI connections offer high frame rate Ultra HD from one BNC connection that can plug into your regular HD equipment. Connections let you work with SD, HD, 3G, 6G and 12G-SDI equipment, and in HD or Ultra HD formats up to 2160p60.
Blackmagic Design Ultimatte 12 Features
- Connect to SDI equipment in HD and Ultra HD
- Add augmented reality and virtual elements
- One touch keying
- Advanced image processing
- Expanded internal color space
- New math and sub pixel processing designed for high quality and clarity in HD and Ultra HD
- Incredible color fidelity
- Flare removes green tinting, spill, shadows, and reflections
- Ideal for broadcast news, sports, and traditional TV and film production
- 12 Month Limited Manufacturer's Warranty
| Power supply not included - requires IEC cable.

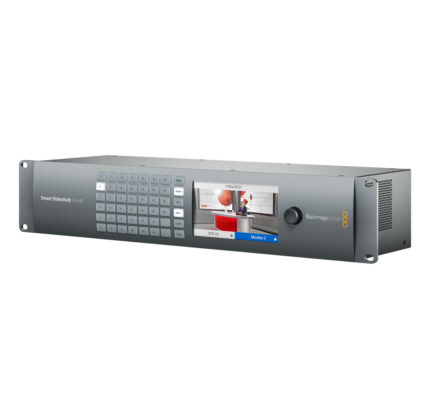

Smart Videohub 40x40 offers a revolutionary routing process. Mixed format router has built-in video monitoring and spin knob router control. The largest of the standard Smart Videohub series, it is still compact at a two rack unit size.
You get an extremely convenient routing process with visual routing. Router connections are shown as video on the LCD screen while you spin the knob to select your routing. Built-in monitor also displays crosspoint connection labels and TV formats. Visual routing makes the routing process faster than ever.
Monitor all the live video connected to the Smart Videohub 40x40 from the LCD screen. LCD supports video in nearly all TV formats, eliminating the need for a separate external monitor. Monitoring from the Videohub is helpful to confirm the correct video inputs are being sent to the correct video outputs.
6G-SDI connections work with standard frame rate Ultra HD video while keeping full compatibility with SD and HD-SDI equipment. You get the quality of SDI video connections with the flexibility to work in any television format, and 4:2:2 or 4:4:4 color sampling.
Multi format technology supports connecting compatible equipment to the router simultaneously. Seamlessly work in NTSC and PAL SD, 720, 1080HD, even 2160 Ultra HD at any frame rate and the router switches standards so inputs match.
Free software developer kit gives you the power to create your own custom router control. The included external software control lets you control the router via network on Mac and Windows. Hardware control panels are available with the Videohub Smart Control Pro and Videohub Master Control Pro (both sold separately). RS-422 protocol can also be used to control Videohub for router crosspoint switching.
Blackmagic Design Smart Videohub 40x40 Features
- 6G-SDI technology
- 40 inputs
- 40 outputs
- Spin knob control
- Work with SD, HD and Ultra HD formats simultaneously
- Visual routing
- Built-in LCD
- Ideal for large systems and OB van use
| The power of Ki Pro in a 1RU format, the perfect fit for your file based workflow.
With a wealth of professional connections including SDI and HDMI, Ki Pro Rack will fit right into your existing cabling and routing system. Ki Pro Rack also features AJA’s industry leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware.
AJA Ki Pro Rack Features
- HD/SD recorder and player
- Record and playback Apple ProRes or Avid DNxHD files
- SDI, HDMI, and Component Video I/O
- AES (BNC) and analog (XLR) audio I/O
- 2x KiStor media bays with Ki Protect
- Balanced XLR analog audio inputs, mic/line/48v switchable
- Multi-channel embedded SDI and HDMI audio
- Up, down, cross-conversion built-in
- REF, LTC, RP-188 and RS-422 support
- REST interface
- Front panel button controls
- Easy to use web UI, configure and control from standard web browsers
- Compact 1RU design
- 3 year warranty
|
