| Content | LiveU LU300 with BirdDog BDP200 Live Production Bundle with IP Pipe PTZ Control
LiveU LU300 - Compact HEVC Field Unit for On-the-Go Live Streaming. The LU300 is a small-sized, cost-effective and reliable HEVC encoder, enabling broadcasters and other content creators to transmit high-quality video on-the-go.
BirdDog P200 - Combining BirdDog's custom NDI silicon chip, 30x optical zoom, and Sony backlit sensor and image module, the BirdDog Eyes P200, in black, is a full NDI 1080p60 PTZ camera designed for large indoor spaces. Thanks to the fast autofocus and zoom ensured by the true Sony image module, the P200 is highly suitable for catching all the fast action in places such as sporting events.
LiveU LU2000 - The LU2000 bonded video decoder is used to receive, decode and playout any HEVC/H.264 bonded video streams sent by LiveU’s range of field units. The LU2000 can also be used as a transmission node when sharing video over the LiveU Matrix video management and distribution platform.
LiveU IP Pipe - Enhance your remote production set-up and reduce costs by remotely controlling your IP-based gear. LiveU’s IP Pipe gives you remote control over a wide variety of network-based equipment.
|
Unbox Your Creativity
High-performance livestream camera is small and light, with expandability and multi-camera control, perfect for livestreamers, broadcasters, and cinema.
Box-Style Cinema & Live Camera
Dual Native ISO, C4K 60p 10-bit recording, 13 stops of dynamic range with V-LogL all in an easy to deploy box-style camera for increased shooting flexibility.
Superior Low Light Performance
High-sensitive 10.2MP Live MOS sensor with Dual Native ISO technology for outstanding low-light video performance.
The Micro Four Thirds name and logos are trademarks or registered trademarks of Olympus Corporation in Japan, the United States, the European Union, and other countries and regions.
A LUMIX First: Simultaneous SDI/HDMI Output
You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering for professional cinematic quality.
A LUMIX First: Ethernet / PoE+ Compatible Camera
Simply by connecting the BGH1 via Ethernet cable, your camera will be powered over Ethernet and allow multiple-camera remote control through the LUMIX Tether software.
IEEE802.3at compliant.
Remote Control Multiple Cameras with LUMIX Tether
Multiple camera recording enabled by Ethernet cable connection on LUMIX Tether software enables more efficient video production.
LUMIX Tether for Multicam software will be released at the product shipment of BGH1.
Front Tally Lamp / Rear Tally Lamp
Thanks to the clean lines of the body design, the tally lamps can be monitored from the front, top, side, or back, a welcome convenience on any shoot.
Stable Connectivity with Simultaneous SDI/HDMI Output
Supports extended cable runs and external monitoring. Supports simultaneous C4K/4K 60p 4:2:0 10-bit internal recording and C4K/4K 60p 4:2:2 10-bit HDMI live output external recording.
Product Specifications:
Image Sensor
Image Sensor Size
19 x 13 mm (4/3")
Sensor Type
MOS
Sensor Resolution
Actual: 10.2 MP
Color Filter
Bayer
Shutter Type
Mechanical Shutter
ISO
160 to 51,200 (Native) / 80 to 204,800 (Expanded)
Advertised Dynamic Range
13 Stops
Signal-to-Noise Ratio
9.7 dB
Camera
Lens Mount
Micro Four Thirds
Lens Communication
Yes
Interchangeable Lens Mount
Yes
Built-In ND Filter
None
Built-In Microphone Type
Stereo
Recording Media
2 x SD Card Slots
Variable Frame Rates
DCI 4K: 1 to 60 fps / 1080p: 1 to 240 fps
Internal Recording
Recording Modes
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 8-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (72 to 100 Mb/s)
AVC-Intra/AVC-LongG/H.264/H.264 Long GOP/H.265/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Gamma Curve
Panasonic V-Gamut, Panasonic V-Log
Audio Recording
MOV: 24-Bit 48 kHz LPCM Audio
MOV: 24-Bit 96 kHz LPCM Audio
MP4: 24-Bit 48 kHz LPCM Audio
MP4: 24-Bit 96 kHz LPCM Audio
Still Image Support
None
External Recording
Video Output
4:2:2 10-Bit via SDI/BNC:
1920 x 1080p at 60 fps
4:2:2 10-Bit via HDMI:
4096 x 2160p at 60 fps
Interfaces
Video Connectors
1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Other I/O
1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input
1 x BNC Timecode Data Input/Output
1 x BNC Genlock Data Input/Output
1 x RJ45 LAN Control, Monitor, Video Input/Output
1 x 2.5 mm LANC Control Input
Wireless Interfaces
2.4 GHz Wi-Fi, Bluetooth Video Output, Control
EVF
EVF
Optional, Not Included
Power
Battery Type
Panasonic AG-VBR Series
Power Connectors
1 x Weipu SF610/S2 (12 VDC) Input
PoE Support
PoE+ 802.3at
General
Tripod Mounting Thread
1/4"-20 Female (Bottom)
Material of Construction
Aluminum
Dimensions
3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
Weight
1.2 lb / 545 g

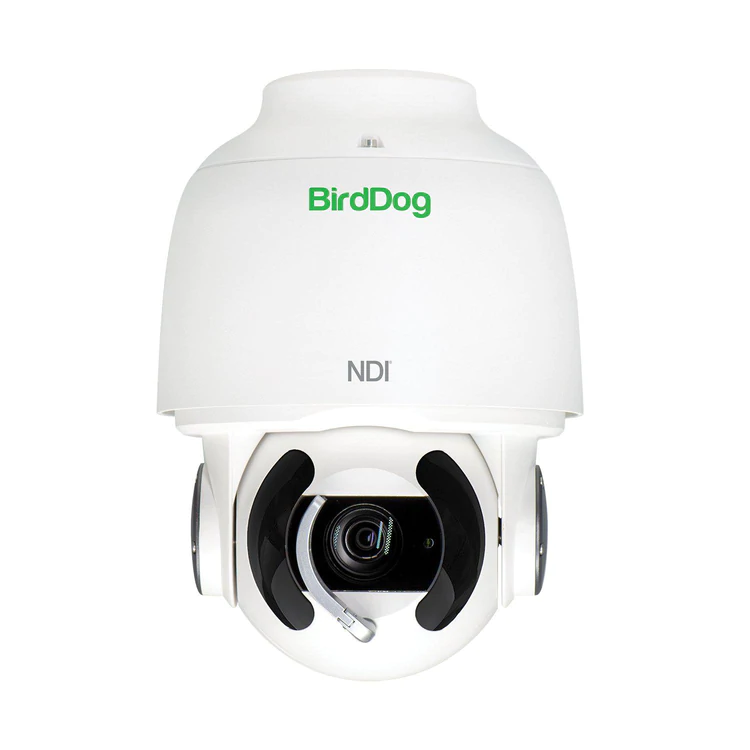

| About BirdDog Eyes A200
BDA200 PTZ camera utilises BirdDog's custom NDI silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.
Designed for serious production the image quality of A200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and NDI simultaneously.
A200 is IP67 rating for outdoor and indoor use. Corrosion Resistant treated housing for salt spray environment. -40 Degree C to +60 Degree C operating temperature. It even has a rain wiper to keep water off the lens. 3.5mm audio connectors allow P100 to work with BirdDog Comms, the world's first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
A200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. A200 is also compatible with BirdDog PTZ Keyboard for ultimate control. | The highest quality full NDI Camera on the planet.

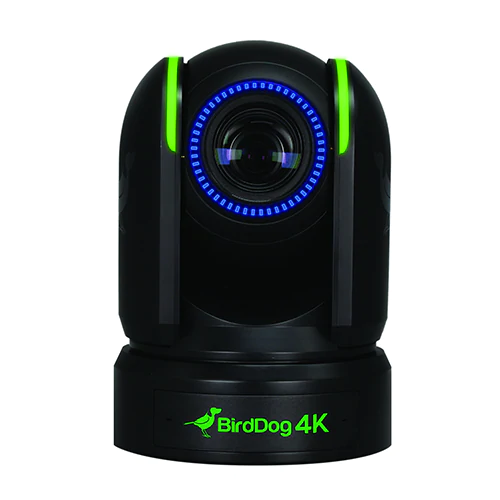

Hello Sony 1” Sensor. Meet NDI.
BDP4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.
Sony 1” Sensor. Size does matter.
The best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.
Full NDI. No compromises.
In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P4K is a Full NDI® camera.
More than just a production PTZ. Shoot true cinematic styles.
P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.
Advanced Colour Controls.
With user selectable gamma settings and black gamma adjustment, fine tuning your shot has never been more flexible in a PTZ. Sony’s legendary sensor technology sets the tone for your next quality production.
10-bit. NDI4.
P4K is a 10-bit sensor and with NDI4 you can have an end to end 10-bit workflow. Perfect for broadcasters and other productions where bit depth matters. With 10-bit support you can record the NDI feeds using free tools such as NewTek NDI Monitor or IsoCorder Pro.
Full NDI. 6G SDI. HDMI 2.0. Life is all about connections.
Full NDI. Two independent 6G SDI outputs and one HDMI 2.0 output, all live all the time to create amazingly flexible workflows.
Genlock. Let that sync in.
With Genlock you can now synchronise multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.
Superfine Robotics. Precise control at your fingers.
P4K’s robotics are super precise and super sensitive. Wind down the panning and tilting speeds to create super professional shots that are dramatic, or crank up the speeds for high action sports to allow you to follow the movements.
360 degree Tally lights.
The front, rear, and side Tally lights combine to create a 360 degree Tally light. Now everyone on the production set can see which camera is live to air.
ePTZ in HD Mode.
In HD Mode you can take advantage of the massive sensor to create Region of Interest for your HD production. Pull any HD frame out of the 4K frame.
Free Comms Lite. Upgrade to Comms Pro.
P4K includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director. For more information on Comms Lite
Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more. Comms Pro is sold separately.
Distribute NDI® content everywhere. Just add Central.
BirdDog Central is a software platform set to redefine the way we think about driving content to TV screens. By teaming up Central with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
CAMERA
- 4K Video Output: Main 4K HDMI Type-A (x1) 6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2
- HD Video Output: Main HD HDMI Type-A (x1) 3G-SDI x2
- Digital Zoom: Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
- Lens: Optical, 12X
- Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
- Number of effective pixels: 4.2 Megapixels
- Picture elements: 3840 x 2160, 8.29 Megapixels
- Horizontal Angle of View Focal Length: 64.6 ̊ (Wide) – 6.1 ̊ (Tele), f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)
- Min. object distance: 80mm (Wide), 1000mm (Tele)
- Aperture: F2.8 Constant (W)~(T), 16 Steps
- Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity mode On) 2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)
- Shutter Speed: 1/10000s to 1/8 (59.94/29.97)
- Focus: Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit
- White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)
- Exposure: Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE
- Features: High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, Day/Night, Defog
- WDR: YES(130dB)
- ND Filter: YES
- Image Stabilizer: YES
- Color Gain: Yes (15 step)
- Color Hue: Yes (15 step)
- Gamma: Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern
- Gamma Level: Yes (15 step)
- Black Level: Yes (97 step)
- Flicker Cancel: Yes
- Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
- S/N Ratio: ≥50db
MECHANICAL
- Body Color: Black, White
- Pan Movement: Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S )
- Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°~50°/S)
- Preset Position: 0~5 Level Adjustable
- Preset Speed: 0~5 Level Adjustable
- Preset Memory: YES, ( Picture Profile Preset-Preset Memory for image parameters)
- Quietness: 45db
- Home Position: Supported
- Environmental: Indoor
INTERFACE
- HDMI Color Space: YCbCr, 4:2:2 RGB, 4:4:4
- NDI Video Encode: Full bandwidth NDI, NDI HX2 long-GOP
- NDI Video Decode: Full bandwidth HD NDI
- NDI Version: NDI v4.0 (Firmware upgradeable)
- IP Video Stream: UP to 4K/30 and 1080p60 h.264/h.265 HEVC
- Camera Control Interface: RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control
- Control Protocol: NDI, VISCA, VISCA Over IP
- LAN: RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt)
- External Sync. Input: BNCX1, 75Ω, HD 3-level sync, SD Black Burst
- Audio I/O: Audio input x1, Audio output x1, 3.5mm audio jack
- Audio Output: Embedded with main HDMI, 24bit Stereo Embedded with SDI, 24bit Stereo Embedded with NDI
- Tally Light: Front and Back
ENVIRONMENTAL
- Mount: Ceiling mount, Wall mount, Tripod
- Operating Temperature: -10 to +40 (°C), 32 to 104 (°F)
- Operating Humidity: ≤80% Suitable for Use
- Power Input: 12VDC, PoE++ (IEEE 802.3bt)
- Power Consumption: 22W
- Dimension: 165x196x247mm
- Weight: 3.4kg
- Video Resolution: 4K
- Sensor Resolution (Mega Pixels): 14.2MP
- Sensor Size: 1 inch
- Sensor Type: CMOS

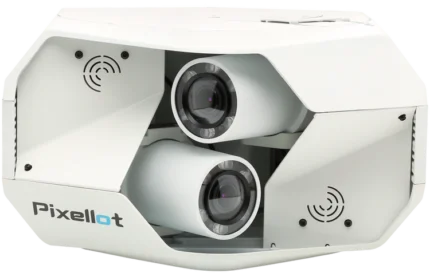

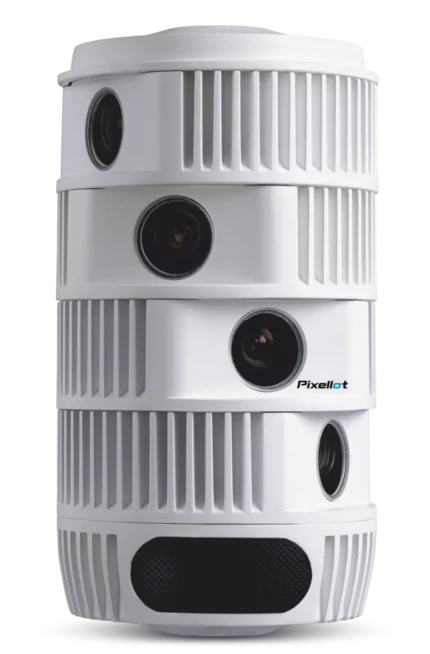

| Pixellot Prime introduces affordable multi-feed production, enabling professional and semi-professional leagues, colleges and youth academies to produce and distribute HD quality broadcasts with a limited video crew and without an OB van.
Advanced Production Suite
Streamlining the production workflow, Pixellot Prime deploys an unmanned panoramic camera to capture the entire field at native 50-60 FPS. From the sporting event venue, the SDI footage is automatically fed into any production suite where the final broadcast is mixed, in real-time.
The suite displays a variety of views and streams, including an auto-produced feed featuring the center of action, streams from additional cameras and preset camera stations to create close-ups and replays. An array of transition options and graphic elements lets directors create TV-grade broadcasts for web portals and mobile apps. Clients opt for either a “clean” feed, streaming only the sports action or a program (“dirty”) feed.
- 8K capture and HD-SDI output, 50/60 FPS
- End-to-end production system, enables production of sports event with single-person crew
- Remote Production Suite to create multi-feed broadcast
- Embedded graphics and ad formats
- Additional audio input for commentator
- Panoramic footage to power VR applications
KEY FEATURES:
- Auto Production
- Panoramic Video
- Spatial Replay
- Auto-Director & Ads
- Automatic Highlights
| Instantly connect with multiple contacts around the world.
NewTek TalkShow VS 4000 is the only professional, multi-channel calling production system for both SDI and IP workflows, designed exclusively for conducting multiple live, production-ready Skype video calls with any combination or sequence of contacts anywhere in the world— simultaneously—in distraction-free, broadcast-quality HD.
Reach 300 million monthly Skype users with:
- 4 concurrent Skype video channels
- 4-in, 4-out HD-SDI connections
- Integrated NDI™ technology supporting input and output over IP
- Included NDI™ Webserver
- Tally notification on all call channels
- The most complete audio and video capabilities
More live guests. More compelling conversations.
Facilitate captivating real-time group conversations, panel discussions, and live interview after live interview with remote guests that enhance the quality and credibility of your program.
Independent Control Interfaces
Easily set up a multi-operator production workflow, with separate interfaces for call and production management. Skype TX Control software can be operated from the TalkShow VS 4000 system or installed on another machine as a standalone call control center, allowing the producer to manage calls and talent, while a production operator handles video and audio.
Group or Queue Callers
Connect with any combination of guests from around the world simultaneously or in sequence, for compelling live conversation, expert analysis, real-time commentary, and in-depth discussion.
IP Networking
Receive video calls over IP anywhere on your network. Built-in NewTek NDI technology allows routing of Skype video calls to any compatible NDI receiving device (including TriCaster® and 3Play™) while enabling selection of any NDI video source for return to caller over the network.
Advanced Audio
Deliver conversations that sound more professional. Independently adjust incoming and outgoing audio signals for the highest-quality sound, with the only video calling system that offers built-in gain control, graphic equalizer, compressor/limiter, and noise gate settings.
Pristine Live Video
Ensure your guests look as good as they sound, with enhanced real-time image processing and fully configurable correction tools, including proc amp controls, auto color setting, and white balance—and clean, deinterlaced return video to caller.
Real-Time Call Monitoring
Conduct every call with complete confidence, by utilizing high-quality, full-motion video previews, accurate on-screen audio VU metering, and selectable multi-view display layouts with configurable monitor overlays.
| Hardware Video Input |
4 x HD-SDI with embedded audio |
| Hardware Video Output |
4 x HD-SDI with embedded audio |
| Hardware Audio Input |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| Hardware Audio Output |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| IP Networking |
Integrated NewTek Network Device Interface (NDI) technology enabling transmission of A/V input and output signals over IP between TalkShow and other supported systems, including TriCaster, 3Play and a range of third-party solutions |
| Dante Audio Networking |
Integrated Dante audio support, enabling TalkShow to interface with other audio devices utilizing the Dante networking protocol from Audinate |
| Call Recording |
Supports full-bandwidth recording of call video and audio (optionally including return audio on separate channels) to external USB 3.0 or SAN storage |
| Video Configuration |
- Fully configurable color correction settings for each incoming Skype video signal, including white balance, proc amp controls and auto color
- Freely selectable video source for return to each Skype caller
|
| Audio Configuration |
- Fully configurable settings for each incoming Skype audio signal, including gain control, seven-band equalizer, compressor/limiter, and noise gate
- Freely selectable audio source and mix-minus channel control for return to each Skype caller
|
| Talk Back |
Supports direct, off-air communication between operator and remote callers individually or as a group via headset (optionally configurable for control via external GPI trigger) |
| Call Management |
- Supports multi-channel Skype TX call management locally or over IP via Skype TX controller application
- Local production control supporting per-channel configuration of call video and audio, and Talk Back communication via TalkShow user interface
- Direct mouse and keyboard USB interface required
|
| Local Monitoring |
- DVI and HDMI ports for connecting external monitors
- Stereo 1/4” phone jack for local audio monitoring
- Full-motion input and output video previews within user interface, including optional picture-in-picture overlay of return video for each call monitor
- Configurable multi-view workspace, including selectable layouts and optional overlays including title safe, 4:3 safe, center cross and VU meters
- Audio VU metering
|
| Output Video Formats |
Configurable call video output resolution and frame rate, with support for NTSC and PAL formats
- 1080i – 25, 29.97, 30
- 1080p – 23.98, 24
- 720p – 50, 59.94, 60
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) – 29.97
|
| Return Video Formats |
Configurable return video input resolution and frame rate, with support for NTSC and PAL formats (available selections vary depending on output video format selected)
- 1080i – 29.97, 25
- 1080p – 30, 30 PsF, 24, 24 (Telecine), 25, 25 PsF
- 720p – 30, 25, 24
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) - 29.97
|
| Watermark |
Optionally supports Skype logo watermark on output |
| Tally |
Supports hardware tally via HD15 GPI connector or network tally via NewTek NDI |
| GPI |
HD15 GPI connector |
| Reference |
- Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
- +4dBU audio reference level
|
| Signal Monitoring |
Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709 |
| Software |
Microsoft Windows 10 OS, Skype TX 4 software, Skype TX controller application, and TalkShow control software |
| CPU |
4th Generation i7 Quad-Core |
| Graphics |
Intel HD4600 GPU |
| Memory |
8Gb |
| Storage |
120Gb internal SSD |
| Processing |
Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96 kHz, 32-bit Floating Point |
| Standards |
HD-SDI video conforms to SMPTE 292M
SD-SDI video conforms to SMPTE 259M |
| Network |
Dual gigabit Ethernet NIC supporting Skype TX call transmission, NDI transmission to and from supported systems, Dante audio networking, and local network traffic |
| Fail-Safe |
- Multi-tiered fail-safe system
- Automatic failover to audio transmission with caller snapshot when bandwidth falls below operator-defined preset value
- Comprehensive system restore operation
|
| System Physical |
1RU Rack Mount with 180W power supply (110-220V external; 12V internal)
- 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
- 15 lbs (6.8 kg)
|
|
Reviews
There are no reviews yet.
