| Content | LiveU LU300 with BirdDog BDP200 Live Production Bundle with IP Pipe PTZ Control
LiveU LU300 - Compact HEVC Field Unit for On-the-Go Live Streaming. The LU300 is a small-sized, cost-effective and reliable HEVC encoder, enabling broadcasters and other content creators to transmit high-quality video on-the-go.
BirdDog P200 - Combining BirdDog's custom NDI silicon chip, 30x optical zoom, and Sony backlit sensor and image module, the BirdDog Eyes P200, in black, is a full NDI 1080p60 PTZ camera designed for large indoor spaces. Thanks to the fast autofocus and zoom ensured by the true Sony image module, the P200 is highly suitable for catching all the fast action in places such as sporting events.
LiveU LU2000 - The LU2000 bonded video decoder is used to receive, decode and playout any HEVC/H.264 bonded video streams sent by LiveU’s range of field units. The LU2000 can also be used as a transmission node when sharing video over the LiveU Matrix video management and distribution platform.
LiveU IP Pipe - Enhance your remote production set-up and reduce costs by remotely controlling your IP-based gear. LiveU’s IP Pipe gives you remote control over a wide variety of network-based equipment.

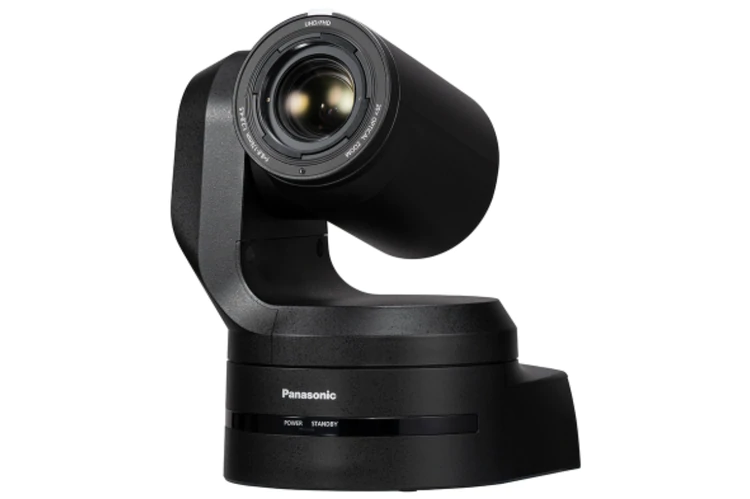

| The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
KEY FEATURES
- High Sensitivity Achieved with the 1” Large-sized Sensor
- Optical 20x Zoom/Horizontal 75.1° Wide-angle Shooting
- Pan/tilt Performance that Achieves Smooth and Accurate Operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.
Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
Dimensions (W x H x D)
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket)
General
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Finish
AW‑HE145W: Pearl white
AW‑HE145K: Metallic Black
Mass
Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
Controller Supported
AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
LENS
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Synchro scan
59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
Zoom
• Optical zoom: 20x
• i.Zoom: FHD 32x
• Digital zoom: 10x
Horizontal Resolution
1000 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
WHITE BALANCE
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Output Format
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
Scene File
Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed
59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Imaging Sensors
1-type Full-HD MOSx1
Chroma Amount Variability
OFF, –99 % to 99 %
Camera Unit
-
Frame mix*3
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
INPUT
-
OUTPUT
-
Input/Output Connector
LAN
LAN connector for IP control (RJ‑45)
RS-422
CONTROL IN RS-422A (RJ‑45)
MIC/LINE input
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV
INPUT/OUTPUT
-
Pan/Tilt Operation Speed
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*8
• Maximum speed is 180°/s in high-speed mode
Quietness
NC35 or less
Tilting Range
–30° to 210°*9
Panning range
±175°
Pan-tilt Head Unit
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control
IP connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
Supported operating systems and web browsers
Windows
Microsoft(R) Windows(R) 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
MacOS v11.0.1 / Safari 14.01
MacOS v11.0.1 / Google Chrome
MacOS V10.15 / Google Chrome
MacOS V10.14 / Google Chrome
iPhone / iPad
iOS
Google Chrome
Supported Operating Systems and Web Browsers*10
-
Image Resolution
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
1920x1080, 1280x720, 640x360, 320x180
-
Image Transmission Setting
JPEG
Frame Rate: Maximum 30 fps, Image quality (Fine / Normal)
H.264
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
H.265
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
NDI|HX
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.264
Transmission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.265
Transimission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
RTMP/RTMPS
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
Supported protocol
IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP
IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Other Function
-
Tally LED display color
red / green
NDI Support*11
NDI | HX
Note
*1: Available in September 2021.
*2: 1 dB step increments can be set.
*3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.
*4: Native output.
*5: It denotes “1080/23.98p over 59.94i”.
*6: Use of an STP (shielded twisted pair) cable is recommended.
*7: To ensure safety, the unit must be secured using the mount bracket supplied.
*8: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode.
*9: Depending on the pan or tilt position, the camera may be reflected in the image.
*10: Supported OS indicated are for browsers current as of October 2018. See Service and Support (https://eww.pass.panasonic.co.jp/p2ui/guest/TopLogin.do?lang=en&category=pav) for the latest information on browser support.
*11: Contact your local Panasonic vendor for further information. | Instantly connect with multiple contacts around the world.
NewTek TalkShow VS 4000 is the only professional, multi-channel calling production system for both SDI and IP workflows, designed exclusively for conducting multiple live, production-ready Skype video calls with any combination or sequence of contacts anywhere in the world— simultaneously—in distraction-free, broadcast-quality HD.
Reach 300 million monthly Skype users with:
- 4 concurrent Skype video channels
- 4-in, 4-out HD-SDI connections
- Integrated NDI™ technology supporting input and output over IP
- Included NDI™ Webserver
- Tally notification on all call channels
- The most complete audio and video capabilities
More live guests. More compelling conversations.
Facilitate captivating real-time group conversations, panel discussions, and live interview after live interview with remote guests that enhance the quality and credibility of your program.
Independent Control Interfaces
Easily set up a multi-operator production workflow, with separate interfaces for call and production management. Skype TX Control software can be operated from the TalkShow VS 4000 system or installed on another machine as a standalone call control center, allowing the producer to manage calls and talent, while a production operator handles video and audio.
Group or Queue Callers
Connect with any combination of guests from around the world simultaneously or in sequence, for compelling live conversation, expert analysis, real-time commentary, and in-depth discussion.
IP Networking
Receive video calls over IP anywhere on your network. Built-in NewTek NDI technology allows routing of Skype video calls to any compatible NDI receiving device (including TriCaster® and 3Play™) while enabling selection of any NDI video source for return to caller over the network.
Advanced Audio
Deliver conversations that sound more professional. Independently adjust incoming and outgoing audio signals for the highest-quality sound, with the only video calling system that offers built-in gain control, graphic equalizer, compressor/limiter, and noise gate settings.
Pristine Live Video
Ensure your guests look as good as they sound, with enhanced real-time image processing and fully configurable correction tools, including proc amp controls, auto color setting, and white balance—and clean, deinterlaced return video to caller.
Real-Time Call Monitoring
Conduct every call with complete confidence, by utilizing high-quality, full-motion video previews, accurate on-screen audio VU metering, and selectable multi-view display layouts with configurable monitor overlays.
| Hardware Video Input |
4 x HD-SDI with embedded audio |
| Hardware Video Output |
4 x HD-SDI with embedded audio |
| Hardware Audio Input |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| Hardware Audio Output |
4 x embedded SDI audio
2 x Balanced XLR (Line) |
| IP Networking |
Integrated NewTek Network Device Interface (NDI) technology enabling transmission of A/V input and output signals over IP between TalkShow and other supported systems, including TriCaster, 3Play and a range of third-party solutions |
| Dante Audio Networking |
Integrated Dante audio support, enabling TalkShow to interface with other audio devices utilizing the Dante networking protocol from Audinate |
| Call Recording |
Supports full-bandwidth recording of call video and audio (optionally including return audio on separate channels) to external USB 3.0 or SAN storage |
| Video Configuration |
- Fully configurable color correction settings for each incoming Skype video signal, including white balance, proc amp controls and auto color
- Freely selectable video source for return to each Skype caller
|
| Audio Configuration |
- Fully configurable settings for each incoming Skype audio signal, including gain control, seven-band equalizer, compressor/limiter, and noise gate
- Freely selectable audio source and mix-minus channel control for return to each Skype caller
|
| Talk Back |
Supports direct, off-air communication between operator and remote callers individually or as a group via headset (optionally configurable for control via external GPI trigger) |
| Call Management |
- Supports multi-channel Skype TX call management locally or over IP via Skype TX controller application
- Local production control supporting per-channel configuration of call video and audio, and Talk Back communication via TalkShow user interface
- Direct mouse and keyboard USB interface required
|
| Local Monitoring |
- DVI and HDMI ports for connecting external monitors
- Stereo 1/4” phone jack for local audio monitoring
- Full-motion input and output video previews within user interface, including optional picture-in-picture overlay of return video for each call monitor
- Configurable multi-view workspace, including selectable layouts and optional overlays including title safe, 4:3 safe, center cross and VU meters
- Audio VU metering
|
| Output Video Formats |
Configurable call video output resolution and frame rate, with support for NTSC and PAL formats
- 1080i – 25, 29.97, 30
- 1080p – 23.98, 24
- 720p – 50, 59.94, 60
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) – 29.97
|
| Return Video Formats |
Configurable return video input resolution and frame rate, with support for NTSC and PAL formats (available selections vary depending on output video format selected)
- 1080i – 29.97, 25
- 1080p – 30, 30 PsF, 24, 24 (Telecine), 25, 25 PsF
- 720p – 30, 25, 24
- 576i (16:9 or 4:3) – 25
- 480i (16:9 or 4:3) - 29.97
|
| Watermark |
Optionally supports Skype logo watermark on output |
| Tally |
Supports hardware tally via HD15 GPI connector or network tally via NewTek NDI |
| GPI |
HD15 GPI connector |
| Reference |
- Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
- +4dBU audio reference level
|
| Signal Monitoring |
Integrated Waveform and Vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 601 and 709 |
| Software |
Microsoft Windows 10 OS, Skype TX 4 software, Skype TX controller application, and TalkShow control software |
| CPU |
4th Generation i7 Quad-Core |
| Graphics |
Intel HD4600 GPU |
| Memory |
8Gb |
| Storage |
120Gb internal SSD |
| Processing |
Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96 kHz, 32-bit Floating Point |
| Standards |
HD-SDI video conforms to SMPTE 292M
SD-SDI video conforms to SMPTE 259M |
| Network |
Dual gigabit Ethernet NIC supporting Skype TX call transmission, NDI transmission to and from supported systems, Dante audio networking, and local network traffic |
| Fail-Safe |
- Multi-tiered fail-safe system
- Automatic failover to audio transmission with caller snapshot when bandwidth falls below operator-defined preset value
- Comprehensive system restore operation
|
| System Physical |
1RU Rack Mount with 180W power supply (110-220V external; 12V internal)
- 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
- 15 lbs (6.8 kg)
|
| The HD integrated camera AW-HE145 realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
KEY FEATURES
- High Sensitivity Achieved with the 1” Large-sized Sensor
- Optical 20x Zoom/Horizontal 75.1° Wide-angle Shooting
- Pan/tilt Performance that Achieves Smooth and Accurate Operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
High-Quality Full-HD 60p Shooting
Full-HD output and 59.94p shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.
SRT support for stable video transmission over public lines
SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Multiple Interfaces Supported
A wide range of outputs are supported: 3G-SDI, HDMI and IP.
Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.
Dimensions (W x H x D)
213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, direct ceiling mount bracket)
General
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Current consumption
4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Finish
AW‑HE145W: Pearl white
AW‑HE145K: Metallic Black
Mass
Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
Controller Supported
AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
LENS
Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
MINIMUM ILLUMINATION
2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Synchro scan
59.94p/59.94i: 60.00 Hz to 7200 Hz
29.97p: 30.00 Hz to 7200 Hz
23.98p/24p: 24.00 Hz to 7200 Hz
50p/50i: 50.00 Hz to 7200 Hz
25p: 25.00 Hz to 7200 Hz
Zoom
• Optical zoom: 20x
• i.Zoom: FHD 32x
• Digital zoom: 10x
Horizontal Resolution
1000 TV lines Typ (Center area)
Gain Selection
Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
WHITE BALANCE
ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Optical Filter
Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Output Format
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Gamma
HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
Scene File
Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed
59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Imaging Sensors
1-type Full-HD MOSx1
Chroma Amount Variability
OFF, –99 % to 99 %
Camera Unit
-
Frame mix*3
0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Standard Sensitivity
F9, 2000 lx (When normal mode is selected)
INPUT
-
OUTPUT
-
Input/Output Connector
LAN
LAN connector for IP control (RJ‑45)
RS-422
CONTROL IN RS-422A (RJ‑45)
MIC/LINE input
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack
Input impedance: Approx. 10 kΩ (unbalanced)
• During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. –10 dBV
INPUT/OUTPUT
-
Pan/Tilt Operation Speed
Minimum speed 0.08°/s
Maximum speed 60°/s or higher*8
• Maximum speed is 180°/s in high-speed mode
Quietness
NC35 or less
Tilting Range
–30° to 210°*9
Panning range
±175°
Pan-tilt Head Unit
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control
IP connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft)
AW protocol connecting cable:
LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
Supported operating systems and web browsers
Windows
Microsoft(R) Windows(R) 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
MacOS v11.0.1 / Safari 14.01
MacOS v11.0.1 / Google Chrome
MacOS V10.15 / Google Chrome
MacOS V10.14 / Google Chrome
iPhone / iPad
iOS
Google Chrome
Supported Operating Systems and Web Browsers*10
-
Image Resolution
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265
1920x1080, 1280x720, 640x360, 320x180
-
Image Transmission Setting
JPEG
Frame Rate: Maximum 30 fps, Image quality (Fine / Normal)
H.264
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
H.265
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
NDI|HX
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.264
Transmission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
SRT H.265
Transimission Type: UDP Unicast Only
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
RTMP/RTMPS
Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps
Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps
Supported protocol
IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP
IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Other Function
-
Tally LED display color
red / green
NDI Support*11
NDI | HX
| End to End Automatic Production
Reducing production costs to a minimum, our fully automated production systems enable amateur clubs, schools, federations, media platforms and venues to generate live HD content to power their own digital media services, boost fan engagement and improve their coaching processes. What’s more, Pixellot footage is interactive and delivered to any device lets fans watch their favorite team from anywhere, produce their own highlight clips and even share them on social networks.
Pixellot S is based on their patented, fully automated production workflow that generates and delivers TV-like footage without a person in the loop.
Fixed Installation: Indoors or outdoors, weatherproof
Unmanned capture: Panoramic field capture in 6K resolution
Automated production: Auto-tracking algorithms follow the flow of play and produce TV-like footage
Distributed to any device: Streamed in 4K quality to mobile devices and web platforms
Personalized viewing experience: Zoom into any scene, replay, clip and share.
Pixellot S comes with a variety of modules to optimize your system for media or coaching use:
Automatic highlights
Taking auto-production to the next level, this module identifies game highlights like baskets or goals and automatically produces highlight clips.
Editing Module
Share the most exciting plays with your fans! Our editing module lets you cut high quality clips from HD footage, live and post-game, and distribute them on your media channels.
Manual Production Module
Produce any type of sports game and events and cover also anything that happens on the field before and after the game.
Coaching Module
Get more insight by reviewing the game by zooming into any play and cut high-quality clips to review with your team and players.
Scoreboard Module
Enrich your broadcasts through an integrated scoreboard display. Choose from a selection of fonts, colors and designs or upload your own personalized scoreboard graphics.
Commentator
Add a remote or local commentator to follow the action and improve the viewing experience
KEY FEATURES:
- Auto Production Multiple Sports
- Panoramic Video
- Full Field Video Coverage
- Personal Video
- Identifying Game States
- Automatic Highlights
| Bring UHD 4K quality video to your production with the white AW-UE150W UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility. With the v2.28 firmware upgrade, the AW-UE150W offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.
Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video. A cropping function enables you to create a multicamera look by selecting up to three angles from a single 4K image.
The AW-UE150W camera supports embedded audio and audio input via a stereo mini-jack. Its redesigned web interface is compatible with PCs, Macs, tablets, and both Android and iOS smartphones. Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP. The AW-UE150W is upgradable to NDI/HX compatibility with a separately available license.
PoE++ Compatible
Power the camera using a separately available PoE++ (IEEE802.3bt) hub to minimize installation costs
Firmware Upgrade v2.28
Add V-Log output, a UHD crop function for 720/59.94p and 720/50p, a preset iris on/off function, and more by upgrading to firmware version 2.28
Features
-Large 1" type MOS sensor
-HDMI, SDI, and IP output up to UHD 4K
-20x optical, 32x iZoom in HD, 24x iZoom in UHD 4K
-Wide 75.1° horizontal angle of view (DRS)
-High Dynamic Range (HDR) mode with BT.2020 gamut support
-Optical Image Stabilization (IOS)
-Crop up to three shots from a single 4K image
-Large, adjustable tally light
-Adaptive Matrix function adjusts for strong LED blue light
1/4, 1/16, 1/64 ND filters
-Audio input and embedding
-Improved web UI for use with PC, tablet, or smartphone (iOS, Android)
-Maximum 180°/s pan/tilt in high-speed mode
-Monochrome Night Mode
-Digital Noise Reduction (DNR)
-Live streaming via RTMP
-Upgradable to NDI/HX with license
Video Output
- HDMI 2.0 standard 4:2:2/10bit
- HDCP is not supported.
- Viera Link is not supported.
- 12G-SDI OUT
- SMPTE 2082‑1 standard / 75 Ω (BNC x 1)
- 3G-SDI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Level-A/Level-B supported
- MONI OUT
- SMPTE292 / 75 Ω (BNC x 1)
- Optical Fiber SFP+ standard
- Single Fiber
- The signal sent is the same as 12G-SDI OUT.
- his unit does not support input by optical signals.
Zoom
- Optical zoom: 20x
- i.Zoom: UHD 24x, FHD 32x
- Digital zoom: 10x
Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Power Requirements: 12 V DC (10.8 V to 13.2 V)
PoE++: IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current Consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity: 20 % to 90 % (no condensation)
Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Mass: Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D): 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket)
Finish
- AW‑UE150WP/AW‑UE150WE: Pearl white
- AW‑UE150KP/AW‑UE150KE: Black
Controller Supported: AW-RP150GJ, AW-RP60GJ (Support planned for the future)*1, AW-RP50*1, AK-HRP1000GJ*1, AK-HRP1005GJ*1
Camera Unit
Imaging Sensors: 1-type 4K MOS×1
Lens
- Motorized Optical 20x zoom, F2.8 to F4.5
- [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
Conversion Lens: Not supported
Angle of View Range
- Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
- Vertical angle of view: 46.7° (wide) to 2.3° (tele)
- Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus: Switching between auto and manual
Focus Distance
- Entire zooming range: 1000 mm (3.3 ft)
- Wide end: 100 mm (0.33 ft)
Color Separation Optical System: 1MOS
Standard Sensitivity: F9, 2000 lx (When normal mode is selected)
Minimum Illumination: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N: 60 dB or more
Horizontal Resolution: 1600 TV lines Typ (Center area)
Gain Selection
- Auto, 0 dB to 36 dB*2
- Super Gain function equipped : 37 dB to 42 dB
Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed
- 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan
- 59.94p/59.94i: 60.00 Hz to 7200 Hz
- 29.97p: 30.00 Hz to 7200 Hz
- 23.98p/24p: 24.00 Hz to 7200 Hz
- 50p/50i: 50.00 Hz to 7200 Hz
- 25p: 25.00 Hz to 7200 Hz
Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
White Balance
- ATW : 3200K, 5600K
- ATW Speed : Normal / Slow / Fast
- AWB : AWB-A / AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability: OFF, –99 % to 99 %
Scene File: Scene1, Scene2, Scene3, Scene4
Output Format
- 4K: 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
- HD: 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF,1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i,720/59.94p, 720/50p
Synchronization System: Internal / External synchronization (BBS / Tri-level sync)
INPUT
Input Connector
- DC 12 V IN, G/L IN (BNC)
- BBS (Black Burst Sync), tri-level sync supported
Input/Output Connector:
- LAN
- LAN connector for IP control (RJ‑45)
- RS-422
- CONTROL IN RS-422A (RJ‑45)
- MIC/LINE input
- ø 3.5 mm stereo mini jack Input impedance: High impedance
- During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
- During LINE input Input level: Approx. –10 dBV ±3 dBV
Pan-tilt Head Unit
Camera/Pan-tilt Head Control:
- IP connecting cable
- LAN cable*6*7: (category 5e or above, straight cable / crossover cable) max. 100 m (328 ft)
- AW protocol connecting cable
- LAN cable*6 (category 5e or above, straight cable)
- max. 1000 m (3280 ft)
Installation Method: Stand-alone (Desktop) or suspended (Hanging)
Pan/tilt Operation Speed
- Minimum speed 0.08°/s
- Maximum speed 60°/s or higher
- Maximum speed is 180°/s in high-speed mode
Panning Range: ±175°
Tilting range: –30° to 210° 0
Quietness: NC35 or less
Supported operating systems and web browsers
- Windows
- Microsoft® Windows® 7, 10
- Windows® Internet Explorer® 11 (64‑bit/32‑bit)
- Microsoft Edge
- Google Chrome
- Mac
- Mac OS 10.13
- Mac OS 10.12
- Mac OS 10.11,
- Safari 11
- Google Chrome
- iPhone / iPad
- iOS 11.4.1
- Google Chrome
IP Streaming
Image Streaming Mode: JPEG (MJPEG), H.264, H.265
Image Transmission setting (JPEG):
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
Image Transmission Setting (H.264)
- Image quality (Motion priority / Image quality priority) UHD 60 fps / 50 fps
- Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Transmission Priority: Constant bit rate, Frame rate, Best effort
- Frame Rate: [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)[50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
- Max Bit Rate
- HD:512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps
- UHD:12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265)
- Image Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
- Frame Rate: [60Hz] 30fps, [50Hz] 25fps
- Max Bit Rate: 8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
- Audio Compression Type: AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol
- IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP,MLD, ICMP, ARP, RTMP, RTMPS
- IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS
Other Function
NDI support: NDI | HX
Tally LED display color: red / green |
Reviews
There are no reviews yet.
